We work closely with you from concept to final product, providing guidance and expertise along the way. Whether you require small-scale production or large-scale manufacturing for electronics enclosures, we can deliver exceptional results.
Design and Engineering

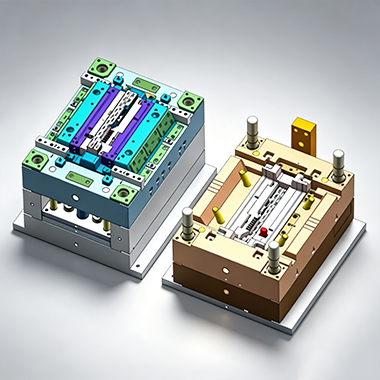

Advanced 3D solid modeling DFM, mold Flow analysis, and mold design 25-person engineering team, including 6 senior engineers with over 20 years of expertise.

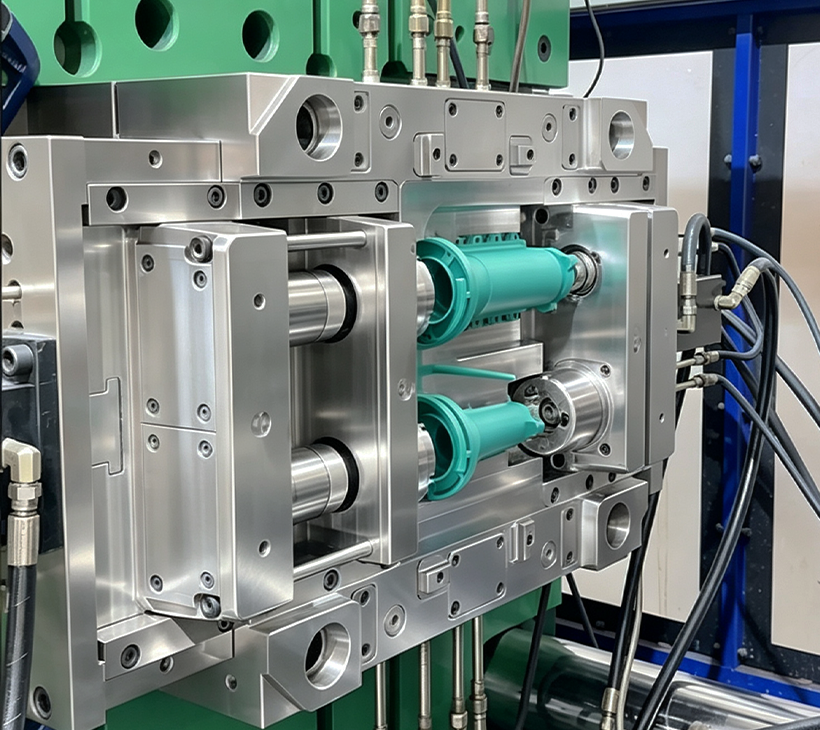

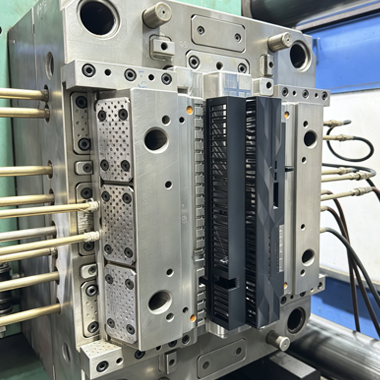

Mold Manufacturing
100+ world-class machining equipment Rapid toolings and production toolings In-house tool manufacturing (We never outsource)
Injection Molding
30+ FANUC&Haitian injection molding machines Insert molding, overmolding & two shot molding Added value post moulding & finishing operations

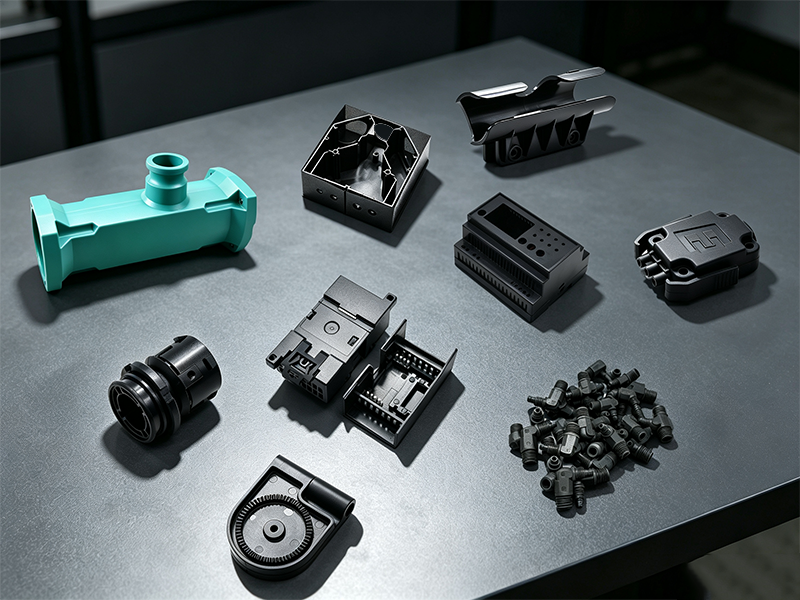

Applications of Industrial Injection Molding
If you need top-tier injection molding capabilities for your industrial products, Alpine Mold is here to bring your ideas to life. Contact us today to discuss your project and learn more about how we can be your trusted partner in industrial injection molding excellence.

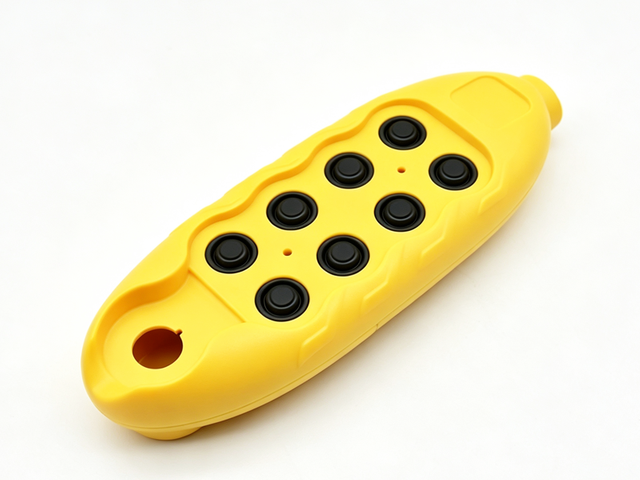

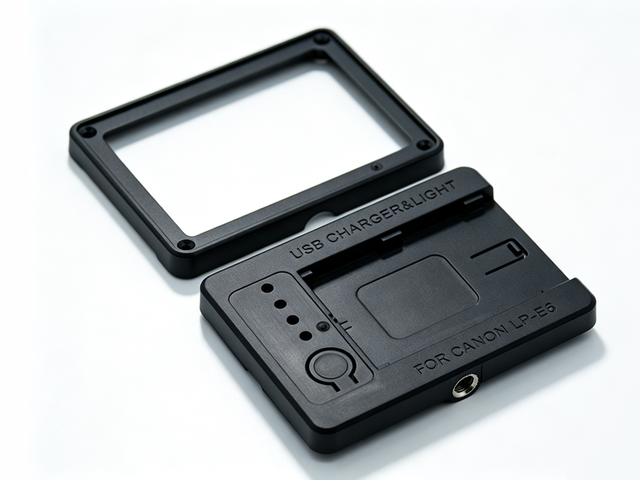

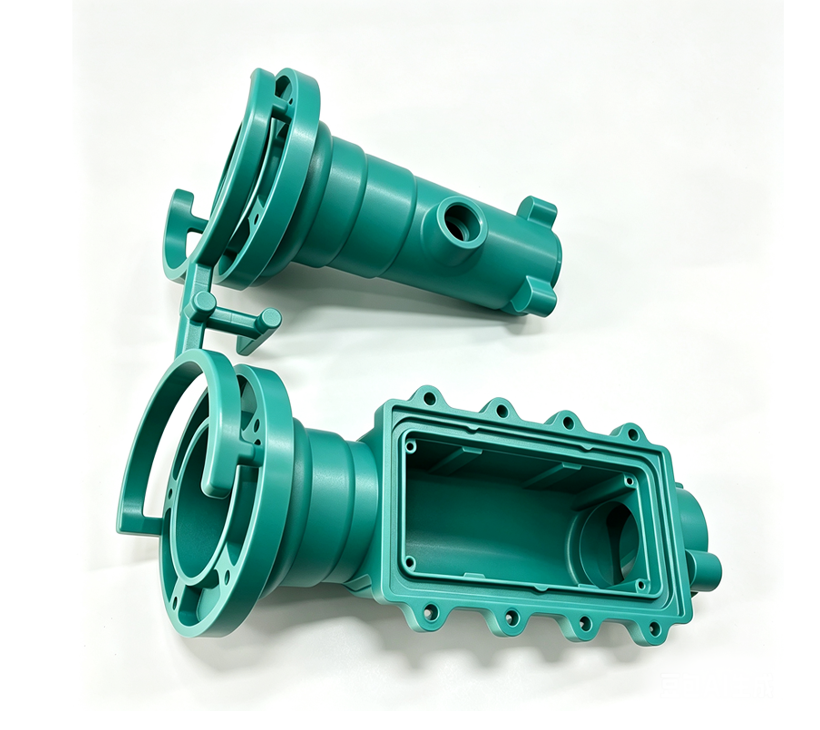

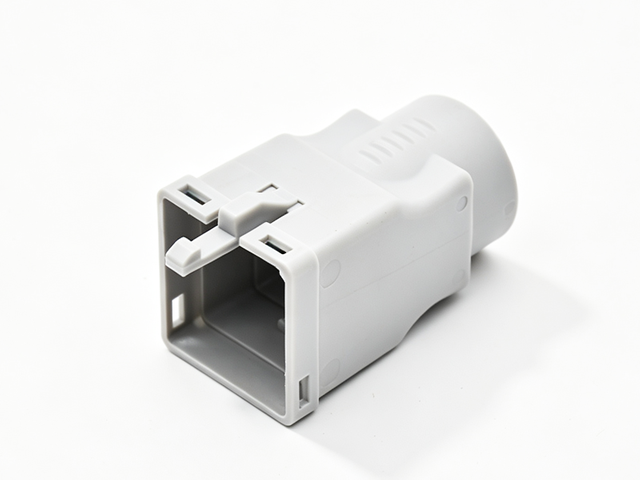

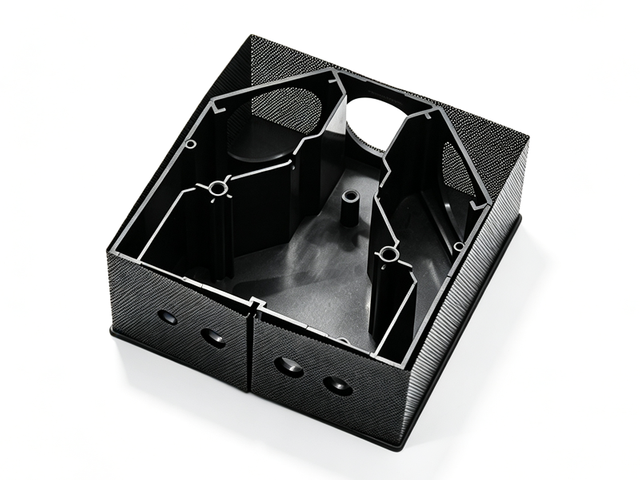

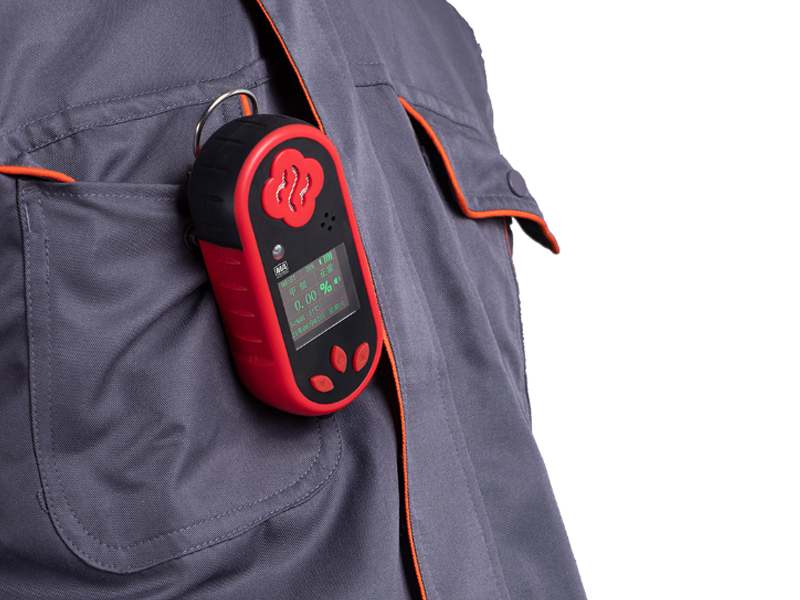

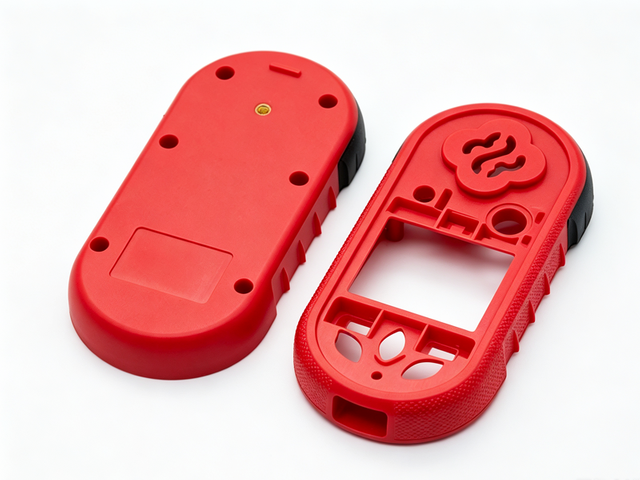

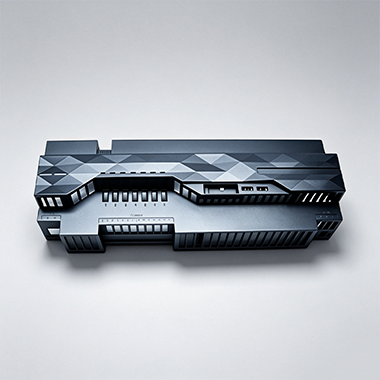

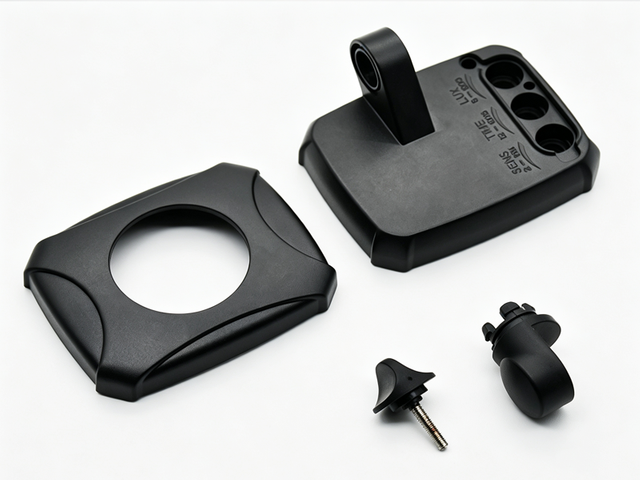

1. Industrial Equipment Housings and Protective Parts
These parts are mainly used to protect internal circuits, sensors, and mechanical components while also meeting requirements for installation, heat dissipation, dust protection, and appearance.
Common materials: ABS, PC, PC+ABS, PA, PBT, flame-retardant ABS, flame-retardant PC, etc.

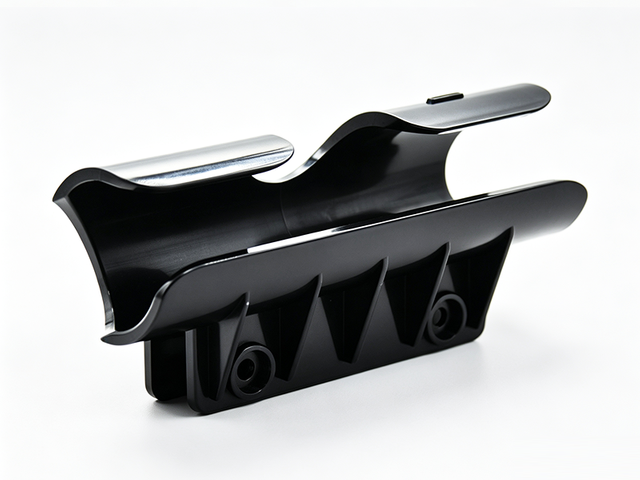

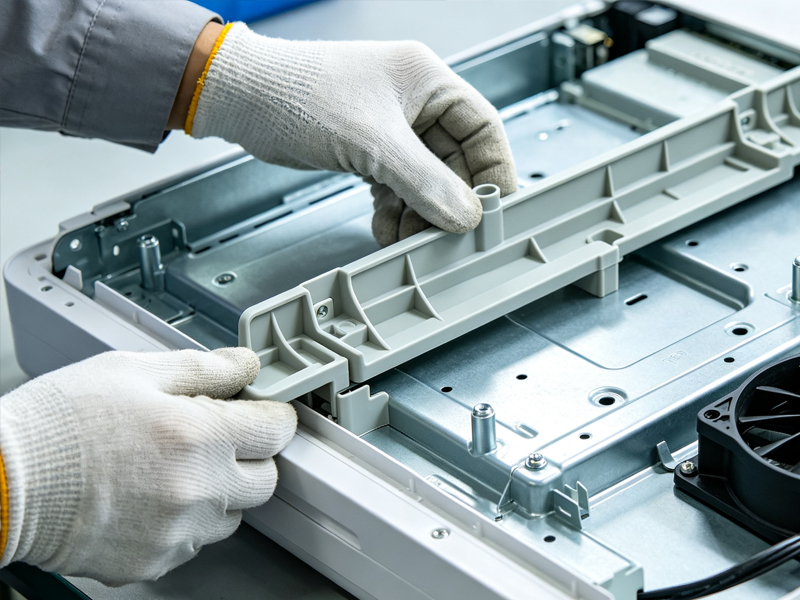

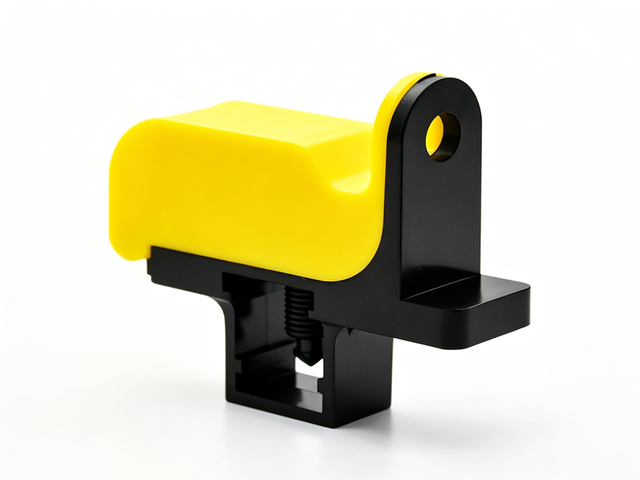

2. Mounting and Structural Parts
These parts are mainly used for installation, fixing, positioning, support, and connection inside or outside industrial equipment. They often include ribs, clips, screw bosses, and insert structures, etc. Common products: Plastic brackets, mounting bases, mounting plates, connectors, clips, slide rails, guide parts, protective covers, wire harness fasteners, pipe clamps, and internal support frames, etc. Common materials: PA, PA66, glass fiber-reinforced PA, PBT, PC, ABS, PP, and POM, etc.

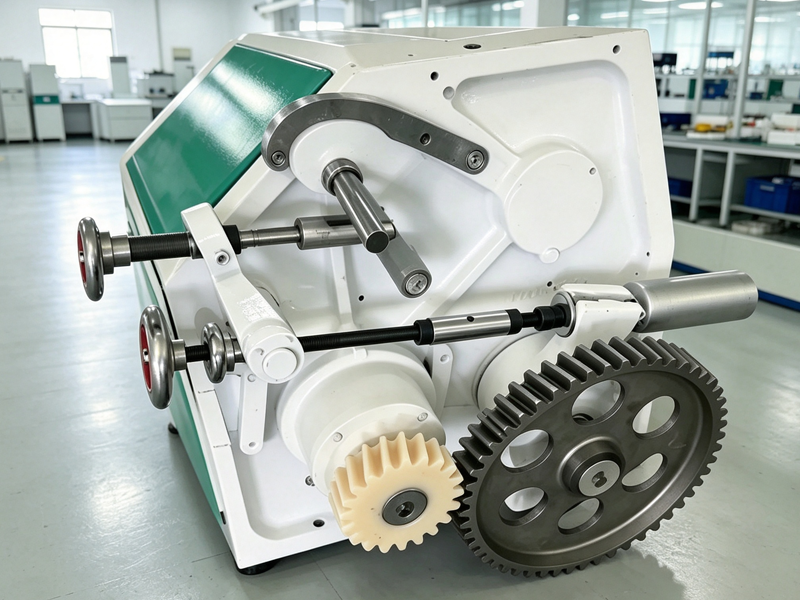

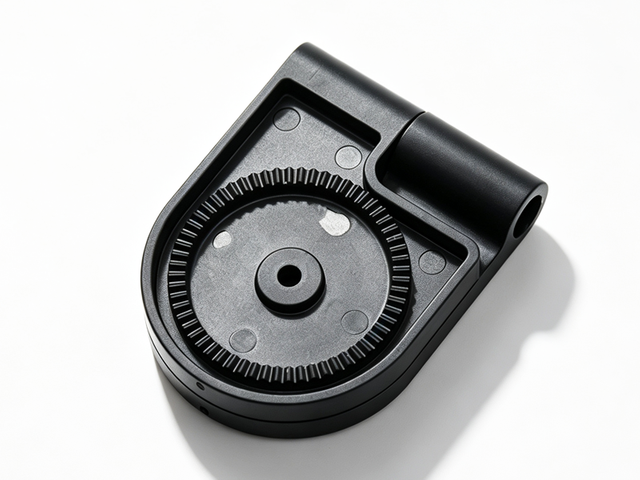

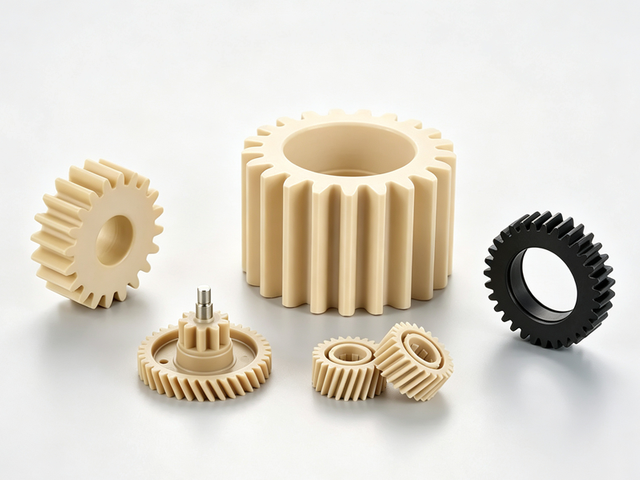

3. Mechanical Transmission and Functional Parts
These parts perform transmission, sliding, guiding, locking, or operating functions during equipment operation, so they usually require good wear resistance and dimensional accuracy. Common products: Plastic gears, racks, bushings, rollers, sliders, pulleys, handles, knobs, latches, fixture components, guide wheels, and threaded caps, etc. Common materials: POM, PA66, glass fiber-reinforced PA, PBT, PPS, PEEK, and UHMW-PE, etc.

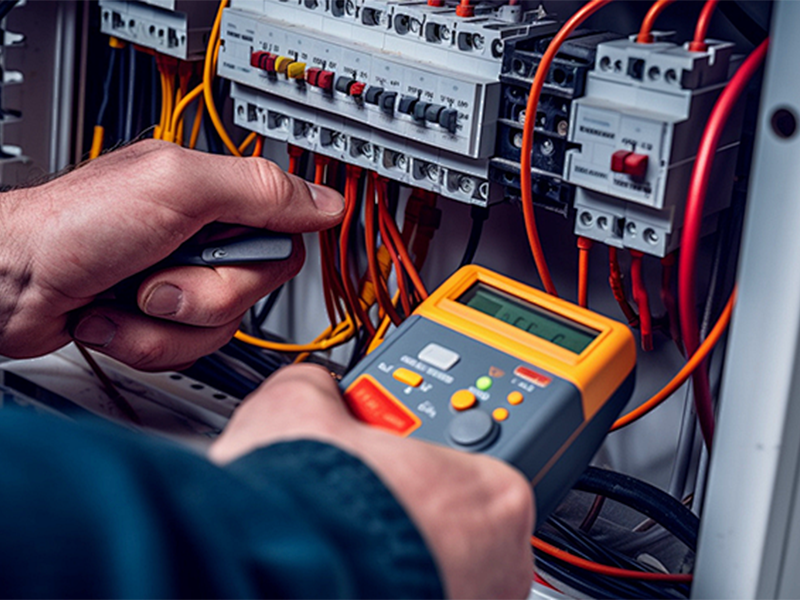

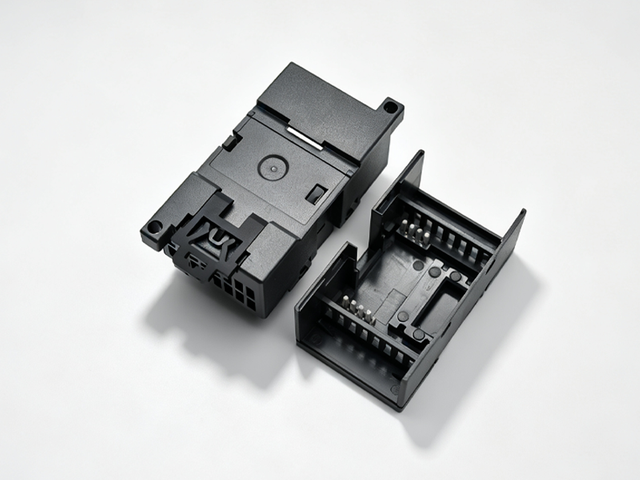

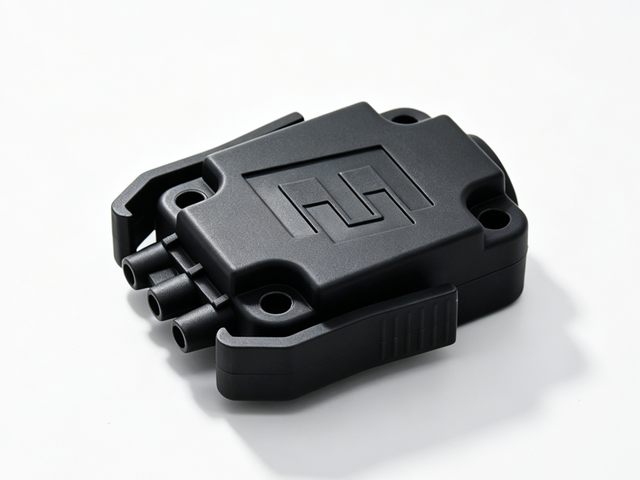

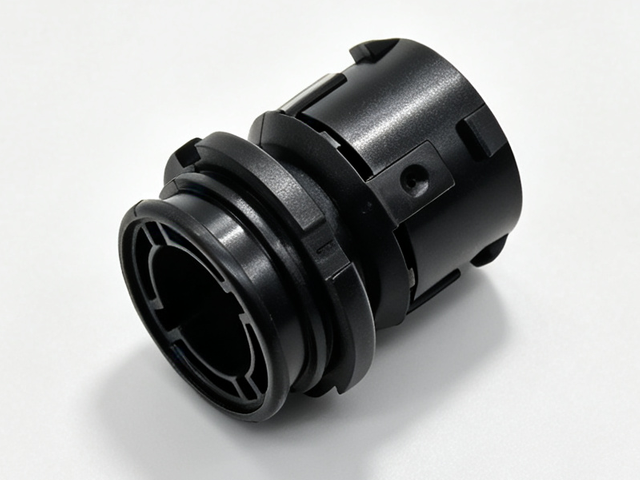

4. Electrical Insulation and Connection Parts
These parts are mainly used in industrial control systems, electrical equipment, and automation devices to provide electrical insulation, circuit connection, terminal fixing, and safety protection. Common products: Power supply housings, junction boxes, terminal blocks, relay housings, circuit breaker housings, connector housings, terminal housings, industrial switch panels, cable clamps, insulation brackets, busbar protective covers, etc. Common materials: PA66, PBT, PC, PPO, PPS, LCP, flame-retardant ABS, flame-retardant PC, etc.

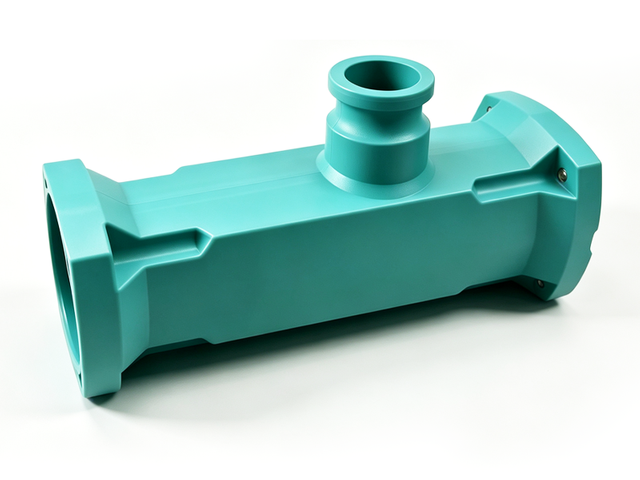

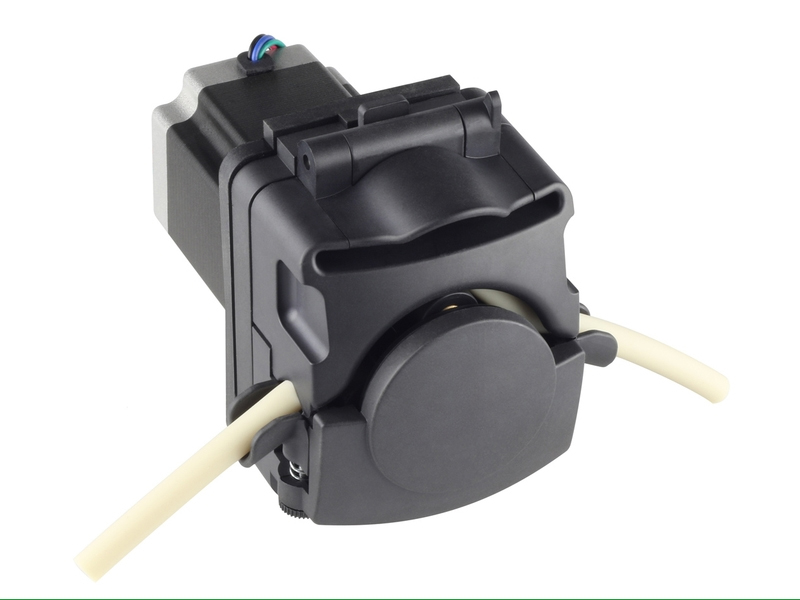

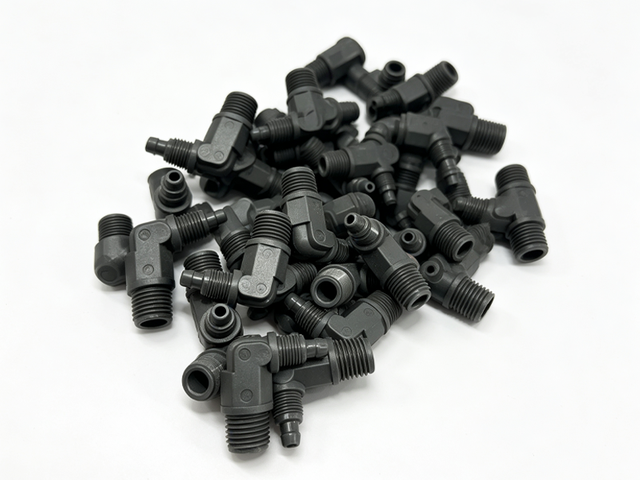

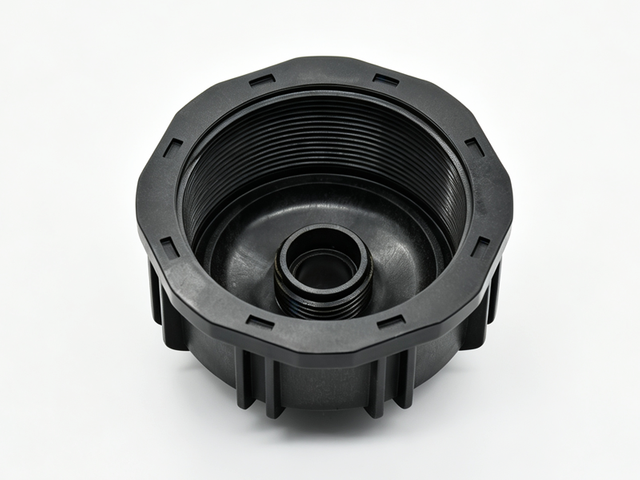

5. Piping and Fluid Control Parts
These parts are mainly used to protect internal circuits, sensors, and mechanical components while also meeting requirements for installation, heat dissipation, dust protection, and appearance.
Common materials: ABS, PC, PC+ABS, PA, PBT, flame-retardant ABS, flame-retardant PC, etc.

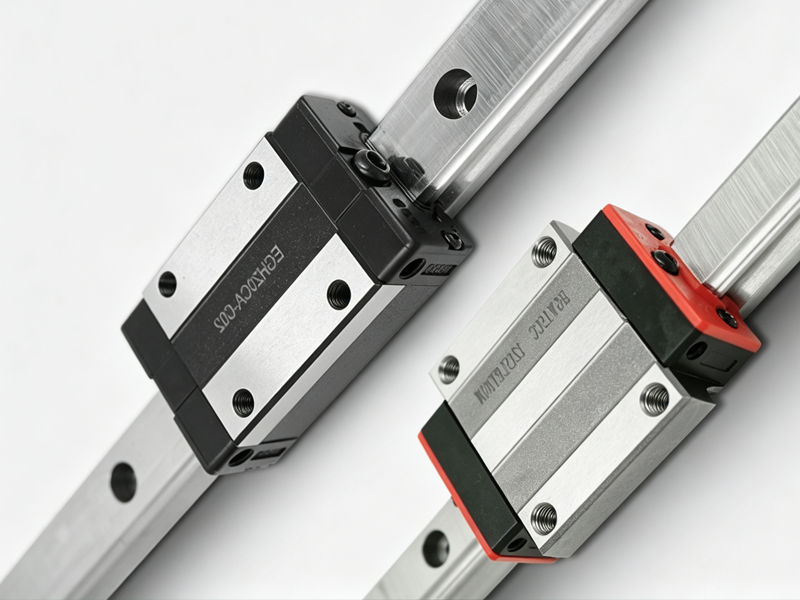

6. Automation Equipment Components
These parts are used in robots, conveyor systems, assembly equipment, and production fixtures. They mainly perform protective, positioning, guiding, supporting, or moving functions. Common products: Robot protective covers, robotic arm housings, conveyor plastic components, positioning blocks, plastic fixture parts, guide rail sliders, rollers, equipment protective covers, cable carrier components, and sensor mounting bases, etc. Common materials: PA, glass fiber-reinforced PA, POM, PBT, PC, ABS, PP, and UHMW-PE, etc.
To ensure every industrial injection molding project runs smoothly from engineering review to final delivery, Alpine Mold follows a clear and systematic process.
1. TELL US WHAT YOU NEED
Send us your 3D part drawings in step/igs/x-t format. Our team reviews the details and provides a clear quote for tooling and production.
2. DESIGN REVIEW
We conduct a DFM analysis to evaluate moldability and recommend design improvements for better quality, performance, and cost efficiency before tooling begins.
3. SAMPLE PRODUCTION
We conduct the first mold trial, produce T1 samples, and inspect key dimensions, appearance, assembly, and functional requirements for your confirmation.
4. FULL PRODUCTION
After the T1 samples are approved, we begin mass production using the confirmed molding parameters to ensure consistent quality and stable performance.
1. TELL US WHAT YOU NEED
Send us your 3D part drawings in step/igs/x-t format. Our team reviews the details and provides a clear quote for tooling and production.
2. DESIGN REVIEW
We conduct a DFM analysis to evaluate moldability and recommend design improvements for better quality, performance, and cost efficiency before tooling begins.
3. SAMPLE PRODUCTION
We conduct the first mold trial, produce T1 samples, and inspect key dimensions, appearance, assembly, and functional requirements for your confirmation.
4. FULL PRODUCTION
After the T1 samples are approved, we begin mass production using the confirmed molding parameters to ensure consistent quality and stable performance.
Why Alpine Mold for Industrial Injection Molding
Here’s why global automotive OEMs and Tier 1 supply chains choose Alpine Mold for industrial tooling and injection molding solutions.
Full-Service Capabilities
Beyond injection molding, we provide part design optimization and prototyping, mold design and manufacturing, as well as post-molding services such as ultrasonic welding, printing, and packaging.
Flexible Production Capacity
We have more than 30 injection molding machines from Haitian and FANUC. Our presses range from 55 to 800+ tons—allowing us to create everything from tiny components to larger-format parts.
In-House Production Control
All tooling and mass production are handled in-house at our facility, giving you better quality control, shorter lead times, clear communication, and reliable worldwide delivery.
Our Strength
Our Workshop
40+
Mold Fabrication
Department
15+
CNC Machines
20+
Mold Design Department
10+
EDM Machines
20+
CNC Machining Department
15+
Wire Cutting Machines
10+
EDM Machining
Department
30+
Injection Machines
Videos of Our Industrial Injection Molding
Injection Molding for Diaphragm Pump Covers
Led lamp Connector Injection Molding
Fully Automatic Thread Unscrewing Mold in Action
How We Mold Durable Water Pump Parts with PA6+GF30
Today’s guide will help understand everything you have been asking about Industrial Injection Molding. So, if you want to be an expert in injection molding for industrial parts , here is all information you have been looking for.
What Is Industrial Injection Molding?
Industrial injection molding is a manufacturing process used to produce industrial plastic parts in medium to large quantities. In this process, melted plastic material is injected under high pressure into a precision mold, where it cools and solidifies into the required shape.
It is widely used to manufacture industrial plastic components such as equipment housings, machine covers, electrical enclosures, automotive parts, connectors, brackets, and other functional plastic products. The process offers high production efficiency, consistent quality, complex part design, and lower unit costs for mass production.
What Are the Advantages and Disadvantages of Industrial Injection Molding?
Industrial injection molding is widely used to produce industrial plastic parts with complex shapes, consistent quality, and high production efficiency. However, the process also has several limitations that should be considered before starting a project.
Advantages of Industrial Injection Molding
1. High Production Efficiency
Once the injection mold is completed, large quantities of industrial plastic parts can be produced in a short time with stable cycle times.
2. Consistent Part Quality
The process provides high dimensional consistency, making it suitable for industrial plastic components that require accurate assembly and reliable performance.
3. Suitable for Complex Designs
Injection molding can produce complex geometries, ribs, bosses, threads, undercuts, textured surfaces, and other functional features.
4. Wide Material Selection Plastic mold manufacturers can use engineering plastics such as ABS, PC, PP, POM, PA, PBT, and glass-fiber-reinforced materials according to the required strength, temperature resistance, and chemical resistance.
5. Lower Unit Cost for Mass Production Although the initial mold cost is relatively high, the unit cost decreases significantly when production volumes increase.
6. Good Surface Finish Industrial plastic parts can be produced with polished, textured, matte, or customized surface finishes without extensive secondary processing.
Disadvantages of Industrial Injection Molding
1. High Initial Tooling Cost Designing and manufacturing a precision injection mold requires a significant upfront investment, especially for large or complex industrial parts.
2. Longer Development Time Mold design, machining, assembly, testing, and modification may take several weeks before mass production can begin.
3. Not Ideal for Very Low Quantities For prototypes or small production runs, 3D printing, CNC machining, or vacuum casting may be more economical.
What Are the Common Plastics Used for Industrial Plastic Parts?
The materials used in industrial injection molding must often meet demanding requirements such as mechanical strength, dimensional stability, heat resistance, chemical resistance, wear resistance, and long-term durability. Common plastics used for industrial plastic parts include the following:
Acrylonitrile Butadiene Styrene (ABS) ABS is commonly used for industrial equipment housings, control panels, machine covers, instrument enclosures, and protective shells. It offers good impact resistance, dimensional stability, processability, and surface quality.
Polypropylene (PP) PP is widely used for industrial containers, chemical-resistant covers, pipe fittings, battery cases, caps, and internal equipment components. It is lightweight, economical, moisture-resistant, and resistant to many chemicals.
Polycarbonate (PC) PC is suitable for industrial plastic parts that require high impact strength, heat resistance, and dimensional stability. Typical applications include transparent machine guards, protective covers, electrical housings, lighting components, and safety-related parts.
Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS) PC/ABS is often selected for industrial equipment panels, electronic enclosures, control-system housings, and machine covers. It combines the impact strength and heat resistance of PC with the processability and surface quality of ABS.
Polyamide (PA6 and PA66) Polyamide, commonly known as nylon, is widely used for industrial gears, bearings, brackets, rollers, clips, connectors, pulleys, and other mechanical components. It provides good mechanical strength, wear resistance, fatigue resistance, and low-friction performance.
Glass-Fiber-Reinforced Polyamide (PA6+GF and PA66+GF) Materials such as PA6+30%GF and PA66+30%GF are commonly used for structural industrial plastic parts, pump housings, motor components, power-tool parts, mounting brackets, and load-bearing components. The addition of glass fiber improves rigidity, heat resistance, mechanical strength, and dimensional stability.
Polyoxymethylene (POM) POM, also known as acetal, is commonly used for precision industrial plastic parts such as gears, sliders, bushings, valves, fasteners, and moving mechanisms. It has low friction, good wear resistance, high stiffness, and excellent dimensional stability.
Polybutylene Terephthalate (PBT) PBT is widely used for industrial electrical connectors, sensor housings, switches, relay components, terminal blocks, and motor parts. It provides good electrical insulation, chemical resistance, heat resistance, and dimensional stability.
Thermoplastic Polyurethane (TPU) TPU is suitable for flexible and wear-resistant industrial plastic parts, including seals, rollers, protective sleeves, cable components, grips, shock-absorbing parts, and overmolded surfaces. It offers good elasticity, abrasion resistance, impact resistance, and tear strength.
Thermoplastic Elastomer (TPE) and Thermoplastic Vulcanizate (TPV) TPE and TPV are commonly used for industrial seals, gaskets, anti-slip grips, flexible covers, vibration-damping components, and soft-touch overmolded parts. They provide rubber-like flexibility while remaining suitable for injection molding and recycling.
Polymethyl Methacrylate (PMMA) PMMA, commonly known as acrylic, is mainly used for transparent industrial plastic parts such as inspection windows, display covers, indicator panels, lenses, and lighting covers. It offers excellent optical clarity, surface quality, UV resistance, and weather resistance.
Polyphenylene Sulfide (PPS) PPS is used for demanding industrial plastic components that require high-temperature resistance, chemical resistance, dimensional stability, and electrical insulation. Typical applications include pump parts, valve components, electrical connectors, motor components, and automotive under-hood parts.
Polyether Ether Ketone (PEEK) PEEK is a high-performance engineering plastic used for industrial components exposed to extreme temperatures, chemicals, friction, and mechanical loads. It is commonly used for precision gears, bearings, pump components, valve parts, seals, and semiconductor equipment components.
What Are the Common Challenges in Industrial Plastic Injection Molding?
Industrial plastic parts often require high dimensional accuracy, mechanical strength, durability, and stable mass production. The following table summarizes eight common challenges and their solutions.
Common Challenge
Impact on Industrial Parts
Recommended Solutions
Warpage
Parts may bend, twist, or fail to fit correctly during assembly.
Maintain uniform wall thickness, optimize gate locations, improve cooling balance, and adjust packing pressure and cooling time.
Sink Marks
Depressions may appear near ribs, bosses, or thick sections, affecting appearance and dimensions.
Optimize wall thickness and rib design, increase holding pressure, and improve local cooling.
Weld Lines
Weld lines may reduce part strength and surface quality.
Optimize gate positions, improve venting, adjust mold temperature, and use Moldflow analysis.
Short Shots
The mold cavity may not fill completely, resulting in missing or weak sections.
Increase injection pressure, improve runner and gate design, raise melt temperature, and improve venting.
Air Traps and Burn Marks
Trapped air may cause black marks, poor surfaces, or incomplete filling.
Add proper vents, optimize injection speed, and clean blocked venting areas regularly.
Dimensional Variation
Parts may fail to meet tolerance, assembly, or sealing requirements.
Use accurate shrinkage data, stabilize molding parameters, control mold temperature, and inspect critical dimensions.
Glass-Fiber Orientation
Reinforced plastics may experience warpage, uneven shrinkage, or rough surfaces.
Optimize gate design, balance flow direction, control injection speed, and improve mold temperature uniformity.
Long Cooling Cycles
Large or thick industrial plastic parts may require longer production cycles and higher costs.
Optimize wall thickness, improve cooling-channel design, and use efficient mold-temperature control.
What Are the Key Design Tips for Industrial Plastic Parts?
Industrial plastic parts must meet requirements for strength, dimensional accuracy, assembly, appearance, and long-term durability. During product development, designers should consider not only how the part functions but also how molten plastic fills, cools, shrinks, and releases from the mold.
The following design guidelines provide practical starting values for industrial plastic parts. The final dimensions should still be adjusted according to the selected material grade, glass-fiber content, part size, operating environment, and performance requirements.
1. Recommended Wall Thickness for Industrial Plastic Parts
Wall thickness directly affects mold filling, cooling time, shrinkage, part weight, dimensional stability, and production cost. Walls that are too thin may cause short shots or weak areas, while excessively thick walls may produce sink marks, internal voids, long cooling cycles, and warpage. The suitable wall thickness depends on the plastic material:
Plastic Material
Recommended Wall Thickness
ABS
1.14–3.56 mm
POM
0.76–3.05 mm
Nylon
0.76–2.92 mm
Polycarbonate
1.02–3.81 mm
Polypropylene
0.64–3.81 mm
PPS
0.51–4.57 mm
For many general industrial housings, covers, brackets, and equipment components, a nominal wall thickness of approximately 1.5–3.0 mm is a practical starting point. However, thicker walls should not be used simply to increase strength. Coring out thick sections and adding ribs usually provides better structural performance with less material and a shorter cooling time.
2. Maintaining Uniform Wall Thickness
Wall thickness should remain as uniform as possible throughout the industrial plastic part. Uneven thickness causes different sections to cool and shrink at different rates, increasing the risk of warpage, sink marks, voids, and internal stress.
When a thinner section is unavoidable, its thickness should generally remain at least 40–60% of the adjacent thicker wall. Abrupt steps should also be replaced with gradual transitions.
For example, if the main wall is 3 mm thick, a nearby thinner section should preferably not drop suddenly below approximately 1.2–1.8 mm.
Uniform wall thickness is particularly important for:
Large industrial equipment housings Flat machine covers Electrical enclosures Sealing components Parts with long flow paths Parts requiring accurate assembly
Material flow should also move from thicker sections toward thinner sections whenever possible. This helps maintain filling pressure and reduces the possibility of hesitation or incomplete filling.
3. Recommended Rib Thickness, Height, and Spacing
Ribs increase stiffness without requiring a thicker main wall. However, ribs that are too thick can create sink marks on the opposite surface and cause uneven cooling.
The recommended rib thickness is generally 40–60% of the nominal wall thickness. For a part with a 3 mm main wall: Rib thickness: approximately 1.2–1.8 mm A common starting value: approximately 1.5 mm Minimum spacing between short ribs: approximately 6 mm, or at least twice the main wall thickness
As a conservative design guideline, rib height should normally be limited to approximately three times the rib-base thickness. When more support is required, several shorter ribs are usually preferable to one extremely tall rib. Deep ribs must also include draft to prevent filling and ejection problems.
Ribs should be positioned in the direction of the expected load. Adding too many ribs does not necessarily make the part stronger and may instead increase warpage, cooling difficulty, material consumption, and mold complexity.
4. Screw Boss Design Guidelines
Screw bosses are commonly used in industrial plastic housings, control panels, electrical enclosures, machine covers, and assembly components. Poorly designed bosses can cause sink marks, cracking, incomplete filling, or screw failure.
Boss-wall thickness should normally follow the same guideline as ribs and remain approximately 40–60% of the nominal wall thickness.
As a general starting rule, the boss outside diameter should be approximately 2.0–2.4 times the outside diameter of the screw or insert.
For example, when using a screw or insert with a 4 mm outside diameter: Minimum boss outside diameter: approximately 8.0 mm Upper starting value: approximately 9.6 mm
For thread-cutting screws used in polycarbonate, Covestro gives a boss-hole diameter of approximately 0.88 times the screw outside diameter as a reference. The actual pilot-hole diameter should still be confirmed using the screw supplier’s technical data and pull-out testing.
Bosses should not merge directly into a thick sidewall. A better design is to separate the boss from the wall and connect it using thin ribs or gussets. Tall bosses with a height greater than approximately five times their outside diameter may create filling difficulties and thick sections at the base.
5. Recommended Draft Angles
Draft angles allow industrial plastic parts to release smoothly from the mold. Insufficient draft can result in drag marks, scratches, whitening, deformation, broken ejector pins, or parts sticking to the mold core.
Recommended starting values include:
Surface or Feature
Recommended Draft Angle
Minimum draft on vertical surfaces
0.5°
General industrial plastic parts
1–2°
Sliding shutoff surfaces
At least 3°
Light textured surfaces
Approximately 3°
Heavy textured surfaces
5° or more
Another commonly used guideline is approximately 1° of draft for every 25 mm of cavity depth.
For example: A 25 mm deep wall may use approximately 1° A 50 mm deep wall may require approximately 2° A 75 mm deep wall may require approximately 3°
Deep ribs, textured surfaces, glass-filled materials, and parts that shrink tightly around the mold core may require additional draft. Covestro also recommends at least 1° for easy ejection of many PC and PC-blend materials, while some high-heat PC and TPU materials may need 3–5° or more.
6. Internal Corner and Radius Design
Sharp internal corners create stress concentration and restrict material flow. This can reduce impact strength, increase molded-in stress, and make cracks more likely under repeated industrial loads. The internal corner radius should generally be at least 0.5 times the adjacent wall thickness. For example:
Main Wall Thickness
Recommended Minimum Internal Radius
2 mm
At least 1 mm
3 mm
At least 1.5 mm
4 mm
At least 2 mm
Larger radii may be required for load-bearing brackets, pump housings, machine components, and parts exposed to vibration or impact. Rounded transitions also improve melt flow and reduce the likelihood of local filling defects.
The outside radius should normally follow the internal radius while maintaining a consistent wall thickness. Randomly adding radii to every outside edge should be avoided because unnecessary mold machining can increase tooling cost.
7. Molded Hole Depth Guidelines
Deep holes require long, narrow mold cores. During injection, plastic pressure can bend or shift these cores, resulting in inaccurate hole positions, reduced hole diameters, core fatigue, or mold damage. Recommended depth-to-diameter ratios include:
Hole or Core Condition
Recommended Ratio
Unsupported blind hole
Maximum approximately 3:1
Symmetrically filled blind hole
Up to approximately 5:1
Core supported at both ends
Typically approximately 6:1
Well-supported core with balanced filling
Up to approximately 10:1
For an unsupported blind hole with a diameter of 5 mm, the recommended depth should normally not exceed approximately: 5 mm × 3 = 15 mm
When the core is supported from both mold halves, the same 5 mm hole may reach approximately 30 mm at a 6:1 ratio, depending on filling balance and mold structure.
When deeper holes are necessary, designers can consider: Increasing the hole diameter a blind hole into a through-hole Supporting the core from both ends
Using a stepped hole Reducing the hole depth Changing the gate location to balance pressure around the core
8. Material Shrinkage and Tolerance Control
Plastic materials shrink as they cool, but shrinkage is not a fixed value. It is affected by material grade, filler content, wall thickness, gate size, flow direction, mold temperature, holding pressure, and injection settings.
For example, one Covestro polycarbonate grade lists practical molding shrinkage of approximately 0.50–0.70%, while Celanese reports that a particular POM grade can vary from approximately 1.8–5.0% under different molding conditions.
Glass-reinforced PPS can have much lower but direction-dependent shrinkage, with published values around 0.2–0.6% in the flow direction and 0.4–0.6% in the transverse direction for some grades. These examples demonstrate why a universal shrinkage value should not be applied to every industrial plastic part.
Tight tolerances should be assigned only to dimensions that affect: Product assembly Sealing performance Bearing or gear movement Connector alignment Screw or insert positioning Functional clearances Safety-related performance
Critical dimensions should be reviewed through DFM analysis, Moldflow simulation, material shrinkage data, T1 sample measurement, and CMM inspection.
