Alpine Mold provides one-stop automotive injection molding solutions for precision automotive plastic parts. From in-house mold design and tooling manufacturing to injection molding production, we can help you achieve stable dimensions, tight tolerances, and consistent quality.
At Alpine Mold, we work closely with you from concept to final product, providing guidance and expertise along the way. Whether you require small-scale production or large-scale manufacturing for automotive parts enclosures, we can deliver exceptional results.
Design and Engineering
Advanced 3D solid modeling DFM, mold Flow analysis, and mold design 25-person engineering team, including 6 senior engineers with over 20 years of expertise.

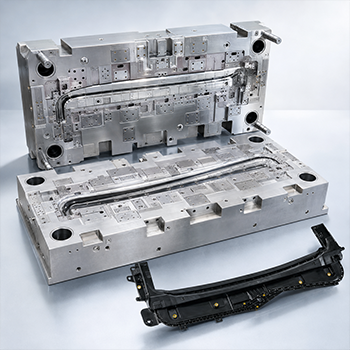

Mold Manufacturing
100+ world-class machining equipment Rapid toolings and production toolings In-house tool manufacturing (We never outsource)
Injection Molding
30+ FANUC&Haitian injection molding machines Insert molding, overmolding & two shot molding Added value post moulding & finishing operations
Types of Injection Molding Automotive Parts We Make
Alpine Mold works with Automotive OEMs and Tier 1 Automotive Suppliers to develop custom injection molds and molded plastic parts for different vehicle applications. From exterior trims and interior components to under-the-hood and new energy vehicle parts, we provide engineering support and production-ready tooling solutions tailored to automotive project requirements.

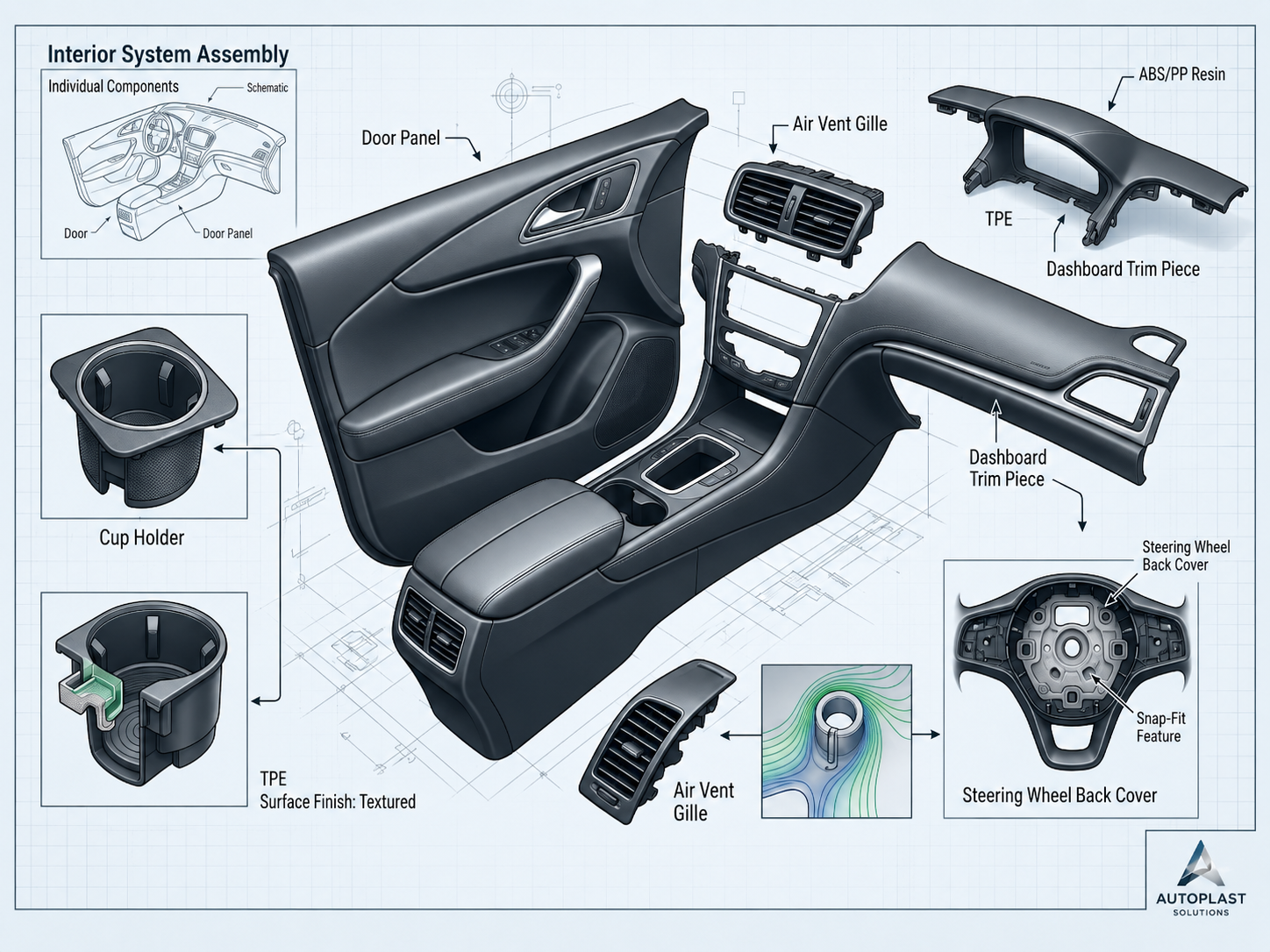

1. Interior Injection Molded Car Components
Interior automotive plastic parts usually require good surface quality, accurate dimensions, and stable performance during daily use. Alpine Mold supports mold manufacturing and injection molding for both visible interior parts and functional structural components.
Typical Products: Dashboard components, center console parts, cup holders, door panels, door handles, air vent parts, buttons, knobs, clips, brackets, seat plastic components, pillar trims, radio fascias, switch panels, mirror window lock switch housings, interior trim parts, and other interior injection molded car components.

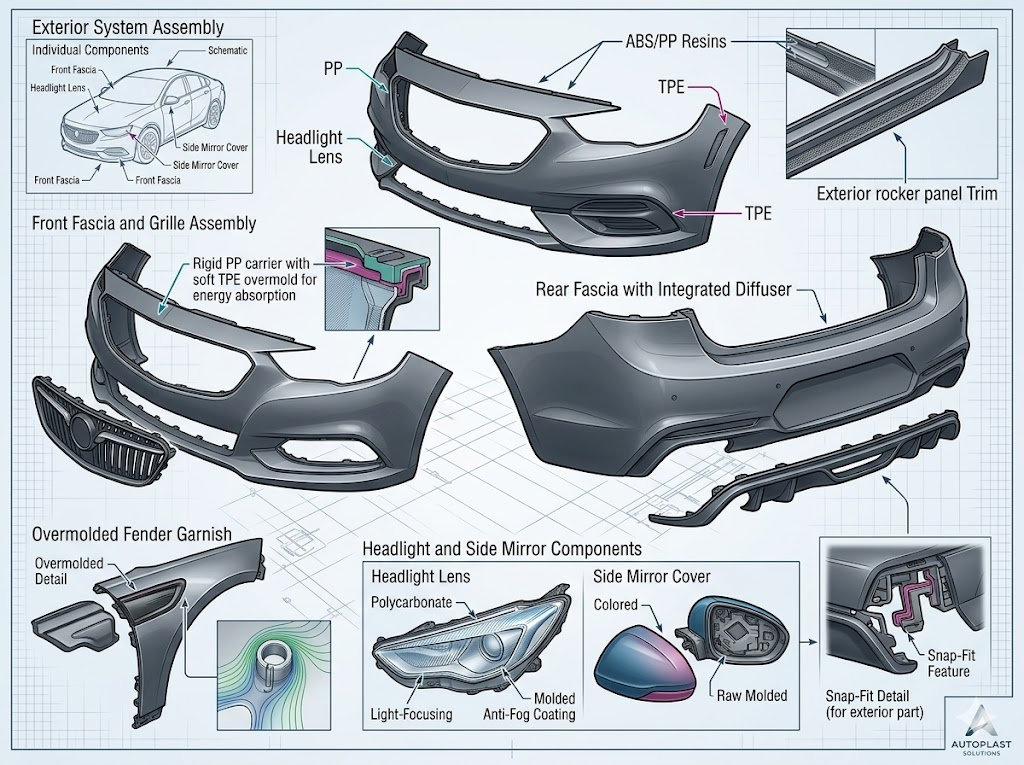

2. Exterior Automotive Plastic Parts
We provide automotive mold manufacturing and injection molding solutions for exterior plastic parts that require strong weather resistance, stable dimensions, and consistent surface quality. These components often need to withstand UV exposure, temperature changes, impact, and long-term outdoor use.
Typical Products: sunroof frames，sunroof components, mirror covers, shark fin antenna covers, grille components, bumper grille brackets, exterior trim covers, protective covers, wheel arch components, decorative covers, spoiler parts, bezels, and other exterior automotive molded plastic parts.

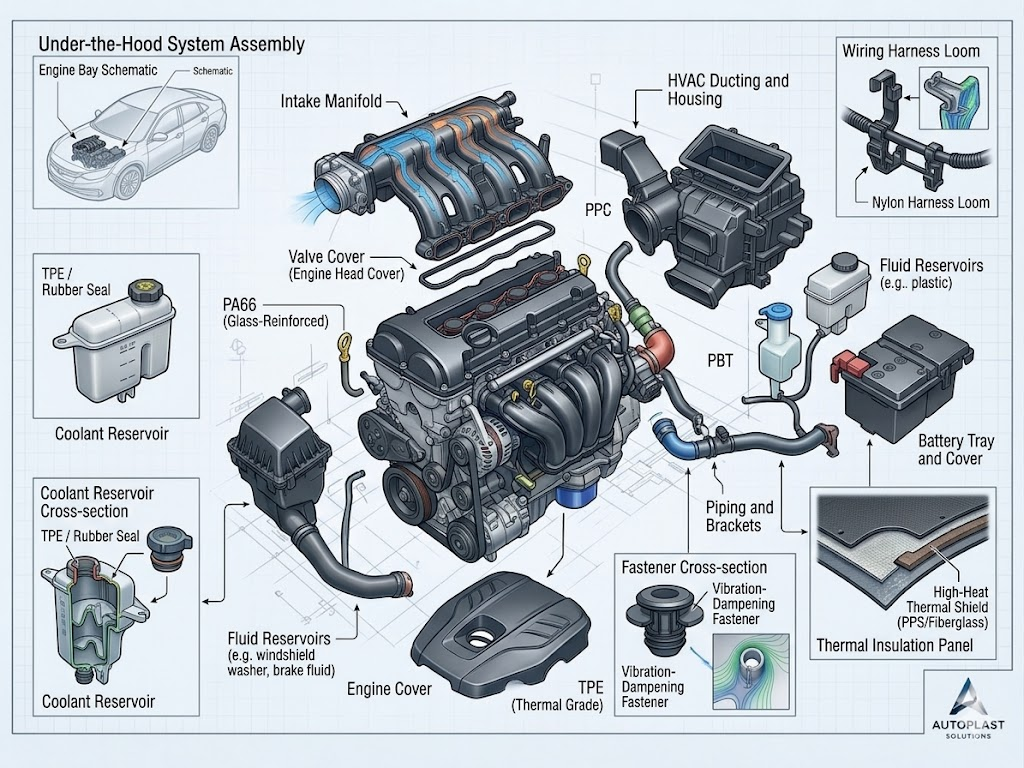

3. Under-the-Hood Plastic Components
Under-the-hood plastic components require materials with good heat resistance, strength, and dimensional stability. Because these parts are used in demanding automotive environments, mold design, material selection, and process stability are especially important. Alpine Mold supports automotive tooling manufacturing and injection molding for under-the-hood plastic components, helping you achieve reliable part performance and consistent production quality.
Typical Products: Engine covers, air intake parts, fan shrouds, fluid reservoir components, fuse box housings, cable holders, mounting brackets, protective covers, and other under-the-hood automotive plastic components.

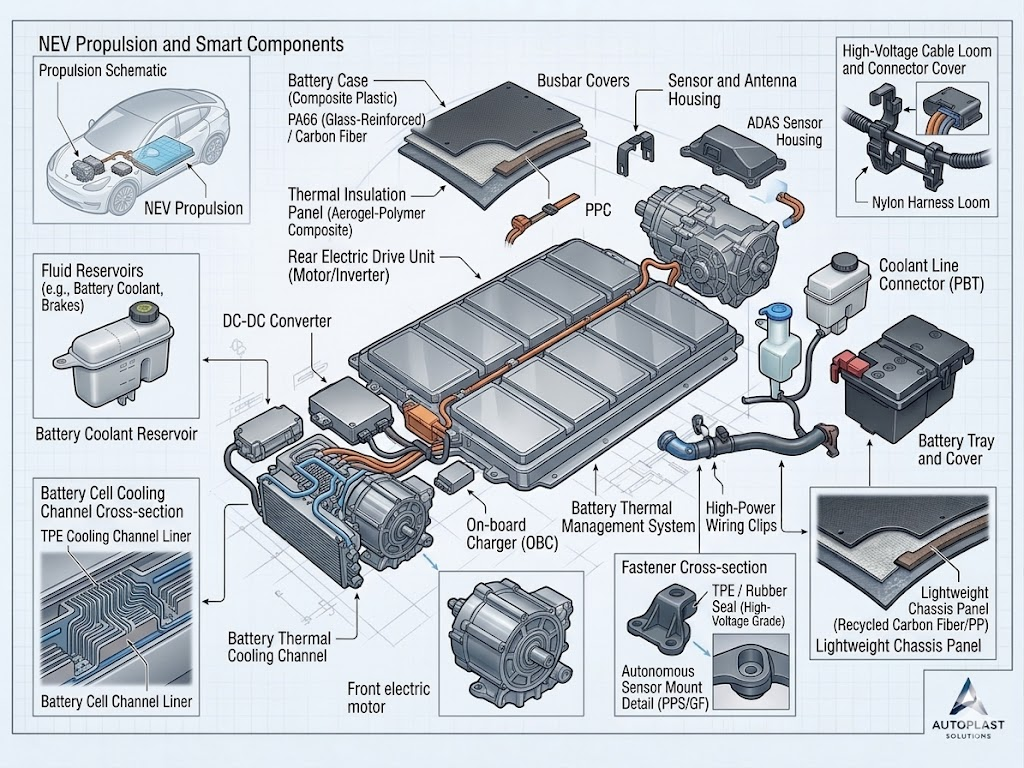

4. New Energy Vehicle Plastic Components
With the growth of electric vehicles and new energy automotive systems, plastic components are widely used in battery systems, charging systems, thermal management, and electronic protection parts. Alpine Mold provides custom EV injection mold and injection molding solutions for precision plastic parts used in new energy vehicles.
Typical Products: Battery plastic housings, battery module covers, charging connector housings, charging port covers, high-voltage connector housings, electronic control unit enclosures, thermal management plastic parts, cable holders, insulation-related plastic components, and other new energy vehicle plastic parts.
ABS offers: Good impact resistance, excellent dimensional stability, good surface appearance, easy processing, strong rigidity, good toughness, and cost-effective performance for mass production. Commonly used for: Dashboard housings, instrument panel covers, center console housings, glove box housings, air vent housings, switch panel housings, door trim covers, pillar trim covers, seat back covers, cargo area trim covers, protective electronic housings, and interior decorative covers
PA offers: Good mechanical strength, wear resistance, toughness, heat resistance, chemical resistance, and strong performance for functional automotive parts. Commonly used for: Automotive brackets, gears, cable clips, fasteners, connectors, fan blades, under-the-hood components, housing parts, functional supports, and mechanical moving parts
PBT offers: Good heat resistance, excellent electrical insulation, low moisture absorption, high dimensional stability, chemical resistance, and good surface quality. Commonly used for: Automotive connectors, sensor housings, fuse boxes, electrical components, ignition system parts, switch housings, relay housings, terminal blocks, lighting components, and electronic control unit housings.
Balanced sheen between matte and gloss. Versatile for many applications.
Post-Processing Services

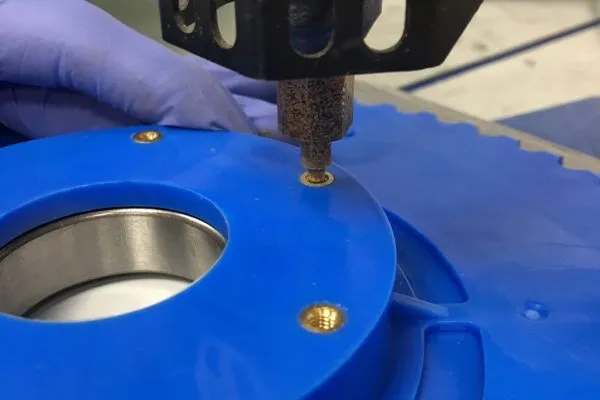

Heat Staking

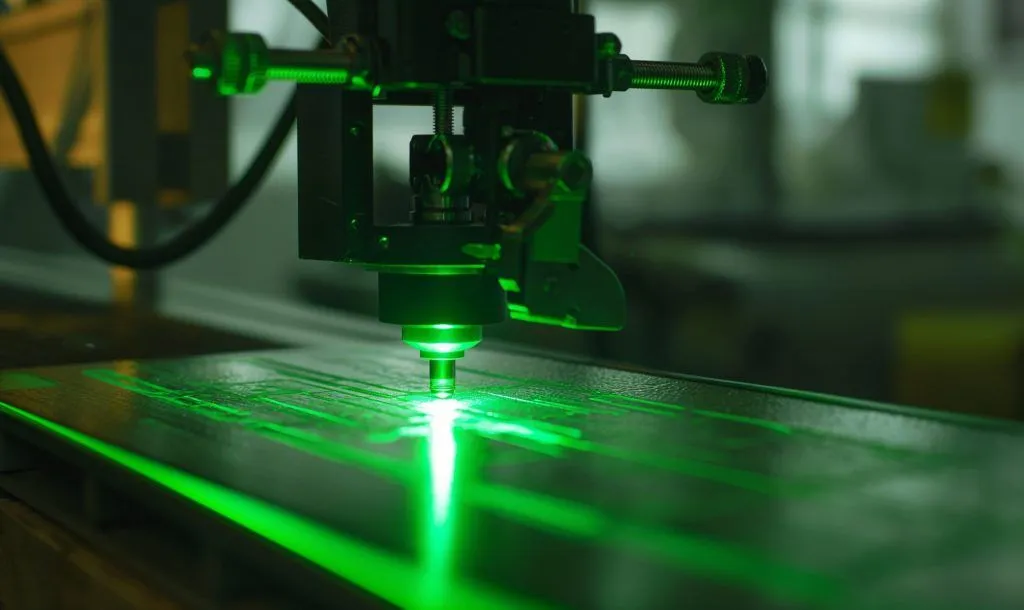

Laser Engraving

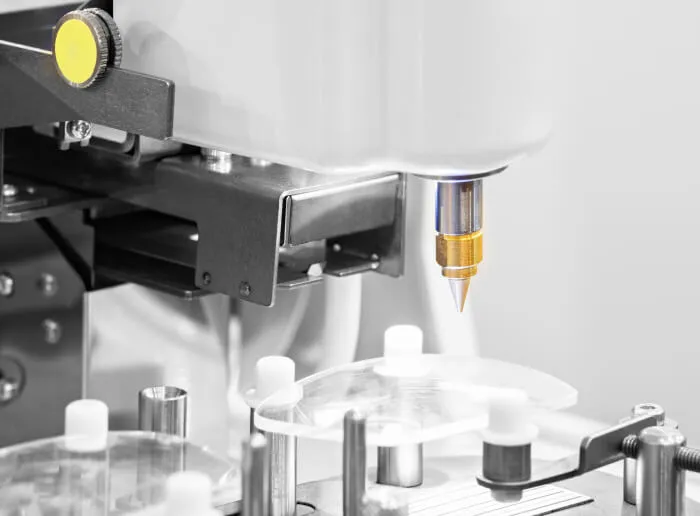

Pad Printing
Painting & Color Matching

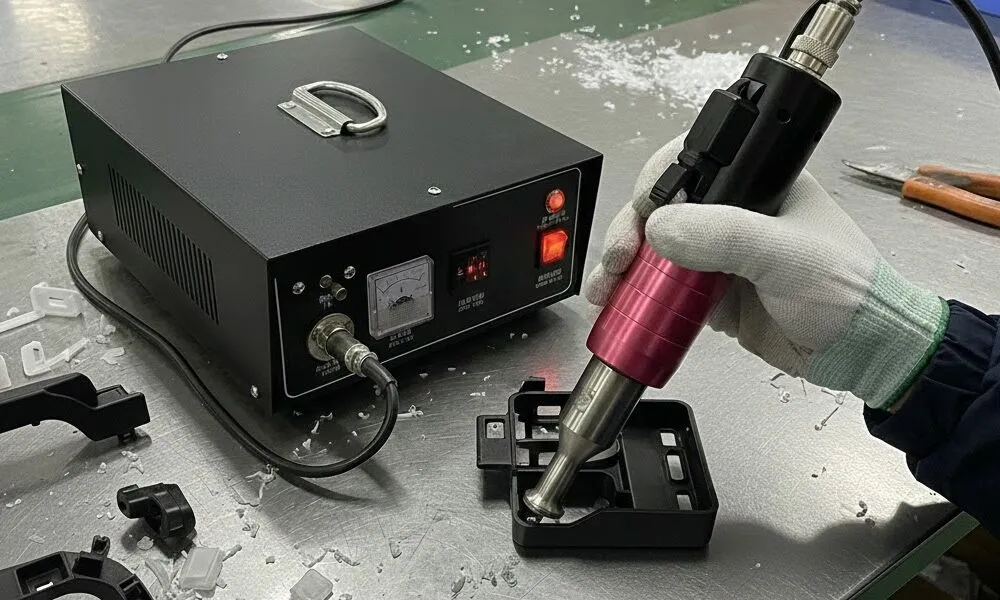

Ultrasonic Welding
Project Details Processing Process
To ensure every automotive injection molding project runs smoothly from engineering review to final delivery, Alpine Mold follows a clear and systematic process.

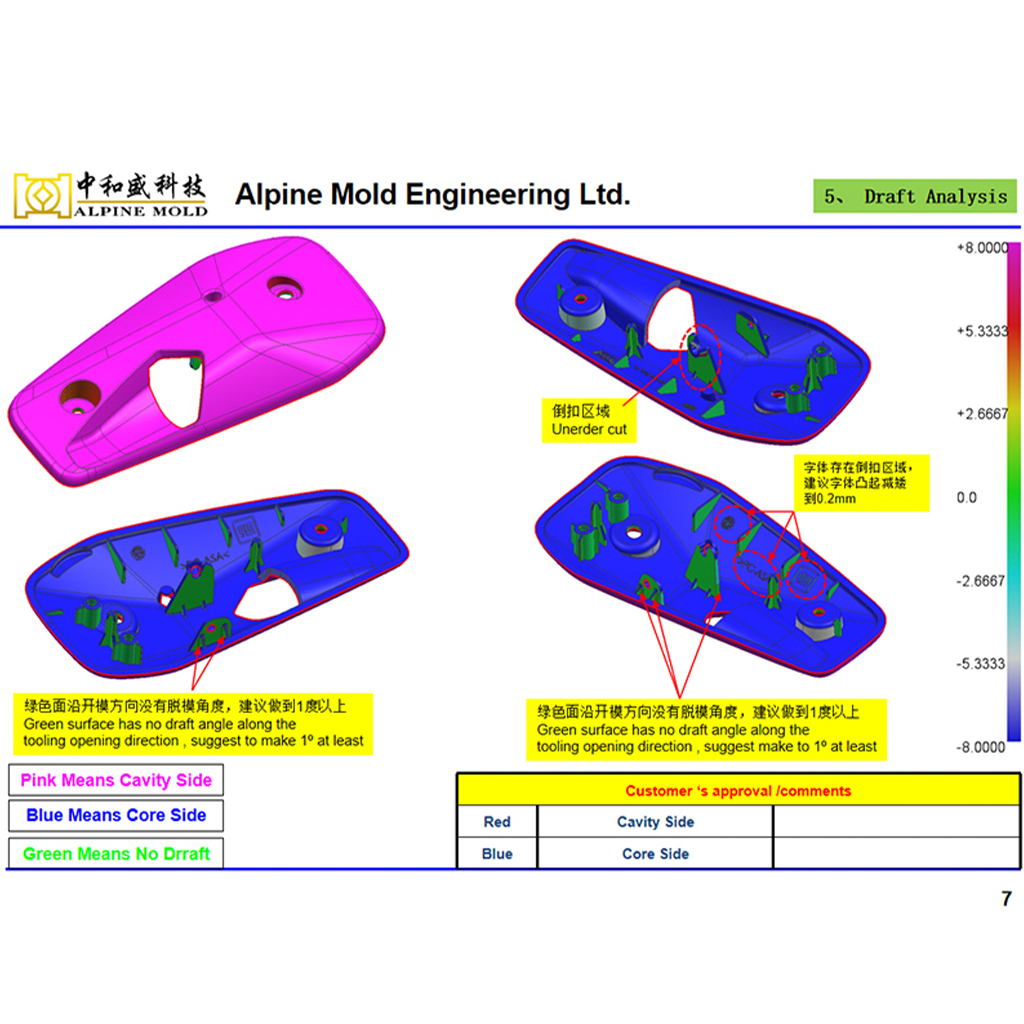

1.DFM Report and Mold Flow
After checking your drawings and project details, , our engineering team conducts DFM and mold flow analysis to evaluate part structure, gate location, filling balance, cooling efficiency, shrinkage, warpage risk, and potential molding defects.

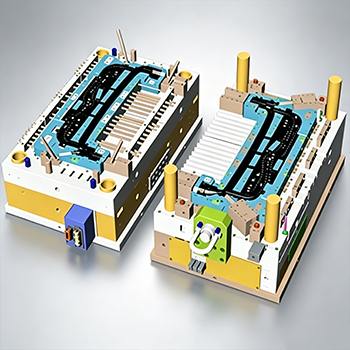

2.3D Mold Drawing Design
After the DFM and mold flow analysis are approved, we start the 3D mold design. It usually takes 2-3 days to finish. The mold structure, parting line, runner system, cooling layout, ejector system, and key inserts will be reviewed and sent to you for confirmation.

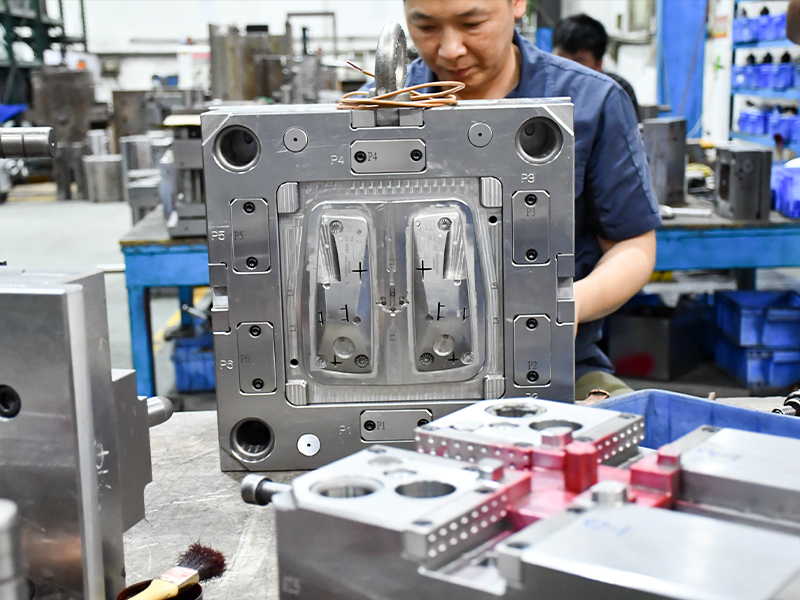

3.Precision Mold Making
Once the mold design is confirmed, we begin precision mold manufacturing, including CNC machining, EDM, wire cutting, grinding, polishing, and mold fitting. During this stage, we provide weekly progress reports with photos to keep you updated.

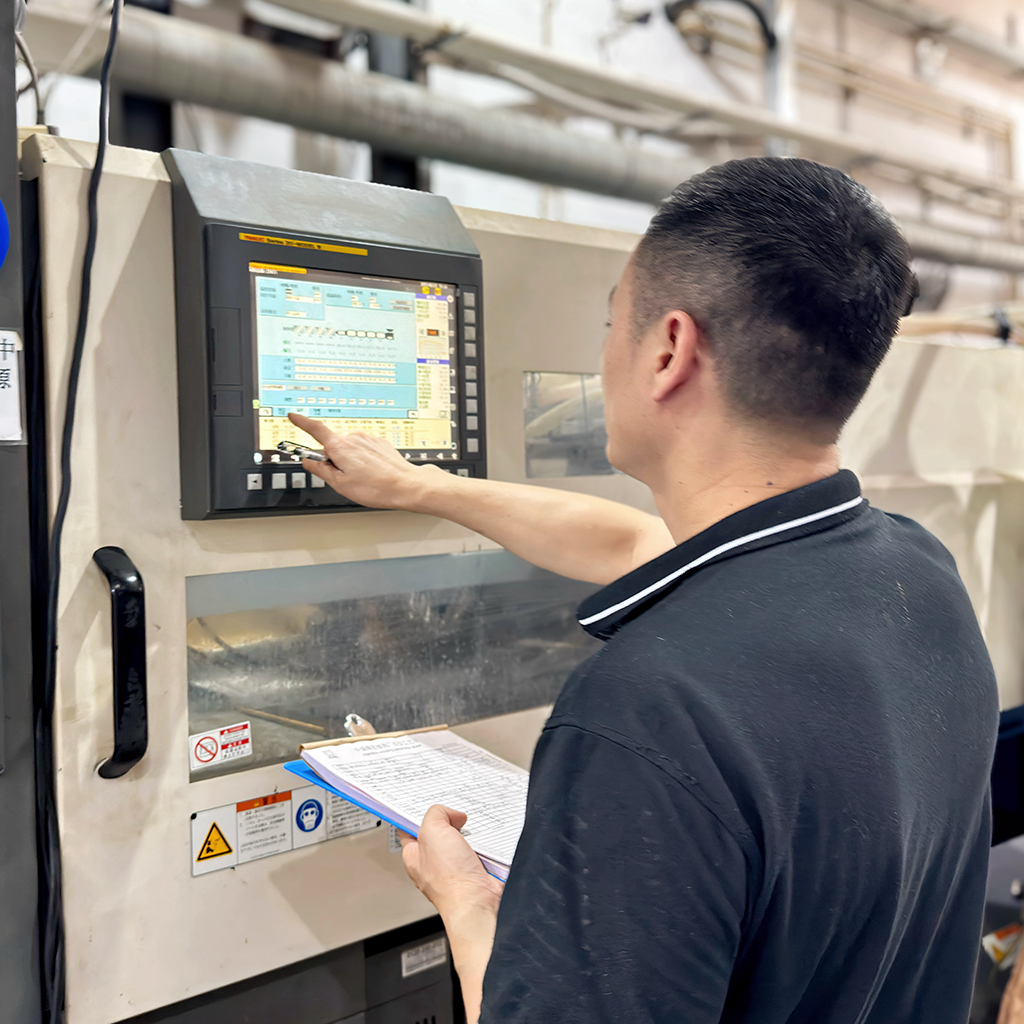

T1 Trial&Sample Inspection
After mold assembly is completed, we conduct the first mold trial and inspect the T1 samples. Key dimensions, appearance, assembly areas, and functional requirements will be checked, and the inspection report and samples will be sent to you for confirmation.

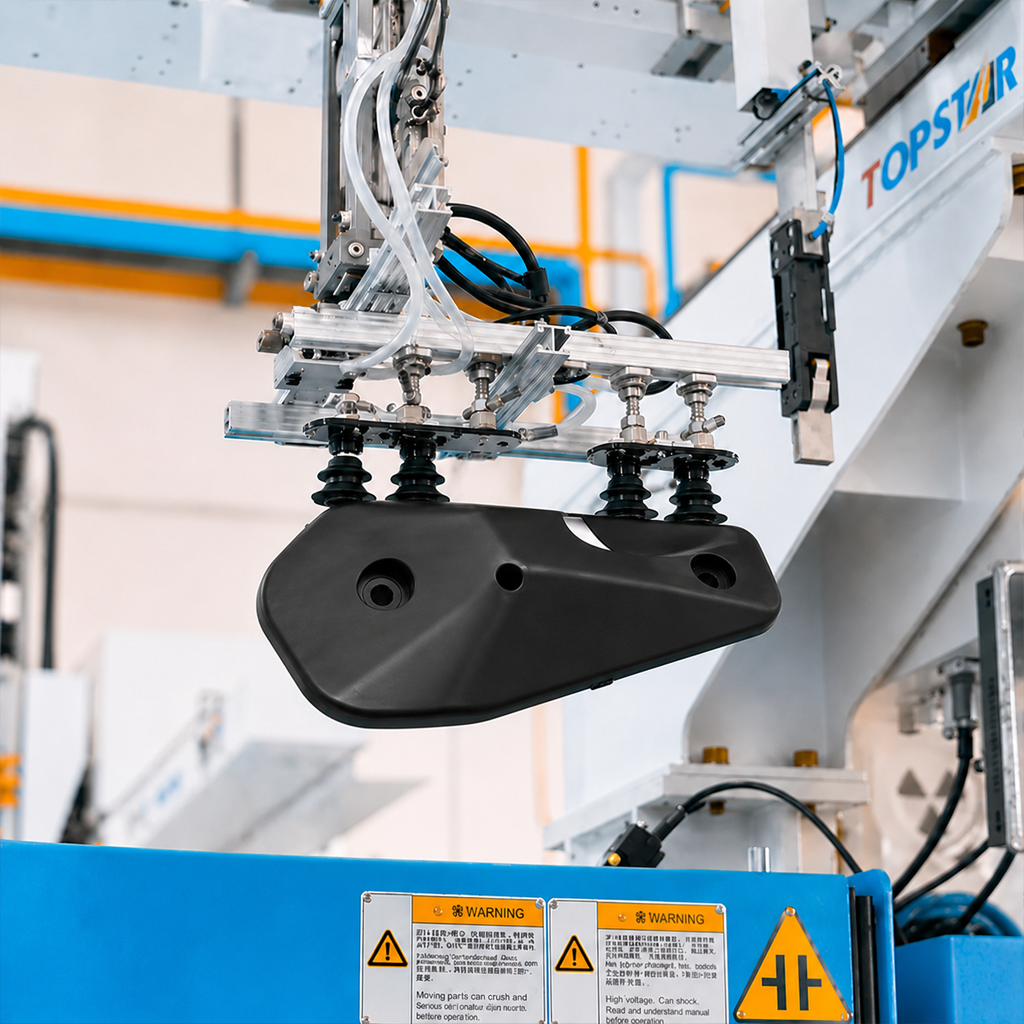

5. Injection Mass Production
After the T1 samples are approved, we start automotive injection molding production based on the confirmed process parameters. We focus on stable molding conditions, consistent dimensions, surface quality, and long-term production reliability.

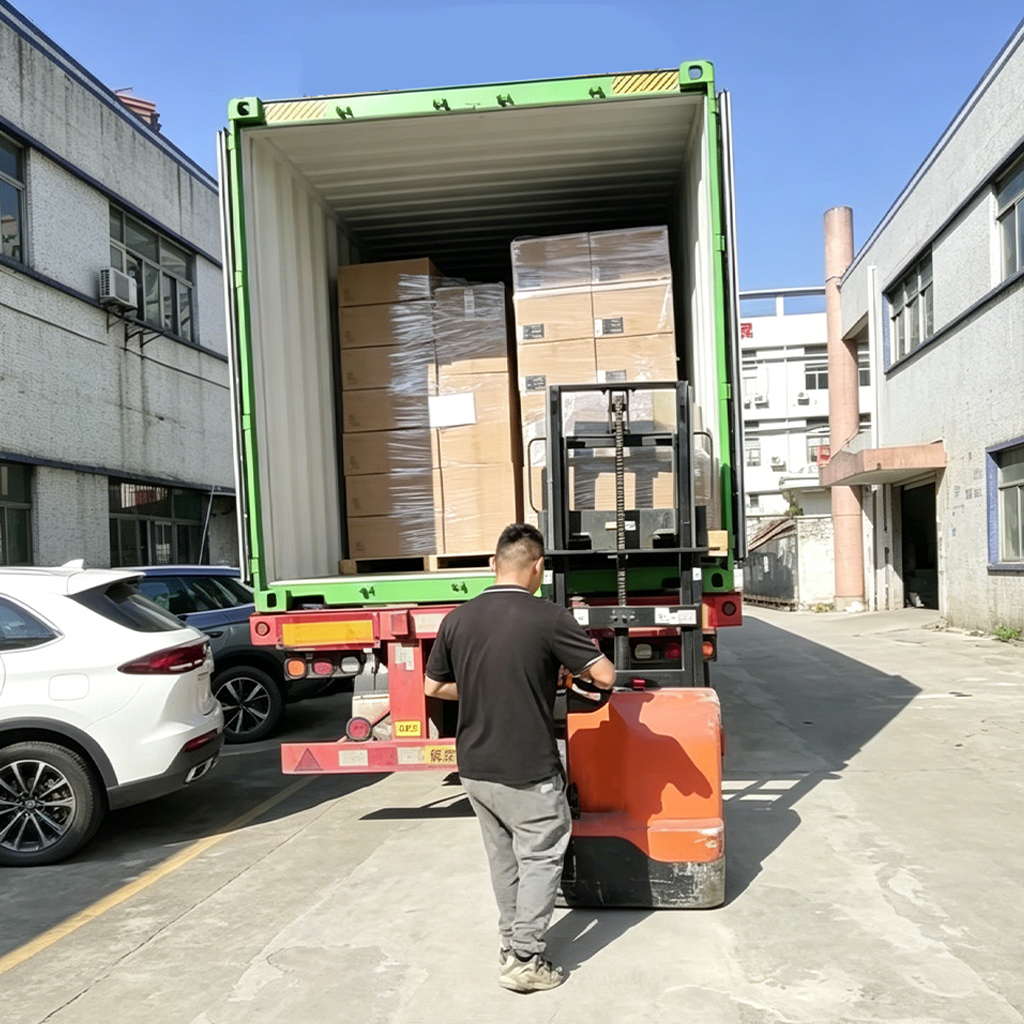

6.Packaging and Shipping
Before shipment, we carry out final inspection according to your requirements, including appearance, dimensions, quantity, packaging, and labeling. Products will be packed securely and shipped according to the agreed delivery plan.
Standard Documents We Can Provide
Alpine Mold provides standard technical and quality documents throughout mold development and automotive injection molding production to ensure clear communication, transparency, and production validation.
We are committed to ensuring the quality of your orders and can provide certifications and reports as required. We offer the following documents and reports :
DFM Analysis Report Mold Flow Analysis Report
3D Mold Design Drawings Detailed Tooling Schedule & Timeline Original Steel Material Certificate
Heat Treatment Hardness Certificate Full Mold Trial Reports (T1, T2 and further revisions)
Dimensional Inspection Report of molded samples Samples Inspection Report Final Packing & Shipping Document before delivery
Our Quality Control of Automotive Injection Molding
At Alpine Mold, quality control is applied throughout both automotive mold manufacturing and injection molding production. We focus on mold accuracy, process stability, dimensional control, and consistent part quality.
Automotive Mold Qulaity Control
Mold steel hardness inspection
Heat treatment hardness inspection with certification
Steel machining in-process inspection
Copper electrodes inspection
Mold core and cavity dimension inspection
Mold Pre-assembly inspection
Mold trial report and sample inspection
Final inspection before shipment Mold maintenance Complete and traceable documentation
Injection Molding Quality Control
Reliable supplier & certified raw Materials
Verify material drying conditions before production
Advanced Injection Molding Machine with stable setting
Rigorous production in-process control
Follow SOPs and quality control checkpoints
Performrandom inspection every 2 hours
Maintain traceability of materials and production records Conduct final inspection (FQC) before shipment
Why Alpine Mold for Automotive Injection Molding
Here’s why global automotive OEMs and Tier 1 supply chains choose Alpine Mold for automotive tooling and injection molding solutions.
01. 100+ Equipment for Precision Mold Manufacturing
Alpine Mold is equipped with 100+ sets of manufacturing and inspection equipment, covering CNC machining, EDM, wire cutting, polishing, mold assembly, mold trial, and quality inspection. We also have 30+ injection molding machines, including FANUC and Haitian machines, supporting your project from mold trial to mass production. This helps us control automotive injection mold accuracy up to ±0.01 mm and deliver stable automotive plastic parts.
02. Proven Track Record in Automotive Injection Tooling
When you work with Alpine Mold, you work with a factory that has delivered 10,000+ molds and exported molds and plastic parts to global customers. Our team has supported automotive projects for global OEMs and Tier 1 suppliers, including GM, Volvo, BMW, Toyota, Ford, Bosch, Webasto, Magna, and more. For your automotive injection molding project, we focus on reliable tooling, stable part quality, and long-term mass production performance.
03. Automotive Material and Application Support
Your automotive plastic parts may require heat resistance, impact strength, chemical resistance, surface appearance, or assembly stability. Alpine Mold supports materials such as ABS, PC/ABS, PP, PA, PBT, POM, PMMA, TPE, TPU, and glass-fiber reinforced materials, helping you choose a suitable plastic injection molding solution for your application.
04. Clear Project Management and Fast Delivery
Your project will be followed by a dedicated project manager, so you can track mold progress clearly from design to delivery. We provide project schedules, regular updates, sample feedback, and technical communication throughout the process. Our standard automotive mold lead time is usually 4–7 weeks, depending on the complexity of your product design. This helps you better plan your automotive mold or injection molding project and keep it on schedule.
Our Strength
Our Workshop
40+
Mold Fabrication
Department
15+
CNC Machines
20+
Mold Design Department
10+
EDM Machines
20+
CNC Machining Department
15+
Wire Cutting Machines
10+
EDM Machining
Department
30+
Injection Machines
Our Display of Automotive Plastic Injection Molding
We provide a range of automotive injection molding services, including conventional plastic injection molding, insert molding, overmolding, and two-shot molding.
These processes are suitable for automotive plastic parts that require metal inserts, soft-touch surfaces, multi-material structures, improved sealing performance, better grip, enhanced durability, or functional assembly features.
Send Alpine Mold your drawings, 3D files, required plastic material, annual volumes, and any surface finish requirements. This allows us to review tooling, manufacturability, and production cost accurately.
No problem. You can send us the physical sample first. We can support reverse engineering based on your sample, including sample measurement, 3D scanning if needed, 3D drawing creation, and structure review for mold manufacturing.
After the 3D model is confirmed, we will proceed with DFM analysis, mold quotation, mold design, and mold manufacturing. If needed, we can also sign an NDA to protect your product information
After receiving your 3D files and project details, we usually provide a quotation within 2 working days. If your project is urgent, please let us know by email or phone, and we will try our best to prioritize your request.
For automotive injection molding projects, custom tooling usually takes 4 to 7 weeks, depending on part complexity, mold structure, steel selection, and required surface finish.
For more complex automotive parts with sliders, lifters, tight tolerances, or special mold structures, the tooling lead time may take up to 8-10 weeks.
The typical production lead time is around 1–2 weeks after mold approval, depending on order quantity, part size, material, surface finish, and production schedule.
For large-volume orders, the delivery time will be confirmed based on the actual production plan.
The lifespan of an automotive injection mold depends on the mold steel, part material, mold structure, production volume, and maintenance. In general, it can be divided into several levels:
Prototype Mold: Usually 1,000–10,000 shots, mainly used for product testing, design validation, and low-volume sample production.
Simple Production Mold: Usually 50,000–100,000 shots, suitable for small-batch production or early-stage market testing.
Medium-Volume Production Mold: Usually 300,000–500,000 shots, suitable for stable production of automotive plastic parts.
High-Volume Production Mold: Usually 1,000,000+ shots, suitable for long-term mass production of automotive components.
For mold projects, our standard payment term is 40% deposit by T/T in advance, 30% before sending the first trial samples, and 30% balance after the final samples are approved.
For mass production, the standard payment term is 50% deposit in advance and 50% balance before shipment.
We control mold quality from DFM review, mold design, steel inspection, CNC/EDM machining, mold assembly, to mold trial. After the mold is completed, we will make trial samples for customer checking and approval. Only after the final samples are confirmed will they be used as the standard reference for production.
Mass Production:
At the beginning of mass production, we strictly inspect the products according to the approved standard samples. Each production shift has professional QC staff, and our QC team checks the production quality every 2 hours during mass production. Before shipment, we also arrange final spot checks to ensure the parts meet the required dimensions, appearance, and quality standards
We believe long-term cooperation comes from stable quality, clear communication, on-time delivery, and honest support. For every project, we provide professional engineering feedback, regular progress updates, strict quality control, and reliable after-sales support. Our goal is not only to complete one mold project, but to become a trusted manufacturing partner for your future product development and mass production needs.
Automotive Injection Molding: The Ultimate Guide
Today’s guide will help understand everything you have been asking about Automotive Injection Molding. So, if you want to be an expert in injection molding for automotive , here is all information you have been looking for.
What is Automotive Injection Molding?
Automotive injection molding is a manufacturing process used to produce plastic parts for vehicles.
In this process, plastic material is heated until it melts, then injected under high pressure into a specially designed mold. The mold cavity has the same shape as the required automotive part. After the plastic cools and solidifies inside the mold, the mold opens and the finished plastic component is ejected.
This process is widely used in the automotive industry because many vehicle parts require complex shapes, accurate dimensions, stable quality, and repeatable mass production. Automotive injection molding can be used to make both exterior and interior plastic components, as well as functional parts used in electrical systems, lighting systems, engine areas, and structural assemblies.
What Is the History of Automotive Injection Molding?

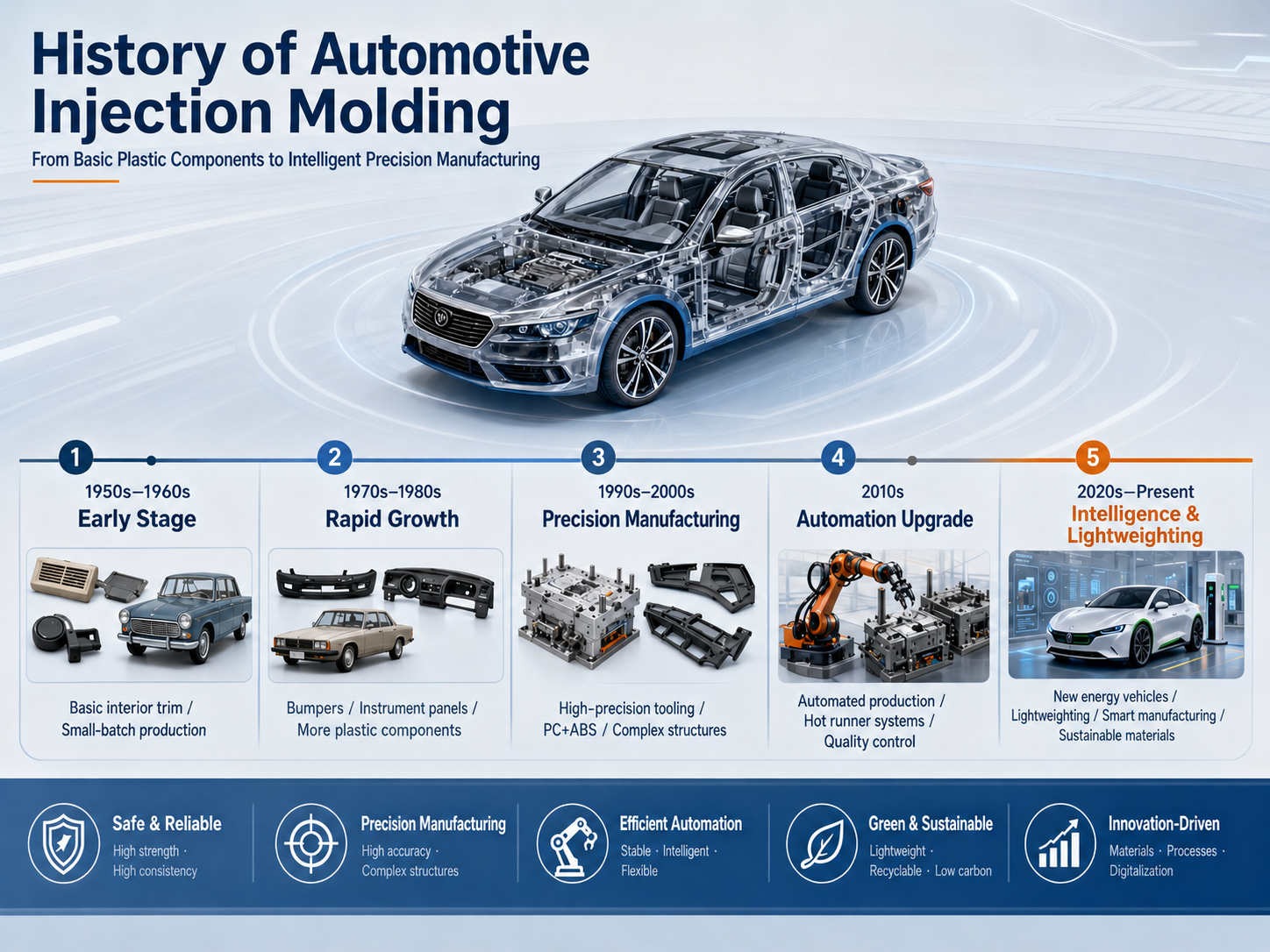

Automotive plastic injection molding began to develop in the mid-20th century, when plastic materials started to be used more widely in vehicle manufacturing.
In the early 1900s, most automotive parts were made from metal, glass, rubber, or wood. Plastics were still limited in performance and were mainly used for small, simple components.
From the 1940s to the 1950s, injection molding technology and plastic materials improved quickly. Automakers began using molded plastic parts for knobs, handles, buttons, trim pieces, and other non-structural components.
By the 1960s and 1970s, engineering plastics such as ABS, nylon, polycarbonate, and polypropylene became more common in automotive applications. Injection molding was increasingly used for interior parts, dashboards, grilles, lighting components, and functional plastic parts.
From the 1980s onward, automotive injection molding became a key manufacturing process as automakers focused more on lightweight design, fuel efficiency, cost reduction, and high-volume production.
Today, automotive injection molding is widely used in traditional vehicles, electric vehicles, and smart automotive systems, supporting the production of interior, exterior, electronic, lighting, and under-the-hood plastic components.
What Are the Benefits of Automotive Injection Molding?
Automotive injection molding offers several key benefits for vehicle plastic part manufacturing. It helps automotive manufacturers produce lightweight, complex, and high-quality plastic components with stable performance in mass production.
1. Supports Lightweight Vehicle Design
Plastic injection molded parts can replace some metal components, helping reduce vehicle weight. This is important for improving fuel efficiency in traditional vehicles and extending driving range in electric vehicles.
2. Enables Complex Part Integration Automotive parts often need clips, ribs, bosses, mounting holes, sealing structures, and assembly features. Injection molding can form these details in one part, reducing secondary processing and improving assembly efficiency.
3. Ensures Stable Quality in Mass Production Automotive production requires repeatability. Once the mold and process are validated, injection molding can produce thousands or millions of parts with consistent dimensions, surface quality, and functional performance.
4. Offers Strong Material Adaptability Different vehicle parts face different working conditions, such as heat, impact, vibration, UV exposure, or chemical contact. Injection molding can use engineering plastics like PP, ABS, PC/ABS, PA, PBT, POM, and glass-fiber-reinforced materials to meet different performance needs.
5. Reduces Long-Term Production Cost Although mold development requires upfront investment, injection molding is highly efficient for large-volume automotive production. Stable cycle times, low material waste, and repeatable output help reduce the cost per part over the full production lifecycle.
What Is the Automotive Injection Molding Process?
Automotive injection molding is a manufacturing process used to produce plastic vehicle components by melting plastic resin and injecting it into a custom-designed mold. After cooling and solidification, the molded part is ejected and can be used for automotive interior, exterior, electronic, lighting, or functional applications.
Step 1: Plastic Material Selection and Preparation The process begins with selecting the right plastic material according to the part’s application and performance requirements. Common automotive materials include PP, ABS, PC/ABS, PA, PBT, POM, and glass-fiber-reinforced plastics. Before molding, some materials must be dried properly to remove moisture. This helps avoid defects such as bubbles, silver streaks, weak mechanical strength, or poor surface quality.
Step 2: Mold Design and Tooling Engineering After the product design is confirmed, engineers design the injection mold based on the part structure, tolerance requirements, surface finish, and production volume. Important mold design factors include gate location, runner system, cooling channels, venting, ejection method, sliders, lifters, and parting line design. For automotive parts, mold design directly affects dimensional stability, assembly accuracy, and long-term production reliability.
Step 3: Injection Molding Machine Setup The mold is installed on the injection molding machine, and the machine parameters are set according to the material and part requirements. These settings include barrel temperature, mold temperature, injection pressure, injection speed, holding pressure, cooling time, and clamping force. Proper machine setup is very important because unstable parameters can cause defects such as flash, short shots, sink marks, warpage, or size variation.
Step 4: Injection and Filling Process During injection, the plastic material is heated into a molten state and injected into the mold cavity under high pressure. The molten plastic flows through the runner and gate until it completely fills the cavity. For automotive parts with complex structures, balanced filling is very important. Poor filling may lead to weld lines, trapped air, burn marks, uneven shrinkage, or weak areas in the part.
Step 5: Packing, Holding, and Cooling After the cavity is filled, the machine applies holding pressure to compensate for material shrinkage as the plastic cools. This step helps improve dimensional accuracy and reduce sink marks. Then the part continues cooling inside the mold until it becomes solid enough for ejection. Cooling design is especially important in automotive injection molding because uneven cooling can cause warpage, deformation, and unstable dimensions.
Step 6: Part Ejection and Handling Once the part has cooled, the mold opens and the ejector system pushes the molded part out of the mold. Depending on the part structure, ejector pins, ejector plates, lifters, or sliders may be used. For automotive parts, ejection must be stable and controlled to avoid scratches, deformation, stress marks, or damage to clips and thin-wall structures.
Step 7: Post-Processing and Secondary Operations Some automotive plastic parts may require additional processing after molding. This can include trimming, painting, printing, laser engraving, ultrasonic welding, assembly, surface treatment, or packaging. Final inspection is also carried out to check dimensions, appearance, assembly fit, and functional performance before the parts are delivered or used in mass production.
What Are Key Process Parameters in Automotive Injection Molding?
Key Parameter
What It Controls
Why It Matters
Melt Temperature
The temperature of molten plastic
Affects material flow, surface quality, strength, and risk of material degradation
Mold Temperature
The cooling condition inside the mold
Influences shrinkage, warpage, surface finish, and dimensional stability
Injection Pressure
The force used to fill the mold cavity
Helps fill thin walls, ribs, clips, and complex automotive structures
Injection Speed
How fast molten plastic enters the mold
Affects filling balance, weld lines, flow marks, burn marks, and trapped air
Holding Pressure & Time
Pressure applied after filling
Controls shrinkage, sink marks, part weight, and dimensional accuracy
Cooling Time
How long the part cools before ejection
Affects cycle time, deformation, warpage, and production stability
Clamping Force
The force keeping the mold closed
Prevents flash and ensures stable molding during high-pressure injection
Ejection Settings
Ejection speed, stroke, and force
Helps avoid scratches, stress marks, deformation, or damage to clips and thin-wall areas
What Are the Challenges in Automotive Injection Molding?
Automotive injection molding often faces challenges related to dimensional accuracy, surface quality, and material performance. The key is to find the real cause and solve it through mold design, material selection, and process control.
Challenge
Main Causes
Solutions
1. Dimensional Instability
Material shrinkage, uneven cooling, unstable injection pressure, poor mold temperature control
Optimize cooling system, control molding parameters, choose suitable material, and inspect critical dimensions during trials
2. Warpage and Deformation
Large part size, uneven wall thickness, unbalanced filling, poor gate location, insufficient cooling time
Improve part structure, adjust gate design, use Moldflow analysis, balance cooling, and optimize holding pressure
Improve mold venting, adjust injection speed and temperature, dry material properly, and improve mold polishing or texture control
4. Sink Marks and Shrinkage
Thick wall sections, ribs or bosses too thick, insufficient holding pressure, poor cooling
Reduce thick sections, optimize rib design, increase holding pressure/time, and improve local cooling
5. Material Performance Issues
Wrong material selection, poor heat resistance, weak impact strength, UV or chemical exposure
Select engineering plastics based on application, such as PP, ABS, PC/ABS, PA, PBT, POM, or glass-fiber-reinforced materials
What Trends Are Shaping the Future of Automotive Injection Molding?
The future of automotive injection molding is being driven by the automotive industry’s demand for lighter, smarter, and more sustainable plastic components.
1. Lightweight Vehicle Design
Automakers are using more plastic parts to replace some traditional metal components. This helps reduce vehicle weight, improve fuel efficiency, and support longer driving range for electric vehicles.
2. Electric Vehicle Development
The growth of electric vehicles is creating more demand for precision plastic parts, such as battery housings, charging components, connectors, sensor housings, and thermal management components.
3. Sustainable and High-Performance Materials
Automotive manufacturers are paying more attention to recyclable plastics, material waste reduction, and engineering plastics with better heat resistance, strength, flame resistance, and dimensional stability.
