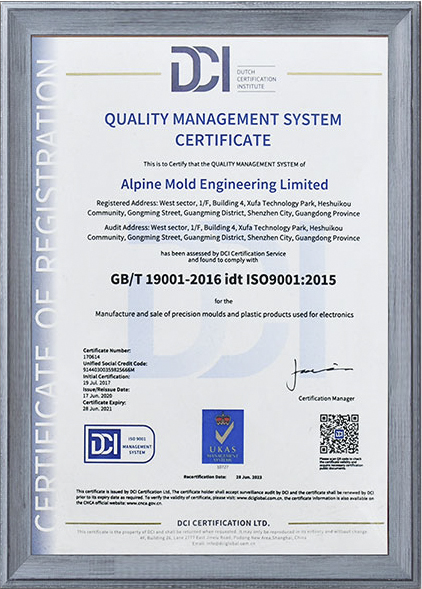

ISO9001:2015, IATF 16949 certification

Get a Quote

Home / Our Capabilities / Quality Systems

Commitment to Quality

At Alpine Mold, quality is the foundation of every mold we design and every plastic part we produce. For over 20 years, we have specialized in precision injection mold manufacturing and injection molding services, helping global customers achieve stable, reliable, and cost-effective production. Our mission is simple: deliver zero-defect molds and parts, on time, every time.

Get a Quote

Quality Systems for Precision Injection Mold & Molding Assurance

Alpine Mold's Manufacturing Standards

As a global injection molding company, we apply measurable controls across design, tooling, molding, and inspection—with clear Owners for every step. The table below summarizes our manufacturing standards for injection molds and custom plastic parts.

Process Phase	Key Check	Alpine Standard & Method	Frequency / Sampling	Owner (Lead｜Support)
Supply Chain (IQC)	Material compliance & moisture	Match BOM + COA + RoHS/REACH; spot FTIR/spectro if needed; moisture per datasheet (PA66 ≤0.20%, PC ≤0.04%) with drying curves	Each lot; AQL 1.0	IQC｜SQE, Process
DFM & Moldflow	Manufacturability / cooling	Moldflow for fill/pack/warp; cooling ΔT ≤ 3 °C; customer-signed DFM	Per project	Design｜PM, Process
Mold Design	Standardization & safety	HASCO/DME/LKM; slider/core-pull safety factor ≥1.3; replaceable wear inserts; vent/gate/draft/cooling validated; design review checklist	Each mold	Design｜PM, Process
Tooling (Steel & Machining)	Steel, hardness & precision	P20 HRC 28–32, H13/S136 HRC 48–52 (±1 HRC); core/cavity fit ±0.01 mm (or tighter); coaxiality controlled	Each mold / in-process	Tooling｜QA, Metrology
Trials (T0–T2)	Mechanism & hot runner health	Smooth ejection/slider/core-pull; hot runner stable (no stringing/leakage); trial checklist	Every trial	Process｜Tooling
FAI	Dimensions & capability	CMM/2D/3D; Critical CpK ≥ 1.67, Important ≥ 1.33; lock recipe after approval	First run & any change	IPQC｜Metrology
Mass Production (IPQC)	Process window, appearance & SPC	Parameters locked; changes via ECR/ECN; SPI/VDI + limit samples; weight X̄–R trending	Per shift / Hourly / q2h	Process｜IPQC, Production
Reliability (Lab)	Environmental / chemical / UV	−30~70 °C, 2 h × 5 cycles; alcohol rub ×50; UV aging (if required)	NPI / ECN	QA｜Lab
Final QC & Outgoing (FQC/OQC)	AQL & function	AQL: Key 0.65, General 1.0, Appearance 1.5; assembly torque/clip/pull tests; fail → 100% re-inspect	Each lot	FQC｜OQC
Packaging & Logistics	Transit protection	VCI/vacuum/anti-scratch; 1.2 m 6-face drop; 24 h stack test; barcode labels	New/changed pack & audits / Each lot	IE｜QA, Warehouse

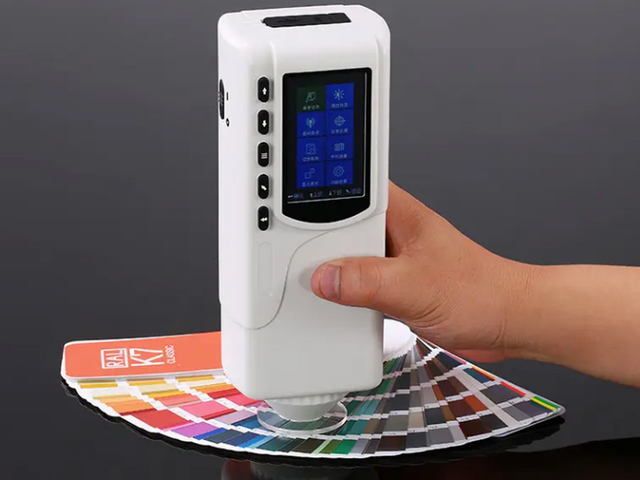

Metrology	Instrument calibration	Calipers monthly / yearly external; Zeiss CMM yearly external; vision/colorimeter/moisture per register	As per register	Metrology｜QA
Nonconformance	8D closure	Isolation; containment ≤24 h; root cause → corrective/preventive → verification	Each case	QA｜Dept. Owner
Traceability	End-to-end code	Raw lot → dryer → machine → mold ID/cavity → inspection → shipment; data retention ≥2 years	Continuous	Warehouse｜QA, Production

Quality Control Throughout the Process

At Alpine Mold, we know that consistent quality does not happen by chance—it is the result of strict control at every stage of production. From raw material intake to final shipment, our injection mold manufacturing and injection molding service follows a robust quality assurance system to guarantee precision, reliability, and full traceability.

Incoming Material Inspection

High-quality materials are the foundation of durable molds and stable molded parts. During material intake, we verify:

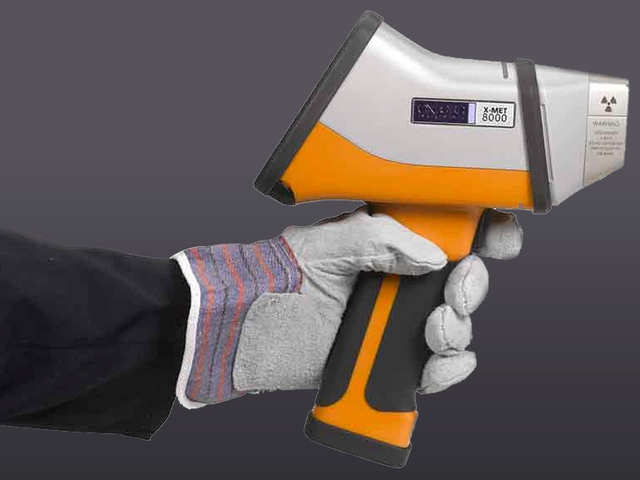

Mold Steel – chemical composition, hardness, and certifications (e.g., S136,P20, , NAK80,718, 738，718H, 738H, S136H,etc) are checked before machining.
Plastic Resins – appearance and purity of granules, melt flow index, moisture content, and supplier certifications (RoHS, REACH, MSDS).

We only source mold steel and plastic resins from trusted international suppliers such as ASSAB, LKM, BASF, SABIC, and Covestro, ensuring consistent quality and full material traceability.

In-Process Inspection

This stage is the core of our quality control system, covering both plastic mold manufacturing and injection molding.

Mold Manufacturing Checks

After the customer confirms the 3D mold design, we begin mold manufacturing.

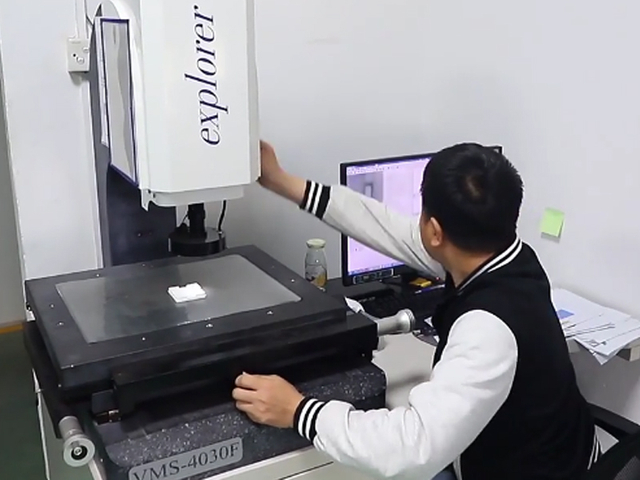

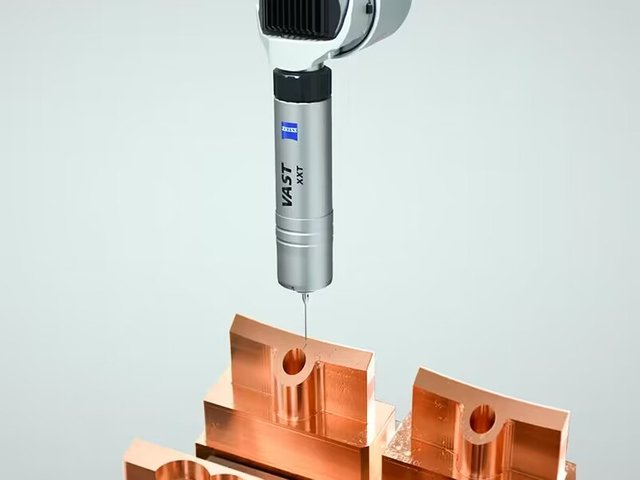

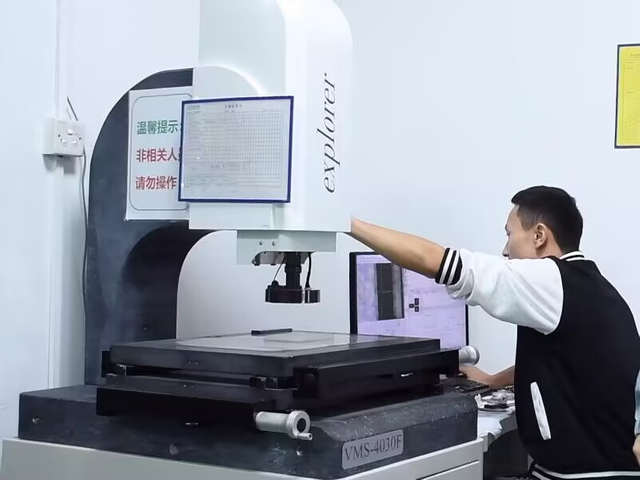

Dimensional verification of cores, cavities, and inserts using CMM and projectors.
CMM report for electrode/ steel

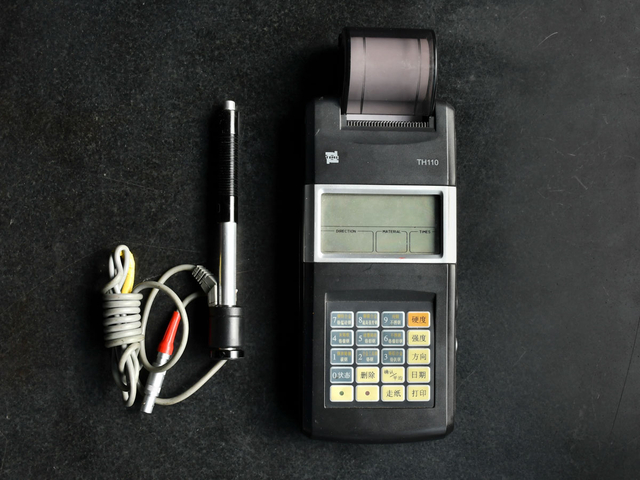

Hardness testing of tool steel after heat treatment.
Mold assembly validation: alignment, cooling circuits, ejector systems, and moving mechanisms.

Injection Molding Checks

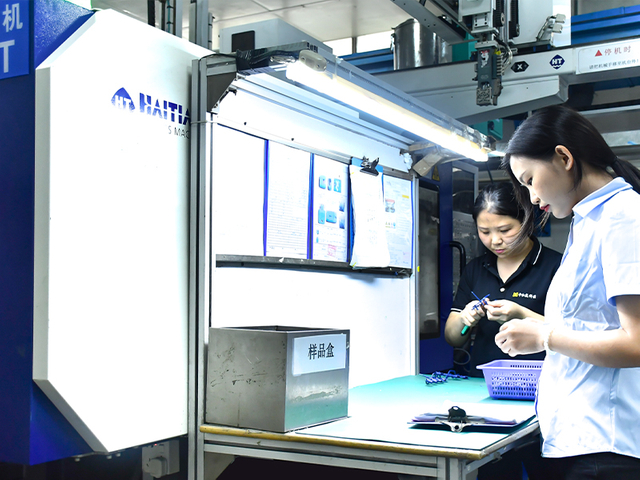

Once the customer approves the samples, mass production begins. During production, our QC team conducts in-process inspections every two hours.

Focusing on key aspects including dimensions, appearance, and functionality.
Additional checks for flow marks, sink marks, warpage, and surface defects.
Functional validation: assembly fit, strength, and usability.

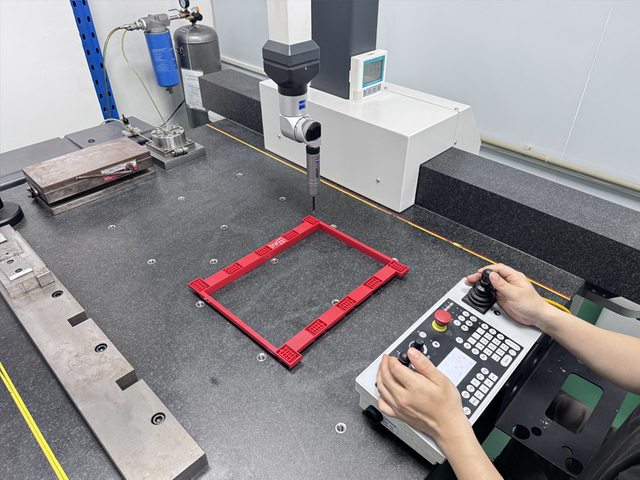

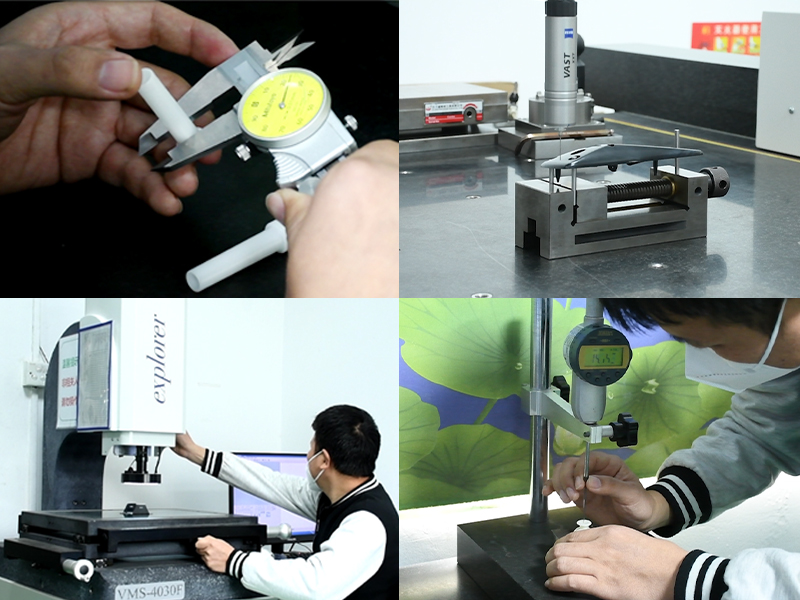

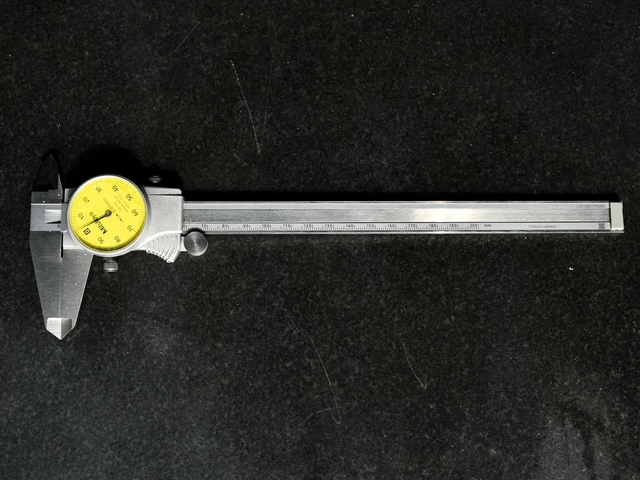

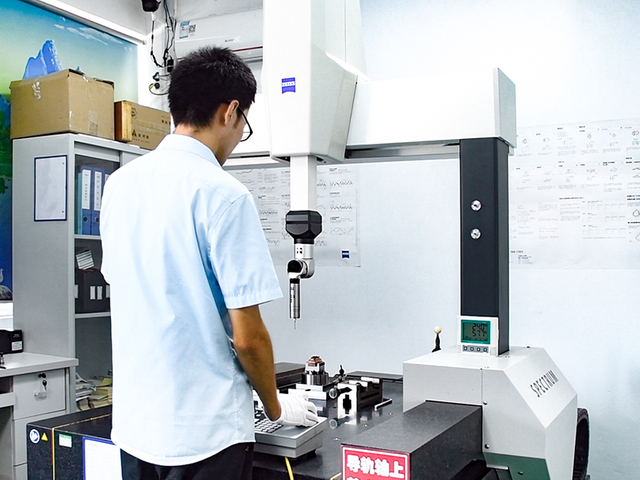

Our inspection equipment includes ZEISS CMM (Coordinate Measuring Machine), hardness testers, calipers, micrometers, and optical projectors. Combined with SOPs, QC drawings, and SPC (Statistical Process Control), these measures ensure accuracy, stability, and defect prevention across all custom molded plastic parts.

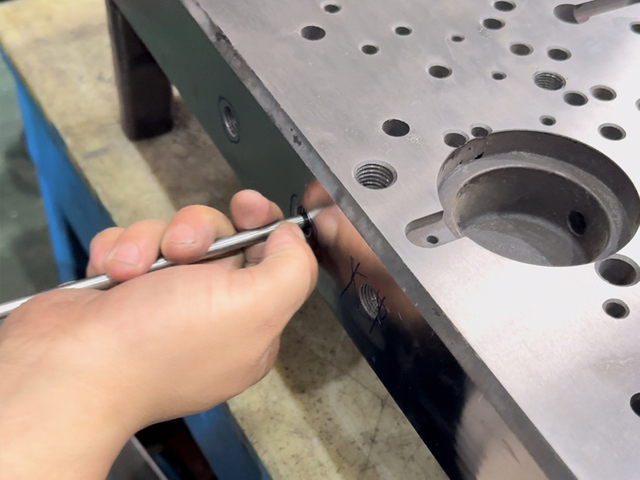

Quality Control Process for Every Mold (1)

Quality Control Process for Every Mold (3)

Quality Control Process for Every Mold (2)

Quality Control Process for Every Mold (4)

Final Product Inspection

Before delivery, both molds and plastic parts undergo comprehensive final inspections:

Mold Inspection

Test shots conducted and mold trial reports generated.

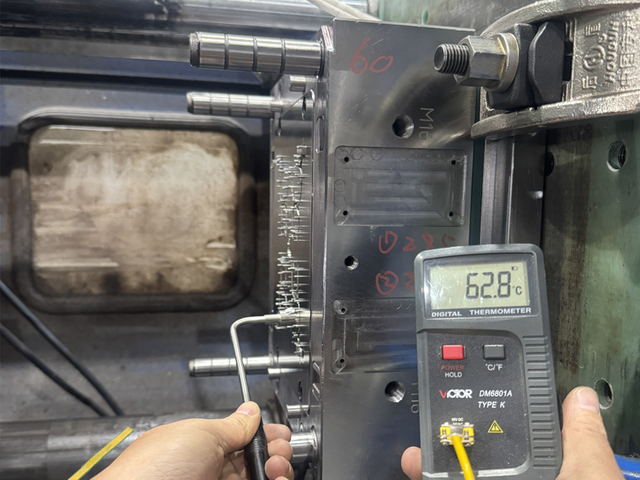

Cooling and leakage tests performed to verify stability.
Final functional checks, including ejection system, sliders, and hot runner balance.
Surface protection applied with anti-rust oil/paint, ensuring steel components remain corrosion-free during transit.
Mold packaging with a custom wooden crate, internal support, and moisture-proof wrapping to guarantee safe international shipment.

Plastic Parts Inspection

Appearance: free of flash, sink marks, scratches, or color deviations.
Dimensions: conform to technical drawings and GD&T requirements.
Functionality: assembly fit tests, insertion/extraction force, and durability testing.
Packaging: verified against customer specifications to ensure safe delivery without damage or contamination.

For customers with strict requirements, we perform AQL-based sampling inspections to ensure only qualified products are shipped.

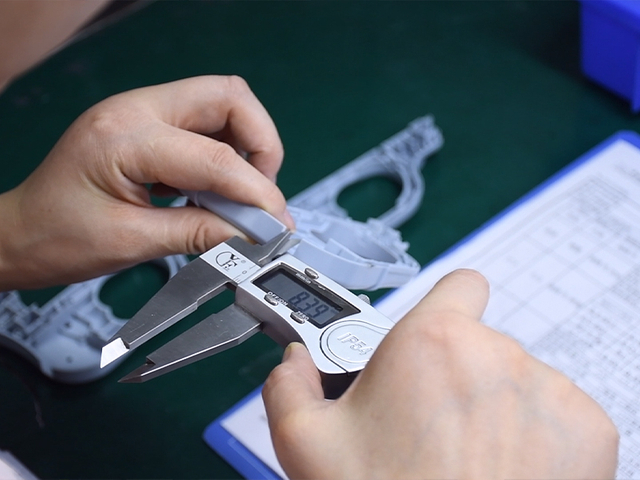

Quality Control Process for Every Mold (8)

Quality Control Process for Every Mold (7)

Quality Control Process for Every Mold (6)

Quality Control Process for Every Mold (5)

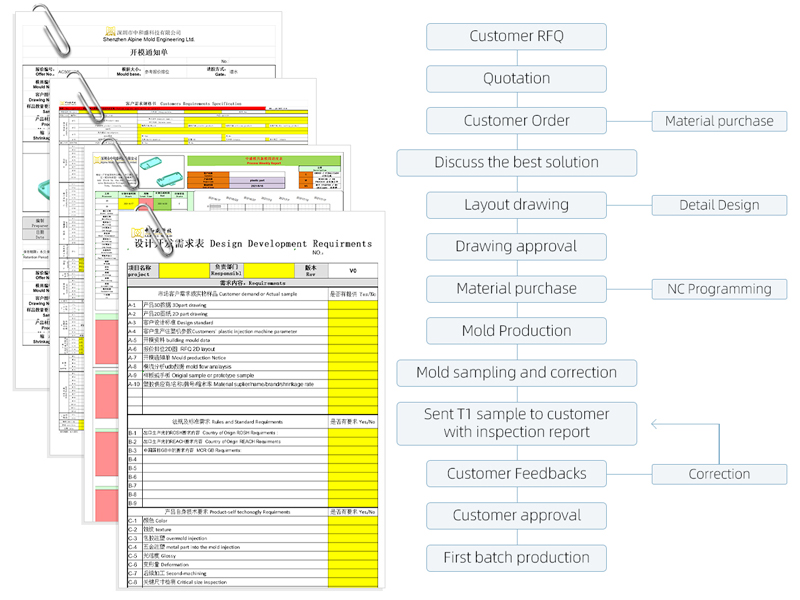

Traceability Management

Mold Traceability

Mold ID & Build History – every mold has a unique ID linked to its design version, machining history, and maintenance records.
Steel Certificates & CMM Reports – chemical composition, hardness records, and CMM reports for electrodes and steel components.
Weekly Mold Progress Report – customers receive detailed weekly updates with photos and key milestones to track tooling status before delivery.
Trial Mold Parameters & Video – full trial data and video evidence provided for transparency during mold validation.
T1 Samples Inspection Report – a comprehensive dimensional and appearance inspection of first-shot samples, performed before mold export. This ensures the mold produces plastic parts that fully meet customer requirements prior to shipment.

Plastic Parts Traceability

Raw Materials – resin lot numbers, supplier certificates (RoHS, REACH, MSDS) and full traceability from source to batch.
Production Records – batch numbers, machine parameters, and operator logs.
In-Process & Final Inspections – dimensional and functional reports linked to each batch.
Customer Approval – T1 Samples Inspection Report, trial molding parameters, and video evidence for verification.
Final Shipment – a comprehensive Inspection Report before Shipment guarantees conformance before delivery.

This allows every injection mold and every batch of custom molded plastic parts to be traced back to its origin. In the rare case of an issue, we can quickly perform root-cause analysis and implement corrective and preventive actions—minimizing risk and giving customers total confidence.

In-House Inspection Equipment

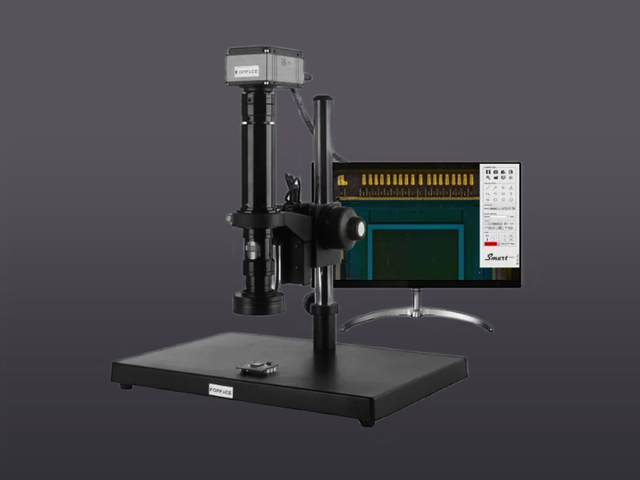

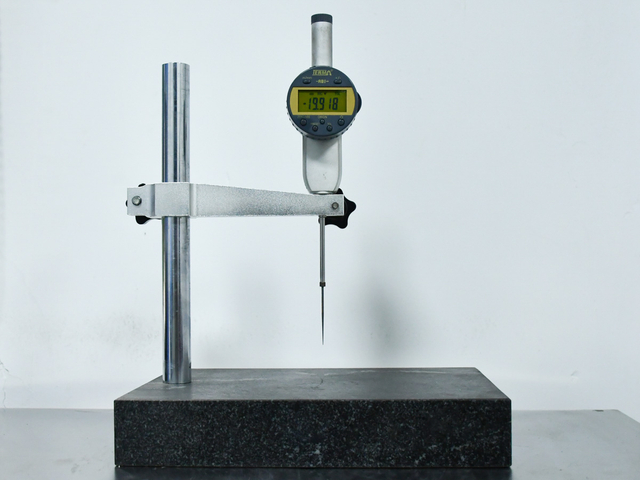

we verify every plastic mold tooling and injection part with in-house inspection equipment for dimensional, cosmetic, and material accuracy. Below are the core instruments we use to ensure repeatable results and full traceability.
