Rapid Tooling Making

Accelerate your product development with cost-effective rapid tooling solutions — from design to functional parts in weeks.

Lead time as fast as 3–5 weeks

Cost-efficient tooling for prototype & low-volume production

Suitable for complex geometries and functional testing

Smooth transition from rapid tooling to mass production

Completed 12,000+ Projects With a Zero-failure Record

Rapid Tooling Making Quote

If needed, we can sign an NDA agreement before providing the quotation.

What is Rapid Tooling?

Rapid tooling, also known as prototype or bridge tooling, is a type of mold used to produce plastic parts quickly during the early stage of product development. It is mainly applied for validating mold performance and product functionality before committing to full-scale production tooling.

Compared with standard production molds, rapid tooling is designed for a shorter service life, typically ranging from 1,000 to 10,000 cycles, while production molds are built for long-term, high-volume manufacturing. One of its key characteristics is the significantly reduced lead time, usually within 20 to 35 days, allowing manufacturers to move from design to actual parts much faster.

In addition to functional testing, rapid tooling can also support small-batch production. Compared with silicone molding processes, it offers better part quality and more consistent material performance, while remaining cost-effective for low-volume manufacturing.Due to its adaptability, rapid tooling is commonly used for prototype testing, structural optimization, and bridge production across various industries.

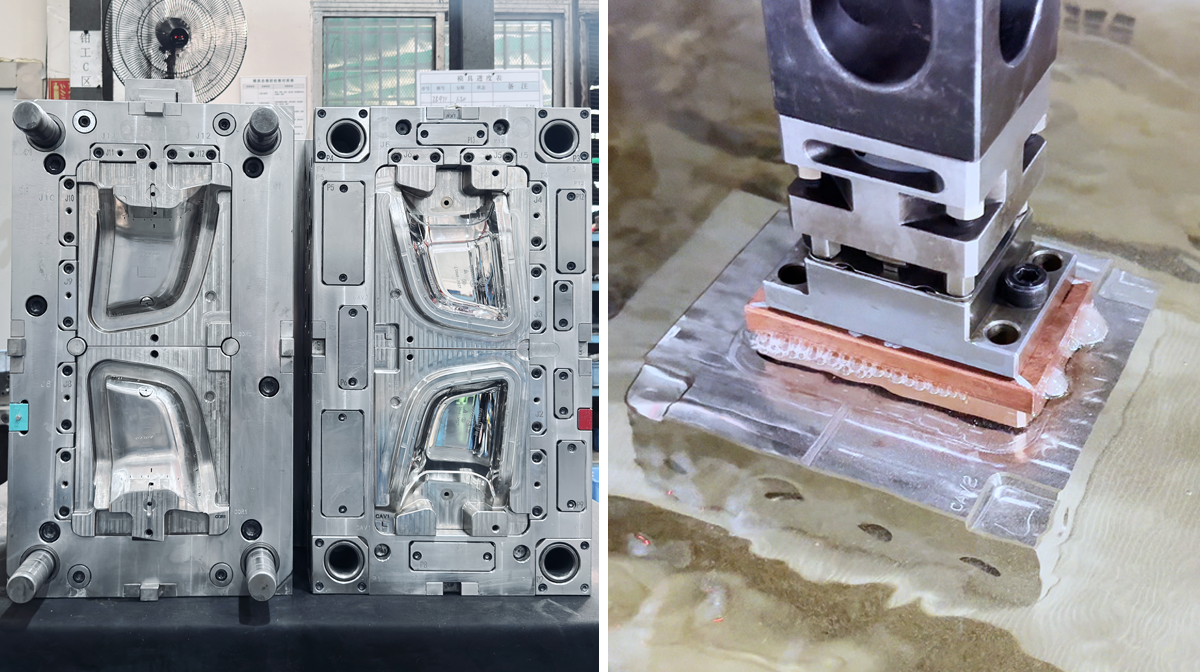

What Can Alpine Mold’s Rapid Tooling Bring to Your Design?

At Alpine Mold, rapid tooling is engineered to bridge the gap between concept validation and production readiness. Our focus is not only on speed, but on delivering molds that provide reliable data, predictable performance, and a smooth transition to mass production.

① Controlled Manufacturing Process

✔ Integrated in-house workflow covering CNC machining, EDM, mold assembly,mold trial and production

✔ Direct coordination between engineering and manufacturing to reduce iteration cycles
✔ Stable process control ensuring repeatability from tool build to sample validation

② Precision Engineering for Functional Validation

✔ Machining accuracy up to ±0.01 mm, supporting tight-tolerance components
✔ Tooling designed to reflect real injection molding conditions rather than simplified prototypes
✔ Capable of delivering consistent parts for dimensional verification and assembly testing

③ Accelerated Development Timeline

✔ Typical lead time of 3–5 weeks from design to mold completion
✔ Enables early-stage sampling to support design freeze decisions
✔ Tool life of 1,00–10,000 shots, suitable for bridge production and validation runs

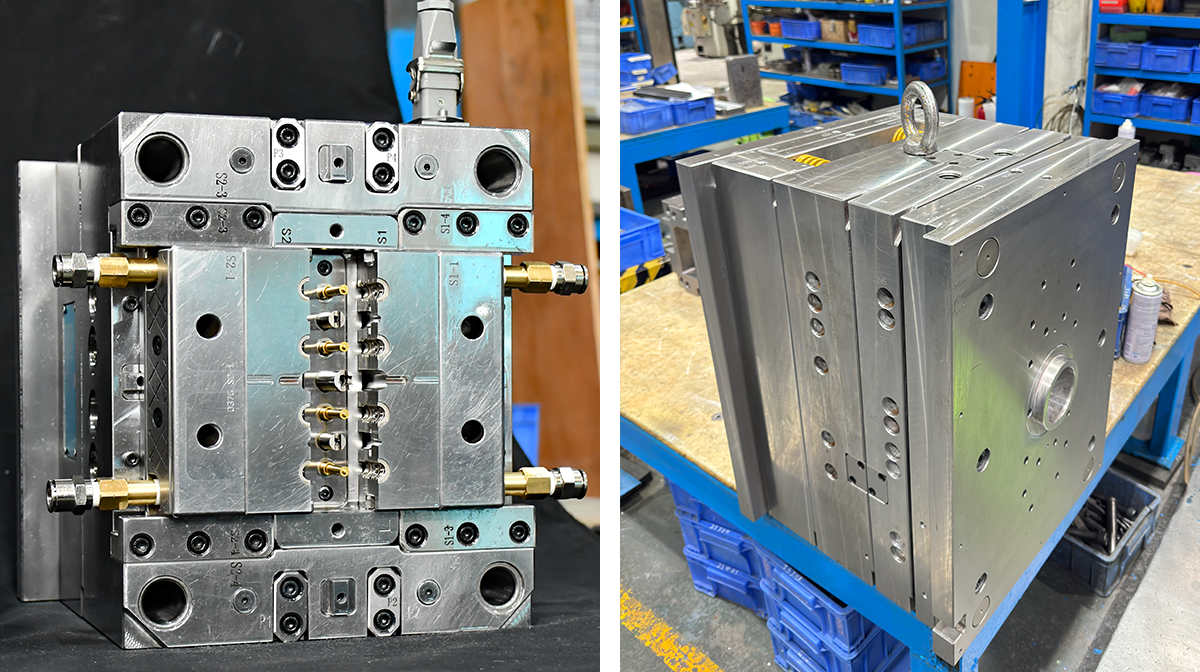

When to Choose Rapid Tooling: Rapid Tooling vs. Production Tooling

Rapid tooling and production tooling serve different purposes in the product development cycle. Choosing the right solution depends on your project stage, required volume, and timeline. Below is a comparison to help guide your decision.

Key Factor	Rapid Tooling	Production Tooling
Application Stage	Design validation, prototyping, low-volume production	Stable design, high-volume mass production
Lead Time	3–5 weeks	4–10 weeks
Tooling Cost	Lower initial investment	Higher upfront cost, optimized for scale
Tool Life	1,00 – 10,000 shots	100,000+ shots
Design Flexibility	High – easy to modify and iterate	Low – changes are costly and time-consuming

When to Choose Rapid Tooling

   You need to validate a new product quickly before mass production
Your design is still evolving and may require adjustments
You want to produce small batches (e.g. 100 – 10,000 parts) for testing or market feedback

When to Choose Production Tooling

   Your design is finalized and ready for long-term production
   You require high-volume manufacturing (10,000+ parts)
You need long mold life, high durability, and optimized cost per unit

When to Choose Rapid Tooling: Rapid Tooling vs. Urethane/Silicone Mold

Rapid tooling and urethane/silicone molding are both used for prototype and low-volume production, but they serve different purposes in product development. The right choice depends on whether you need functional validation or appearance-focused samples.

Key Factor	Rapid Tooling	Urethane Casting/Silicone Mold
Application Stage	Design validation, prototyping, low-volume production	Stable design, high-volume mass production
Lead Time	3–5 weeks	4–10 weeks
Tooling Cost	Lower initial investment	Higher upfront cost, optimized for scale
Production Volume	100 – 10,000 shots	Typically 10 – 100 shots
Design Flexibility	High – easy to modify and iterate	Low – changes are costly and time-consuming

When to Choose Rapid Tooling

   You need parts made from real production materials
Functional testing, assembly validation, or performance evaluation is required
Your project is moving toward injection molding and requires reliable data

When to Choose Urethane/Silicone Mold

   You need visual prototypes or display models
   The required quantity is very low (e.g. <100 pcs)
Appearance verification is more important than functional performance

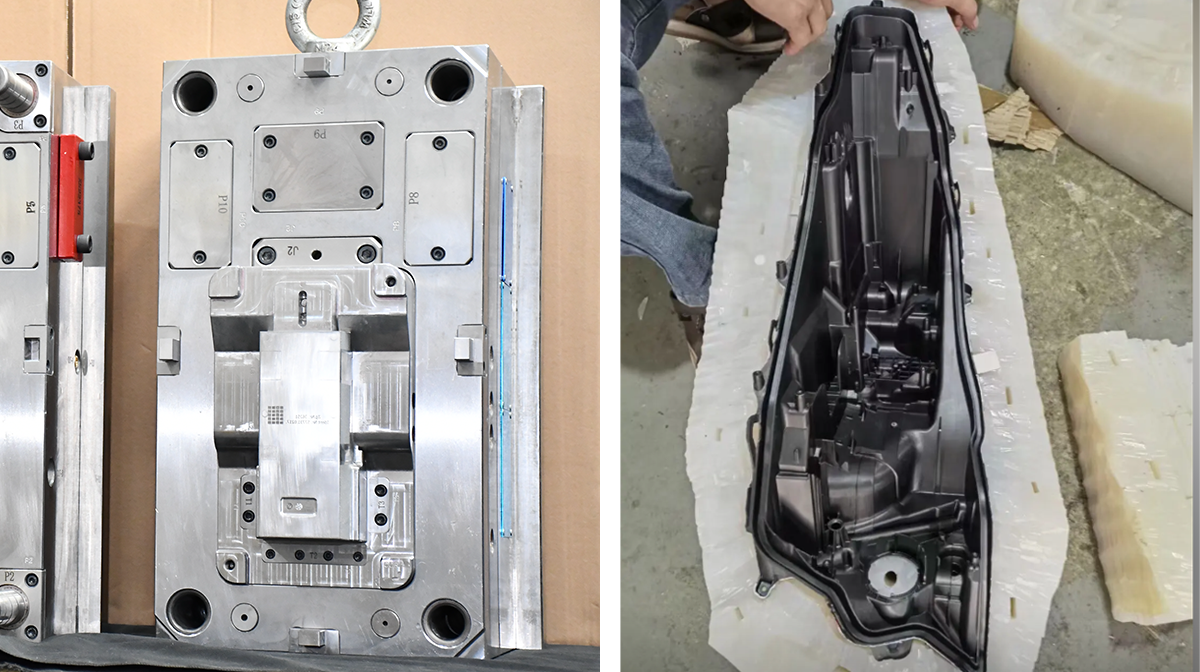

Rapid Tooling vs. Urethane/Silicone Mold

Rapid Tooling Materials We Provide

At Alpine Mold, we combine strong engineering expertise, advanced manufacturing equipment, and extensive experience in export mold manufacturing for global customers. Our team delivers precision molds that meet international standards and perform reliably in customers’ production facilities worldwide, helping reduce project risk, improve efficiency, and bring products to market faster.

Aluminum Molds (such as 6061 / 7075)

Ideal for low-volume production (100–5,000 parts) such as consumer electronics housings and automotive prototypes. With Alpine Mold’s advanced 5-axis CNC machining, you benefit from fast lead times (5–15 days) and cost-efficient tooling, making it perfect for rapid validation and early-stage market testing.

Steel Molds (such as P20 / S50C)

Design for medium-volume production (1,000–10,000 cycles) in demanding applications such as automotive interior components, electrical housings, and industrial plastic parts.These molds provide enhanced durability and stability, with optional surface treatments (e.g., TiN coating) to improve wear resistance and reduce downtime.

Materials for Rapid Injection Molding: What We Can Produce

Engineering plastics:

Acrylonitrile Butadiene Styrene (ABS)

Polycarbonate (PC)

Polyamides (PA/Nylon)

Poly(methyl methacrylate (PMMA)

Polyoxymethylene plastic (POM)

Polybutylene terephthalate (PBT)
Polyethylene terephthalate (PET)
Polyoxymethylene plastic (POM / Acetal)
Polyphenylene oxide (PPO)

Acrylonitrile Styrene Acrylate (ASA)

Polycyclohexylene Dimethylene Terephthalate Glycol-modified (PCTG)

Commodity Plastics:

Polypropylene (PP)
Polyethylene (PE)
Polystyrene (PS)
High-density Polyethylene (HDPE)
Low-density Polyethylene (LDPE)

Thermoplastic Elastomers:

Thermoplastic Vulcanizates (TPV)
Thermoplastic Elastomers (TPE)
Thermoplastic Polyurethane (TPU)
Polyether Block Amide(COPE)
Polyamide Elastomer (COPA)

Workflow of Our Rapid Tooling Making Services

At Alpine Mold, our rapid mold making workflow is designed to help you move from design to validated parts with greater speed, clarity, and confidence. From engineering review to mold delivery, every step is managed to ensure your project stays on track and your requirements are fully understood and executed.

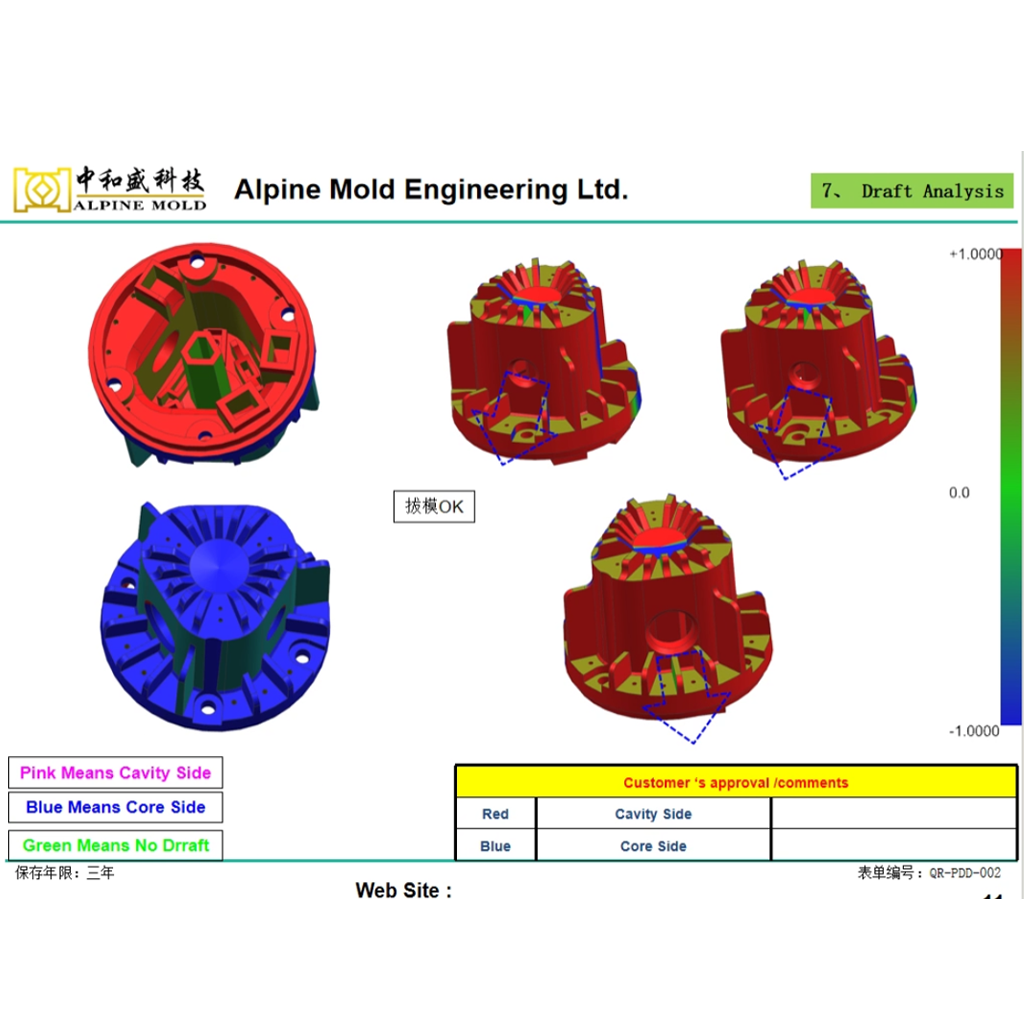

1.DFM Report and Mold Flow

After you place the order, our engineers will first prepare a DFM report and mold flow analysis based on your 2D and 3D drawings. This helps you review the feasibility of the design at an early stage and allows us to identify potential risks in mold design and injection molding.

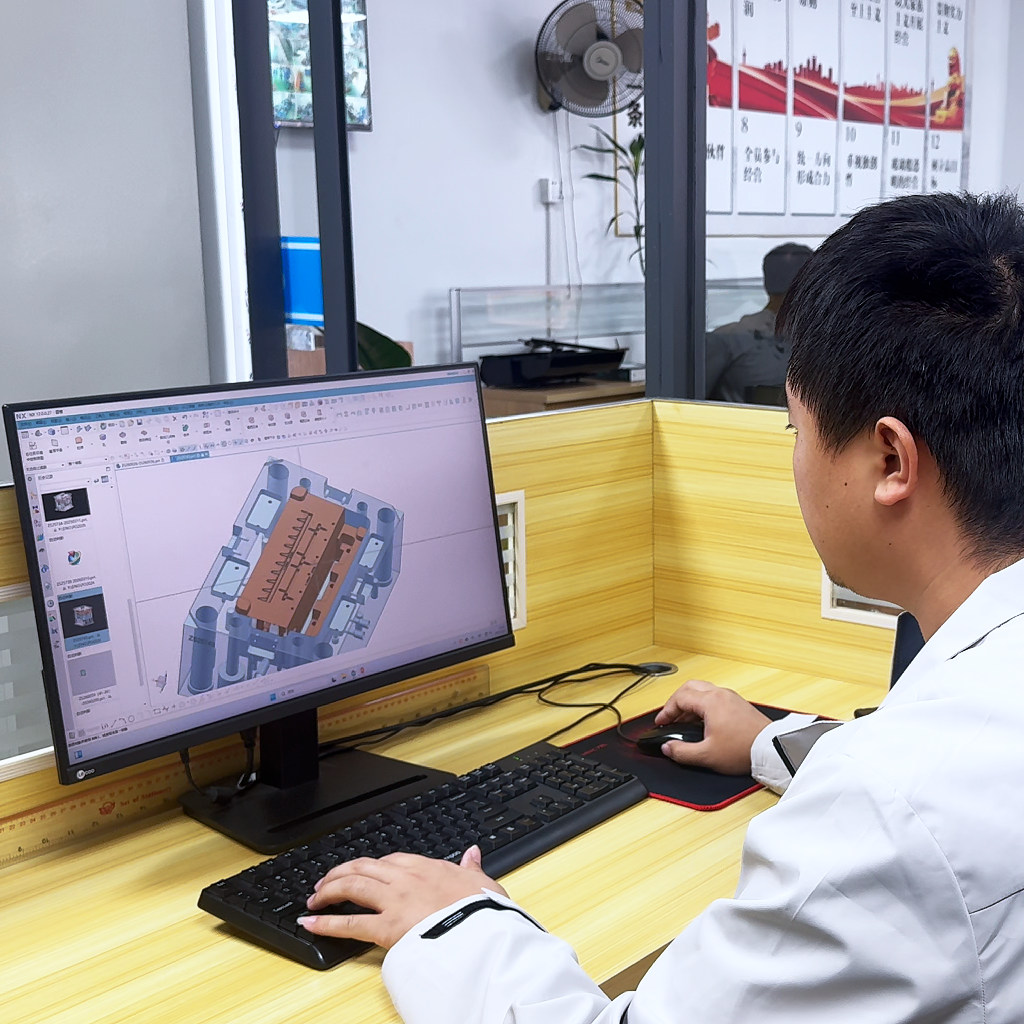

2.3D Mold Drawing Design

Once you confirm the DFM report and mold flow analysis, our engineering team will finalize the mold design and provide you with the 3D mold drawings for confirmation. This step ensures that you have a clear understanding of the mold structure before manufacturing starts.

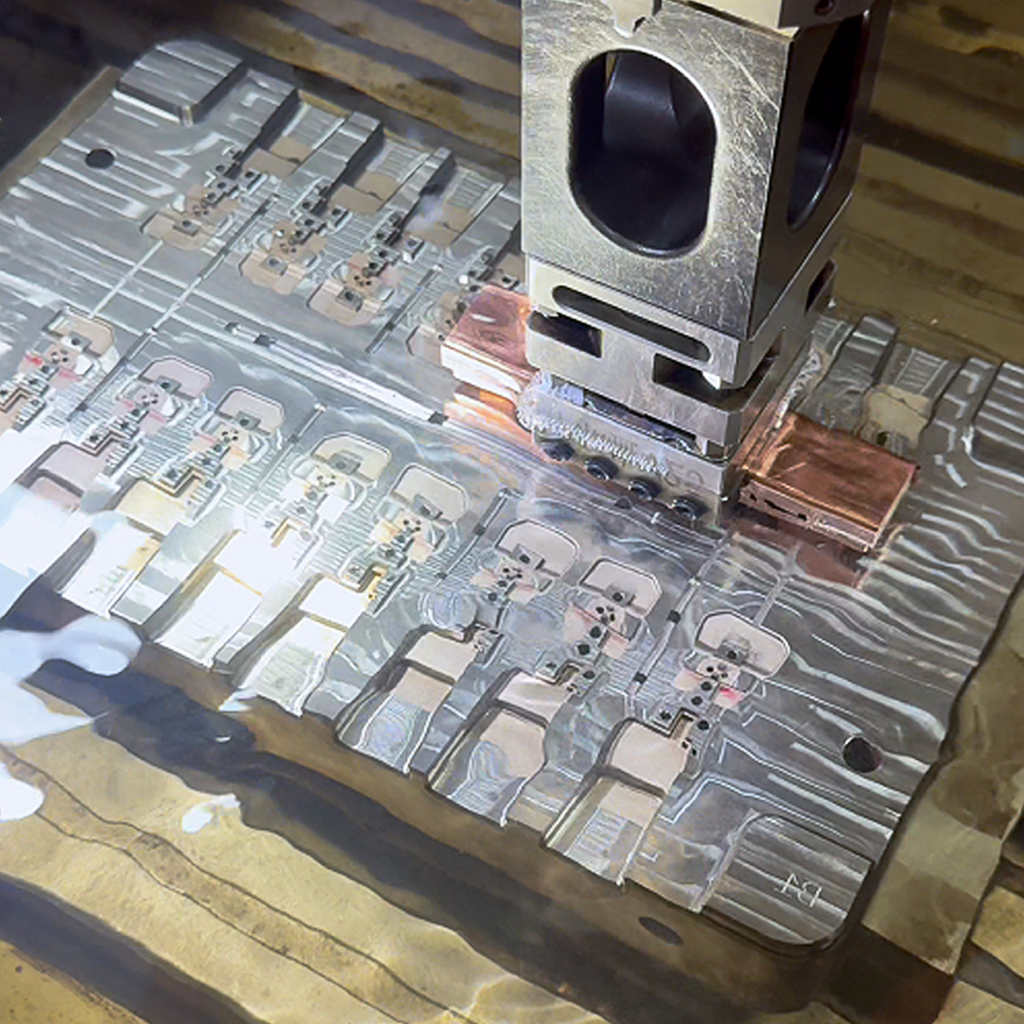

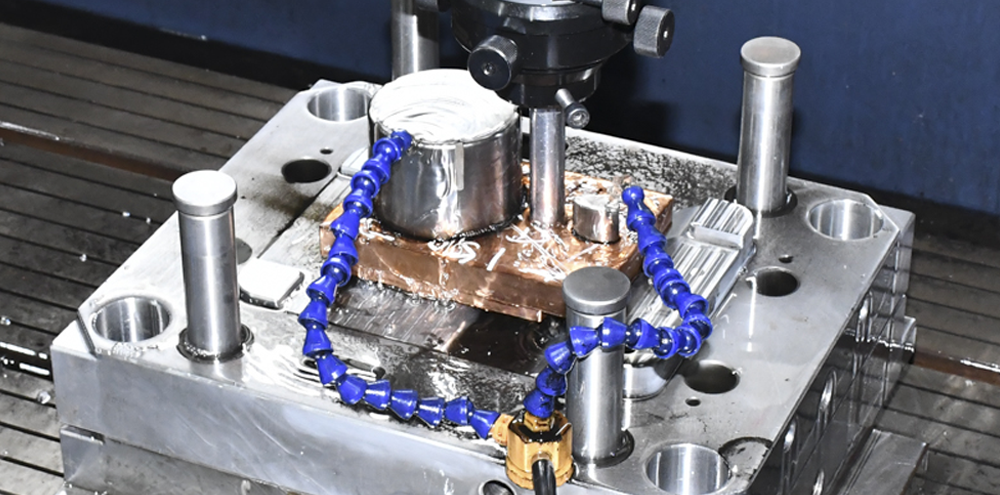

3.Precision Mold Machining

After your approval of the mold design, we begin mold fabrication, including drilling, CNC machining, EDM, wire cutting, grinding, and polishing. During this stage, you will receive regular progress updates, so you can always follow the status of your mold.

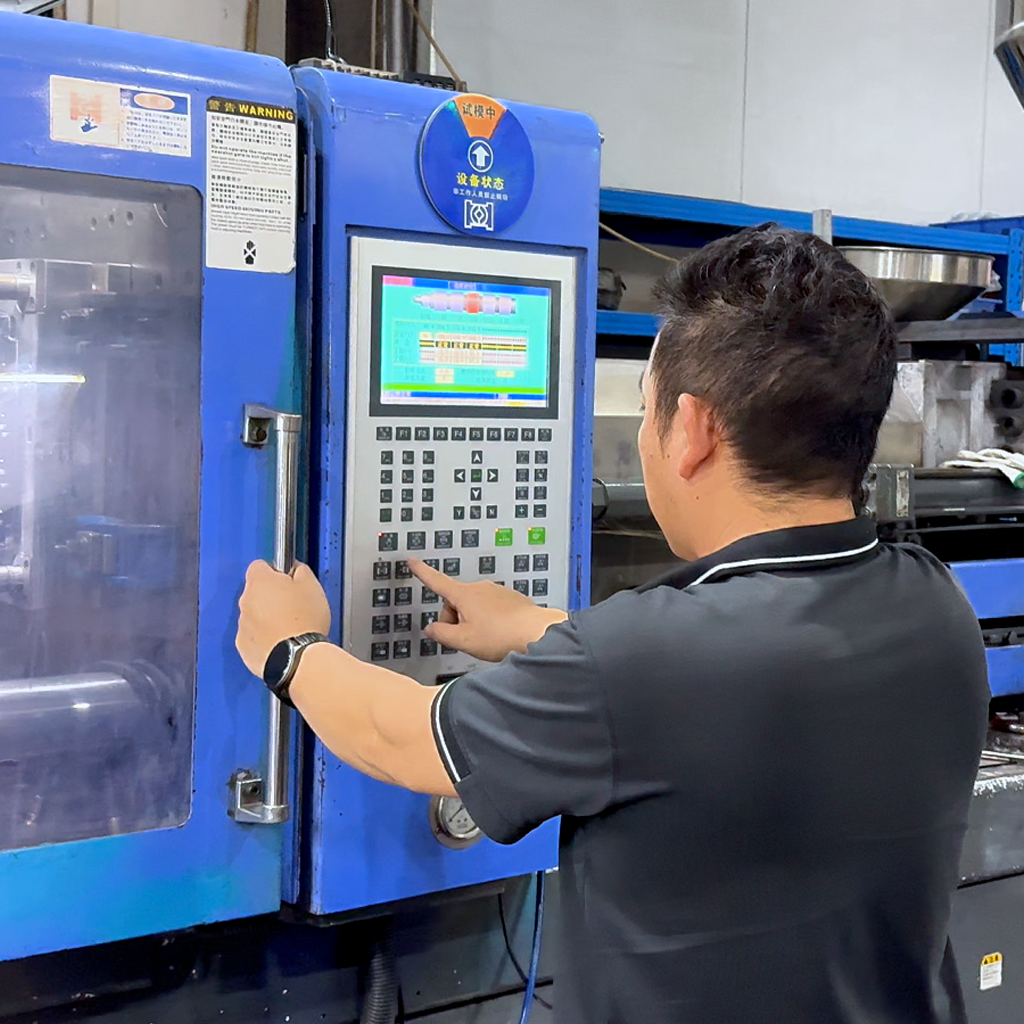

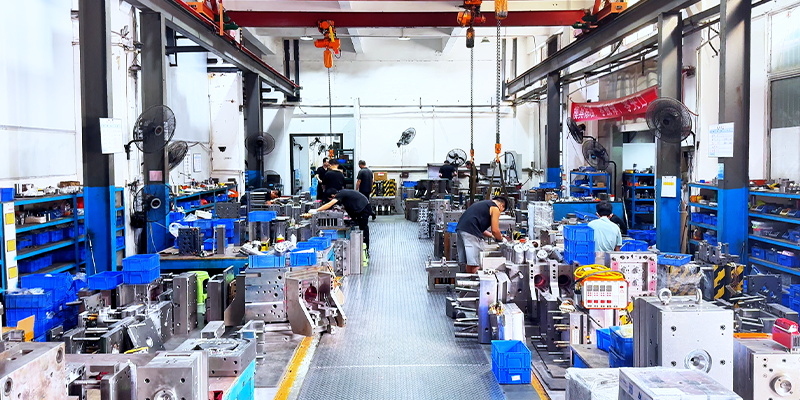

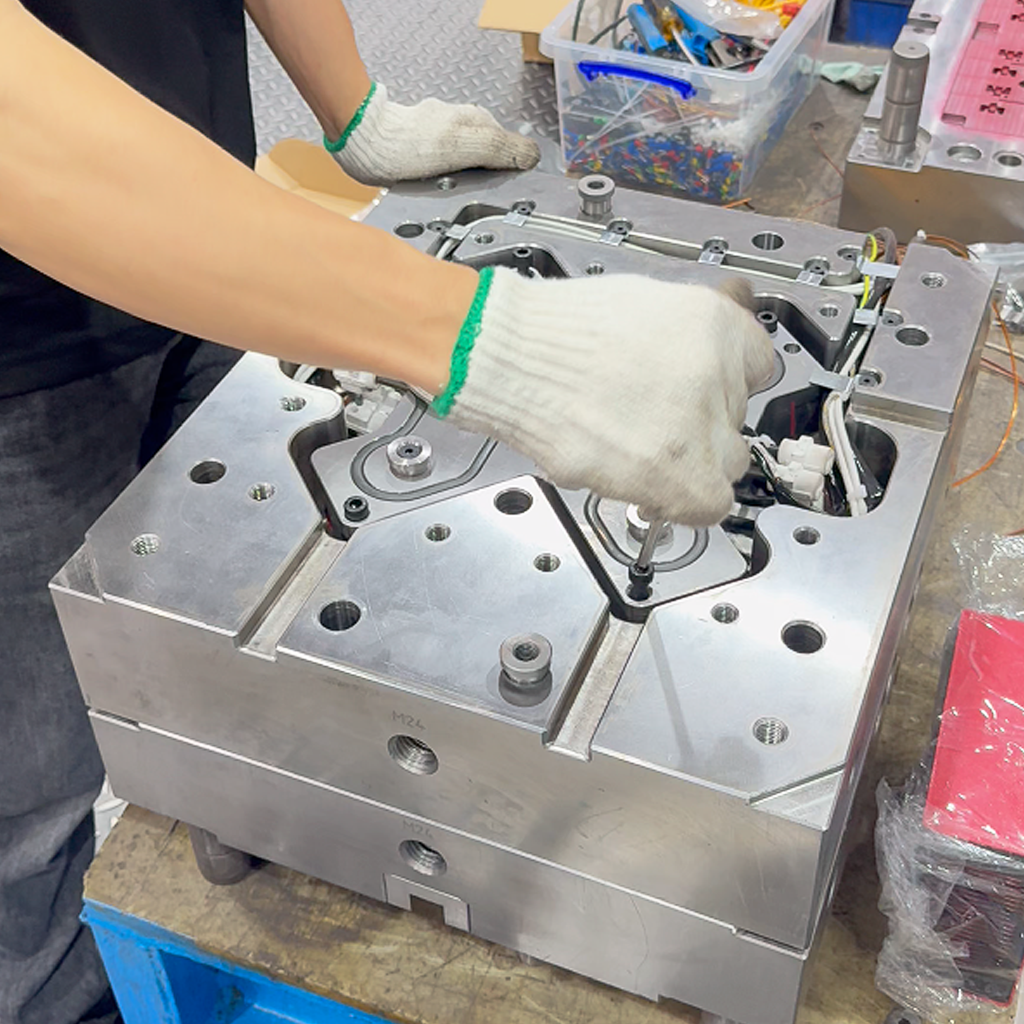

4.Mold Assembly and Mold Trial

After the mold components are assembled, we carry out mold fitting, inspection, and trial molding. During this process, we record key molding parameters, analyze part quality, and optimize the mold if needed, so that you receive more reliable samples and clearer feedback for the next step.

5.T1 Sample Confirmation

After the first mold trial, we inspect the T1 samples to verify whether they meet your dimensional and tolerance requirements. At the same time, we send you the samples together with a dimensional inspection report, allowing you to review and confirm the results efficiently.

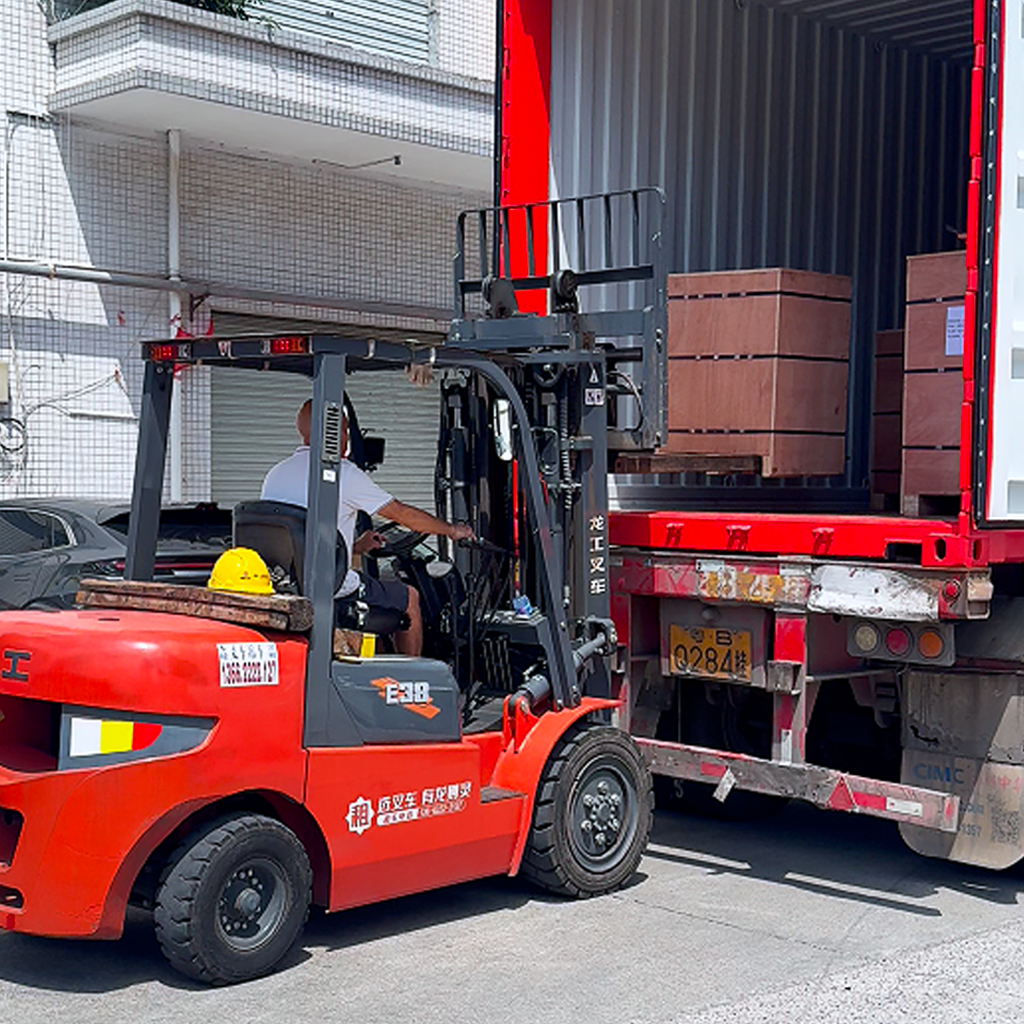

6.Packaging and Shipping

Once you approve the samples, we clean the mold, apply rust-prevention treatment, and pack it in reinforced export wooden crates. This ensures that your mold is delivered safely, on time, and ready for use at your facility.

Get a Quote Now

Our Strength

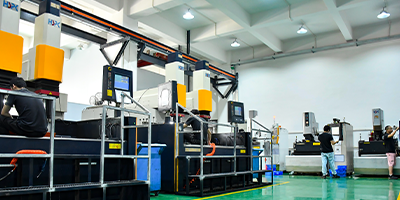

Rapid Mold Making Workshop

40+

Mold Fabrication

Department

15+

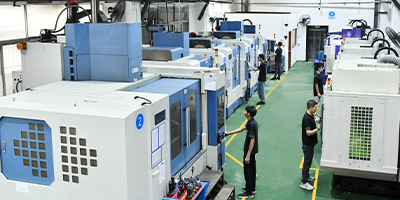

CNC Machines

20+

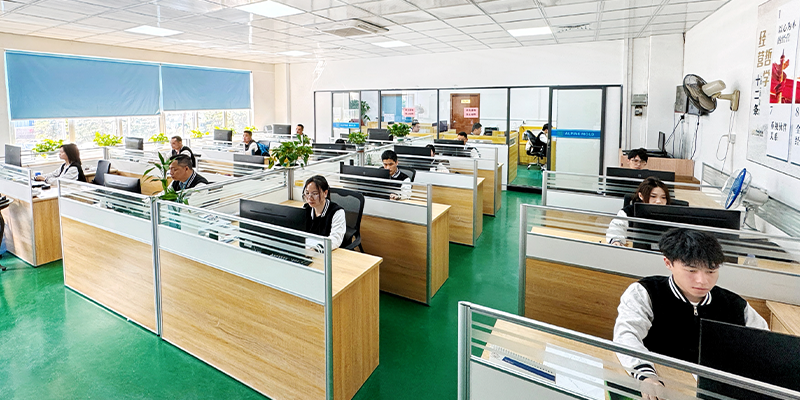

Mold Design Department

10+

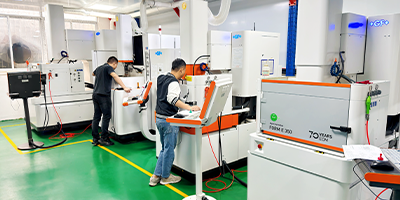

EDM Machines

20+

CNC Machining Department

15+

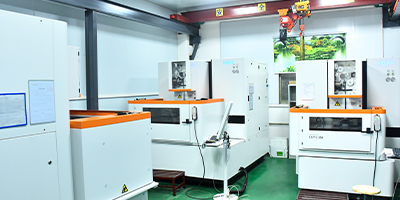

Wire Cutting Machines

10+

EDM Machining

Department

30+

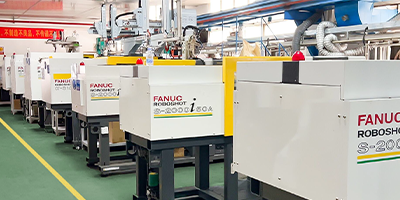

Injection Machines

Rapid Tooling : The Ultimate FAQ Guide

Today’s guide will help understand everything you have been asking about rapid tooling.
So, if you want to be an expert in rapid tooling , here is all information you have been looking for.

What Is Rapid Injection Molding?

Rapid injection molding is a manufacturing process that uses rapid tooling—such as aluminum or pre-hardened steel molds—to produce plastic parts quickly compared to traditional injection molding.

It is designed to bridge the gap between prototyping and mass production, allowing companies to create functional parts using real production materials with shorter lead times and lower upfront costs.

Key Features of Rapid Injection Molding
Powered by rapid tooling – fast mold manufacturing enables quicker part production
Fast lead time – molds can be ready in as little as 3–5 weeks
Lower tooling cost – compared to conventional (production) tooling
Production-grade materials – ABS, PC, PP, Nylon, etc.
Suitable for low to medium volumes – typically 100 to 10,000+ parts
Faster design iteration – easier to modify tooling if needed

What are Benfits of Rapid Tooling?

1. Faster Product Validation
Quickly move from design to real molded parts, helping you verify functionality, structure, and performance in a shorter time.
2. Real Production Materials
Parts are produced using actual injection molding materials, allowing you to obtain reliable data for engineering evaluation.
3. Reduced Development Risk
Identify potential issues early in the process, minimizing costly design changes before mass production.
4. Flexible Design Iteration
Easily adjust and optimize your design based on real test results without the high cost of reworking production molds.
5. Cost-Effective for Low Volumes
An efficient solution for small-batch production, offering a balance between tooling cost and part quality.
6. Smooth Transition to Mass Production
Ensure your product is ready for scaling, with fewer uncertainties when moving to production tooling.

What are the Limitations of Rapid Tooling?

While rapid injection mold tooling offers speed and cost advantages, it also comes with certain limitations that should be considered before choosing it for your project.

1. Limited Mold Life
Rapid tooling (especially aluminum molds) has a shorter lifespan compared to hardened steel molds, making it less suitable for high-volume production.
2. Lower Durability
Materials used in rapid tooling are generally softer, which means they are more prone to wear, deformation, or damage under high pressure or long production runs.
3. Surface Finish Constraints
Although good surface quality can be achieved, it may not match the consistency and precision of high-end production tooling, especially for mirror finishes or textured surfaces.

What is the Difference Between Rapid Prototyping and Rapid Tooling?

Rapid prototyping and rapid tooling are both used to speed up product development, but they serve different purposes.

Rapid prototyping focuses on quickly creating sample parts (usually without molds) to verify design, appearance, or basic function.

Rapid tooling involves building a simplified or soft mold to produce parts that are closer to real injection-molded products, suitable for testing and small-batch production.

Key Factor	Rapid Prototyping	Rapid Tooling
Process	3D printing, CNC machining, SLA, SLS	Soft tooling (aluminum or pre-hardened steel molds)
Purpose	Design validation, appearance check	Functional testing, bridge production
Application Stage	Early development / concept stage	Pre-production / pilot production stage
Lead Time	Very fast (1–7 days)	Moderate (3–5 weeks)
Material Options	Limited (may differ from final production material)	Close to real production materials (ABS, PC, PP, etc.)
Production Volume	Very low (1–20 parts)	Low to medium (100–10,000+ parts)
Design Flexibility	Very high (easy to modify)	Moderate (tooling changes needed)
Cost Structure	Low upfront, high per-part cost	Higher upfront, lower per-part cost

Which companies are leading in rapid tooling technology?

Rapid tooling providers differ in their approach—some prioritize speed and automation, while others focus on engineering depth and production readiness. Choosing the right partner depends on your project goals.

Company	Location	Core Capability	Why Choose Them
Protolabs	USA / Europe	Automated manufacturing with instant quoting system	Best for fast turnaround and urgent project timelines
Xometry	USA / Global	Platform-based sourcing with broad manufacturing access	Ideal for flexible sourcing and scalable production
Quickparts	USA / Global	Aluminum tooling with strong DFM-driven workflows	Suitable for projects needing quick optimization support
Alpine Mold	China (Shenzhen)	offer prototyping and low-volume manufacturing	Wth strong experience in supporting international customers from concept to production.
Star Rapid	China（Zhongshan)	Integrated prototyping and low-volume manufacturing	Good choice for end-to-end product development

How Much Does A Rapid Tooling Cost?

The cost of rapid tooling can vary widely depending on part complexity, size, material, and mold structure. However, here is a practical overview to help you estimate:

Tooling Type	Cost Range (USD)	Application
Prototype mold (very simple)	$800 – $5,000	Early testing, small quantities
Rapid tooling (aluminum / soft steel)	$2,000 – $8,000	Low to medium volume production
Medium complexity rapid tooling	$5,000 – $25,000	Functional testing & bridge production

What Affects The Cost?
Part complexity (undercuts, threads, sliders): Complex features require additional mechanisms and machining, which can quickly increase rapid tooling cost and lead time.
Mold material (aluminum vs. pre-hardened steel): Aluminum offers faster and lower-cost tooling, while pre-hardened steel increases durability but raises the cost.
Number of cavities: More cavities improve production efficiency but significantly increase tooling complexity and initial investment.
Surface finish requirements: Higher finish levels (polishing, texture) add extra processing steps, increasing both time and cost.
Expected production volume: Higher volume requirements may require stronger tooling materials and more robust design, leading to higher tooling cost.

How Do You Control the Quality of Rapid Tooling?

In today’s fast-paced product development cycle, rapid tooling plays a critical role in reducing time-to-market. However, speed should never compromise quality.

So, how do professional manufacturers ensure high-quality rapid tooling that is both fast and reliable? At Alpine Mold, quality control is built into every stage — from design to final validation.

1. Design Validation: DFM & Moldflow Analysis

Quality starts before the mold is even made.

Conduct Design for Manufacturability (DFM) analysis：Optimize part structure, wall thickness, and draft angles

Use Moldflow simulation to analyze: Filling behavior，Cooling efficiency，Warpage risk

2. Incoming Material Inspection

Choosing the right tooling material is essential for performance and lifespan.

Perform incoming material inspection to verify steel grade and specifications

Check material certificates and hardness to ensure compliance

3. High-Precision Machining Process

Even in rapid tooling, precision cannot be compromised.

Perform hardness testing to ensure material properties meet requirements

Conduct CMM inspection for core and cavity components to verify critical dimensions

Inspect EDM electrodes (copper) to ensure machining accuracy

4. Mold Assembly & Functional Testing

A well-machined mold still requires proper assembly.

Core and cavity alignment check

Slider, lifter, and ejector system verification

Smooth movement and structural integrity testing

5. Mold Trial (T1 Testing)

Rapid tooling must be validated under real production conditions.

During trial runs, we evaluate surface finish and appearance quality, dimensional accuracy, and common defects such as flash, sink marks, short shots, and warpage.

6. Inspection & Quality Reporting

Final quality verification ensures customer confidence.

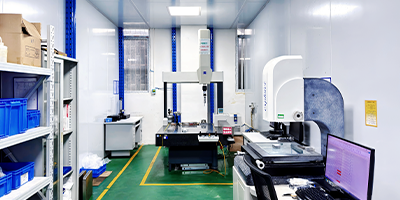

Use ZEISS CMM and precision measuring equipment to verify critical dimensions and tolerances, with detailed inspection reports provided

Provide trial videos and photos for review

Share process parameter sheets and quality reports

Send samples for final customer confirmation

What Are Your Payment Terms for Rapid Tooling?

Our standard rapid tooling payment terms are as follows:

40% deposit by T/T before starting mold manufacturing.

30% second payment after mold completion and before sending the T1 (first trial) samples.

30% final balance after customer approval of the final samples.

Rapid Tooling Making

What is Rapid Tooling?
