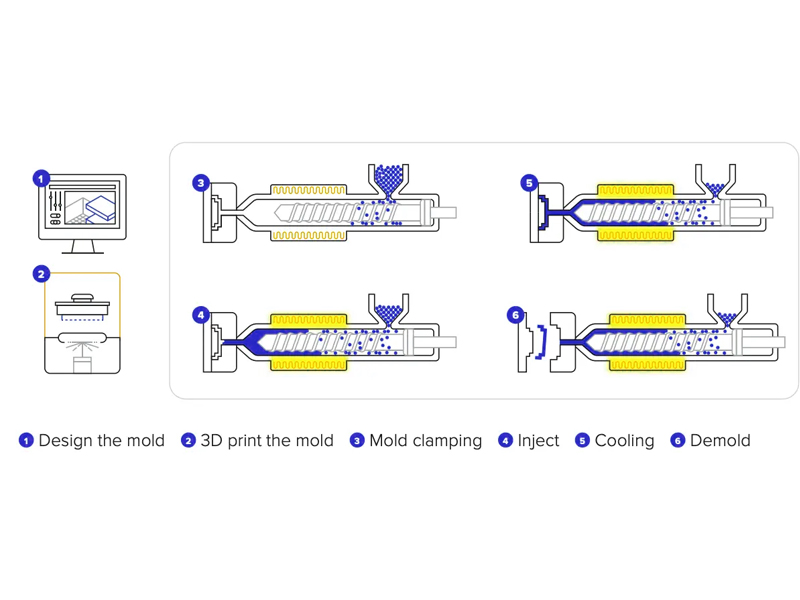

In injection mold development, 3D design is the critical bridge connecting product structure to mold manufacturing. A scientific and standardized process to design 3D injection molds not only improves mold quality and stability but also shortens lead time and reduces revision costs.

Whether you are a new mold designer or a project engineer managing mold workflows, mastering the standardized sequence to design 3D injection molds is essential for improving efficiency and final product delivery. This guide outlines a clear, step-by-step approach to design 3D injection molds—from parting surface design and core-cavity layout to slider/angle lifter modeling and cooling system placement.

2.Core & Cavity and Mechanism Design Logic

The first step to design 3D injection molds is determining the product’s parting method and structural logic. This includes separating the core and cavity, as well as accounting for moving mechanisms such as sliders and lifters. This stage directly affects the mold’s layout and later modeling efficiency and molding quality.

Before parting, set accurate shrinkage rates and position the part correctly in the 3D coordinate system. For projects involving multiple products, place each in its own layer for easier management. Choose between solid or surface parting methods based on part geometry—use solid for flat, simple shapes and surface parting for complex curves.

For mechanisms, first construct the shape using solids, then use Boolean subtraction to isolate moving components. For irregular features, use surface trimming. Build mechanisms from large to small components, checking for interference and ensuring precise fit.Standardize modeling for repeated structures: fully design one instance (including clearances, chamfers, mating faces), then copy via reference geometry and Boolean tools. This improves both modeling efficiency and consistency when you design 3D injection molds.

3.Cavity Layout & Gate Design: Key to Spatial Planning and Flow Optimization

After parting design, the next stage to design 3D injection molds is cavity layout and gating system configuration. This defines overall mold dimensions and strongly affects molding efficiency.

Use the "large-first, fill-the-gaps" rule when laying out cavities. Start with larger parts, maintain symmetry, and avoid placing sliders on the top mold side. For round or symmetric parts, center them along integer coordinates for easier processing.

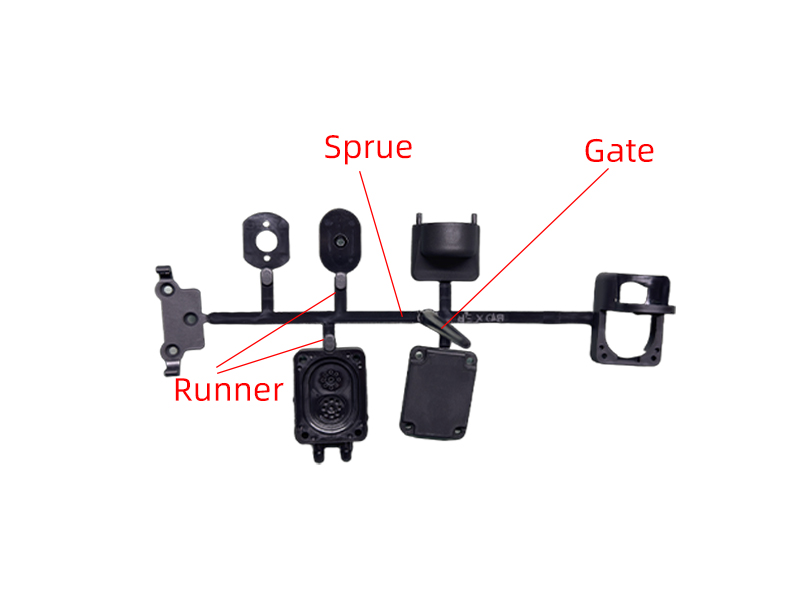

Synchronize layout with gate and runner planning to prevent space conflicts. Plan in advance for horn gates and submarine gates that require additional spacing. Adopt a main-runner + sub-runner system to ensure flow balance.

Adjust insert block dimensions accordingly; maintain safe edge distance for waterlines, screws, and locating elements. Round dimensions where possible for easier mold base selection and machining.

4.Sliders, Lifters, and Ejection Systems: Ensuring Demolding and Structural Integrity

These high-precision modules are crucial when you design 3D injection molds. Sliders should be designed following a "large-to-small, inside-out" rule, with cooling paths and motion clearances built-in. Keep slider bases compact; for large or load-bearing sliders, include wear plates or reverse draft structures.

Lifter systems should be included in the early mold layout and not conflict with slider or ejection paths. Guide angles should be ≤12°, with enough material around for screws and guiding blocks. Avoid cooling paths and ejection elements in the same zones. Use dummy bodies and Boolean operations for consistency.

Follow "core pin before ejector pin" logic. Use sleeve ejectors for bosses >10mm tall, and add ejector retainers for pins <3mm to prevent bending. Ensure runners are also adequately ejected.

5.Cooling & Mold Base Design: Enhancing Thermal Efficiency and Compatibility

Mold base design plays a critical transitional role when you design 3D injection molds. It defines the overall structural framework of the mold and directly affects downstream processes such as machining, assembly, molding compatibility, and production stability.

When you design 3D injection molds, it's recommended to follow the principle of "use standardized components whenever possible." Prioritizing general-purpose mold bases helps reduce manufacturing costs and enhances mold interchangeability and maintenance efficiency.During mold base selection, consider the layout of structural elements such as sliders and angle lifters. If the mold contains large sliders or complex features, choose a larger, more rigid mold base. Plan auxiliary components like locking blocks and positioning keys early in the design to enhance mold stability during injection molding.

For small-gate systems, pay special attention to the position and function of tie bars and nylon stoppers to avoid interference with runner layouts. If lifters are included in the design, determine the ejector stroke and corresponding support block height to ensure smooth and safe lifter movement.After selecting the mold base, verify its dimensions align with the injection molding machine. Ensure the length, width, and height fit within the machine's installation space and confirm that stroke distance, clamping force, and ejection force meet production requirements.

Once confirmed, proceed with the design of the insert blocks and slider pockets. Incorporate features such as guiding slots, wear plates, and limit stops into the sliders. For identical slider structures, use standardized modeling and copy them using dummy bodies with Boolean subtraction to improve consistency and efficiency.

It’s also essential to precisely match the interface between the mold and injection molding machine. This includes ejector pin holes, clamping slots, nozzle contact surface, and locating ring dimensions. If you're working with a 3-plate mold, design the small gate runner system carefully. Ensure the tie bar stroke exceeds the runner height by 20–30mm, and avoid placing nylon stoppers directly above the cavity insert to prevent structural interference or molding defects.

6.Auxiliary Parts & Detail Design: Finalizing Function and Safety

After completing the main structural design, properly configuring auxiliary components is essential when you design 3D injection molds. These elements play a vital role in ensuring mold stability and extending service life.For internal mold structures, frequently used fasteners such as inner mold screws and compression blocks are used to secure inserts and enhance positioning accuracy. Their layout must avoid interference with waterlines and ejector pin channels.

In the parting area between the A and B plates, it is important to include components like side locks, counters, balancing blocks, and interlocks. These help prevent mold shift during opening, track mold usage, distribute clamping force evenly, and maintain structural alignment.

The ejection system requires accessories like ejector heads, limit blocks, return springs, trash pins, and safety switches to ensure smooth and safe ejection while minimizing malfunction risks.

External components such as mold feet, insulation plates, and dust covers provide structural support, thermal isolation, and contamination protection. When you design 3D injection molds with a systematic approach to these auxiliary structures, it not only enhances mold performance but also simplifies future maintenance and management.In the final phase of 3D mold design, attention to detail is especially critical. Though often overlooked, these design elements directly influence mold longevity, molding stability, and ease of maintenance. Follow the principle of "inside to outside" during design refinement to ensure full functional and operational integrity.

For the core area, detailed considerations include subtracting waterlines from ejector pins to prevent leakage, as well as adding clearance pockets and venting slots at appropriate locations on the parting surface. These measures improve sealing during mold closure and help release trapped air, reducing risks of burns, shrink marks, or voids.Mold base detailing is equally important. Lifting lugs should be added for safe mold handling, and pry slots allow for secure mold separation during opening without causing damage. Cavity tags or code plates help identify mold numbers, production dates, and cavity locations for traceability and quality control.

Additionally, include properly designed reference surfaces to aid in post-processing alignment and assembly accuracy. These well-executed finishing touches significantly increase the overall professionalism and usability of the molds you design, ensuring reliable long-term performance and a smoother operational experience for end users.

7.Conclusion

A robust, standardized workflow to design 3D injection molds lays the foundation for high-quality mold manufacturing. From product analysis and parting design to optimized cooling and ejection layout, each phase directly influences molding performance and production stability.
