Custom Injection Molding Services
Custom Injection Molding Services
Get a Quote
Alpine Mold offers robust injection molding solutions for your custom parts, supporting your project from DFM and mold development to full-scale production.

 30+ Injection Molding Machines | 50–800 Tons
 Dedicated Engineering Support for Every Project
 IQC, IPQC & FQC Throughout Production
ISO 9001:2015 & IATF 16949 Certified


International Brands We Collaborate With

Your Trusted Injection Molding Manufacturer in China

Custom injection molding is a manufacturing process used to produce custom plastic parts with complex designs, consistent quality, and repeatable results. If you need large-volume production, this process is a practical and cost-effective choice. For very small quantities or early concept samples, rapid prototyping is usually more suitable. Before sourcing, you should confirm your 3D files, plastic material and expected production volume.

Alpine Mold provides injection moulding services based on your project requirements. We manage mold development, production, and post-processing under one roof, helping you reduce project risk and achieve stable, and repeatable custom injection molded parts. Whether you need low-volume or high-volume injection molding, we deliver flexible production, consistent quality, and better cost control. Contact us to get a free quote today!

Our Injection Molding Services

5

Injection Molding

Produce your custom plastic parts with consistent quality, complex geometries, and reliable repeatability, whether you need low-volume runs or high-volume production.

Insert molding

Insert Molding

Integrate metal inserts or other components directly into your molded plastic parts to improve strength, reduce assembly steps, and increase long-term durability.

3

Overmolding

Combine rigid and soft materials in your molded parts to improve grip, sealing, protection, and overall performance while reducing additional assembly work.


two shot injection molding

Two-Shot Molding

Create your multi-material or multi-color parts in one molding cycle to improve bonding, reduce assembly work, and achieve a more integrated product design.



Advantages of Plastic Injection Molding

Material Versatility

◆ Material Versatility

With a selection of over 200 materials including commodity and engineering resins, we assist you in finding the right balance between performance and cost, identifying alternative material options to help reduce overall production costs.

Detailed Features

◆ Detailed Features

From imprinted text to cosmetic or textured surfaces, in-mold decorating, snap fits, flexible hinges, and varied hardness options, we focus on enhancing both the aesthetic appeal and functionality of your products.

High Efficiency

◆ High Efficiency

Our skilled engineers and team members specialize in optimizing the manufacturing process to eliminate unnecessary costs in both part production and tooling, ensuring a streamlined and cost-effective production cycle.

Performance Enhancement

◆ Improve Performance

Our team is dedicated to understanding the intended function of your parts. By leveraging material science, design principles, analytical tools, and stringent process controls, we aim to enhance the performance of your products to meet key objectives.

Alpine Mold Custom Injection Molding Series

Electronics Injection Molding

Electronics Injection Molding

Produce sensor housings, relay housings, wall electrical box enclosures, etc., with stable dimensions and clean surfaces for reliable assembly and consistent electronics production.

smart home injection molding

Smart Home Injection Molding

Manufacture wall switch panels, smart doorbell housings, water purifier housings, etc., with precise fit and consistent appearance for connected home devices and control systems.

Automotive Injection Molding

Automotive Injection Molding

Produce sunroof parts, rearview mirror parts, automotive switch panels, etc., with durable materials and stable dimensions for demanding vehicle applications and long-term production.

Medical Injection Molding

Medical Injection Molding

Manufacture blood glucose analyzer covers, disposable laparoscopic puncture accessories, central venous catheter parts, etc., with controlled dimensions and consistent quality for medical applications.
appliance injection molding

Appliance Injection Molding

Produce water purifier housings, air conditioner grilles, robot vacuum housings, etc., with reliable fit and consistent appearance for household and commercial appliance production.

security injection molding

Security Injection Molding

Manufacture fire alarm enclosures, smoke detector enclosures, and camera housings, etc., with durable materials and stable dimensions for reliable security and safety applications.

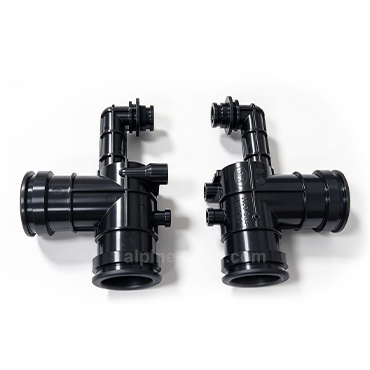

Industrial Injection Molding

Industrial Injection Molding

Produce pump housings, industrial connectors, water pipe fittings, etc., with durable materials and stable dimensions for machinery used in demanding industrial environments.

Ev charger injection molding

EV Charging Injection Molding

Manufacture EV charger housings, wallbox enclosures, charging connector housings, etc., with durable materials and reliable fit for indoor and outdoor charging applications.


How Your Injection Molding Project Works

01. Get a Quote

1. Get a Quote

Send us your 3D drawings, material requirements, production volume, and project details to receive a precise quotation.
DFM

2. DFM Report

We review your part design and run DFM and Moldflow analysis to identify potential molding issues before tooling begins.

Mold Design

3. Mold Design

Our engineers design your mold around your part structure, material, production volume, and molding requirements.

4. Mold Manufacturing

4. Mold Manufacturing

Your mold is manufactured, machined, assembled, and inspected in-house to ensure accuracy and reliable performance.
5. T1 samples Confirmation

5. T1 samples Confirm

You receive T1 samples for dimensional, appearance, and functional review before approving the mold for production.
injection molding mass production

6. Production Begins

Once you approve the samples, we begin mass production based on your confirmed requirements.
7. Post-Processing

7. Post-Processing

Your parts can undergo printing, painting, assembly, or other secondary operations based on your project requirements.
Delivery for injection molded parts

8. Final Delivery

After final inspection and packaging, your finished parts are prepared and shipped to your specified destination.



Why Choose Alpine Mold for Custom Injection Molding


塑料外壳
Alpine Mold specializes in plastic injection molding services, combining global production experience, strong in-house capabilities, and dedicated project management to keep your project running smoothly from production through delivery.

Millions of Parts Delivered
We have delivered millions of custom molded parts across Europe, the United States, Canada, and other global markets, giving you confidence in our ability to meet different quality standards and project requirements.

30+ Injection Molding Machines
Our 30+ injection molding machines, ranging from 50 to 800 tons and including Fanuc, Toshiba, and Haitian equipment, give you greater flexibility for different part sizes and production volumes.

In-House Production Support
You get tooling, molding, inspection, and post-processing closely coordinated in-house, reducing handoffs and improving control over quality, communication, and production progress.

Dedicated Project Management
You work with a dedicated project manager who understands engineering, keeps communication clear, and provides timely updates throughout your project.



Alpine Mold's Injection Molding Quality Control


Alpine Mold applies strict quality control throughout the injection molding process to ensure stable processes and consistent part quality.

IQC – Incoming Quality Control
We verify raw materials before production to ensure material consistency and traceability.
  • Resin grades, certificates, and supplier documentation verification
  • Material specifications and batch traceability control
  • Drying condition confirmation for moisture-sensitive materials

IPQC – In-Process Quality Control
We monitor molding processes during production to maintain stable output and prevent quality issues.
  • Injection parameters monitoring, including temperature, pressure, and cooling
  • In-process inspection of dimensions, appearance, and critical features
  • Control of common defects such as sink marks, warpage, and flash

FQC – Final Quality Control
We perform final inspections before shipment to ensure finished parts meet your requirements.
  • Dimensional inspection with CMM, 3D scanning, and measuring equipment
  • Appearance, surface finish, color, and assembly checks
  • Inspection reports and quality records provided as your required
CMM Quality Control for injection molded parts



Injection Molding Materials


  • ABS
  • PP
  • PC
  • PC/ABS
  • POM
  • PA6
  • PA66
  • PMMA
  • PBT
  • TPU
  • TPE
  • ASA
  • PVC
  • PS
  • HIPS
  • PET
  • HDPE
  • LDPE
  • PE
  • PEEK
  • PEI
  • PPS
  • LCP
  • PPSU
  • PSU
  • PCTG
  • TPV
  • SAN
  • PC+ASA
  • Modified Materials
  • More



Injection Molding Technical Specifications


 Specification  Details
 Part Size Range  Approx. 5 × 5 × 5 mm to 1200 × 1000 × 500 mm, supporting small precision parts to large plastic housings.
 Machine Range  50T–800T injection molding machines supporting different part sizes and production requirements.
 Tolerances & Precision  Mold machining accuracy up to ±0.01 mm; stable part quality supported by precision inspection.
 Wall Thickness & Features  0.5 mm–5 mm walls; 0.5°–2° draft angles; ribs, bosses, undercuts, sliders, and complex geometries.
 Mold Types  Single-cavity molds, multi-cavity molds, family molds, insert molds, overmolding molds, and two-shot molds.
 Production Volumes  Prototype, low-volume, and high-volume production from initial validation to mass manufacturing.
 Mold Surface Finishing  SPI finish, VDI texture, Mold-Tech, Yick Sang, laser texture or custom finish
 Post-Molding Finishing  Painting, printing, electroplating, laser marking, ultrasonic welding, heat staking, protective coating
 Mold Lead Time  Typically 4–8 weeks from design confirmation to T1, depending on mold complexity
 Production Lead Time  Typically 1–2 weeks after sample approval, depending on order quantity requirements

What Our Global Customers Say


We have worked with Alpine Mold on multiple injection molding projects. Their team provided strong engineering support from DFM review to mold development and production. The communication was efficient, and the final parts met our quality expectations. Alpine Mold has proven to be a reliable injection molding partner.

Product Design Engineer


Alpine Mold supported us with several mold and injection molding projects. Their team showed excellent technical knowledge, fast response, and strong project management throughout the cooperation. We appreciate their professional service and look forward to future collaboration.


Purchasing Director


For our automotive plastic components, we require high standards for mold precision, part quality, and delivery reliability. Alpine Mold demonstrated strong capabilities in complex tooling, quality control, and production support, making them a trusted manufacturing partner.


Tooling Engineer


See Alpine Mold Injection Molding in Action



Related Products


ABS Injection Molding
ABS Injection Molding
PMMA Injection Molding
PMMA Injection Molding
PP Injection Molding
PP Injection Molding
PC ABS Injection Molding
PC ABS Injection Molding
Nylon Injection Molding
Nylon Injection Molding
PC Injection Molding
PC Injection Molding

What Is Injection Molding?

Injection molding is a manufacturing process used to produce custom plastic parts by injecting molten plastic into a mold cavity, where it cools and solidifies into the desired shape. It is well suited for producing plastic products with complex geometries, tight dimensional requirements, and repeat production.

Once the mold and process are fully validated, the same tool can support production from a few thousand to millions of injection molded parts while maintaining consistent dimensions, appearance, and performance. Although injection molds require a higher upfront investment, the tooling cost is spread over a larger production volume as quantities increase, helping reduce the cost per part. Because of these advantages, injection molding is widely used across industries such as automotive, electronics, medical, home appliances, smart devices, and industrial equipment.

History of Injection Molding

When you look at the history of injection moulding, its development can be divided into several important stages, from simple plastic forming equipment to today’s highly automated production systems.

1872 – The Beginning of Injection Molding

In 1872, John Wesley Hyatt and Isaiah Hyatt patented one of the earliest injection molding machines. The machine used a heated cylinder and plunger to push softened plastic into a mold. At that time, you could mainly use this process to produce simple items such as buttons, combs, and small household products.

1940s – The Rise of Mass Production
During and after World War II, demand for lightweight, low-cost plastic products increased rapidly. Manufacturers began using injection molding on a much larger scale because it allowed you to produce large quantities of consistent parts efficiently.

1946 – A Major Technical Breakthrough
In 1946, James Watson Hendry developed the screw injection molding machine. Compared with earlier plunger systems, the screw provided better plasticizing, mixing, and control of molten plastic. This development greatly improved molding stability and became the foundation of modern injection molding machines.

1990s to Today – Precision and Automation
As CNC machining, CAD/CAM, Moldflow analysis, hot runner systems, robotics, and electric injection molding machines developed, you gained much greater control over mold design and production. Today, injection molding allows you to manufacture complex plastic parts with high precision, repeatability, and production efficiency across automotive, electronics, medical, home appliance, and industrial applications.


History of injection molding

How Does the Injection Molding Process Work?

From manufacturability review to continuous production, the injection molding process can be divided into eight main steps. Each step plays an important role in part quality, mold performance, and production stability.
1. DFM Analysis
Before mold design begins, the part is reviewed for manufacturability. You check wall thickness, draft angles, parting lines, gate locations, undercuts, tolerances, and material requirements to identify potential molding issues early.

2. Design the Mold
Once the part design is confirmed, the mold is designed based on the product structure, plastic material, dimensional tolerances, surface requirements, and expected production volume. Good mold design helps ensure stable filling, cooling, and ejection.

3. Manufacture the Mold
After the mold design is approved, the mold components are produced using CNC machining, EDM, wire cutting, grinding, and other precision processes. The core, cavity, sliders, ejector system, and cooling system are then assembled and tested.

4. Clamp the Mold
The completed mold is installed on the injection molding machine and securely clamped. The machine is then set with the required clamping force, temperature, injection pressure, and other process parameters.

5. Inject Molten Plastic
Plastic pellets are heated and melted inside the machine barrel. The molten plastic is then injected into the mold cavity under controlled pressure and speed until the cavity is fully filled.

6. Cool the Part
After filling, holding pressure is applied to compensate for material shrinkage. The plastic then cools and solidifies inside the mold until the part is strong enough for ejection.

7. Eject the Part
Once the part has cooled, the mold opens and the ejector system removes the molded part. For products with sliders, lifters, or threaded structures, the required core-pulling or unscrewing actions take place before ejection.

8. Repeat the Cycle
After the part is removed, the mold closes again and the same injection, cooling, and ejection process repeats. Once the molding parameters are stable, the machine can continue producing parts in consistent cycles.
How does Injection Molding Work

Understanding the Types of Injection Molding

Different injection molding processes are suited to different part designs, material combinations, and production requirements. Below are some of the most common types of injection molding.

Type Best For Design Considerations
Standard Injection Molding Suitable for most conventional plastic parts and medium- to high-volume production. Material selection, wall thickness, draft angles, shrinkage, and part geometry should be considered for reliable molding and ejection.
Insert Molding Suitable for products that combine plastic with metal inserts or other components. Insert positioning, retention, plastic coverage, and the effect of injection pressure should be considered early.
Overmolding
 		 Commonly used for handles, anti-slip surfaces, sealing features, and soft-touch coverings.   Material compatibility, bonding areas, and overmold thickness are important for reliable adhesion.
Two-Shot Injection Molding Suitable for parts that combine two colors, soft and rigid materials, or multiple functions. Material compatibility, shrinkage differences, part layout, and second-shot positioning should be carefully planned.
Gas-Assisted Injection Molding
 		 Suitable for parts that require weight reduction, reduced sink marks in thick sections, or improved molding of larger components. Gas channel design, wall thickness, and gas entry location are important for controlling hollow sections and minimizing warpage.
Micro Injection Molding
 		 Commonly used for very small, high-precision parts in medical, electronics, and other precision applications. Mold accuracy, material flow, gate design, and tight process control are especially important for consistent micro-scale parts.
Thin-Wall Injection Molding
 		 Suitable for lightweight plastic parts with thin wall sections and high production efficiency requirements. Good material flow, higher injection speed and pressure, and well-designed gates and cooling systems are important for complete filling and dimensional stability.

Injection Molding Design Guidelines

When you design a plastic part for injection molding, small design decisions can have a major impact on mold complexity, part quality, cycle time, and production cost. Before you finalize the part, you should review the key features that affect filling, cooling, ejection, and dimensional stability. The following seven design points are especially important for improving manufacturability and reducing molding problems.


1. Wall Thickness


Wall thickness plays an important role in both part quality and molding performance. Thick sections may cause sink marks and longer cooling times, while very thin sections can make the part more difficult to fill.

In most cases, keeping the wall thickness as consistent as possible helps achieve more stable molding and better part quality. Since the ideal thickness varies by material, the table below provides a general reference for commonly used plastics


Resin in 1mm
ABS 0.045–0.140 1.1–3.6
PP 0.025–0.150 0.6–3.8
PC 0.040–0.150 1.0–3.8
PC+ABS 0.040–0.140 1.0–3.6
Nylon 0.030–0.115 0.8–2.9
POM 0.030–0.120 0.8–3.0
PBT 0.080–0.250 2.0–6.4
PMMA 0.025–0.150 0.6–3.8
TPU 0.025–0.125 0.6–3.2
TPE 0.025–0.125 0.6–3.2
PE 0.030–0.200 0.8–5.1
PS 0.025–0.150 0.6–3.8
PEEK 0.020–0.200 0.5–5.1

2. Draft Angle


Draft angle has a direct impact on how easily a part can be released from the mold. If the angle is too small, the part may stick, scratch, or show drag marks during demolding, which can affect both appearance and production efficiency.
Different surfaces, features, and materials usually require different draft angles:

  • Smooth surfaces: typically 0.5°–1°
  • Textured surfaces: usually 1°–3° or more
  • Deep or tall features: generally require a larger draft angle
  • Soft materials such as TPE and TPU: often use a smaller draft angle

If your part has cosmetic requirements, especially textured surfaces, deep cavities, or tall side walls, it is best to define the draft angle early in the design stage to avoid costly part or mold changes later.


3. Rib Design


Ribs can improve the stiffness and support of a plastic part without significantly increasing wall thickness or material use. However, ribs that are too thick or too tall can lead to sink marks, warpage, and other molding issues.

Typical design guidelines include:
  • Rib thickness: typically 50%–60% of the main wall thickness
  • Rib height: generally kept within 2.5–3 times the main wall thickness
  • Draft angle: typically at least 0.5° per side
  • Base radius: typically 25%–50% of the main wall thickness (0.25T–0.5T)

If your part needs more stiffness, using several thinner ribs is usually better than adding one thick or tall rib. This can help improve molding stability and reduce sink marks.


4. Boss Design


Bosses are commonly used for screws, locating pins, and other assembly features. A well-designed boss can improve assembly strength, while a poorly designed one may increase the risk of sink marks or cracking around the boss area.

When designing bosses, you should consider:
  • Boss wall thickness: typically 50%–60% of the main wall thickness
  • Hole size: allow enough room for material shrinkage and final assembly fit
  • Support: use ribs to reinforce the boss instead of simply making it thicker
  • Base radius: typically 25%–50% of the main wall thickness (0.25T–0.5T)

If your part has cosmetic requirements, avoid placing thick bosses directly behind visible surfaces, as this can create noticeable sink marks.

Injection Molding Design Guidelines



5. Undercut Design


Undercuts can make part ejection more difficult and often add complexity to the mold. If your design includes multiple or deep undercuts, the mold may require sliders, lifters, or other side-action mechanisms, which can increase tooling cost and maintenance.

When reviewing your design:
Remove unnecessary undercuts whenever possible
Simplify the part geometry if the same function can be achieved without an undercut
For unavoidable undercuts, confirm the release method before tooling begins
Larger or deeper undercuts usually require more complex mold actions

There is no standard undercut size that works for every part. The right solution depends on your material, part geometry, and release method.


6. Gate Location


Gate location affects how the plastic fills the mold and can influence appearance, weld lines, sink marks, and overall part quality. If your part has strict cosmetic requirements or a large size, gate placement should be considered early.

Typical considerations include:
Place the gate in a thicker section where possible
Keep gate marks away from primary cosmetic surfaces
Avoid weld lines in high-stress or highly visible areas
Large parts or long flow paths may require multiple gates for balanced filling

The final gate size and location should be selected based on your material, part size, wall thickness, and flow requirements.


7. Tolerance


Tolerances affect part fit, assembly, and dimensional consistency in production. Making every dimension unnecessarily tight can increase tooling and production costs without improving the final product.

For common injection molded parts, these ranges can be used as a general reference:
General dimensions: approximately ±0.1–0.3 mm
Critical mating dimensions: approximately ±0.05–0.1 mm
High-precision features: below ±0.05 mm usually require tighter tooling and process control
Larger parts: tight tolerances become more difficult to maintain as part size increases

I f your product requires assembly, sealing, or a precise fit, focus tighter tolerances on the dimensions that actually affect function.


10 Common Injection Molding Defects and How to Fix Them

During injection molding, you may encounter a range of molding defects. These issues are often related to material condition, part design, mold design, or processing parameters. Some defects mainly affect appearance, while others can further influence dimensional stability, assembly performance, or part strength. Below are 10 common injection molding defects, along with their main causes and practical solutions.
10 Common Injection Molding Defects 1

1. Flow Lines


Definition: Flow lines are visible streaks, waves, or color variations that follow the direction of plastic flow across the molded surface.
Main Causes: Low melt or mold temperature, improper injection speed, undersized or poorly positioned gates, or sudden changes in wall thickness.
Solutions: Increase melt or mold temperature where appropriate, optimize injection speed, improve gate size and location, and keep wall thickness as uniform as possible.


2. Sink Marks


Definition: Sink marks are localized depressions on the part surface, commonly found near thick sections, ribs, bosses, or other areas with excessive material buildup.
Main Causes: Excessive wall thickness, insufficient packing pressure, short holding time, or uneven cooling that prevents adequate compensation for material shrinkage.
Solutions: Reduce thick sections, optimize rib and boss design, increase packing pressure or holding time, and improve cooling around thicker areas.


3. Short Shots


Definition: A short shot occurs when molten plastic fails to completely fill the mold cavity, leaving part of the molded component incomplete.
Main Causes: Insufficient injection pressure or speed, low melt temperature, restricted gates or runners, poor venting, or an excessive flow length.
Solutions: Increase injection pressure or melt temperature as needed, optimize injection speed, check gate and runner dimensions, improve venting, and review the relationship between wall thickness and flow length.


4. Warpage


Definition: Warpage occurs when a molded part bends, twists, or distorts after ejection or cooling, causing its final shape to deviate from the design.
Main Causes: Uneven cooling, inconsistent wall thickness, unbalanced shrinkage, uneven packing, or excessive residual stress in the molded part.
Solutions: Improve cooling balance, maintain more uniform wall thickness, optimize gate location and filling balance, and adjust packing and cooling conditions.


5. Burn Marks


Definition: Burn marks are brown, black, or scorched areas that typically appear near the end of the flow path, deep ribs, or trapped-air locations.
Main Causes: Trapped air being compressed at high speed, inadequate mold venting, excessive injection speed, or overly high melt temperature.
Solutions: Improve mold venting, reduce injection speed near the end of filling, control melt temperature, and identify areas where air is likely to become trapped.
10 Common Injection Molding Defects 2

6. Jetting


Definition: Jetting appears as snake-like, rope-like, or wavy marks on the molded surface caused by unstable melt flow as plastic enters the cavity.
Main Causes: Excessive initial injection speed, a gate that is too small, poor gate location, or molten plastic entering directly into a large open cavity.
Solutions: Reduce the initial injection speed, optimize gate size and position, and direct the melt toward a cavity wall or core so that it spreads more evenly.

7. Flash

Definition: Flash is excess plastic that escapes through the parting line, inserts, sliders, ejector areas, or other gaps in the mold.
Main Causes: Excessive injection pressure, insufficient clamping force, worn parting surfaces, excessive mold clearance, or incomplete mold closing.
Solutions: Reduce excessive injection pressure, verify that clamping force is sufficient, inspect mold closing conditions, and repair worn or poorly fitted mold surfaces.


8. Silver Streaks


Definition: Silver streaks are white or silvery lines that appear along the direction of melt flow and are especially noticeable on cosmetic surfaces.
Main Causes: Moisture in the resin, material degradation in the barrel, excessive melt temperature, long residence time, or poor venting.
Solutions: Dry the resin according to the material requirements, control barrel and melt temperature, avoid excessive residence time, and improve mold venting.


9. Weld Lines


Definition: Weld lines form where two or more melt fronts meet after flowing around holes, cores, or other features, leaving a visible line on the molded part.
Main Causes: Low melt temperature at the point of convergence, insufficient flow velocity, poor gate location, long flow paths, or inadequate venting.
Solutions: Increase melt or mold temperature where appropriate, optimize gate location and flow path, improve venting, and adjust injection speed to help the melt fronts fuse more effectively.


10. Voids


Definition: Voids are internal cavities or empty spaces inside a molded part. The outer surface may appear normal even though the internal structure contains gaps.
Main Causes: Excessive local wall thickness, insufficient packing, early gate freeze-off, internal material shrinkage, or uneven cooling.
Solutions: Increase packing pressure or holding time, optimize gate size, reduce overly thick solid sections, and improve local cooling so the part can be packed more effectively during shrinkage.

  • 1. How can I choose the right material for my injection molded parts?


    The right material depends on your part’s application, strength requirements, temperature resistance, surface finish, and cost target. Different plastics, such as ABS, PP, PC, PA, and POM, offer different advantages for specific applications. We can help you evaluate your requirements and select the most suitable material for your project.

  • 2. How much does an injection mold cost?


    The cost of an injection mold typically ranges from $2,000 to $50,000+, depending on the mold size, complexity, cavity count, steel material, and production requirements.

    Prototype mold ($2,000–5,000): For design testing and low-volume production.
    Production mold ($5,000–20,000): Suitable for regular production projects with standard mold structures.
    Multi-cavity or complex mold ($20,000–50,000+): For high-volume production and complex parts requiring advanced mold designs.

    The final cost depends on your part design, material selection, surface finish, tolerance requirements, and expected production volume.



  • 3. How much does injection molding cost?


    The cost of injection molded parts is typically around $0.1–$5+ per part, depending on the part size, material, design complexity, production volume, and additional processes.

    Small plastic parts: $0.1–$1 / part
    Suitable for small components with simple structures and high-volume production, such as clips, covers, and small electronic parts.
    Medium-sized parts: $1–$ 3 / part
    Common for housings, industrial components, and consumer products with moderate size and complexity.
    Large or complex parts: $3–$5+ / part
    Suitable for large housings, automotive components, or parts requiring special materials, complex structures, or tighter tolerances.

    The unit cost is also affected by factors such as material selection, cycle time, mold design, and production quantity. Higher production volumes usually reduce the cost per part because the initial mold investment is spread over more units.



  • 4. How to reduce injection molding costs?


    You can reduce injection molding costs by optimizing your part design, mold structure, material selection, and production process.

    Simplify part design: Reduce unnecessary ribs, undercuts, complex features, and tight tolerances to lower mold complexity and machining costs.
    Optimize mold design: Use a suitable cavity number, standard mold components, and efficient cooling designs to reduce cycle time and improve production efficiency.
    Select the right material: Choose materials that meet your performance requirements without using higher-cost plastics unnecessarily.
    Increase production volume: Larger production quantities help spread the mold cost and reduce the cost per part.
    Perform DFM analysis early: Review wall thickness, draft angles, gate location, and mold structure before tooling to avoid expensive modifications later.
    Choose an experienced manufacturer: A skilled supplier can improve mold reliability, reduce trial runs, and prevent quality issues during mass production.

  • 5. Which is cheaper, injection molding or 3D printing?


    It depends on your production volume and project requirements.

    1–100 pcs: 3D printing is usually more cost-effective because there is no mold investment.
    100–1,000 pcs: 3D printing or a prototype mold may be suitable depending on part complexity.
    1,000–10,000 pcs: Injection molding becomes more economical due to lower unit costs.
    10,000+ pcs: Injection molding is usually the better choice for mass production.

    All in all, 3D printing is ideal for prototypes and small batches, while injection molding is more cost-effective for medium and high-volume production.


Get a Free Quote
Drop Files Here

Quick Links

Industries

Capabilities

Contact Us

Add: Block 3A, the 6th Industrial Area, Heshuikou Village, Gongming Town, Shenzhen City, Guangdong Province, China

Telephone: +86 18126257548
WhatsApp: +86 18126157548

Copyright © 2024 Alpine Mold Engineering Limited(Alpine Mold) All Rights Reserved. Sitemap
