Alpine Mold is a professional plastic injection mold manufacturer with over 23 years of experience based in Shenzhen,China. With in-house mold design and tooling build, and in-house testing and validation capabilities, we will take your tooling from concept to production, accounting for your budget and quality requirements at each step.

Mold Design & Engineering

Mold Design & Engineering

 Full In-House Mold Design with 13+ Engineers
 Engineering Team with 30+ Years Experience

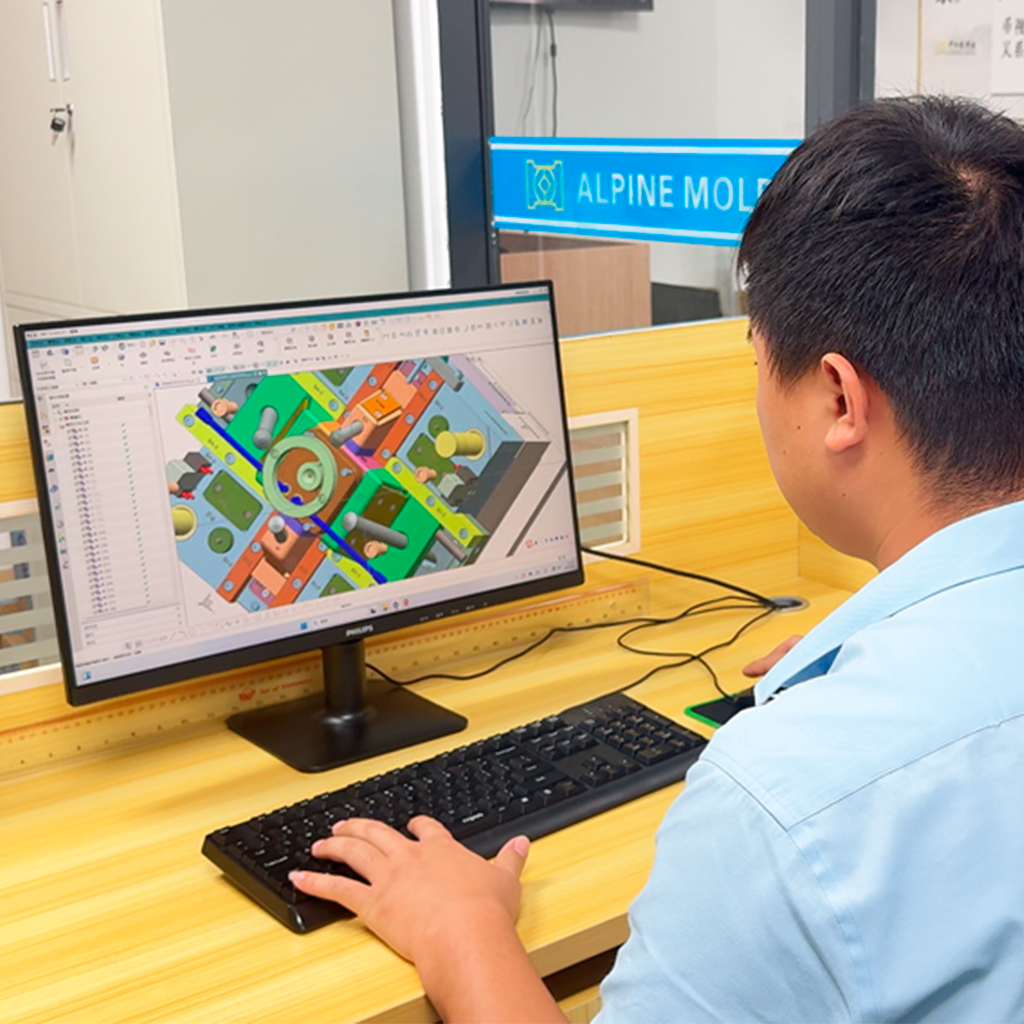

 3D Solid Modeling
 DFM Report and Mold Flow Analysis

09eccb3823f3e0b3ae6a10b4a8919658

Plastic Injection Mold Build

 In-House Tooling Build ("we never outsource!")
 Familar with HASCO, DME, LKM Mold Standard
 100+ World-class Precision Processing Equipment
 Precision Tolerances as Tight as 0.001 mm

2

Mold Testing & Validation

 In-House Full-service Testing and Validation
 Skilled Testing Team with 20+ Years Experience
 Strict Quality Control: IQC, IPQC, FQC
 Mold Trial Report and Sample inspection

Challenges You Might be Facing

In the past, you may have faced the following challenges with your current mold suppliers.

Excessive Molding Defects

Issues such as burn marks, flow lines, air voids, sink marks, short shots, and flashes frequently occur.
                                                                      Increased Hidden Costs
Long injection cycle times and poor communication lead to rising hidden costs.
Challenges You Might be Facing

Repeated Mold Trials

Frequent mold trials and repairs due to design or process issues often delay project timelines.

Delayed Delivery Times
Your current mold suppliers tend to provide various excuses, resulting in repeated delays in delivery dates.

How Alpine Mold Solved the Problems

What sets a excellent mold supplier apart is their ability to actively coordinate, communicate effectively, and accurately resolve issues.
Mold Flow Analysis
Mold Flow Analysis
injection mold design
Mold Design Engineering Team at Alpine Mold
Mold Design
With a rigorous mold design process, most molds are ready for mass production after just one trial.

  Our in-house mold design team,consisting of 13 engineers, with over 30 years of mold design experience and are equipped with state-of-the-art software, including Solid Works., is committed to providing optimal and innovative mold design solutions.

  We work closely with you to understand functionality, performance, and environmental requirements, providing expert material selection recommendations to enhance product quality, reduce production costs, and ensure sustainability.

  Provide detailed Design for Manufacturability (DFM) reports and Mold Flow analysis to identify potential issues, finalizing mold designs within 2-3 days and providing 3D mold drawings for your confirmation.
Mold Machining
Our world-class tooling machining equipment achieves precision of up to 0.001 mm.

 Our annual production exceeds 800 sets of molds, adhering to industry standards such as HASCO, DME, and LKM. We primarily export our molds to Europe, North America, South America, the Middle East, Australia, Russia, South Korea, Turkey, and more.
  We have imported over 100 sets of high-precision manufacturing equipment from Switzerland, Germany, and Japan, including high-speed CNC machines, Charmilles mirror EDM machines, wire cutting machines, and Zeiss CMM machines, ensuring that mold accuracy can reach 0.001 mm.

  Our mold trial technicians have over 20 years of hands-on experience, allowing them to quickly identify and effectively resolve issues during mold trials, which enables over 92% of our export molds to successfully pass the trial on the first attempt, reducing downtime and enhancing productivity.
Fancu CNC Machining
electrodes making
4-3

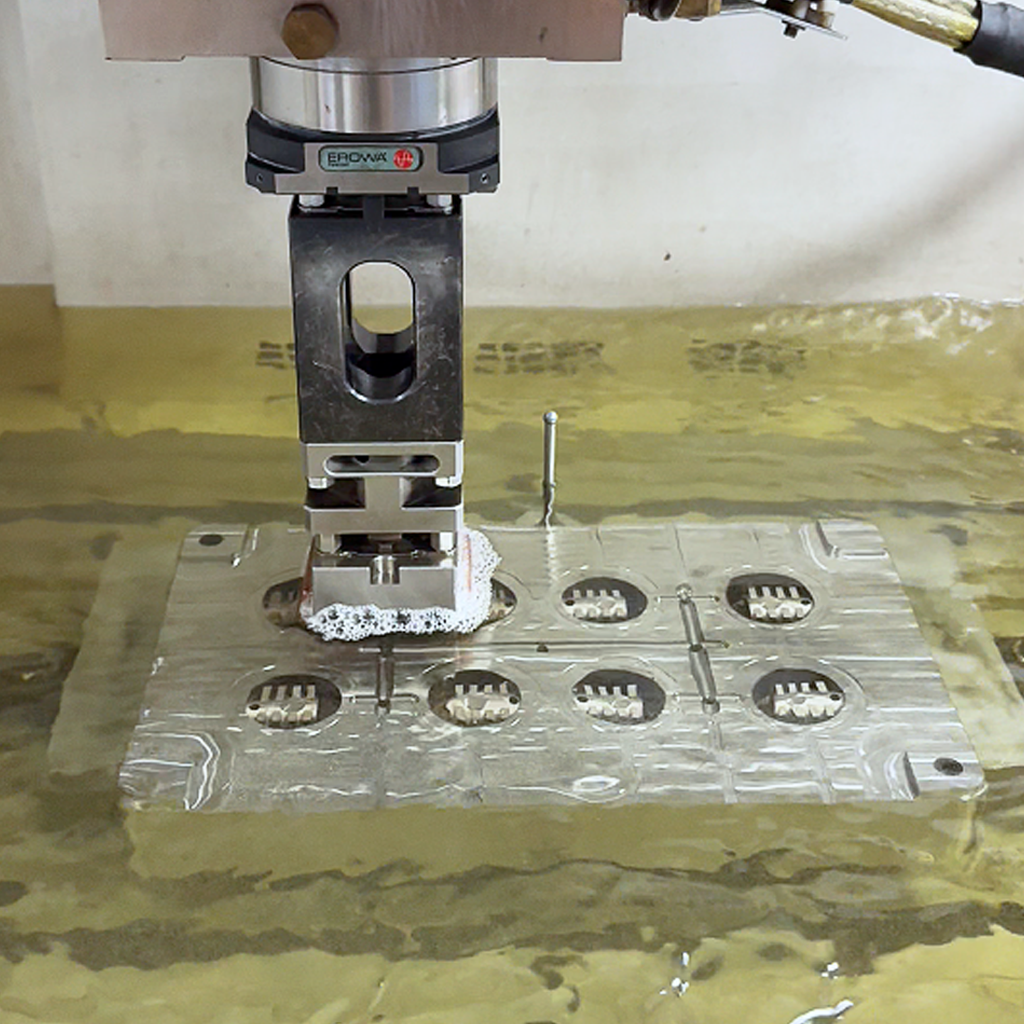

EDM Machining
Wire Cutting Machines
Wire Cutting Machining
Mold Polishing

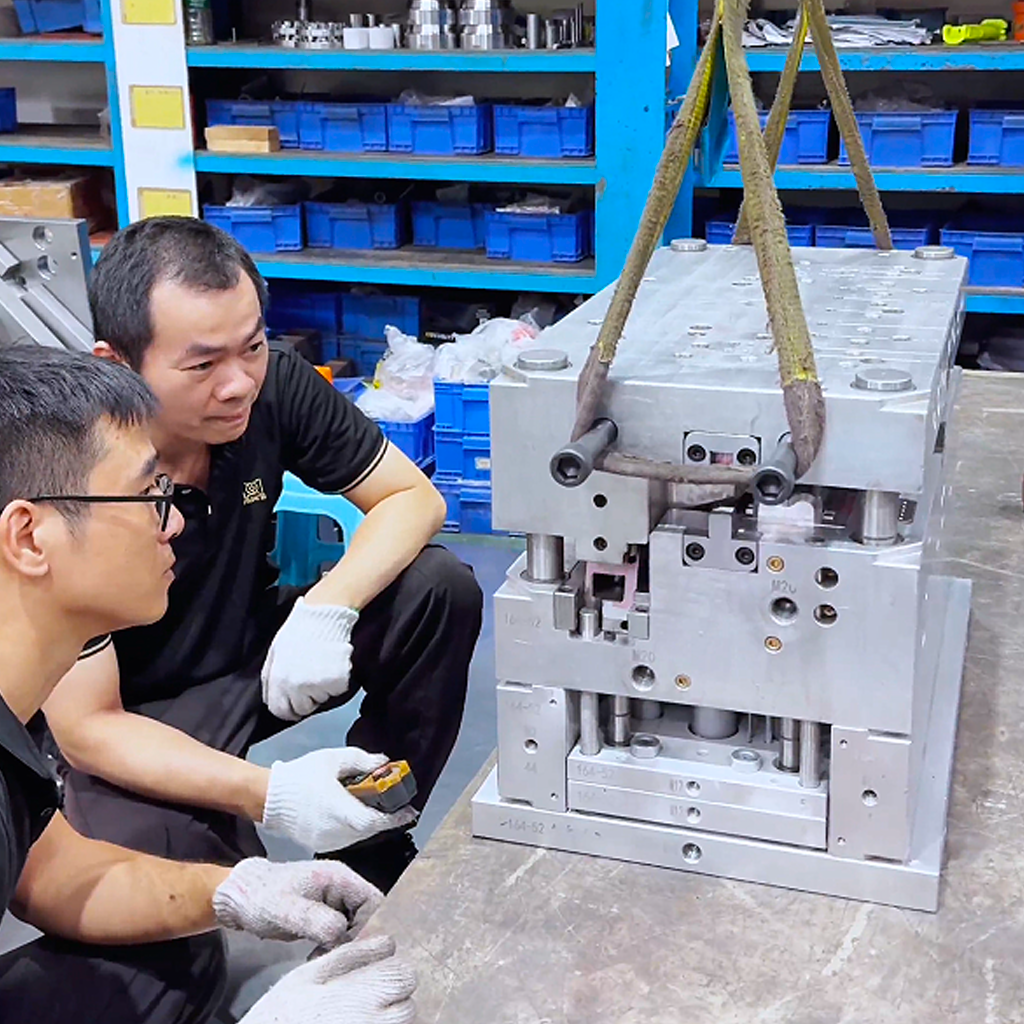

Mold Assembly Workshop
12525ae6ea4f6c9536a065502cde9256
8519fb9c41fed5430802258d0260be65
729325d8cece9d8b6415fb17e636d4d2
FANUC Injection Molding Machine
4-9
Zeiss CMM machines
2-3模具检测3
Quality Control
2-1模具检测
Mold Steel Hardness Inspection
Quality Control Process for Every Mold (8)
Quality Control Process for Every Mold (7)
05-2-CMM
Quality Control Process for Every Mold (5)
Quality Control Process for Every Mold (6)
Quality Control

Our main quality control procedures for every export mold are as follows:

 Mold Design Control
 Mold Steel Hardness Inspection
 Heat Treatment Hardness Inspection
 Mold Electrodes Inspection
 ​​​​​Mold Core and Cavity Steel Dimension Inspection

 Mold Pre-Assembly Inspection
 Mold Trial Report and Sample Inspection

​​​​​ Fixture Inspection

 Final Inspection Before Shipment
 Export Mold Packaging Inspection



Delivery Time
Provide weekly progress reports to keep you informed of the status at all times.

  Our dedicated project management team, consisting of 17 project managers, has successfully completed over 10,000 plastic injection mold tooling projects with a zero-failure record.

  Each project is assigned a project manager and the project cycle is strictly controlled according to the schedule.We provide a detailed mold progress schedule and weekly updates, keeping you informed of the project's status at all times.

  Provide online mold trial video to let you know how the mold is running, and send you the samples for comfirmation, ensuring they meet your requirements.
03-12
mold process schedule and weekly update
project management team at Alpine Mold

Our Plastic Injection Mold Process

See how Alpine Mold processes your orders, from quotation to produce high quality precision plastic injection mold toolings.
询价

1. Get a Quotation

Please send us your 3D drawings in step/igs/x-t format and specify the part materials and surface treatment requirements. We will give you a free quotation with 2 business days.

DFM

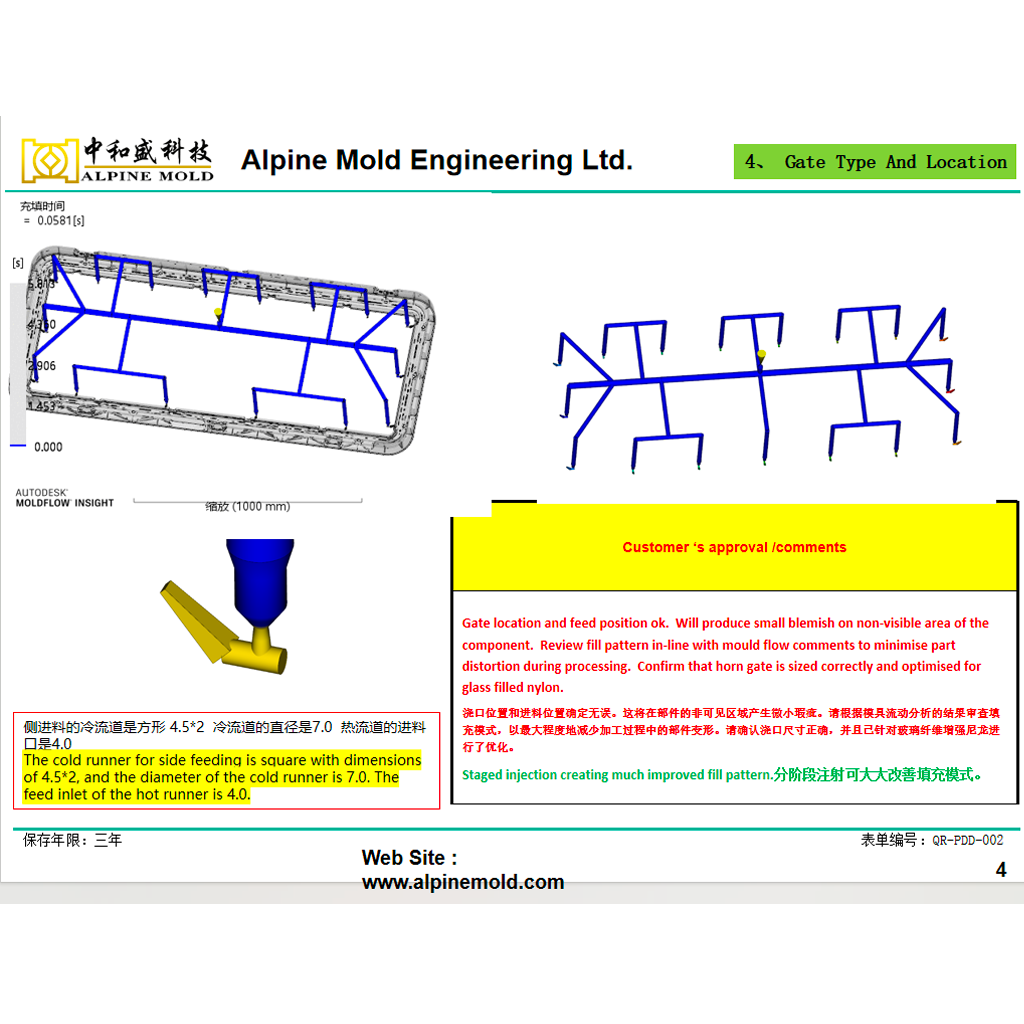

2. DFM Report

Once the quotation is accepted, our engineers provides a DFM report to identify potential challenges and recommend improvements, ensuring optimal production efficiency and quality.

Mold Flow

3. Mold Flow Analysis

If the part structure is complex, we conduct a mold flow analysis using advanced software. This simulation reveals how molten plastic flows into the mold, allowing us to identify potential issues.

Mold design

4. Mold Design

Our engineers takes around 2-3 days to finalize the mold design and provide clients with 3D mold drawings for confirmation, ensuring that the design meets all specifications and requirements.
Mold Building

5. Mold Building

Mold build typically takes 3-8 weeks, depending on complexity and size. Our skilled workers utilize CNC machining, EDM, Wire Cutting, polishing/texturing, and mold assembly/fitting to process the molds.

Mold Trial

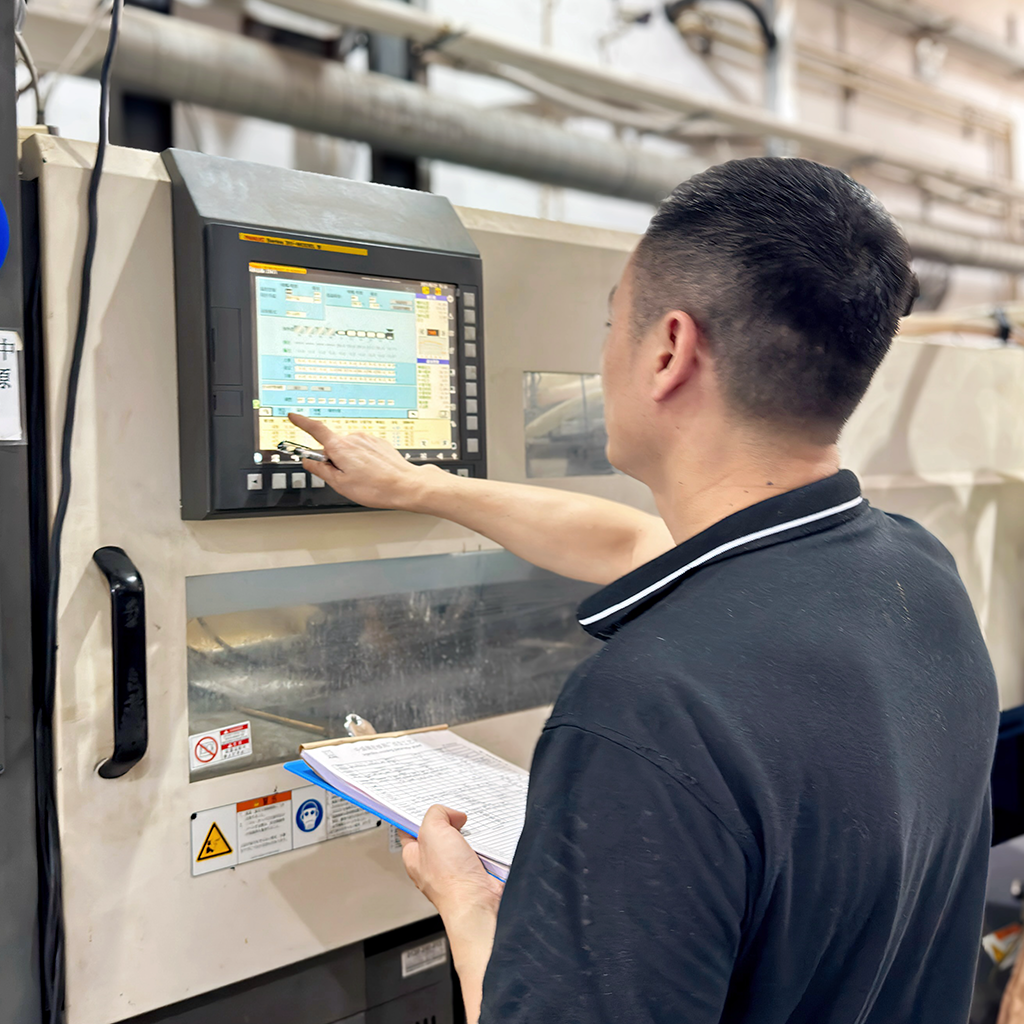

6. Mold Trial

We conduct a mold trial by injecting plastic into the mold to produce sample parts. We evaluate the mold's performance and quality, making any necessary adjustments.

Sample Confirmation

7. Sample Confirmation

We will send samples to our overseas customers for review and approval, ensuring they meet the required appearance, dimensional, and assembly fit,etc standards.

Packaging and Shipping

8. Packaging and Shipping

After obtaining your sample approval, the mold will be sprayed with rust protection oil and securely packed in wooden boxes to ensure safe and timely transport to your destination.

Plastic Injection Mold Materials

    • Learn More
    • Learn More
    • Learn More

    Essential Tests for Export Mold

    What tests need to be done before an injection mold is exported?

    ✅ Mold Appearance: As per customer signage, located on the operator's side.
    ✅Mold Transportation: Ensure the lifting holes of each template are centered.
    ✅Mold Assembly and Disassembly Mechanism: Tight-fitting inserts or components should have removable threads or holes.
    ✅Pouring System: Specifications for the diameter of the positioning ring.
    ✅Cooling System: Water pressure test should show no leaks.
    ✅Ejection System and Reset: Ejection should be smooth, without jamming or unusual noises.
    ✅Slider Mechanism: The fixed slider inserts should not wobble sideways.
    ✅Inclined Ejector Mechanism: Parts of the inclined ejector mechanism should be marked with codes.
    ✅Cavity and Core: According to drawing requirements, the hardness values of the cavity and core must meet standards.
    ✅Inserts and Pins: Inserts/pins should be assembled tightly and not be too loose to fall freely.
    ✅Hot Runner System: The inner cavity should have rounded transitions, with no sharp corners.
    ✅Oil Cylinders and Air Cylinders: Oil and air cylinders should have positioning safety devices.
    ✅Other Components: The bottom of the guide sleeve should be designed for venting.

    Our Videos of Plastic Injection Mold

    Our Gallery of Plastic Injection Molds

    Our Factory Display for Plastic Injection Mold

    • Engineering Department
      Engineering Department
    • Quality Control Section
      Quality Control Section
    • CNC Machining Workshop
      CNC Machining Workshop
    • EDM Machining Workshop
      EDM Machining Workshop
    • Mold Assembly Workshop
      Mold Assembly Workshop
    • Injection Molding Workshop
      Injection Molding Workshop
    • Sample Exhibition
      Sample Exhibition
    • Mold Warehouse
      Mold Warehouse

    Plstic Injection Mold FAQs

    • Q1: What is plastic injection mold?

       A: Plastic injection mold is a specialized tool used to shape molten plastic into specific forms, allowing for high-precision production of plastic parts. It's used across a wide range of industries including aerospace, medical devices, consumer goods, energy, electronics, automotive, robotics, security, toys, and more.

    • Q2: Why do plastic injection molds cost so much?

      A: Plastic injection molds can be expensive, typically ranging from $2,000 to over $100,000, depending on complexity and size. For example, a simple mold for a small part might cost around $2,000, while a complex mold for automotive components could exceed $50,000.

      Plastic injection molds can be expensive due to several key factors:

      Quality of Materials: High-quality molds are constructed from premium metals, such as aircraft-grade aluminum or hardened mold steels, which are essential for producing durable and precise parts.
      Skilled Labor: Mold makers are highly skilled professionals who often spend years, if not decades, honing their craft. Their expertise is crucial for designing and manufacturing effective molds.
      Advanced Tools and Technology: Mold makers require expensive tools, including specialized software, CNC machinery, and precision fixtures, all of which contribute to the overall cost of mold production.
      Complexity and Size: The time required to create a mold can vary significantly, ranging from a few days to several weeks, depending on the complexity and size of the end product. More intricate designs naturally increase the time and effort involved.

    • Q3: Who owns the tool?

      A: At Alpine Mold, our customers own their injection mold tools! After a run is complete, the tool will remain at our facilities. Tools can be shipped to you upon request; however, you will be responsible for any associated shipping and packaging costs. Our engineers will work with you regarding tool compatibility with your equipment if you're unsure.

    • Q4: How can I get the quotation?

      A: We will submit the quotation in 48 hours if getting detailed information during working days.
      In order to quote for you earlier, please provide us the following information together with your inquiry:
      1)3D Step of Files and 2D Drawings
      2) Material requirement
      3) Surface treatment
      4) Quantity (per order/per month/annual)
      5) Any special demands or requirements, such as packing, labels, delivery, etc.

    • Q5: When can I get the quotation?

      A: We usually quote within 2 days after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we can quote for you first.

    • Q6: I don't have 3D drawing, how should I start the new project?

      A: Please send your sample to our factory,then we can copy or provide you better solutions. please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.

    • Q7: How about the lead time?

      A: Usually mold processing will takes 4-7 weeks depending on the parts' complexity& sizes. Mass production usually takes 1-3 weeks based on order quantity.

    • Q8: What is your payment terms?

      A: Mold Payment: 40% deposit by T/T in advance, 30% second mold payment before sending out the first trial samples, 30% mold balance after you agree the final samples.
      B:Production Payment: 50% deposit in advance, 50% before sending out the final goods.

    • Q9: Before shipment, how to make sure the mold quality?

      A: If you don't come to our factory and also don't have the third party for inspection, we will be as your inspection worker. We will supply you Tool Testing Parameter Report & Tool Testing Videos and T1 Samples Inspection Report & Sample Photos.

    • 10: What types of mold surface finish options are available at Alpine Mold?

      At Alpine Mold, we offer a range of surface finish options for plastic injection molds to meet your specific design and functional requirements. Our selection includes SPI, VDI, MoldTech, Yick Sang, laser texture, and custom textures upon request.

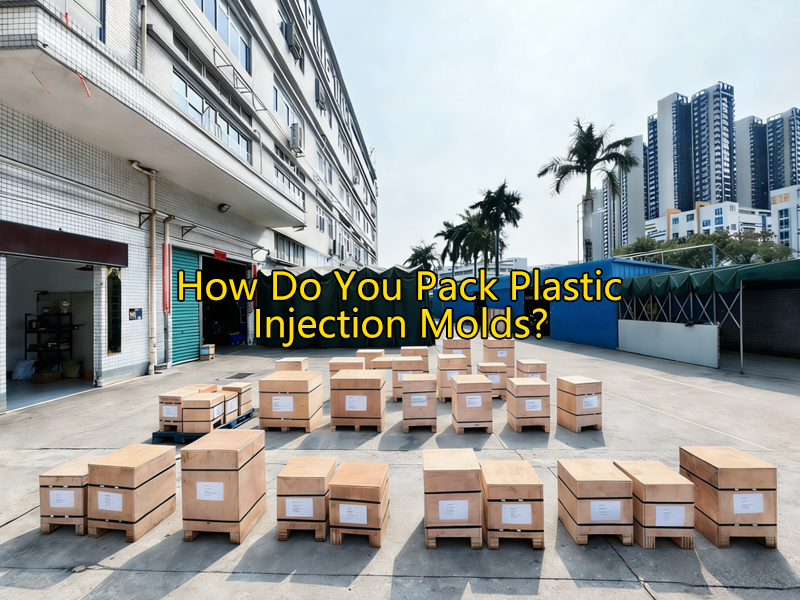

    • Q11: How do you pack plastic injection molds?

      A: We pack the plastic injection molds with wooden box. There are the main 3 operation steps.
      Step 1: We daub some rust preventive oil on the mold.
      step 2: We pack the mold with thin plastic film to avoid moisture.
      step 3: We put this plastic film packed mold in a wooden box, and fix it avoid any movement.

    • Q12: How do you make our business long-term and good relationship?

      A: 1. We keep good quality and competitive price to ensure our customers benefit for best quality products.
          2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
