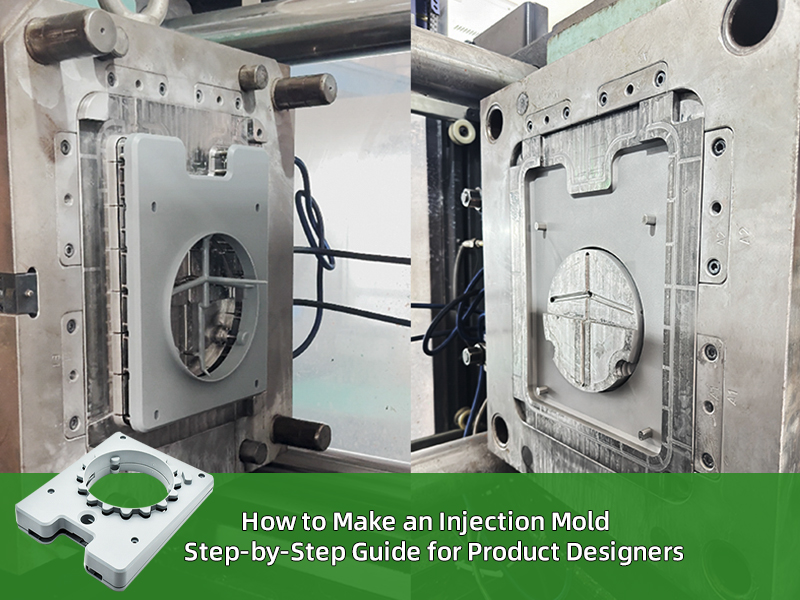

Introduction

As a product designer, you’ve probably faced this challenge: you have a brilliant concept or a detailed 3D design, but turning it into a physical product raises many questions. Will my design be manufacturable? How long will the mold take to make? What materials should I use to ensure durability and functionality? And most importantly, will the final part perform exactly as envisioned?

These questions are common, especially for designers who are experts in concept and aesthetics but may not have extensive experience in mold making. At Alpine Mold, we’ve spent over 23 years helping designers answer these very questions. Our goal is to ensure that your concept translates smoothly into production-ready parts, with predictable quality and lead times. In this article, we’ll guide you through the injection mold design process, step by step, using real-world examples from our projects.

Step 1: DFM Analysis—Ensuring Your Design Can Be Manufactured

When it comes to how to make an injection mold, the very first step is a DFM (Design for Manufacturability) analysis.

Think of it as a “health check” for your product design — before we purchase any steel or start CNC machining, we make sure your idea can be successfully turned into a manufacturable plastic part.

During the DFM analysis, we focus on several key aspects of your injection mold design:

• Wall thickness consistency: Uneven walls can lead to warping or sink marks during the plastic injection molding process.

• Draft angles and parting lines: Proper draft angles ensure your parts can be easily ejected without damage or whitening.

• Undercuts and complex structures: These often require sliders or lifters, which increase mold cost and complexity.

• Assembly and fit accuracy: Even a 0.1mm deviation can affect how well your components fit together.

At Alpine Mold, we see DFM not just as a technical step, but as a collaboration between our engineers and you — the designer.

For example, one of our clients, a UK-based pet product designer, came to us with their Zippi Rabbit Tunnel System. The product had beautiful aesthetics but included complex geometries such as connectors, door frames, and support hoops that needed to fit perfectly together.During the DFM review, our engineers noticed that some snap-fit clips and thin wall areas might deform slightly during ejection or under UV exposure.Instead of simply flagging the problem, we proposed several targeted design improvements to make the mold more robust:

• We increased the clip wall thickness from 1.5 mm to 1.8 mm, improving structural strength while keeping flexibility.

• Added R0.3 mm fillets to internal corners to improve material flow and reduce stress concentration.

• Adjusted the draft angle from 0.5° to 1°, ensuring smoother ejection and preventing whitening on the ABS surface.

• Relocated the parting line to a less visible area, keeping the product’s outer surface clean and professional.



These subtle changes maintained both the aesthetic appeal and functional precision of the design — while improving manufacturability and long-term durability under outdoor conditions.

Once the DFM report was confirmed, we prepared a 3D mold assembly drawing showing key structures such as parting lines, sliders, and ejector pin layouts.

For this rabbit tunnel system project, this stage took only 2–4 working days before the client approved the design and we proceeded to mold machining.

By performing this step early, you gain confidence that your design is truly ready for production, avoid unnecessary mold rework, and ensure a smoother transition into the next phase of the custom injection molding process.

Thus, Collaborating with your mold manufacturer during the early design stage can save weeks of iteration later.Even a small 0.3 mm adjustment in wall thickness or a 1° increase in draft angle can make the difference between a perfect first trial and costly redesigns.

Step 2: Mold Material Selection and Machining — Turning Your Design into a Reliable Tool

Once your design has passed the DFM analysis and mold design validation, we move into the next crucial stage: transforming your concept into a physical mold.

At Alpine Mold, we don’t just pick a standard material — we choose based on your product’s function, surface finish, and production volume requirements. For example, for parts that need excellent polish and corrosion resistance, we often use S136H stainless steel. It’s a premium mold material that ensures both durability and dimensional stability, especially important for products that go through repeated injection molding cycles.

In some cases, if your design involves engineering plastics like PC or PA66, we might recommend 718H or NAK80, which balance hardness and machinability while maintaining good surface results. Every choice is guided by what will best serve your design intent — not just for one production run, but for the mold’s entire lifespan.

To give you a clearer overview, here are some of the mold steels we commonly use in our production. Each material is carefully selected according to the application, resin type, and expected mold life:

Common Mold Steels Used at    Alpine Mold
738H	718H
S136H	2316H
NAK80	W302
P20 / P20HH	H13
2738H / 2083H	SKD61
2344 / 2344ESR	8407

This internal material database allows our engineers to select the optimal steel right from the start — ensuring the perfect match between the mold’s strength, precision, and your product’s design needs.

Once the steel is confirmed, the real tooling process begins:

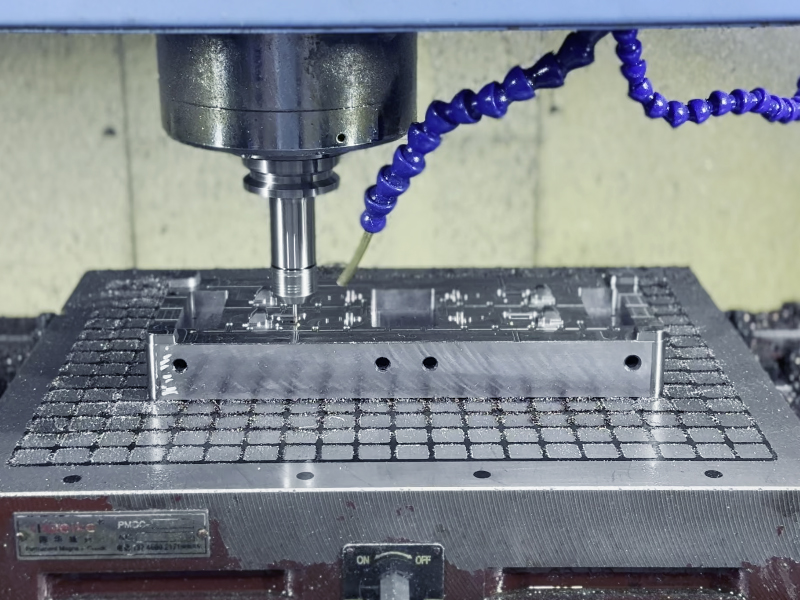

• CNC machining for precision shaping  of the mold base and inserts

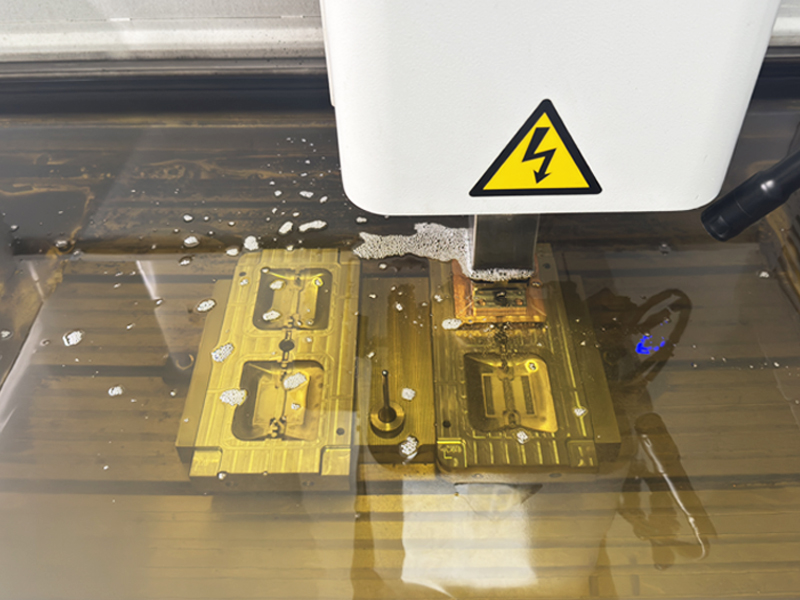

• EDM (Electrical Discharge Machining) for forming detailed internal features

• Wire cutting for tight-tolerance edges

• Polishing and texturing to match your required surface finish

Throughout this stage, we send you weekly progress reports, complete with photos and timelines, so you always know where your project stands. This transparency helps you plan the next steps — like prototype testing or assembly verification — without worrying about communication gaps.

For instance, during the Zippi Rabbit Tunnel System project, our client wanted to ensure the mold could handle both functional alignment and aesthetic surface flow. We worked closely together, adjusting minor steel tolerances and confirming texture direction before final polishing. Our attention to such details was aimed at helping our designer client feel confident about the upcoming injection molding trial — and preventing any unexpected issues during testing.

Typically, this machining process takes around four weeks, depending on the mold’s complexity. It’s a carefully balanced timeline — fast enough to keep your project moving, yet detailed enough to guarantee precision and quality.

Step 3: T1 Sample Production — Bringing Your Design to the Real World

Once machining and assembly are completed, the mold enters its first injection mold trial, producing the T1 samples. This step is critical — it transforms your CAD model into a tangible part and allows you to see how your design performs under real manufacturing conditions.

At this stage, the T1 sample helps you:

• Verify dimensional accuracy and tolerance control

• Test assembly fit and functional performance

• Evaluate surface finish and overall aesthetics

During a recent project for a German client who designed a diaphragm pump cover, the first T1 samples revealed that the sealing area required a subtle dimensional adjustment to perfectly fit the rubber component. Through quick engineering iterations and close communication, we fine-tuned the steel insert and optimized the cavity texture. This ensured that the final molded part achieved the required tolerance of ±0.01 mm and surface finish VDI#24 — both essential to guarantee a leak-free, high-performance result.

Typically, T1 samples are delivered within 2–4 working days, and any necessary adjustments can be completed in a similar timeframe. This rapid response allows you to validate your mold efficiently while keeping your production schedule on track.

Step 4: Mold Modification and Surface Finishing — Refining Details for Perfection

Even after a successful T1 trial, small refinements are often what make a mold truly production-ready. At Alpine Mold, we treat this step not as a correction phase, but as an opportunity to perfect your design — ensuring every part reflects your original vision.

If the T1 sample doesn’t fully meet expectations, our engineering team performs precise mold modifications based on your feedback and our internal inspection data. Adjustments may include improving parting line alignment, tuning ejector balance, or modifying gate and cooling layouts to enhance part quality.

Once all functional and dimensional targets are met, we proceed to surface finishing, which may involve:

• Polishing to achieve mirror-like  clarity or optical-grade smoothness

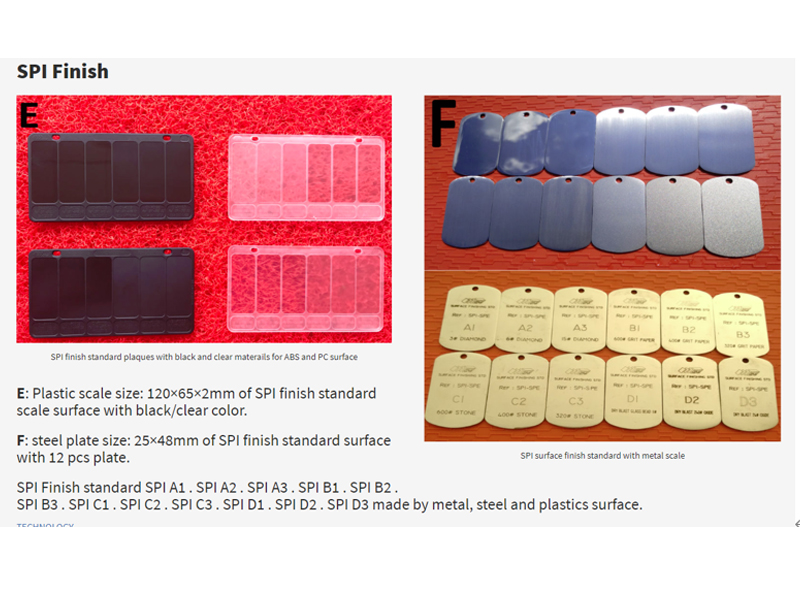

• Texturing or patterning to match your product’s design intent (e.g., VDI or custom finishes)

• Edge safety treatment, ensuring all molded components are safe for handling and assembly

For example, when we collaborated with a German client producing diaphragm pump covers, the sealing area required high-polish surfaces to ensure perfect compatibility with rubber components. To achieve this, we refined the mold’s insert geometry and optimized steel temperature control during polishing. The final result maintained a ±0.01 mm tolerance and achieved a flawless VDI#24 surface finish — ensuring zero leakage during high-pressure testing.

Our engineers documented every adjustment, sharing detailed photos and reports throughout the process. This open communication gives you — as the designer — full visibility and confidence that your design is being respected and executed with precision.

Typically, surface finishing and final modification take 3–5 working days, depending on texture complexity and feedback cycles. By maintaining this controlled yet efficient pace, we help you stay on schedule while achieving the level of perfection your product deserves.

Step 5: Mass Production — From Verified Design to Market Launch

Once the T1 samples have been approved and surface finishing is complete, your design is ready to enter the mass production phase.

At Alpine Mold, this is where all the careful preparation — from DFM analysis to mold modification — pays off. Every detail we’ve refined together ensures the final molded parts meet your functional and aesthetic standards, batch after batch.

We understand that for you as a designer, this stage is about more than just output — it’s about trusting that the product you envisioned can now be reproduced at scale without compromise. That’s why our production process emphasizes consistency, traceability, and precision from start to finish.

Our mass production injection molding process includes:

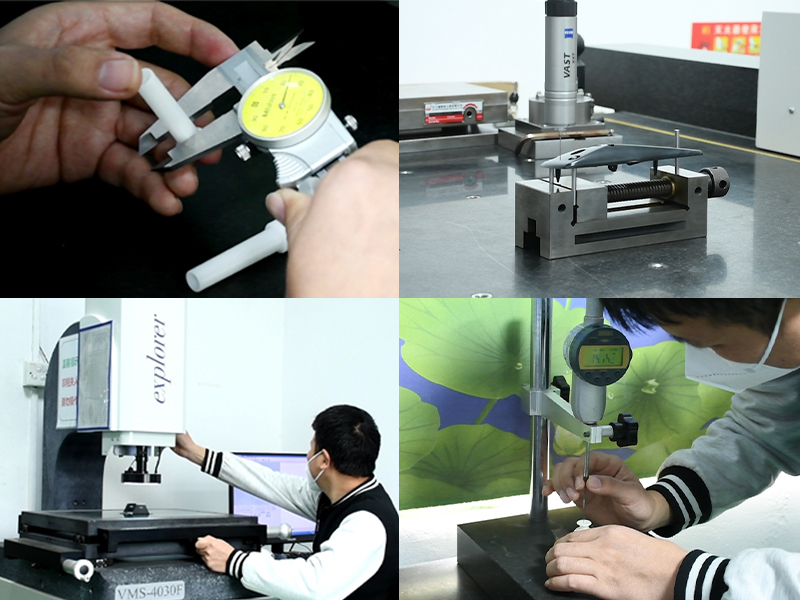

• Dimensional inspections on critical features using CMM and optical measurement systems

• Surface and texture inspections to ensure every molded part matches the approved sample

• Functional testing where applicable, especially for assemblies or sealing parts

• On-site quality control and documentation for full traceability

Each batch undergoes a strict in-house quality control procedure, from incoming material verification to final packaging inspection. We keep detailed production records and share visual updates throughout, so you always know what’s happening with your order — no surprises, just steady progress.

For most projects, the mass production lead time is around two weeks, depending on the order quantity and part complexity. Smaller runs can be completed even faster, while high-volume orders benefit from our optimized machine scheduling and 24-hour molding cycles.

Take the diaphragm pump cover project as an example: after confirming the T1 samples, our German client approved mass production immediately. Within just two weeks, thousands of high-precision covers were delivered — each meeting ±0.01 mm tolerance and perfect surface finish requirements. The client appreciated that they could launch their new product line on schedule, with full confidence in both performance and appearance.

At Alpine Mold, our mission is simple — to make sure your design doesn’t just pass inspection, but thrives in real-world production. We see mass production as the final validation of all the collaboration and craftsmanship that came before it.

How Long Does It Take to Make an Injection Mold?

One of the most common questions we hear from designers is:

“How long does it take to make an injection mold?”

The truth is, the timeline depends on several factors — such as part complexity, mold size, and material requirements. However, having built thousands of custom molds for designers worldwide, we know that what matters most isn’t just speed — it’s predictability.

At Alpine Mold, we’ve refined our injection mold manufacturing process into clear, manageable steps that give you full visibility from concept to mass production:

Procedure	Typical Lead Time
DFM Analysis & 3D Drawing   Confirmation	2–4 working days
Mold Machining & Assembly	4 weeks
T1 Sample Production	2–4 working days
Mold Modification & Optimization	2–4 working days
Surface Finishing (Polishing, Texture,   etc.)	3–5 working days
Mass Production	~2 weeks (depending on quantity)

These timelines are based on our 23 years of injection mold experience, balancing efficiency with meticulous attention to detail.

For instance, during the Zippi Rabbit Tunnel System project, clear scheduling allowed our designer client to plan prototype testing and packaging launch simultaneously — without any delay. Similarly, in the diaphragm pump cover project for a German designer, our 3-week lead time from tooling build to T1 samples helped them meet a tight exhibition deadline.

By providing a well-defined injection mold timeline, we give you peace of mind:

you’ll always know what’s happening, when it’s happening, and what comes next.

That’s why many of our clients — from startups to industrial designers with decades of experience — trust Alpine Mold not just to make molds, but to keep their projects on track from design to delivery.

FAQ: Common Questions About Injection Mold making

Q1: How many parts can a mold produce before it needs refurbishment?
A: A well-built mold made from hardened steel can usually produce hundreds of thousands to millions of parts before major maintenance is required. In the injection mold making process, proper cleaning, lubrication, and inspection are essential to extend mold life and maintain part consistency.

Q2: What are the key process parameters that affect injection molding quality?
A: During the injection mold design process, factors such as melt temperature, mold temperature, injection pressure, and cooling time directly influence the final product’s dimensional accuracy and surface finish. Controlling these parameters is critical to ensuring stable production and defect-free parts.

Q3: Is injection molding always more cost-effective than 3D printing or CNC machining?
A: Not always. For prototype or low-volume parts, 3D printing or CNC machining may be more economical. However, when you understand how to make an injection mold efficiently, the tooling cost can be spread over thousands of pieces—making injection molding the best choice for mass production and consistent quality.

Q4: How do I select the right plastic material for my project?
A: Material selection is one of the first injection mold making steps. It depends on strength, durability, thermal stability, and aesthetics. Common materials include ABS, PC, PA66, and POM. Working with your mold manufacturer early in the mold making process ensures that the chosen resin fits both design and production needs.

Q5: What are the most common injection molding defects and how to avoid them?
A: Common issues—such as warpage, sink marks, flash, and weld lines—can be minimized by improving the mold design process, balancing wall thickness, and optimizing gate placement. Each step in the injection mold making process helps prevent these defects and ensures superior part quality.

Q6: What is the typical lead time for mold building and production?
A: Lead times depend on the complexity of the mold design and part size. On average, the injection mold making steps take about 6–12 weeks, from DFM analysis to T1 sample testing. This ensures every detail—from tolerances to surface finish—is fully validated before mass production.

Q7: Can an existing mold be transferred to a different manufacturer?
A: Yes, molds can be transferred if properly designed and maintained. In some cases, the new supplier may need to adjust locating rings, water lines, or ejector systems. Sharing accurate documentation of the mold making process helps ensure smooth reinstallation and compatibility with new equipment.

Q8: What certifications or quality standards should a mold manufacturer have?
A: A professional manufacturer following a defined injection mold design process should hold ISO 9001 certification, use advanced inspection tools, and provide complete T1 sample and mold testing reports. This guarantees quality control and transparency at every stage of the mold making process.

Q9: How does mold maintenance affect cost and performance?
A: Routine maintenance—cleaning, greasing, and inspection—helps preserve accuracy and reduces unplanned downtime. A proactive mold making process minimizes repairs and improves cycle life, resulting in lower long-term costs and better production efficiency.

Q10: What surface finishes and textures are available for injection molded parts?
A: Depending on your injection mold design process, surface finishes can include high-gloss polishing, matte textures, or leather grain patterns per SPI or VDI standards. Each finish is part of the final injection mold making steps, enhancing both product appearance and functionality.

Conclusion:

Injection mold making is not just manufacturing — it’s the bridge between your idea and reality.

At Alpine Mold, every step — from DFM analysis to surface finishing — is carefully managed to ensure precision, reliability, and on-time delivery.

With over 20 years of experience, our team works closely with designers, engineers, and startups worldwide to turn concepts into production-ready parts.

Our services cover pet products, home appliances, medical devices, automotive parts, consumer electronics, and precision pump housings — serving clients from Germany, the UK, the USA, Canada, France, Mexico, Russia, and beyond.

• DFM & Moldflow validation

• Precise material and tolerance control

• Transparent project tracking

• Fast, predictable production

If you’re planning a new project, we’d love to help you bring your design to life.

Contact Alpine Mold for a free DFM review or quotation —your next great product starts here.
