Honestly, that detailed 3D model on your screen looks really promising. But here's the thing—between your design and a finished product, there's one key manufacturing choice you’ll have to make: deciding whether to go with blow molding or injection molding. Get this decision wrong, and you might not only compromise your original vision but also end up blowing your budget—and let's not even talk about watching your timeline stretch out even further. But make the right call, and you're looking at a much smoother path—where performance, cost, and production efficiency actually work in your favor.
If you've ever wondered, "My design is hollow, but it has complex mounting features—which process wins?" or "I need the material properties of PC, but my part is a container—is that even possible?", you're not alone. This is the most common and consequential dilemma we see among product developers.This guide exists to replace that uncertainty with confidence. We will move beyond a simple definition and provide a practical, design-driven framework. By the end, you can confidently match your part's geometry, material, and volume to the best manufacturing process. This way, your vision gets turned into a reality with both technical and commercial precision.
Injection molding is essentially a high-precision manufacturing method that's used to create solid, fully-densified plastic parts—and it does this with really tight control over dimensions. Now, if you compare it to blow molding, which is pretty much tailored for hollow shapes, injection molding actually handles a much broader variety of geometries and performance needs. That's why it's usually the go-to for most engineered plastic parts.
Technically speaking, the process pretty much goes like this: you melt thermoplastic resin and inject it into a temperature-controlled steel mold, then let it cool under pressure. And because the final shape comes entirely from that mold cavity, injection molding gives you some major advantages:
excellent dimensional accuracy
tight tolerance capability
uniform wall thickness
repeatable surface finishes
high structural integrity
For engineers weighing up blow molding against injection molding, here's the key takeaway: injection molding is meant for creating solid parts that have functional or structural jobs to do — blow molding really isn't.

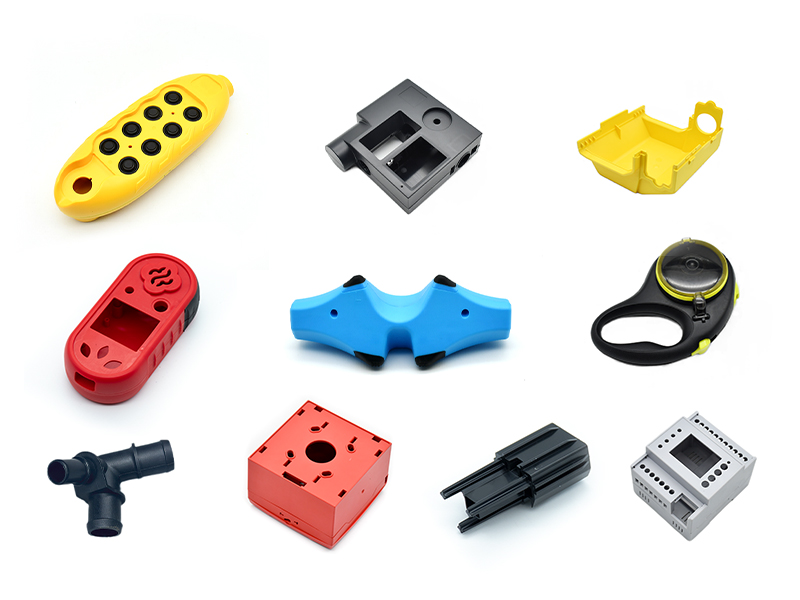

Injection molding is suitable for almost every non-hollow plastic component used in modern products, including:
electronic housings and protective covers
structural brackets, gears, clips, and snaps
functional assemblies with threads, ribs, or alignment features
automotive interior/under-hood components
medical device shells and instrument components
appliance parts and consumer product casings
connectors, mechanical interfaces, and precision mechanisms
This broad applicability comes from the flexibility of the process itself—engineers can incorporate details like:
ribs and gussets for stiffness
living hinges
snap-fits and locking features
threaded inserts
undercuts and complex parting geometry
Features that blow molding simply cannot achieve.
Most engineering teams follow established injection molding design rules to improve manufacturability. These include:
uniform wall sections to minimize warpage
adding draft to aid ejection
radiused transitions to promote flow
strategic gate and weld-line placement
resin selection based on mechanical, thermal, or chemical requirements
These principles are fundamental in any plastic part design guide and remain essential when choosing between processes. Understanding how to design for injection molding early helps reduce tooling rework and speeds up qualification.
If your part requires load-bearing performance, tight dimensional stability, refined appearance, or consistent fit-up with mating components, injection molding is generally the correct plastic manufacturing process. Its engineering capability and material flexibility far exceed what blow molding can deliver.
Blow molding is widely used in applications where volume capacity, low weight, and flexible wall behavior matter more than precision. Typical products include:
beverage and cosmetic bottles
fuel containers and oil jugs
chemical or detergent packaging
medical liquid containers or IV bottles
automotive air ducts, coolant bottles, and fluid reservoirs
large hollow tanks or canisters
These parts share a few key characteristics: a hollow cavity, moderate wall thickness, and no need for tight assembly fits or complex structural details. The reality is, since such designs don't demand the high precision or engineered features typical of injection molding, blow molding simply offers a far more efficient and cost-effective way to produce them.
With blow molding, you get a continuous hollow cavity—and it achieves this without relying on complex steel cores, collapsible inserts, or multi-stage mold actions. The real advantage? The air-expansion process allows the molten parison to take shape against the mold in a single motion. That’s why it’s so much more efficient than injection molding for making items like bottles, tanks, or ducts, especially when an uninterrupted internal volume is what you’re after.
The process naturally produces thin-walled structures, which significantly reduces material consumption. For packaging, consumer containers, and large-volume vessels, this weight reduction doesn’t just lower cost—it improves usability and reduces shipping weight, which is critical in high-volume consumer applications.
Blow molding equipment and tools generally have simpler construction compared to injection molds, thanks to the absence of internal cores and ejector systems. This results in lower upfront tooling investment and faster mold fabrication. For industries like food, beverage, and personal care—where tens of thousands of containers may be produced daily—this cost structure makes blow molding extremely economical.
Most blow-molded products don’t need strict dimensional tolerances or precise interface features. Here's the reality: things like labels, closures, and external packaging systems can easily compensate for slight shape or wall thickness deviations. So as long as the container holds its volume and remains functional, small variations are perfectly acceptable—which would be completely unacceptable in structural or assembly-critical injection-molded components.
From an engineering standpoint, I've found that the choice between blow molding and injection molding really comes down to your part's fundamental purpose. Honestly, when you're dealing with components that need threaded connections, reliable sealing surfaces, structural rigidity, detailed mating features, or really tight tolerances, you'll find that injection molding gives you the precision and control these applications demand. These requirements actually align well with established injection molding design rules that you can explore in most plastic design guides.
On the other hand, if the main point of your product is its internal volume—think stuff like bottles, ducts, tanks, or fluid reservoirs—then blow molding is typically the better fit. It's a process that's great at efficiently and economically creating lightweight, hollow shapes, without all the extra complexity you'd run into if you tried to use injection molding for those kinds of geometries.
On the other hand, I've noticed that when your product's main job revolves around its internal volume—things like fluid containers, air ducts, storage tanks, or similar reservoirs—blow molding tends to be the better option. What makes this process stand out is how efficiently it creates lightweight, hollow shapes without the added complexity and cost you'd typically face if you tried to produce similar geometries using injection molding techniques.

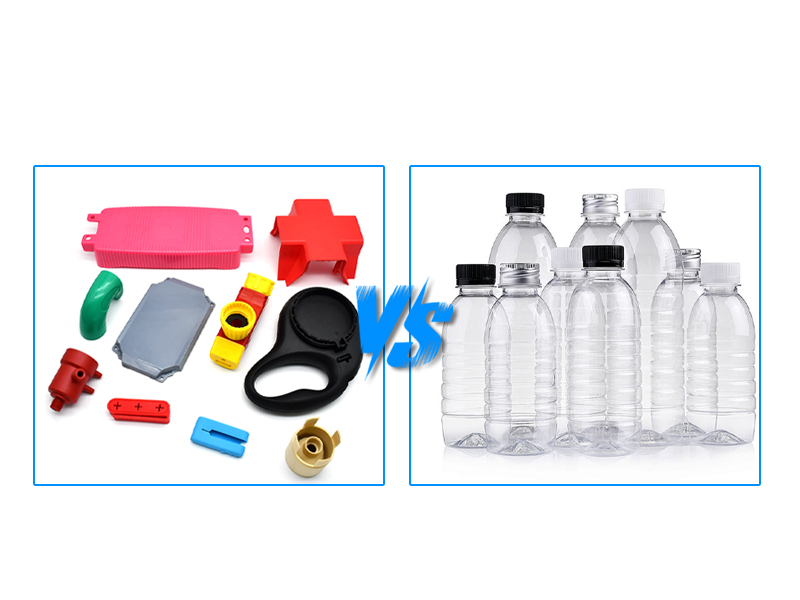

While both blow molding and injection molding belong to the same family of high-volume plastic manufacturing processes, I've found they're actually designed for completely different product types. Getting these distinctions right matters more than people realize—especially when your team starts balancing cost, performance, and manufacturability considerations. Honestly, making the correct choice early in the design phase can save you from costly revisions down the road.
When we look at injection molding versus blow molding from a product type perspective, the fundamental difference comes down to what each process is naturally good at producing. From my experience, injection molding really specializes in creating solid components. We're talking about parts where the geometry, fit, and surface details can't be compromised—the kind of precision you need for medical device casings, appliance components, or any engineered part where those small features make a big difference.
Blow molding, by contrast, is dedicated to producing hollow shapes. Bottles, tanks, fluid reservoirs, and automotive air ducts are typical examples—parts where the interior volume is more important than external precision. If the part’s primary purpose is to hold, channel, or store fluids or air, blow molding is often the more efficient and economical option.
From a structural standpoint, these two processes really don't perform the same. Injection molding allows us to design components with all kinds of complex geometry—snaps, bosses, threads, ribs, hinges, and detailed mating features aren't a problem. The process works by filling a rigid metal cavity with molten resin under controlled pressure, which gives us great dimensional accuracy and repeatability.
Blow molding can't really achieve that kind of precision. While the expanding parison does conform to the mold, it's affected by gravity, air pressure, and cooling behavior—so we usually see non-uniform wall thickness and lower dimensional control. That means it's not suitable for parts that must assemble with others or hit strict tolerances. What it does well is produce lightweight hollow forms, and it does this without complex internal tooling.
The materials used also highlight how these processes serve different purposes. When it comes to injection molding, one of its biggest advantages is the huge variety of engineering-grade plastics you can use—things like ABS, PC, PA, PBT, PP, POM, PMMA, TPU, and even high-performance resins. This basically lets you target very specific mechanical, thermal, or optical needs, which is crucial for technical parts in fields like automotive, electronics, medical, and industrial.
Blow molding materials are a bit different, though. From what I've seen, they're selected more for durability and how well they work in hollow items. You'll typically find HDPE, LDPE, PP, and PET being used because they offer great impact strength, resist chemicals, and can stretch properly during inflation. The thing is, while these resins are perfect for containers and ducts, they usually don't provide the same level of stiffness or precision you can get with injection molding.
Looking at performance, injection-molded parts give you superior structural strength, repeatability, and surface quality. The solid build allows them to bear loads, stay consistent in appearance, and support designed interfaces for sealing, fastening, and assembly. These traits make injection molding the go-to choice for any product where reliability and fit aren’t open for compromise.
With blow-molded parts, the emphasis is on lightweight construction and internal capacity—not so much on precision. Where they really stand out is in uses that need volume efficiency, chemical resistance, or impact absorption, like packaging bottles, fuel containers, or fluid tanks. Even so, they’re not a substitute for injection-molded components in applications where assembly is critical or structural requirements are pushing the limits.
I always say that choosing between these processes depends entirely on what you're trying to achieve with the part. To help, the table below lays out the most practical factors engineers use when deciding between blow molding and injection molding.
Decision Factor | Blow Molding | Injection Molding |
Part Type | Hollow shapes (bottles, ducts, tanks) | Solid, functional components |
Geometry Complexity | Simple contours, thin walls | Detailed features, snaps, threads, ribs |
Tolerance Requirements | Moderate | Tight, repeatable |
Material Options | HDPE, LDPE, PP, PET | ABS, PC, Nylon, PBT, PMMA, POM, etc. |
Strength & Structural Needs | Low to moderate | High structural integrity |
Surface Quality | Basic finish | High cosmetic or textured surfaces |
Production Scale | High-volume packaging | Medium to high-volume engineered parts |
Typical Applications | Containers, reservoirs, ducts | Housings, brackets, medical parts, electronics |
From my experience, blow molding is typically the go-to when your design priorities are internal volume, light weight, and cost-efficient production for hollow parts. Where does it excel? Well, think packaging, automotive fluid systems, and consumer bottles—basically any application where how much it can hold and its durability are the main concerns, not extreme precision.
Now, in my experience, injection molding often turns out to be the better choice for parts that need really precise geometry, have to snap perfectly into an assembly, or just require solid, dependable strength. If your design includes mating features, will handle any kind of load, or has high cosmetic standards—think visible consumer products—then injection molding is probably your answer. It delivers that consistent, reliable quality that makes a finished product feel truly professional.
By the way, if you're still weighing your options, I always tell people to share their 3D model early in the process. It’s a simple step, but it can seriously help clarify the most efficient and cost-effective way to bring your part to life.
Look, the choice you make between blow molding and injection molding really does shape your entire manufacturing path. I've seen enough projects to know this single decision can determine whether a product succeeds or struggles—it affects everything from your initial tooling costs to how efficiently you can produce parts month after month.
What I've learned is that truly understanding how these processes differ isn't just technical knowledge—it's actually what separates amateur projects from professional outcomes. Getting this right gives you a real advantage.
If you share your product drawing with Alpine Mold, our engineering team can evaluate your design and tell you within 10 seconds whether injection molding or blow molding is suitable—and what technical challenges you should prepare for.
This is faster and more reliable than searching online or asking in forums.
A: This is a classic "gray zone" scenario. While the hollow nature suggests blow molding, complex internals typically require injection molding. The safest approach is to send us your 3D file for a professional assessment - we'll identify which process can better achieve your design intent while maintaining manufacturability.
A: For simple hollow parts like containers, blow molding's lower tooling costs are attractive. However, for solid parts, injection molding's faster cycle times often deliver lower per-part costs at high volumes, despite higher initial investment. We can run both scenarios to show you the true total cost over your production run.
A: This is challenging. PC isn't suitable for blow molding due to its melt strength characteristics. Your options are: modify the design for injection molding (possibly as two assembled halves), or select a blow-moldable material like PET or PP that meets your requirements. Our engineers can help you evaluate this trade-off.
A: Generally, blow molds cost 30-50% less than comparable injection molds. However, this varies significantly based on part size and complexity. For an accurate comparison, we recommend getting project-specific quotes for both processes.
A: Injection molding provides superior wall thickness control. Blow molding naturally creates variation, with thinner areas where the material stretches more during inflation. If consistent walls are critical, injection molding is likely your better option.
A: Injection molding typically takes 8-12 weeks for tooling and first articles. Blow molding can be faster at 6-8 weeks due to simpler mold construction. These timelines can be optimized based on your specific project requirements.
A: Absolutely. We offer free DFM (Design for Manufacturability) analysis for both processes. Simply send us your 3D files, and our engineers will identify potential manufacturing issues and recommend optimizations - often within 48 hours. This single step can save weeks of redesign work later.
