How To Address Color Difference Issues in Injection Molded Products

Table of Contents

1. Introduction

2. Main Causes of Color Differences in Injection Molded Products     2.1 Raw Material Factors     2.2 Equipment and Mold Factors     2.3 Environmental and Operational Factors     2.4 Color Mixing Factors

3. Prevention and Control Measures for Color Differences in Injection Molding

4. Detection and Evaluation of Color Differences in Injection Molding

5. Conclusion

1. Introduction

In the production process of injection molded products, color difference issues are a common and troublesome quality control challenge. Color differences not only affect the appearance quality of the products but can also lead to customer complaints or even order losses, severely impacting the reputation and profitability of injection molding suppliers. Due to the complexity of the injection molding process, color difference problems can be triggered by various factors, such as fluctuations in raw materials, changes in equipment parameters, instability in process control, and environmental influences. Effectively identifying and resolving color difference issues in injection molded products has become an important topic for improving plastic injection product quality and production efficiency. This article will systematically explore strategies to address color difference issues from the perspectives of causes, detection methods, and solutions, providing practical guidance for related enterprises.

2. Main Causes of Color Differences in Injection Molded Products

Color difference refers to a significant deviation from the standard color swatch or sample color as detected by the naked eye or instruments. The issue of color differences in injection molded products is typically the result of multiple factors acting together, manifesting as deviations in overall or local colors from the standard, uneven distribution, color spots, obvious color gradients, or tonal shifts between batches. Below, we analyze these factors from five aspects: raw materials, process parameters, equipment and molds, environment and operations, and color mixing.

2.1 Raw Material Factors

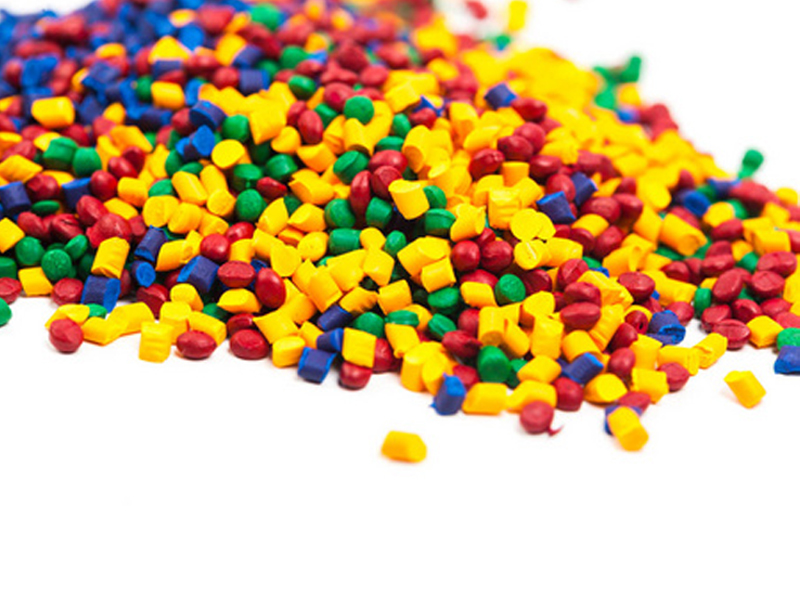

• Batch Differences in Resin: Resin is the primary factor affecting color differences in injection molded products. Variations in molecular structure, particle size, impurity content, and moisture content among different production dates, grades, or even batches of the same grade can lead to differences in the dispersion of colorants, melt viscosity, and final appearance, impacting product color.

• Quality and Mixing Consistency of Color Masterbatches: The stability and coloring strength of color masterbatches directly affect the color of injection molding products. Significant batch variations, poor dispersion, or impurities can easily cause color spots and local color differences. Additionally, insufficient feeding ratios and weighing precision can affect mixing uniformity, leading to color differences.

• Moisture Content Fluctuations: Plastic raw materials, such as PA and PC, have strong hygroscopic properties. Abnormal increases in moisture content can lead to hydrolysis and bubbles, affecting not only mechanical properties but also the dispersion of colorants, resulting in color differences and spots.

• Impurities and Additives: Excessive impurities, high rates of recycled materials, or untreated additives can chemically react with colorants, introducing uncontrollable color shifts.

• Barrel Temperature: Improper temperature settings can affect the uniformity of colorant dispersion and the stability of colorants. For instance, excessively high temperatures may decompose colorants, while low temperatures may prevent adequate mixing, both leading to color differences.

• Injection Pressure and Holding Pressure: Variations in injection pressure (including injection and holding pressure) can affect melt flow and the directional distribution of color masterbatches, resulting in local differences in color depth, especially noticeable in complex thin-walled or large-volume products.

• Injection Speed and Time: Unstable injection speeds can lead to uneven filling of plastic injection molds, with colorants affected by flow speed resulting in flow marks and color bands. Timing factors like injection, holding, and cooling, if not properly set, can lead to tonal differences in different areas.

• Material and Mold Temperature: Injection mold temperature directly affects the cooling effect of injection plastic parts. Slow cooling in certain areas can easily produce gloss, dark bands, and different tonal depths.

2.2 Equipment and Mold Factors

• Injection Molding Machine Condition: The mixing effects, feeding end stirring capabilities, and structural differences of different brands of injection molding machines can directly influence the uniformity of colorant dispersion. Equipment aging, screw wear, and failure in back pressure control can all lead to color differences.

• Injection Mold Design and Maintenance: Poorly designed mold runners and gates can lead to uneven material filling, resulting in flow marks and seams. The surface treatment condition of the plastic injection mold (polish, carbon deposits, residual impurities) and the uniformity of the cooling system can directly affect color performance.

2.3 Environmental and Operational Factors

• Production Environment Temperature and Humidity: Variations in workshop temperature and humidity directly affect the moisture content and flowability of raw materials. For example, high humidity can lead to moisture absorption, while low temperatures can increase color differences between crystallized and amorphous plastics.

• Standardization of Operational Procedures: Inconsistent operations by personnel, frequent switches between batches, and careless parameter entries are also significant causes of color differences.

2.4 Color Mixing Factors

• Non-standardized Color Formulations: Differences in color mixing methods among different operators or manufacturers, coupled with the subjectivity of manual mixing, can lead to deviations between standard colors and actual production colors.

• Condition and Operational Procedures of Mixing Equipment: Inadequate cleaning of mixing equipment, residual color powders, insufficient mixing time, and uneven mixing are fundamental causes of batch-to-batch color differences and local color spots.

3. Prevention and Control Measures for Color Differences in Injection Molding

Color difference issues are common quality challenges in plastic injection molding, but through scientific prevention and effective control measures, the occurrence of color differences can be significantly reduced, ensuring the consistency and stability of injection molded products. Below, we explore strategies from five aspects: raw materials, process parameters, equipment management, environmental control, and operational standards.

3.1 Quality Control of Raw Materials

• Choose Stable Raw Material Suppliers: Ensure that raw materials (including base materials, color masterbatches, and additives) come from stable sources, selecting reliable suppliers and using the same batch of raw materials whenever possible to minimize quality differences between batches.

• Strict Inspection of Raw Materials: Conduct quality checks on raw materials before production, focusing on their color, moisture content, melt flow index, and other indicators to avoid color differences due to raw material fluctuations.

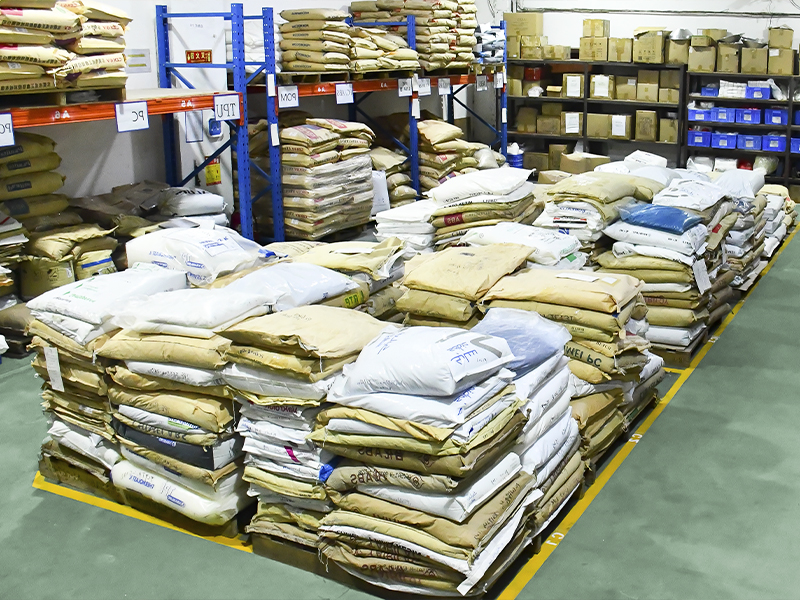

• Proper Storage of Raw Materials: Store raw materials in a dry, cool environment to avoid moisture absorption or long-term exposure to sunlight, which can lead to performance changes. Hygroscopic materials can be thoroughly dried before production.

3.2 Optimization and Stabilization of Process Parameters

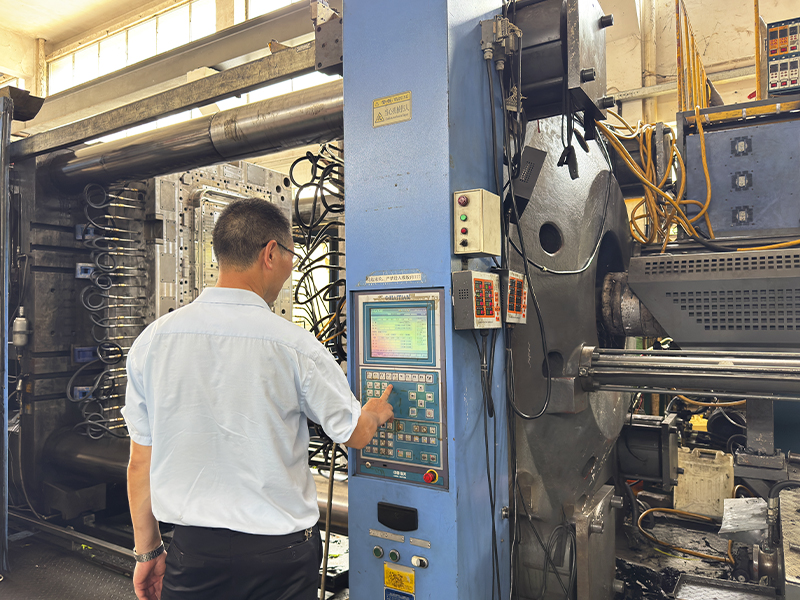

• Set Reasonable Process Parameters: Optimize injection temperature, injection pressure, cooling time, and other parameters according to material characteristics and product requirements, ensuring stable process conditions to reduce color differences caused by parameter fluctuations.

• Establish a Standardized Parameter System: Develop detailed process parameter standards and operate strictly according to the process flow, keeping records of parameters for consistency in subsequent production.

• Real-time Monitoring of Key Parameters: Use automated monitoring systems to continuously track and adjust key parameters such as temperature, pressure, and speed of the injection molding machine, ensuring stability in process conditions during production.

3.3 Maintenance of Equipment and Molds

• Regular Cleaning of Equipment: Clean screws, barrels, and molds of residual materials when producing different colors to avoid color mixing due to leftover materials.

• Maintain Uniformity of Mold Temperature: Ensure that the mold temperature control system is functioning correctly to prevent color differences caused by uneven temperatures in different areas.

• Regular Equipment Maintenance: Conduct regular maintenance and calibration of injection molding machines and plastic injection molds to ensure stable operation, avoiding color difference issues due to mechanical failures.

3.4 Control of Environmental Conditions

• Optimize Production Environment: Control temperature and humidity in the workshop, especially when processing hygroscopic materials, to avoid material performance changes caused by excessive humidity.

• Improve Lighting Conditions: Ensure consistent lighting conditions in the workshop during detection and production to avoid color judgment errors due to lighting differences.

3.5 Precise Management of Color Mixing

• Strict Control of Color Mixing Ratios: Accurately add color masterbatches or colorants in accordance with set ratios during color mixing to avoid deviations due to ratio errors.

• Enhance Mixing Processes: Use efficient mixing equipment to ensure thorough and uniform mixing, avoiding color differences due to uneven pigment distribution.

• Establish Unified Color Standards: Develop unified color standards, especially for cross-batch production, to ensure consistency in color mixing schemes across different batches.

3.6 Standardization of Operational Procedures

• Strengthen Training for Operators: Improve the skill levels of operators to ensure familiarity with process flows and equipment operation requirements, reducing human factors leading to color differences.

• Develop Standard Operating Procedures: Standardize production processes, including mixing, injection, and inspection, ensuring that each step is followed according to standards.

• Enhance Production Process Control: Conduct inspections during production to promptly identify and correct potential issues that could lead to color differences, preventing problems from spreading to the entire batch of products.

3.7 Strengthen Color Difference Detection and Feedback

• Use Professional Color Difference Detection Equipment: Introduce professional equipment such as spectrophotometers to accurately detect whether plastic injection product colors meet standards, preventing color difference issues that are difficult to detect by the naked eye.

• Establish Rapid Feedback Mechanisms: Quickly report and trace the causes of color difference issues identified during production, adjusting process parameters or raw materials in a timely manner to prevent the problem from escalating.

4. Detection and Evaluation of Color Differences in Injection Molding

The detection and evaluation of color differences are crucial for ensuring the color consistency of injection molded products. Scientific detection methods and evaluation standards can not only promptly identify color difference issues but also provide a basis for subsequent process adjustments. Below, we discuss detection tools, methods, evaluation standards, and considerations in detail.

4.1 Color Difference Detection Tools

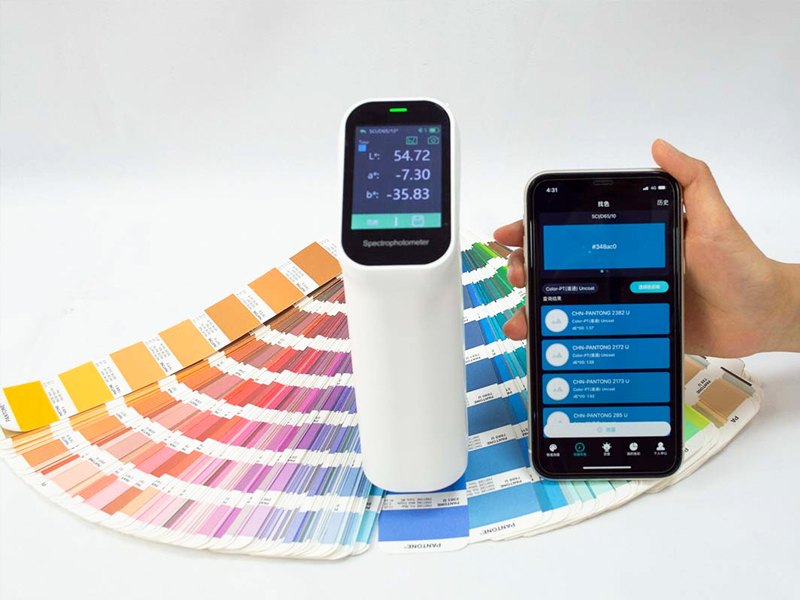

• Spectrophotometer: A widely used high-precision device for color difference detection, analyzing the reflection and transmission characteristics of light to calculate the spectral data of product colors. It provides values in the Lab* color space, quantifying color differences and is suitable for products with high color consistency requirements.

• Color Meter: A convenient detection tool primarily used for quick comparisons of color differences between samples and standard color swatches. It is simple to operate and highly flexible, suitable for rapid detection needs in daily production.

• Standard Color Swatch: A key reference for color difference detection, typically provided by clients or formulated according to product requirements, serving as a benchmark for determining whether product colors are qualified.

• Visual Inspection: In certain cases, particularly for small-batch production with lower color consistency requirements, visual inspection can be used to judge color differences, but it should be performed under standard lighting to reduce the impact of ambient light on detection results.

4.2 Color Difference Detection Methods

• Comparative Detection: Compare injection molded products with standard color swatches or reference samples to observe any significant color differences. This method is suitable for preliminary screening but should be combined with tool detection for further validation.

• Instrument Measurement: Use spectrophotometers or color meters to measure injection molded products and obtain their Lab* parameters, comparing them with standard values to assess ΔE (color difference value). Generally, the smaller the ΔE value, the closer the product color is to the standard value.

• Batch Detection: Compare the colors of products from the same or different batches to assess consistency within and between batches, ensuring color stability.

• Lighting Source Detection: Detect product colors under standard lighting sources such as D65 (standard daylight) or TL84 (commercial lighting) to avoid deviations in detection results due to environmental lighting changes.

4.3 Color Difference Evaluation Standards

ΔE Value Evaluation: The ΔE value is the core indicator for assessing color differences. Based on production requirements and customer standards, a ΔE value within a certain range can be considered qualified. Typically, the evaluation standards for ΔE values are as follows:

1. ΔE ≤ 1.0: Color differences are virtually undetectable to the naked eye, meeting high-precision requirements.

2. 1.0 < ΔE ≤ 2.0: Minor color differences are perceptible but acceptable.

3. ΔE > 2.0: Significant color differences do not meet requirements and need adjustment.

Visual Acceptance: In some special cases, the subjective visual acceptance of clients is also an important basis for evaluating color differences. Using visual inspection combined with standard lighting, the product can be judged against the client's color expectations.

Consistency Requirements: In addition to assessing color differences in individual products, attention should also be paid to the consistency of products within the same batch or across different batches, ensuring color stability in large-scale production.

4.4 Considerations for Color Difference Detection

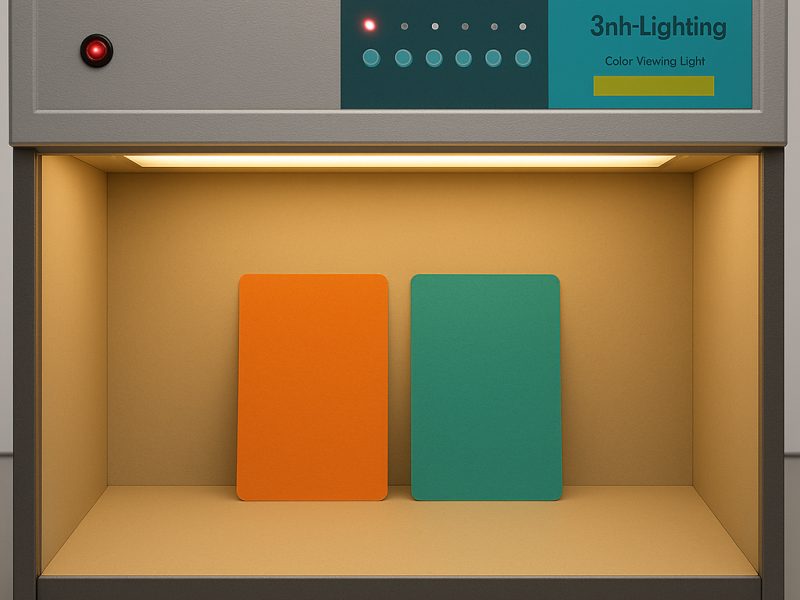

• Use of Standard Lighting: Detection should be conducted in a standard lightbox to avoid interference from natural or artificial lighting on detection results.

• Sample Surface Treatment: Sample surfaces must remain clean, free of oil, scratches, or other factors that could affect color detection accuracy.

• Instrument Calibration: Regularly calibrate spectrophotometers and color meters to ensure measurement accuracy and avoid inaccuracies due to equipment errors.

• Multi-angle Detection: For products with high gloss or special surfaces, detection should be performed from different angles to ensure color consistency.

• Control of Environmental Conditions: Ensure stable environmental temperature and humidity during detection to avoid external factors affecting material color performance.

4.5 Result Analysis and Feedback

• Data Recording and Analysis: Record and archive detection results, analyzing color difference data from different batches to summarize potential influencing factors, providing a basis for process optimization.

• Rapid Problem Response: If color differences are detected beyond acceptable limits, promptly report them to production, investigate, and resolve the issues to prevent the generation of more non-compliant products.

5. Conclusion

The issue of color differences in injection molded products is an important aspect of the production process that cannot be overlooked. It not only concerns the appearance quality of products but also affects a company's brand image and market competitiveness. By comprehensively optimizing raw materials, process parameters, equipment management, environmental controls, and color mixing processes, combined with scientific detection and evaluation methods, color difference issues can be effectively prevented and resolved, fundamentally enhancing product consistency and customer satisfaction.
