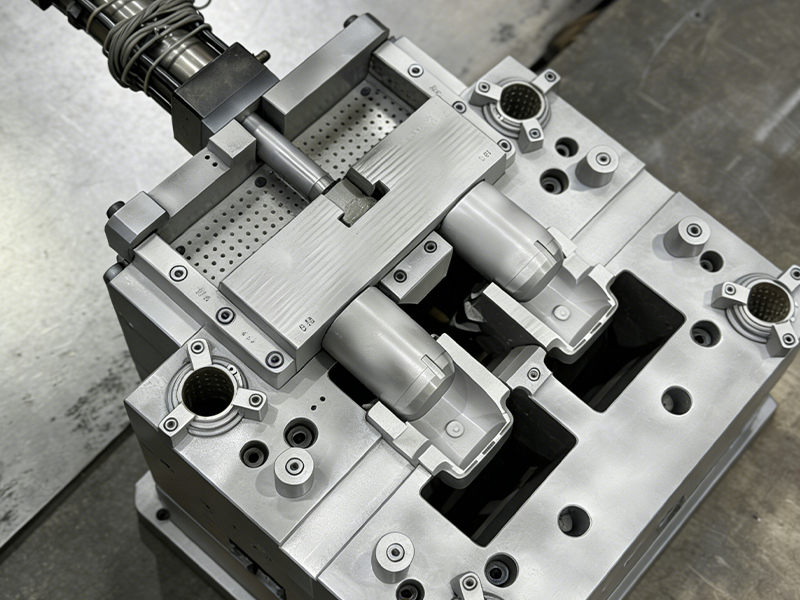

A die casting mold is a precision-engineered tool used to produce metal parts by injecting molten metal—such as aluminum, zinc, or magnesium—into a hardened steel cavity under high pressure. This process enables the production of complex, high-accuracy components with excellent surface finish and repeatability, making it ideal for mass production.
The die casting process begins with molten metal being injected into the die casting mold cavity at high speed and high pressure. The metal fills the cavity, taking the exact shape of the mold design. Once the material cools and solidifies, the mold opens and the finished part is ejected through the ejection system.
Importance of a Die Casting Mold
In die casting manufacturing, the die casting mold plays a decisive role in product quality and production performance. It directly affects dimensional accuracy, surface finish, and production stability, while also influencing mold life, cycle time, and overall manufacturing cost. A well-designed die casting mold ensures consistent results, higher efficiency, and reduced defect rates in mass production.
A die casting mold is composed of several integrated systems, each playing a critical role in controlling metal flow, heat transfer, and part ejection. It mainly consists of two halves—the fixed die (cover die) and the moving die (ejector die)—which work together to form and release the casting during each cycle. Understanding these components helps ensure better design decisions, improved product quality, and longer mold life.
The cavity and core form the geometry of the final part:
The cavity shapes the external surface of the product
The core forms internal features such as holes, ribs, and undercuts
These components are usually made from high-strength tool steel (e.g., H13, 1.2344, 8407, SKD61, or S136) to withstand high temperature and pressure. Their surface finish directly impacts the appearance and dimensional quality of the final casting.
The runner and gate system controls how molten metal flows into the mold cavity:
Runner – Channels that guide molten metal from the injection point to different sections of the cavity
Gate – The entry point where molten metal enters the part geometry
A well-designed runner and gate system ensures balanced filling, reduces turbulence, and minimizes defects such as porosity and cold shuts. Gate location and size are critical factors in die casting mold design.
The ejection system is responsible for removing the solidified part from the mold after each production cycle. It operates through a coordinated mechanism of ejector pins, ejector plates, and return systems, which apply controlled force to push the part out of the cavity without damaging its structure.
Proper ejection design is critical to prevent deformation, scratches, or sticking during demolding. The distribution, number, and positioning of ejector pins must be carefully engineered based on part geometry, wall thickness, and shrinkage behavior to ensure smooth and consistent part release.
The cooling system regulates mold temperature by circulating cooling media through internal channels, directly affecting cycle time and thermal stability during production. In die casting, maintaining a balanced temperature across the mold is essential to avoid uneven solidification.
An optimized cooling system helps reduce cycle time, control shrinkage, and minimize defects such as warpage and internal stress. In high-temperature processes like aluminum die casting, effective cooling design also plays a key role in extending mold life and maintaining long-term production stability.
The venting system allows air and gases to escape from the mold cavity during the filling process, ensuring that molten metal can flow smoothly and completely into all sections of the cavity. Without proper venting, trapped gases can lead to defects such as porosity, burn marks, or incomplete filling.
Vents are typically designed along the parting line or at the end of the flow path, where air is most likely to accumulate. Proper venting design improves casting quality, reduces defect rates, and enhances overall process stability in die casting production.
Die casting molds are widely used across different industries depending on the type of metal alloy. Aluminum, zinc, and magnesium die casting molds each serve distinct applications based on their material properties, production requirements, and performance advantages.
Casting Type |
Typical Applications |
Key Advantages |
Industry Use |
Aluminum Die Casting Mold |
Automotive housings, engine components, transmission cases, heat sinks, structural parts |
Lightweight, high strength, good thermal conductivity, corrosion resistance |
Automotive, new energy, electronics, industrial equipment, telecommunications, LED lighting, machinery manufacturing |
Zinc Die Casting Mold |
Small precision parts, connectors, locks, decorative components, electronic housings |
Excellent surface finish, high precision, thin-wall capability, longer mold life |
Consumer electronics, home appliances, hardware & fittings, security products, medical devices, office equipment, decorative industries |
Magnesium Die Casting Mold |
Lightweight structural parts, electronic enclosures, aerospace components, handheld device frames |
Ultra-lightweight, high strength-to-weight ratio, good electromagnetic shielding |
Automotive, aerospace, 3C electronics, portable devices, drones, telecommunications, defense industry |
Die casting molds can be classified based on casting material, process type, and mold structure. Each type of die casting mold is designed for specific materials, product requirements, and production conditions. Understanding these differences helps manufacturers select the most suitable solution for performance, cost, and efficiency.

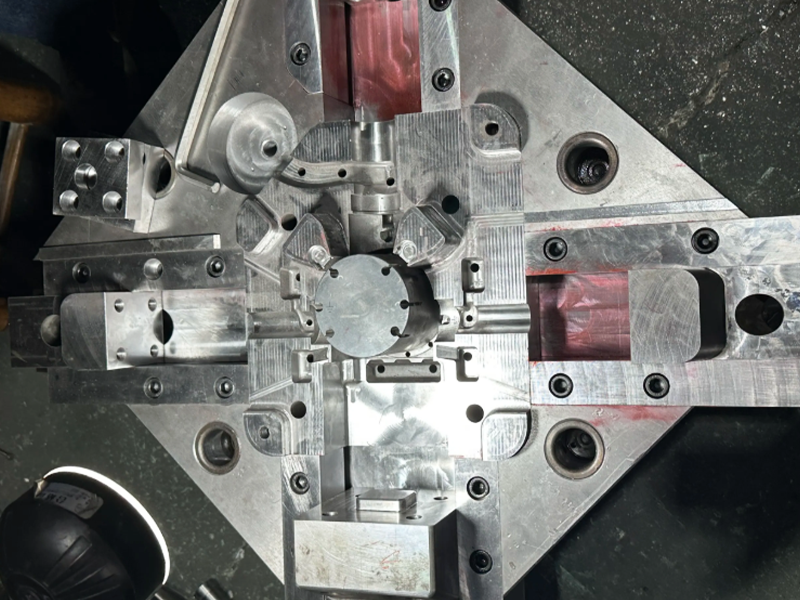

An aluminum die casting mold is a tooling system designed for producing metal parts using aluminum alloys under high-pressure die casting processes, especially for medium to large structural components requiring strength and lightweight performance.
Due to the high casting temperature of aluminum alloys, these molds must withstand significant thermal stress and repeated heating cycles. They require high-performance tool steel and optimized cooling systems to ensure thermal balance, dimensional stability, and extended mold life.
These characteristics make aluminum die casting molds particularly suitable for structural and functional components with high strength and thermal performance requirements.
Typical products:
Automotive parts: such as engine housing, gearbox housing, motor housing, transmission case, structural brackets, EV battery housing
Electronics components: such as heat sinks, LED lighting housings, power supply enclosures, inverter housings, cooling modules
Industrial parts: such as pump housings, valve bodies, compressor parts, machinery frames, motor covers

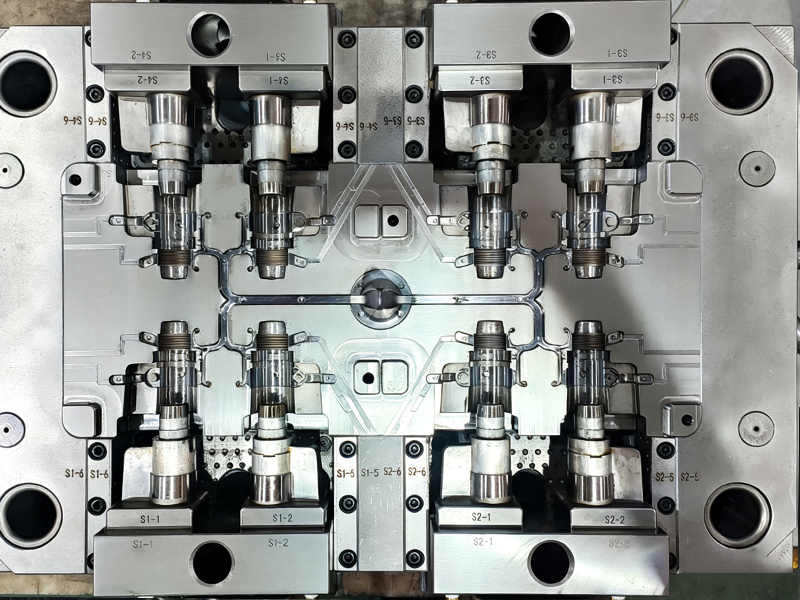

A zinc die casting mold is a precision tooling system designed for producing metal parts using zinc alloys under high-pressure die casting processes, especially for small, complex, and high-accuracy components.
Due to the lower casting temperature of zinc alloys, these molds experience less thermal stress, resulting in longer mold life and more stable production. They also offer excellent fluidity, making them ideal for thin-wall and complex geometries while maintaining high dimensional accuracy.
These characteristics make zinc die casting molds particularly suitable for precision components with strict surface and tolerance requirements.
Typical products:
Electronic components: such as connectors, shielding housings, switch components, sensor housings, terminal blocks
Hardware parts: such as locks, gears, hinges, handles, fasteners, brackets
Consumer products: such as decorative covers, logo plates, cosmetic packaging parts, small housings, accessories

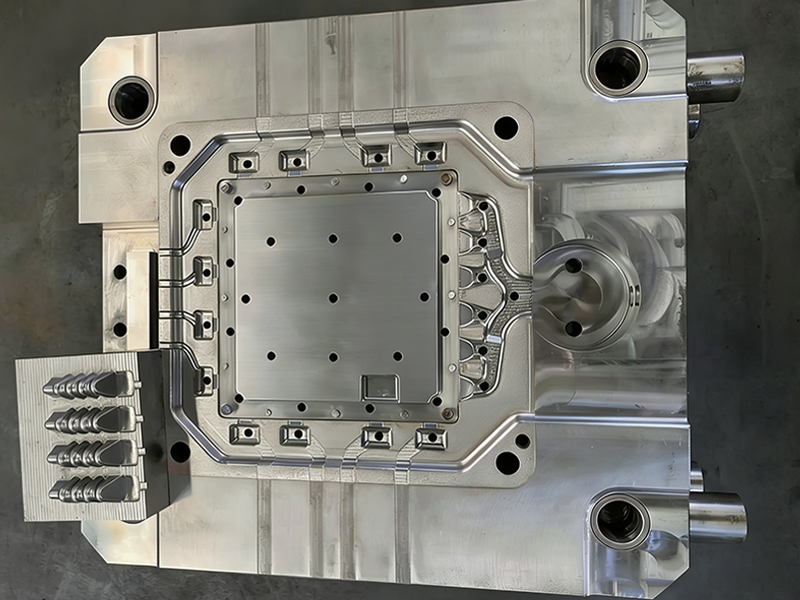

A magnesium die casting mold is a specialized tooling system used for producing metal parts with magnesium alloys under high-pressure die casting processes, mainly for lightweight and high-performance applications.
Magnesium alloys offer excellent fluidity and a very low density, making them ideal for weight-sensitive applications. However, due to their oxidation characteristics, these molds require precise temperature control, proper venting design, and stable processing conditions to ensure safety and product quality.
These characteristics make magnesium die casting molds particularly suitable for lightweight structural components and advanced engineering applications.
Typical products:
Electronics housings: such as laptop frames, tablet housings, mobile phone frames, camera bodies, communication device shells
Automotive parts: such as steering components, seat frames, instrument panel structures, support brackets, structural reinforcements
Aerospace components: such as drone frames, aircraft structural parts, lightweight enclosures, precision support structures

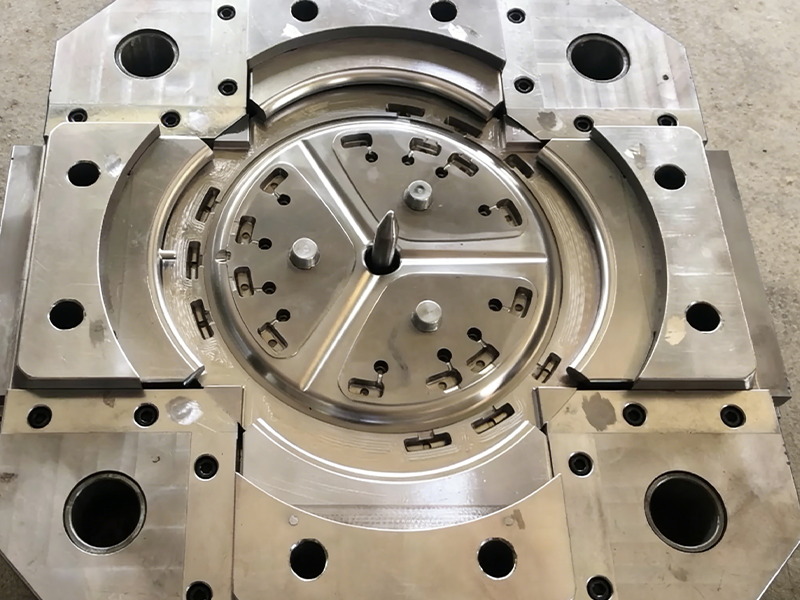

A hot chamber die casting mold is designed for use with low melting point metals such as zinc and magnesium, where the injection system is immersed directly in molten metal for continuous casting.
This process allows faster cycle times and higher production efficiency, making it suitable for high-volume manufacturing. The lower operating temperature also reduces thermal stress on the mold, contributing to longer mold life.
These characteristics make hot chamber die casting molds particularly suitable for small precision components and mass production applications.
Typical products:
Electronic components: such as connectors, pins, terminals, micro housings, electronic fittings
Hardware parts: such as locks, handles, hinges, decorative fittings, accessories
Consumer products: such as small gears, clips, fasteners, brackets, thin-wall parts

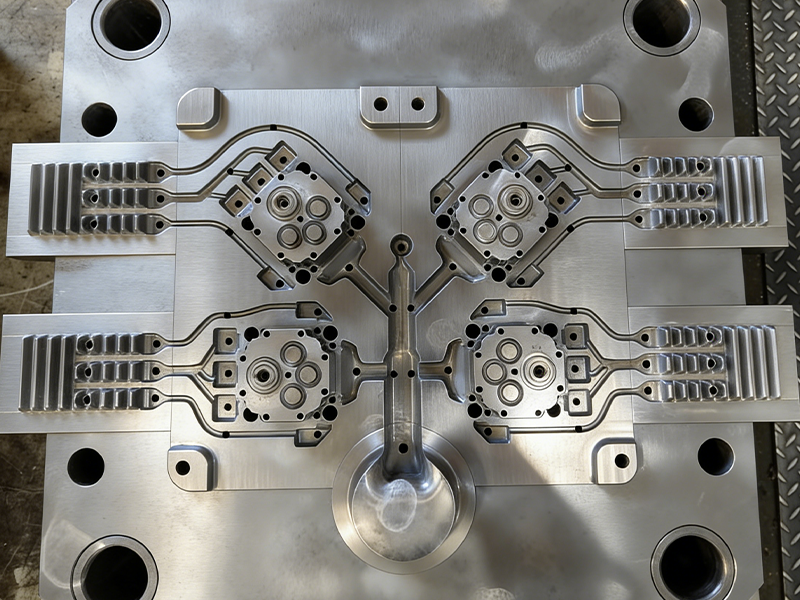

A cold chamber die casting mold is used for higher melting point metals such as aluminum alloys, where molten metal is injected into the mold from a separate chamber.
This process is better suited for large and structurally demanding parts, although it typically involves slightly longer cycle times compared to hot chamber systems. It provides better control for high-temperature alloys and complex geometries.
These characteristics make cold chamber die casting molds particularly suitable for large, high-strength components and structural applications.
Typical products:
Automotive parts: such as engine blocks, transmission housings, gearbox cases, structural frames, mounting brackets
Industrial components: such as pump bodies, valve housings, compressor shells, machinery parts, motor housings
Thermal components: such as heat sinks, cooling plates, electronic enclosures, radiator housings
A single cavity die casting mold is designed to produce one part per cycle and is commonly used for large components or low-volume production.
This type of mold offers better control over part quality and is easier to maintain, making it suitable for customized or complex products where precision is critical.
These characteristics make single cavity molds particularly suitable for large parts and low-volume manufacturing.
Typical products:
Large components: such as automotive housings, industrial casings, structural frames, equipment enclosures, large covers
Custom parts: such as prototype components, trial parts, low-volume customized products
A multi-cavity die casting mold is designed to produce multiple identical parts in a single cycle, significantly improving production efficiency and reducing cost per unit.
This type of mold is widely used in high-volume production where consistency and productivity are critical.
These characteristics make multi-cavity molds particularly suitable for mass production of small to medium-sized components.
Typical products:
Electronic components: such as connectors, small housings, electronic fittings, precision parts
Hardware parts: such as brackets, clips, fasteners, small structural components
Consumer products: such as appliance parts, accessories, decorative items
A family die casting mold is designed to produce different but related parts in a single cycle, typically used for products that require assembly.
This type of mold helps reduce tooling costs and improve production efficiency, but requires careful design to ensure balanced filling and consistent quality across different parts.
These characteristics make family molds particularly suitable for multi-component products and assembly-based applications.
Typical products:
Assembly components: such as matching housings, covers, bases, brackets, connectors
Product sets: such as modular components, multi-part kits, related structural parts

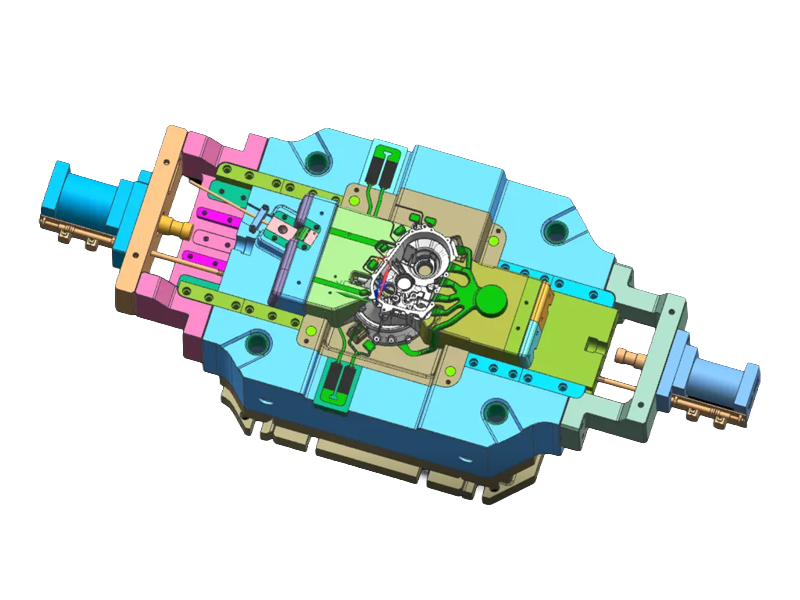

Designing a die casting mold is not just about forming a part — it is about controlling how molten metal flows, cools, and solidifies inside the mold. These factors directly determine product quality, production efficiency, and mold life.
In real production, more than 70% of casting defects originate from mold design, not from the die casting machine itself. A well-designed mold can significantly reduce defects, improve production stability, and shorten the transition from T1 to mass production.
A typical die casting mold design process includes three key stages: DFM, Moldflow analysis, and detailed mold design.
DFM is the foundation of die casting mold design. Before any tooling begins, the part must be evaluated to ensure it is suitable for die casting and to identify potential risks early.
From a design perspective, the goal of DFM is to make the part easier to fill, cool, and eject, while avoiding unnecessary complexity. This includes optimizing wall thickness, draft angles, and structural features to improve manufacturability.
Typical guidelines include:
Wall thickness: maintain around 2–4 mm for aluminum die casting parts to ensure proper filling and solidification
Draft angle: apply 1°–3° to facilitate smooth demolding and reduce part sticking
Geometry design: keep wall thickness as uniform as possible to minimize shrinkage and deformation
Corner design: avoid sharp edges and use fillets to reduce stress concentration and improve metal flow
For complex die casting parts, mold design cannot rely solely on experience — it must be validated through simulation. This is where Moldflow 3D analysis becomes essential.

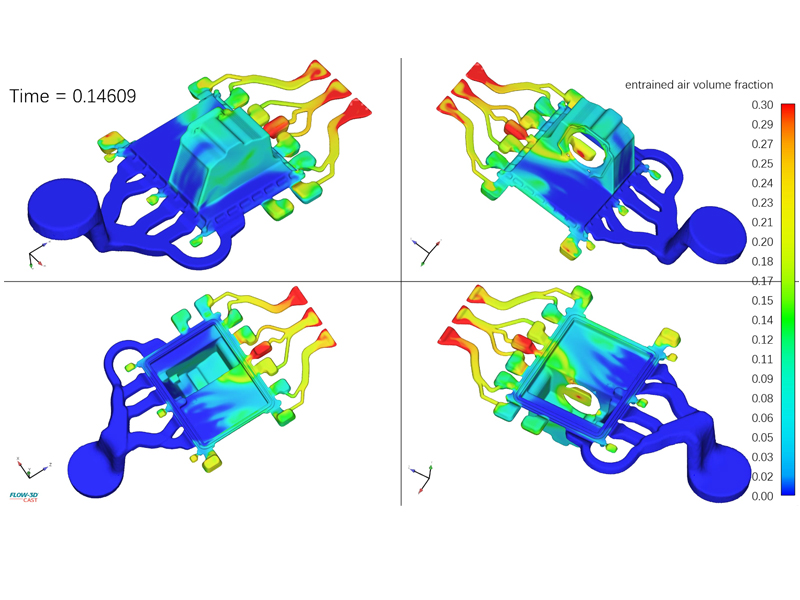

Moldflow simulation is used to predict how molten metal flows, fills, and solidifies inside the mold before manufacturing. It allows engineers to identify potential issues such as air traps, uneven filling, or temperature imbalance at an early stage.
From a design perspective, Moldflow is a key tool for optimizing gate location, runner layout, venting positions, and cooling system design. It helps ensure balanced filling, stable thermal conditions, and controlled solidification.
This is especially important for parts with thin walls, deep cavities, or complex geometries, where defects are more likely to occur.
Typical Moldflow analysis includes:
Filling simulation → evaluate flow balance and avoid short shots
Air trap prediction → identify potential porosity areas
Weld line analysis → assess structural strength and surface quality
Temperature distribution → ensure thermal balance
Solidification analysis → predict shrinkage and deformation

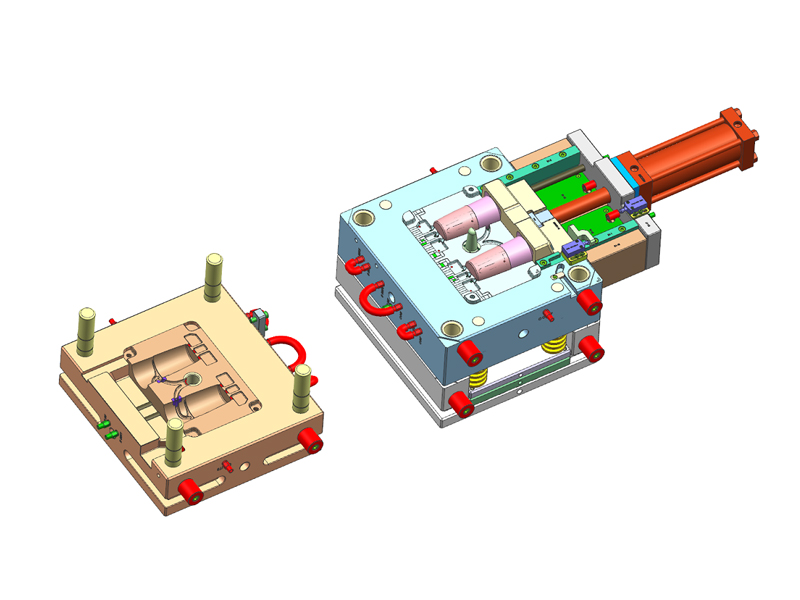

Once DFM and Moldflow validation are completed, the next step is detailed mold design. This stage focuses on defining the mold structure and ensuring that all systems work together to achieve stable and efficient production.

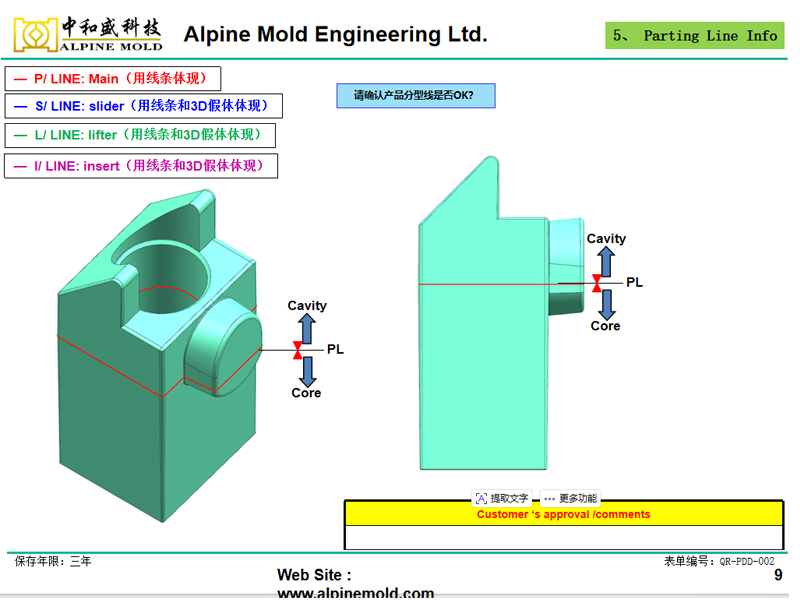

3.1 Parting Line Design
The parting line determines how the mold opens and separates, and it has a direct impact on product appearance and mold complexity.
A good design follows the natural contour of the part, avoids visible surfaces, and ensures accurate alignment between the fixed and moving halves. It should also consider metal flow direction and venting positions.
Poor parting line design can lead to flash, mismatch, and increased post-processing cost.
3.2 Gate and Runner Design
The gate and runner system controls how molten metal enters and fills the cavity, directly affecting flow behavior and defect formation.
From a design perspective, the goal is to achieve smooth and balanced filling while minimizing turbulence and air entrapment. The gate location should guide metal flow toward thicker areas first to reduce shrinkage and cold shut defects.
Typical design considerations:
Gate thickness: 0.5–2 mm (depending on part size)
Filling time: usually 0.02–0.2 seconds
Position: near thicker sections to avoid shrinkage
3.3 Cooling System Design
Cooling design is critical for maintaining thermal balance inside the mold. Uneven cooling can lead to internal stress, warpage, dimensional instability, and even premature mold failure, especially in high-temperature applications such as aluminum die casting.
From a design perspective, the goal is to achieve uniform heat dissipation across both the cavity and core. This requires careful layout of cooling channels to ensure efficient heat removal while maintaining mold strength and structural integrity.
Typical design considerations include:
Cooling channel distance: typically 8–15 mm from the cavity surface
Temperature variation: controlled within ±5–10°C across the mold
Channel layout: evenly distributed to avoid hot spots
Flow efficiency: ensure sufficient coolant flow rate for stable heat exchange
3.4 Venting System Design
Venting design ensures that air and gases can escape during the filling process. Without proper venting, trapped gas can lead to porosity, burn marks, or incomplete filling.
From a design perspective, vents should be placed at the end of the flow path or along the parting line, where gas is most likely to accumulate.
Typical vent design:
Vent depth: 0.01–0.05 mm
Vent width: typically 3–10 mm
Location: end of flow path or parting line
Often combined with overflow wells
3.5 Shrinkage and Deformation Control
Shrinkage occurs naturally during metal solidification and must be compensated during mold design to ensure dimensional accuracy.
This involves predicting material behavior and adjusting mold dimensions accordingly, while also optimizing cooling and wall thickness distribution to prevent uneven shrinkage.
Typical shrinkage allowance is around 0.6%–1.0% for aluminum alloys, depending on part geometry and material.
In die casting projects, the mold plays a decisive role in production stability, part quality, and overall cost. A well-manufactured mold ensures consistent output, while poor execution often leads to repeated trials and production issues.
The manufacturing of a die casting mold is not simply a machining process — it is a controlled workflow where each stage directly affects the final performance of the mold.
A typical process is outlined below:
Before any machining begins, the mold design is finalized based on DFM and Moldflow analysis. Key elements such as the parting line, gating system, cooling layout, and venting structure are defined at this stage.
The 3D mold design is submitted for customer review, and machining starts only after confirmation.
This step helps prevent design-related issues and avoids costly modifications later.
After design approval, the next step is material preparation. A die casting mold manufacturer selects appropriate mold steel based on the casting material and production requirements.
Common materials include H13, 1.2344, 8407, SKD61, and S136, which offer high resistance to heat, wear, and thermal fatigue. Steel is sourced from qualified suppliers and prepared before machining.
Proper material selection is essential for ensuring mold life and long-term production stability.

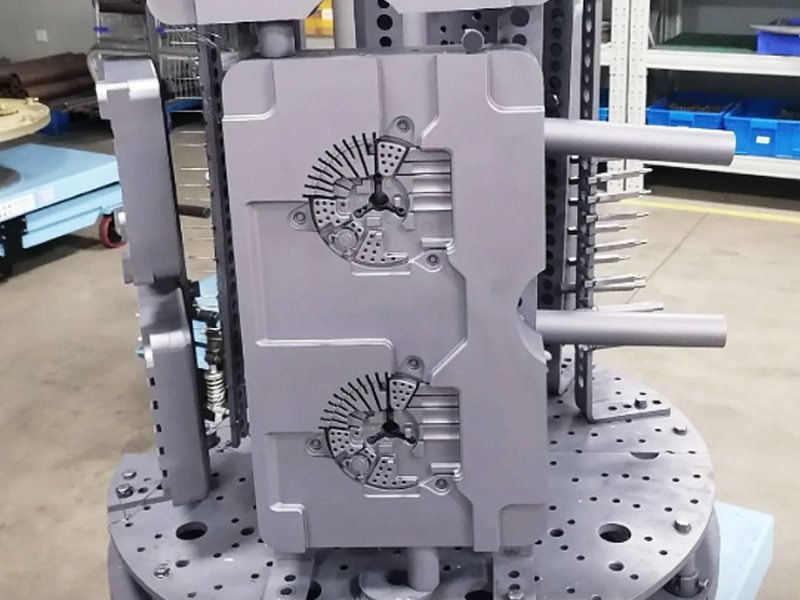

The mold components are then processed using high-precision CNC machining to form the cavity and core structures.
For complex geometries, such as deep ribs, sharp corners, or detailed features, EDM is applied to achieve the required precision and surface finish.
This stage determines the dimensional accuracy and structural integrity of the mold.
After machining, the mold surfaces are finished according to product requirements, including polishing or texturing.
Surface quality directly influences the appearance and performance of the final casting, especially for cosmetic or functional surfaces.

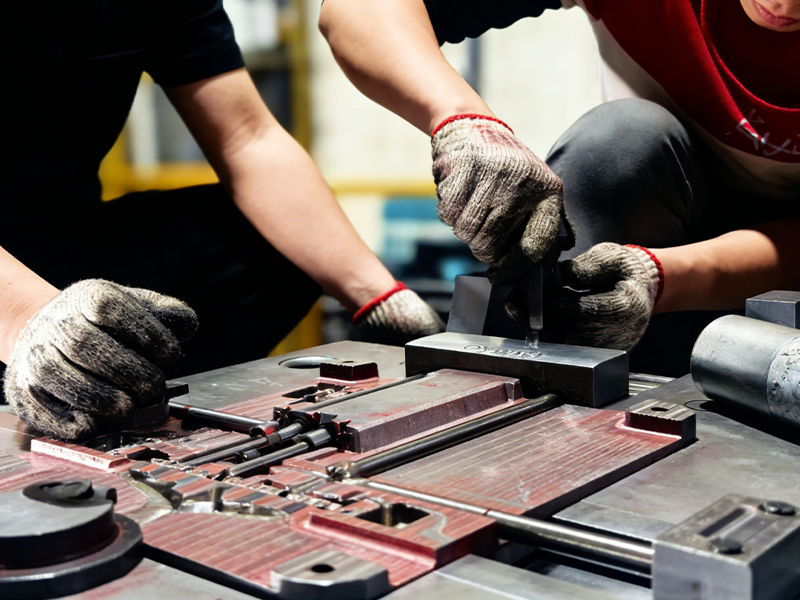

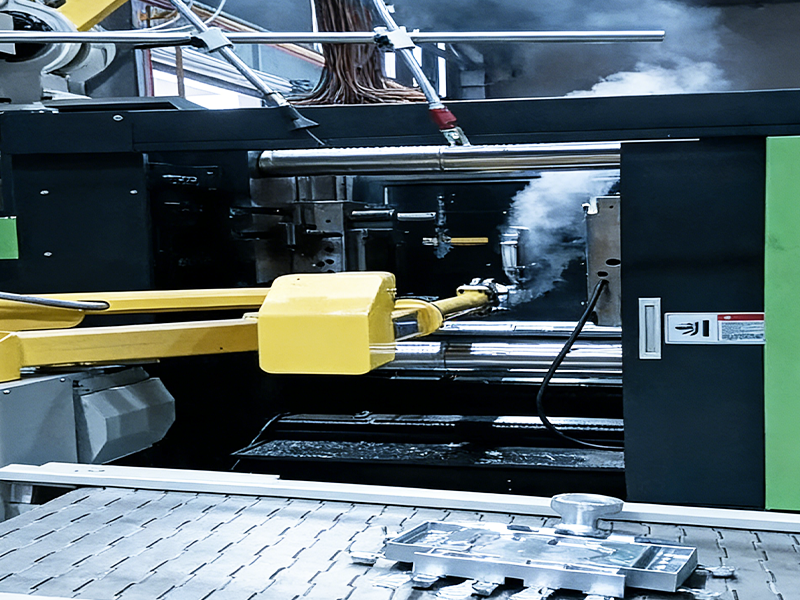

All components are assembled, and the mold undergoes trial production (T1 testing). During this stage, filling behavior, dimensional accuracy, and potential defects are evaluated. Adjustments are made if necessary to improve performance.
A stable T1 result is critical for reducing iterations and accelerating mass production.
Before shipment, the die casting mold is fully inspected to verify its dimensions, assembly condition, and trial performance. Sample parts are provided to the customer for review and confirmation first.
After sample approval, the mold is cleaned, treated with anti-rust protection, packed in a wooden export case, and then delivered.
In die casting production, defects are often not caused by the machine itself, but by mold design, thermal imbalance, or process-related factors. Understanding these common problems — along with their root causes and solutions — helps improve product quality, reduce trial iterations, and ensure stable mass production.
The following table outlines typical defects encountered in die casting molds, along with their main causes and practical solutions:
Problem / Defect |
Main Causes |
Solutions |
Porosity |
- Air entrapment during filling - Poor venting design - Turbulent metal flow - Improper gate location - Uneven solidification |
- Optimize gate and runner design for smooth flow - Improve venting system and add overflow wells - Apply Moldflow analysis to predict air traps - Adjust injection speed and pressure - Improve cooling system for uniform solidification |
Flash |
- Poor mold alignment - Insufficient clamping force - Worn parting surfaces - Excessive injection pressure - Improper parting line design |
- Improve parting line sealing accuracy - Ensure proper clamping force - Adjust injection pressure - Repair worn mold surfaces - Enhance mold rigidity and alignment |
Cold Shut |
- Low metal temperature - Slow filling speed - Long flow path - Improper gate position - Premature solidification |
- Increase metal temperature and injection speed - Optimize gate location - Improve runner design to reduce resistance - Balance mold temperature - Adjust process parameters for continuous flow |
Warpage |
- Uneven cooling - Internal stress - Non-uniform wall thickness - Improper ejection force - Thermal imbalance |
- Optimize cooling system layout - Design uniform wall thickness - Adjust ejection system - Control cooling rate - Use Moldflow to predict deformation |
Surface Defects |
- Poor mold surface finish - Gas entrapment - High injection speed - Improper venting - Unstable flow pattern |
- Improve mold polishing or texturing - Optimize venting design - Adjust injection parameters - Improve gate location - Reduce flow turbulence |
Short Shot |
- Insufficient injection pressure - Low metal temperature - Poor gate design - Inadequate venting - Long flow path |
- Increase injection pressure and speed - Raise metal temperature - Optimize gate and runner system - Improve venting layout - Reduce flow resistance |
Choosing the right die casting mold manufacturer is not just about price — it directly impacts product quality, project timeline, and long-term production stability. A reliable supplier can reduce development risks, while an inexperienced one may lead to repeated modifications, delays, and increased costs.
When evaluating a die casting mold factory, the following factors should be considered:
A qualified manufacturer should have strong engineering support, including DFM analysis, Moldflow simulation, and mold design experience.
The ability to identify potential issues before tooling begins is critical to reducing trial iterations and ensuring a smooth production launch.
Modern equipment plays a key role in mold accuracy and consistency. Look for manufacturers equipped with high-precision CNC machines, EDM systems, and inspection equipment such as CMM.
Precision machining directly affects mold performance, part quality, and mold lifespan.
Experience in similar industries or products (e.g., automotive, electronics, or structural components) is a strong indicator of capability.
An experienced supplier can better understand design challenges and provide practical solutions based on previous projects.
A reliable die casting mold factory should have a complete quality control process, including material inspection, in-process inspection, and final validation.
Consistent quality control helps ensure that the mold performs reliably from the first trial.
The ability to conduct mold trials (T1, T2) and provide clear feedback is essential.
A supplier that can quickly identify and solve issues during trial stages will significantly shorten development time.
Clear and timely communication is often underestimated but highly important in mold projects.
A responsive team helps ensure smooth coordination, faster decision-making, and fewer misunderstandings.
A well-organized manufacturer should provide clear timelines and regular updates throughout the project.
Good project management reduces delays and ensures on-time delivery.
A die casting mold is more than just a tool — it is the foundation of product quality, production efficiency, and cost control in die casting manufacturing. From early-stage DFM and Moldflow analysis to detailed mold design, manufacturing, and validation, every step directly impacts the final casting result. Understanding how a die casting mold works and how it is optimized helps reduce defects, improve consistency, and ensure reliable mass production.
As an experienced die casting mold manufacturer with over 25 years of industry experience, Alpine Mold specializes in the development of aluminum die casting molds and zinc die casting molds for a wide range of industries. With advanced machining equipment, precision manufacturing processes, and a strict quality control system,Alpine Mold can deliver die casting molds with high accuracy, long service life, and stable production performance. By combining engineering expertise with practical project experience, Alpine Mold helps customers reduce development risks, shorten lead times, and achieve efficient, high-quality production. If you have a new project that requires quotation or technical evaluation, feel free to contact Alpine Mold for support.
Die casting molds offer high precision, excellent surface finish, and strong production stability, making them ideal for mass production.
They also support complex geometries and thin-wall parts, while providing long mold life and lower cost per part in high-volume manufacturing.
Die casting molds require high initial tooling cost and longer development time, making them less suitable for low-volume production.
They also have limited flexibility for design changes after tooling, and are mainly used for specific alloys such as aluminum, zinc, and magnesium.
The cost of a die casting mold depends on several factors, including part size, complexity, material, and mold structure.
In general:
Simple molds: around $3,000 – $6,000
Medium complexity molds: around $6,000 – $30,000
Complex or multi-cavity molds: can reach $20,000+
Aluminum die casting molds are usually more expensive due to higher thermal requirements, while zinc die casting molds tend to be more cost-effective.
What Is the Lead Time for Die Cast Tooling?
The lead time for a die casting mold typically ranges from 4 to 8 weeks, depending on part complexity, mold size, and technical requirements.
Simple molds can be completed faster, while complex or multi-cavity molds may require additional time for design, machining, and testing.
