Weld lines are a common injection molding defect that can affect both part appearance and strength. In industries such as automotive, electronics, medical devices, and consumer products, even a small weld line may influence product quality and reliability. This article explains what causes weld lines, how they affect molded parts, and how you can minimize them.
Table of Contents
| 1. What Are Weld Lines in Injection Molding? |
| 2. What Causes Weld Lines in Injection Molding? |
| 3. How Do Weld Lines Affect Injection-Molded Parts? |
| 4. How to Minimize Weld Lines in Injection Molding |
| 5. Conclusion |
| 6. FAQ |
Weld lines in injection molding are visible lines or marks that appear when two or more plastic melt flow fronts meet inside the mold cavity but do not fully bond together. During the injection molding process, molten plastic may be separated by holes, ribs, bosses, inserts, or complex part structures. When these separated flows come back together, a weld line can form at the meeting point.
On the surface of an injection-molded part, weld lines may look like a fine line, slight color difference, gloss variation, or a weak trace on the product surface. In some cases, they are only cosmetic defects. However, in functional or structural parts, weld lines may also become weak areas that affect part strength and long-term performance.
Weld lines in injection molding are usually caused when the molten plastic flow is divided and then meets again inside the mold cavity. This is not caused by one single factor. In many cases, weld lines are related to part geometry, gate location, material flow, mold temperature, venting, and injection molding parameters.
Product structure is one of the most common reasons for weld lines. When the plastic melt flows around holes, ribs, bosses, slots, inserts, or other complex features, the flow front is separated into different directions. After passing around these areas, the melt flows meet again and may form a weld line.
This is why weld lines often appear around holes, near screw bosses, behind ribs, or at the end of long flow paths. The more complex the part structure is, the higher the possibility of weld lines.
Gate location has a direct impact on material flow direction. If the gate is not placed properly, the melt may travel a long distance, lose temperature, or meet at a visible surface or high-stress area. This can make weld lines more obvious and more difficult to control.
A proper gate design should help the plastic fill the mold cavity smoothly and evenly. In mold design, gate location should be considered together with part appearance, wall thickness, product function, and flow balance.
When the melt temperature or mold temperature is too low, the plastic flow front cools too quickly before it meets another flow front. As a result, the two flow fronts may not fuse well, causing a visible weld line or a weak bonding area.
For materials with poor flowability or parts with long flow paths, temperature control is especially important. Proper temperature settings can improve melt bonding and reduce the visibility of weld lines.
Poor venting can also make weld lines worse. When two melt fronts meet, air in the cavity needs to escape quickly. If the venting is not enough, trapped air will remain between the flow fronts and prevent proper bonding.
This may lead to visible weld lines, burn marks, short shots, or surface defects. Good venting design near the weld line area helps improve material fusion and surface quality.
Material properties and molding parameters also affect weld line formation. Materials with low flowability, high glass fiber content, or poor drying conditions may produce more obvious weld lines. At the same time, low injection speed, insufficient holding pressure, or unstable molding conditions can reduce the bonding strength between flow fronts.
Therefore, weld line control should not rely only on machine adjustment. It requires a combined review of material selection, mold design, and injection molding process.
Weld lines may look like a small surface defect, but their impact can be more serious than expected. Depending on the part material, product structure, and application, weld lines can affect both the appearance and performance of injection-molded parts.
For products with high appearance requirements, weld lines can reduce the visual quality of the part. They may appear as thin lines, color differences, gloss changes, or surface marks. This is especially important for electronic housings, consumer product shells, automotive interior parts, transparent parts, and other visible plastic components.
Even if the part size and structure are correct, obvious weld lines on the surface may still cause customer rejection. For products that require painting, plating, polishing, or texture finishing, weld lines can also become more noticeable after secondary processing.
Weld lines can also affect the strength of injection-molded parts. Since the material flow fronts do not fully bond together at the meeting point, this area may become weaker than other areas of the part. Under impact, pressure, bending, or long-term use, cracks may start from the weld line area.
This is especially important for structural parts, automotive components, clips, brackets, sealing parts, and products with assembly force requirements. If the weld line appears in a high-stress area, it may reduce impact resistance, sealing performance, and long-term durability.
In mass production, weld lines are not only about one sample part. If the weld line position, visibility, or strength changes from batch to batch, it can create quality risks and increase inspection pressure.
Weld lines cannot always be completely removed, but they can usually be reduced or moved to less critical areas. In real injection molding projects, the most effective solution is to control weld lines before mold manufacturing, instead of waiting until mold trial to fix the problem.

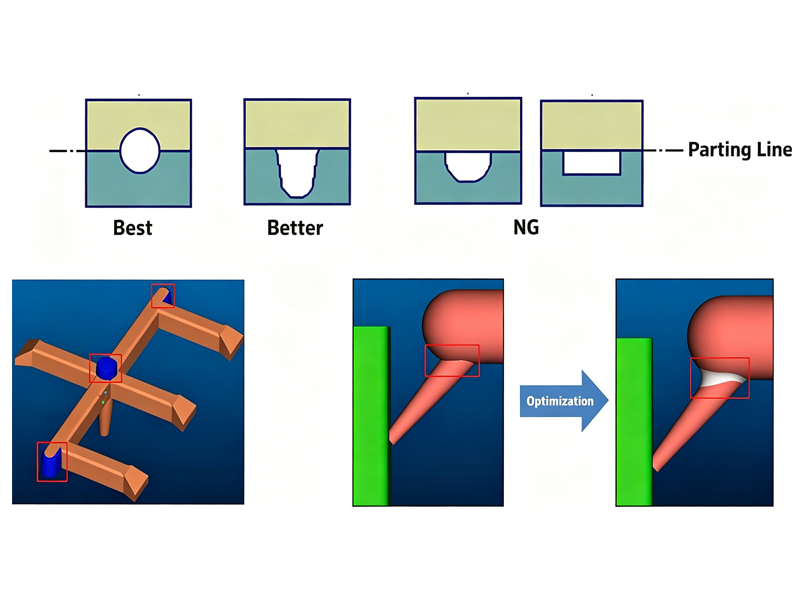

Gate location is usually the first thing to check when weld lines appear. If the gate position is not suitable, the melt flow may split and meet again on a visible surface or high-stress area.
To minimize weld lines, the gate should be placed where the melt can fill the cavity more smoothly and evenly. For appearance parts, the weld line should be moved away from visible surfaces. For structural parts, the weld line should be kept away from load-bearing areas, clips, screw bosses, snap fits, and sealing positions.
Before cutting steel, Moldflow analysis can be used to predict where the weld line will appear. If the predicted weld line position is not acceptable, the gate location, gate type, or runner layout should be adjusted before mold manufacturing.
Product structure has a big influence on weld lines. Holes, ribs, bosses, slots, and inserts can split the melt flow and create flow meeting points.
To reduce this risk, the part design should avoid sudden wall thickness changes. Sharp corners should be changed to proper radii, and thick-to-thin transitions should be made smoother. Ribs and bosses should not be too thick, because they may slow down flow and cause local cooling differences.
For functional parts, it is better to review the product structure during the DFM stage. If a weld line is likely to appear in a high-stress area, the structure should be adjusted early, such as changing wall thickness, modifying rib layout, or moving holes and bosses where possible.
Poor venting is a common reason why weld lines become more visible. When two melt fronts meet, air trapped between them must escape quickly. If the air cannot get out, the melt fronts cannot bond well.
In mold design, vents should be added near the weld line area, especially at the end of flow paths, around ribs, near bosses, and in thin-wall areas. Proper venting can improve melt fusion, reduce burn marks, and make the weld line less obvious.
For deep ribs or closed areas, normal parting-line venting may not be enough. In this case, additional venting inserts or ejector pin venting may be needed.
If the melt front cools too quickly before meeting another flow front, the weld line will become more obvious and weaker. Increasing the melt temperature or mold temperature properly can improve material bonding at the meeting point.
However, temperature should not be increased blindly. Too high a temperature may cause material degradation, burning, flash, longer cycle time, or dimensional instability. The best approach is to adjust temperature within the recommended processing range of the material and verify the result through mold trial.
For materials with poor flowability, long flow paths, or glass fiber reinforcement, mold temperature control is especially important.
Injection speed affects how hot and active the melt front remains when it reaches the meeting point. If the injection speed is too slow, the melt front may cool too early, causing poor bonding. Increasing injection speed properly helps the melt fronts fuse better.
Here are common reference ranges for different materials (for guidance during mold trial):
Material | Injection Speed | Holding Pressure | Mold Temperature |
PP | Medium–High | 40–60% of max | 20–60°C |
PE | Medium | 40–60% of max | 20–50°C |
ABS | Medium | 50–70% of max | 50–80°C |
PC | Medium–Low | 60–80% of max | 80–120°C |
PC/ABS | Medium | 50–70% of max | 60–90°C |
PA6 | Medium–High | 50–70% of max | 60–90°C |
PA66 | Medium–High | 50–70% of max | 70–100°C |
PA+GF | Medium | 60–80% of max | 80–120°C |
POM | Medium–High | 50–70% of max | 60–100°C |
PMMA | Medium–Low | 50–70% of max | 60–90°C |
PS | High | 40–60% of max | 30–60°C |
Holding pressure is also important. Proper holding pressure improves material packing around the weld line area and reduces weak bonding. Excessive pressure, however, may cause flash, stress, or deformation. Parameters should always be adjusted based on the actual part, wall thickness, and flow path.
During mold trial, weld line improvement should not only be judged by appearance. For functional parts, you should also check strength, impact resistance, or assembly performance to ensure long-term stability.
Material selection can affect weld line appearance and strength. Materials with better flowability usually fill the cavity more smoothly and help reduce weld line visibility. For glass fiber reinforced materials, weld lines may be more obvious because the fibers may not align well at the meeting point.
If the part has high strength or appearance requirements, material selection should be discussed before mold design. The material grade, glass fiber content, drying condition, and processing window should all be considered.
After mold manufacturing, weld line control should be verified during mold trial. The trial should check not only whether the weld line is visible, but also whether it appears in a critical area.
For high-requirement parts, the following points should be checked:
Is the weld line on a visible surface?
Is it located in a stress-bearing area?
Does it affect assembly or sealing?
Is the weld line stable during repeated molding?
Does the part pass strength or function testing?
A good weld line solution should be stable in mass production, not only acceptable in one sample trial.
Weld lines are a common issue in injection molding that can affect both appearance and part strength. By optimizing part design, gate location, venting, molding parameters, and material selection, you can minimize weld lines and improve product quality and consistency.
If you want to reduce weld line defects and achieve stable, high-quality injection-molded parts, contact Alpine Mold. Our team supports you from mold design to mass production, ensuring your parts meet both functional and visual requirements.
In injection molding, both knit lines and weld lines are formed when two or more plastic melt flow fronts meet inside the mold cavity. The main difference is the angle and strength of the meeting flow fronts.
A weld line usually forms when two melt fronts meet from opposite directions, often creating a more visible line and a weaker bonding area. A knit line usually forms when melt flows meet at a smaller angle and continue flowing in a similar direction. In real production, these two terms are often used interchangeably, but both indicate that the melt fronts did not fully bond together.
A weld line and a meld line are both related to the meeting of plastic flow fronts, but their formation is slightly different.
A weld line usually occurs when two flow fronts meet head-on and stop at the meeting point, which may create a visible line or weak area. A meld line forms when two flow fronts meet and continue flowing together in the same direction. Compared with weld lines, meld lines are usually less visible and may have better bonding strength, but they can still affect appearance or performance depending on the material, part design, and molding conditions.

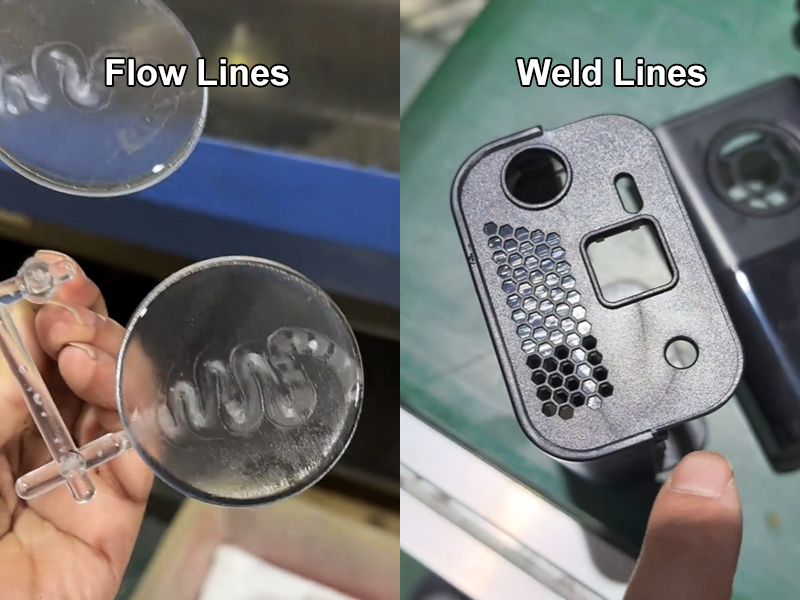

Flow lines and weld lines are different injection molding defects.
Flow lines usually appear as wavy lines, streaks, or circular patterns on the surface of a molded part. They are mainly caused by uneven melt flow, low temperature, slow injection speed, or poor material flow. Flow lines are mostly surface appearance defects.
Weld lines form where two or more melt flow fronts meet but do not fully bond together. They often appear around holes, ribs, bosses, inserts, or complex structures. Unlike flow lines, weld lines may affect both appearance and mechanical strength, especially when they appear in high-stress or functional areas.
