How To Make A High-Precision Aluminum Die Casting Mold

Table of Contents

I. Introduction

II. Understand the Product Requirements

III. Mold Design Considerations

IV. Selection of Mold Materials and Heat Treatment

V. High-Precision Machining Process

VI. Quality Control & Inspection

VII. Trial Casting and Optimization

VIII. Maintenance and Longevity Planning

IX. Conclusion

I. Introduction

Aluminum die casting molds are essential tools for producing complex and durable parts widely used in automotive, electronics, light, telecom, home appliances, and industrial applications. The quality of these molds directly influences not only the product’s final performance but also the overall production efficiency and cost-effectiveness.

At Alpine Mold, we recognize that for our customers, achieving high precision is absolutely critical. Precise molds ensure parts fit perfectly, greatly reduce the need for costly post-machining, and consistently deliver reliable products that meet strict quality standards. Even minor dimensional deviations in the mold can cause assembly issues or functional defects, which directly impact product performance and customer satisfaction.

That’s why Alpine Mold is dedicated to mastering every detail in creating high precision aluminum die casting molds. In this blog, we will share our proven approach—covering optimized mold design, stringent material selection, advanced precision machining, and rigorous quality control—to ensure every mold we produce meets the highest standards of accuracy and durability.

II. Understand the Product Requirements

At Alpine Mold, we believe that a deep understanding of your product requirements is the foundation of producing a high precision aluminum die casting mold. We start by thoroughly reviewing your 3D models and 2D drawings, paying close attention to dimensional tolerances and critical details. We carefully evaluate the complexity of the part, surface finish demands, and the environment where the part will be used.

By working closely with you to confirm key dimensions and functional areas, we ensure the mold design fully meets your expectations and avoids costly revisions down the line. Below is a summary of the main factors we focus on during this important phase:

Key Aspect	Description
3D Models & 2D Tolerances	Deep analysis of the customer’s 3D models and 2D drawings, focusing on dimensional tolerances and geometric details to ensure precise understanding of part requirements.
Part Complexity	Evaluation of part structure complexity, including thin walls, undercuts, and intricate shapes that affect mold design and manufacturing processes.
Surface Finish Requirements	Understanding the surface finish demands to decide if special surface treatments or polishing are needed for aesthetics or functional purposes.
Operating Environment	Analysis of the part’s use conditions such as temperature, mechanical stress, and chemical exposure to guide mold material selection and design optimization.
Critical Dimensions & Features	Close communication with customers to confirm critical dimensions and functional areas, ensuring mold design meets accuracy and functional expectations and avoids errors or rework later.

III. Mold Design Considerations

At Alpine Mold, mold design is the foundation of our success in delivering high-precision aluminum die casting molds. We understand that superior mold performance begins with smart, detail-oriented design. That’s why we place a strong emphasis on incorporating engineering best practices and advanced analysis tools from the outset.

We strictly follow internationally recognized mold standards, including DME, HASCO, and LKM, to guarantee mold compatibility, interchangeability, and long-term durability across global platforms. These standards also support easier maintenance and part replacement for our international customers.

1. DFM and Mold Moldflow Analysis for Design Validation

To validate every design before mold manufacturing begins, we perform a comprehensive DFM (Design for Manufacturability) analysis, which helps identify potential issues related to part geometry, draft angles, wall thickness, and undercuts. This ensures that each mold is not only manufacturable but optimized for efficient production and extended lifespan.

Building upon the insights gained from the DFM analysis,we also use Moldflow analysis to simulate the die casting process. This powerful tool allows us to predict and address problems such as air traps, cold shuts, weld lines, and shrinkage defects at the design stage—reducing the need for costly changes later and improving first-shot success rates. By combining robust design standards with advanced engineering tools, Alpine Mold delivers mold solutions that exceed expectations in precision, efficiency, and reliability.

Key analysis points include:

Analysis Item	Purpose	Impact on Mold Design
Gate Location	Determines the best gate positions for smooth and balanced molten metal flow.	Prevents flow imbalance, reduces turbulence, and minimizes erosion and weld lines.
Filling Pattern	Visualizes how the molten metal fills the cavity, checking for short shots or incomplete fills.	Identifies areas at risk of insufficient fill, guiding adjustments to gate size or placement.
Air Trap/Venting	Detects trapped air or gases inside the mold cavity during filling.	Guides placement of vents or vacuum systems to avoid porosity and voids.
Weld Line Formation	Predicts locations where molten fronts meet, which may weaken part strength or surface quality.	Enables repositioning of gates or flow paths to minimize weld lines and improve structural integrity.
Cooling Efficiency	Analyzes temperature distribution and cooling rates throughout the mold.	Optimizes cooling channel layout to ensure uniform cooling, reduce warpage, and shorten cycle times.
Overflow and Riser	Identifies the best locations for overflow wells to capture impurities and cold shots.	Improves casting quality by preventing defects and ensuring cleaner final parts.
Pressure and Temperature	Simulates pressure distribution and thermal changes during injection and solidification.	Assists in predicting potential deformation, shrinkage, and optimizing process parameters.

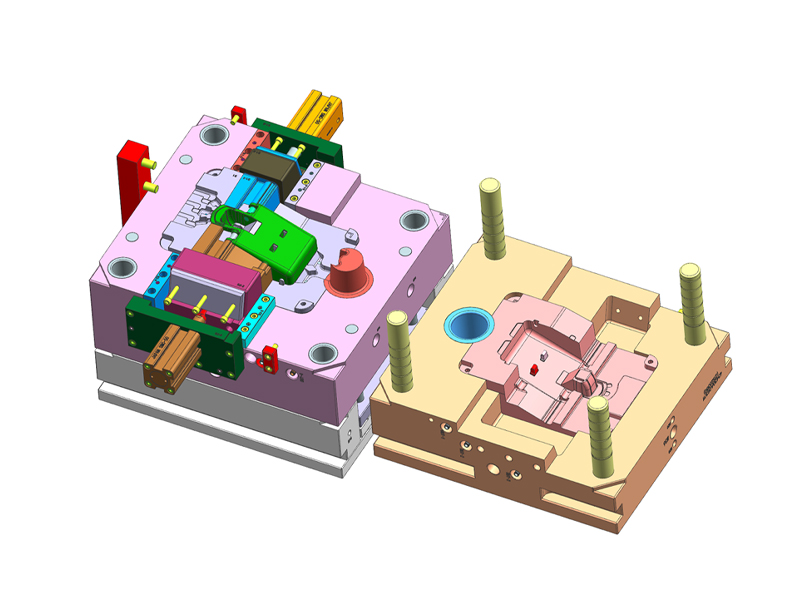

2. Detailed Mold Structure Design

After completing the DFM and Moldflow analysis, we move on to the mold design phase. At this stage, our experienced engineering team integrates all the validated data—such as optimized cavity and core. parting line, guiding and locating, venting strategy, and cooling layout—into a practical mold structure that ensures manufacturability, performance, and long-term durability.

2.1 Cavity and Core Design

We design the cavity to conform closely to the product geometry, avoiding sharp corners and sudden changes in wall thickness that may cause stress concentration or shrinkage porosity. Draft angles (typically 0.5°–3°) are applied to facilitate ejection.

Cores are reinforced to ensure sufficient strength, particularly in slender areas, to prevent deformation during high-pressure injection.

2.2 Parting Line Selection

We aim for the simplest possible parting line to reduce flash and post-processing complexity. The parting line is positioned to avoid interfering with functional or cosmetic surfaces, thus maintaining dimensional accuracy and part integrity.

2.3 Guiding and Locating System

We use precision guide pillars, bushings, and locating pins with controlled clearance (0.01–0.03 mm) to ensure accurate mold alignment, preventing misalignment and wear.

2.4 Cooling & Venting System Design

Cooling System

We design cooling channels close to the cavity surface (15–25 mm) and lay them out evenly, especially around hot zones such as cores and gates.

Channel diameters typically range from 8–12 mm, with flow velocities of 1–5 m/s to ensure effective cooling and prevent scale buildup.

Venting System

During casting, gases such as air and paint volatiles are generated. We incorporate venting grooves in gas accumulation areas (e.g., cavity ends, weld lines, dead corners) with depths of 0.05–0.1 mm and widths of 5–20 mm to ensure proper exhaust and prevent porosity or incomplete filling.

2.5 Gating and Overflow System Design

Gate Design

Based on the part geometry and casting requirements, we select the optimal gate type (e.g., side gate, center gate, or submarine gate) to ensure smooth metal flow, balanced filling, and to avoid erosion and turbulence.

Overflow System

We place overflow wells at the final filling positions to collect cold shots, entrapped gases, and impurities, effectively reducing casting defects and improving part quality.

2.6 Ejection and Demolding Mechanism

Ejection System Design

We distribute ejector pins evenly to avoid localized stress and deformation. All ejection components (e.g., ejector pins, plates) are made from wear-resistant steels such as SKD61. Proper fitting clearance is maintained to prevent flash and ensure smooth ejection.

IV. Selection of Mold Materials and Heat Treatment

Choosing high-quality mold steels is critical to ensuring mold durability, precision, and performance. At Alpine Mold, we carefully select materials such as H13, 8407, 2344, and 8418, depending on the specific molding requirements, part volume, material flow, and thermal stresses. These premium-grade tool steels are known for their excellent toughness, wear resistance, and thermal fatigue strength—making them ideal for high-performance injection and die-casting molds.

To further enhance the properties of the mold components, we implement a precise heat treatment process, including quenching and tempering. Quenching increases the steel’s hardness and strength, while tempering reduces internal stress and improves toughness, ensuring dimensional stability and preventing premature cracking or deformation during mold operation.

In addition, we follow strict hardness control recommendations for both mold bases and cavity/core inserts. Typically, mold bases are kept at 28–32 HRC, while the cavity and core components are heat-treated to reach 46–52 HRC, depending on the application. This balance of hardness not only improves mold longevity but also maintains high dimensional accuracy and resistance to wear under repeated cycles.

By combining high-quality materials with optimized heat treatment and hardness control, Alpine Mold ensures every mold we produce offers exceptional life span, stability, and reliability under demanding production conditions.

Mold Steel Selection for Aluminum Die Casting Molds

Steel Grade	Equivalent Standards	Key Characteristics for Die Casting	Advantages for Aluminum Die Casting Molds	Hardness After Heat Treatment (HRC)
H13	AISI H13 / DIN 1.2344	Good hot hardness, thermal shock resistance	Cost-effective choice, stable performance under heat	46–50 HRC
8407	ASSAB 8407 / ESR 1.2344	ESR refined, excellent toughness, high polishability	Enhanced fatigue resistance, longer mold life	46–52 HRC
2344	DIN 1.2344 / JIS SKD61	Standard grade, reliable thermal strength	Suitable for moderate die-casting production	45–50 HRC
8418	ASSAB 8418 / Premium Tool Steel	High resistance to heat checking and galling, high wear resistance	Ideal for high-pressure, complex aluminum die casting	48–52 HRC

V. High-Precision Machining Process

At Alpine Mold, we leverage over 20 years of expertise in aluminum die casting mold manufacturing by employing advanced precision machining techniques to meet the highest standards of accuracy and surface quality.

• We maintain dimensional tolerances within IT7–IT8 grades, ensuring critical mold components are machined with accuracy typically within ±0.01 mm.




• Surface finishes are controlled to a roughness of Ra ≤ 0.8 μm, achieved through a combination of high-precision 5-axis CNC milling and Electrical Discharge Machining (EDM), resulting in smooth cavity surfaces that facilitate excellent metal flow and part release.




• Our slow wire EDM machines further enhance precision with cutting tolerances as tight as ±0.002 mm, critical for producing fine features and sharp edges without introducing thermal distortion.




• Post-machining, mold components undergo dimensional compensation and deformation control, ensuring total machining-induced distortion is limited to less than 0.01 mm, preserving dimensional stability across complex geometries.

Mold mating surfaces are finished with precision grinding and hand polishing to achieve fit tolerances within 3–5 microns (μm), preventing flash and ensuring optimal mold assembly.

In addition to machining precision, Alpine Mold offers specialized surface treatments to extend mold life and improve casting quality:



• Nitriding hardening processes boost surface hardness to HV800–1000, significantly enhancing wear resistance and resistance to thermal fatigue.




• PVD coatings, such as Chromium Nitride (CrN), provide excellent surface hardness and reduce aluminum adhesion, improving demolding performance and reducing cycle times.




By integrating stringent tolerance control, advanced machining equipment, and durable surface treatments, Alpine Mold delivers aluminum die casting molds with exceptional precision, durability, and production efficiency, fully meeting the demanding requirements of modern manufacturing.

VI. Quality Control & Inspection

At Alpine Mold, stringent quality control is integral throughout the entire mold manufacturing process to ensure precision, reliability, and consistency.

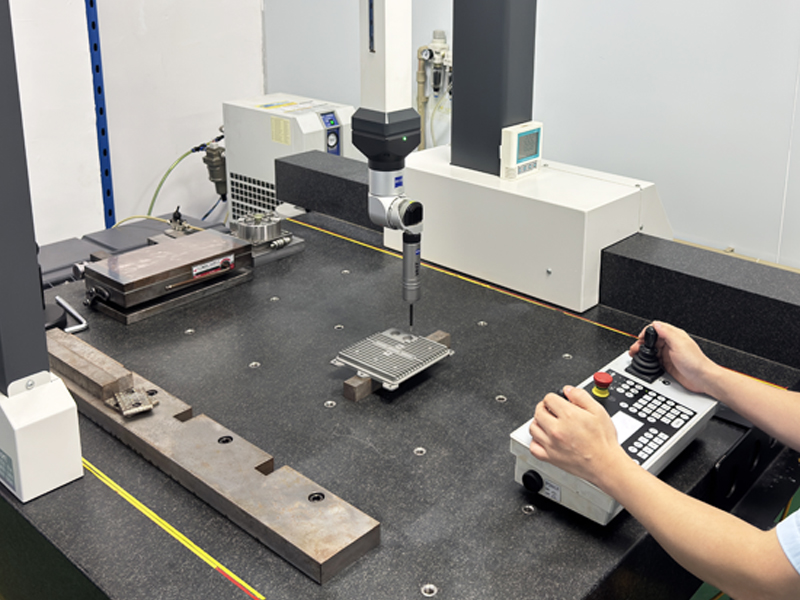

During part machining, dimensional control is rigorously maintained using advanced metrology equipment such as Coordinate Measuring Machines (CMM). This ensures all components conform to specified tolerances and geometrical requirements before proceeding to assembly.

After mold assembly, critical parameters including concentricity and parallelism are carefully inspected to guarantee proper alignment and fit of mold components, which is essential for smooth operation and long-term durability.

Following trial mold runs (trial die casting), a detailed dimensional verification and debugging process is conducted. This step confirms that the molded parts meet design specifications and functional requirements, allowing for any necessary adjustments to optimize mold performance.

We meticulously document every stage of mold manufacturing and inspection, compiling comprehensive reports that include Statistical Process Control (SPC) charts, measurement data, and inspection records. These documents serve as traceable quality evidence and support continuous improvement initiatives.

VII. Trial Casting and Optimization

At Alpine Mold, trial casting is a critical step to validate mold performance and optimize part quality before mass production. We approach this phase with a systematic and engineering-driven process:

Key Inspection Focus During Initial Trial

During the first trial, we carefully examine the cast parts for surface defects such as porosity, cold shuts, weld lines, and flow marks. In parallel, we perform dimensional inspections using precision tools (e.g., calipers, CMM) to verify that the part meets tolerance requirements. We also assess filling performance, ensuring there are no short shots or incomplete sections, which may indicate issues with gate design or venting.

Impact of Parameter Optimization on Part Accuracy

Our engineering team adjusts and fine-tunes die casting parameters—including injection speed, holding pressure, melt temperature, mold temperature, and cooling time—to enhance the dimensional stability, reduce internal stress, and improve surface finish. These optimizations are especially important for aluminum alloys, which are sensitive to shrinkage and warpage.

Typical Issues and Effective Solutions

Common issues such as part deformation, shrinkage cavities, and mold misalignment are thoroughly analyzed. Solutions include mold structure modifications (e.g., overflow wells, cooling channel adjustments), gating redesign, or process recalibration. Our experienced engineers utilize root cause analysis combined with real-time production data to resolve problems quickly and effectively.

Customer Validation and Final Mold Approval

Once internal trials and adjustments are completed, we submit trial samples and full inspection reports to the customer for review. We welcome customer feedback and, if needed, perform final tuning to meet all technical and appearance requirements. Upon customer approval, we either begin mass production (if Alpine Mold is also responsible for part manufacturing) or package and ship the fully validated mold to the customer’s facility for their in-house production.

VIII. Maintenance and Longevity Planning

At Alpine Mold, we understand that long-term mold performance depends not only on quality manufacturing but also on effective maintenance. To support our customers in maximizing mold life and minimizing downtime, we provide comprehensive guidance for mold care and upkeep.

Daily Maintenance Recommendations

For high-precision aluminum die casting molds, we recommend daily cleaning and inspection after each production shift. This includes:

1. Removing residual aluminum, dust, or lubricants from cavity surfaces and moving parts

2. Inspecting ejector pins, sliders, and lifters for wear or sticking

3. Applying anti-rust oil and re-lubricating critical moving components

Scheduled Inspection Plans

We advise implementing a periodic inspection schedule based on production volume (e.g., every 20,000–50,000 shots), including:

1. Checking for wear on parting lines, cores, and cavity surfaces

2. Measuring critical dimensions to monitor for wear or deformation

3. Verifying alignment of mold plates, guide pillars, and cooling channels

Recommended Spare Parts List

To ensure uninterrupted production and fast recovery from wear-related issues, we provide a customized spare parts list with each mold. Typical recommended items include:

1. Copper electrodes

2. Ejector pins

3. Return springs

4. Guide pillars and bushings

5. Seals and O-rings

6. Core inserts or sliders (if applicable)

By combining clear maintenance protocols, proactive inspection schedules, and well-prepared spare parts support, Alpine Mold helps customers protect their investment and extend the productive lifespan of every mold we deliver.

IX. Conclusion

High-precision aluminum die casting mold manufacturing is a comprehensive and systematic engineering process. Achieving excellence requires the seamless integration of every stage—from design validation and material selection to precision machining, quality inspection, and trial optimization.

At Alpine Mold, we understand that true mold precision is not achieved in a single step, but through the close collaboration of multiple disciplines and processes:

1. Design: Accurate DFM and Moldflow analysis lay the foundation for manufacturability and performance.

2. Material Selection: High-grade steels like H13, 8407, and 8418 ensure durability and thermal stability.

3. Machining: Tight tolerance control (within IT7–IT8) and advanced equipment like 5-axis CNC and EDM guarantee dimensional accuracy.

4. Inspection: Full-process CMM and SPC documentation ensure every detail is verified.

5. Optimization: Trial casting and parameter fine-tuning eliminate issues before full production.

6. Maintenance Planning: Thoughtful lifecycle support extends mold longevity and ensures reliable output.

With over 23 years of industry experience, Alpine Mold is committed to helping customers achieve success in even the most challenging high-precision die casting mold projects. We combine technical expertise, efficient project management, and strict quality control to deliver molds that perform consistently and exceed expectations. Whether you require fast lead times, tight tolerances, or long mold life—Alpine Mold is your trusted partner for high-precision aluminum die casting mold solutions. Contact us today to get a free quote!
