How To Make A High-Quality Zinc Die Casting Mold: A Complete Guide

Table of Contents

1. Introduction

2. Product & Requirement Analysis

3. Zinc Alloy Properties and Their Impact on Die Casting Mold Design

4. Key Design Considerations for Zinc Die Casting Molds

5. Zinc Die Casting Mold Manufacturing Process

6. Mold Trials and Continuous Optimization

7. Mold Delivery and After-Sales Support

8. Conclusion

1. Introduction

Zinc die casting molds are widely used across electronics, automotive, hardware, home appliances, and telecommunication industries. As product designs become more refined and requirements for surface finish and dimensional accuracy continue to rise, building a high-quality die casting mold becomes a true test of a manufacturer's technical expertise.

At Alpine Mold, a leading manufacturer specializing in precision zinc die casting molds and plastic injection molds for over 20 years, we have developed a comprehensive, professional, and highly practical process for building molds that meet international standards and production expectations.

This guide will walk you through our full workflow, from product analysis to mold design, manufacturing, testing, delivery, and after-sales service—providing valuable insight into the world of zinc alloy die casting.

2. Product & Requirement Analysis

A high-performance zinc die casting mold begins with a deep understanding of the customer’s product and technical requirements. At Alpine Mold, our project engineering team works closely with clients at the early stages to ensure that the design intent is accurately translated into a practical and manufacturable mold solution.

Requirement	Explanation	Impact on Mold Design
Product application & industry	E.g., electronic enclosures, appliance parts, automotive frames	Determines structural precision, tolerance class, strength level
Annual production volume	High volume = multi-cavity mold, automatic slides/core pulling	Affects mold cavity number,  life grade, and mechanical structure
Appearance & surface treatment	Polishing, plating, painting, laser markin	Affects cavity surface finish and venting design
Assembly fit with other parts	Strict tolerance for assembled components	Requires precise machining, high mold alignment accuracy

Whether the part is made from zinc die cast material for decorative or structural purposes, our team ensures all expectations are aligned before design begins.

3. Zinc Alloy Properties and Their Impact on Die Casting Mold Design

Zinc alloys possess unique physical and chemical properties that directly affect how the die casting mold is designed, manufactured, and maintained. Understanding the behavior of zinc die casting materials helps engineers optimize the mold structure for better performance and longer service life.

Zinc Alloy Property	Description	Impact on Mold Design
Low melting point (approx. 380–420°C)	Less thermal shock during injection	Longer mold life, greater flexibility in choosing mold steels
Excellent fluidity	Ideal for thin-walled or intricate parts	Gate and overflow systems must be optimized for flow balance and to minimize air entrapment
Susceptible to oxidation	Can cause porosity or gas pockets	Requires proper venting design and anti-corrosion cavity treatment
High dimensional stability	Low shrinkage rat	Beneficial for tight tolerances and consistent product dimensions
Easy to finish	Can be plated, painted, or laser marked	Mold surface must allow high polish and avoid sticking during ejection

At Alpine Mold, we tailor mold designs based on the specific zinc alloy die casting material used—such as Zamak 3 or Zamak 5—and utilize mold flow simulation tools to preemptively optimize filling, venting, and cooling.

4. Key Design Considerations for Zinc Die Casting Molds

With over 20 senior mold designers and two decades of project experience, Alpine Mold provides custom solutions for every zinc die casting mold project. Our team is fluent in international standards such as HASCO, DME, and LKM, and applies a robust design approach tailored to the behavior of zinc die cast materials.

4.1 DFM and Mold Flow Analysis

Before mold design begins, we perform a comprehensive DFM (Design for Manufacturability) analysis, ensuring the product is suitable for zinc alloy die casting and minimizing future manufacturing issues. This process includes:

• Evaluating wall thickness uniformity to avoid shrinkage and deformation

• Identifying undercuts to assess the need for slides or lifters

• Optimizing radii and chamfers to improve metal flow and reduce stress concentration

• Designing a cooling system adapted to the zinc alloy’s thermal profile

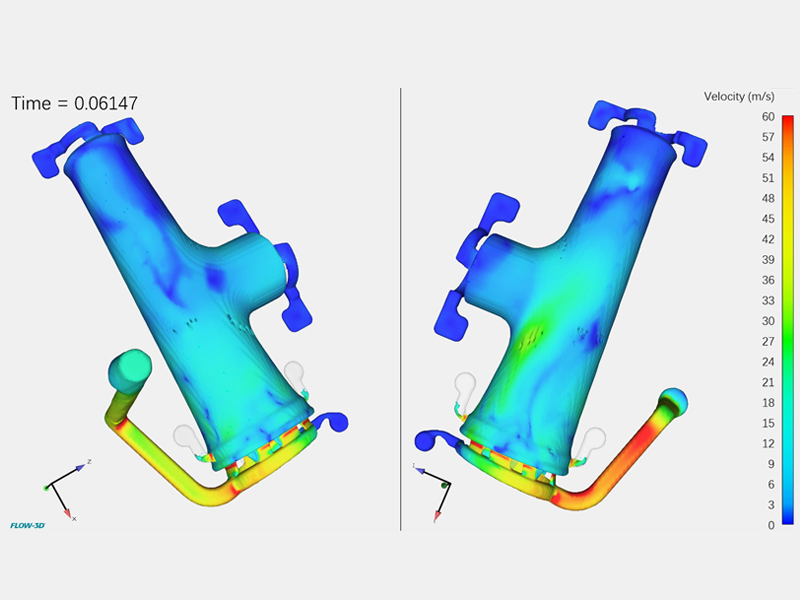

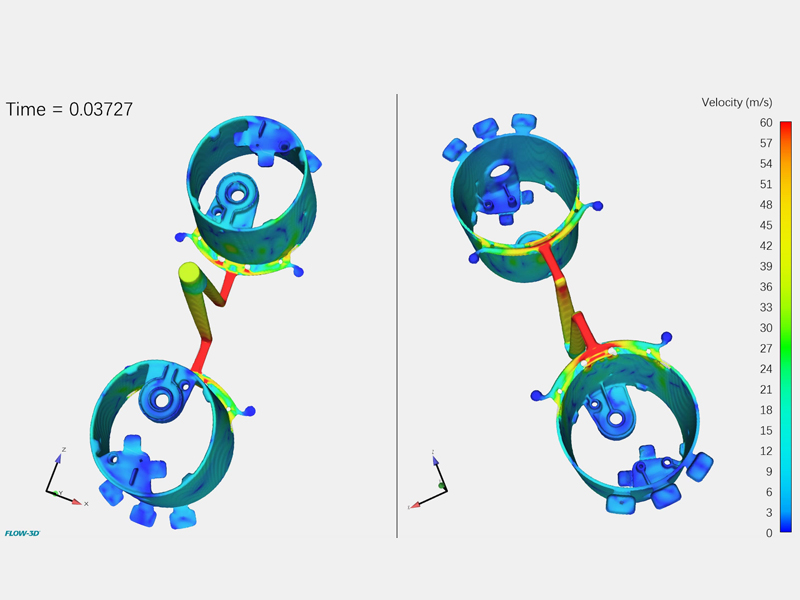

We then use professional Mold Flow software to simulate the following:

• Flow path analysis: Ensures complete filling without short shots

• Air trap prediction: Locates possible gas entrapment zones for vent design

• Cooling circuit optimization: Minimizes cycle time and ensures thermal balance

• Shrinkage and warpage forecast: Predicts critical areas and applies pre-compensation design

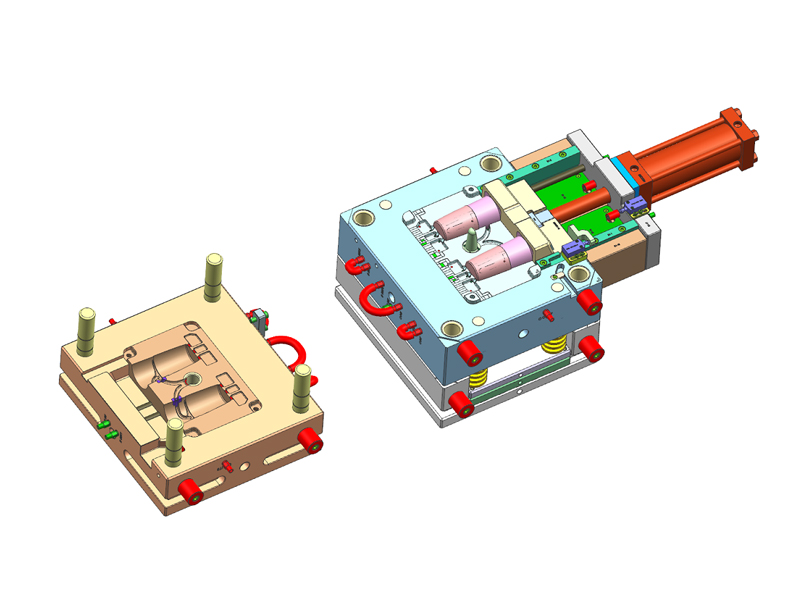

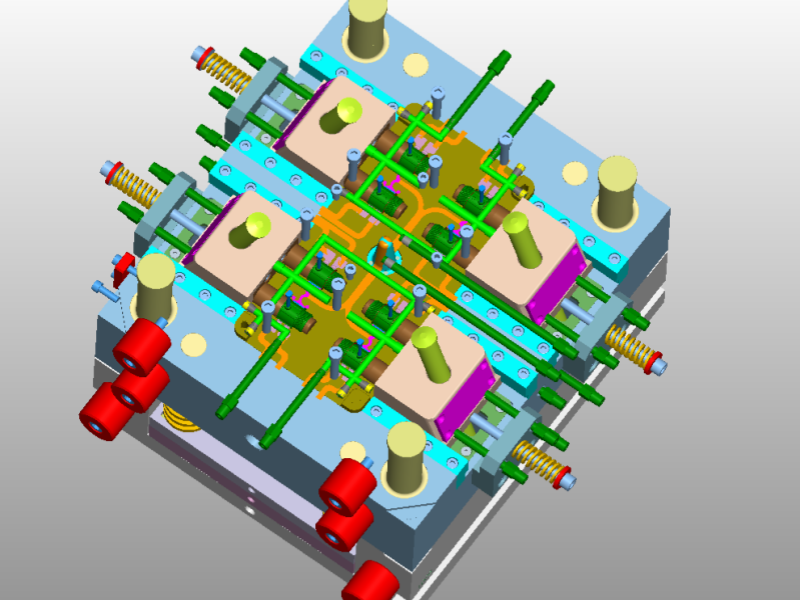

4.2 Detailed Mold Structure Design

Building on the DFM and simulation results, Alpine Mold engineers define all critical mold features:

• Parting line design: Ensures smooth mold opening and reduces flash

• Gating & overflow layout: Uses main and sub gates with overflow wells to reduce air traps and shrinkage

• Core-pulling mechanism: Configures pneumatic/hydraulic sliders, lifters, and delayed actions for undercuts

• Cooling channels: Utilizes deep-hole drilling, beryllium copper inserts, and optimized cooling geometry

• Reinforcements and inserts: Strategically placed to extend mold life and simplify maintenance

4.3 Mold Base and Steel Material Selection

Mold durability starts with material selection. Based on annual volume and part requirements, we typically recommend:

• Core/cavity steel: H13, SKD61, or 8407 for heat resistance and long life under high pressure

• Mold base: P20, S50C, or 45# steel depending on size and expected wear

• High-wear inserts: Beryllium copper, high-speed steel, or coated materials to improve thermal and abrasion resistance

With modular construction and rational steel pairing, we ensure your zinc die casting mold is both long-lasting and easy to service.

5. Zinc Die Casting Mold Manufacturing Process

A high-precision zinc die casting mold depends not only on good design but also on advanced machining capabilities and rigorous quality control. At Alpine Mold, we follow a strict manufacturing protocol to ensure structural consistency, dimensional accuracy, and mold reliability.

5.1 Key Equipment and Core Machining Capabilities

We operate over 100 high-precision machines to meet the tight tolerances and intricate geometries required by zinc die cast material projects:

• High-speed CNC machining (3, 4, 5-axis): For rough and fine machining of cores and cavities

• Mirror EDM (Electrical Discharge Machining): For polished surfaces and micro-detail areas

• Slow wire-cut EDM: For inserts, parting blocks, and complex contours

• Deep-hole drilling: For efficient cooling system layout

• Separate machining processes for beryllium copper and steel: Ensures precision and material safety

All machining processes are CAD/CAM programmed and tracked via ERP for full transparency and production efficiency.

5.2 Heat Treatment and Stress Relief

Zinc die casting molds are subject to extreme temperatures and high injection pressures. We implement targeted thermal treatments to enhance strength and longevity:

• Vacuum quenching + tempering: For core steels like H13, achieving optimal hardness and toughness

• Nitriding treatment: Improves surface hardness and wear resistance

• Stress relief annealing: Prevents future deformation or cracking

Each batch undergoes hardness testing, metallographic inspection, and dimensional validation before proceeding.

5.3 Full-Process Quality Control

We adopt a“zero-defect mindset”from raw material to final mold assembly:

• Incoming steel inspection: Spectral analysis and hardness testing before storage

• In-process dimension checks: CMMs and optical projectors monitor tolerances

• Pre-assembly evaluation: Verifies insert fit, core alignment, and ejection systems

• Post-assembly function testing: Simulates mold open/close, core pulling, and cooling flow

• Water pressure leak tests: Ensures cooling circuits are sealed and efficient

All QC data is documented and delivered with the finished die casting mold.

5.4 Cleaning & Protection Standards

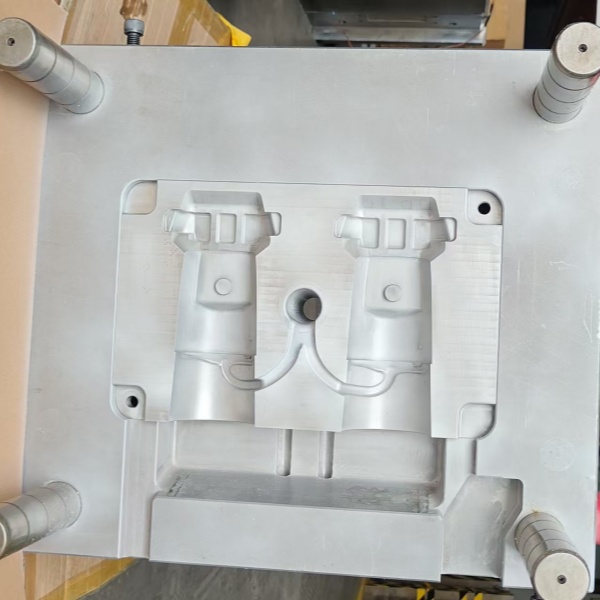

Before delivery, every mold is thoroughly cleaned and rust-proofed:

• Degreasing of all cavity surfaces and moving components

• Anti-rust coating and vacuum-sealed wrapping

• Lubrication instructions and circuit markings clearly indicated

A complete mold acceptance checklist is conducted by our project engineer before shipment.

6. Mold Trials and Continuous Optimization

Trial runs are essential to validate the performance of every zinc die casting mold. At Alpine Mold, our in-house tryout team leverages years of experience to ensure fast, stable startup in production:

• Trial settings are based on your die casting machine specs (pressure, speed, mold temp)

• Initial parts are inspected for flash, porosity, shrink marks, warpage, and short shots

• Necessary adjustments are made to venting, cooling, overflow, and core-pulling systems

• A First Article Inspection (FAI) Report is generated for all critical dimensions and surface requirements

• Injection parameters are recorded and shared for future mass production reference

Through systematic optimization, your mold will be fully production-ready—minimizing

7. Mold Delivery and After-Sales Support

Delivering a high-performance zinc die casting mold is more than handing over hardware—it's about transferring value, trust, and ongoing support.

7.1 Secure Packaging & Shipping

• All molds are cleaned, rust-proofed, and shock-proofed before shipment

• Custom wooden crates with foam padding for safe international transport

• Mold nameplate includes project ID, steel grade, mold weight, and contact info

7.2 Technical Documentation Package

Each mold delivery includes a full technical file:

• 2D/3D drawings in STP/DWG format

• Steel certificates and heat treatment reports

• Mold flow simulation reports

• First Article Inspection reports

• Mold user manual and maintenance guide

7.3 Responsive After-Sales Service

• Dedicated project manager for post-delivery follow-up

• Remote video support for initial setup and debugging

• Fast response during warranty period for any technical issues

8. Conclusion

The success of a zinc die casting mold project is not just measured by dimensional accuracy or mold lifespan—it lies in the professionalism, systematization, and technical strength behind every step of the process. From early-stage design validation and material selection to precision machining, mold testing, and final delivery, Alpine Mold has built a robust process to deliver world-class zinc alloy die casting solutions with reliability and consistency.

With over 20 years of experience exporting to global clients, we understand the importance of efficient communication, strict quality control, and timely delivery. Our integrated engineering and manufacturing teams work seamlessly to reduce lead times and eliminate rework, helping customers shorten time-to-market and improve production efficiency.

Whether you're producing electronic housings, automotive components, or structural parts using zinc die cast materials, Alpine Mold is ready to support your success with high-precision, low-maintenance, and cost-effective tooling solutions.

Looking for a trusted partner in zinc die casting mold development? Contact Alpine Mold today and let’s build your next precision tooling project together.
