How To Optimize Plastic Injection Molding Process Parameters?

Table of Contents

1. How to Control Temperature Parameters in Plastic Injection Molding？

2. How Should Pressure Parameters Be Set in Plastic Injection Molding?

3. How to Optimize Injection Speed and Process Control?

4. Plastic Material and Equipment Management

5. Equipment Shutdown and Maintenance Best Practices

Introduction

In the world of plastic manufacturing, precise adjustment of plastic injection molding process parameters is critical for ensuring injection molded product quality, improving production efficiency, and reducing injection molding defect rates. Whether you're a newcomer or a seasoned engineer, understanding how to control variables such as temperature, pressure, and injection speed is essential to achieving stable and cost-effective production. This article provides a comprehensive guide to optimizing plastic injection molding process parameters, helping your manufacturing operations stay competitive in an ever-evolving industry.

1. How to Control Temperature Parameters in Plastic Injection Molding?

Principles and Methods of Temperature Measurement

Temperature measurement and control are crucial in plastic injection molding. Although measurement is relatively straightforward, many plastic injection molding machines lack adequate temperature sensors or circuits. In most machines, temperature is detected using thermocouples. A thermocouple consists of two dissimilar wires joined at one end. A voltage is generated when one end is hotter than the other—the higher the temperature, the stronger the signal.

Temperature Control Techniques

Thermocouples are widely used as sensors in temperature control systems. The controller compares the set point temperature with the actual value detected by the thermocouple. In basic on-off control systems, power is cut off when the temperature reaches the set point and is restored when it falls below, maintaining a stable range.

Setting and Managing Melt Temperature in the Plastic Injection Molding Process

Melt temperature is a critical parameter. Barrel temperature serves only as a reference. Melt temperature can be measured at the nozzle or via air-shot methods. It is influenced by barrel temperature, screw speed, back pressure, shot size, and cycle time. For unfamiliar materials, always begin with the lowest recommended temperature. The barrel is divided into zones for easier control, but not all zones should be set identically. In prolonged or high-temperature operations, set the first zone slightly lower to avoid premature melting or material degradation. Before starting, ensure that hydraulic oil, hopper throat, mould, and barrel are at correct temperatures.

2. How Should Pressure Parameters Be Set in Plastic Injection Molding?

The Role and Measurement of Injection Pressure

Injection pressure initiates plastic flow and can be measured at the nozzle or via hydraulic pressure sensors. It has no fixed value and increases as mold filling becomes more difficult. Injection pressure, plasticating pressure, and nozzle pressure are closely interrelated.

Switching Between First-Stage and Second-Stage Injection Pressure

High injection pressure may be required during the filling phase to maintain the desired injection speed. Once the injection mold is filled, lower pressure is usually sufficient. However, for semi-crystalline thermoplastics such as PA and POM, a sudden pressure drop can disrupt crystalline structure, and maintaining consistent pressure between stages may be necessary.

Calculating and Adjusting Clamping Force Based on Part Geometry

To counteract the injection pressure, adequate clamping force must be applied. Avoid defaulting to the machine's maximum clamping capacity; instead, calculate based on the projected area of the injection molded part (as viewed along the direction of clamping force). As a general rule, 2 tons per square inch or 31 MN/m² of projected area is required. This value is approximate and should be carefully adjusted, especially when sidewalls contribute additional resistance.

Back Pressure: Definition, Advantages, and Limitations

Back pressure is the resistance the screw must overcome before retracting. Higher back pressure improves mixing and color dispersion but also lengthens screw recovery time, shortens fiber length in filled materials, and increases mechanical stress on the machine. It is recommended to keep back pressure as low as possible and never exceed 20% of the maximum injection pressure.

Nozzle Pressure Variations and Influencing Factors

Nozzle pressure refers to the pressure on the melt as it passes through the nozzle and directly drives flow. It varies depending on the difficulty of cavity filling and is typically around 90% of injection pressure in screw-type machines (10% loss), and can drop by up to 50% in plunger-type machines. Proper adjustment of Injection moulding process parameters related to nozzle pressure is essential for smooth mold filling and injection molded part quality.

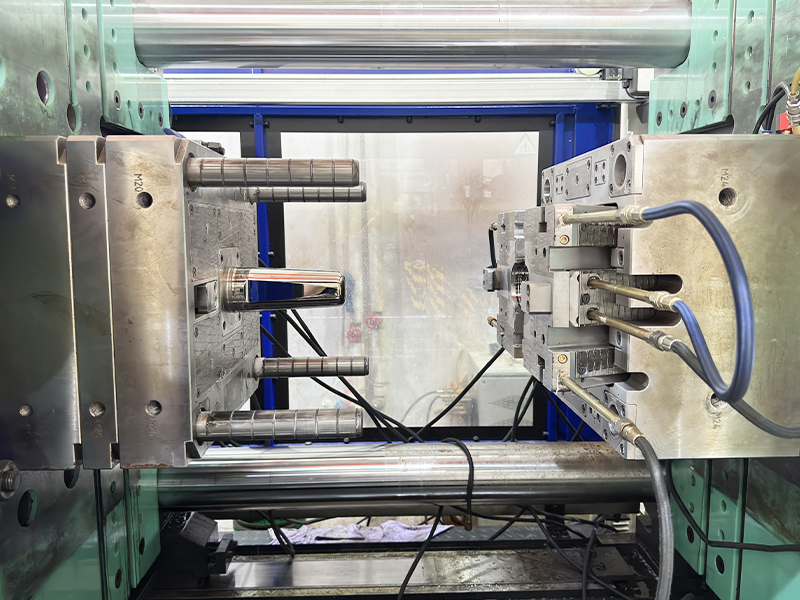

3. How to Optimize Injection Speed and Process Control?

Injection Speed Settings and Control Strategies

Injection speed refers to the screw's advancement speed during injection mold filling. High speeds are necessary for thin-walled injection molded parts to avoid premature solidification and achieve smooth surfaces. Varying speeds during filling can prevent jetting and air traps. Both open-loop and closed-loop systems may be used. Record injection speed along with time, which refers to the duration taken to reach first-stage pressure.

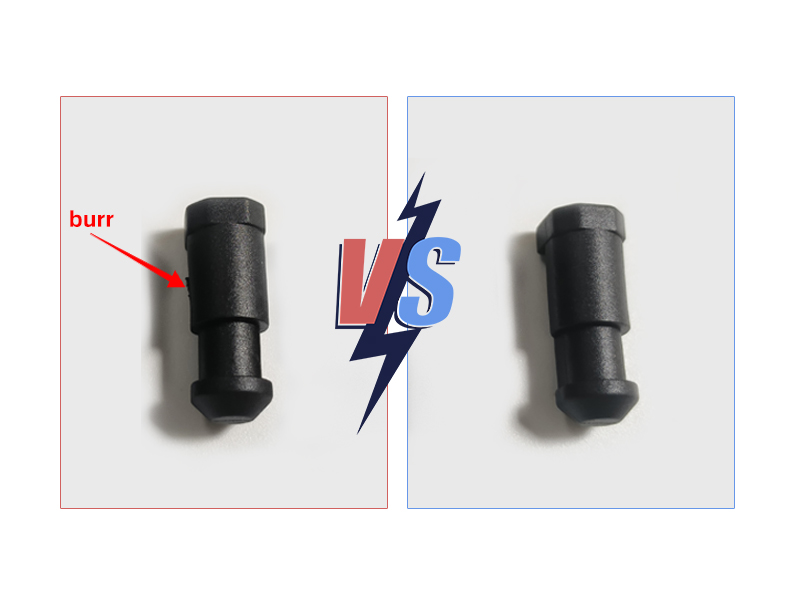

Mold Venting and Defect Prevention

Due to rapid mold filling, proper venting is critical. Trapped air can compress and overheat, causing material burning. Vents should be placed near weld lines and final fill areas. Common vent dimensions are 6–13 mm wide and 0.01–0.03 mm deep, typically located on the parting line of one half of the mould.

Holding Pressure Setup and Material Adaptation

After the cavity is filled, the process enters the holding phase. The screw continues to push a small amount of melt to compensate for shrinkage. Holding pressure can be lower than filling pressure or maintained at the same level. For semi-crystalline materials, excessive pressure variation can damage the crystalline structure. Matching holding pressure to material behavior is a key aspect of controlling plastic injection molding process parameters.

4. Plastic Material and Equipment Management

Proper Use and Processing of Regrind Material

Many injection molding machines use a blend of virgin and recycled material (regrind). Surprisingly, regrind can sometimes improve consistency. However, it must be de-dusted prior to use to avoid inconsistent dosing and color variation. The optimal proportion of regrind should be determined experimentally without compromising mechanical properties. A typical guideline is 15%–25%, depending on material, injection molded product requirements, and processing conditions.

Quality Control Systems and Inspection Processes

Final part characteristics such as weight and dimensions are closely tied to Injection molding process parameters like cushion size, injection pressure, and flow rate. Modern machines continuously monitor and compare actual values with set parameters. As long as readings are within the specified range, plastic injection parts are accepted; otherwise, they are rejected or flagged for operator review. Vision systems and embedded controllers enable real-time inspection by comparing parts with stored standards, ensuring consistent quality.

Standardized Recording and Traceability

The goal of injection molding service is to produce high quality plastic injection parts within a set cycle time and budget. To achieve this, accurate documentation of all injection molding process parameters is essential. Modern machines offer automatic recording; otherwise, use standardized forms and retain sample parts. Comprehensive records aid in traceability, troubleshooting, and future production runs.

5. Equipment Shutdown and Maintenance Strategies

Standard Shutdown Procedures

Proper shutdown procedures are critical for reducing downtime and maintenance costs. In cases where material can safely degrade or burn out (e.g., during color change), complete purging and cleaning may not be necessary. Choosing the right shutdown method based on material and situation can save significant time and cost, optimizing overall equipment efficiency.

Temporary Stops

During short pauses, thoroughly purge the screw or use compatible cleaning materials to remove residual melt and prevent degradation. For color changes, increase purging frequency. If performing minor repairs, reduce barrel temperatures to the lowest safe setting to minimize thermal decomposition. Some advanced machines have automatic cleaning and temperature control during idle states.

Overnight Shutdowns

If the machine has been idle overnight before processing thermoplastics like PS plastic material, follow this procedure: turn off heaters for the barrel and base plate, purge residual melt thoroughly, cool the barrel as much as possible, and shut down all systems after the machine has cooled. This ensures safe and efficient restart, preserving injection molded product quality and reducing startup time.

Handling Heat-Sensitive Materials

Heat-sensitive plastics may degrade if left in the barrel, leading to carbonization and discoloration. In such cases, the machine should be shut down and purged completely. To prevent such issues, use a stable resin (e.g., PMMA, HDPE) as a purging agent after processing sensitive materials like PVC or POM plastic material. This displaces remaining material and stabilizes the system. Additionally, for short downtimes, filling the barrel with inert materials like PE plastic material helps prevent oxidation.

Conclusion

Each element of the injection molding process parameters—from temperature and pressure to speed and material management—directly impacts plastic injection molding product quality and efficiency. By mastering these controls and standardizing procedures, manufacturers can reduce waste, maintain consistency, and extend equipment life.

At Alpine Mold, we’ve been refining our approach to injection molding process parameters for over 23 years. With full capabilities in injection mold design, precision injection mold manufacturing and injection molding production, we deliver one-stop solutions trusted by clients worldwide.

Looking for a professional partner to optimize your injection molding process?

Let’s work together to bring your product ideas to life with precision and reliability.
