An injection mold is a precision tool used in the injection molding process to shape plastic components. It typically serves as the initial step in the custom plastic manufacturing workflow, enabling the efficient and consistent production of complex and intricate parts.
The mold consists of two primary components: the cavity and the core. When these two sections are joined together, they collectively define the final shape of the product. This precision tooling ensures that, during mass production, the manufactured products maintain a high degree of dimensional uniformity, thereby meeting the rigorous standards for precision and repeatability demanded by industrial manufacturing.

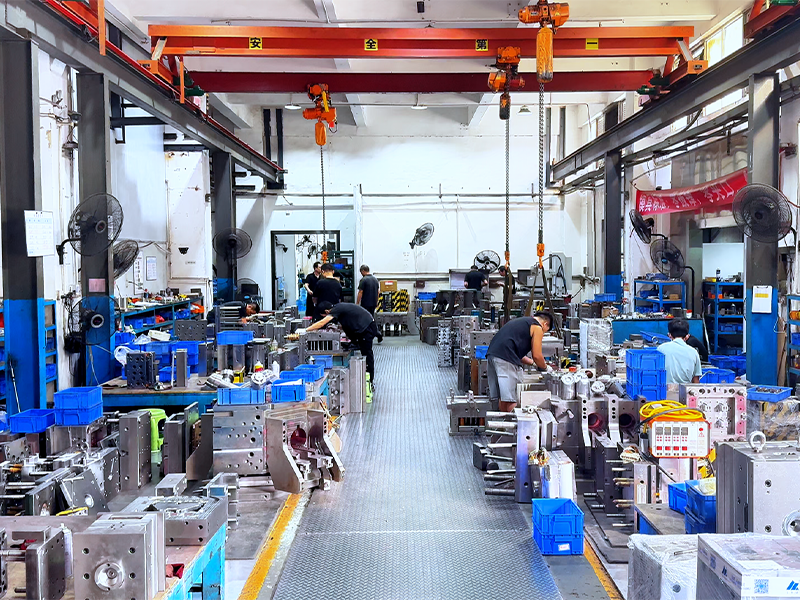

Creating an injection mold is a high-precision engineering process that transforms a 3D design into a durable production tool. Here is the standard step-by-step workflow:
DFM (Design for Manufacturing) Review: Before cutting any metal, engineers analyze the 3D part design. They look for potential issues—like wall thickness, draft angles, and gate locations—to ensure the part can be injected and ejected successfully.
Material Selection: Based on the required production volume (e.g., 50,000 vs. 1 million cycles), a specific steel grade is chosen. Common choices include P20 for standard runs or hardened H13/S136 for high-volume or corrosive resins.
CNC Machining: Computer-controlled machines (CNC) mill the core and cavity from solid steel blocks. This defines the primary shape and dimensions of the plastic part.
EDM (Electrical Discharge Machining): For extremely fine details or sharp internal corners that a rotating drill cannot reach, EDM uses electrical sparks to "burn" the precise shape into the steel with micron-level accuracy.
Fitting & Assembly: The two halves of the mold (the "Core" and "Cavity") must be manually fitted to ensure a perfect seal. A gap as small as 0.01mm can cause "flash"—unsightly excess plastic on the finished part.
Surface Finishing: The mold surface is polished to a mirror finish for clear parts, or chemically etched to create specific textures (like a matte or leather look).
T1 Mold Trial: The completed mold is loaded into an injection machine for the first "shot." These T1 samples are inspected to verify that the dimensions and surface quality meet the original design specifications.

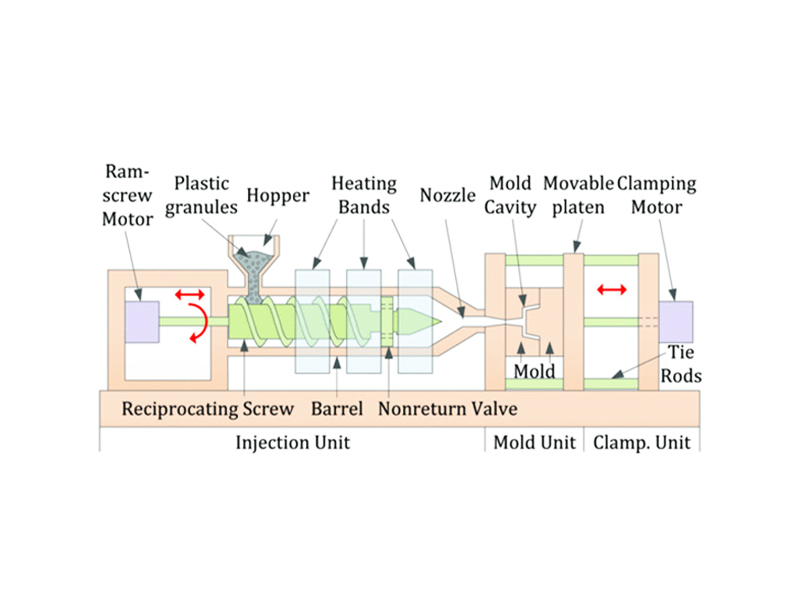

The operation of an injection mold is a high-speed, precision-driven cycle. Once the mold is installed in the injection molding machine, it follows these four essential stages to produce a finished part:
Before the plastic is injected, the two halves of the mold—the cavity and the core—are pressed together by the machine’s hydraulic or electric unit. A massive amount of clamping force is applied to keep the mold airtight and withstand the high pressure of the incoming molten plastic.
Raw plastic granules are melted and injected into the mold via a reciprocating screw or ram. The molten polymer travels through the sprue, runners, and gates to fill the internal cavity. Engineers precisely control the injection pressure and speed to ensure the material reaches every corner of the mold design.
Once the cavity is filled, the cooling phase begins. This is typically the most time-consuming part of the cycle. Internal cooling channels circulate water or oil to dissipate heat, allowing the plastic to solidify into its final shape. Efficient cooling is critical for maintaining dimensional stability and reducing cycle times.
After the part has sufficiently hardened, the mold opens. The machine’s ejection system—usually a series of ejector pins—pushes the finished part off the core. Once the part is cleared, the mold closes again, and the next cycle immediately begins.

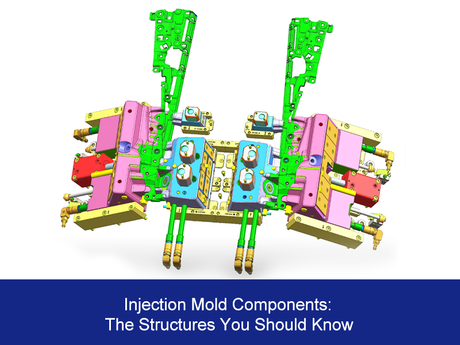

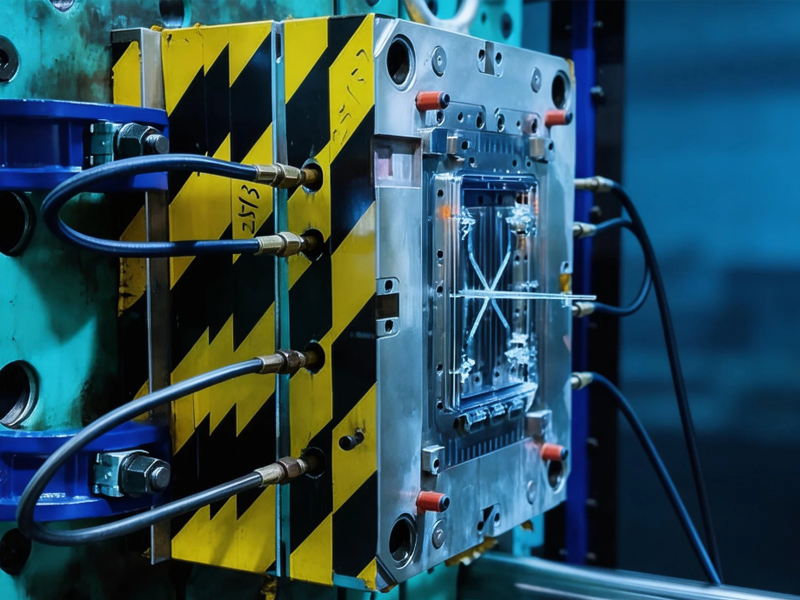

An injection mold is more than just two blocks of steel; it is a complex assembly of precision-engineered systems working in harmony. To ensure high-efficiency production and dimensional accuracy, every mold relies on these five core components:
This is the heart of the tool that determines the part’s geometry and surface finish.
Core Components: Cavity (A-side), Core (B-side), and specialized Inserts.
For complex geometries or areas prone to wear, we utilize interchangeable inserts instead of machining from a single block. This modular approach allows for targeted venting and simplifies maintenance, as damaged sections can be replaced without rebuilding the entire mold.
This system directs molten polymer from the machine nozzle into the mold cavities.
Core Components: Locating Ring, Sprue Bushing, Runners, and Gates.
The strategic placement of the gate is vital for controlling the flow pattern. By using Moldflow Analysis during the design phase, we optimize gate locations to eliminate visual defects like weld lines or air traps, ensuring the structural integrity of the finished part.
Since cooling accounts for over 60% of the molding cycle, this system is the primary driver of production efficiency.
Core Components: Cooling Channels (Water Lines), O-rings, and Baffles.
Beyond standard straight-drilled lines, advanced molds often incorporate Conformal Cooling. These channels follow the exact contour of the part, ensuring uniform heat dissipation. This prevents warping and significantly reduces cycle times, lowering the overall cost per part.
This mechanism safely removes the solidified part from the mold once the cycle is complete.
Core Components: Ejector Pins, Ejector Plates, Return Pins, and Sliders/Lifters.
To handle "undercuts" (features like side holes or clips that block vertical release), we integrate mechanical sliders or lifters. These components move laterally as the mold opens, clearing the path for the part to be ejected without distortion or damage.
This system is the "silent hero" that ensures a defect-free surface finish by allowing trapped air to escape.
Core Components: Parting line vents, ejector pin clearances, and porous inserts.
As plastic fills the cavity, trapped air must escape instantly. We grind microscopic venting channels (typically 0.01mm to 0.03mm deep) into the steel. Without this, the compressed air would overheat and cause burn marks (the diesel effect) or incomplete fills known as short shots.
This ensures the mold halves align with micron-level accuracy throughout thousands of cycles.
Core Components: Leader Pins, Bushings, and Tapered Interlocks.
While leader pins provide basic guidance, high-precision molds require tapered interlocks on the parting line. These locks compensate for any platen deflection in the injection machine, ensuring the cavity and core align perfectly to prevent flash (excess plastic leak) and protect the mold’s delicate edges.

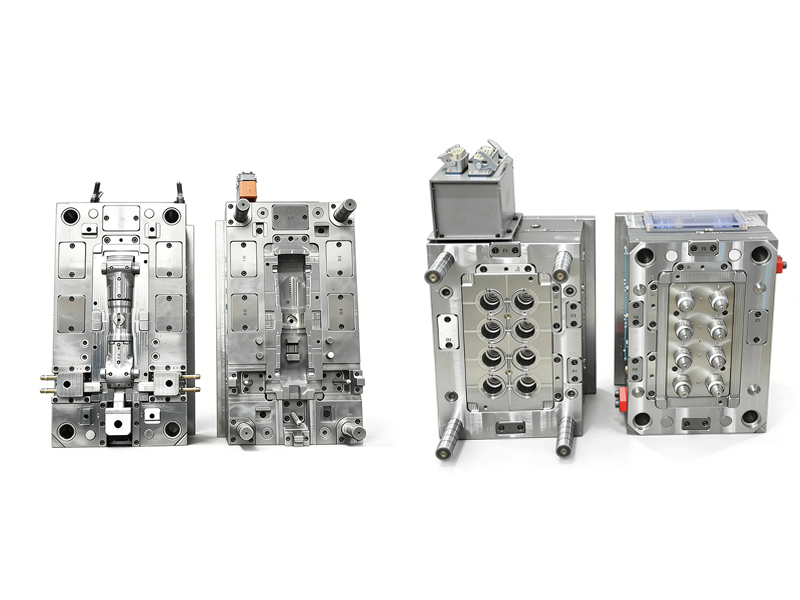

Not all molds are created equal. The design of a mold is dictated by the part’s complexity, the required production volume, and the material being used. Understanding these common types helps in selecting the most cost-effective solution for your project.
The number of "cavities" refers to how many identical parts are produced in a single machine cycle.
Single-Cavity Molds: These produce one part per cycle. They are ideal for large components or low-volume production where keeping initial tooling costs low is a priority.
Multi-Cavity Molds: These feature multiple identical cavities (e.g., 2, 4, 8, or up to 128 cavities). While the initial investment is higher, they drastically reduce the cost per part by increasing output and optimizing machine time.
Family Molds: A family mold contains different cavities for different parts within the same tool.For example, if you are manufacturing a plastic remote control, a family mold could produce the top cover, bottom cover, and battery door in a single shot. This ensures that all components are made from the same batch of material, providing perfect color and texture matching.
This refers to how the molten plastic travels through the mold’s feeding system.
Cold Runner Molds: The plastic in the runner cools and solidifies along with the part. This creates "runner scrap" that must be trimmed off and either recycled or discarded. These molds are simpler to design and maintain.
Hot Runner Molds: These use internally or externally heated manifolds and nozzles to keep the plastic in a molten state within the runners. Because the plastic never solidifies in the runner, there is zero waste, shorter cycle times, and no secondary trimming required. This is the standard for high-volume, high-precision manufacturing.
This classification describes the physical construction and how the mold opens.
Two-Plate Molds: The most common and cost-effective design. It has one parting line where the mold splits to release the part and the runner together.
Three-Plate Molds: These feature an additional plate that allows the runner system to be separated from the part automatically during ejection. This is particularly useful for complex gating requirements or when using cold runners in multi-cavity tools.
The choice between steel and aluminum is a strategic balance of production volume, cost, and lead time. Each material serves a specific phase of the product lifecycle.
Steel is the industry standard for projects requiring high durability and millions of cycles.
Common Materials: P20, H13, 718, and S136 Tool Steels.
Application: These materials withstand the abrasive nature of glass-filled plastics while maintaining micron-level precision over hundreds of thousands of shots. For parts requiring a high-gloss or transparent finish, stainless steels like S136 are utilized to achieve a mirror-polish and prevent surface corrosion over time.
Aluminum is a high-efficiency option for projects prioritizing immediate market entry and lower upfront costs.
Common Materials: 7075-T6 or QC-10 High-Strength Aluminum Alloys.
Application: With a rapid lead time of 3 to 7 days, aluminum molds are significantly faster to manifest than steel. Because aluminum has superior thermal conductivity, it dissipates heat faster, resulting in shorter cooling cycles. While not intended for million-cycle runs, it is the ideal solution for market testing or low-to-medium volume production (typically up to 50,000 units).
Feature | Steel Molds | Aluminum Molds |
Production Volume | 100,000 to 1 Million+ | Up to 50,000 |
Lead Time | 4–8 Weeks | 3–7 Days |
Initial Investment | Higher | Lower |
Cooling Efficiency | Standard | High (Faster Cycles) |
Selecting the ideal injection mold requires striking a balance between production volume, part complexity, and budget. Whether you require aluminum molds for rapid prototyping within 3–7 days, or high-cavitation steel molds for mass production runs reaching into the millions, understanding these core systems and materials ensures a smoother manufacturing process.
Ready to launch your next project? Contact us today for technical consultation and a custom quote for injection molding services.
The lifespan of a mold (known as "Mold Life") is measured in cycles or "shots." It depends primarily on the steel grade:
Aluminum Molds: 5,000 to 50,000 cycles (ideal for prototyping).
Pre-hardened Steel (P20/718H): 300,000 to 500,000 cycles (standard production).
Hardened Steel (H13/S136): 1 million+ cycles (high-volume mass production).
The cost reflects the precision engineering and high-grade materials required. Each mold is a custom-built pressure vessel that must withstand tons of clamping force and extreme temperature shifts while maintaining micron-level accuracy. However, this one-time investment significantly lowers your unit cost during mass production.
Generally, one mold produces one specific part design. However, a Family Mold can be designed with different cavities to produce multiple components of the same assembly (like a top and bottom cover) in a single shot. This ensures material consistency and reduces overall tooling investment.
The two biggest "mold killers" are abrasive resins and poor maintenance. Plastics reinforced with glass fiber act like sandpaper on the steel. Without regular cleaning of the venting system and proper lubrication of moving parts (like sliders and pins), the mold will develop "flash" or mechanical wear much sooner than expected.
Lead times vary based on complexity:
Rapid Prototyping (Aluminum): 3 to 7 days.
Standard Tooling (Steel): 3 to 5 weeks.
High-Precision/Large Molds: 6 to 10 weeks. The process includes DFM analysis, CNC machining, EDM, and a final T1 trial to ensure the samples meet your specifications.
