PEEK injection molding is key for producing high-performance thermoplastic parts in aerospace, medical, automotive, and electronics industries. If you need materials that resist heat, chemicals, and mechanical stress, this guide explains PEEK properties, molding process, design tips, common defects, and practical applications for reliable.
1. What Is PEEK Injection Molding? |
| 2. PEEK Material Properties |
| 3. PEEK Injection Molding Process |
| 4. Key Design Considerations for PEEK Injection Molding |
| 5. Common PEEK Injection Molding Defects and Solutions6. |
| 6. Applications of PEEK Injection Molded Parts |
| 7. Conclusion |
| 8. FAQ |
PEEK injection molding is a specialized process used to produce high-performance thermoplastic components with excellent mechanical, thermal, and chemical resistance. Unlike standard plastic injection molding, PEEK molding requires precise control of temperature, pressure, and cooling due to the polymer’s high melting point, typically around 343°C (649°F).
During the PEEK injection molding process, molten PEEK resin is injected into a carefully designed mold cavity, where it cools and solidifies to form PEEK molded parts. These components, also known as PEEK injection molded components, are widely used in industries such as aerospace, medical, automotive, and electronics, where performance under extreme conditions is critical.
High-temperature PEEK molding allows manufacturers to create complex geometries and tight-tolerance parts that are difficult to achieve with other thermoplastics. Mastering the PEEK injection molding process ensures consistent quality, dimensional stability, and long-term reliability for precision PEEK molded parts.
PEEK (Polyether Ether Ketone) is a high-performance thermoplastic widely used for its outstanding mechanical, thermal, and chemical properties. In PEEK plastic injection molding, understanding these characteristics is essential for producing reliable and high-quality components.
High Thermal Resistance: PEEK can withstand continuous use up to 250°C (482°F), making it ideal for high-temperature PEEK molding.
Excellent Strength and Stiffness: Maintains tensile and compressive strength under load, ensuring stable and durable PEEK molded parts.
Chemical Resistance: Resistant to most acids, bases, and organic solvents, allowing PEEK injection molded components to perform in harsh environments.
Dimensional Stability: Low creep and minimal thermal expansion help achieve precision in PEEK polymer parts manufacturing.
Wear and Abrasion Resistance: Suitable for parts subjected to friction or repeated use.
Electrical Insulation: Reliable for aerospace and electronics applications where insulation is required.
High Processing Temperature: With a melting point around 343°C, precise control of temperature is required to avoid defects.
Higher Material Cost: PEEK is significantly more expensive than common engineering plastics.
Equipment Requirements: High-temperature molds and injection machines are necessary, posing challenges for small-scale or low-volume production.
Shrinkage Considerations: Careful design is needed to account for shrinkage and warpage, or part dimensions may be affected.
This advantages-and-limitations breakdown helps engineers plan for precision PEEK injection molding and produce high-performance PEEK molded parts efficiently.

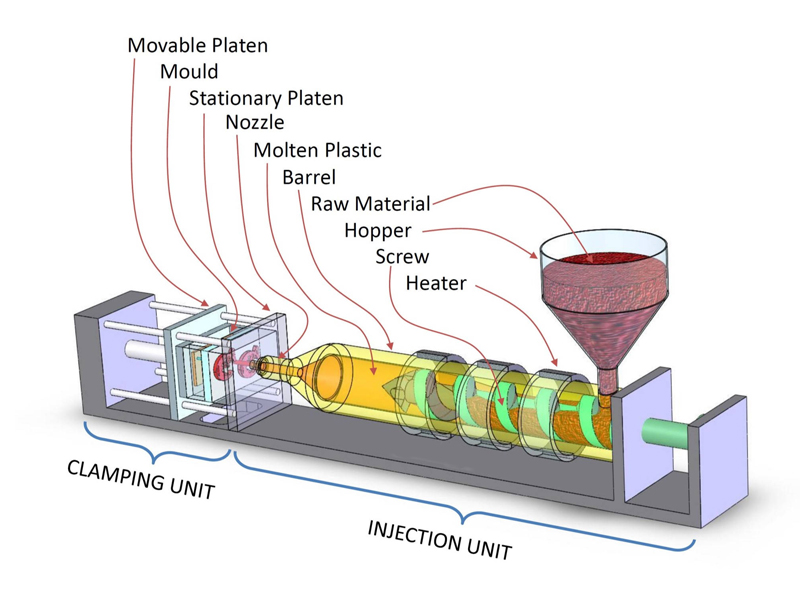

The PEEK injection molding process requires careful control of temperature, pressure, and timing due to the polymer’s high melting point and sensitivity to moisture. Producing high-quality PEEK molded parts depends on a combination of proper material handling, precise machine settings, and mold design.
Key steps in the PEEK injection molding process include:
1. Material Preparation: PEEK resin must be dried thoroughly before processing. Moisture can cause hydrolysis, leading to surface defects or reduced mechanical properties in PEEK injection molded components.
2. Melt Injection: The dried PEEK pellets are heated to a high temperature, typically around 360–400°C (680–750°F), and injected into the mold under high pressure. Precision PEEK injection molding ensures consistent filling, even in thin walls and complex geometries.
3. Mold Filling and Packing: Proper mold filling and packing prevent voids, sink marks, or warpage in PEEK molded parts. Optimized gate design and injection speed are critical for maintaining dimensional accuracy.
4. Cooling: PEEK parts require slower, controlled cooling to avoid internal stresses. The mold temperature is usually maintained at 150–200°C to support uniform solidification and reduce the risk of distortion.
5. Ejection: After cooling, the PEEK injection molded components are carefully ejected. Due to the high stiffness and strength of PEEK, the ejection system must be designed to prevent part damage or deformation.
6. Post-Processing (Optional): Depending on application requirements, PEEK molded parts may undergo annealing or machining to improve dimensional stability and surface finish.
Mastering the PEEK injection molding process is essential for producing high-performance parts consistently. Each step, from drying to ejection, directly impacts the quality and reliability of PEEK injection molded components, making precise control critical in high-temperature PEEK molding operations.
Following proper PEEK design guidelines helps ensure manufacturability, reduce defects, and maintain dimensional accuracy in precision PEEK injection molding. The high-performance nature of PEEK requires designers to consider wall thickness, radii, draft angles, and shrinkage carefully.
For PEEK molded parts, the recommended wall thickness ranges from 1.0 to 3.0 mm. Thanks to PEEK’s excellent mechanical strength, relatively thin walls can be used without compromising part integrity. While uniform wall thickness is preferred to reduce stress and warpage, variations are acceptable as long as transitions are gradual. This ensures optimal flow during the PEEK injection molding process and consistent quality in PEEK injection molded components.
Avoid sharp corners and edges, as they increase tooling costs and create stress concentrations that can weaken PEEK injection molded parts. A practical rule of thumb is to maintain a minimum radius equal to 25% of the wall thickness. Proper radii improve flow, reduce the risk of weld lines, and enhance overall part durability in high-temperature PEEK molding.
Draft angles facilitate smooth ejection of parts from the mold. For PEEK polymer parts manufacturing, a draft angle between 0.5° and 2° is recommended. Parts with glossy or smooth surfaces generally require less draft, while textured surfaces benefit from slightly larger angles to prevent sticking and surface defects.
PEEK shrinks as it cools, and designers must account for this in mold construction. Typical shrinkage rates are:
Unfilled PEEK: 1.0–1.8%
Glass-filled PEEK: up to 0.9% depending on wall thickness and flow direction
Tolerances for precision PEEK injection molding can be as tight as ±0.05%, but achieving this requires careful control of mold temperature, injection parameters, and post-molding handling. Proper consideration of shrinkage ensures dimensional accuracy and repeatability in PEEK molded parts.
Even with proper design, PEEK injection molding can encounter defects if process parameters, mold design, or material handling are not optimized. Here are the most common issues and how you can address them effectively.
This usually occurs when cooling is uneven, wall thickness changes abruptly, or gates are poorly placed. To prevent warpage, you should maintain consistent wall thickness across your part and avoid sudden transitions. Using Moldflow analysis can help you identify potential problem areas before production. Additionally, optimize your gate positions to ensure balanced material flow and carefully control mold and melt temperatures to prevent differential cooling.
Sink marks appear when thick sections of a part cool slower than thin areas, leaving depressions on the surface. You can reduce these by minimizing abrupt wall thickness changes in your design, slightly increasing packing pressure in thicker regions, and extending cooling time for uniform solidification. For very thick sections, consider adding ribs or hollowing them out to maintain structural strength while avoiding surface defects.

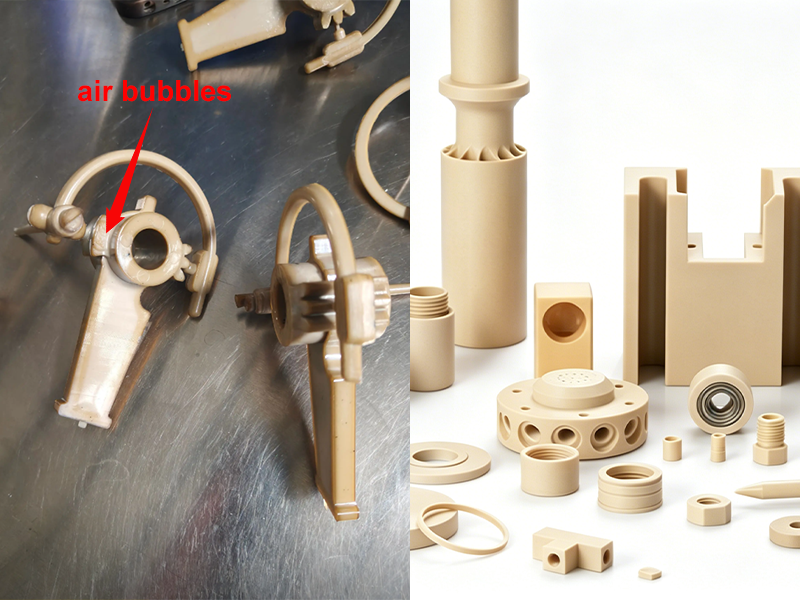

These defects happen when air becomes trapped in deep cavities or complex geometries during filling. To address this, you should include venting channels or vent pins at high points in the mold and adjust your injection speed to allow air to escape smoothly. For multi-gate designs, ensure synchronized flow to prevent air pockets. Also, always make sure your PEEK resin is properly dried, as residual moisture can worsen trapped air issues.
Weld lines form where two flow fronts meet, creating weak spots or visible lines on the part. You can minimize these by carefully selecting gate locations to reduce meeting points, slightly increasing melt temperature to improve flow, and adjusting injection speed or holding pressure for glass-filled PEEK grades. Moldflow simulation is a useful tool to predict weld line positions and optimize your process before production.
These occur due to uneven mold temperatures, rapid cooling, or moisture in the resin. To prevent them, you should dry the PEEK thoroughly at the recommended temperature, maintain stable mold temperature throughout the cycle, and adjust injection speed and pressure for smooth, even flow. For cosmetic surfaces, polishing the mold cavity and slightly slowing the cooling can improve surface finish.
By following these practical strategies, you can minimize defects in precision PEEK injection molding and consistently produce high-quality PEEK molded parts that meet dimensional and performance standards across aerospace, medical, automotive, and industrial applications.

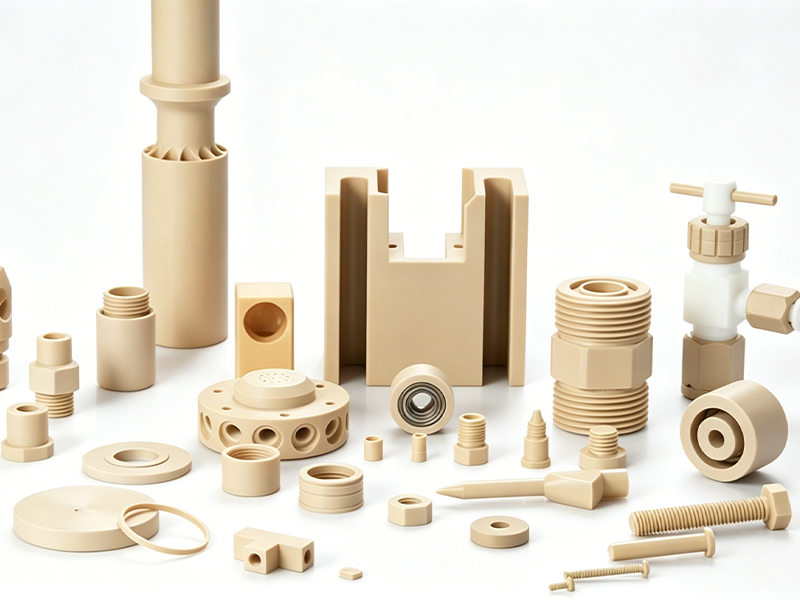

PEEK’s combination of high thermal stability, chemical resistance, and mechanical strength makes it an ideal material for demanding applications across multiple industries. Understanding these applications helps engineers design PEEK injection molded components that meet real-world requirements.
PEEK molded parts are widely used in aerospace for components such as connectors, clips, and brackets. Their ability to withstand high temperatures and maintain mechanical strength ensures reliable performance in critical systems. High-temperature PEEK molding enables the production of lightweight parts without sacrificing durability, which is essential for aircraft weight reduction.
In medical applications, PEEK injection molded components are used for surgical instruments, dental implants, and sterilizable housings. PEEK’s chemical resistance and biocompatibility make it suitable for repeated sterilization without degrading material properties. Precision PEEK injection molding ensures tight tolerances, critical for implantable or surgical components.
PEEK polymer parts manufacturing allows for durable under-the-hood components, such as pump housings, gears, and sensor brackets. PEEK molded parts resist heat, oils, and chemicals, extending component lifespan in high-temperature automotive environments.

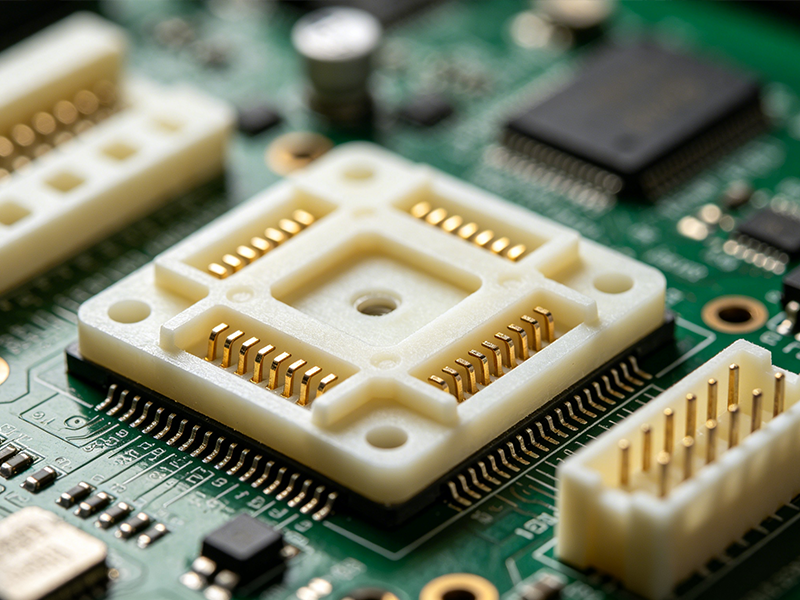

PEEK injection molded components serve as insulating housings, circuit board supports, and connectors. Its electrical insulation properties and dimensional stability make it ideal for precision components that must maintain performance over long-term operation.
Industrial machinery benefits from PEEK molded parts in applications such as valve components, seals, and wear-resistant bearings. High-temperature PEEK molding ensures these components maintain strength and resistance to wear under continuous mechanical stress.
By leveraging these PEEK injection molding applications, manufacturers can produce PEEK molded parts and PEEK injection molded components that combine high performance, reliability, and precision across diverse industries.
At Alpine Mold, we have extensive experience in PEEK plastic injection molding, delivering precision PEEK injection molded components and PEEK polymer parts for global clients. Our team applies advanced process control, mold design expertise, and high-quality materials to ensure each PEEK molded part meets strict performance and dimensional requirements. Whether for prototyping or mass production, Alpine Mold provides reliable solutions for high-performance PEEK injection molding projects.
The manufacturing cycle for a PEEK injection mold depends on complexity, cavity count, and surface finish requirements. For standard molds, it usually takes 4–6 weeks, while high-precision or multi-cavity molds may take longer. Proper mold design and advanced CNC and EDM machining help shorten production time for PEEK injection molded components.
A well-designed and maintained PEEK mold can last 50,000 to 1000,000 shots, depending on steel grade, cooling efficiency, and maintenance. Using high-quality mold materials and following precise PEEK injection molding process parameters ensures longer mold life and consistent quality of PEEK molded parts.
8.3 How long does the injection molding cycle take for PEEK parts?
Cycle time for PEEK injection molded parts varies based on part size, wall thickness, and mold temperature. Typical cycles range from 60–180 seconds for small to medium components. High-temperature PEEK molding requires controlled cooling to minimize warpage, which can slightly extend the cycle time compared to standard plastics.
Common PEEK molding defects include warpage, sink marks, voids, weld lines, and surface blemishes. Most issues can be addressed through proper mold design, controlled injection parameters, and careful material handling.
