PE Injection Molding Process Guide

PE injection molding Process Guide

1.Introduction

2.What is Polyethylene

3.Properties of Polyethylene in Injection Molding

4.Types of Polyethylene Used in Injection Molding

5.PE Injection Molding Process & Key Parameters

6.Mold Design Considerations for PE

7.Advantages & Applications of PE Injection Molding

8.Conclusion

1. What is Polyethylene

Polyethylene (PE) is one of the most widely used thermoplastic materials in injection molding manufacturing, valued for its excellent balance of flexibility, chemical resistance, and cost efficiency. As a lightweight polymer derived from ethylene monomers, PE exhibits superior mechanical strength and processability, making it ideal for both simple and complex injection molded plastic parts.

There are several types of polyethylene used in PE injection molding, primarily LDPE (Low-Density Polyethylene), HDPE (High-Density Polyethylene), and LLDPE (Linear Low-Density Polyethylene). LDPE is soft, flexible, and impact-resistant, making it ideal for thin-walled or flexible components. HDPE, on the other hand, offers rigidity and high tensile strength, suitable for structural products that require durability. LLDPE provides a balance between flexibility and strength, offering better stress crack resistance and toughness compared to LDPE. These variations allow engineers to select the most appropriate material for each project, depending on the part’s mechanical requirements and operating conditions.

PE’s widespread use in plastic injection molding stems from its versatility and easy processing characteristics. It melts uniformly, flows smoothly into complex mold geometries, and solidifies without significant shrinkage or warpage. Compared with other thermoplastics such as polypropylene (PP) and acrylonitrile butadiene styrene (ABS), polyethylene offers an excellent combination of durability, toughness, and affordability, making it the preferred choice for large-volume production of functional plastic parts.

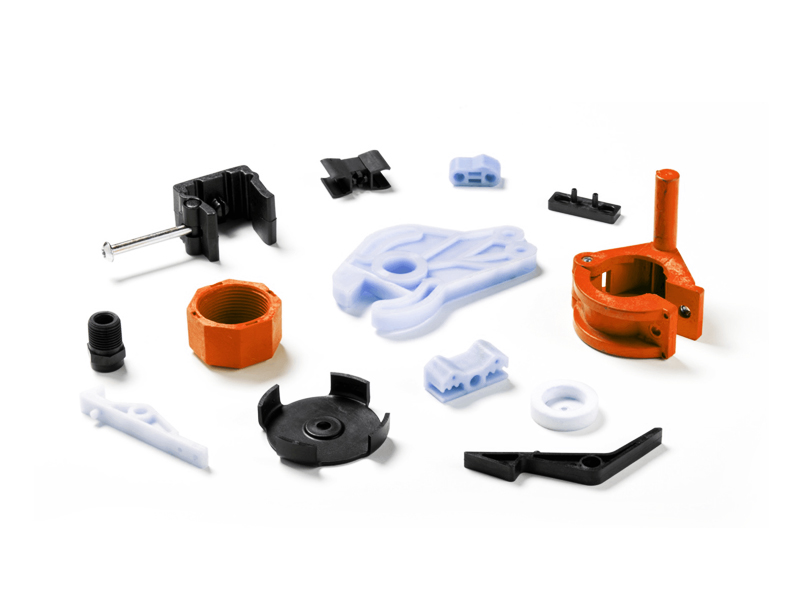

Thanks to its balance of performance and economy, PE injection molded products are found in nearly every industry. Common applications include bottle caps and closures, containers and packaging, pipe fittings and plumbing components, cable insulation, and automotive interior parts. The ability to adapt PE to various shapes, surface finishes, and strength levels has made it one of the most important materials in modern injection molding production.

2. Properties of Polyethylene in Injection Molding

Polyethylene (PE) demonstrates a unique combination of mechanical, thermal, and chemical properties that make it highly suitable for injection molding applications. Its physical characteristics vary depending on the molecular weight and branching structure, which differentiate LDPE, HDPE, and LLDPE in performance and process behavior.

From a mechanical standpoint, PE offers excellent impact strength, flexibility, and tensile durability, even at low temperatures. HDPE injection molding provides rigidity and structural integrity for load-bearing components, while LDPE and LLDPE are chosen for their superior ductility and softness, ideal for thin-wall packaging or flexible fittings. This balance of toughness and elasticity allows engineers to design products that can withstand repeated stress without cracking or deformation.

In terms of chemical resistance, polyethylene stands out among thermoplastics. It is virtually unaffected by acids, bases, and most solvents, making it the preferred material for chemical containers, pipes, and insulation components. Unlike materials such as ABS or polycarbonate, PE does not absorb moisture, ensuring stable molding precision and dimensional accuracy even in humid environments.

Thermally, PE exhibits a relatively low melting temperature range (approximately 110–135°C for HDPE and 105–115°C for LDPE). This contributes to its excellent flow characteristics during the injection molding process, allowing easy filling of complex mold geometries and efficient cycle times. However, its relatively high shrinkage rate (typically 1.5–3%) requires precise mold design optimization to achieve consistent part dimensions.

Electrical properties are another key advantage — polyethylene is an excellent electrical insulator, making it highly suitable for wire coatings, cable jackets, and electronic enclosures. Its low dielectric loss and strong insulation capabilities ensure reliable performance in demanding applications.

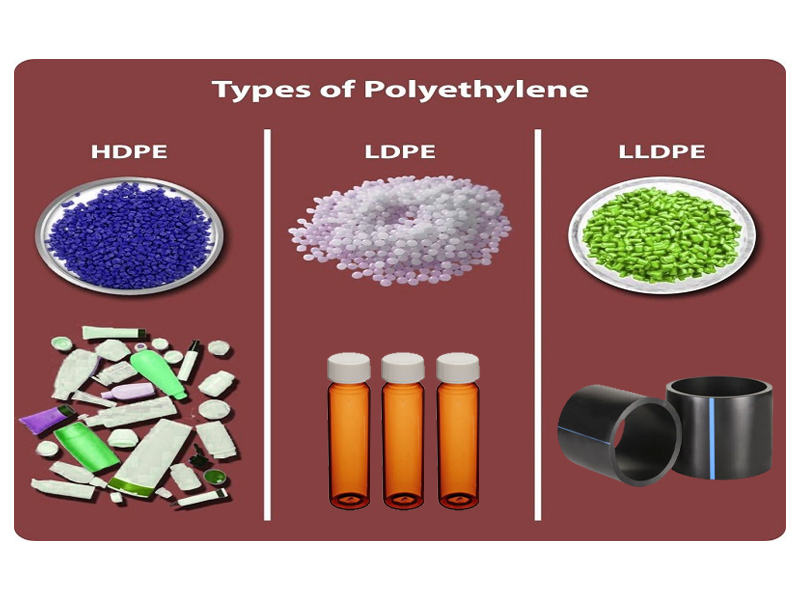

3. Types of Polyethylene Used in Injection Molding

Polyethylene (PE) comes in several variations, each with its own molecular structure and mechanical behavior that influence how it performs during the injection molding process. The three most common types — LDPE, HDPE, and LLDPE — provide molders with a wide range of processing options and design flexibility. Understanding their individual characteristics is essential for selecting the right grade for a specific plastic injection molding project.

3.1 Low-Density Polyethylene (LDPE)

LDPE injection molding is widely used for producing flexible, lightweight components. LDPE has a high level of branching in its molecular structure, resulting in low density and excellent ductility. It offers good impact resistance, optical clarity, and chemical stability, making it ideal for thin-walled products such as flexible containers, squeeze bottles, and seals. However, due to its softness and lower tensile strength, LDPE is not suitable for applications that require high rigidity or heat resistance.

From a processing perspective, LDPE has excellent flow characteristics, allowing smooth filling of complex molds even at low injection pressures. This property helps reduce tool wear and enables faster production cycles — a major advantage for high-volume manufacturing.

3.2 High-Density Polyethylene (HDPE)

HDPE injection molding is preferred for producing strong, rigid parts that must withstand mechanical stress. HDPE has a linear molecular structure with minimal branching, giving it higher density and greater tensile strength compared to LDPE. It also exhibits superior resistance to chemicals, moisture, and UV exposure, making it ideal for industrial containers, automotive fuel tanks, pipe fittings, and household appliance components.

HDPE’s relatively low melt flow index (MFI) means it requires higher injection pressure and temperature during molding, but the resulting parts offer exceptional stiffness and dimensional stability. Its low permeability to moisture and gases also makes it the material of choice for packaging and chemical storage products.

3.3 Linear Low-Density Polyethylene (LLDPE)

LLDPE injection molding bridges the gap between LDPE and HDPE, offering a combination of toughness, flexibility, and strength. Its linear molecular chain with short, controlled branches provides better stress-crack resistance and higher tensile performance than LDPE, while maintaining good flexibility. LLDPE is widely used for components that require impact resistance and durability, such as cable jackets, stretch films, and mechanical protective covers.

In terms of processability, LLDPE behaves similarly to LDPE but exhibits slightly higher viscosity. Molders often adjust melt temperature, cooling time, and packing pressure to optimize flow and minimize warpage in complex mold geometries.

4. PE Injection Molding Process & Key Parameters

The PE injection molding process follows the same fundamental principles as other thermoplastic molding methods but requires specific adjustments to achieve optimal results due to polyethylene’s high shrinkage rate and variable viscosity. Understanding the correct process sequence and controlling the key molding parameters are crucial for ensuring part quality, dimensional accuracy, and production efficiency.

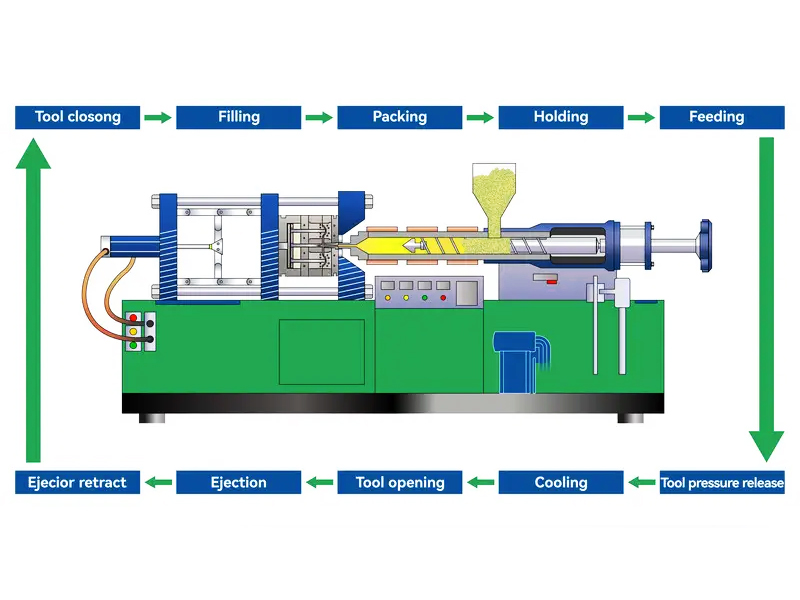

4.1 The PE Injection Molding Process

The process begins with material preparation, where polyethylene pellets are fed into the injection molding machine. Since PE has very low moisture absorption, drying is usually unnecessary, which simplifies the production workflow and reduces energy consumption. The pellets are heated inside the barrel until they reach the proper melt temperature, typically between 180°C and 260°C, depending on the PE grade.

Once the molten polymer reaches a uniform viscosity, it is injected into the mold cavity under controlled injection pressure and speed. Proper control of these parameters ensures that the molten PE fills even complex geometries without voids or flow marks. During the cooling phase, the plastic solidifies and takes the final shape of the mold cavity. The cooling rate directly affects the shrinkage and warpage of the final part — slower cooling often results in better dimensional stability.

After cooling, the mold opens, and the part is ejected using ejector pins or air release systems. Post-ejection, the molded component may undergo visual inspection, dimensional measurement, or stress testing to verify its quality and conformance to specifications.

4.2 Key Parameters for PE Injection Molding

Controlling process parameters is essential to maintain consistent part quality. The following are the most critical variables that engineers must monitor during production:

Parameter	Recommended Range	Description & Notes
Melt Temperature	180–260°C	Determines material flow and fusion. Lower for LDPE, higher for HDPE.
Mold Temperature	20–70°C	Affects shrinkage, cycle time, and surface finish.
Injection Pressure	500–1000 bar	Must be high enough to fill cavities but low enough to prevent flashing.
Injection Speed	Moderate–High	Optimizes part packing and reduces flow marks.
Cooling Time	10–30 seconds	Depends on wall thickness and mold temperature.
Back Pressure	5–15 bar	Stabilizes melt density and improves part consistency.

5. Mold Design Considerations for PE

Designing molds for PE injection molding requires a deep understanding of the material’s flow characteristics, shrinkage behavior, and cooling requirements. Because polyethylene (particularly HDPE and LDPE) tends to exhibit high shrinkage and excellent flowability, mold designers must carefully balance cavity layout, venting, and temperature control to ensure part accuracy and dimensional stability.

5.1 Gate Design

Gate selection plays a crucial role in achieving uniform flow and minimizing stress concentration. For polyethylene molds, submarine gates, pin gates, or edge gates are most commonly used.A well-positioned gate allows molten PE to fill the cavity smoothly and evenly, preventing weld lines and voids. The gate size should be large enough to handle PE’s relatively high melt viscosity while ensuring proper packing pressure to reduce shrinkage. Multi-cavity molds may require balanced runner systems to maintain consistent filling across all cavities.

5.2 Venting and Flow Optimization

Because PE materials are highly fluid, proper venting is critical to avoid gas entrapment, which can lead to burn marks or incomplete filling. Vents of 0.02–0.04 mm depth are typically recommended for HDPE and LDPE injection molds.Flow simulation tools like Moldflow analysis can be used to evaluate how the molten PE travels within the mold cavity, helping engineers optimize gate locations, wall thickness, and venting channels before steel cutting begins. This ensures balanced filling and uniform cooling, improving both surface finish and part quality.

5.3 Cooling System Design

PE’s high crystallinity means it requires precise cooling system design to prevent warpage and dimensional variation. Uniform cooling across all areas of the mold ensures that parts solidify evenly and release smoothly during ejection.Water channels should be placed as close as possible to the cavity surface without compromising structural integrity. For complex geometries, baffle or spiral cooling systems can be implemented to maintain temperature consistency throughout the mold.

5.4 Mold Steel Selection

Material selection for the mold depends on the production volume and surface requirements.

For prototype or low-volume production, aluminum or pre-hardened steels like P20 offer good machinability and fast turnaround.

• For high-volume production, hardened tool steels such as H13, 1.2316, or S136 are recommended due to their superior wear resistance and thermal stability.

• These steels also provide excellent corrosion resistance when molding PE materials containing additives or colorants.

6. Advantages & Applications of PE Injection Molding

Polyethylene (PE) is one of the most versatile and widely used materials in plastic injection molding manufacturing. Its combination of mechanical durability, chemical resistance, and cost-effectiveness makes it an excellent choice for a broad range of industrial and consumer applications. Whether used for mass-produced packaging or precision-engineered technical parts, PE injection molding offers distinct performance and economic advantages.

6.1 Key Advantages of PE Injection Molding

6.1.1 Excellent Mechanical Strength and Flexibility

PE demonstrates outstanding toughness and impact resistance, even at low temperatures. Components made through HDPE injection molding can withstand heavy mechanical stress, while LDPE and LLDPE provide flexibility for applications that require bending or deformation without cracking. This dual property makes polyethylene ideal for both rigid and flexible components across various industries.

6.1.2 Superior Chemical and Moisture Resistance

Polyethylene resists most acids, bases, and solvents, ensuring long-term stability in aggressive chemical environments. Its non-hygroscopic nature prevents water absorption, allowing parts to retain dimensional accuracy even in humid or wet conditions. This is why PE is the preferred choice for pipe fittings, chemical containers, and cable insulation.

6.1.3 Lightweight and Cost-Effective

PE offers a high strength-to-weight ratio, providing durable performance without unnecessary material weight. Combined with its relatively low raw material cost and short cycle times in injection molding production, polyethylene allows manufacturers to achieve optimal cost efficiency in large-scale manufacturing.

6.1.4 Recyclable and Environmentally Friendly

Polyethylene is one of the most recyclable thermoplastics available today. Scrap and regrind materials can often be reused in non-critical applications, reducing waste and promoting sustainable manufacturing. This eco-friendly characteristic makes PE injection molding an excellent choice for companies focused on circular economy and environmental responsibility.

6.1.5 Easy Processing and High Productivity

PE’s excellent flowability and low melting temperature enable smooth filling in molds with complex geometries. It supports high-speed production with minimal cycle times and reduced tooling wear. Additionally, its wide processing window provides flexibility in temperature and pressure control, reducing the risk of defects such as warpage or flashing.

6.2 Applications of PE Injection Molded Parts

The versatility of polyethylene injection molding allows it to serve numerous industries, from consumer goods to automotive and industrial manufacturing. Some of the most common applications include:

• Packaging and Containers:Caps, lids, bottles, and closures that require durability, flexibility, and chemical resistance.

• Industrial Components: Pipe fittings, valves, and chemical tanks designed to handle corrosive materials.

• Electrical and Electronics: Cable insulation, wire coatings, and protective housings that benefit from PE’s strong dielectric properties.

• Automotive Parts: Fuel tanks, fluid reservoirs, and lightweight interior components for improved energy efficiency.

• Consumer Products: Household goods, toys, kitchenware, and sports equipment requiring smooth finishes and long-term usability.

Because of its adaptability, PE injection molding continues to be a cornerstone of modern plastic manufacturing, meeting the diverse needs of global industries that demand reliability, precision, and cost-efficiency.

7. Conclusion

PE injection molding continues to play a vital role in global plastic manufacturing, offering an unbeatable combination of durability, chemical resistance, and cost efficiency. Whether for industrial components, packaging products, or precision-engineered parts, polyethylene remains one of the most reliable thermoplastics for large-scale production.

By understanding the material’s unique behavior and optimizing the injection molding process parameters, manufacturers can achieve superior part quality, longer mold life, and reduced production costs. From selecting the right PE grade to designing efficient mold structures, every decision contributes to achieving consistency, performance, and sustainability.

At Alpine Mold, we specialize in designing and manufacturing custom PE injection molds with over 23 years of engineering expertise. Our team utilizes advanced DFM analysis, Moldflow simulation, and precision tooling standards (HASCO, DME, LKM) to ensure every mold meets the highest global standards of accuracy and reliability.

Contact us today to discuss your project and get a free DFM consultation and quotation.
