Insert Molding Design Guide: Enhancing Manufacturing Efficiency

Table of Contents

1. Introduction

2. What is Insert Molding

3. The Insert Molding Process

4. Design Considerations for Insert Molding

5. Materials for Insert Molding

6. Conclusion

1. Introduction

In the world of manufacturing, insert molding has emerged as a versatile and efficient technique for creating highly functional components. By combining plastic parts with threaded metal inserts, engineers and product designers can achieve superior mechanical properties and streamline the assembly process. In this blog, we will explore the concept of insert molding, delve into the key processes involved, and provide comprehensive design guidelines to help you maximize the benefits of this innovative manufacturing approach.

2. What is Insert Molding

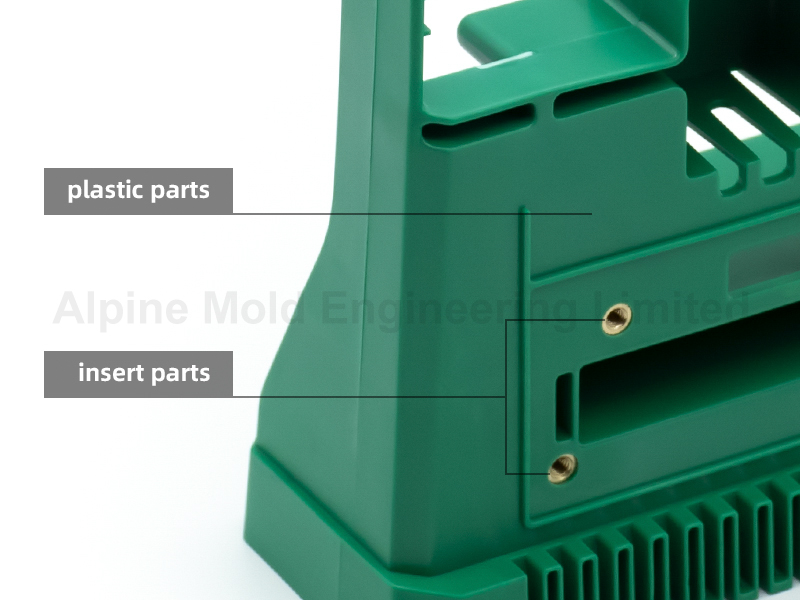

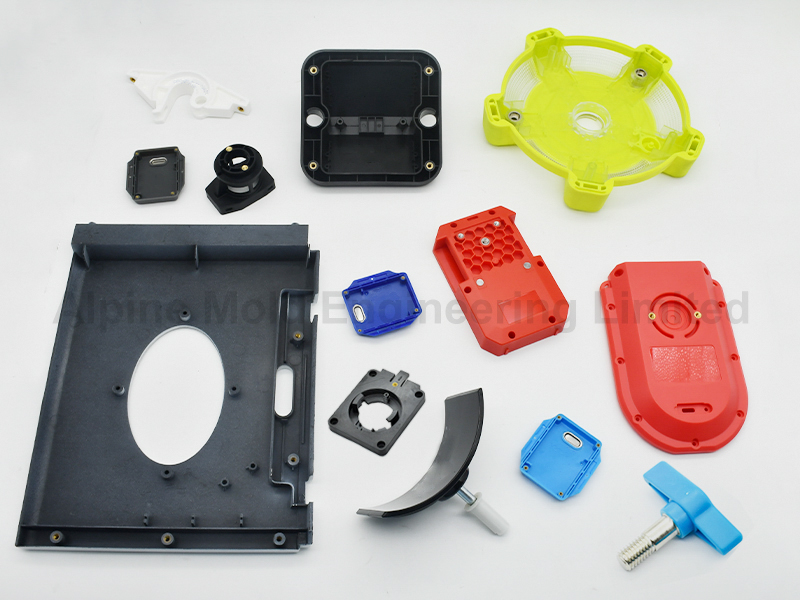

Insert molding shares similarities with the widely used technique of overmolding. It involves the integration of threaded inserts into plastic components, providing enhanced strength and functionality. Instead of relying on separate assembly steps, insert molding allows for the direct and efficient fastening of materials. This technique finds applications across various industries, from automotive and aerospace to consumer products and medical devices.

3. The Insert Molding Process

The insert molding process typically follows these steps:

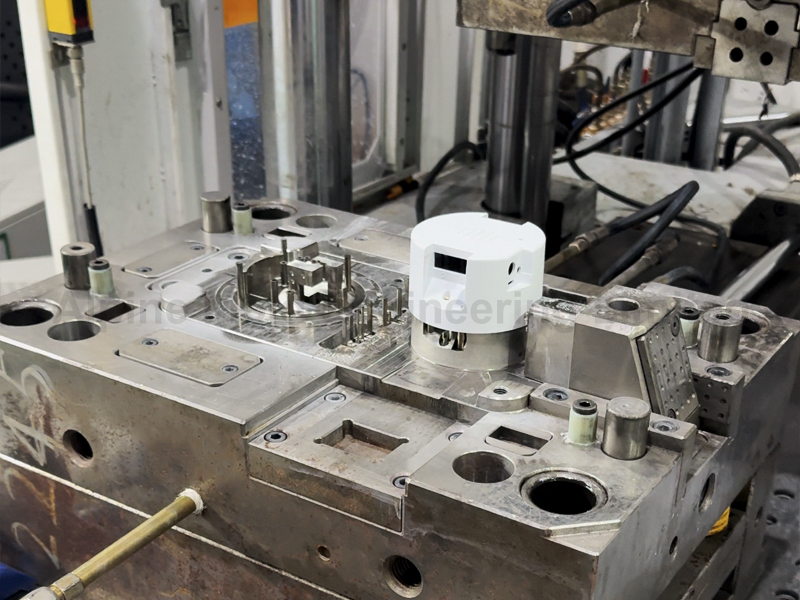

1. Preparation: The inserts, which can be made of materials such as metal, ceramic, or plastic, are prepared and placed into the mold cavity or onto the core side of the mold.

2. Mold Closure: The mold halves are closed, securing the inserts in their designated positions.

3. Injection: Molten plastic material is injected into the mold cavity, surrounding the inserts and filling the remaining space in the mold.

4. Cooling and Solidification: The injected plastic material is cooled and allowed to solidify, adhering to and encapsulating the inserts.

5. Mold Opening: The mold is opened, and the finished part, now incorporating the inserts, is ejected.

2024-07-04

4. Design Considerations for Insert Molding

When designing for insert molding, several key factors should be taken into account to optimize the process and achieve the desired results:

1. Part Size and Depth: The size and depth of the parts influence the molding process duration. Complex parts may require the creation of new molds, leading to increased manufacturing time and costs. Rounded knurling on inserts is recommended to avoid sharp corners that could create stress points.

2. Production Volume: The anticipated volume of plastic molded parts determines the choice between automated and manual loading. Automated loading is faster and more precise, but it requires advanced CNC machines, which may increase costs. Careful analysis of production requirements is necessary to determine the most cost-effective loading method.

3. Product Application: Consider the specific application of the product when selecting materials for insert molding. Although insert molding is compatible with a wide range of materials, it is essential to identify the most suitable material for each application to ensure optimal performance.

4. Project Budget: Cost considerations play a significant role in designing for insert molding. The budget should encompass the cost of inserts and the expenses associated with engaging a manufacturing partner. Additionally, adding inserts may increase the overall cost of a molded part.

To achieve optimal results with insert molding, adhere to the following design guidelines:

design guidelines	design guidelines

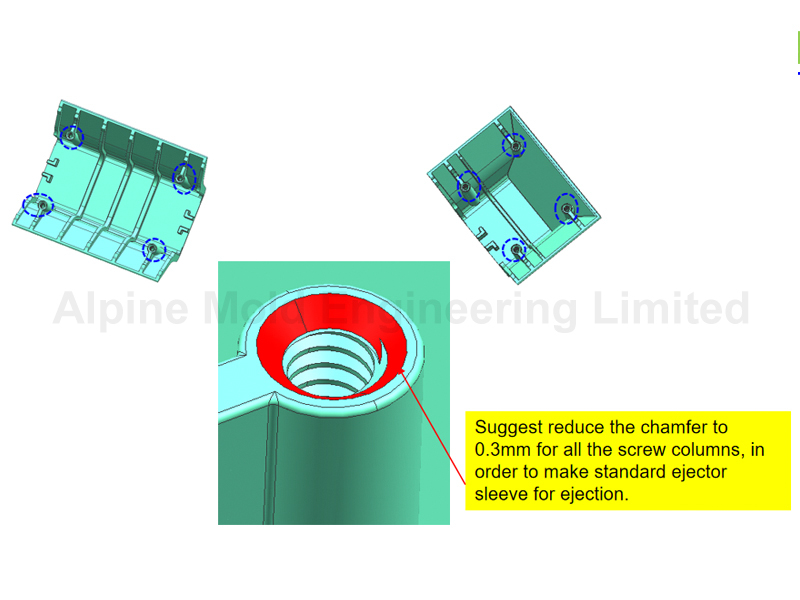

1. Avoid Sharp Corners: Sharp corners can introduce stress points in the components, potentially leading to failure. Instead, aim for rounded corners with a minimum radius of 0.5mm (0.02 inches). This facilitates the smooth flow of material through molds, reducing stress concentrations and production costs.

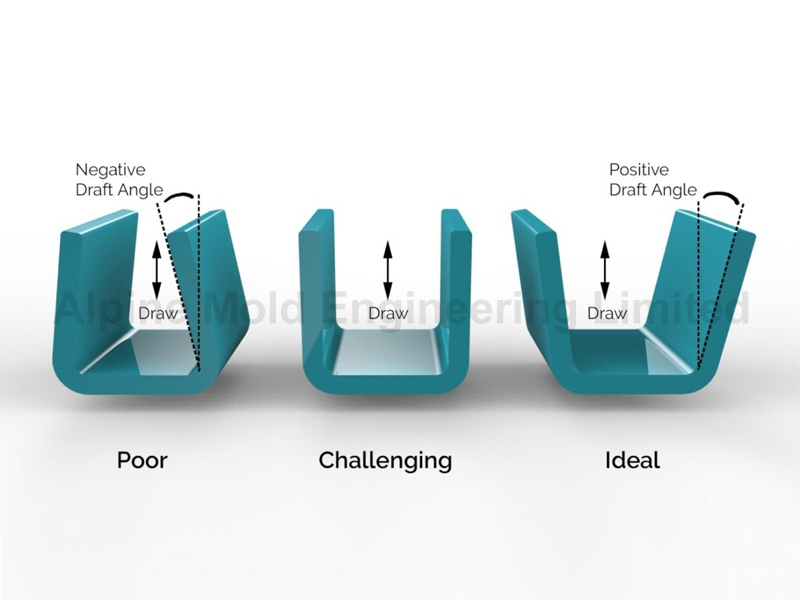

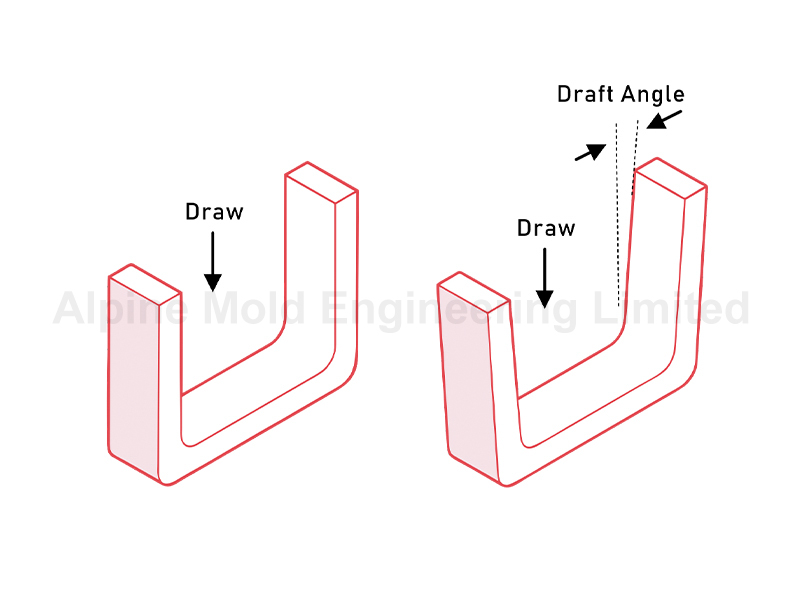

2. Provide Ample Draft: Incorporate draft angles in your design to facilitate easy ejection of the molded part from the mold. Aim for a draft angle of at least 1 to 2 degrees on all vertical surfaces. This helps prevent damage to the part and ensures smooth production.

Avoid Sharp Corners	Provide Ample Draft

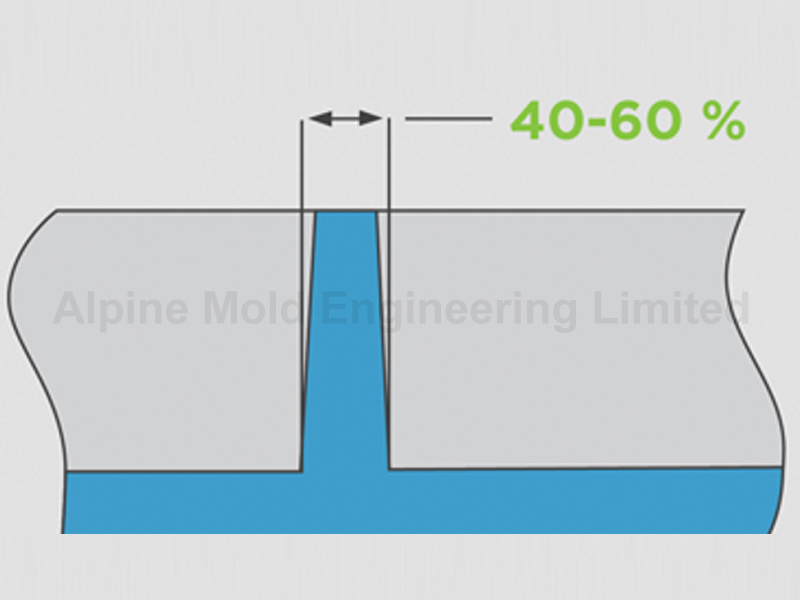

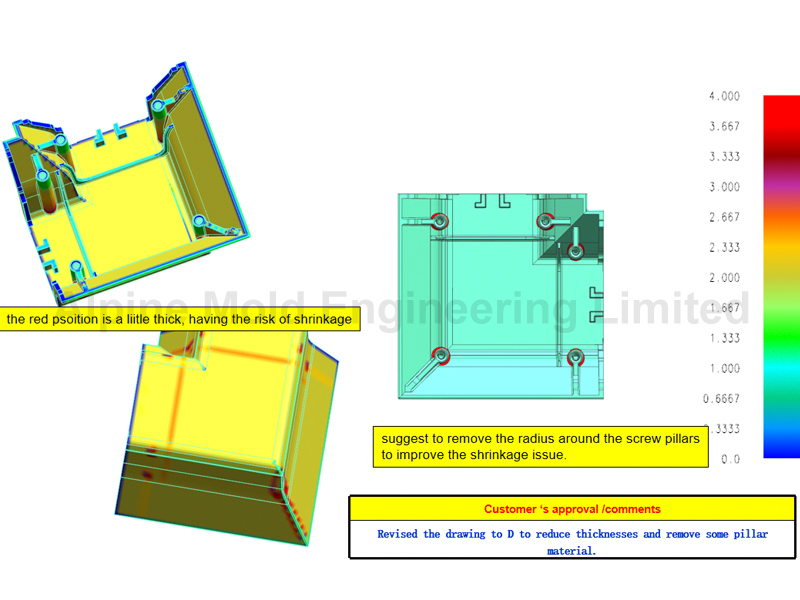

3. Optimize Wall Thickness: Maintain uniform wall thickness throughout the part to promote consistent cooling and prevent warping or sink marks. Aim for a wall thickness between 1mm and 4mm (0.04 to 0.16 inches) for most applications. Avoid abrupt transitions between thick and thin sections as they can lead to uneven shrinkage.

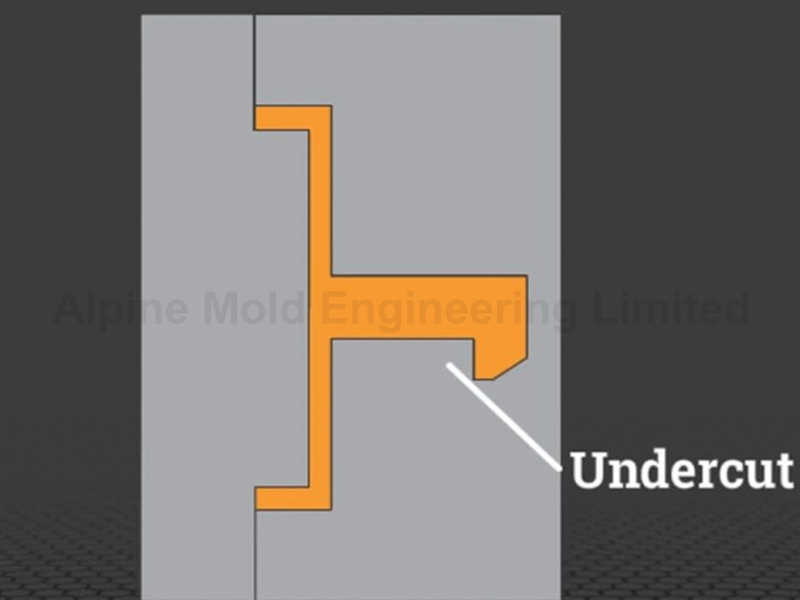

4. Consider Undercuts and Threads: If your design requires undercuts or threads, plan for appropriate mold features to accommodate them. This may involve incorporating side actions or unscrewing mechanisms into the mold design. Ensure that the mold can effectively capture and release the inserts without causing damage to the part.

Optimize Wall Thickness	Consider Undercuts and Threads

5. Select Suitable Insert Materials: Choose inserts made from materials with good adhesion properties to ensure strong bonding with the plastic. Consider factors such as thermal expansion, compatibility with the molding material, and desired mechanical properties. Common insert materials include stainless steel, brass, or regular steel. Ensure that the insert material is compatible with the plastic material to prevent issues such as galvanic corrosion.

5. Materials for Insert Molding

When it comes to insert molding, the choice of materials for both the plastic component and the insert plays a crucial role in achieving successful results. Here are some commonly used materials for insert molding:

Plastic Materials:

Thermoplastics: Thermoplastics are widely used in insert molding due to their versatility, ease of processing, and excellent mechanical properties. Common thermoplastics used for insert molding include ABS, PC (polycarbonate), PA (nylon), PBT (polybutylene terephthalate), and PP (polypropylene). These materials offer a balance of strength, durability, and cost-effectiveness.

Thermosetting Plastics: Thermosetting plastics, such as phenolic resins and epoxy resins, are also suitable for insert molding applications. These materials provide excellent dimensional stability, heat resistance, and electrical insulation properties.

Insert Materials:

Stainless Steel: Stainless steel inserts are widely used in insert molding due to their corrosion resistance, strength, and durability. They are suitable for applications that require high mechanical strength and resistance to harsh environments.

Brass: Brass inserts are commonly used in insert molding due to their excellent thermal conductivity, electrical conductivity, and machinability. They are often chosen for applications that require good electrical conductivity or for decorative purposes.

Regular Steel: Regular steel inserts, such as carbon steel, are cost-effective options for insert molding. They offer good strength and are suitable for applications with less demanding requirements.

Other Materials: Depending on the specific application, other materials like aluminum, titanium, and engineered plastics can be used as inserts. These materials provide unique properties such as lightweight, high strength-to-weight ratio, or specific chemical resistance.

6. Conclusion

Insert molding offers a powerful solution for creating durable and highly functional components by combining plastic parts with threaded metal inserts. By following the design guidelines outlined above, you can optimize the insert molding process and achieve efficient manufacturing with superior results. As you embark on your insert molding journey, keep in mind the specific requirements of your application and leverage the expertise of manufacturing partners like Alpine Mold to ensure a successful outcome for insert molding.
