Injection Molding Vs Extrusion Molding

Plastic products are ubiquitous in modern manufacturing; from household appliances to automotive components and medical devices, plastic molding technologies underpin the development of virtually every industry. Among the myriad molding processes available, injection molding and extrusion are the two most common methods. While both techniques are capable of transforming raw plastic materials into finished products, they differ significantly in terms of applicable product shapes, production efficiency, precision, and cost. Understanding the distinctions between these two processes is crucial for selecting the appropriate manufacturing method, optimizing costs, and enhancing product quality.

Table of Contents:

1. What is Injection Molding?

2. What is Extrusion Molding?

3. Key Differences: Injection Molding vs. Extrusion

4. How to Choose the Right Process

5. Summary

6. FAQ

1. What is Injection Molding?

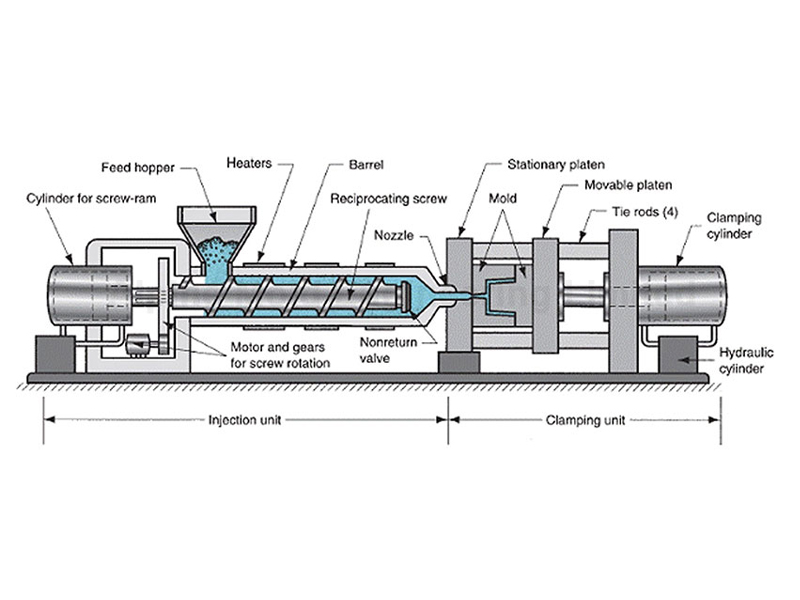

1.1 Definition of Injection Molding

Injection molding is a manufacturing process in which thermoplastic or thermosetting plastics are heated until molten, then injected under high pressure into a precision mold cavity, where they cool, solidify, and are subsequently ejected. This process enables the creation of parts with complex geometries and high dimensional accuracy, making it ideal for mass production. The injection molding process allows for the realization of intricate features—such as fine grooves, threads, and sliders—and can also facilitate functional or decorative part designs through techniques like insert molding or multi-shot (two-color) injection molding.

1.2 Advantages and Disadvantages of Injection Molding

1.2.1 Advantages of Injection Molding:

• High Precision and Consistency: Injection molding allows for dimensional control down to the micron level; the size and shape of every part within a production batch remain virtually identical, making it suitable for products with stringent precision requirements.

• Strong Capability for Complex Structures: It enables the production of parts featuring grooves, threads, sliders, multi-cavity designs, or complex internal structures, thereby satisfying both functional and aesthetic requirements.

• Ideal for Mass Production: Although the initial investment in molds is relatively high, the cost per individual part is low, making the process highly cost-effective for medium-to-large scale production runs.

• Material Versatility: The process supports a wide range of thermoplastic and thermosetting materials, and can accommodate multi-shot (two-color) or multi-material molding applications.

• Diverse Surface Finishes: It allows for the creation of various surface effects—such as smooth, high-gloss, or textured finishes—to meet the specific aesthetic requirements of different applications.

1.2.2 Disadvantages of Injection Molding:

• High Mold Costs: High-precision injection molds require significant initial investment, and their development cycles are relatively long.

• High Equipment and Process Requirements: The process demands high-precision injection molding machines, sophisticated temperature control systems, and skilled operators; consequently, defects can easily occur during production.

• Unsuitable for Continuous, Elongated Products: Injection molding is primarily designed for molding discrete, individual parts and is not suitable for continuous components such as tubes, profiles, or sheets.

• High Cost of Design Modifications: Once a mold has been fabricated, any subsequent modifications to the part design necessitate reworking the mold—a process that is both time-consuming and costly.

Overall, injection molding is ideally suited for the production of complex, high-precision, and high-volume plastic parts, though it imposes rigorous requirements regarding initial investment and process control.

1.3 Common Applications of Injection Molding

Injection molding is widely utilized in the manufacturing of various plastic parts where high precision and aesthetic quality are paramount. Key application areas include:

• Electronic Product Enclosures: Such as remote controls, electrical outlet boxes, smart home device housings, etc.

• Medical Device Components: Including disposable surgical instruments, syringes, medical equipment housings, etc., which require parts to be burr-free and possess high dimensional accuracy.

• Automotive Components: Complex interior and exterior trim parts, such as dashboard assemblies, air conditioning vents, light covers, etc.

• Home Appliances and Consumer Goods: Parts for vacuum cleaners, washing machine control panels, kitchen appliance housings, etc.

The high precision and versatility of injection molding make it the preferred process for manufacturing complex, functional, and high-quality plastic parts.

2. What is Extrusion Molding?

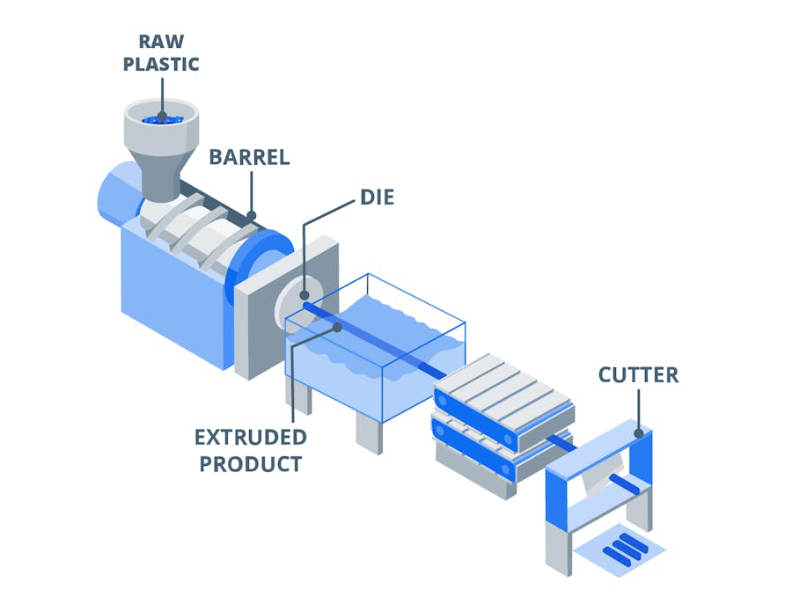

2.1 Definition of Extrusion Molding

Extrusion molding is a processing technique in which thermoplastic materials are heated to a molten state and then continuously forced through a die of a specific cross-sectional shape to form continuous products—such as rods, tubes, profiles, or sheets. Unlike injection molding, extrusion is primarily used to produce parts with a fixed cross-section and variable length; it is not suitable for manufacturing parts with complex three-dimensional structures. The extrusion process is highly efficient, well-suited for high-volume or continuous production, and offers distinct advantages in terms of material utilization and production stability.

2.2 Advantages and Disadvantages of Extrusion Molding

2.2.1 Advantages of Extrusion Molding:

• High-efficiency continuous production: Extrusion molding enables the continuous production of long strips, pipes, profiles, or sheets; it is well-suited for mass production and offers high production speeds.

• Low mold and equipment costs: Compared to injection molding, extrusion molds feature simpler structures, require lower initial investment, and allow for a quick start to production.

• High material utilization: The continuous production process generates minimal waste, which can be recycled and reused, thereby reducing raw material wastage.

• Adaptability to various thermoplastic materials: Common materials such as PVC, PE, PP, and ABS can all be successfully extruded.

• Flexible dimensional adjustment: Product lengths can be cut to any desired size according to specific requirements, making the process suitable for custom-length orders or continuous production needs.

2.2.2 Disadvantages of Extrusion Molding:

• Unsuitable for parts with complex structures: Extrusion can only produce parts with fixed cross-sections and relatively simple shapes; it is not suitable for parts with complex three-dimensional structures.

• Limited precision and surface quality: Compared to injection molding, extruded parts generally have lower requirements regarding dimensional precision and surface detail.

• Limited functionality for parts: It is difficult to achieve two-color or multi-material molding, and the process is not suitable for incorporating internal insert structures.

• Low design flexibility: A fixed cross-section implies that product design modifications are restricted, as the shape of the part must strictly correspond to the mold geometry.

Overall, extrusion molding is highly suitable for the continuous production of plastic parts with fixed cross-sections and controllable lengths, but it is not suitable for parts requiring high precision or complex structural designs.

2.3 Common Applications of Extrusion

Extrusion molding is primarily used to manufacture plastic products with fixed cross-sections and continuous lengths. Common applications include:

• Plastic pipes and tubing: Such as water supply pipes, drainage pipes, air ducts, etc.

• Profiles and strips: Including window frame profiles, sealing strips, and decorative trims.

• Sheets and films: Such as packaging films, industrial sheets, vinyl flooring, etc.

• Cable sheathing: The protective outer layer for electrical wires and cables.

Due to its advantages in high efficiency and low cost, the extrusion process has become the preferred method for manufacturing long, continuous plastic parts.

3. Key Differences Between Injection Molding and Extrusion Molding

Difference	Injection Molding	Extrusion Molding
Product Shape	Complex, customizable	Fixed cross-section, continuous
Dimensional Accuracy	High	Medium
Production Volume	Medium to large batch	Large batch or continuous
Mold Cost	High	Low
Production Speed	Slower	Fast, continuous
Material Utilization	High, but mold scrap needs recycling	High, minimal waste in continuous process
Suitable Structures	Grooves, threads, sliders, multi-cavity parts	Tubes, profiles, sheets, seals

4. How to Select the Appropriate Process

4.1 Selecting the Appropriate Molding Process Based on Product Complexity

When choosing between injection molding and extrusion molding, the geometric complexity of the product's structure is a critical determining factor. Different structural features directly impact production efficiency, cost, and the final product quality.

For plastic parts with complex structures, injection molding is typically the superior choice. For instance, when a product features undercuts, internal cavities, threads, snap-fits, or designs requiring sliding cores, injection molding—utilizing precision molds—can achieve a highly faithful reproduction of the design. This process not only allows for the precise replication of fine details but also ensures dimensional accuracy and assembly consistency.

In contrast, for products with simple structures and a constant cross-section, extrusion molding offers distinct advantages. If the product takes the form of tubing, profiles, sheets, or other continuous structures that maintain an identical cross-sectional shape along their length, extrusion molding enables continuous production. This significantly boosts efficiency while simultaneously reducing manufacturing costs. This process is well-suited for building materials, cable sheathing, and various elongated plastic products.

4.2 Selection Based on Production Volume and Batch Size

Production volume and batch size are significant factors influencing process selection. Injection molding entails a substantial initial investment in tooling; however, once the molds are complete, the cost per individual part becomes low and stable, making it an ideal choice for medium-to-large-scale production runs.

Injection molding can also facilitate parallel molding through the use of multi-cavity molds or hot runner systems, thereby increasing output and shortening production cycles. This approach is particularly cost-effective for high-volume products, electronic enclosures, and functional components.

Conversely, the extrusion process is best suited for continuous, high-volume production—especially for elongated products such as tubing, profiles, or sheets. The capital investment required for equipment and tooling is relatively lower, and material utilization rates are high, allowing for high output and stable production at a reduced cost.

4.3 Selection Based on Cost Budget

The allocated cost budget directly dictates the choice of manufacturing process. Injection molds are characterized by high precision and require a significant upfront investment; however, over the course of long-term production, they lead to a lower unit cost, making the process suitable for products with long lifecycles and stable production volumes.

Furthermore, the injection molding process allows for the optimization of material usage—and thus further cost control—through techniques such as hot runner systems, gate design, and scrap recycling. For high-value-added functional parts and decorative components, injection molding enables enhanced production efficiency while simultaneously guaranteeing product quality.

The tooling and equipment costs associated with the extrusion process are relatively low, making it well-suited for projects with limited budgets or short product lifecycles. Furthermore, it maximizes material utilization while minimizing scrap waste and maintenance expenses, making it an ideal choice for cost-sensitive, continuous production operations.

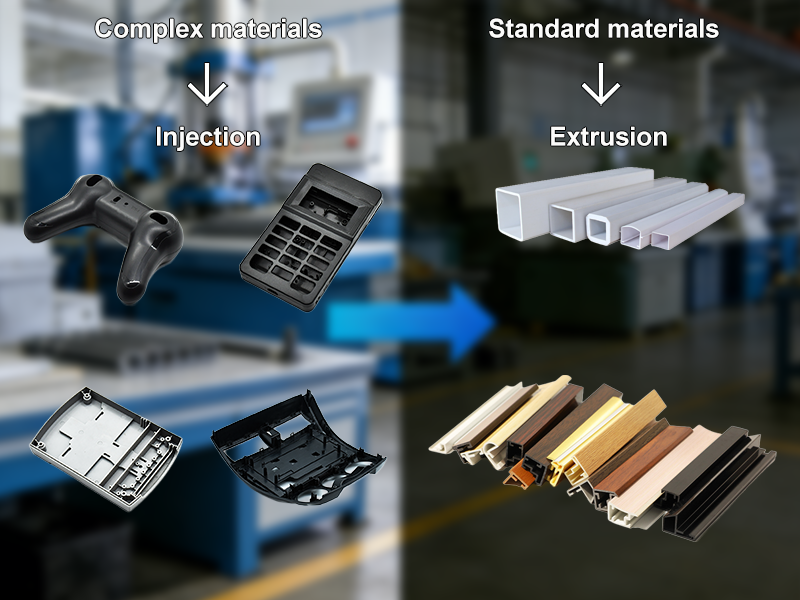

4.4 Selection Based on Material and Performance Requirements

Injection molding accommodates a wide variety of thermoplastic and thermosetting materials, supporting dual-color or multi-material molding to meet the complex functional or aesthetic performance requirements of various parts.

By precisely controlling temperature, pressure, and cooling systems, injection molding can optimize a material's mechanical properties—including toughness, heat resistance, and chemical stability—making it suitable for high-standard industrial products and precision electronic enclosures.

The extrusion process is primarily utilized for standard thermoplastic materials and is generally unsuitable for parts requiring complex performance characteristics; however, it excels in areas such as continuous production, material utilization efficiency, and dimensional stability. It is best suited for long-profile or sheet-like products that feature simple geometries, are produced in large volumes, and do not impose stringent demands on material performance.

4.5 Selection Based on Part Size and Length

Injection molding is designed for the production of discrete, individual parts; consequently, part dimensions are typically constrained by the size of the mold and the tonnage capacity of the injection molding machine. For parts featuring large dimensions or complex structural geometries, careful optimization of the parting lines and mold layout is required to ensure molding precision.

Simultaneously, injection molding enables precise control over three-dimensional shapes and delivers high-quality surface finishes, making it ideal for products with strict requirements regarding dimensional accuracy and aesthetic appearance—such as electronic enclosures and precision mechanical components.

Extrusion allows for the production of continuous profiles, tubes, or sheets of virtually any length. By adjusting the die cross-section and extrusion speed, it is possible to maintain consistent cross-sectional geometry and dimensional stability, making this process exceptionally well-suited for the production of long-profile products or for large-scale manufacturing scenarios.

5. Summary

Injection molding and extrusion molding each possess distinct advantages and are applicable to different scenarios. Injection molding excels at producing complex, high-precision, and functional parts, making it suitable for medium-to-large volume production runs; however, it entails higher requirements regarding mold investment and process control. Conversely, extrusion is best suited for the continuous production of parts with simple cross-sections—such as long profiles or tubes—offering high production efficiency and lower tooling costs, though it is not suitable for parts with complex structural geometries or those requiring high precision.

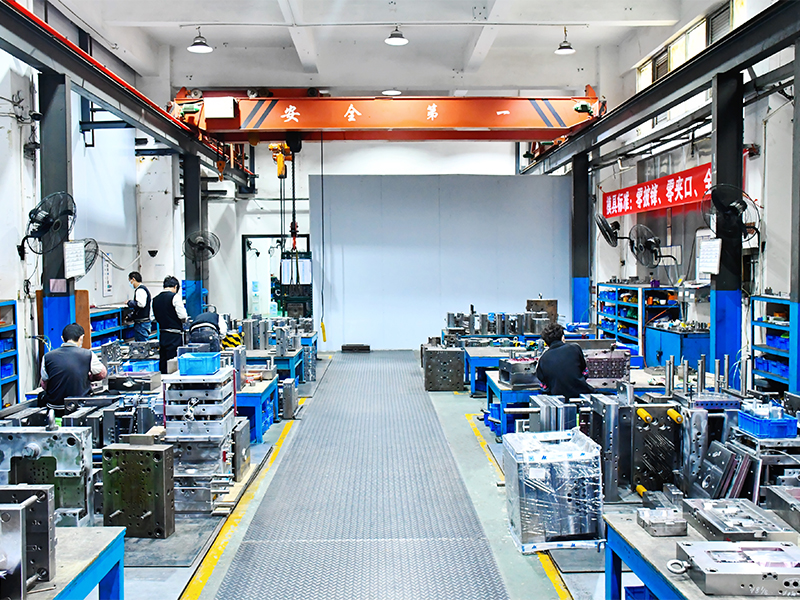

If you are currently developing new plastic parts or seeking professional tooling solutions, selecting an experienced supplier is absolutely critical. Alpine Mold offers professional injection mold design, manufacturing, and mass production support tailored to your specific product requirements, thereby ensuring superior part quality, production efficiency, and cost optimization.

6. FAQ

6.1 What is the difference between the materials used for injection molded and extruded parts?

Injection molding can utilize both thermoplastic and thermosetting materials, making it suitable for producing dual-color or functional parts. Extrusion primarily employs thermoplastic materials—such as PVC, PE, PP, and ABS—and is best suited for continuous production processes.

6.2 Is there a significant difference in precision between injection molded and extruded parts?

Injection molded parts offer high precision, reaching micron-level tolerances, making them ideal for complex structures and applications requiring tight fits. Extruded parts generally possess lower precision and are suitable only for products with a fixed cross-sectional profile.

6.3 What is the typical lifespan of an injection mold?

The lifespan of an injection mold depends on factors such as the mold material, structural design, and production volume. High-quality steel molds can withstand hundreds of thousands to millions of injection cycles; furthermore, the mold's design and maintenance directly impact its overall longevity.

6.4 Can injection molded parts achieve dual-color or multi-material molding?

Yes. By utilizing multi-cavity molds or dual-color injection molding machines, the process can achieve combinations of functional materials or create decorative dual-color aesthetics within a single part.

6.5 What common issues tend to arise with extrusion molds?

Common issues include unstable cross-sectional dimensions, warping, air bubbles, and surface roughness. The defect rate can be reduced by optimizing the mold cooling system, screw design, and material drying processes.
