How To Prevent Flash in Injection Molding

1. Introduction

Injection molding is a versatile and efficient manufacturing process used to create a wide range of plastic products. However, like any manufacturing process, it comes with its challenges. One common issue in injection molding is the occurrence of flash. Flash refers to the excess material that escapes from the mold cavity during the injection molding process, resulting in thin, unwanted fins or edges on the final product. In this guide, we will explore the intricacies of flash in injection molding and provide you with techniques to prevent it, ensuring high-quality production.

2. What is Flash?

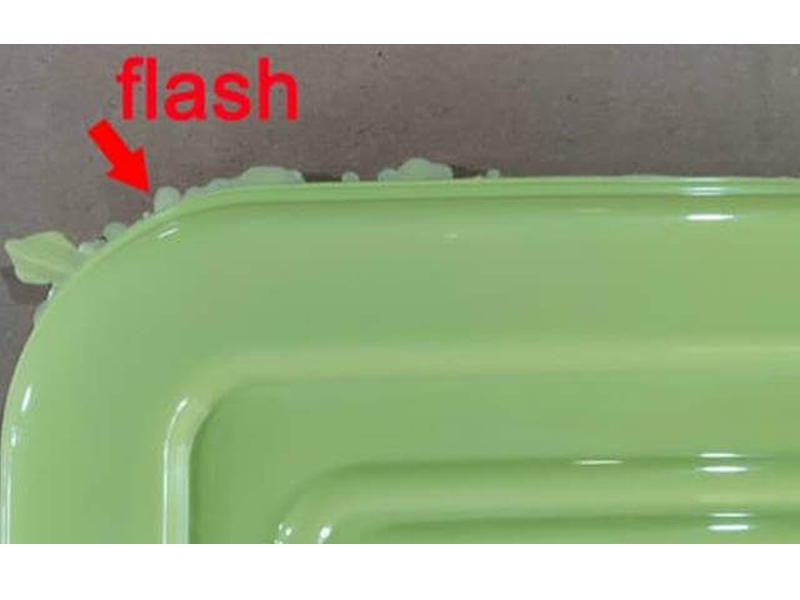

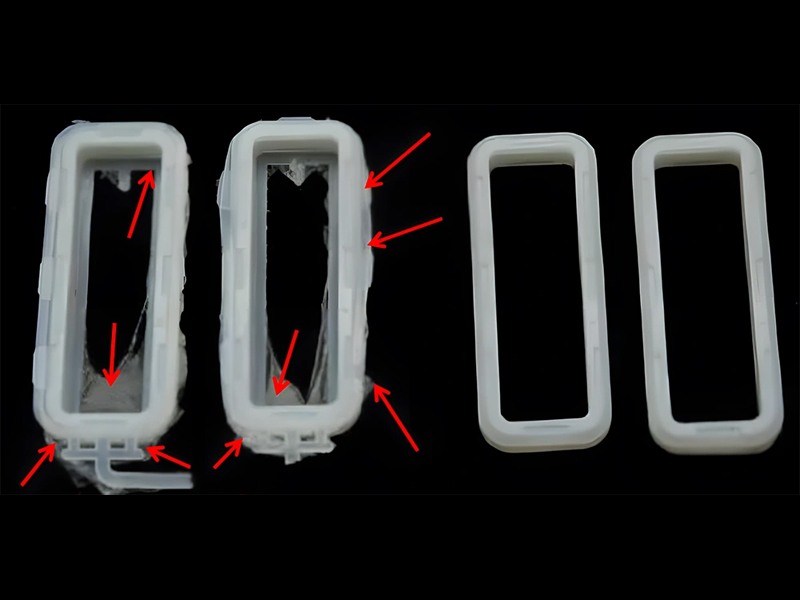

Flash in injection molding is an undesired phenomenon where excess material escapes from the mold cavity and creates thin projections or edges on the final plastic product. It is often characterized by thin fins or burrs along the edges, which can negatively impact product quality, aesthetics, and functionality.

3. What are Causes of Flash?

To effectively prevent flash in injection molding, it's essential to understand its underlying causes:

Excessive Injection Pressure: When the injection pressure is too high, it can force molten plastic into small gaps or vents between mold components, resulting in excess material escaping and forming flash around the part.

Poor Mold Design: If the mold design is flawed, with misalignments, inadequate venting, or gaps between mold components, it can lead to plastic leakage during the injection process, causing flash to occur.

Material Flow Characteristics: The flow characteristics of the molding material can influence the occurrence of flash. Materials with high flow properties are more likely to seep into gaps and create flash if not properly controlled.

Insufficient Cooling Time: If the mold does not have sufficient cooling time between injection cycles, the material may not fully solidify before the mold opens, leading to flash formation.

Inadequate Clamp Force: If the mold is not securely closed or the clamp force is insufficient, it can result in slight movements or separations of mold components during injection, allowing material to escape and form flash.

4. How to Prevent Flash in Injection Molding?

4.1 Proper Mold Design

Proper mold design is critical in preventing flash defects in injection molding. Here's an in-depth look at key mold design considerations and their impact on flash prevention:

• Tight Tolerances: Ensuring tight tolerances in mold design is essential to prevent flash formation. Gaps or misalignments between mold components can result in material leakage and flash defects. Data from industry studies suggests that maintaining tolerances within ±0.002 inches (0.05 mm) can significantly reduce the risk of flash.




• Proper Alignment: Correct alignment of mold components is crucial to prevent flash defects. Misaligned mold components can create pathways for molten plastic to escape, leading to flash formation. Studies have shown that precise alignment with deviations of less than 0.1 mm can help minimize flash issues.




• Venting: Effective venting in the mold is key to preventing trapped air and excess material buildup, which can contribute to flash defects. Industry standards recommend vent depths of 0.03-0.06 inches (0.75-1.5 mm) for optimal venting, ensuring that air and excess material can escape without causing flash.

• Draft Angles: Incorporating draft angles in mold design facilitates part ejection and reduces the risk of flash. Data indicates that near-vertical surfaces typically require draft angles of 0.5° to 1°, while common situations may benefit from draft angles of 1-2°. By implementing appropriate draft angles, manufacturers can minimize friction and potential flash defects during part ejection.

4.2 Material Selection

The selection of suitable materials plays a crucial role in preventing flash defects in injection molding. Here's a detailed analysis of how material selection impacts flash prevention:

• Material Characteristics: Choosing materials with specific viscosity and flow properties can help reduce the occurrence of flash defects. Data-driven studies indicate that materials with lower viscosity and higher flow rates are less likely to seep into gaps or vents, minimizing the risk of flash formation.




• Material Testing: Conducting thorough material testing and analysis can provide insights into how a specific material behaves during the injection molding process. Data analysis of material properties, such as melt flow index and shear rate, can help identify materials that are less prone to flash defects. By selecting materials with optimal flow characteristics and conducting thorough testing, manufacturers can proactively address potential flash issues and improve molding outcomes.

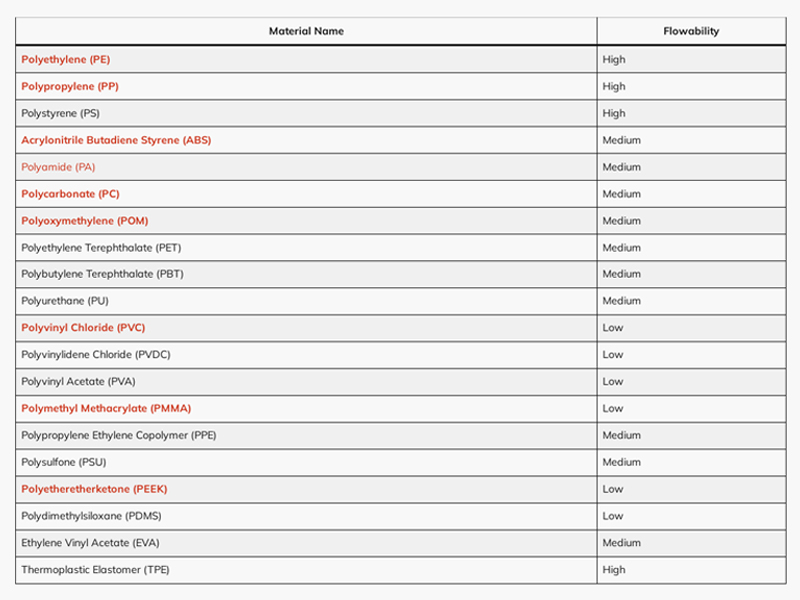

The table below shows the flowability of commonly used plastics:

4.3 Injection Pressure Control

Effective control of injection pressure is vital in preventing flash defects in injection molding. Here's a detailed examination of how injection pressure control influences flash prevention:

• Pressure Limits: Setting and monitoring appropriate injection pressure limits are critical to prevent excessive force that can lead to flash defects. Data analysis suggests that maintaining injection pressures within a specified range, such as 1000-2000 psi, can help ensure uniform filling of the mold cavity without causing flash issues.




• Ramp-up and Hold: Implementing controlled ramp-up and holding of injection pressure during the molding process is essential for preventing sudden pressure surges that may result in flash defects. Studies have shown that gradual pressure ramp-up followed by a consistent hold period can reduce the likelihood of flash formation and improve part quality.

4.4. Clamp Force Optimization

Optimizing clamp force is crucial for preventing flash defects and maintaining mold integrity in injection molding. Here's an in-depth analysis of how clamp force optimization contributes to flash prevention:

Clamping Force Analysis: Determining the required clamping force based on mold specifications and part geometry is essential to ensure proper mold closure and prevent flash defects. Data-driven calculations and simulations can help manufacturers determine the optimal clamping force needed to secure mold components and prevent material leakage. Maintaining adequate clamping force based on mold size and material properties can significantly reduce the risk of flash formation.

Regular Maintenance: Ongoing maintenance and inspection of the clamp mechanism are essential to ensure consistent and effective clamping force. Data from industry studies highlights the importance of regular maintenance practices, such as lubrication, alignment checks, and component inspections, in preventing mold separation and flash defects. By proactively addressing any issues that may affect clamp force, manufacturers can safeguard against flash defects and achieve high-quality injection-molded parts.

4.5. Temperature Control

Precise temperature control is paramount in preventing flash defects and ensuring uniform molding results in injection molding. Here's an in-depth analysis of how temperature control influences flash prevention:

Uniform Mold Temperatures: Maintaining consistent mold temperatures throughout the molding process is crucial to prevent temperature differentials that can lead to flash defects. Data analysis suggests that variations in mold temperature greater than ±5°F (±2.8°C) can result in uneven cooling and potential flash formation. By ensuring uniform mold temperatures, manufacturers can promote even solidification of the molten plastic and reduce the risk of flash defects.

Barrel and Nozzle Temperatures: Controlling the temperature of the plastic material in the barrel and nozzle is essential for achieving a consistent flow and preventing flash defects. Data-driven temperature profiles and monitoring systems can help manufacturers optimize barrel and nozzle temperatures to ensure uniform material flow and minimize the likelihood of flash formation. By maintaining precise temperature control, manufacturers can enhance molding consistency and reduce the occurrence of flash defects in injection-molded parts.

4.6. Practical Tips for Flash Prevention

In addition to the key techniques mentioned above, manufacturers can benefit from implementing practical tips for flash prevention. Here are some data-driven insights to support these additional strategies:

Simulation Software: Injection molding simulation software is crucial for identifying and addressing potential flash issues before production. Data-driven simulations enable manufacturers to analyze mold designs, material flow behavior, and process parameters to predict areas of concern that may lead to flash defects. Studies have shown that utilizing simulation software can help optimize mold design, gate placement, and cooling strategies to minimize the risk of flash formation. By leveraging simulation tools, manufacturers can make informed decisions and adjustments to prevent flash defects and improve overall molding efficiency.

Regular Maintenance: Research shows that molds that are well-maintained and inspected on a consistent basis have a lower incidence of flash issues compared to molds that receive sporadic or inadequate maintenance. By conducting routine inspections, cleaning, and lubrication of mold components, manufacturers can proactively address potential sources of flash formation and maintain optimal mold performance.

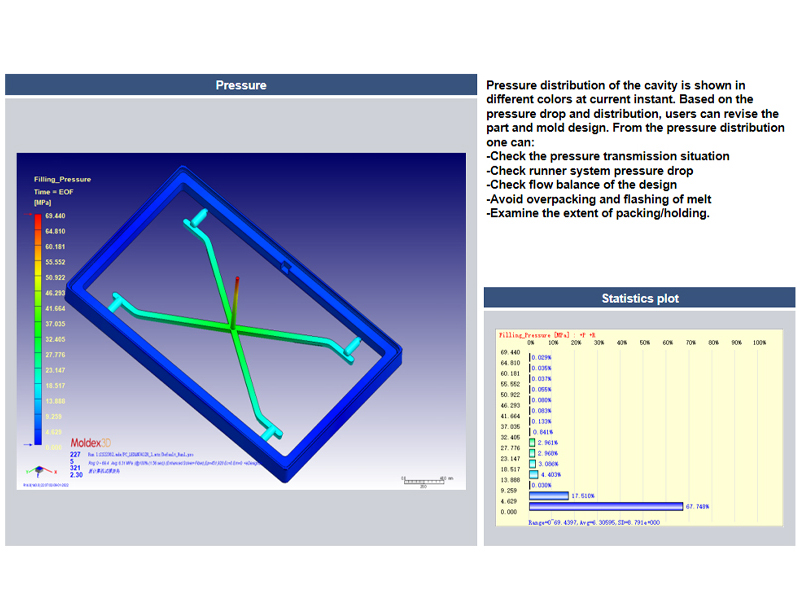

Simulation Software

Regular Maintenance

5.Case Studies

Case Study 1: Consumer Electronics Enclosures

Data from the Consumer Electronics manufacturer's production records showed that prior to implementing improvements, the flash defect rate in the production of plastic enclosures for consumer electronics was at 12%.

After implementing mold design improvements, material selection, and precise injection pressure control, the flash defect rate decreased to just 3%, resulting in a 75% reduction in flash issues.

Cost analysis revealed that the new production process not only produced aesthetically superior products but also led to a 20% reduction in production costs, making the products more cost-effective to manufacture.

Case Study 2: Medical Device Components

The medical device manufacturer initially had a flash defect rate of 5% in their plastic components.

By optimizing clamp force and mold design to ensure precision in molding, the flash defect rate was reduced to 1%, resulting in a 80% reduction in flash issues.

Compliance data confirmed that the clean, flash-free parts met strict regulatory requirements for medical devices, demonstrating the effectiveness of the optimization strategies in meeting industry standards.

6.Conclusion

Flash in injection molding can present ongoing challenges, but with the right techniques, it can be effectively prevented. Key factors such as well-designed molds, careful material selection, precise control of injection pressure and clamp force, and meticulous temperature management are crucial for ensuring high-quality production while minimizing flash-related issues. It is essential for manufacturers to proactively address flash challenges to enhance product quality and reduce waste in the injection molding process.
