What Is Injection Mold Slider

Introduction

Plastic injection molding is a widely used manufacturing process for producing high-quality plastic parts in various industries. To achieve complex part designs with undercuts or features that require multiple directions of movement, injection molds often incorporate sliders. In this blog, we will delve into the concept of injection mold sliders, their significance in the plastic injection molding process, their structural composition, design considerations, and the importance of their proper implementation.

What is Injection Mold Sliders?

When a product's mold release direction does not align with the mold opening direction of the injection molding machine due to undercuts, injection mold sliders are employed as a specialized mechanism to resolve this issue. The fundamental principle behind their function is the conversion of vertical mold opening/closingmovements into horizontal motions. This transformation facilitates the disengagement of undercuts, ensuring smooth ejection of the molded parts.

Structural Composition of Injection Mold Sliders

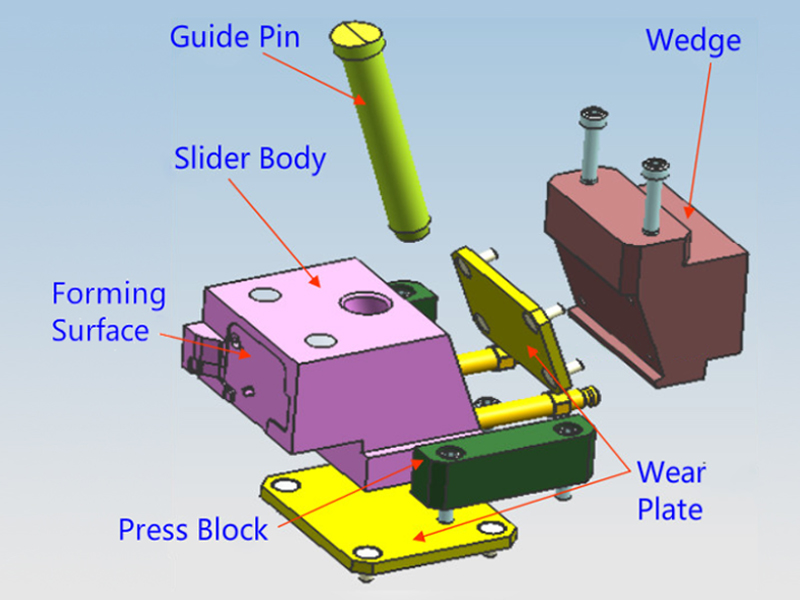

Injection mold sliders consist of several essential components that work in harmony to achieve their intended purpose. These components typically include the slide body, guide pin, press block, wedge, forming surface and wear plate. To enhance their durability and minimize surface wear, these components often undergo surface nitriding treatment.

Design Considerations for Angle Pins

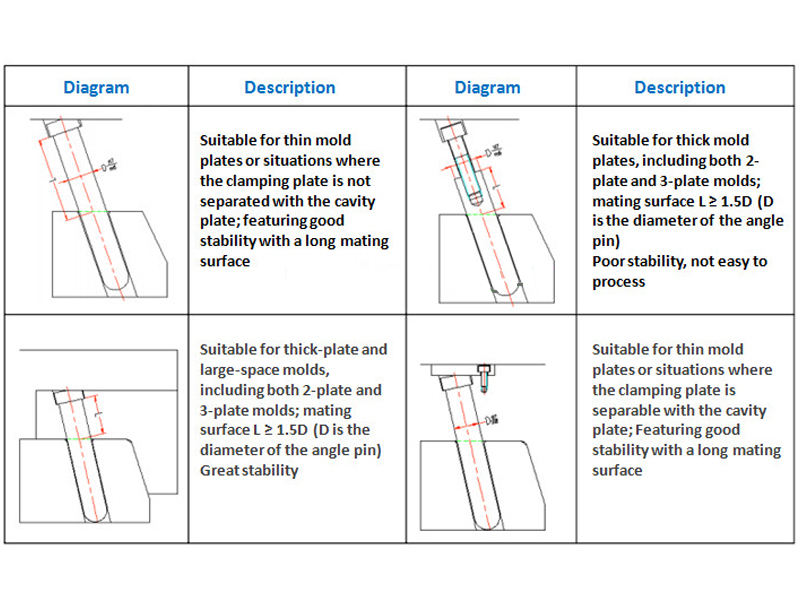

Angle pins, also known as guide pins, play a pivotal role in the operation of injection mold sliders. They enable the locking and movement of the guide block and slide, allowing them to disengage from the undercut during the mold opening action. Designing angle pins involves considering factors such as the tilt angle, corresponding length, horizontal travel distance, and the gap between the angle pin and the slide. These considerations are crucial for ensuring effective movement and disengagement of the slider.

Locking Mechanisms for Injection Mold Sliders

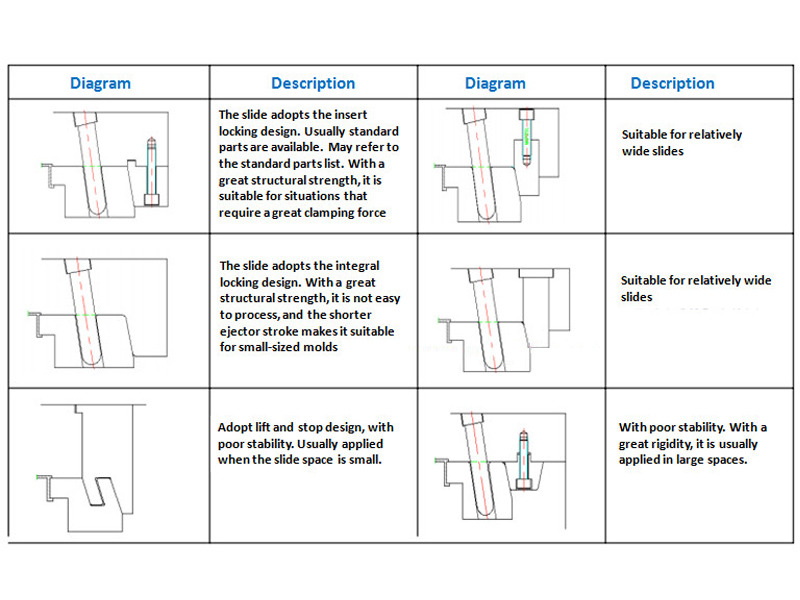

The high pressure generated during the plastic injection molding process necessitates the implementation of locking mechanisms for sliders. These mechanisms prevent the displacement of sliders under pressure, which could adversely affect the dimensions and appearance of the finished products. Commonly employed locking methods include wedge locks, taper locks, and hydraulic locks, each offering its advantages and considerations.

Importance of Proper Slider Location

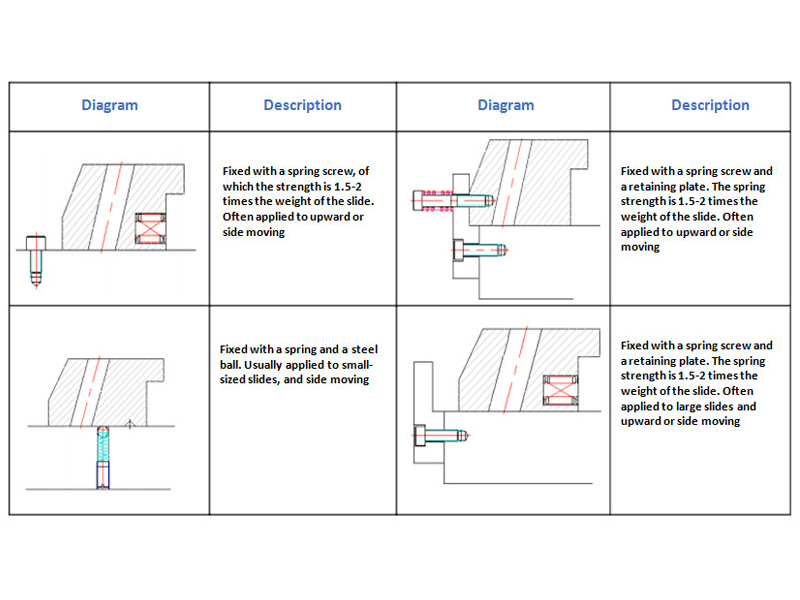

To ensure the safe return of the slider, it is crucial to determine its optimal location. While some slider movements may not require a locking device, having a flexible and reliable locking mechanism in place is essential. This ensures that the slide remains in the desired position, promoting operational safety and preventing potential mishaps.

Connecting Slider Inserts

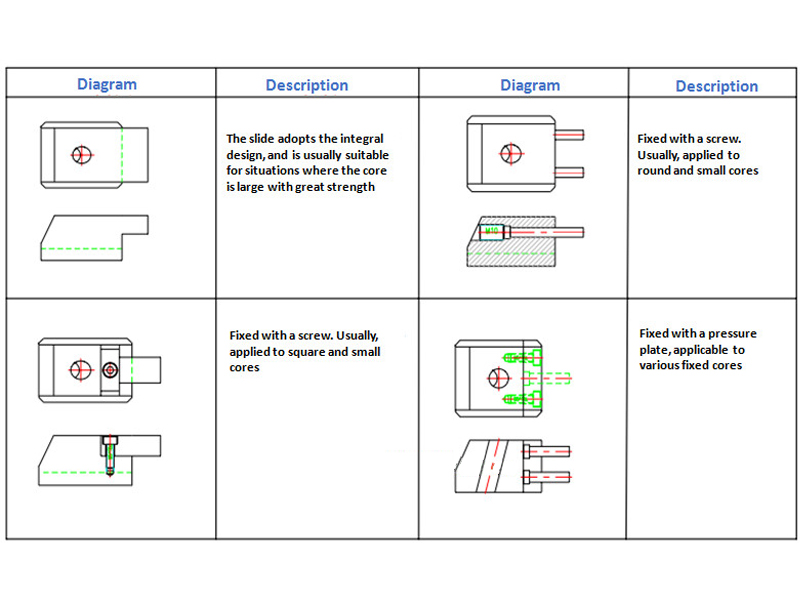

The connection method for slider inserts varies depending on the specific requirements of the finished product. Manufacturers can choose from various connection methods, such as screws, dowels, and adhesive bonding, based on factors like product complexity, material properties, and ease of assembly. Selecting the appropriate connection method is vital to ensure the integrity and functionality of the injection mold slider.

The Importance of Sliding Guides

Sliding guides, also referred to as sliding rails, play a critical role in ensuring the smooth and stable movement of injection mold sliders during the plastic injection molding process. They prevent sticking or bouncing of the slider, which could negatively impact product quality and mold service life. Proper selection and implementation of sliding guides are essential for optimizing the performance and longevity of the injection mold sliders.

Conclusion

Injection mold sliders are indispensable components in addressing undercuts and achieving complex designs in plastic injection molding. Understanding their structural composition, design considerations, locking mechanisms, proper location, and the significance of sliding guides empowers manufacturers to optimize their molding processes and deliver high-quality products. By harnessing the capabilities of injection mold sliders, manufacturers can overcome challenges, unlock new design possibilities, and elevate their plastic injection molding endeavors to new heights of success.
