For most buyers, asking for an injection mold quotation often leads to a common question:
“Why do prices vary so much?”
The reality is that injection molding cost is not determined by a single factor. Instead, it is influenced by many elements—from the choice of mold material and part design to the expected production volume and mold life.
For product designers and purchasing managers, understanding these injection molding cost factors is critical. It not only helps you prepare a realistic budget but also ensures smoother communication with your supplier. By knowing what drives injection mold costs, you can make smarter decisions early in the design stage, reduce hidden risks, and avoid unexpected expenses later.
At Alpinemold, with over two decades of experience in precision mold manufacturing for global clients, we believe that sharing this knowledge helps our customers plan better and achieve the right balance between cost and performance.
When buyers request a quotation, the first thing they often wonder is: Why do injection mold costs vary so much between suppliers? The truth is that several elements work together to shape the final price. Understanding these injection molding cost factors allows you to make better decisions, control your budget, and avoid unnecessary surprises.

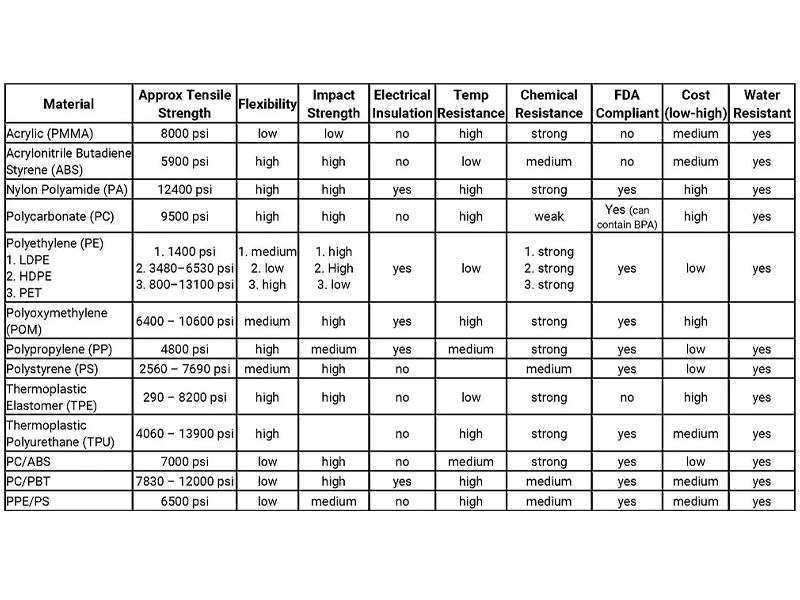

The resin you select plays a major role in injection molding cost. Commodity plastics such as PP (Polypropylene) or PE (Polyethylene) are relatively inexpensive, often costing between $1.2–$1.8/kg. By contrast, engineering-grade resins like PC (Polycarbonate), Nylon, or PEEK can range from $4–$60/kg, depending on grade and supplier.
Some materials also require higher mold temperatures or special surface treatments, which add to tooling wear and maintenance. For example, glass-filled nylon is abrasive and will shorten mold life unless hardened steel is used, raising injection mold costs.

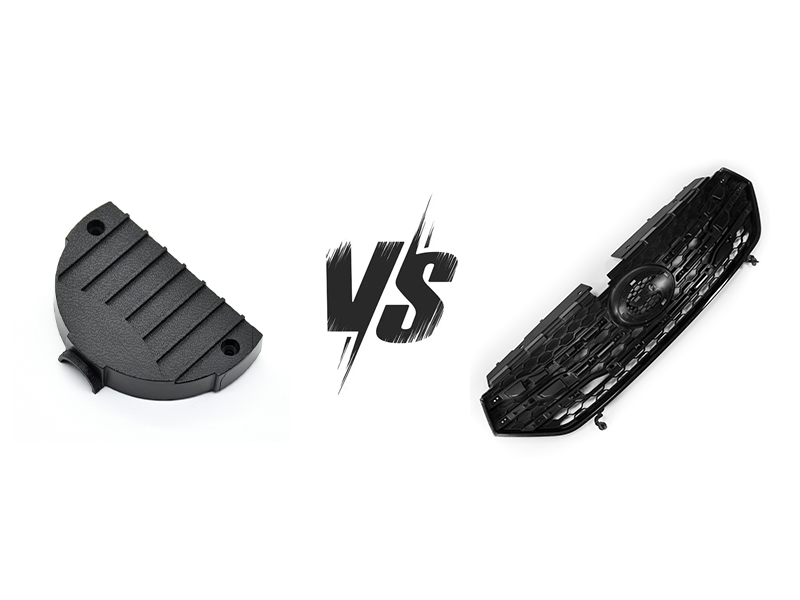

The more complex your design, the higher the injection molding cost factors. Thin walls (<1 mm), undercuts, sharp corners, or cosmetic textures require advanced tooling, longer machining, and potentially complex ejection systems. A mold for a simple box might cost $5,000–$8,000, while a mold for a multi-part assembly with inserts and slides could reach $50,000+.
Complexity also impacts cycle time. Thin-wall parts cool faster but may require higher injection pressure and better steel, while thick-wall parts extend cooling time.

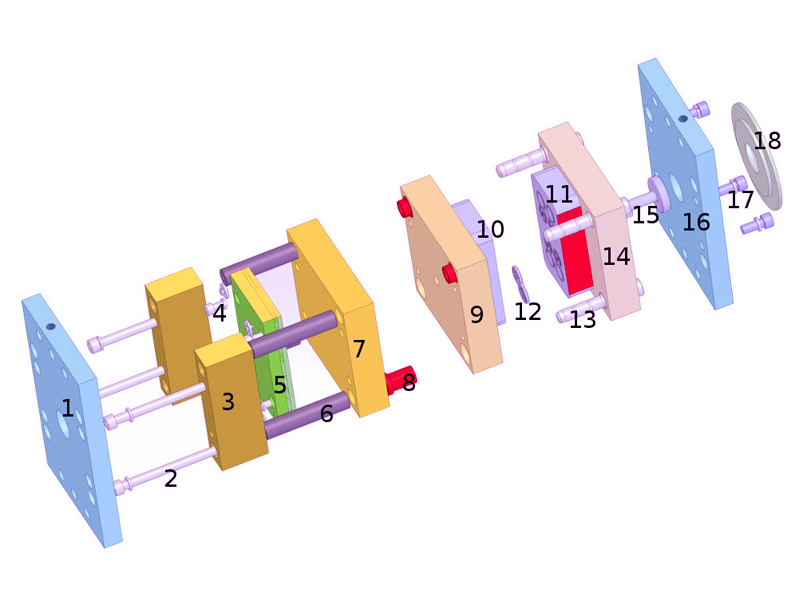

Tooling is the largest upfront investment. A single-cavity prototype mold (good for 1,000–5,000 shots) might cost around $3,000–$10,000, while a multi-cavity hardened steel mold (built for 1M+ shots) could be $30,000–$100,000.
Multi-cavity molds: Produce more parts per cycle, reducing unit cost but increasing upfront mold price.
Family molds: Allow related parts (e.g., left and right versions) to be molded in one tool, saving tooling cost but requiring careful balance.
Volume directly determines cost allocation. For example:
A $20,000 mold making 10,000 parts = $2.00 mold cost per part.
T
he same mold making 200,000 parts = just $0.10 per part.
That’s why low-volume production often feels expensive—the mold cost is spread across fewer pieces.
Mold pricing differs worldwide due to labor and overhead. In the U.S. or Europe, a medium-size production mold might cost $40,000–$80,000, while in China it could be $8,000–$20,000 with comparable quality. However, shipping, customs, and after-sales support should also be considered.
At Alpinemold in Shenzhen, we’ve specialized in serving international clients for 23 years. We provide competitive injection mold costs while ensuring precision quality and smooth communication, helping overseas buyers strike the right balance between cost and reliability.
Cycle time—the time needed to produce one part—directly impacts production efficiency. A few seconds saved per cycle can mean thousands of dollars saved in a mass production run.
Part thickness: Thin parts cool faster, thick parts increase cooling time.
Cooling design: Optimized cooling channels and sometimes conformal cooling can reduce cycle time by 20–30%.
Resin type: Some plastics flow and cool more efficiently than others.
In the previous chapter, we looked at the key injection molding cost factors—from part design to production volume. The next step is to turn this knowledge into action: how can you, as a buyer or product designer, actually lower your injection mold costs while keeping quality and timelines on track?
The truth is, many of the factors affecting injection mold cost can be influenced by the decisions you make before and during the quoting process. Here’s how:
Why it matters: Complex features like sharp corners, undercuts, and uneven wall thickness make molds harder and more expensive to build.
What you can do:

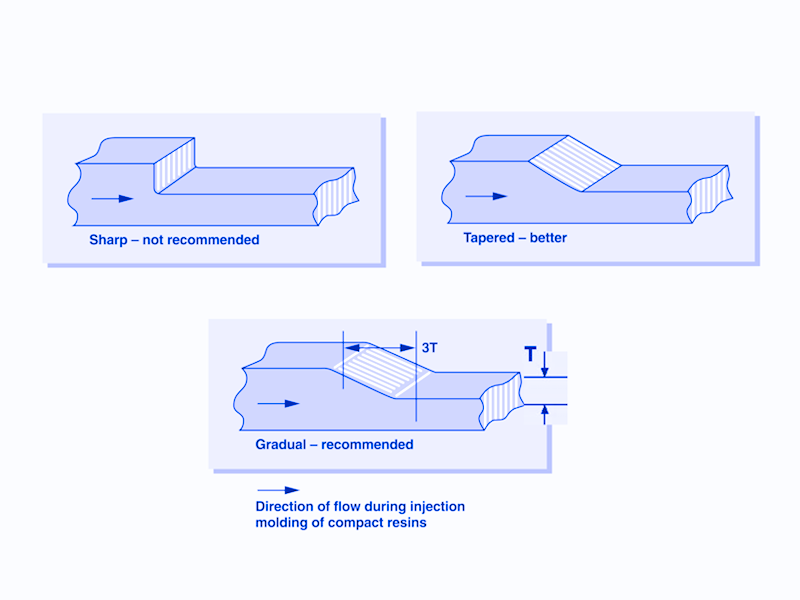

Keep wall thickness consistent to avoid warpage and longer cooling times.

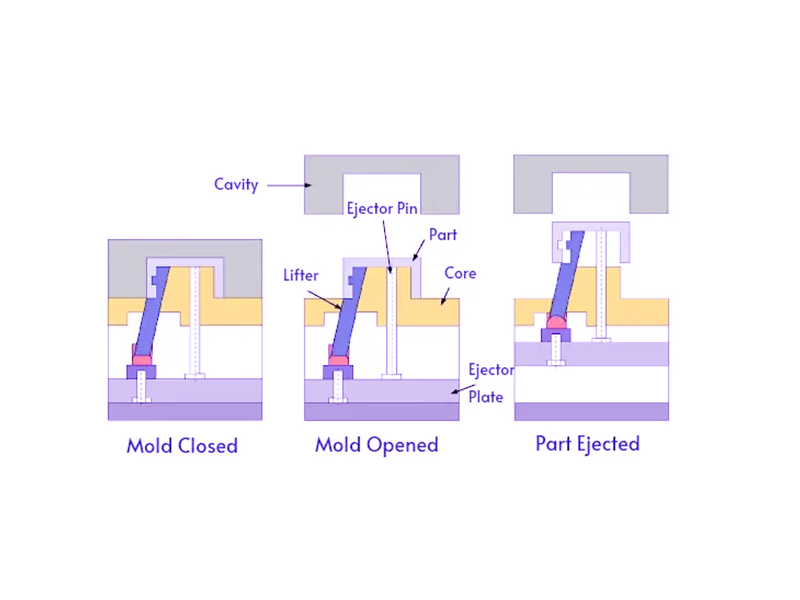

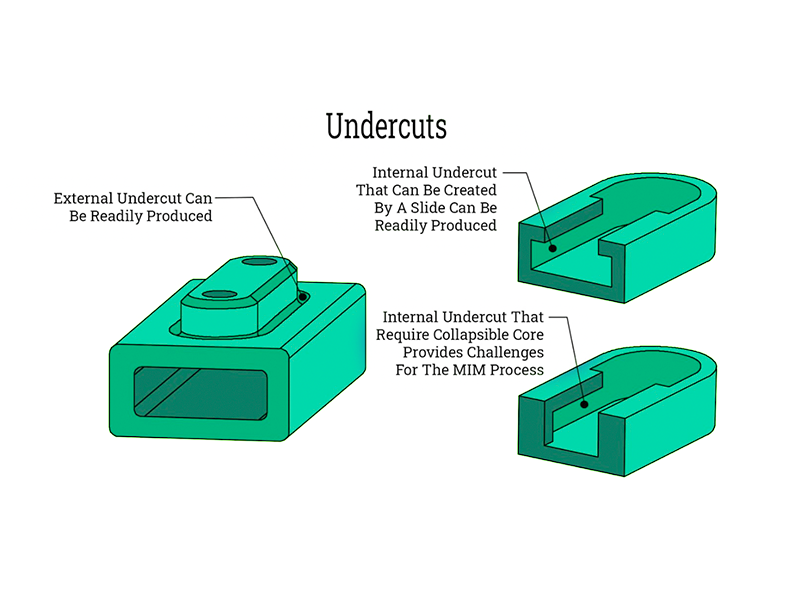

Minimize unnecessary undercuts—if the function allows, redesign to eliminate them.
Add draft angles (1–2° is often enough) to make part ejection smoother and extend mold life.
Doing this reduces machining hours, tool wear, and overall injection molding cost.
Why it matters: Material choice directly impacts both injection mold costs and part performance. Engineering resins like PEEK or PC can cost 5–10x more than PP or PE. Some resins also require higher mold temperatures, driving up tooling cost.
What you can do:
Discuss your real performance needs with your supplier—sometimes a lower-cost resin with additives can achieve the same results.
Avoid “over-specifying” unless necessary for safety or compliance.
The right material balance cuts unnecessary spending without compromising performance.
Why it matters: A single-cavity mold has lower upfront cost but higher per-unit price. A multi-cavity mold requires a larger investment but significantly reduces cost per part for high-volume runs.
What you can do:If you’re still testing the market, start with a bridge or single-cavity mold.
For stable, high-volume demand, invest in multi-cavity tooling to spread injection mold costs across thousands of parts.
Aligning cavity numbers with your production forecast is one of the most effective ways to lower injection molding cost long-term.
Why it matters: Longer cycles mean fewer parts produced per hour—directly increasing cost. Cycle time is influenced by cooling design, part thickness, and resin choice.
What you can do:

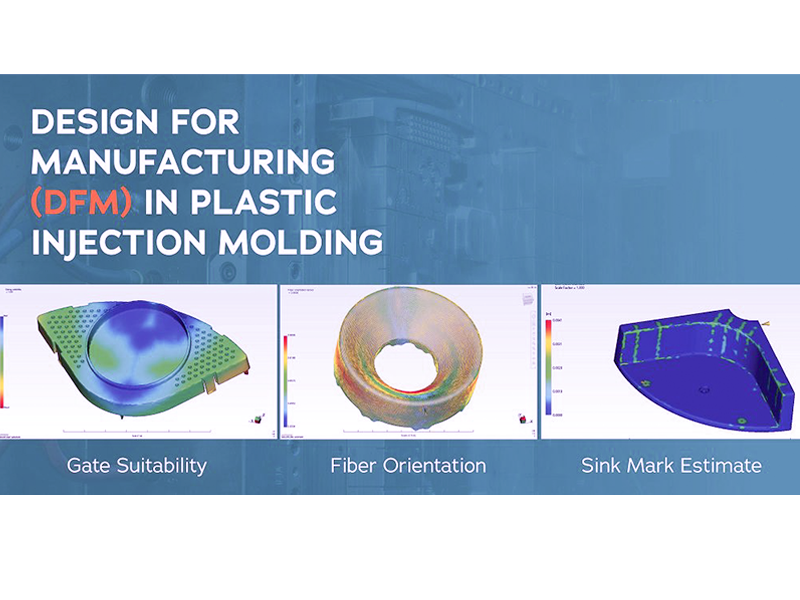

Request mold flow analysis to check hot spots and optimize cooling channels.
Avoid overly thick sections—they extend cooling time without adding performance.
Consider automation (e.g., robotic part removal) for high-volume projects. Even shaving 2–3 seconds off each cycle can lead to major savings across thousands of parts.
Why it matters: Incomplete information leads to vague estimates, hidden costs, or mismatched expectations. Clear details allow your supplier to suggest the most cost-efficient solution.
What you can provide:
3D/2D drawings or CAD files of the part.
Material requirements (or at least performance goals).
Estimated production volume (prototype, low-volume, or mass production).
Surface finish or special tolerances (if any).
Timeline expectations (urgent vs. flexible).
The more accurate your data, the more competitive your supplier can make your injection molding cost.
One of the most underestimated factors affecting injection mold cost is choosing the right supplier. A mold is not just a one-time purchase—it’s a long-term investment that impacts your product quality, delivery schedule, and overall profitability.
When selecting a partner, keep in mind:
Location: Local suppliers may respond faster but usually come with higher labor costs. Overseas suppliers (such as in China) often provide more competitive injection mold costs, though shipping and duties should be considered.
Expertise: Advanced equipment, in-house testing, and engineering support can greatly reduce errors and hidden expenses.
Communication: Transparent pricing and fast feedback help avoid costly delays or redesigns.
One of the most overlooked factors affecting injection mold cost is the choice of supplier. A reliable partner doesn’t just build your mold—they help you reduce risks, improve efficiency, and lower long-term injection molding costs.
For buyers, two points matter most:
Location: Local suppliers may offer faster responses, while overseas suppliers (like in China) often provide more competitive injection mold costs. Balancing cost, lead time, and logistics is key.
Expertise: A supplier with strong engineering support, modern equipment, and export experience can help you avoid costly mistakes and hidden expenses.
At Alpine mold, based in Shenzhen with over 20 years of global project experience, we focus on offering cost-effective solutions without compromising quality. For many clients, this balance of price and reliability is the reason they choose us as a long-term partner.
The right partner is not just about the lowest quote—it’s about securing the best long-term value for your project.

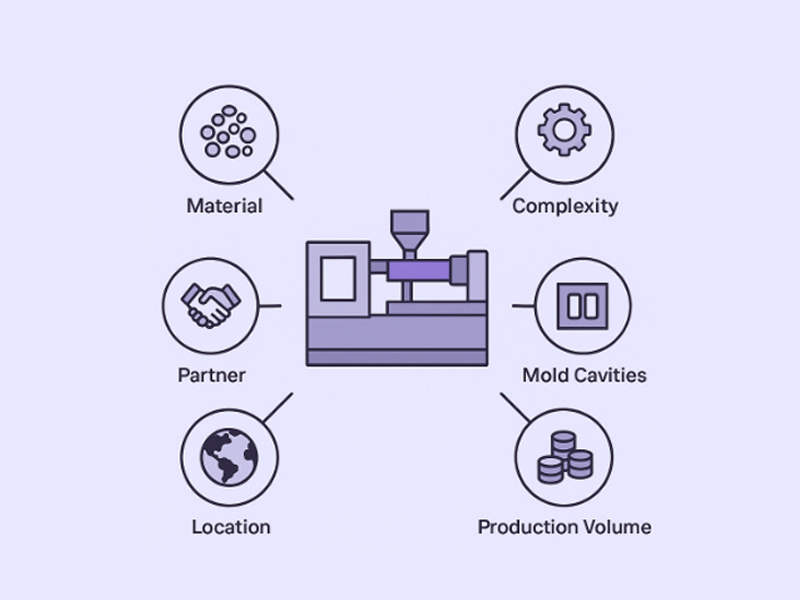

At the end of the day, lowering injection mold costs is not about chasing the cheapest price. The real key lies in balancing multiple injection molding cost factors—from material selection and part design to production volume and the right manufacturing partner.
For buyers and product designers, understanding these factors affecting injection mold cost helps you make smarter decisions early on, avoid hidden risks, and achieve a mold that delivers both cost efficiency and long-term performance.
Injection molds are a major investment because of their complexity, precision requirements, and the long-term impact they have on product performance and production efficiency. However, reducing mold cost does not mean simply chasing the lowest price.
Real savings come from a balanced approach:
Thoughtful design that minimizes unnecessary complexity
Smart material selection based on performance and cost
Optimizing production volume to match business goals
Preventing rework and delays through upfront analysis and clear communication
And most importantly, choosing the right partner who can guide you through the entire process
At Alpinemold, we help customers lower their injection molding costs without compromising quality — ensuring every project is built for both immediate success and long-term profitability.
If you are looking for ways to optimize your injection molding cost and work with a trusted partner, contact Alpinemold today. Let’s turn your ideas into reality, with the right balance of cost, quality, and speed.
