Hard Tooling Vs Soft Tooling: What's The Difference

Introduction

In the realm of manufacturing and injection molding, hard tooling and soft tooling are two crucial techniques with distinct characteristics. While both methods serve the purpose of producing high-quality parts, understanding the differences between them is essential for making informed decisions in product development. In this blog post, we will delve into the intricacies of hard tooling and soft tooling, exploring their features, benefits, and applications.

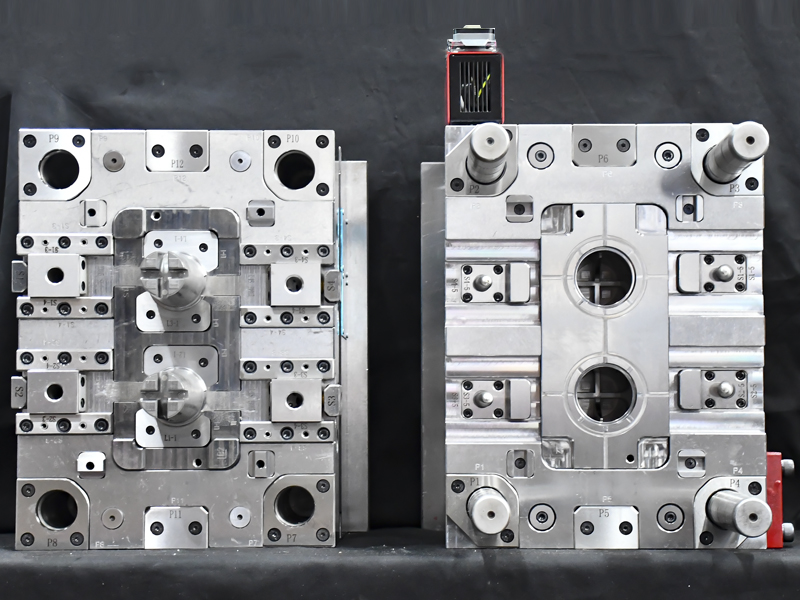

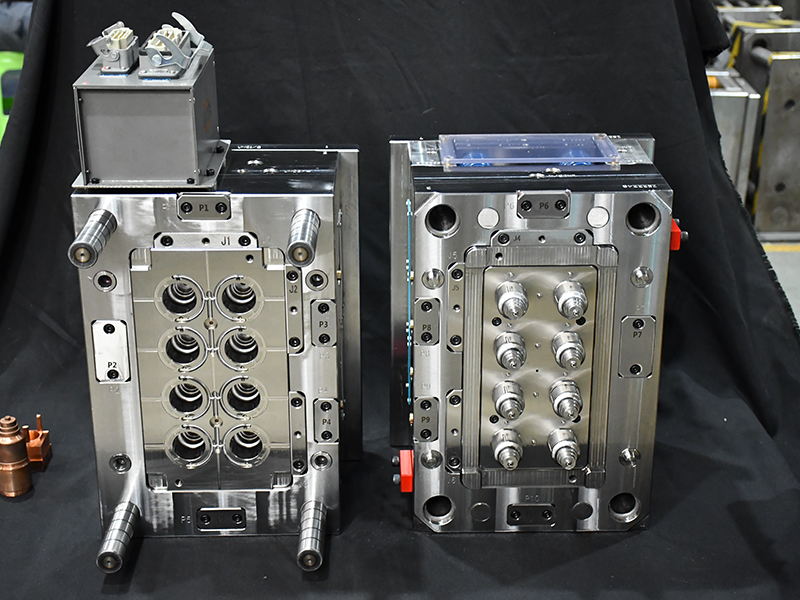

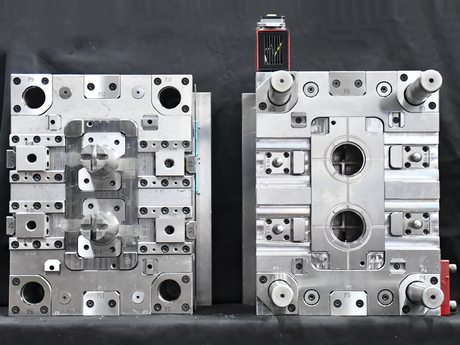

What is Hard Tooling?

Hard tooling is a manufacturing technique widely used in plastic injection molding. It involves the creation of tools and dies using high-quality steel alloys such as H13 or Stavax. These materials offer exceptional hardness and wear resistance, making them suitable for mass production. Hard tooling requires multiple procedures and an extended manufacturing time.

Advantages of Hard Tooling

- Long tool life: Hard tooling can withstand up to 1 million shots, ensuring durability and longevity.

- High precision: The use of high-quality steel allows for tight tolerances and consistent part quality.

- Suitable for high-volume production: Hard tooling is ideal for large-scale manufacturing due to its robustness and reliability.

- Versatility: It can accommodate a wide range of materials and complex part designs.

Applications of Hard Tooling

- High precision parts: Hard tooling is commonly employed in the production of intricate and precision components.

- Automotive industry: The demanding requirements of automotive manufacturing make hard tooling a preferred choice.

- High volume injection molding: When a large number of parts is needed, hard tooling ensures efficient production.

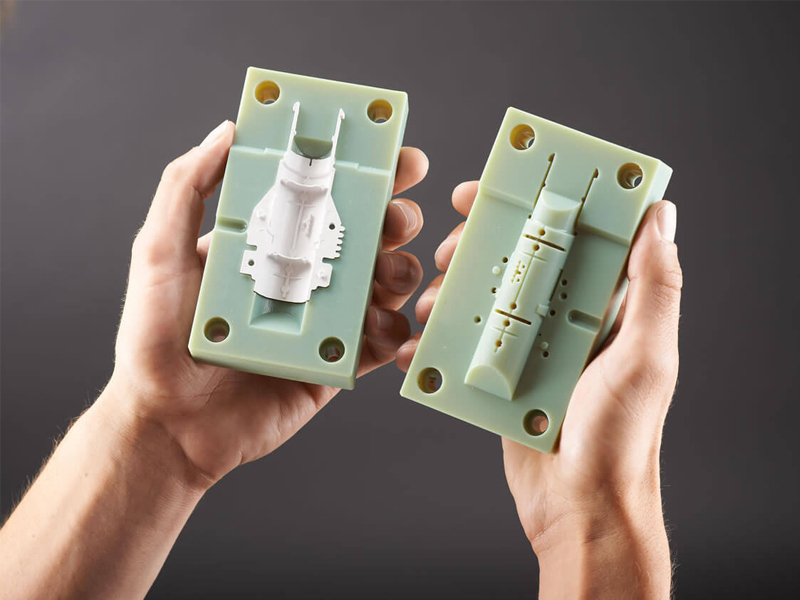

What is Soft Tooling?

Soft tooling, on the other hand, refers to the use of pre-hardened steel or lower-grade materials like P20 or 718 for tool inserts. Soft tooling is often employed for small volume productions, prototyping, or low-volume manufacturing. It offers advantages such as lower cost and faster turnaround times.

Advantages of Soft Tooling

- Cost-effective: Soft tooling is a more economical option, making it suitable for small-scale productions or market testing.

- Faster turnaround: The manufacturing process for soft tooling is generally shorter compared to hard tooling.

- Flexibility: Soft tooling allows for greater adaptability and adjustments during the manufacturing process.

- Suitable for low-volume production: Soft tooling is ideal for limited market releases, bridging applications, or prototyping.

Applications of Soft Tooling

- Market testing: Soft tooling provides a cost-effective solution for testing the market viability of a product before investing in hard tooling.

- Small volume production: When the demand for a product is limited, soft tooling can effectively meet the production needs.

- Prototyping: Soft tooling allows for rapid prototyping and quick iterations during the product development phase.

Key Differences between Hard Tooling and Soft Tooling

- Material: Hard tooling employs high-quality steel alloys, while soft tooling uses pre-hardened or lower-grade materials.

- Tool life: Hard tooling offers a longer tool life, capable of withstanding millions of shots, whereas soft tooling has a limited tool life of around 500k shots.

- Precision: Hard tooling provides superior precision and tight tolerances, making it suitable for high-precision parts.

- Cost: Soft tooling is more cost-effective than hard tooling, making it a preferred choice for smaller production volumes and market testing.

Conclusion

In conclusion, understanding the differences between hard tooling and soft tooling is crucial for selecting the appropriate technique for your manufacturing needs. Hard tooling offers durability, precision, and is ideal for high-volume production, while soft tooling provides flexibility, cost-effectiveness, and is suitable for low-volume or prototyping requirements. By analyzing your project requirements, volume demands, and budget constraints, you can make an informed decision on whether to opt for hard tooling or soft tooling, ensuring successful product development and manufacturing processes.
