I. Introduction

Thermoforming and injection molding are two of the most widely used manufacturing processes for creating plastic parts. Each method has its own unique advantages, making it suitable for different types of products, production volumes, and performance requirements.

Choosing the right process is critical—it directly impacts your project’s cost, product quality, lead time, and overall success. An informed decision can help you avoid unnecessary expenses and ensure that your product meets both functional and aesthetic expectations.

In this article, we’ll break down the key differences between thermoforming and injection molding to help you determine which process is best suited for your specific application.

II. What Is Thermoforming?

Thermoforming is a manufacturing process where a plastic sheet is heated until it becomes soft and pliable, then stretched over or into a mold to form the desired shape. After cooling, the plastic solidifies, retaining the mold’s shape. This process is well-suited for producing medium to large-sized parts with relatively simple geometries.

1. Main Types of Thermoforming

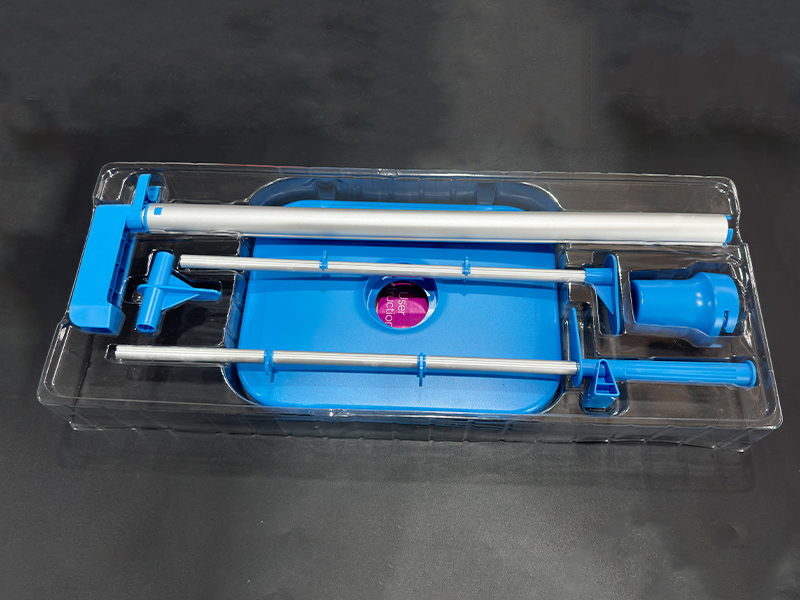

Vacuum Forming: The most common thermoforming method, where a heated plastic sheet is pulled tightly against the mold using vacuum pressure. This technique is ideal for creating shallow, less detailed parts and is cost-effective for lower volumes and simpler shapes.

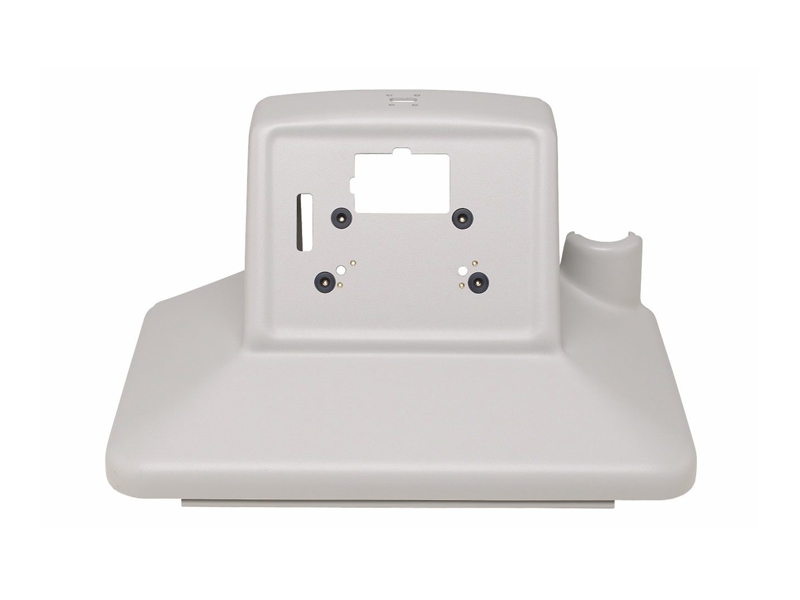

Pressure Forming: An advanced variation that applies additional air pressure on top of the vacuum to press the heated plastic sheet more firmly against the mold. This allows for finer surface detail, improved dimensional accuracy, and thinner walls compared to vacuum forming. Pressure forming is often used when higher quality and more intricate features are required.

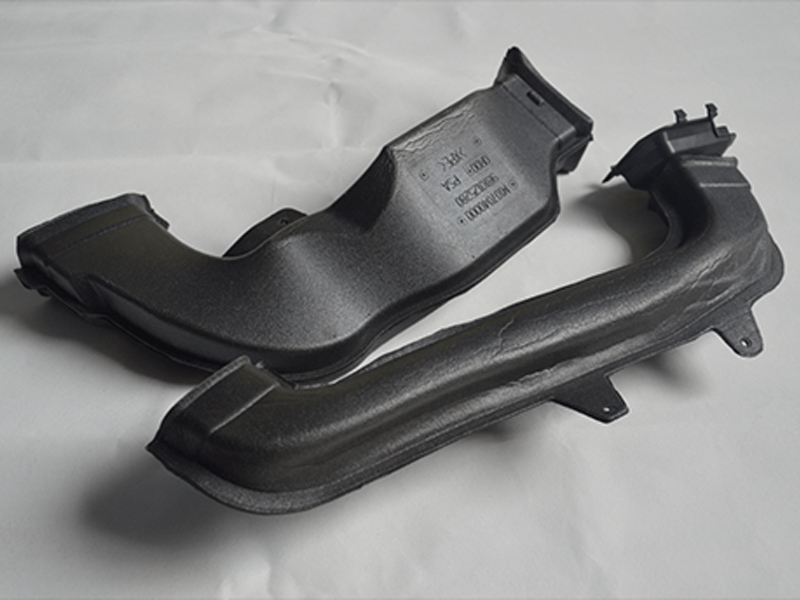

Twin Sheet Forming: A process where two heated plastic sheets are formed simultaneously and then fused together. This method produces hollow, double-walled parts with increased strength and rigidity, useful for items like containers or automotive parts requiring durability.

2. Common Applications

Thermoforming is widely used across various industries for producing parts such as:

• Packaging trays and clamshells: Lightweight, cost-effective protective packaging for consumer goods, electronics, and food products.




• Food containers: Disposable or reusable containers like cups, lids, and trays, which benefit from the process’s speed and low tooling cost.




• Medical trays and device housings: Custom trays for surgical instruments or medical devices that require clean, sterile, and precisely shaped plastic forms.




• Automotive interior panels and trim: Large but simple-shaped parts such as door panels, dashboards, or liners where moderate durability and aesthetics are important.




• Signage and display panels: Lightweight and easily formed shapes for advertising and retail displays.

III. What Is Injection Molding?

Injection molding is a manufacturing process where molten plastic pellets are heated until they melt and then injected under high pressure into a precisely machined metal mold cavity. Once cooled and solidified, the mold opens to release the finished plastic part. This process is widely used for producing highly detailed, complex, and dimensionally precise parts in large volumes.

1.Main Types of Injection Molding

Thermoplastic Injection Molding: The most common type, using thermoplastic polymers such as ABS, polycarbonate (PC), polypropylene (PP), and nylon (PA). Parts can be repeatedly melted and reshaped, making it suitable for mass production and recycling.

Thermoset Injection Molding: Uses thermosetting plastics that harden irreversibly after molding, offering excellent heat resistance and mechanical strength. Commonly used for electrical components and automotive parts requiring high durability.

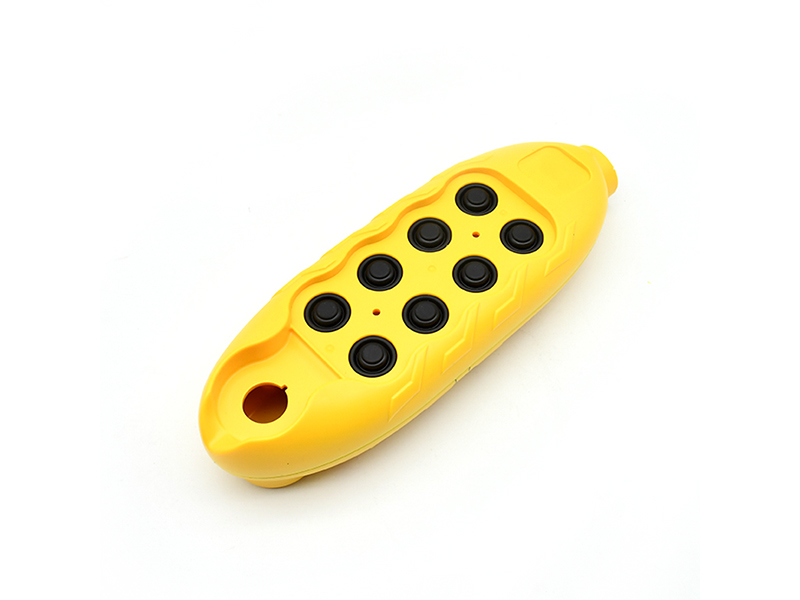

Overmolding: A two-step process where one material is molded over another, often combining rigid and soft materials to create multi-functional parts like soft grips over hard plastic handles.

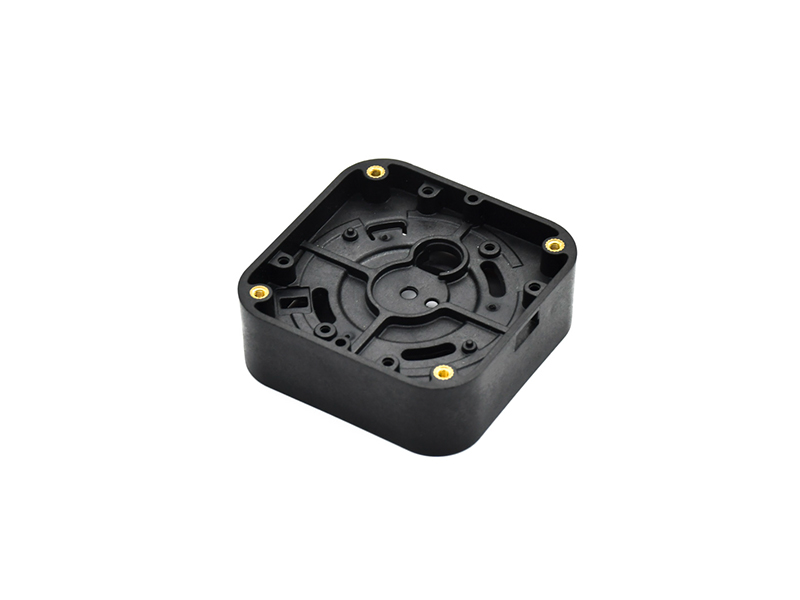

Insert Molding: Plastic is molded around pre-placed metal or other inserts, enabling the integration of threaded components, electronic parts, or fasteners directly into the plastic part.

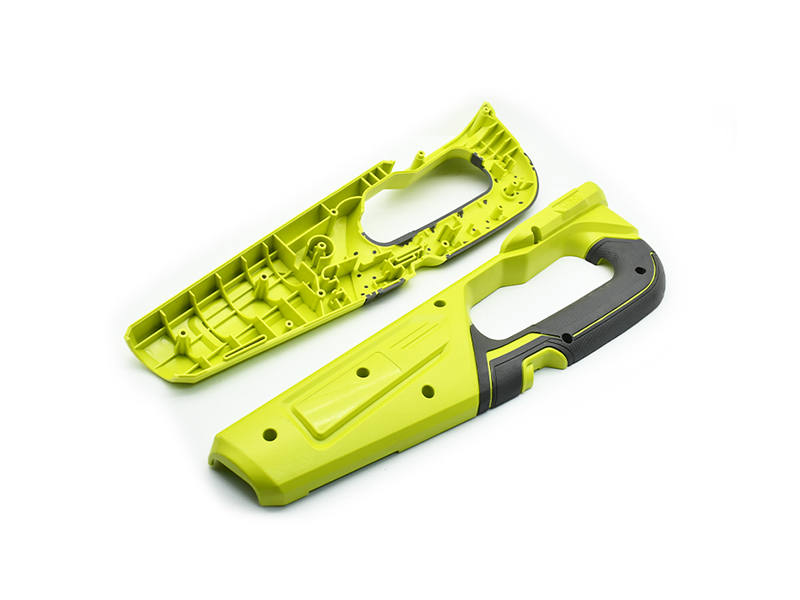

Two-Shot (Two-Color) Injection Molding: A process that injects two different plastics or colors into one mold in a single cycle, producing multi-colored or multi-material parts without secondary assembly.

2.Common Applications

Injection molding is ideal for producing complex, high-precision parts across a broad range of industries, including:

Electronic housings and connectors: Durable, detailed casings for smartphones, computers, and consumer electronics that require tight tolerances and excellent surface finish.

Automotive components: Critical parts such as bumpers, dashboard panels, air vents, and engine covers, where strength, precision, and consistency are paramount.

Industrial machinery parts: Gears, levers, and functional mechanical components that demand robust materials and precise dimensions.

Household goods and appliances: Items like kitchen utensils, storage containers, switches, and appliance housings that combine aesthetics with durability.

Medical devices: Precision components such as syringe bodies, inhaler parts, and diagnostic equipment housings, which require strict quality control and biocompatible materials.

IV. Thermoforming vs. Injection molding: What are their differences?

Feature	Thermoforming	Injection Molding
Process Principle	Heats a flat thermoplastic sheet, then stretches it over a mold using vacuum or pressure; cools to shape.	Melts thermoplastic pellets, injects molten plastic under high pressure into a closed mold cavity; cools to shape.
Raw Material Form	Plastic sheet (rolls or cut sheets, thickness usually 0.2 mm to 6 mm)	Plastic pellets or granules
Tooling (Mold) Cost	Lower, typically 10%–33% of injection molding cost; usually aluminum or composite molds.	Very high, about 10x to 100x thermoforming cost; typically hardened steel or aluminum.
Setup Time & Cost	Lower setup cost and shorter lead times (weeks).	Higher setup cost with longer lead times (1–3 months or more).
Part Cost (High Volume)	Higher per part cost due to material waste and trimming (can be 10–50% scrap) and longer cycle times.	Lower per part cost at scale due to faster cycles and less material waste.
Part Cost (Low Volume)	Lower, due to cheaper tooling and quicker mold fabrication.	Higher, as tooling cost is amortized over fewer parts.
Part Geometry	Simpler shapes: mostly open or shallow forms, limited undercuts, simple features.	Complex 3D shapes with intricate details like threads, ribs, bosses, and undercuts.
Wall Thickness	Variable thickness, often thinner where stretched; typical range 0.5–6 mm, less uniform.	Highly uniform and precise; wall thickness can range from 0.2 mm up to several centimeters.
Material Waste	Higher scrap rate due to sheet trimming; waste can be 10% to over 50%.	Lower scrap rate; runners and sprues can often be recycled.
Cycle Time	Relatively fast for simple parts: typically 20–60 seconds per cycle.	Longer cycles depending on part complexity: typically 15–120 seconds; multi-cavity molds increase throughput.
Part Strength	Generally lower due to variable thickness and stretching effect.	Higher strength due to uniform density and no thinning.
Surface Finish	Mold-facing surface excellent; texture and gloss achievable but only on one side.	High-quality finish on both sides; textures, matte or high gloss achievable.
Tolerance Precision	±0.25 mm to ±0.75 mm (±0.010" to ±0.030") typical	±0.05 mm to ±0.20 mm (±0.002" to ±0.008") typical
Suitable Materials	Limited: commonly used with ABS, HIPS, PVC, PET, PP, PC, PMMA, mostly amorphous plastics.	Wide variety: almost all thermoplastics (PP, PE, PS, ABS, Nylon, PC, POM, PEEK) and thermosets.
Production Volume	Low to medium (hundreds to thousands to hundreds of thousands), especially in packaging and large parts.	Medium to very high (thousands to millions); highly cost-effective at scale.
Typical Applications	Packaging (clamshells, trays), bathtubs, automotive interior panels, refrigerator liners, signage, simple covers.	Complex mechanical parts (gears, housings), automotive components, consumer electronics enclosures, medical devices, toys (e.g., LEGO).

V.Thermoforming vs Injection Molding : Which Is Right for Your Project?

Selecting the right manufacturing process is critical to your product’s performance, cost, and time-to-market. Thermoforming and injection molding are both widely used, but they serve very different needs. Here's an in-depth comparison based on six key factors:

5.1 Production Volume

Injection Molding:

Best suited for mass production — typically 10,000 parts or more. Though the mold cost is high, the cost per unit drops significantly in high volumes. This is the go-to process for products with long life cycles and stable demand.

Thermoforming:

Ideal for low to medium production runs (from hundreds to a few thousand). It’s cost-effective for short runs or pilot production because of its lower tooling cost and faster mold making.

Insight:

If you need to produce thousands of the same part over a long period, injection molding offers a better ROI. For prototypes, seasonal products, or large-format items with moderate volume, thermoforming is a smarter choice.

5.2. Part Complexity

Injection Molding:

Allows for highly complex, detailed geometries with undercuts, thin walls, and integrated features (like clips, ribs, or threads). Precision tolerances are achievable.

Thermoforming:

Best for simpler, single-sided parts such as trays, enclosures, panels, or packaging. It struggles with internal geometries, sharp corners, and consistent wall thickness.

Insight: If your part needs internal features or tight dimensional control, injection molding is the right fit. If your part is large and simple with one finished side, thermoforming can save time and cost.

5.3. Material Efficiency & Waste

Injection Molding:

Very efficient — material is precisely dosed into the mold cavity, minimizing waste. Any excess (e.g., runners, sprues) can often be reground and reused.

Thermoforming:

Generates more waste, especially during trimming and finishing. Material off-cuts may or may not be recyclable depending on the plastic type.

Insight: For sustainability-conscious projects or expensive engineering plastics, injection molding offers better material yield.

5.4. Tooling Cost & Lead Time

Injection Molding:

Requires high upfront investment in mold tooling, often made from hardened steel or aluminum. Lead times can range from 4 to 10 weeks depending on complexity.

Thermoforming:

Much lower tooling cost — often aluminum or composite molds. Typical mold lead times are 1 to 3 weeks, making it ideal for rapid market testing or short production runs.

Insight:

Consider thermoforming when speed to market is critical or when your budget limits initial tooling investment.

5.5. Surface Finish & Aesthetic

Injection Molding:

Produces consistently smooth, high-quality finishes. Texture, gloss, or matte effects can be customized directly on the mold surface. Ideal for visible or consumer-facing parts.

Thermoforming:

Usually detailed on one side only (the mold-contact surface). The reverse side often lacks definition and may show thinning or roughness.

Insight:

For consumer electronics, automotive interior components, or branded packaging, injection molding gives a premium look.

5.6. Part Size

Thermoforming:

Cost-effective for large parts — like panels, casings, containers, and covers. The open mold design and low-pressure process allow for big formats with fewer complications.

Injection Molding:

Best for small to medium-sized parts, especially where dimensional accuracy and uniformity are required.

Insight:

Need a large, light, and simple component? Thermoforming is more practical and scalable. For precision components or handheld parts, stick with injection molding.

Which Is Right for You?

Criteria	Injection Molding	Thermoforming
Volume	10,000+ units	100–5,000 units
Complexity	Complex geometries, tight tolerances	Simple, one-sided designs
Material Efficiency	High	Moderate (more trimming waste)
Tooling Cost	High (but long-lasting)	Low (faster and cheaper mold creation)
Surface Finish	Excellent, customizable	Moderate, limited to one side
Part Size	Small to medium	Medium to large

VI. Conclusion and Talk to Our Experts Now

Choosing between thermoforming and injection molding depends on several factors, including part complexity, production volume, tooling budget, and lead time requirements. Thermoforming is ideal for larger, simpler parts with lower initial investment, while injection molding is the preferred solution for high-precision, high-volume production with tight tolerances.

Not sure which process fits your project best? Our team at Alpine Mold is here to help. With over 23 years of experience in custom mold making and plastic injection production, we can analyze your product requirements and recommend the most cost-effective and technically suitable solution.

Contact us today for a free consultation — let’s bring your idea into reality with the right process from the start.
