Fed up with discovering sink marks, incomplete fills, or fragile weld lines only once the mold is complete? You've refined your design to perfection, yet the prototype flops—typically, the hidden issue is a neglected plastic melting temperature.
As experts in injection molding, we've assisted numerous engineers in breaking free from these expensive iterative pitfalls via a single essential approach: gaining command over plastic melting point management. This resource skips the fluff to offer practical insights and design guidelines, enabling you to select materials and craft molds assuredly, speed up your workflow, and launch products sooner.
Designers frequently ask us a basic question: "What's the melting point of plastic?" But this query reflects a widespread misunderstanding. In contrast to pure metals, which exhibit a precise melting point, the majority of plastics consist of semi-crystalline or amorphous polymers that gradually soften and liquify over a span of temperatures. Grasping this key difference marks the initial essential phase in anticipating how the material will perform inside the mold.
From a hands-on perspective, the melting point of plastic indicates the temperature where the crystalline structures in a polymer break apart. Yet, for those handling the process, the truly vital factor is the melting temperature range for the plastic—the interval from the onset of flowability to the point where thermal breakdown becomes a threat. This is the heart of any effective injection molding temperature guide.
The entire injection molding process hinges on controlling this viscous melt. Setting your barrel temperature within the optimal zone of this range is crucial for success. Operating at the low end can lead to high viscosity and a host of injection molding defects caused by temperature, such as short shots and high residual stress. Running too close to the upper limits can lead to polymer breakdown, resulting in charring, structural fragility, and off-gassing.
To link conceptual ideas with hands-on application, the chart that follows serves as a convenient plastic melting temperature reference for widely used materials, forming an essential foundation for any engineering resource on plastic melting.
Polymer | Melting Point / Range (°C) | Key Processing Considerations |
ABS | 105 - 107* | Has a wide processing window; good for beginners. Hygroscopic - must be dried (80-90°C for 2-4 hrs) to prevent surface defects. |
Polypropylene (PP) | 160 - 165 | High shrinkage (1.5-2.5%); requires sufficient packing pressure and time to minimize sinks and warpage. |
Polycarbonate (PC) | 155 - 160 | Highly hygroscopic - must be thoroughly dried (120°C for 3-4 hrs) to prevent hydrolysis and molecular weight drop. |
Nylon 66 (PA66) | 260 - 265 | Extremely hygroscopic and requires high processing temperatures. Must be dried immediately before molding. |
Polyethylene (PE) | 120 - 135 | High shrinkage; excellent flow characteristics make it suitable for large, thin-walled parts. |
POM | 165 - 175 | Prone to thermal degradation; avoid excessive temperatures and residence time to prevent release of formaldehyde gas. |
PMMA | 160 - 170 | Poor melt flow, requires higher injection speeds/pressures. Hygroscopic and must be dried to avoid bubbles and silver streaks. |
PBT | 225 - 230 | Fast-crystallizing material, allowing for short cycle times. Must be dried to prevent property loss. |
PEEK | 340 - 380 | High-performance polymer requiring very high processing temperatures (360-400°C) and thermally stable, hardened molds. |
GPPS | 100 - 105 | Brittle and prone to stress cracking. Excellent flow for thin walls, but use low packing pressure. |
TPU | 120 - 140 | Elastomer that is hygroscopic and requires drying. Melt viscosity is very sensitive to temperature and shear. |
PVC | 160 - 180 | Poor thermal stability; can degrade and release HCl gas. Requires precise temperature control and stabilizers. |
Temperature plays a direct role in regulating the viscosity of the polymer melt. Elevating the plastic melting temperature reduces viscosity, which greatly enhances flowability to effectively fill slender walls and intricate shapes. That said, too much heat can degrade polymer chains, resulting in a compromised strength for the finished component. On the flip side, a cooler melt temperature boosts viscosity, potentially hindering the material's flow and causing partial fills or elevated internal pressures that trigger distortion upon part removal.
The choices you make in design are closely tied to the plastic's melting point that you select. For example, in crafting a slim-walled enclosure, opting for a material with inherently low melt viscosity or accommodating elevated processing heat is crucial to ensure thorough filling. Incorporating the melting temperature span into your early design process helps yield a stronger, more production-ready item right away, sidestepping expensive mold revisions.
Plastic Type | Fundamental Melting Point (°C) | Practical Melt Temp. Range (°C) | Key Characteristics | Design & Processing Considerations |
ABS | 105 - 107 (Tg) | 210 - 250 | Good impact strength, rigidity, and surface finish. Easily painted and glued. | Avoid prolonged exposure above ~270°C to prevent degradation. A versatile, cost-effective choice for housings, consumer goods, and automotive interiors. |
Polycarbonate (PC) | 155 - 160 | 280 - 320 | Excellent impact strength, transparency, and high heat resistance. | Highly hygroscopic. Must be thoroughly dried (<0.02% moisture) to prevent hydrolysis and bubbling. Requires high mold temperatures (80-110°C) to reduce residual stress. |
Polypropylene (PP) | 160 - 165 | 200 - 260 | Excellent chemical resistance, low density, and good fatigue resistance. Living hinge capability. | High volumetric shrinkage (~2%); requires sufficient pack/hold pressure and time to minimize sinks and warpage. |
PA66 (Nylon 66) | 260 - 265 | 280 - 310 | High mechanical strength, stiffness, abrasion resistance, and good temperature resistance. | Extremely hygroscopic - requires immediate pre-drying. Rapid crystallization; requires a hot mold (70-100°C) for optimal dimensional stability and surface finish. |
Polyethylene (PE) | 130 - 135 | 210 - 260 | Excellent chemical resistance, low friction, and high impact strength. Low cost. | High shrinkage can lead to warpage; proper cooling circuit design is critical. Prone to environmental stress cracking. |
POM | 165 - 175 | 190 - 220 | High stiffness, low friction, excellent dimensional stability, and good fatigue resistance. | Prone to thermal degradation; avoid excessive temperatures and residence times. Sharp corners should be avoided as they are stress concentrators. |
PMMA | 160 - 170 | 220 - 250 | Excellent optical clarity, high gloss, and good UV resistance. | Brittle with low impact strength. Hygroscopic and must be dried to prevent silver streaks (splay). High flow resistance requires higher injection pressures. |
PBT | 225 - 230 | 240 - 270 | Good stiffness, strength, and excellent electrical properties. Fast cycling. | Hygroscopic and requires pre-drying. Prone to warping due to anisotropic shrinkage; gate location and cooling are critical. |
PEEK | 340 - 380 | 370 - 400 | Exceptional thermal stability, mechanical properties, and chemical resistance. High-performance polymer. | Requires very high processing temperatures and a thermally stable, hardened mold steel. Must be dried for 3-4 hours at 150°C+. |
TPU | 120 - 140 (Tg) | 180 - 220 | Flexible elastomer with high abrasion resistance, toughness, and good chemical resistance. | Hygroscopic and requires drying. Sticky melt can cause issues with gating and ejection; shutter gates are recommended. |
PVC | 160 - 180 (Tg) | 170 - 210 | Rigid or flexible formulations, good flame retardancy, and low cost. | Poor thermal stability; degrades releasing HCl gas. Requires precise temperature control and specialized, corrosion-resistant equipment. |
Understanding the fundamental plastic melting temperature is crucial, but success lies in applying the specific data for your chosen material. This section provides a practical plastic melting temperature chart, acting as a quick-reference plastic melting guide for engineers to inform both material selection and design decisions.
The table below details the melting point of plastic for common engineering polymers. However, we go beyond basic data sheets by including the practical processing range used in injection molding and the critical design considerations that directly impact your part's quality and manufacturability.
This injection molding temperature guide reveals critical patterns that every designer should know. For instance, the significant gap between the fundamental plastic melting point and the practical processing temperature for a material like ABS is necessary to achieve the low viscosity required for injection.
Here’s how to use this data to prevent injection molding defects caused by temperature:
For Complex, Thin-Walled Parts: Materials like PC and PA66, which maintain strength at higher plastic melting temperatures, are excellent choices, as they can fill intricate details without premature freezing.
To Avoid Cosmetic Defects: The note on ABS underscores that exceeding its thermal stability limit is a direct cause of surface defects. This is a classic example of how a plastic melting temperature boundary must be respected.
To Ensure Dimensional Stability: The guidelines for PP and PA66 highlight that temperature control is only one part of the equation. Your design must account for crystallization and shrinkage behaviors that are triggered by the melt condition.
Incorporating this plastic melting temperature reference into the initial stages of your design shifts you from mere material selection to deliberate adaptation around it. Such a forward-thinking strategy is precisely what distinguishes an adequate design from an exceptional, production-ready version.
Even with a thorough plastic melting guide for engineers, real-world processing can reveal issues. A significant portion of injection molding defects caused by temperature stem from a single root cause: the melt temperature being outside the optimal processing window. Let's analyze the two main scenarios and their solutions, turning your injection molding temperature guide into a troubleshooting manual.
If the melting temperature of the plastic is dialed up excessively, it triggers degradation in the polymer chains, culminating in total disaster.

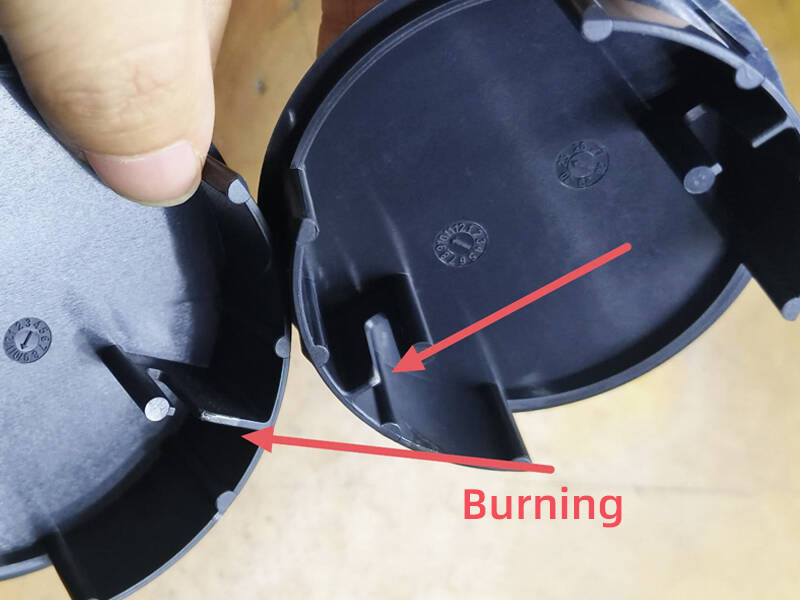

Burning/Black Specks: Charred material appearing as streaks or spots.
Severe Discoloration: Yellowing or browning of heat-sensitive materials like ABS or PC.
Bubbles/Gas Streaks: Trapped volatiles from decomposition.
Loss of Mechanical Properties: The part becomes brittle and weak due to broken molecular chains.
A customer reached out to us regarding persistent fractures in their transparent polycarbonate (PC) parts. Although the melting point for PC plastic hovers around 155°C, the barrel's actual melt temperature had been cranked up to 340°C—much too elevated given the dwell duration. That intense overheating broke down the polymer, sharply diminishing its resistance to impacts and generating fine cracks that propagated amid applied loads. To resolve it, we reduced the barrel temp to the suggested 290-320°C window while implementing rigorous oversight of the heat curve.
If the melting temperature for the plastic dips too low, the substance doesn't achieve the required fluidity to adequately occupy the mold cavity, sparking an alternate array of issues.
Short Shot: The mold cavity is not completely filled.

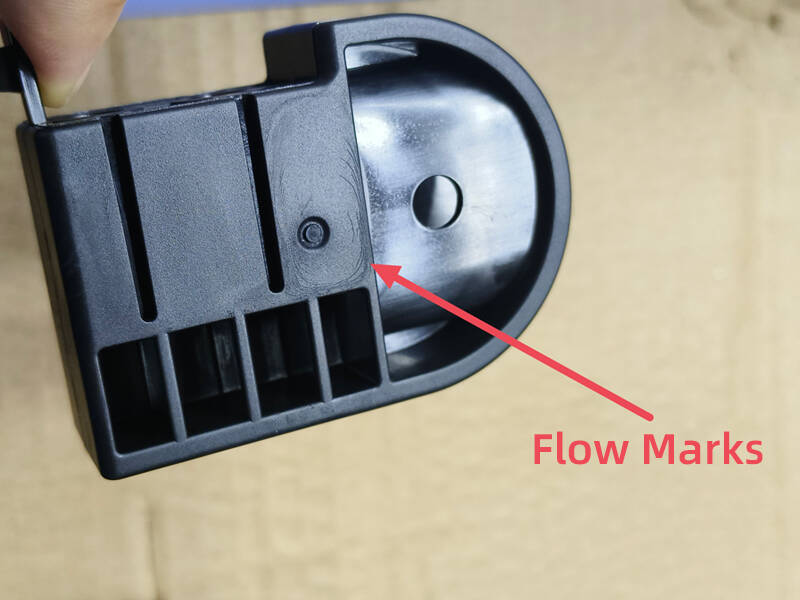

Flow Marks/Weld Lines: Visible lines on the part surface where flow fronts cooled before merging.
High Internal Stress: The part may warp or crack after ejection as the locked-in stresses relieve.
Poor Surface Finish: A dull, rough surface instead of a glossy one.
If you are consistently facing short shots or flow marks, simply raising the barrel temperature is the first step. However, if the design is the constraint, consider these modifications:
Increase Gate Size or Number: A larger gate allows more material to flow into the cavity before it freezes.
Optimize Mold Temperature: A hotter mold prevents the material from cooling too rapidly, allowing it to flow further and better fuse at weld lines.
Review Wall Thickness: Ensure consistent and adequate wall thickness to facilitate flow. Sudden thin sections can act as barriers.
Grasping the melting point of plastic goes beyond merely adjusting a machine setting; it's key to identifying issues at their core. Linking those particular flaws to their temperature-related origins allows you to shift from fixing problems after they arise to crafting processes that prevent them upfront. Make the plastic melting temperature reference your starting point every time, yet keep in mind that the unique shape of your component, the mold's configuration, and the equipment itself will ultimately shape the ideal parameters.
Mastering the plastic melting point is not just for processors; it's a strategic advantage in the hands of a designer. By integrating thermal considerations into your workflow, you transition from creating a design to engineering a manufacturable product. This final section of our plastic melting guide for engineers provides actionable steps to apply this knowledge from concept to launch.
Begin by focusing on the final application setting, rather than simply compiling a roster of material traits. This strategy enables you to work backwards to pinpoint the essential plastic melting temperature and streamline your selections with precision.
High-Temperature Application? If your part will be near an engine or electronics, you need a polymer like PC or PA66 with a high melting point of plastic and, crucially, a high Heat Deflection Temperature (HDT).
Chemical Resistance Needed? For components in contact with oils or solvents, PP might be ideal. Its melting temperature range is moderate, but its chemical inertness is the key.
Actionable Tip: Cross-reference your mechanical and aesthetic requirements with the plastic melting temperature chart from Section 3. This will immediately highlight suitable candidates and flag potential processing challenges early.
Your mold design is where theoretical material data meets physical reality. The goal is to create a mold that works with the material's melting characteristics, not against them.
For Elevated-Temperature Polymers: When working with advanced resins such as PA66 (Nylon), opt for a hot runner setup. It sustains the molten state at the prime plastic melting temp inside the manifold, avoiding blockages from cooling and trimming cycle durations that would get squandered on reheating stock in a cold runner.
Gate and Runner Setup: In cases of rapidly hardening materials (e.g., PP), bigger gates and runners cut down on shear stress and make sure the mold cavity gets fully packed before the leading edge of the flow solidifies.Cooling Pathway Design: A well-optimized cooling network is essential. It fosters consistent hardening, preserves accurate sizing, and enables operation at the best plastic melting temp while keeping cycle lengths in check.
The trial phase is your opportunity to validate and refine. The most critical factor here is clear communication with your injection molding partner about the thermal process.
Communicate the Temperature Curve: Don't just ask for a sample. Discuss the melt and mold temperature profile with the engineering team. A reputable molder will be able to explain their settings and how they relate to the fundamental melting point of plastic for your chosen material.
Document Everything: The parameters that successfully produce a good part are not arbitrary; they are your gold standard. Ensure all thermal settings—barrel temperatures, nozzle temperature, and mold temperatures—are meticulously recorded to become the standard for mass production.
Solve Collaboratively: When spotting temperature-related flaws in injection molding, draw on insights from Section 4 to jointly pinpoint their causes. Often, a minor tweak to the plastic melting temp, paired with an alteration in injection velocity or hold pressure, unlocks flawless results.
This injection molding temperature guide functions as the critical connection point, translating your design vision into concrete manufacturing success. A proactive consideration of the plastic melting point throughout the process empowers you to enact more strategic choices, circumvent costly mold modifications, and sharply accelerate the speed of your product's market entry. Establishing this strategic alliance with your molder, underpinned by a shared mastery of these guidelines, represents the definitive pathway to a successful and trouble-free launch.
As we've demonstrated throughout this plastic melting guide for engineers, the plastic melting point is far more than a number on a datasheet—it is a fundamental variable that directly dictates the success of your injection molding project. Mastering the plastic melting temperature is not just about avoiding defects; it is about proactively designing for manufacturability, performance, and cost-efficiency.
From material selection to final production, a precise understanding of the melting point of plastic and its practical implications empowers you to:
Reduce Costs: Minimize costly mold reworks, material waste, and production delays by getting the thermal process right from the start.
Ensure Quality: Prevent the vast majority of injection molding defects caused by temperature, guaranteeing parts that meet your strictest aesthetic and performance standards.
Accelerate Time-to-Market: Streamline prototyping and trial phases by providing a design that is optimized for the injection molding process.
This injection molding temperature guide has provided the foundational knowledge and data you need. The final step is to apply it with a partner who understands the critical balance between theory and practice.
Contact our engineering team today for a confidential consultation on your specific material and part design. We'll provide a customized analysis and robust plastic melting temperature strategy to ensure your product is not only well-designed but also perfectly produced.
