how to solve pc abs parts cracking

Views: 0     Author: Site Editor     Publish Time: 2025-10-21      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Table of Contents

I. Introduction


II. Why Does PC/ABS Crack?

III. How to Prevent PC/ABS Cracking: A Practical Design Checklist

IV. How Alpine Mold Solves PC/ABS Cracking — A Real Case Study

V. Conclusion



I. Introduction


If you’ve ever watched a perfectly molded PC/ABS housing develop mysterious white lines or cracks just days after assembly, you’re not alone. Stress cracking in PC/ABS injection molded parts remains one of the most frustrating challenges for product designers and engineers. It’s not just a material problem—it’s a complex interaction between design geometry, processing stress, and chemical exposure. In this article, we’ll cut through the noise and show you how to eliminate cracking at its source with practical, field-proven strategies that bridge materials science and mold engineering.

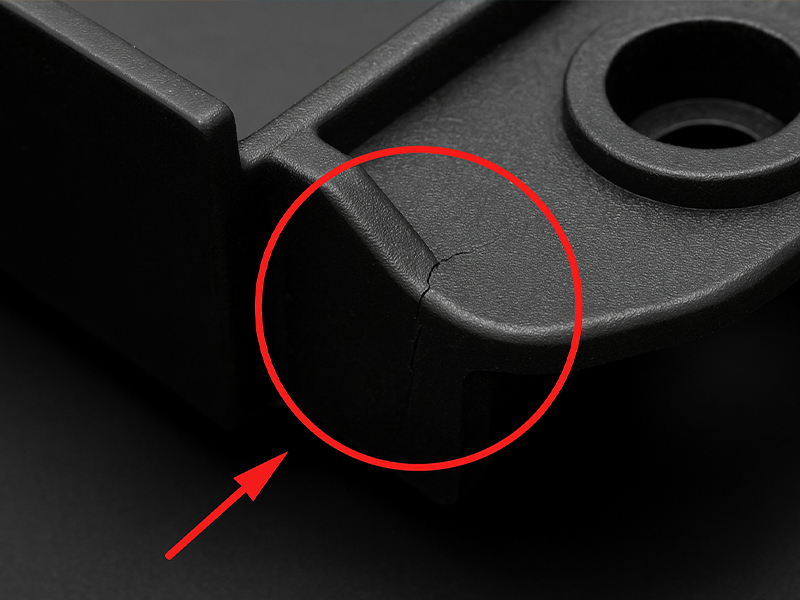

PC/ABS Parts Cracking



II. Why Does PC/ABS Crack?


Cracking in PC/ABS parts is not random—it’s predictable, diagnosable, and preventable once you understand the three factors that cause it. Every fracture, stress line, or whitening mark can be traced back to the combined influence of Material, Chemical, and Stress. When all three coexist, failure becomes inevitable. Designers may not control material chemistry or chemical exposure completely—but they can control stress through intelligent design and process alignment.


1. The Material — A Built-in Weakness


The interface is the weak link. PC/ABS is a polymer blend, combining two plastics with different chemical structures and polarities. At a microscopic level, the interfacial layer between PC and ABS acts like the “seam in a wall”—mechanically bonded, but chemically fragile. This junction becomes the preferred attack point for solvents, detergents, and environmental stress.


What designers should consider:

  • Is the PC/ABS grade optimized for interfacial compatibility?

  • Has the supplier used an effective compatibilizer system to strengthen the bond between phases?

  • Request ESC (Environmental Stress Cracking) test data or UL746C certification to evaluate real-world performance.

Selecting a well-formulated resin at the start can eliminate the majority of future cracking issues.

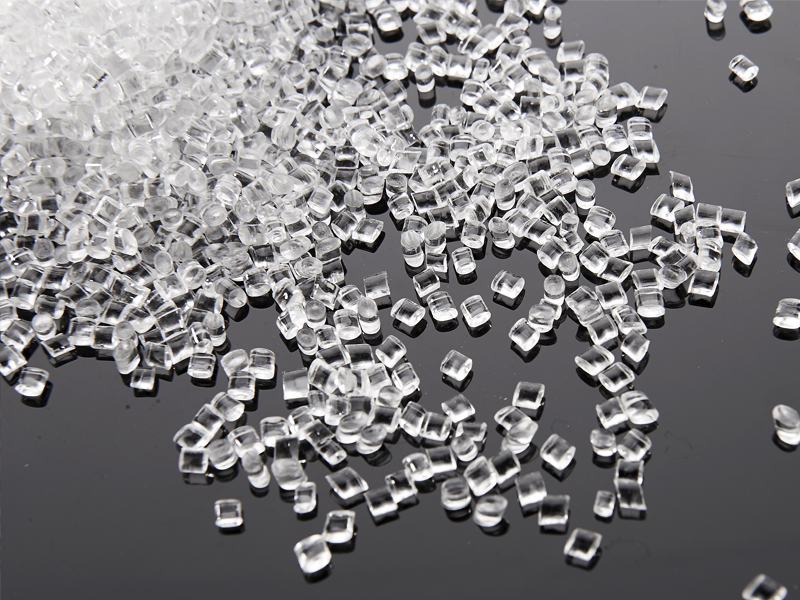

pc

PC

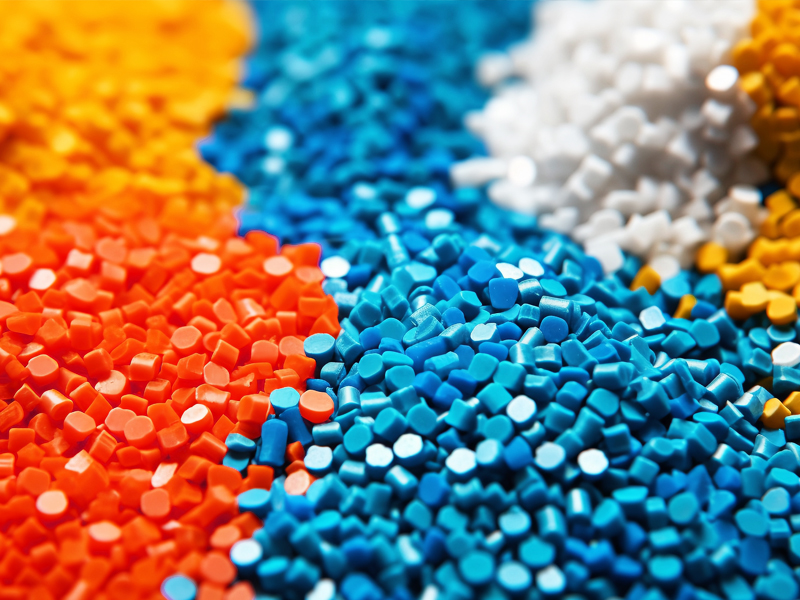

abs

ABS


2. The Chemical — The Precision Attacker


Every chemical targets the phase it interacts with most easily:

Polar solvents (e.g., alcohols, cleaning agents, sanitizers) attack the polar PC phase, leading to surface whitening or micro-cracks.

Non-polar substances (e.g., oils, lubricants, greases) swell the non-polar ABS rubber phase, weakening internal cohesion and accelerating crack propagation.

This polarity-based reaction explains why PC/ABS often fails after exposure to specific maintenance fluids or cosmetic cleaners—even when the mechanical load seems low.


What designers should consider:

  • Identify and document all chemical exposures during the product’s life cycle—manufacturing, cleaning, operation, and end use.

  • Consult with the material supplier for chemical resistance charts and recommended protection strategies (e.g., coatings or barrier layers).

Early awareness of chemical interactions prevents costly redesigns and warranty failures.


3. The Stress — The Catalyst and Amplifier


Stress is the most decisive factor—and the one fully under the designer’s control.

It comes in two forms:

Internal stress originates from the molding process: low mold temperature, uneven cooling, or high packing pressure can “freeze” molecular chains in a stretched state.

External stress arises from product geometry and assembly: tight snap-fits, sharp corners, and forced assemblies create local stress concentrations that act as crack initiators.

Stress doesn’t create cracks alone, but it amplifies every weakness caused by material sensitivity or chemical exposure. In practice, stress is the trigger that turns a chemical or material vulnerability into visible fracture.


What designers should consider:

  • Incorporate generous fillet radii (R ≥ 0.5 mm) and uniform wall thickness to minimize stress concentration.

  • Design tolerant joints that allow controlled flex without excessive interference.

  • Use Moldflow or FEA simulations to identify and correct high-stress regions before tooling.


III. How to Prevent PC/ABS Cracking: A Practical Design Checklist


Once you understand why PC/ABS injection moulded parts cracks, the next step is knowing how to prevent it. Cracking isn’t eliminated by luck—it’s engineered out through deliberate design choices, material validation, and mold collaboration. Below is a four-phase checklist that embeds “anti-cracking DNA” throughout the entire product development process.


Phase 1: Concept Design & Material Selection


1. Define the Real-World Environment


Start by creating a Chemical Exposure Map that lists every medium the product will encounter—during transport, storage, use, or cleaning. This includes oils, lubricants, alcohol-based sanitizers, and detergents. This document becomes the foundation for material selection and validation.


2. Communicate Precisely with Your Material Supplier


Never just say, “We’re using PC/ABS.” Instead, engage your supplier with data-driven questions tied to your product’s environment:

  • “Our enclosure will be exposed to engine oil—please recommend a high-PC-content grade with stable rubber-phase dispersion.”

  • “Does this grade use a maleic anhydride-grafted compatibilizer to improve PC–ABS interfacial bonding?”

  • “Can you provide ESC (Environmental Stress Cracking) test reports under specific chemical conditions?”


Design Insight: Early collaboration with suppliers prevents mismatched material choices. Always request chemical resistance data sheets and verify UL746C or ISO 22088 test results when available.


Phase 2: Structural Design


1. Eliminate Stress Concentration Points


No sharp corners—ever. All internal and external corners should have a minimum radius of R ≥ 0.5 mm to distribute stress evenly. This small change often delivers the biggest gain in crack prevention.

Maintain uniform wall thickness to ensure consistent cooling and avoid residual stress. Use gradual tapered transitions between thick and thin areas.

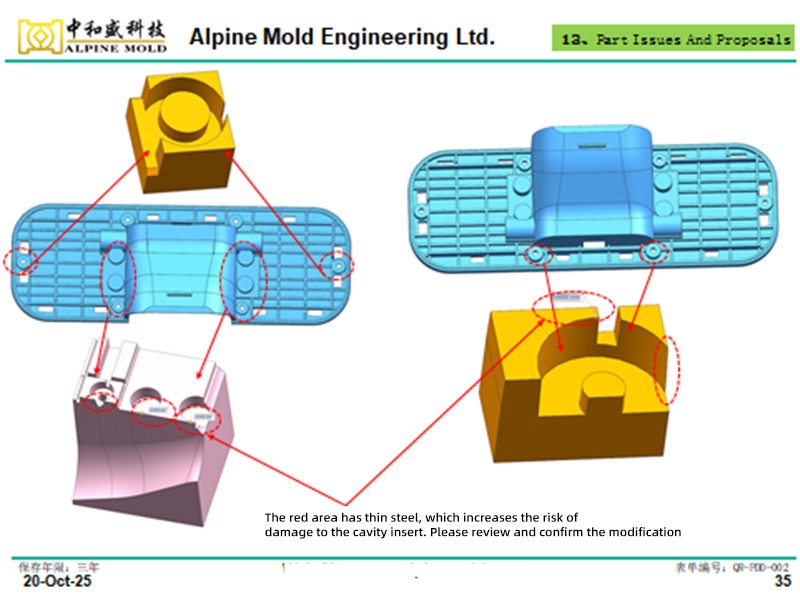

DFM report


2. Design “Forgiving” Assembly Features


Snap-fits and screw bosses: Avoid tight interference fits. Add +0.1 mm clearance where possible so parts “click” together easily rather than being forced under stress.

Gate location optimization: Collaborate with your mold engineer to position gates away from visible surfaces and high-stress zones, minimizing weld lines and flow marks in critical load areas.

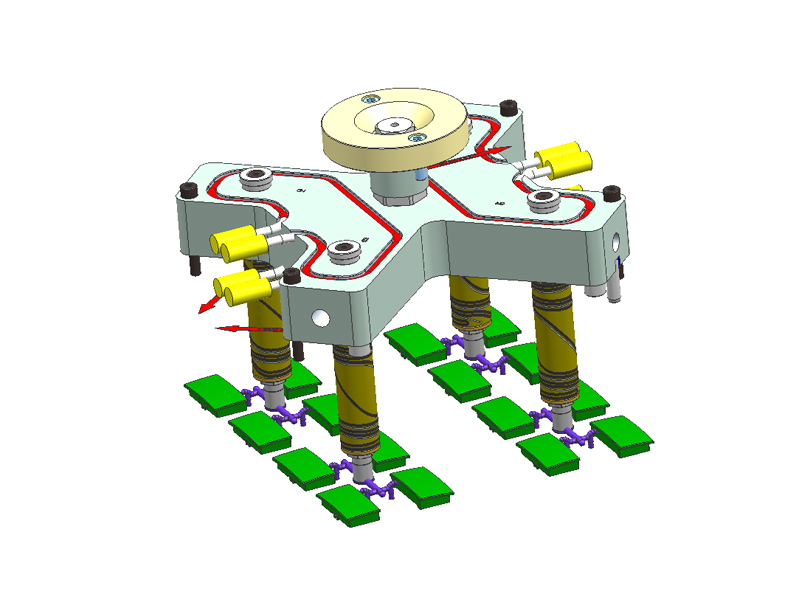

Gate location optimization


Design Insight: Stress prevention is not just a structural choice—it’s a systems approach. Combine DFM analysis and Moldflow simulation to visualize potential hotspots before tooling begins.


Phase 3: PC/ABS Tooling & Process Integration


In PC/ABS molding, stress control happens inside the mold. Proper temperature management and post-molding treatment are key to long-term chemical resistance.


1. Maintain High Mold Temperatures (80–100 °C)


A stable, high mold temperature lets polymer chains relax before solidifying, reducing residual stress and improving dimensional stability.


2. Apply Controlled Annealing (80–90 °C for 2–4 h)


Annealing releases internal tension and strengthens resistance against chemical attack and mechanical load.

Design Insight: Consistent thermal control and balanced cooling design can double the service life of PC/ABS parts in harsh environments—turning chemical weakness into durable performance.

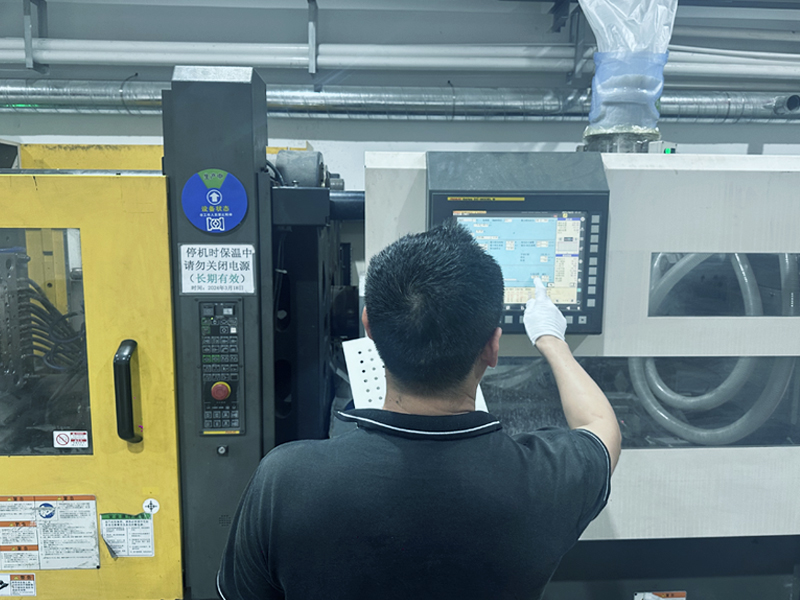

PC/ABS Parts Cracking


Phase 4:  PC/ABS Molded Parts Verification & Testing


Never rely solely on mechanical testing. True validation comes from simulating real-world exposure.

1. Environmental Simulation Tests

Normal testing: Immerse samples in target chemicals for 72 hours at 25 °C.

Accelerated testing: Immerse for 24 hours at 60 °C to replicate high-temperature or long-term exposure conditions.

2. Key Evaluation Criteria

Visual: No whitening, crazing, or cracking.

Mechanical: Maintain at least 80 % of original tensile or impact strength after chemical exposure.

Design Insight: A visually perfect part that loses mechanical strength is still a failure in the field. Always validate both appearance and mechanical retention.


IV. How Alpine Mold Solves PC/ABS Cracking — A Real Case Study


A European customer turned to Alpine Mold after repeatedly facing PC/ABS cracking issues with another mold supplier. Their product — a PC/ABS enclosure for an industrial control unit — had been developing micro-cracks and whitening around the screw bosses and snap-fit joints just weeks after assembly. These failures were caused by chemical stress cracking, triggered by cleaning agents and high residual stress during molding.Frustrated by ongoing problems, the customer decided to rebuild the mold with Alpine Mold.

Our engineering team carried out a comprehensive failure analysis, combining DFM review, Moldflow simulation, and chemical resistance validation. The investigation revealed two key causes:

1. Low mold temperature (only 60°C) used by the previous supplier, which created excessive internal stress.

2. Uneven wall thickness near the structural ribs, leading to localized stress concentration.

To resolve the problem, Alpine Mold implemented three major improvements:

  • Increased mold temperature to 90°C to promote even molecular relaxation during cooling.

  • Optimized part geometry with larger fillet radii and smoother wall transitions.

  • Added a post-molding annealing process at 85°C for 3 hours to release residual stress and improve chemical resistance.

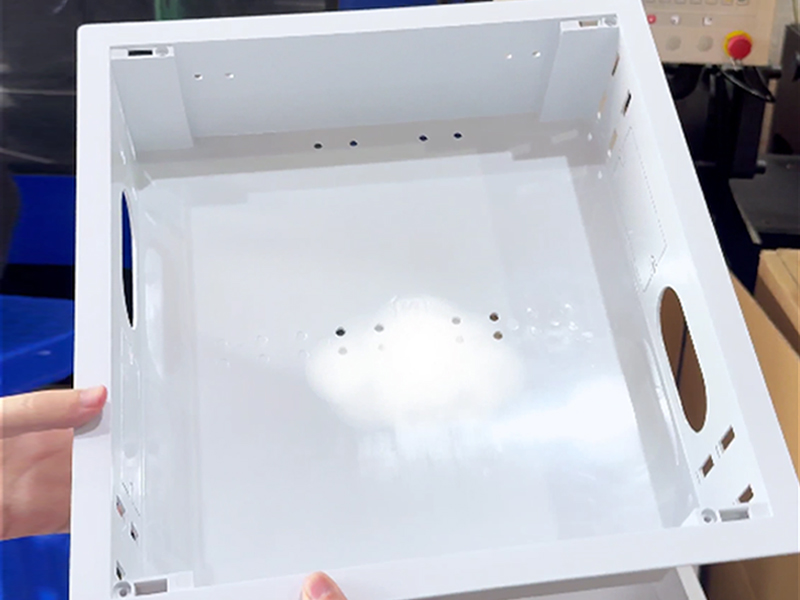

pc production


After re-testing, the new samples passed both 72-hour alcohol immersion and 60°C accelerated aging tests, maintaining over 90% of their tensile strength with no visible cracks. Since switching to Alpine Mold, the customer has achieved stable, crack-free mass production — turning a recurring failure into a proven success.

At Alpine Mold, we don’t just make molds — we engineer reliability. With more than 20 years of experience in injection mold design, material optimization, and process control, we help global customers produce chemically stable, crack-free PC/ABS parts that perform flawlessly in the real world.



V.Conclusion


Solving PC/ABS cracking requires more than good geometry — it demands a systems mindset that bridges materials, chemistry, design, and manufacturing. A truly durable product starts with understanding how the PC and ABS phases interact, anticipating how chemicals attack, engineering stress out of the design, and validating performance through realistic testing. When these disciplines align, cracking is no longer an unpredictable failure but a controllable design variable.

At Alpine Mold, we turn this understanding into action. With over 20 years of experience in plastic injection mold design and manufacturing, our engineering team helps customers worldwide improve chemical resistance and durability in PC/ABS parts. From material selection and DFM optimization to mold temperature control and annealing solutions, we provide end-to-end technical support to make your next project truly crack-free.  Let’s collaborate to turn your design concepts into long-lasting, high-performance ABS PC products.
