Ever struggled with unexplained warping, sink marks, or part deformation that forced costly mold reworks—blowing your budget and derailing your product launch timeline? If you're a product designer or mechanical engineer, you already understand a hard truth: your design choices lock in nearly 80% of manufacturing cost, efficiency, and final part quality. Something as subtle as inconsistent wall thickness, an insufficient draft angle, or poorly placed ribs can trigger molding defects, leading to expensive tooling changes and frustrating production delays.
At Alpine Mold, having collaborated with thousands of engineers on global projects, we’ve validated a powerful insight: the majority of manufacturing challenges can be eliminated at the design stage. This complete guide is your proactive playbook. We’ll walk you through how to Design Injection Molded Parts that are optimized for manufacturability from the start—using four core principles refined by our senior engineering team to prevent defects, accelerate time-to-market, and deliver flawless, high-quality parts consistently.
A successful plastic part is built on three fundamental, yet often overlooked, design elements: wall thickness, Radius, and draft angles. These are the bedrock of manufacturability, dictating the part's aesthetic quality, structural integrity, and ultimate production cost. Treating them as unbreakable "design rules" is the most effective way to avoid costly mold modifications and production issues down the line.
In any comprehensive injection molding design guide, uniform wall thickness is the cardinal rule. Inconsistent walls are a primary source of defects. They cause different cooling rates across the part, creating internal stresses. As these stresses relieve, the part warps and twists. Simultaneously, as thicker sections cool and shrink, they pull material from the already-solidified thinner areas, creating visible sink marks on the surface, which compromise both appearance and strength.
Recommended Wall Thickness: For most engineering plastics, a wall thickness between 2mm and 4mm is a safe and economical starting point.

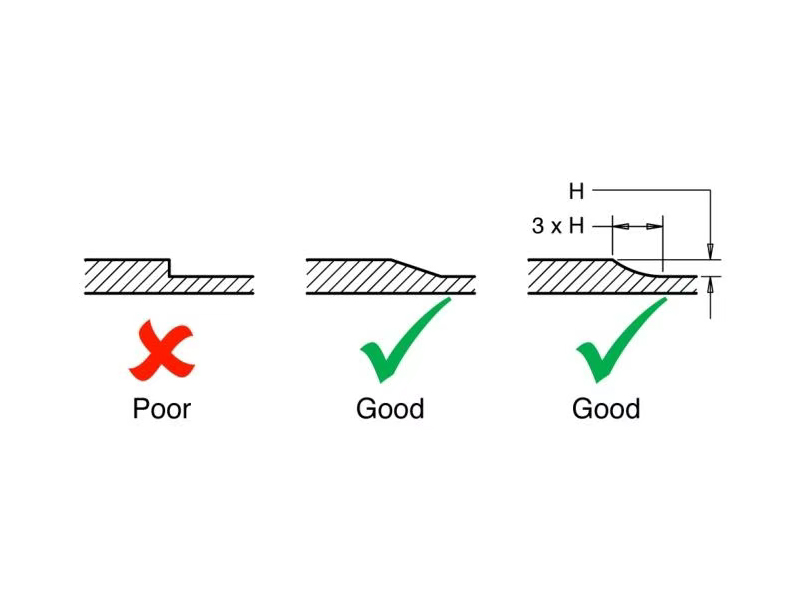

Gradual Transitions: When a change in wall thickness is unavoidable, ensure a smooth, gradual transition. We recommend a transition zone length ≥ 3x the wall thickness change (3H) to facilitate smooth material flow and even stress distribution.

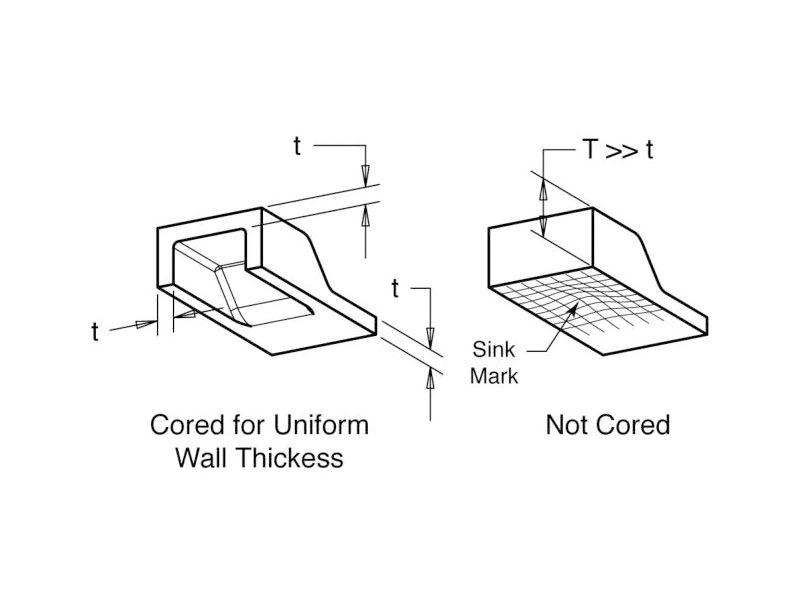

Coring Out: For thick sections created by functional features like bosses and ribs, "coring" is the most effective solution. By removing the non-essential material, you make the wall thickness uniform. In our DFM (Design for Manufacturability) reports, over 90% of potential sink mark issues are resolved by recommending coring for bosses and ribs. This is the core value of DFM for injection molding—de-risking projects before the mold is even cut.
Adhering to the principle of uniform wall thickness for injection molding is the first step towards optimizing your plastic part design checklist and is the most effective method to avoid sink marks in plastic parts.
Sharp corners are critical failure points in a plastic part's structure. They act as stress concentrators, dramatically amplifying stress and becoming the origin point for cracks under load. Proper radius design is a cornerstone of injection mold design best practices.
The chart below clearly shows the relationship between the radius-to-thickness ratio (R/T) and the stress concentration factor (K). When R/T is less than 0.5, the stress concentration factor spikes dangerously.
Inside Radius ≥ 0.5 × Wall Thickness
Outside Radius ≥ 1.5 × Wall Thickness
Eliminate Stress Concentration: Radius provide a smooth path for stress flow, significantly enhancing the part's structural integrity and impact resistance. A well-designed radius acts as the part's "silent guardian."
Optimize Melt Flow: Radius create smooth pathways for the molten plastic, reducing flow resistance and avoiding defects caused by turbulent flow. This ensures the mold cavity fills more easily, which is particularly critical for complex product shell designs.
A draft angle is the slight taper applied to walls parallel to the mold's opening direction, essential for ejecting the part without damage. Insufficient draft can cause cosmetic scratches on the part, or worse, lead to deformed parts or mold damage due to high ejection forces, severely impacting production efficiency and yield.
Basic Requirement:For smooth surfaces, a draft angle of 1° to 2° is typically sufficient.

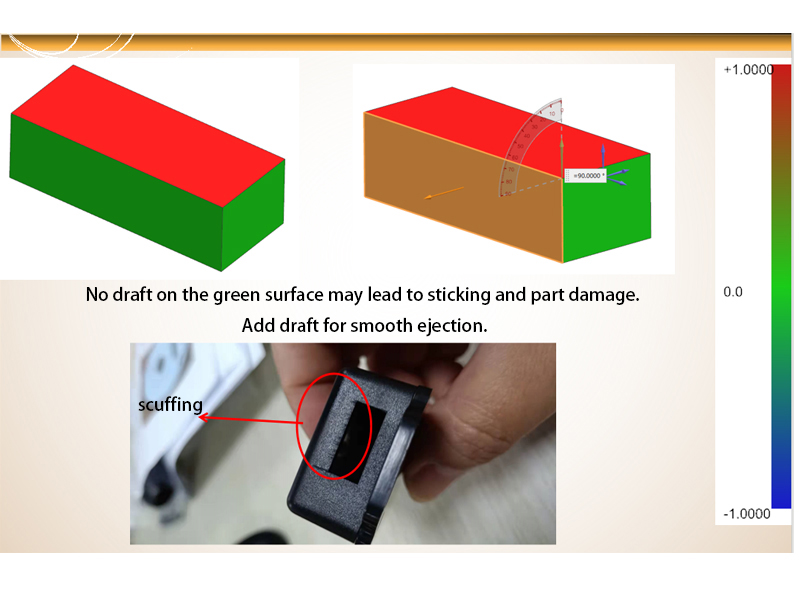

Critical Requirement for Textured Surfaces: This is a key detail often overlooked by designers. Surface texture increases ejection resistance, demanding additional draft. A practical rule of thumb is: For every 0.025mm of texture depth, add a minimum of 1.5° of additional draft angle to your base value.
When planning your draft angle design guide, it is crucial to confirm the final surface finish with your mold supplier early in the process. Considering this from the very beginning when you design injection molded parts is a prerequisite for flawless demolding and a superior final appearance.
Beyond the basic shell, the true structural intelligence of a plastic part lies in its ribs and bosses. These features are essential for stiffness and assembly, but if designed incorrectly, they become the very source of the defects they were meant to overcome. Mastering their design is an "invisible art"—one that enhances strength without compromising surface quality.
The primary purpose of a rib is to increase the bending stiffness of a part without a significant increase in wall thickness and weight. However, a poorly designed rib is a direct recipe for sink marks. The core principle is to reinforce without adding mass.
The 60% Rule: The fundamental rule is to keep the rib thickness to no more than 60% of the nominal wall thickness (T). This allows the rib to cool at nearly the same rate as the wall, preventing a sink mark from forming on the opposite surface.
Height Limit: To ensure fillability and easy ejection, the rib height should not exceed 3 times the wall thickness (H ≤ 3T). For greater stiffness, use multiple ribs instead of a single, excessively tall one.
Root Radius: A generous root radius is critical. We recommend R ≥ 0.25T. This radius reduces stress concentration, facilitates smoother plastic flow, and dramatically improves the longevity of the mold.
Intersection Coring: Where ribs intersect or meet a wall, material accumulates, creating a thick section that will sink. The solution is coring out these intersections. In one case, we helped a client completely eliminate visible sink marks on the back of a dashboard panel by optimizing the coring design at the rib intersections. This is a classic example of how DFM for injection molding solves real-world problems.
Following these guidelines ensures your boss and rib design for injection molding acts as a silent backbone, providing rigidity without leaving a trace.
Bosses are the unsung heroes of assembly, providing points for screws, pins, and ultrasonic welding. Their failure can lead to product returns, making their design critical. The main challenges are preventing sink marks over them and ensuring they are strong enough to withstand assembly and operational stresses.
Wall Thickness & Sink Marks: Just like ribs, the body of a boss should typically be ≤ 60% of the main wall thickness to prevent sink marks. In non-cosmetic areas, this can be increased slightly to handle higher stresses from self-tapping screws.
The "Isolate from Corners" Rule: Placing a boss directly in a corner creates a massive, difficult-to-cool mass of plastic, guaranteeing a sink mark and potential part warpage. Always isolate the boss from the side walls, creating a ribbed connection instead.
Root Radius: Again, a radius of R ≥ 0.25T at the base of the boss is mandatory to prevent cracking and mold damage.
Reinforcement with Gussets and Connecting Ribs: Bosses, especially tall ones, are prone to shearing or bending. Strengthen them by adding gussets (supporting webs) at the base or by connecting them to nearby walls with ribs. This vastly increases their strength and stability without adding significant mass.
By adhering to these injection mold design best practices for bosses, you ensure that your design injection molded parts have reliable and robust assembly points that maintain the pristine quality of the visible surfaces. A thorough plastic part design checklist must include a dedicated review of every boss against these criteria.
Moving beyond foundational design rules, a successful product often hinges on strategic decisions made at a higher level. The choice of material, the use of specialized processes, and the integration of unique features separate a good part from a great one. Mastering these elements demonstrates a deep understanding of Design for Manufacturability (DFM) and allows for innovative, cost-effective solutions.
Selecting the right thermoplastic is not a one-size-fits-all decision; it is a critical strategic choice that impacts performance, durability, and cost. The vast array of options can be navigated by focusing on key application requirements. Here is a simplified selection guide:
Application Requirement | Recommended Material Families |
High Impact Strength / Toughness | Polycarbonate (PC), PC/ABS Blend, Nylon (PA) |
High-Temperature Resistance | PPS, PEEK, PEI |
Flexibility / Living Hinges | Polypropylene (PP), Polyethylene (PE), TPE |
High-Gloss, Transparent Parts | Acrylic (PMMA), Polycarbonate (PC) |
Chemical & Wear Resistance | Acetals (POM), Nylons (PA), PPS |
General Purpose / Cost-Effective | Polypropylene (PP), ABS, Polyethylene (PE) |
Unsure which material is the perfect fit for your application? Our extensive material database and expert team are here to provide a complimentary consultation to guide your selection and de-risk your project.
Some designs call for solutions beyond a standard rigid part. Two powerful techniques to achieve unique functionalities are:
Living Hinges: A living hinge is a thin, integral web of plastic that allows two sections of a part to bend repeatedly. This design is a cornerstone of efficient plastic part design for items like toolboxes and consumer electronics cases. It is critical to note that this feature is almost exclusively viable with polypropylene (PP) or polyethylene (PE), due to their excellent fatigue resistance. A well-designed PP living hinge can withstand over a million flex cycles.
Gas-Assist Molding: For large, thick parts—such as handles or automotive panels—conventional molding leads to severe sink marks and warpage. Gas-assist molding injects nitrogen gas into the thick sections after the initial plastic fill, creating a hollow core. This process:
Eliminates sink marks.
Reduces part weight and material usage.
Minimizes warpage while maintaining stiffness.
Mastering these processes demonstrates an ability to handle complex requirements and deliver innovative solutions beyond standard components.
Metal inserts provide durable, threaded fastening points in plastic assemblies. The method of installation is a critical DFM for injection molding decision that impacts cost, strength, and production speed.
Process | Pros | Cons | Best For |
Ultrasonic Insertion | Fast, low residual stress, strong bond. | Requires specialized equipment; plastic must have good melt flow. | High-volume production, post-mold assembly. |
Thermal Insertion | Low tooling cost, simple operation. | Risk of overheating; weaker bond strength; slower. | Low-volume prototypes, repairs. |
Molded-In (Molded Insert) | Excellent bond strength; no secondary operations. | Slower cycle time; higher mold complexity/cost. | High-volume production where strength is critical. |
Our advice: Determining the insert strategy during the design phase is crucial. An upfront decision for molded-in inserts, for example, can avoid the cost and time of secondary operations later, streamlining your entire production. This strategic foresight is a key benefit of a comprehensive overmolding design guide and collaborative partnership with your molder.
The most elegant design can only be realized through precision tooling and manufacturing. This final phase is where strategic partnership with your molder transforms a digital model into a successful, market-ready product. It's not just about building a mold; it's about building the most efficient and reliable path to production.
Choosing the right mold material isn’t simply a technical decision — it’s a strategic one that determines your project’s overall return on investment. Different materials offer unique advantages depending on your production volume, target cost, and timeline.
Aluminum Molds: Best suited for prototypes, low-volume production, or large components where cost and speed are key. They allow for fast machining and cooling but have a shorter lifespan, typically supporting up to tens of thousands of shots.
Pre-Hardened Steel Molds: A balanced, cost-effective option for medium-volume runs. Offering higher wear resistance than aluminum without the cost and lead time of hardened steel, these molds can reliably produce hundreds of thousands of parts.
Hardened Steel Molds: The go-to choice for high-volume, long-term production. Though they require a higher initial investment, their durability and wear resistance enable millions of cycles, resulting in the lowest cost per part over time.
At Alpine Mold, we help every client match their production goals, budget, and expected mold life with the right tooling solution. Our engineering team evaluates technical and financial factors to ensure every decision maximizes your project’s efficiency and ROI — giving you confidence from design to production.
If there is one single takeaway from this injection molding design guide, it is this: engaging in a comprehensive Design for Manufacturability (DFM) analysis at the earliest possible stage is the most significant action you can take to accelerate development, reduce cost, and mitigate risk.
A DFM report is not a simple design approval. It is a proactive, in-depth collaboration where our experienced engineers analyze your 3D model through the lens of the mold. We provide specific, data-driven recommendations on:
Wall Thickness Optimization: Identifying and proposing solutions for areas that may cause sink marks or warpage.
Draft Angle Verification: Ensuring all features have sufficient draft for clean ejection, especially for textured surfaces.
Gate and Ejector Pin Location: Strategically placing these to optimize fill patterns and minimize cosmetic defects.
Parting Line Strategy: Defining the most efficient and cosmetically acceptable mold split.
Boss and Rib Design: Applying the principles discussed earlier to ensure structural integrity without defects.
Our Core Value Proposition: Partnering with us for a deep, early-stage DFM review has been proven to save our clients an average of 2-3 mold modification cycles, directly shortening the development timeline by weeks. This is more than just manufacturing; it is a partnership dedicated to de-risking your project and safeguarding your path to a successful product launch.
Let's bridge the gap between your design and our manufacturing expertise. Contact us today for a free, no-obligation DFM analysis of your upcoming project.
By mastering these four principles, you now have the blueprint to Design Injection Molded Parts that are precise, reliable, and production-ready. But real efficiency doesn’t come from knowledge alone — it comes from partnership. Ａs a professiona plastic injection mold and injection molding company, At Alpine Mold, we go beyond manufacturing; we collaborate closely with your R&D and engineering teams to transform your ideas into high-performance, manufacturable products.
✅ Free Professional Design Review & Detailed DFM Report – Identify potential risks early and ensure every feature supports smooth molding and production.
✅ Global Material Database & Expert Resin Selection – Find the best material solution for your design, balancing performance and cost.
✅ Transparent Quotation & Flexible Project Scheduling – Keep your project on track with clear timelines and agile management.
Upload your 3D files today to receive a FREE quote and DFM analysis within 48 hours, or contact our senior engineers to discuss your next injection molding project.
