Single Cavity Vs Multi Cavity Mold for Efficient Production

Selecting the right mold type for your injection molding project is a crucial step in producing high-quality, cost-effective plastic parts. Multi-cavity molds and family molds are two popular options, each with their own advantages and disadvantages. In this blog, we will explore the differences between these mold types and provide guidance on choosing the best option for your project.

1. Brief Introduction to Multi-Cavity and Family Molds

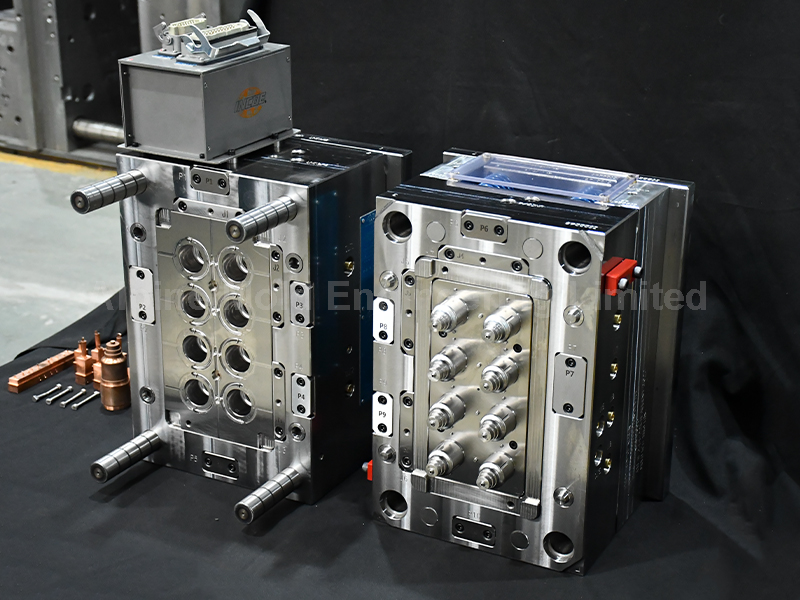

1.1 Multi-Cavity Molds

#Definition and Advantages

Multi-cavity molds are designed with multiple identical cavities, each producing an identical part. This type of mold is particularly suitable for high-volume production, as it allows for the simultaneous production of multiple parts in a single cycle. The main advantages of multi-cavity molds include:

• Increased production efficiency: With multiple cavities producing parts simultaneously, the overall cycle time is reduced, resulting in higher production rates.

• Lower per-part cost: As the production rate increases, the per-part cost decreases, making multi-cavity molds an economical choice for large-scale projects.

• Consistent part quality: Since all cavities are identical, the parts produced are consistent in terms of dimensions, tolerances, and material properties.

#Disadvantages and Limitations

Despite their advantages, multi-cavity molds also have some limitations:

• Higher upfront costs: Designing and manufacturing multi-cavity molds requires more time and resources, leading to higher tooling costs.

• Limited flexibility: Multi-cavity molds are designed for specific part geometries and cannot be easily adapted for different designs.

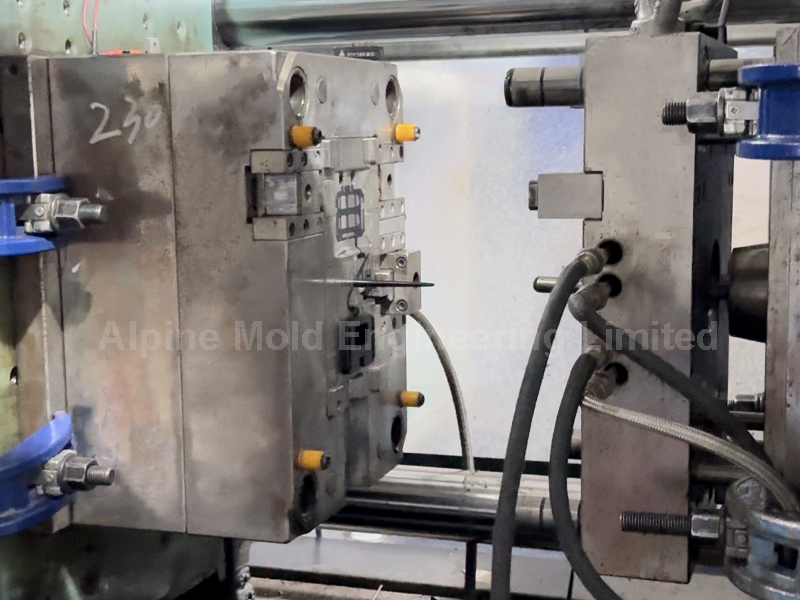

1.2 Family Molds

# Definition and Advantages

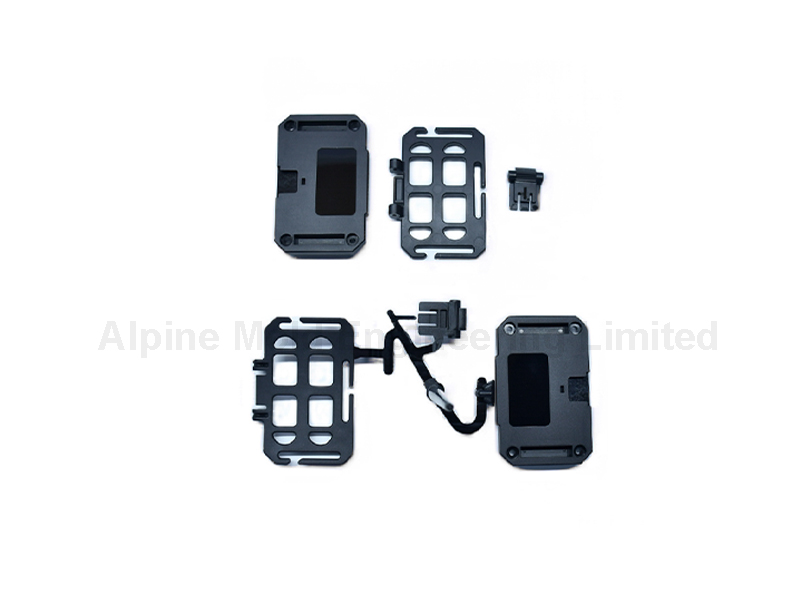

Family molds consist of multiple cavities, each producing a different part. These parts are usually designed to fit together or function as a single unit. Family molds offer several advantages:

• Lower tooling costs: Combining multiple part designs into a single mold can reduce the overall tooling cost, making family molds an attractive option for smaller production runs.

• Reduced assembly time: Since all the parts are produced simultaneously, assembly time is minimized, speeding up the overall production process.

• Reduced material waste: By producing multiple parts in a single cycle, material waste can be reduced, improving the overall sustainability of the project.

# Disadvantages and Limitations

Family molds are not without their drawbacks:

• Increased complexity: Designing and manufacturing family molds is more complex than single-cavity or multi-cavity molds, as each cavity must be carefully designed to accommodate the different part geometries.

• Potential for quality issues: Differences in part size, geometry, and material properties can lead to uneven cooling and inconsistent part quality.

2. Multi-cavity vs Family Molds: What’s the Difference?

Multi-cavity molds and family molds are two types of molds used in the injection molding process. They differ in their design, functionality, and versatility. The major differences between these two types of molds are:

1. Design: A multi-cavity mold consists of multiple identical cavities, each producing the same part. Family molds, on the other hand, are designed to produce different parts of the same family in one mold. This means multiple parts are produced in a single mold, with each part having its own unique design.

2. Production output: Multi-cavity molds produce multiple identical parts simultaneously, resulting in higher production output. Family molds, on the other hand, produce a variety of parts in one mold, making them ideal for low to medium volume production.

3. Tooling costs: Multi-cavity molds require complex tooling and higher upfront costs due to their intricate design. Family molds, on the other hand, have a simpler design and lower tooling costs.

4. Flexibility: Multi-cavity molds are less flexible in terms of design changes since every cavity produces the same part. Family molds are more flexible since they can produce different parts from a single mold.

5. Maintenance: Multi-cavity molds require more maintenance due to the complexity and number of cavities. Family molds have fewer cavities and are easier to maintain.

Overall, the choice between multi-cavity molds and family molds depends on the specific needs of the production process. Multi-cavity molds are suitable for high volume production of identical parts, while family molds are ideal for producing a variety of parts in low to medium volumes.

3. Factors to Consider When Choosing Between Multi-Cavity and Family Molds

When selecting the right mold type for your project, consider the following factors:

1. Production volume: For high-volume production, multi-cavity molds are usually more cost-effective due to their increased efficiency. For lower volume projects, family molds may offer cost savings in terms of tooling costs and reduced assembly time.

2. Part complexity and geometry: Family molds are best suited for projects that require multiple parts with different geometries, while multi-cavity molds are ideal for producing identical parts.

3. Quality requirements: If consistent part quality is a priority, multi-cavity molds may be a better choice. Family molds can result in inconsistent part quality due to differences in part size and geometry.

4. Budget constraints: Consider your project's budget when selecting a mold type. Multi-cavity molds may have higher upfront costs, but the per-part cost can be lower in high-volume production. Family molds can be more cost-effective for lower volume projects.

4.Conclusion

The mold used in the production process plays a critical role in determining the overall effectiveness, output quality, and performance of the entire operation. Therefore, it is important to pay close attention to the type and quality of mold chosen.

Multi-cavity and family molds are both suitable options for high-volume production, but each comes with its own set of advantages and limitations. By understanding the differences between multi-cavity molds and family molds, and considering factors like production volume, part complexity, quality requirements, and budget constraints, you can make an informed decision that will help ensure the success of your project.
