Prototype Vs Production Molding Cost And Efficiency

1. Introduction

In the field of injection molding, both Prototype Molding and Production Molding play crucial roles in different stages of product development. Prototype molding is typically used during the early design and testing phase, allowing engineers and product developers to verify part geometry, material selection, and overall functionality before moving into mass production. Production molding, on the other hand, is designed for long-term, high-volume manufacturing, where cost efficiency, durability, and consistency are the top priorities.

For companies developing new products, understanding the cost and efficiency differences between prototype molding and production molding is essential. Making the right decision at each stage not only reduces overall project expenses but also shortens time-to-market and minimizes the risks of redesign or retooling later.

The purpose of this article is to provide a clear comparison of Prototype vs Production Molding: Cost and Efficiency, and to guide businesses in choosing the most suitable solution for their current stage of development. Whether you are testing a new concept or preparing for mass production, selecting the right molding approach will directly impact your success.

2. What is Prototype Molding?

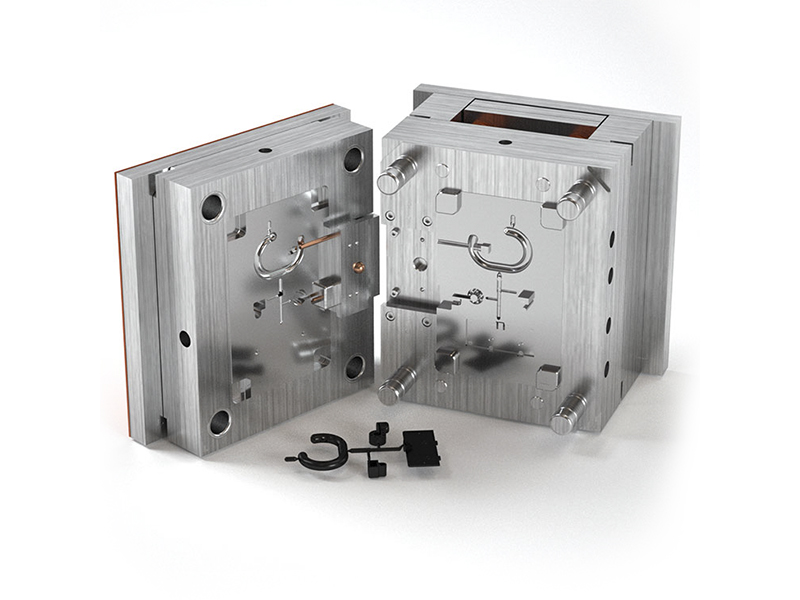

Prototype molding refers to the process of building molds specifically for testing and validation before moving into large-scale production. These prototype molds are often made from aluminum or soft steel, making them faster and more economical to manufacture compared to full-scale production molds. They are widely used during the early product development phase, where design changes and functional testing are common.

The primary advantage of prototype injection molding is its ability to deliver parts quickly and at a lower upfront mold cost. Engineers can use these parts to verify dimensions, evaluate assembly compatibility, and conduct functional tests without waiting for a full production mold design. This approach reduces the risk of costly modifications later and helps shorten product development cycles.

However, prototype tooling has its limitations. Because prototype molds are not designed for long-term use, they typically have a shorter lifespan and may not withstand high volume injection molding. The per-part cost of prototype molding also tends to be higher, since it is optimized for low volume injection molding and product validation rather than mass production efficiency.

In short, prototype molding is a practical solution for rapid prototyping, design verification, and small batch molding, but it is not suitable for continuous large-scale manufacturing.

3. What is Production Molding?

Production molding is the process of creating durable, high-precision molds that are designed for mass production of plastic parts. Unlike prototype tooling, which focuses on speed and flexibility, production molds are usually made from hardened steel to withstand millions of cycles without significant wear. This makes them ideal for high volume injection molding, where consistency, efficiency, and long-term cost savings are critical.

The key benefit of production molding is cost efficiency over scale. While the production molding cost and upfront investment are higher compared to prototype molds, the per-part cost decreases dramatically as quantities increase. For companies aiming for continuous supply or large market demand, production molding benefits include faster cycle times, stable quality, and reliable part repeatability.

In addition, production mold design incorporates advanced features such as optimized cooling systems, multi-cavity layouts, and automated ejection mechanisms. These design elements directly improve injection molding production efficiency, ensuring shorter cycle times and lower labor costs.

However, production molding is not without challenges. The initial injection mold cost can be significant, and the lead time for building a fully engineered production mold is longer than for a prototype injection molding tool. Therefore, businesses often use prototype molding advantages early in development, then transition into production molds once the design is finalized.

In summary, production molding is the most suitable option for companies that require large-scale, consistent, and cost-effective manufacturing of plastic parts.

4. Cost Comparison

When evaluating prototype vs production molding, one of the most critical factors is molding cost. Both approaches serve different purposes, and their cost structures vary significantly depending on volume, tooling design, and product lifecycle.

4.1 Tooling Cost

Prototype mold cost: Typically low, since prototype tooling is often made from aluminum or soft steel. It can be produced quickly and at a fraction of the cost of hardened steel molds.

Production mold cost: Considerably higher, as production mold design requires hardened steel, advanced cooling channels, and precision machining to ensure durability for high volume injection molding.

4.2 Per-Part Cost

In prototype injection molding, the per-part cost is higher because the mold is optimized for low volume injection molding and not for cycle time efficiency.

In production molding, the upfront cost is offset by economies of scale. The more parts produced, the lower the per-part injection molding efficiency cost becomes.

4.3 Maintenance and Lifespan

Prototype tooling for testing: Shorter lifespan, suitable for hundreds to a few thousand cycles.

Production molds: Can last for hundreds of thousands to millions of cycles with proper maintenance, ensuring long-term cost effectiveness.

companies should carefully weigh the prototype vs production molding cost depending on their stage of development and expected order volume. While prototype molding offers flexibility and a lower upfront investment, production molding delivers unmatched cost efficiency in the long run.

5. Efficiency Comparison

When comparing prototype vs production molding, another key factor besides cost is efficiency. Efficiency in injection molding is measured by how quickly, consistently, and reliably parts can be produced at different stages of the product lifecycle.

5.1 Development Speed

Prototype injection molding offers unmatched speed in the early design phase. Because prototype tooling for testing is made with simplified processes and lower-cost materials, parts can often be delivered within 1–3 weeks.

Production mold design, in contrast, requires more time to engineer. Building a hardened steel tool with optimized cooling channels, multiple cavities, and advanced ejection systems can take 6–12 weeks.

5.2 Production Efficiency

In low volume injection molding, efficiency is less about cycle speed and more about flexibility for design changes. Prototype molding allows engineers to iterate quickly and make modifications without significant cost penalties.

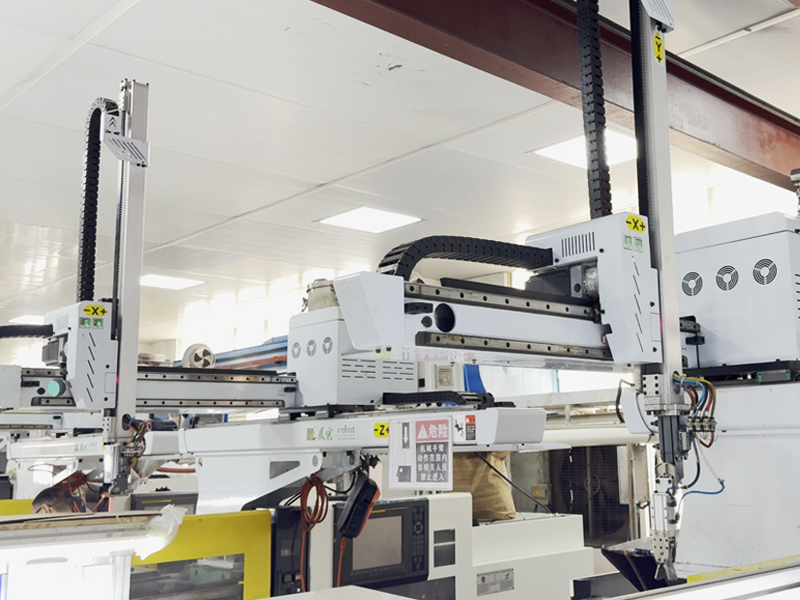

In high volume injection molding, efficiency is everything. Production molding benefits include shorter cycle times, stable part quality, and high repeatability. Features like hot runner systems and optimized cooling dramatically improve injection molding production efficiency, ensuring each part is produced at the lowest possible unit cost.

5.3 Quality and Consistency

Prototype molds are excellent for concept validation but may lack the precision and durability needed for consistent results over thousands of parts. This can sometimes lead to variations in dimensions or surface finish.

Production molds, on the other hand, are built for precision injection molding with long-term stability. This ensures every part meets strict tolerance requirements, which is especially important in industries like automotive, medical devices, and consumer electronics.

prototype molding advantages are speed and flexibility, while production molding delivers maximum efficiency, stability, and consistency in large-scale manufacturing. For many businesses, the ideal approach is to use prototypes for testing and refinement, then transition into production once the design is finalized.

6. Efficiency Factors in Molding

Efficiency plays a critical role in both prototype and production molding. With prototype molding, efficiency is measured in terms of speed to market. Since prototype molds can be built quickly and run with shorter cycle times, they accelerate the product development process. This allows designers and engineers to validate their concepts and move to production faster.

In contrast, production molding efficiency is measured by throughput and repeatability. Production molds are designed with advanced cooling systems, optimized gating, and durable components to maintain consistent performance over long runs. This ensures that every cycle produces high-quality parts with minimal waste, reducing downtime and increasing overall productivity.

Ultimately, efficiency in molding depends on the stage of product development. Prototype molds provide speed and flexibility, while production molds guarantee scalability and cost-effective manufacturing. Companies must align their efficiency needs with their production goals.

7. Conclusion

In the world of plastic injection molding, both prototype molding and production molding play critical roles at different stages of product development. Prototype molds deliver speed, flexibility, and lower upfront investment, making them ideal for design validation and small-batch testing. Production molds, although requiring higher mold cost initially, ensure long-term durability, repeatability, and efficiency for large-scale manufacturing.

By understanding the differences in cost and efficiency, businesses can make informed decisions that reduce risks, optimize budgets, and accelerate time to market.At Alpine Mold, with over 23 years of expertise as a professional plastic injection molds manufacturer, we provide both prototype and production molding solutions tailored to your needs. Whether you require rapid prototyping or durable tooling for mass production, our team is here to support your project from concept to delivery.

If you are looking for a reliable partner to balance prototype vs production molding cost and efficiency, we welcome you to contact us today and explore how we can bring your ideas to life.
