Plastic injection molding is everywhere — from the cars we drive and the smartphones in our hands to life-saving medical devices and everyday household items. At the heart of this process lies the mold: a high-precision tool that determines not only the quality of the final part but also the speed, consistency, and cost of production.
Yet, not all molds are created equal. Choosing the wrong mold type can cause serious problems: defective parts, wasted materials, longer cycle times, and expensive maintenance. On the other hand, selecting the right mold design can turn production into a competitive advantage — reducing costs, improving efficiency, and ensuring long-term product reliability.
In this complete guide, we’ll walk you through the different types ofplastic injection molding molds, explain their design features and best-fit applications, and share practical tips to help engineers and manufacturers make smarter decisions. By the end, you’ll know exactly how to choose the mold that aligns with your project needs — and why partnering with an experienced mold maker is critical to success.
In the world of plastic injection molding, the mold is often called the “heart” of the production process. While the injection machine provides the pressure and heat, it is the mold that defines the geometry, accuracy, and surface finish of the final part. Because different products have different shapes, sizes, and production requirements, there is no single standard mold that fits all. Instead, engineers rely on a variety of plastic injection molding mold types, each designed for a specific purpose.
At its simplest, a mold can be divided into two halves: the cavity side (A-side) and the core side (B-side). When the mold closes, molten plastic is injected into the cavity, forming the desired part. But the complexity begins when we look at how the mold channels, gates, cooling systems, and ejector mechanisms are arranged. These design elements define the types of injection molds used in the industry.
Broadly speaking, injection molds can be classified in several ways:
By cavity number – such as single-cavity molds or multi-cavity molds.
By runner system – such as cold runner molds or hot runner molds.
By construction style – such as two-plate molds or three-plate molds.
By application requirement – such as family molds, insert molding, and overmolding.
Each classification comes with trade-offs in terms of tooling investment, part quality, and production efficiency. For example, a cold runner mold is easier and cheaper to manufacture, but it produces more material waste compared to a hot runner mold. A two-plate mold is common for simple designs, while a three-plate mold is better suited for complex parts that require multiple gates.
For engineers and manufacturers, the key is not only to understand the technical structure of each mold but also to match the mold type with the project’s production goals. High-volume consumer goods might benefit from multi-cavity hot runner molds, whereas precision medical components may require insert molding or overmolding to integrate different materials into one part.
By learning the differences between these plastic injection molding mold types, companies can make informed decisions that reduce cost, shorten cycle time, and improve part consistency.
1. Cold Runner Molds
Cold runner molds use channels carved into the mold base to guide molten plastic from the sprue to the cavities. After each cycle, the runner solidifies along with the part and is ejected as waste or regrind.
Advantages:
Lower tooling cost.
Easy to maintain and repair.
Suitable for a wide range of polymers.
Limitations:
Generates more scrap material.
Longer cycle time due to cooling of the runner.
Cold runner systems are often chosen for low- to medium-volume production where initial cost savings are more important than efficiency.
2. Hot Runner Molds
Unlike cold runner molds, hot runner systems use heated manifolds and nozzles to keep plastic molten inside the runner system. Only the finished part is ejected, eliminating runner waste.
Advantages:
Reduced material waste.
Shorter cycle times.
Consistent part quality.
Limitations:
Higher initial tooling investment.
More complex maintenance.

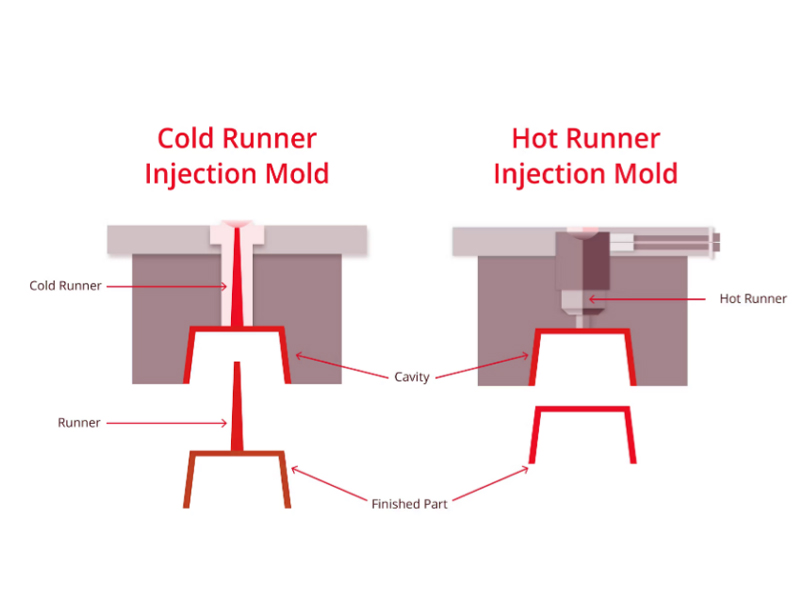

When comparing cold runner vs hot runner molds, high-volume projects with expensive resins usually justify the investment in hot runner technology.
3. Two-Plate Molds

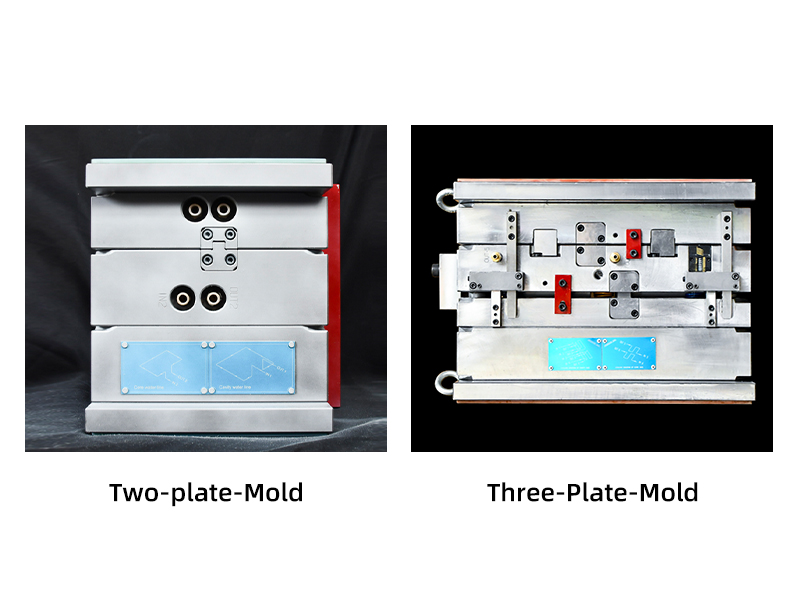

Two-plate molds are the simplest and most commonly used types of injection molds. They consist of two halves: a cavity side and a core side. The part is formed when the mold closes, and the plastic is injected through a gate located on the parting line.
Applications:
Simple parts with basic geometry.
Cost-sensitive projects.
Keywords in context:
Many manufacturers prefer two-plate molds for consumer products where tooling investment must be minimized.
4. Three-Plate Molds
Three-plate molds add an additional plate that allows gating flexibility. This design enables the use of multiple gates and automatic separation of the runner from the molded part.
Advantages:
Better for complex parts requiring multiple gates.
Cleaner gate vestige compared to two-plate molds.
Limitations:
More expensive and time-consuming to build.
Slightly longer cycle time.
For projects requiring aesthetic surface quality, such as transparent housings or cosmetic parts, three-plate molds are often the best choice.
5. Family Molds
A family mold is designed to produce multiple different parts in a single cycle. Each cavity forms a different component, which is ideal when several parts are needed for the same assembly.
Advantages:
Cost-effective for low-volume production.
Ensures consistent dimensional matching between parts.
Limitations:
Imbalance in part size may cause uneven filling.
Maintenance is more complicated.
Family molds are commonly used in consumer electronics and appliances, where multiple small components must be molded together.
6. Insert Molds and Overmolding

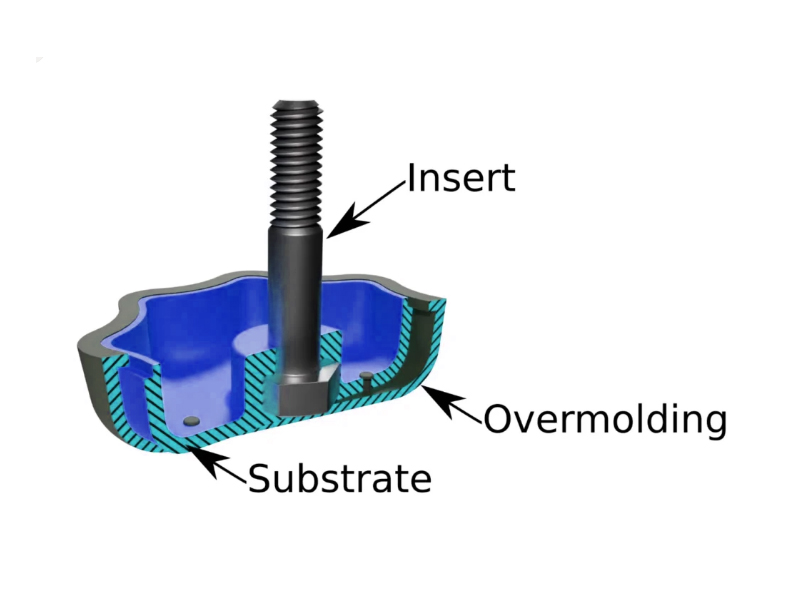

Insert molding integrates metal or other components into the plastic part during the injection process, improving strength or functionality.
Overmolding involves molding one material over another, such as a soft elastomer over a rigid plastic base.
Applications:
Automotive components (metal inserts for threaded connections).
Medical devices (soft-touch grips).
Consumer products (two-color or multi-material designs).
These advanced injection molding processes expand design possibilities and are widely used in industries requiring high performance and durability.
Selecting the right plastic injection molding mold type requires balancing cost, quality, and production goals. Key factors include:
Production volume – High-volume projects justify multi-cavity hot runner molds, while prototypes may only require a single-cavity cold runner mold.
Material type – Some materials, like high-temperature resins, perform better in hot runner systems.
Part design complexity – Complex geometries may require three-plate molds or specialized gating.
Budget constraints – Family molds or two-plate molds can be cost-effective alternatives.
Ultimately, working with an experienced injection mold manufacturer is essential to make the right decision. A skilled partner can analyze your design, recommend the most efficient mold structure, and ensure smooth production from prototyping to mass production.
Different industries rely on specific types of injection molds to meet their performance standards:
Automotive industry – Multi-cavity hot runner molds for dashboards, bumpers, and under-the-hood components.
Medical industry – Insert molding and overmolding for surgical tools and drug delivery devices.
Consumer electronics – Family molds for producing matching housings and internal parts.
Appliances – Large two-plate molds for panels, handles, and structural parts.
By understanding these injection mold applications, engineers can align mold design with product requirements, reducing risk and ensuring compliance with industry standards.
No matter how advanced the design, the success of your project depends on the expertise of your mold supplier. A trusted injection mold manufacturer not only provides technical support but also helps reduce lead time, improve quality, and optimize costs.
When choosing a partner, look for:
Proven experience across industries.
In-house mold design and machining capabilities.
Advanced mold flow analysis for precision engineering.
Quality certifications and strong after-sales support.
At Alpinemold, we have more than 20 years of experience designing and manufacturing molds for global clients. Whether you need a cold runner mold, a three-plate mold, or a complex overmolding solution, our engineering team works closely with you to ensure successful product launch.
The world of plastic injection molding mold types is diverse, offering solutions for everything from simple prototypes to complex multi-material assemblies. Engineers must weigh factors such as cost, material type, part geometry, and production volume to choose the most suitable mold.
By understanding the differences between cold runner vs hot runner molds, two-plate and three-plate molds, family molds, and advanced processes like insert molding and overmolding, manufacturers can make informed decisions that reduce waste, improve cycle time, and enhance part quality.
Most importantly, collaborating with a reliable injection mold manufacturer ensures that the selected mold type aligns with your production goals, providing long-term value and a competitive edge in the market.
