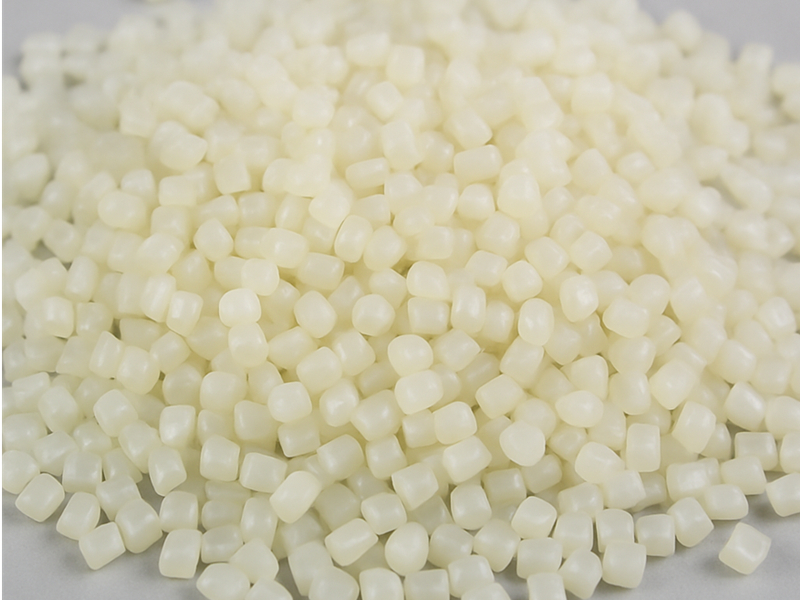

Nylon, or polyamide (PA), is one of the most widely used engineering plastics in injection molding. With excellent toughness, strength, wear resistance, and chemical stability, it is widely applied in automotive, electronics, medical, and consumer goods. However, each nylon grade requires specific injection molding process conditions to ensure optimal performance.

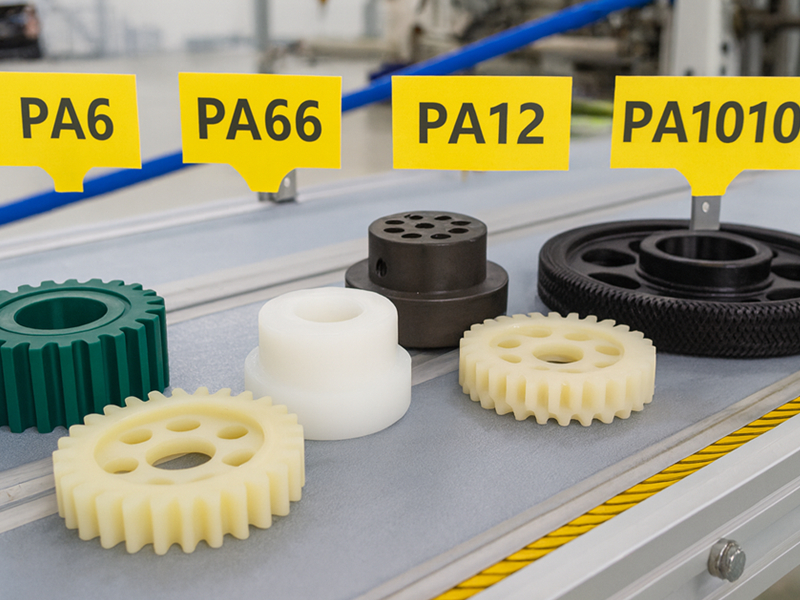

Among them, PA6, PA66, PA12, and PA1010 are four of the most common choices. While they share the fundamental benefits of nylon, differences in moisture absorption, crystallization, thermal resistance, and processing behavior mean that molding conditions must be carefully controlled.
This guide highlights the key injection molding process conditions for PA6, PA66, PA12, and PA1010 to help engineers select the right parameters and produce high-quality, reliable parts.
In nylon injection molding, success relies on controlling the right process conditions — mainly material drying, melt temperature, mold temperature, injection pressure, and cooling time. These parameters directly impact part strength, dimensional stability, and surface quality.
Nylon is particularly sensitive to moisture and crystallization. If not dried properly, parts may show defects or reduced strength, while improper mold temperature can lead to warpage or dimensional inaccuracy.
By optimizing injection molding process conditions for PA6, PA66, PA12, and PA1010, manufacturers can ensure consistent quality, shorter cycle times, and longer mold life.
The PA6 Injection Molding Process starts with drying, as PA6 is extremely hygroscopic. Resin pellets must be dried at 80–90°C for 4–6 hours until moisture content is below 0.2%. If drying is insufficient, hydrolysis occurs, causing splay marks, bubbles, and reduced mechanical strength. For stable production, especially in humid environments, dehumidifying dryers or vacuum dryers are strongly recommended to secure consistent results in the PA6 molding process.
Melt temperature is one of the most critical PA6 injection molding parameters. The optimal range is 230–280°C, depending on grade and wall thickness. If too low, the resin may not fully melt, leading to short shots and poor surface finish. If overheated, chain scission and discoloration may occur, reducing impact strength. Maintaining a stable barrel profile ensures uniform melt viscosity, smooth flow, and proper filling of complex parts.
Mold temperature significantly influences crystallization, toughness, and dimensional accuracy in the PA6 Injection Molding Process. Recommended mold temperature is 80–90°C. Higher mold temperatures promote uniform crystallization, reducing residual stress and enhancing fatigue resistance. If the temperature is too low, parts may warp, shrink unevenly, or lose mechanical integrity. Using mold temperature controllers is crucial for precision components like gears or electrical housings, ensuring consistent PA6 processing conditions.
In the PA6 Injection Molding Process, injection pressure usually ranges from 800–1200 bar, with medium-to-fast injection speeds preferred. Low pressure results in voids and sink marks, while excessive pressure may cause flash and surface stress. A proper switchover to holding pressure is essential to balance shrinkage and avoid overpacking. Fine-tuning these PA6 injection moulding parameters improves accuracy, especially in thin-wall or high-detail parts.
Cooling strongly affects the final quality of parts in the PA6 molding process. Due to its high shrinkage, PA6 requires uniform cooling to prevent warpage and dimensional distortion. Well-designed cooling channels and sufficient cooling time allow balanced crystallization, reduced residual stress, and stable geometry. For thick-walled parts, staged cooling can optimize cycle time while maintaining dimensional integrity.
Screw design and back pressure settings also influence melt quality in the PA6 Injection Moulding Process. A screw with a compression ratio of 2.5–3.0:1 ensures proper plasticization. Back pressure between 5–10 bar improves mixing and melt homogeneity, but excessive values increase shear heating and may break fibers in reinforced PA6 grades. Stable screw design helps achieve repeatable PA6 processing conditions.
Holding pressure and time are the final critical steps. Holding pressure is typically 50–70% of peak injection pressure, applied until the gate solidifies. Correct holding time compensates for shrinkage without inducing stress. Too short leads to voids and sink marks, while too long may cause overpacking and warpage. For functional parts such as automotive brackets or precision gears, precise holding control ensures mechanical integrity and dimensional stability.
In the PA66 Injection Molding Process, drying is even more critical than for PA6 because PA66 absorbs moisture quickly. Recommended drying temperature is 80–100°C for 4–6 hours, with moisture levels strictly kept below 0.15%. Any residual moisture can trigger hydrolytic degradation, which reduces tensile strength and causes brittle fracture. For production stability, many manufacturers use a dehumidifying dryer to guarantee constant PA66 processing conditions.
The melt temperature range for PA66 molding process conditions is 260–300°C. Because of its higher crystallinity, PA66 requires more energy to melt thoroughly compared with PA6. If the melt temperature is set too low, incomplete filling, cold slugs, and poor weld line bonding may occur. On the other hand, overheating leads to chain scission, discoloration, and reduced impact strength. Maintaining stable PA66 injection molding parameters across the barrel is essential for reinforced grades used in automotive under-the-hood parts.
Unlike PA6, PA66 typically requires a higher mold temperature, usually 80–100°C, to ensure uniform crystallization. Proper mold temperature improves dimensional accuracy, fatigue resistance, and creep resistance, which are critical in load-bearing applications such as gears, brackets, and electrical connectors. If the mold is too cold, premature solidification leads to warpage, sink marks, and internal stresses. Therefore, precise mold temperature control is a cornerstone of PA66 injection molding process conditions.
Because PA66 has higher stiffness and viscosity, the PA66 Injection Molding Process generally demands higher injection pressures, typically 1000–1400 bar. A fast injection speed ensures the mold cavity is fully packed before crystallization begins. Holding (packing) pressure is equally critical: it compensates for volumetric shrinkage and enhances dimensional stability. Improper control of these PA66 molding parameters can result in voids, weld line weakness, or excessive stress concentration.
PA66 is known for rapid crystallization, which makes cooling control very important. The cooling system must ensure even temperature distribution across the mold cavity. Inconsistent cooling leads to fiber orientation (for glass-filled PA66), which may cause anisotropic shrinkage and warpage. Sufficient cooling time is essential to achieve stable dimensions and long-term reliability of parts exposed to thermal cycling, such as automotive connectors or engine covers.
The screw used in the PA66 Injection Molding Process should provide uniform melting and fiber dispersion for reinforced grades. A compression ratio of 2.5–3.0:1 is effective, while moderate back pressure (5–10 bar) ensures good homogenization. Excessive back pressure, however, can degrade fibers in glass-filled PA66, weakening mechanical properties. Optimized screw design helps achieve stable PA66 processing conditions for both unfilled and reinforced compounds.
Another important factor in the PA66 molding process is gate design. Because PA66 solidifies quickly, balanced runner and gate systems are necessary to avoid premature freeze-off and ensure even flow. Fan gates or edge gates are often used for larger parts, while pin gates are common for small precision components. Correct gate design reduces internal stresses and improves weld line strength, which is particularly important for electrical connectors and safety-critical automotive parts.
PA12 is far less hygroscopic compared to PA6 and PA66, but drying should not be skipped. A controlled drying process at 70–80°C for 2–3 hours ensures surface smoothness and prevents issues such as streaks or voids. Even though its moisture absorption rate is minimal, neglecting this step can still compromise mechanical performance, particularly in thin-walled or transparent components.
The PA12 Injection Molding Process requires a relatively low melt temperature of 180–240°C. This gives PA12 excellent flow properties, making it well-suited for intricate designs or parts with long flow paths. Its low processing temperature not only reduces energy consumption but also minimizes thermal degradation. Care should be taken not to exceed 250°C, otherwise PA12 may discolor or lose toughness.
Mold temperatures for PA12 typically range from 40–90°C. Lower temperatures lead to faster cycles but may result in higher shrinkage, while higher mold temperatures promote dimensional stability and smoother surfaces. For applications in fuel systems or pneumatic tubing, stable mold heating helps achieve long-term reliability under chemical and mechanical stress.
Because PA12 has inherently high melt fluidity, the injection pressure needed is generally lower, usually 800–1200 bar. This reduces the load on tooling and allows for the production of delicate or thin-walled parts without excessive stress. A moderate-to-high injection speed ensures complete cavity filling while avoiding premature solidification, which is crucial for tubing connectors and medical device housings.
PA12 cools more slowly than PA66, so efficient cooling design is essential. Cycle times vary between 15–30 seconds, depending on wall thickness. Uniform cooling avoids warpage or sink marks. In reinforced PA12 grades, good cooling control also ensures stable mechanical strength, which is vital for structural automotive applications.
The screw should operate with gentle shear to preserve PA12’s flexibility. A compression ratio around 2.0–2.5:1 with back pressure of 5–8 bar ensures proper mixing and homogeneity. Over-shearing can lead to molecular degradation, reducing chemical resistance, which is particularly critical for hydraulic lines and fuel system parts.
Due to its excellent flowability, PA12 is highly adaptable to different gate types such as pin gates, submarine gates, or edge gates. Smaller gates are usually sufficient, but balanced runner layouts are required for multi-cavity molds. Optimized gating ensures strong weld lines and excellent surface finish — qualities demanded in consumer electronics and visible end-use parts.
Even though PA1010 has lower moisture absorption compared to PA6 and PA66, pre-drying is still recommended. The typical PA1010 molding parameters suggest drying at 80–90°C for 2–4 hours. Correct drying avoids cosmetic defects such as silver streaks and helps maintain stable mechanical properties.
The PA1010 injection molding process operates well within 200–260°C. This broad temperature range gives processors flexibility in production. However, going beyond 270°C risks polymer degradation and can reduce its excellent resistance to oils, fuels, and chemicals.
Mold temperature is another crucial PA1010 processing condition, usually set between 50–90°C. Higher mold temperatures promote better crystallinity and dimensional accuracy, which are essential for automotive, industrial, and medical applications.
Because PA1010 flows easily, it generally requires moderate injection pressure of 900–1300 bar. This balanced pressure ensures complete cavity filling without excessive stress on the mold. Engineers often optimize this PA1010 injection process to extend mold life and maintain consistent part quality.
Being semi-crystalline, PA1010 benefits from uniform cooling. Typical cooling times are 20–35 seconds, depending on wall thickness. Proper cooling design avoids shrinkage, sink marks, or warpage, ensuring dimensionally stable and eco-friendly molded components.
A screw compression ratio of 2.0–2.5:1 with back pressure in the range of 6–10 bar is recommended. These PA1010 processing parameters help achieve uniform melting and mixing while minimizing shear stress. This ensures toughness and preserves its biobased sustainability advantages.
In the PA1010 injection molding process, gates such as edge gates, pin gates, or hot runner systems work effectively. Balanced runner systems are important in multi-cavity tools to prevent uneven filling. Optimized gate placement enhances surface finish and reduces weld line weakness.
To better understand the differences among PA6, PA66, PA12, and PA1010, the table below summarizes their typical injection molding process conditions. This comparison helps engineers and buyers quickly evaluate which nylon grade and processing window best fit their application needs.
Condition | PA6 Injection Molding Process | PA66 Injection Molding Process | PA12 Injection Molding Process | PA1010 Injection Molding Process |
Drying Temp & Time | 80–90°C, 4–6 h (≤0.2% moisture) | 80–100°C, 4–6 h (≤0.15% moisture) | 70–80°C, 2–3 h | 80–90°C, 2–4 h |
Melt Temperature | 230–280°C | 260–300°C | 180–240°C (≤250°C) | 200–260°C (≤270°C) |
Mold Temperature | 80–90°C | 80–100°C | 40–90°C | 50–90°C |
Injection Pressure | 800–1200 bar | 1000–1400 bar | 800–1200 bar | 900–1300 bar |
Cooling Time | 20–40 s | 25–45 s | 15–30 s | 20–35 s |
Screw Compression Ratio | 2.5–3.0:1 | 2.5–3.0:1 | 2.0–2.5:1 | 2.0–2.5:1 |
Back Pressure | 5–10 bar | 5–10 bar | 5–8 bar | 6–10 bar |
Gate / Runner Design | Edge / Pin / Hot runner | Pin / Fan / Edge / Hot runner | Pin / Submarine / Edge / Hot runner | Edge / Pin / Hot runner |
To achieve stable, high-performance, and cost-effective injection molded parts, both material and process must align perfectly. PA6, PA66, PA12, and PA1010 each possess different levels of moisture absorption, crystallization behavior, thermal resistance, and chemical resistance. As a result, their injection molding process conditions (drying, melt temperature, mold temperature, injection/holding pressure, cooling, screw speed and back pressure, gate and runner design) must be individually set and validated.
