In today’s competitive manufacturing landscape, speed, precision, and cost-effectiveness are critical. For companies developing custom plastic parts, Injection Molding Prototyping has become an essential step in the product development cycle. Unlike traditional approaches that rely solely on mass production tooling, injection molding prototyping uses prototype molds or rapid tooling to validate designs early, minimize risks, and accelerate time-to-market.
This article explores what Injection Molding Prototyping is, its benefits, comparisons with other prototyping methods, and why it plays such an important role in industries such as automotive, medical, electronics, and consumer goods.

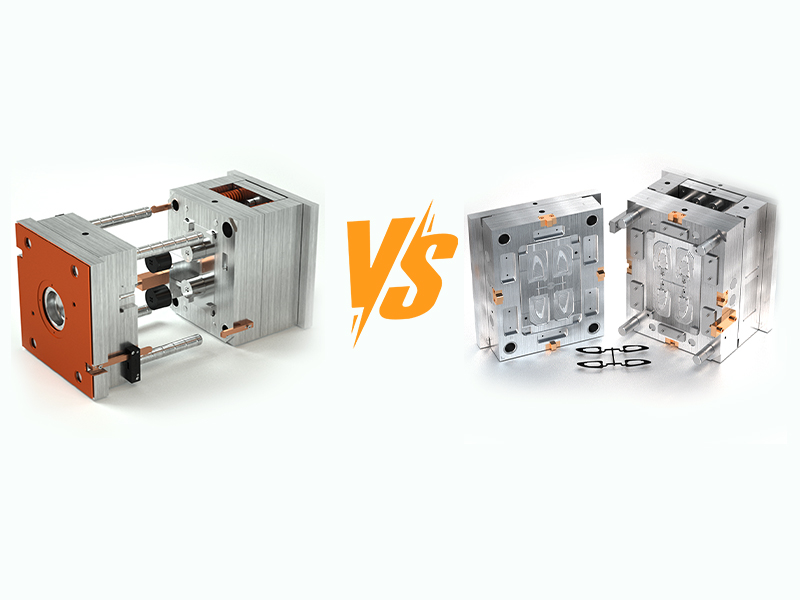

Injection Molding Prototyping is the process of using prototype molds to create sample parts before moving to full-scale production. Instead of investing immediately in expensive hardened steel molds, manufacturers rely on rapid tooling or prototype tooling made from aluminum or pre-hardened steel. These tools allow engineers to quickly produce functional prototypes that mirror the geometry, surface finish, and performance of mass-produced parts.
Unlike conventional production molds, which are designed for millions of cycles, prototype tooling for plastic parts is intended for lower-volume runs — typically hundreds to a few thousand shots. This makes it faster and more cost-effective, giving companies the opportunity to validate designs without the financial risk of full tooling investment.
Another major difference is flexibility. With prototype injection molding, manufacturers can test different materials and part designs under real-world molding conditions. This includes experimenting with engineering plastics such as ABS, PP, PC, POM, or nylon, as well as trying out aluminum prototype molds or hybrid steel tools. By simulating production processes early, engineers gain insights into part shrinkage, warpage, cooling efficiency, and assembly fit.
The goal of functional prototype injection molding is to provide design teams with tangible, production-grade prototypes that can be used for performance testing, compliance evaluation, and market validation. Compared to 3D printing or CNC machining, which are excellent for concept models but limited in accuracy and material behavior, custom plastic prototype molding offers the closest match to final production parts.
In short, Injection Molding Prototyping acts as the bridge between design and mass production. By leveraging prototype tooling and rapid injection molding, companies reduce development risk, accelerate time-to-market, and ensure that the final product is both manufacturable and reliable.
One of the greatest advantages of Injection Molding Prototyping is the ability to shorten the product development cycle. By using prototype molds or rapid tooling, engineers can quickly test part geometry, gate design, and mold performance. This reduces weeks or even months from the traditional development timeline.
In industries such as automotive, electronics, and medical devices, where speed directly affects competitiveness, this benefit is crucial. A car manufacturer can validate a new interior clip, an electronics company can test button housings, or a medical firm can check device enclosures — all in a fraction of the time compared to waiting for full-scale production tooling. Faster validation means quicker decision-making, quicker design iterations, and ultimately a faster path to market.
Prototype injection molding enables manufacturers to uncover potential defects early. Issues such as warpage, shrinkage, sink marks, or assembly misfits can be identified and corrected before investing in expensive production molds.
Beyond geometry, functional prototype injection molding allows real-world performance testing. Engineers can evaluate strength, flexibility, durability, and even cosmetic features like texture or transparency. By conducting these tests at the prototype stage, companies avoid costly surprises later in the production cycle. The outcome is a design that has been validated for both functionality and aesthetics under realistic molding conditions.
Investing in full-scale production molds too early can lead to significant financial risks if design changes are required. Prototype tooling offers a smart alternative: lower upfront investment, shorter lead times, and the ability to test multiple design variations at a fraction of the cost.
With custom plastic prototype molding, companies can run low-volume batches — from a few hundred to a few thousand units — to test the market or gather customer feedback. If adjustments are needed, modifying or remaking a prototype mold is far less expensive than reworking hardened steel production tooling. This makes prototype tooling for plastic parts an effective way to reduce early-stage costs while ensuring design accuracy.
Unlike 3D printing or CNC machining, Injection Molding Prototyping allows the use of the same engineering-grade resins intended for mass production. This includes ABS, PC, PA, POM, and PP, among others. By running prototypes with production-grade materials, companies gain accurate insights into mechanical properties, chemical resistance, and surface finish.
Additionally, rapid tooling and prototype molds simulate true molding conditions such as gate design, cooling channels, and ejection. This means the prototypes don’t just look like the final parts — they behave like them, too. By testing both materials and processes early, manufacturers reduce the risk of unexpected issues during mass production, ensuring a smoother transition from prototype to full-scale manufacturing.
3D printing (additive manufacturing) has become a popular method for creating concept models and visual prototypes. It is fast, flexible, and cost-effective for very low volumes. However, when compared with Injection Molding Prototyping, there are significant differences:
Cost: For single parts or very low runs, 3D printing can be cheaper. But as soon as quantities increase beyond dozens, prototype molds and rapid tooling become more cost-efficient.
Material Selection: 3D printing is limited to specific resins, powders, or filaments, many of which do not match production-grade plastics. In contrast, injection mold prototyping allows the use of engineering materials such as ABS, PC, PP, POM, and nylon, providing a true representation of the final part.
Accuracy & Realism: While 3D printing can create complex geometries, the surface finish, mechanical properties, and dimensional tolerances often differ from mass production. Functional prototype injection molding replicates the look, feel, and performance of real production parts, which is essential for design validation and compliance testing.
Production Volume: 3D printing is ideal for a handful of prototypes, but scaling to hundreds or thousands is inefficient and costly. Custom plastic prototype molding excels at low-to-mid volume production while preparing designs for full-scale manufacturing.
CNC machining is another widely used prototyping method, offering high precision and excellent dimensional accuracy. It is particularly useful for metal parts or simple plastic prototypes. However, when compared with prototype tooling for plastic parts, the differences are clear:
Cost Efficiency:CNC machining is effective for single parts or very low quantities, but costs rise significantly with higher volumes. Prototype injection molding spreads tooling cost over hundreds or thousands of parts, making it more economical for medium runs.
Geometrical Complexity: CNC machining works best for simpler geometries. Complex undercuts, thin walls, or integrated features are difficult or impossible to produce. In contrast, prototype molds can handle intricate designs with sliders, lifters, and advanced mold mechanisms.
Material Behavior: Machined prototypes may use the same plastic resins, but they do not go through the same molding process. As a result, properties such as shrinkage, weld lines, and cooling behavior cannot be tested. Rapid tooling allows designers to see exactly how the part will perform under real molding conditions.
Scalability: CNC machining is excellent for functional testing of one-off parts, but it does not simulate mass production. Injection Molding Prototyping ensures that the transition from prototype to full-scale manufacturing is seamless.

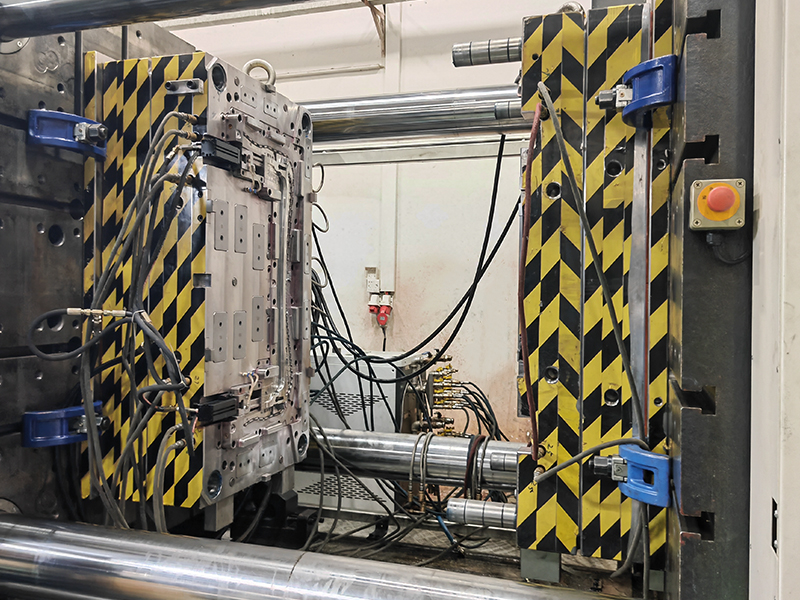

The automotive sector relies heavily on Injection Molding Prototyping to validate both functional and cosmetic parts. From interior clips, dashboards, and switch housings to exterior components such as mirror casings or trim pieces, prototype molds allow car manufacturers to test assembly fit, dimensional stability, and durability before launching full production. Using functional prototype injection molding, automotive engineers can evaluate how parts perform under real stresses like vibration, heat, and mechanical load. This early testing ensures compliance with industry standards while reducing the risk of costly rework.

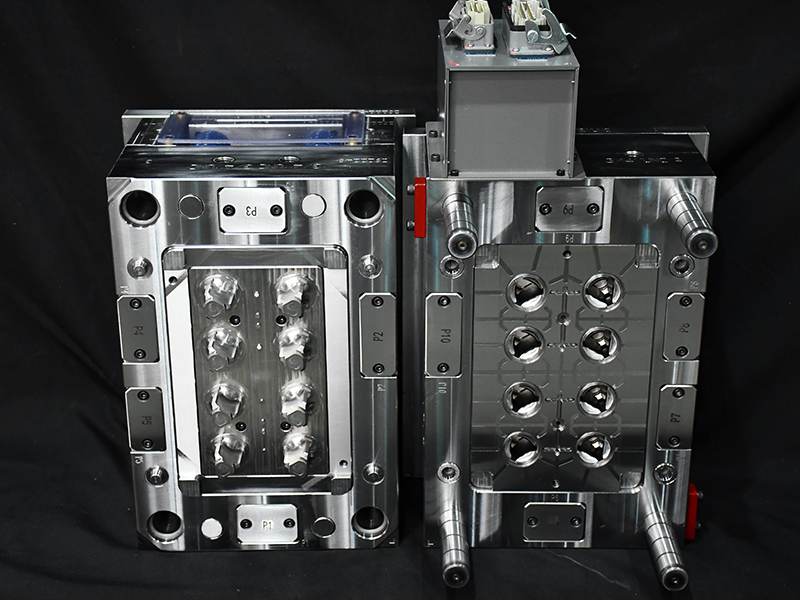

In the medical industry, precision, safety, and compliance are non-negotiable. Prototype tooling for plastic parts allows medical device manufacturers to produce low-volume batches for clinical trials, biocompatibility testing, and regulatory approval. Materials such as medical-grade ABS, PC, and POM can be tested under realistic injection molding conditions, ensuring that parts meet both functional and hygienic standards. For example, housings for diagnostic devices, surgical tool handles, and disposable components can all be validated using custom plastic prototype molding. By leveraging rapid tooling, companies accelerate the path from concept to market without compromising quality.

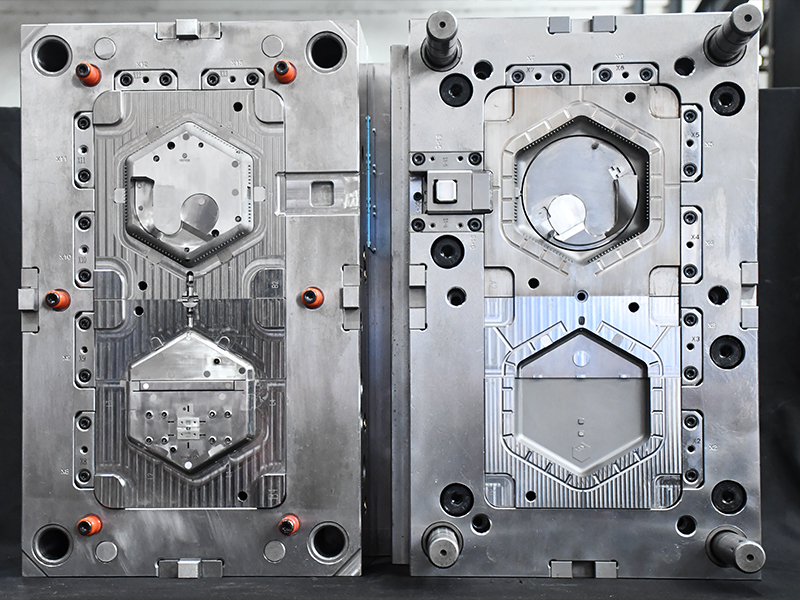

The consumer electronics market is fast-paced, where time-to-market and product design are critical success factors. Prototype injection molding enables electronics manufacturers to test enclosures, buttons, and connectors with production-grade materials like PC/ABS blends or flame-retardant plastics. Engineers can confirm tolerances for snap-fits, verify ergonomic designs, and evaluate surface aesthetics such as gloss or texture. Unlike 3D printing, which may not capture material shrinkage or assembly accuracy, injection molding prototyping provides realistic parts that reflect how the final product will perform in the hands of consumers.

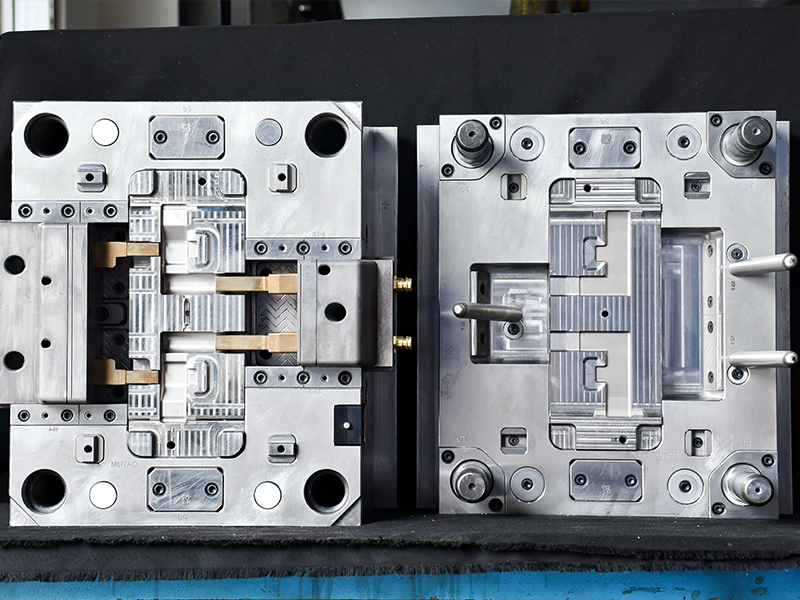

For industrial applications, rapid tooling plays an essential role in validating structural and functional components. Prototypes such as gears, brackets, housings, or safety covers must withstand demanding conditions, including chemical exposure, heat, or mechanical stress. With functional prototype injection molding, companies can test these parts under near-production conditions using engineering-grade resins like nylon or POM. This reduces risk and ensures that when full-scale manufacturing begins, the parts are proven reliable.
With over 23 years of experience, Alpine Mold has become a trusted partner for Injection Molding Prototyping and prototype tooling for plastic parts. Our engineering team is highly skilled in DFM analysis, Moldflow simulation, and prototype mold manufacturing, ensuring every project starts with a solid technical foundation.
We specialize in both rapid tooling and custom plastic prototype molding, delivering reliable results whether you need a few functional test parts or a low-volume production run. Using international standards like HASCO, DME, and LKM, our prototype injection molding solutions integrate seamlessly into your global supply chain.At Alpine Mold, we combine precision engineering, competitive lead times, and consistent quality. Our goal is to help clients validate designs, reduce risk, and move quickly from prototype to production.
Injection Molding Prototyping is no longer optional — it’s an essential step for companies developing custom plastic parts. It accelerates product development, reduces costs, validates designs, and minimizes production risks.
Whether you’re in automotive, medical, electronics, or consumer goods, leveraging prototype molds and rapid tooling can make the difference between success and costly failure.At Alpine Mold, we combine precision engineering and decades of expertise to deliver prototype molds that help our clients bring their products to market faster and with confidence.
Contact us today to discuss your next Injection Molding Prototyping project and discover how we can support your success.
