How To Inspect Plastic Injection Molds Before Export?

Table of Contents

1. Why Export Mold Inspection Is Crucial

2. Key Differences: Domestic vs. Export Mold Standards

3. Pre-Shipment Mold Inspection Checklist

4. Packaging and Final Delivery Inspection

5. What Documents and Accessories Are Provided Before Mold Export?

6. Common Mistakes to Avoid in Export Mold Inspection

7. In Conclusion

Exporting plastic injection molds requires strict quality control to ensure they function reliably in the customer’s production line. Without proper mold inspection, issues like misalignment, poor cooling, or dimensional errors can lead to serious problems—delayed production, defective parts, and costly international returns.

With over 23 years of experience, Alpine Mold specializes in producing and inspecting high-quality plastic injection molds for export. Our team ensures every mold meets global standards through detailed T1 trial reports, full-function testing, and secure export-ready packaging. In this guide, we’ll walk you through the essential steps to inspect injection molds before shipment.

1. Why Export Mold Inspection Is Crucial

Exporting plastic injection molds without a proper inspection process can lead to serious production issues, delays, and unexpected costs for both the supplier and the customer. Here’s why mold quality inspection is a critical step before any international shipment:

✅ 1. Ensure Mold Quality Before Shipment

Confirms the mold meets design specifications and functions correctly.

✅ 2. Avoid Costly Rework or Mold Return

Detects problems early to prevent expensive rework after delivery.

✅ 3. Confirm Compatibility with Customer’s Equipment

Verifies the mold fits the customer’s injection machine without modification.

✅ 4. Build Trust with International Clients

Demonstrates your commitment to quality and reliable global service.

2. Key Differences: Domestic vs. Export Mold Standards

Below is a comparative table summarizing key differences between domestic (e.g., LKM) and export (e.g., HASCO, DME) mold standards, covering dimensions, fittings, tolerances, and inspection protocols:

Domestic vs. Export Mold Standards Comparison

Comparison Criteria	Domestic Standards (e.g., LKM)	Export Standards (e.g., HASCO, DME)	Why It Matters
Primary Regions	China, Southeast Asia	EU (HASCO), North America (DME), Global Export Markets	Market-specific compliance avoids redesign costs.
Dimensional System	Metric (mm)	Imperial (inches) for DME; Metric (mm) for HASCO	Incompatible units cause fitting errors in global tooling.
Mold Base Sizes	LKM series (e.g., 1515, 2020, 3030)	HASCO (e.g., A, B, C sizes); DME (e.g., ME, FA series)	Standard sizes differ, requiring client-specific base designs.
Fittings & Components	• LKM-specific plates, screws, pins • JIS-style lifters	• HASCO: DIN-based components • DME: AGD-style ejector pins	Component interchangeability fails across standards.
Tolerances	±0.02–0.05 mm (common)	±0.005–0.01" (DME); ±0.01 mm (HASCO)	Tighter tolerances in export standards raise machining costs.
Steel Grades	Often local grades (e.g., P20, 718H)	Standardized grades (e.g., HASCO Z40/W300; DME P20/PX5)	Material certification requirements differ for exports.
Inspection Protocols	GB/T or internal QC; basic CMM reports	• PPAP/APQP documentation • Full GD&T per ASME Y14.5 • NIST-traceable reports	Overseas clients demand rigorous, standardized documentation.
Cooling & Plumbing	Metric threads (e.g., M6, M8)	NPT/BSPP threads (DME); BSPP/BSPT (HASCO)	Thread mismatch causes leaks in cooling systems.
Ejector Pins	Φ2.0, Φ3.0, Φ4.0 mm (LKM series)	Fractional inches (e.g., 1/16", 1/8" for DME)	Non-interchangeable pins delay maintenance.
Documentation	Chinese drawings; minimal annotations	Fully detailed in English; GD&T; material certs (RoHS/REACH)	Avoids delays in customs/approvals for exports.

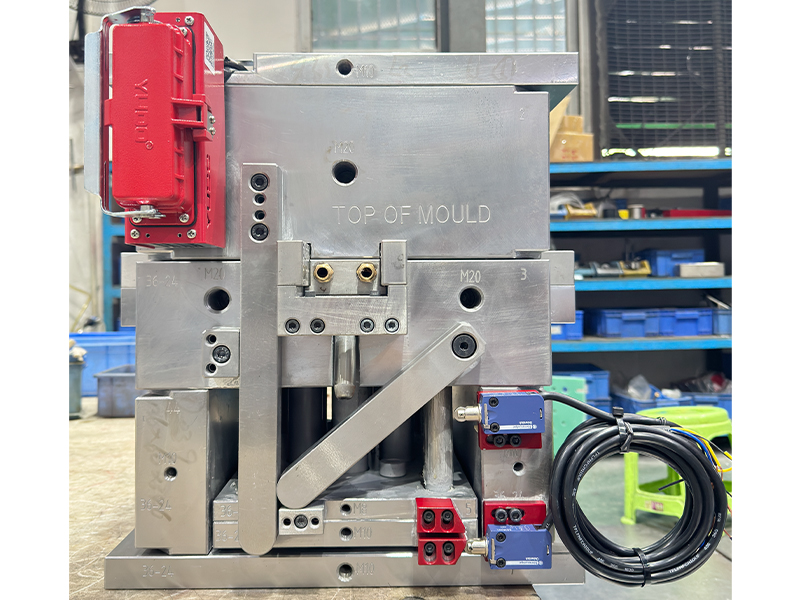

3. Pre-Shipment Mold Inspection Checklist

Before exporting a plastic injection mold, a comprehensive pre-shipment inspection is essential to ensure quality, reliability, and customer satisfaction. This thorough check helps avoid costly rework and guarantees the mold is production-ready on arrival. Below is Alpine Mold’s detailed checklist of key inspection points and the testing equipment used at each stage.

Category	Test/Inspection Item	Method / Equipment	Acceptance Criteria
1. Material Selection	✅ Steel grade verification (e.g., S136, H13, NAK80)	Review material certificates (EN 10204 3.1), Rockwell Hardness Tester (ISO 6508)	Matches PO spec; Hardness ±2 HRC; traceable heat treatment
	✅ Cavity/core hardness check	Microhardness Tester (ISO 6507)	48–52 HRC (±1 HRC) in critical areas
2. Machining & Assembly Precision	✅ Critical dimensions (cavity, core, inserts)	CMM (ISO 10360), calipers, CAD overlay comparison	±0.02 mm for precision features
	✅ Parting line flatness & alignment	Dial indicator, granite plate, feeler gauge	Gap ≤ 0.03 mm; no flash/misalignment
	✅ Inserts, cores, sliders with disassembly features	Visual check, functional assembly test	Removable with designed holes or threads, no binding
3. Mechanical Systems	✅ Lifting holes & threads	Centering gauge, thread plug gauge	Holes concentric ≤ 0.1 mm; threads intact
	✅ Smooth ejection & reset	Dry-cycle on injection press, force gauge	No jamming; full reset; smooth motion
	✅ Lateral stability & wear resistance (sliders & lifters)	Dial indicator test, Rockwell hardness check	Play ≤ 0.01 mm; hardness ≥ 45 HRC
	✅ Locking & overload protection (oil/air cylinders)	Functional overload simulation	Locks trigger at ≥120% design force
	✅ Component identification (inclined ejectors)	Visual check (e.g., laser marking)	Clear part coding as per drawing
4. Cooling System	✅ Leak testing @ 1.5× working pressure	Water/air pressure pump, bubble solution (ISO 5208)	No leaks observed over 30 minutes
	✅ Flow rate & temperature uniformity	Flow meter, thermal imaging camera	ΔT ≤ 2°C across mold; flow rate ≥ spec
5. Runner System	✅ Cold runner – gate dimensions/draft	Optical comparator, angle gauge	Gate ±0.05 mm; draft ≥ 1°
	✅ Hot runner – transitions, leakage, insulation	Radius gauge, insulation resistance tester (IEC 60601)	All R ≥ 0.5 mm; insulation ≥ 100 MΩ; no resin leakage
6. Venting System	✅ Guide sleeve/ejector vents	Feeler gauge 0.02–0.04 mm, visual	Depth & width per drawing; vents not blocked
7. Surface Finishing	✅ Polishing / Texture standards	Profilometer (ISO 4287), 10× magnifier	SPI A1–D3 standard; Ra ≤ 0.025 µm for A1
8. Mold Identification	✅ Customer ID tag & signage	Visual inspection, salt spray test (ASTM B117)	Legible, rust-free, operator-side placement
9. Mold Validation	✅ Sample inspection – dimensions & cosmetics	CMM, injection molding machine, master sample	CpK ≥ 1.33; no sink marks or warpage
10. Final Documentation	✅ PPAP (Level 3)	Full digital package, GD&T drawings, certs	English; ISO 9001 / AS9100 compliant
11. Electrical Safety (for hot runner molds)	✅ Wiring insulation & grounding	Hi-pot tester (1,500V AC / 1 min), leakage current test	No breakdown; leakage < 1 mA

Note for Optional Service: Custom Fixtures and Clamping Solutions

For certain export plastic molds—particularly large, multi-cavity, or high-precision tools—Alpine Mold can provide custom fixtures or clamping jigs upon request to support mold validation, sampling, or production setup.

These fixtures are engineered according to your injection molding machine specifications and the mold's structural design, helping to:

• Ensure accurate and safe mold installation

• Maintain proper clamping force and alignment

• Streamline the setup process and reduce trial time

• Prevent mold damage caused by improper mounting

While not required for every mold, including custom fixtures can greatly improve the efficiency, safety, and speed of mold commissioning at your facility. Let us know in advance if your project requires fixtures—we’re happy to support your team with complete tooling solutions.

4. Packaging and Final Delivery Inspection

At Alpine Mold, we understand that a high-quality mold means nothing if it doesn’t arrive in perfect condition. That’s why we treat final inspection and packaging with the same level of precision as mold manufacturing. Here’s how we ensure every mold is export-ready:

✅ Rust Protection Treatment

Before packaging, we thoroughly clean all steel surfaces and apply anti-rust oil or a corrosion inhibitor. This rust protection step is critical to safeguard the mold during international transit — especially in humid or coastal environments — and ensures the mold arrives ready for production.

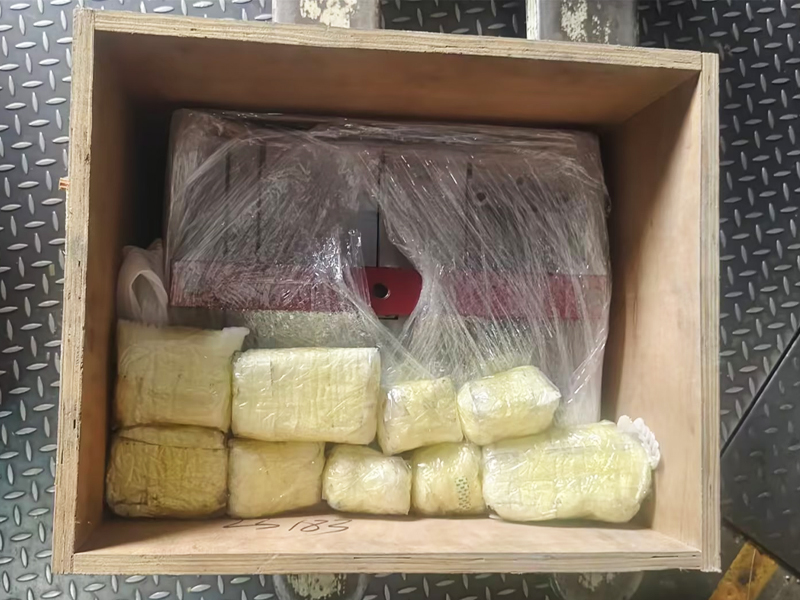

✅ Export Plastic Mold Packaging Standards

We pack each mold in a custom-built wooden crate that complies with international shipping standards. These crates are reinforced to bear heavy loads, internally cushioned with foam or moisture barriers, and secured to prevent movement. Our attention to export plastic mold packaging helps eliminate damage from impact, vibration, or environmental exposure.

✅ Labeling, Export Marking, and Documentation

Every crate is clearly marked with mold name, part number, weight, and orientation indicators to simplify handling. We provide a full set of export documents, including the packing list, bill of lading, and pre-shipment inspection certificates,certificate of origin (if required), to streamline customs clearance and minimize delays.

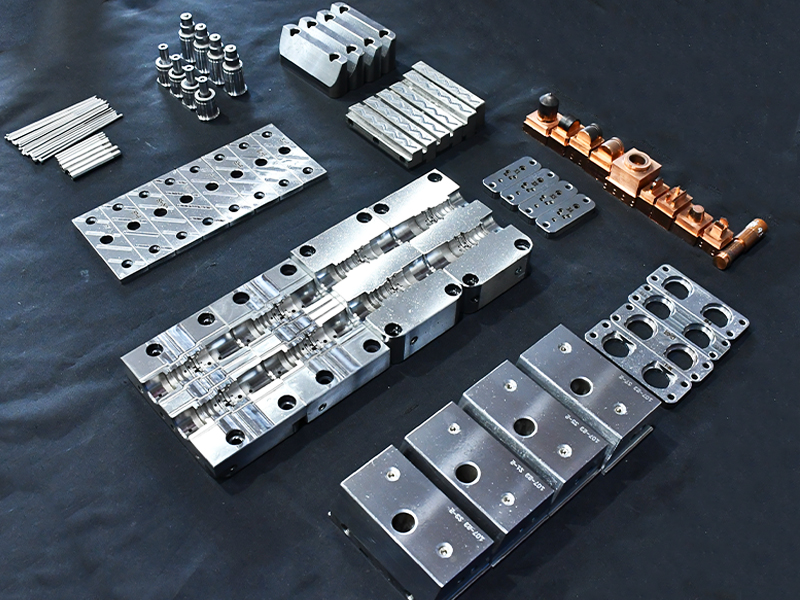

✅ Spare Parts and Maintenance Manual Checklist

To support long-term use, we supply a standard set of spare parts (e.g., ejector pins, bolts, O-rings) with every mold shipment. A maintenance manual is also included, providing step-by-step guidance for mold installation, daily inspection, and routine maintenance — helping your team reduce downtime and extend mold life.

5. What Documents and Accessories Are Provided Before Export Mold?

At Alpine Mold, we believe delivering a high-quality plastic injection mold is not just about finishing production—it's about ensuring a seamless experience from our workshop to your production floor. To achieve this, we provide a full set of technical documents, inspection reports, operating instructions, and customs-related paperwork to support smooth installation and immediate use upon delivery. Here’s a complete list of what we provide with each mold before export:

Trial Molding Documentation

• Trial Molding Videos：A clear demonstration of the mold’s actual performance, including mold opening/closing, ejection function, and part formation on the injection molding machine.

• Sample Photos：High-resolution images showcasing the molded part’s surface finish, gate placement, and dimensional consistency.

• Dimensional Inspection Report：Key product dimensions measured via CMM and cross-checked with customer drawings for accuracy.

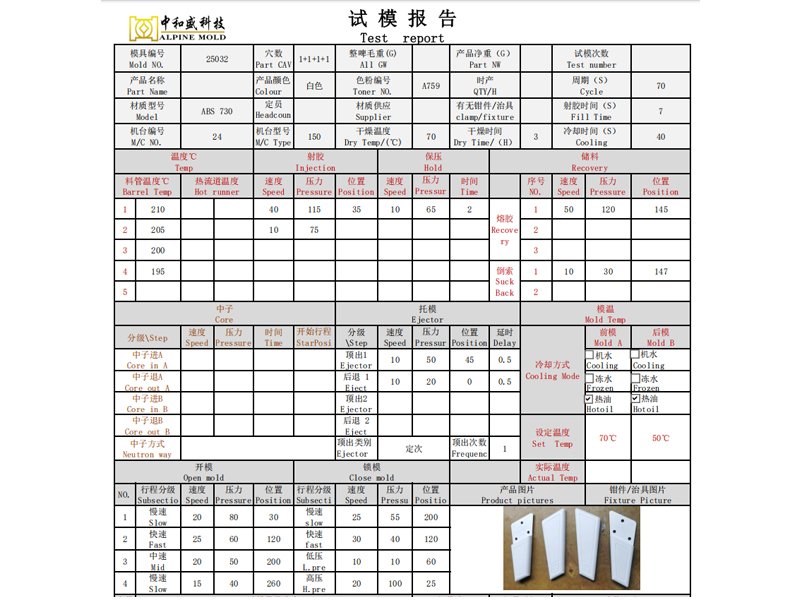

• Injection Molding Parameter Sheet：Includes essential settings used during mold trials, such as resin type and drying conditions, injection temperature, mold temperature, injection speed and more. This helps customers shorten trial time and streamline production ramp-up.

Inspection and Quality Reports

• Material Certificates： EN 10204 3.1 certificates for mold materials like core, cavity, and inserts (e.g., S136, H13, NAK80).

• Hardness Test Reports：Rockwell or microhardness results for critical mold components.

• Heat Treatment Records：Documentation verifying proper heat treatment of relevant parts for durability and performance.

Spare Parts and Accessories

Spare Parts List: An itemized list of wear components—ejector pins, return springs, guide pillars and bushings, O-rings, and more—for quick replacement and minimal downtime.

Installation and Operation Documentation

To support smooth mold integration and safe operation, we provide customized documents that cover:

•  Compatibility Guidelines :Technical matching instructions for your injection machine’s tonnage, mounting size, clamping force, and alignment.

• Step-by-Step Installation Instructions : Detailed guidance on lifting, aligning, and securing the mold to prevent damage and ensure a quick setup.

• Operational Precautions : Daily usage tips such as lubrication points, temperature control, and maintenance cycles to extend mold lifespan.



These user-friendly documents help customers get up and running quickly while avoiding errors during handling or production.

Mold Drawings and Technical Files (upon request)

Includes 2D and 3D files such as general assemblies, insert layouts, cooling, and ejection system diagrams in formats like STEP, IGES, and X-T—ideal for future reference or modifications.

Customs & Shipping Documentation

To ensure smooth customs clearance and traceable delivery, we include:

Commercial Invoice (with HS code, mold name, and declared value)

Packing List (with crate dimensions, net/gross weight)

Certificate of Origin (if required by import regulations)

Bill of Lading or Air Waybill

Mold Identification Plate: Stainless steel tag with customer name, mold number, and production date

6. Common Mistakes to Avoid in Export Mold Inspection

Even with years of experience, there are still common pitfalls that can affect the success of an export injection mold project. At Alpine Mold, we’ve seen how small oversights can lead to costly delays or production issues overseas. Here are some critical injection mold inspection mistakes you should avoid — and our practical export mold inspection tips to prevent them:

❌ Not Testing the Plastic Mold with Actual Production Material

Using substitute or low-cost resin during the trial phase may save time, but it fails to reveal how the plastic mold truly performs under real production conditions. We always recommend — and practice — testing the injection mold with the actual material specified by the client, ensuring accurate results for shrinkage, flow, and part finish.

❌ Ignoring Compatibility with Client’s Injection Machine Specs

An injection mold that performs well in our facility may not run properly in the client’s injection machine if critical details are missed. We pay close attention to machine platen size, nozzle type, ejector stroke, hydraulic/pneumatic requirements, and other factors to ensure full compatibility before shipment.

❌ Incomplete Documentation or Missing Plastic Mold Test Records

Without detailed records, the client may struggle to set up and operate the injection mold efficiently. We make sure to provide complete test reports, including trial photos, molded part dimensions, machine settings, and any CMM inspection data. Full documentation not only improves clarity — it builds trust.

❌ Rushing the Final Injection Mold Trial Without Client Confirmation

In the final stages, it can be tempting to finish quickly and move to shipment. However, shipping the injection mold without the client’s final approval is a risky shortcut. We always ensure the customer has reviewed and approved the final trial results before packing — this avoids miscommunication and costly returns.

By avoiding these common errors and following a clear, professional process, we help ensure your plastic mold arrives fully functional, compliant, and ready for production. These are the export mold inspection tips we’ve refined over 23 years — and they continue to make a difference in every project we deliver.

7. In Conclusion

A well-executed export mold inspection process is not just about catching defects — it’s about ensuring your customer receives a mold that performs reliably from day one. It reduces risks, lowers long-term costs, and builds trust that lasts beyond a single project.

At Alpine Mold, we believe that:

✅ Every detail matters — from material certification to final mold trials, each step reflects our commitment to quality.
✅ Transparent, documented inspections are key to building confidence and credibility with global clients.
✅ Collaborative communication and clearly defined acceptance criteria lead to smoother deliveries and faster production startups.

We don't just deliver molds — we deliver peace of mind. With 23 years of experience in plastic injection mold manufacturing and export, we know what it takes to get it right the first time. Our thorough inspection process, customer-first approach, and export-ready packaging help ensure that every mold arrives fully functional and production-ready. If you’re seeking a reliable partner for your next plastic injection mold  project, we invite you to work with Alpine Mold — where quality, precision, and global service come together.
