In the competitive manufacturing industry, the lifespan of plastic injection moldsis often underestimated as an "invisible cost." Many factories and purchasers focus
solely on initial investment, neglecting the cost reduction, efficiency improvements, and delivery stability brought by long-lasting, high-quality molds. Real data comparisons show that a high-lifespan mold can save 20-45% on maintenance and rework costs, with per-unit cost savings exceeding 15% in mass production.
Industry Misconceptions: Many enterprises or purchasers focus only on plastic injection molds purchase prices, overlooking lifecycle maintenance, repairs, and downtime losses.
Customer Focus Deviation: Many customers only care about initial unit prices, ignoring the long-term benefits of enhanced productivity and quality stability from injection molding tools life.
Hard-to-Quantify Hidden Losses: Hidden losses from mold changes, downtime, and frequent repairs are difficult to reflect directly in financial accounts but directly consume profits.
Insufficient Standardization of Process Flows: The lack of a systematic mold lifespan management system and data tracking leads to issues being addressed based mostly on experience.
Weak Industry Comparison Awareness: Without detailed comparisons of high vs. low lifespan molds, quantifying the benefits of optimization is impossible.
The lifespan of injection molds is a critical factor in determining production costs and product quality. Extending mold lifespan requires a multifaceted approach, analyzed in detail across nine areas.

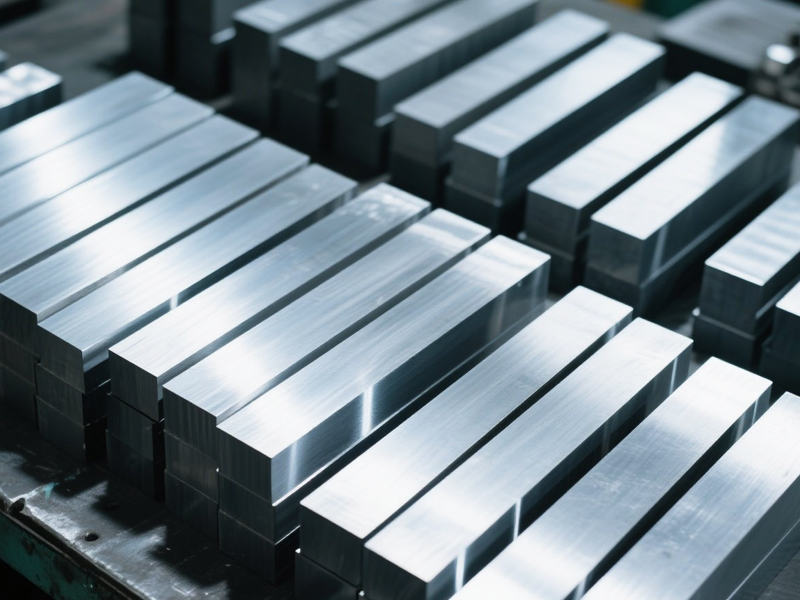

(1) Selection of Mold Materials
The choice of mold steel is a core factor determining injection mold tooling life, and should be selected based on specific production needs:
Wear Resistance: For high-hardness, high-wear plastic products (e.g., glass fiber materials), high-wear-resistant steels such as Cr12, H13, or S136 should be selected.
Corrosion Resistance: For processing plastics containing corrosive fillers (e.g., flame retardants, plasticizers), corrosion-resistant steels like S136 and NAK80 should be chosen.
Toughness and Strength: Mold steel must have sufficient toughness to prevent cracking due to stress concentration.
Material Grade | Applicable Scenario | Hardness (HRC) | Wear Resistance | Corrosion Resistance | Capacity (10,000 cycles) |
S136 | High gloss surface, medical grade | 52-54 | ★★★★☆ | ★★★★★ | 100-150 |
NAK80 | Precision electronic parts, mirror finish | 40-43 | ★★★☆☆ | ★★★★☆ | 80-120 |
H13 | High-temperature plastics, glass fiber reinforced | 48-52 | ★★★★☆ | ★★☆☆☆ | 150-200 |
718H | Automotive structural part | 32-36 | ★★★☆☆ | ★★★☆☆ | 50-80 |
(2) Reasonable Mold Structure and Mold Design
A reasonable injection mold design directly impacts mold lifespan:
Runner Design: Optimize runner and gate positioning to reduce the impact of molten plastic on the mold cavity.

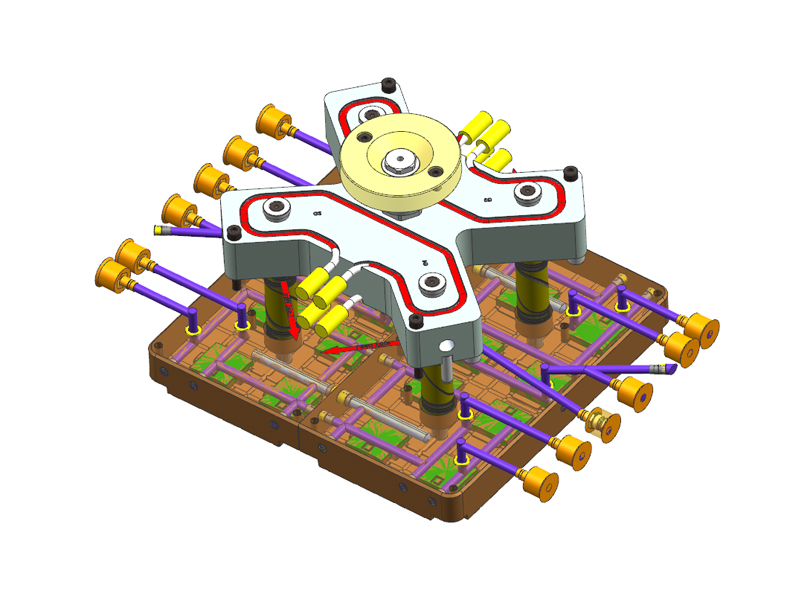

Cooling System Design: A good cooling design can prevent local overheating of the mold, reducing thermal fatigue damage.
Uniform Stress Distribution: Avoid sharp corners and thin walls that create stress concentration areas; appropriately increase reinforcement ribs to reduce deformation.
 |  |
(3) Precision Machining and Heat Treatment Processes
Machining precision and heat treatment quality significantly affect injection molding tools life:
Machining Precision: High-precision machining reduces surface roughness, lowering wear rates.
Heat Treatment: Appropriate heat treatments (e.g., quenching, tempering) improve injection mold hardness, wear resistance, and toughness, preventing brittleness or deformation.
Surface Treatment: Using nitriding, PVD coating, and other surface hardening processes enhances mold wear and corrosion resistance.
Treatment Process | Hardness Increase Range | Friction Coefficient | Applicable Parts | Cost Increase |
DLC Coating | HV2500-3500 | 0.05-0.1 | Slides, ejector pins | 20%-30% |
Nitriding | HV1000-1200 | 0.15-0.2 | Cavity, parting surface | 10%-15% |
Laser Cladding | HV600-800 | - | Local repair areas | Calculated by area |
 |  |

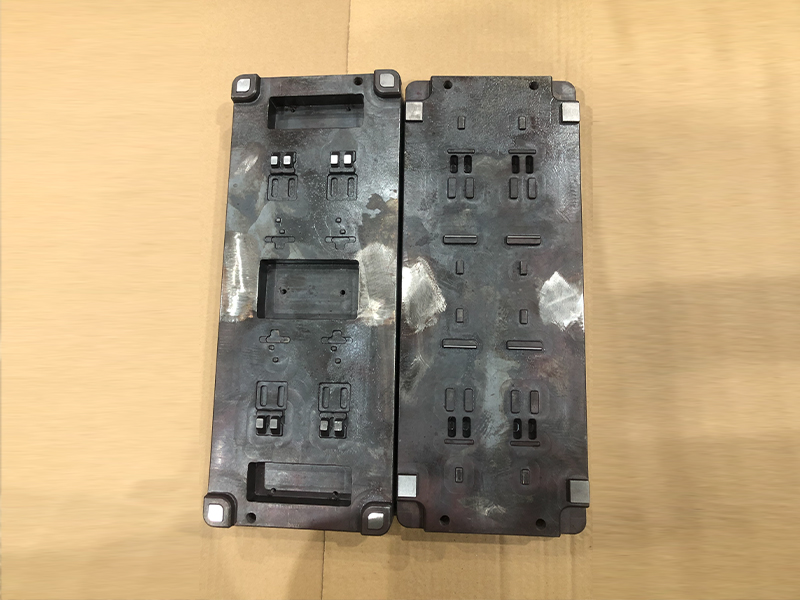

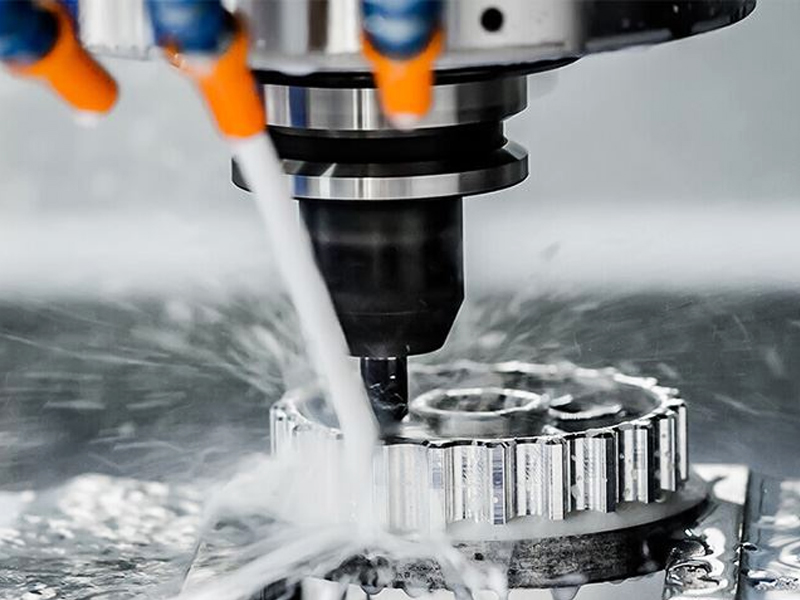

| CNC Machining | Heat Treatment |
(4) Precise Control of Injection Molding Process Parameters
The settings of injection molding process parameters directly affect plastic injection molds lifespan:
Injection Pressure: Excessively high injection pressure can cause mold cavity deformation or wear.
Injection Temperature: High temperatures can lead to thermal fatigue on the mold surface, while low temperatures increase material flow resistance, damaging the runner.
Injection Speed: Excessively fast injection speeds can intensify the impact of molten plastic on the mold, increasing wear.
(5) Quality of Plastic Raw Materials and Pre-Treatment
The quality of processed plastic materials and treatment methods significantly impact mold wear and corrosion:
Raw Material Purity: Plastics containing impurities or fillers (e.g., glass fibers, mineral powders) accelerate mold surface wear.
Raw Material Drying: Excess moisture in plastic raw materials can release corrosive gases, damaging the mold surface.
Additive Selection: Certain additives (e.g., flame retardants) produce corrosive substances when heated, necessitating targeted protective measures.
(6) Mold Maintenance and Care Management
Good maintenance and care can significantly extend injection molding tools life:
Clean Molds: Regularly clean the mold cavity and runners of residual plastic or impurities to prevent corrosion or blockages.
Lubricate Moving Parts: Ensure lubrication of guide pillars and slides to reduce mechanical friction.
Regular Inspections: Conduct regular checks and repairs on wear-prone areas (e.g., parting surfaces, cores) to prevent small issues from escalating.
Maintenance Item | Frequency (Cycles) | Method | Key Indicators |
Cavity Cleaning | 5,000 | Ultrasonic cleaning + rust prevention | No residue, no rust spots |
Ejector Lubrication | 20,000 | High-pressure oil injection with silicone grease | Ejector force ≤ 5kN |
Cooling Channel Inspection | 50,000 | Endoscope inspection + acid cleaning | Water flow rate ≥ 2m/ |
Guide Pillar Replacement | 300,000 | Replace when wear ≥ 0.1mm | Clearance ≤ 0.03mm |
(7) Production Batch and Economics
Plastic injection Mold lifespan is closely related to production batch size and economics:
Low volume Production: For low volume productions, cheaper mold steel and structures can be chosen to reduce initial costs.
High volume Production: For high-volume demands, high-strength, high-wear-resistant mold steel should be selected to ensure long-term use.
(8) Compatibility and Maintenance of Injection Molding Equipment
The compatibility of injection molding machines and injection molds, as well as the condition of the equipment, directly affects injection molding tools life:
Clamping Force Matching: The clamping force of the injection molding machine should match the injection mold design; too high or too low can damage the mold.
Equipment Stability: The mechanical precision and stability of the injection molding machine (e.g., nozzle alignment accuracy, smooth mold opening/closing) affect the uniformity of force on the mold.
Equipment Maintenance: Regularly check the oil lines, hydraulic systems, and electrical control systems of the injection molding machine to prevent mold damage from equipment failures.

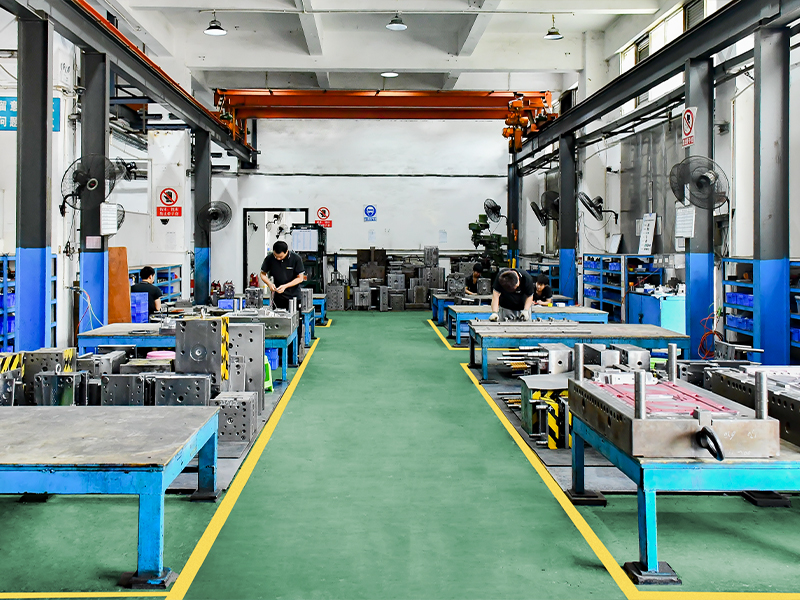

(9) Production Environment Management
A good production environment helps extend injection mold tooling life:
Temperature and Humidity Control: Plastic injection molds are prone to rust in high humidity environments, so moisture control is essential.
Dust Prevention Measures: The production workshop should be kept clean to prevent dust from entering the mold, causing wear or corrosion.
Operational Standards: Strengthen employee training to prevent damage to injection molding tools due to improper operations (e.g., overloading production, using inappropriate tools).
(1) Customized Mold Steel and Advanced Heat Treatment for Different Plastic Products
Choosing mold steel is not about "expensive = good," but rather about targeted customization based on product material, batch size, and target lifespan; the type of steel (P20, H13, S136, etc.) and heat treatment processes (vacuum quenching, nitriding, etc.) directly determine wear and corrosion resistance.
Case Study: For the automotive industry’s high-flow products, using S136 high-hardness stainless steel + deep cooling treatment resulted in a plastic injection mold lifespan exceeding 3 million cycles, with a rework rate below 2%.
(2) Structural Details for Fatigue and Corrosion Resistance in Injection Mold Design
Using arc transitions and optimizing R angles to reduce stress concentration points.
Increasing corrosion-resistant coatings and fatigue-resistant structural designs can enhance the lifespan of key components by over 30%.
Custom cooling and lubrication channels improve heat exchange efficiency and reduce localized high-temperature aging.

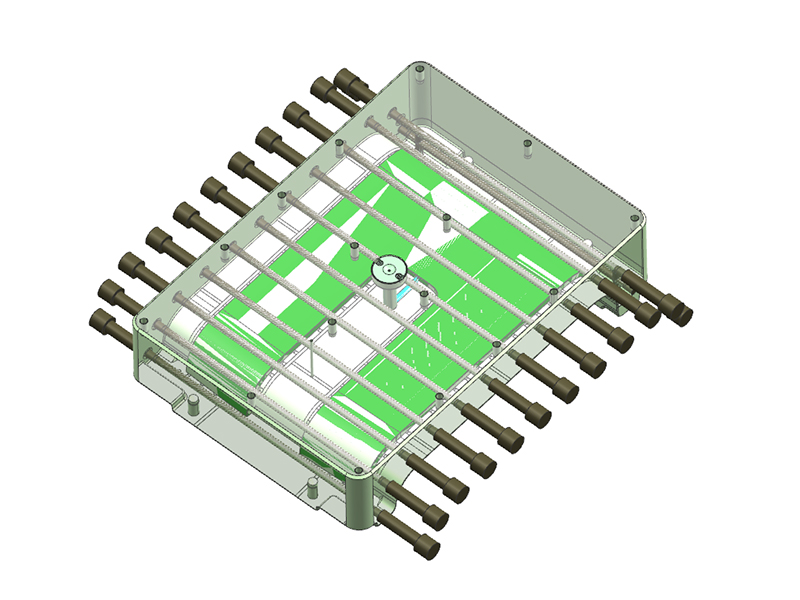

(3) Contribution of Intelligent Temperature Control and Efficient Cooling to Lifespan
Data show that optimizing the layout of cooling channels and improving temperature control precision can reduce the probability of thermal fatigue cracking by 67% and increase production efficiency by 20%.
Indicator | Before Optimization | After Optimization |
Cooling Channel Water Speed (m/s) | 0.5 | 1.6 |
Product Forming Cycle (s) | 38 | 28 |
Occurrence Rate of Thermal Cracks | 7.5% | 2.5% |
(4) Standardized Parting Surfaces and Modular Ejector Mechanisms for Efficient Maintenance
Standardizing parting surfaces can reduce assembly errors, enhance sealing, and lower maintenance workloads.
Modular ejector designs enable quick replacement and maintenance within 5 minutes, minimizing losses due to failures.
(5) Digital Management: Tracking Mold Status and Maintenance Alerts
Alpine Mold fully implements digital management, establishing a unique identification profile for each mold, regularly recording operational data, and immediately alerting for maintenance when anomalies occur, extending lifespan by 12%-22%.
Failure Type | Typical Manifestations | Solutions |
Wear Failure | Cavity damage, increased gaps | Use wear-resistant steel, surface hardening |
Corrosion Failure | Oxidation of coatings, rust | Improve mold steel corrosion resistance |
Fatigue Fracture | Cracking, chipping | Reasonable mold design, local reinforcemen |
Thermal Crack Failure | Cracking, surface blistering | Optimize cooling system, precision temperature control |
Q1: Is it necessary to choose high-lifespan plastic injection molds for small batches?
A: For small batch products, medium-lifespan injection mold tooling can be selected, but it’s best to avoid options with "extremely low lifespan"; otherwise, frequent repairs and unstable deliveries will increase overall costs. Our statistics indicate that customers producing 100,000 to 500,000 units annually benefit most from molds with a tooling life of 500,000 to 800,000 cycles, resulting in the lowest rework rates.
Q2: Does more expensive mold steel guarantee a longer lifespan?
A: Not necessarily! The key is to scientifically select materials and heat treatments based on the type of plastic resin (e.g., PA, PC, POM), product structure, and usage scenario, with reinforced local areas and anti-corrosion measures to truly extend lifespan.
Q3: Can plastic injection mold lifespan be predicted with 100% accuracy?
A: Lifespan can be scientifically estimated based on materials, heat treatments, and production batches, but the variables affecting lifespan are complex and require a comprehensive evaluation considering product geometry, process control, and maintenance. Data shows that a complete digital mold management system can reduce lifespan prediction errors from 20% to below 5%.
Q4: Maintenance sounds simple but is hard to implement; how can process management be achieved?
A: Implement "Digital + Standardization":
· Automatically record each opening and closing cycle + forming data.
· Regularly push maintenance reminders to achieve synergy among processes, equipment, and personnel.
Alpine Mold has developed a mold health record and alert system that significantly reduces early failures due to neglect in maintenance.
As the manufacturing industry upgrades, lifecycle management is paramount. From initial planning to subsequent maintenance, full-process digital management and a professional team are essential for achieving high-lifespan injection mold tooling. Technological innovation, customized services, and standardized processes ensure that every penny is well spent. Alpine Mold promises to leverage 23 years of industry experience and continuous technological innovation, along with standardized quality management, to create low-cost, high-return plastic injection mold solutions for every customer. Plastic injection molds lifespan can only be longer, and efficiency will only be higher; this is our shared goal with customers.
