1. Introduction

In injection molding production, the choice of mold system directly impacts injection molded product quality, production efficiency, and manufacturing costs. For small and medium-sized enterprises (SMEs), making the right decision between Hot Runner vs. Cold Runner mold systems is a key step to ensuring both capacity and profitability. Each system has its unique advantages and application scenarios. An incorrect choice may not only increase operational costs but also affect product delivery and quality performance.

2. What Is a Hot Runner Mold?

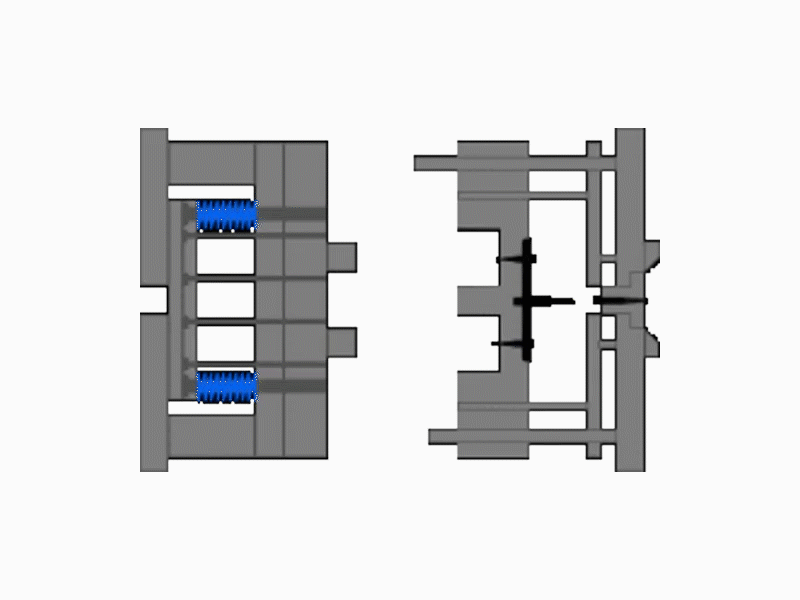

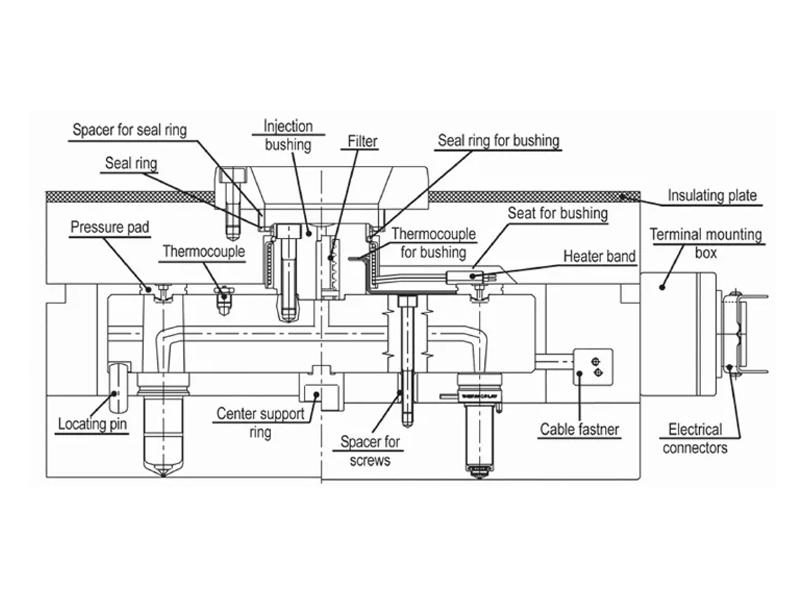

A hot runner is a mold system that maintains the plastic melt at a constant temperature through internal heating components. This system includes heated nozzles, a manifold, and a temperature control unit, which allow the plastic to remain in a molten state as it flows from the injection molding machine nozzle through the runner until it enters the mold cavity. Unlike traditional systems, hot runner molds do not generate solidified runners, enabling continuous injection and reducing raw material waste.

The working principle involves precisely controlling the temperature of the runner system as the molten plastic flows into multiple cavities. Since the entire runner is kept continuously heated, the plastic does not solidify inside the channels. This eliminates the need for runner removal or gate trimming. The design not only improves production efficiency but also enhances plastic injection product appearance quality. It is particularly suitable for injection molded plastic parts that require high surface finish or are produced in large volumes.

3. What Is a Cold Runner Mold?

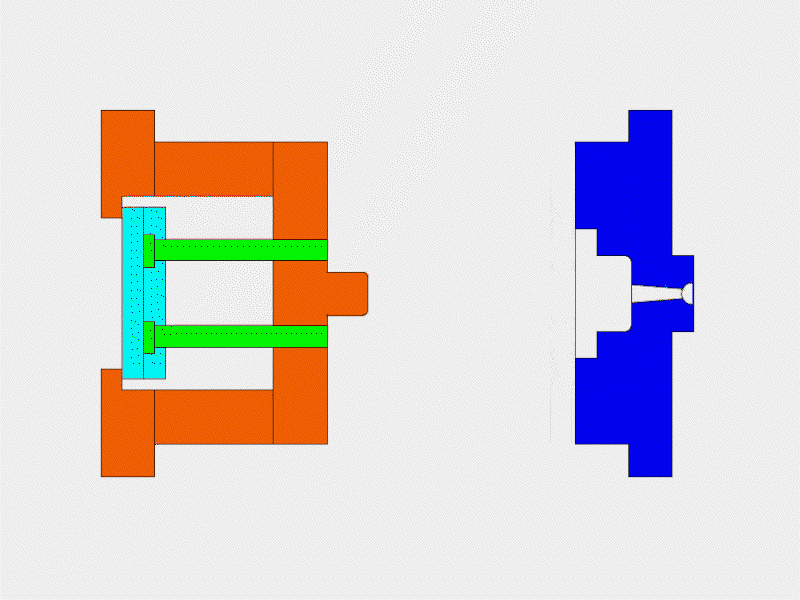

A cold runner is a traditional mold system without heating functionality. Its runner structure cools along with the mold itself. In each injection cycle, the plastic melt flows through the unheated runner and enters the mold cavity, solidifying together with the injection molded product. After injection molding, the cooled gate and runner material must be removed along with the plastic injection part and either trimmed, recycled, or discarded.

The working principle is that molten plastic is injected into the cooled runner system. Driven by pressure, it flows into the mold cavity where it solidifies along with the runner. Upon demolding, the injection molded product and runner are ejected together. While this system has a simpler structure and lower manufacturing cost, it generates more scrap, increasing raw material waste and labor handling costs. It is relatively inefficient for high-volume production of injection molded plastic parts.

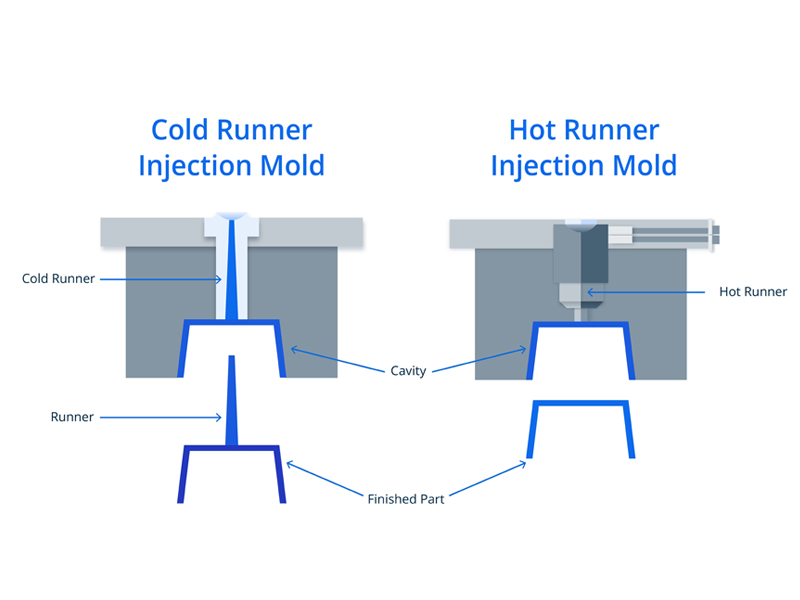

4. Differences Between Hot Runner and Cold Runner Molds

Material Waste and Cost

In a cold runner mold system, every injection cycle produces solidified runner material. While this material can often be recycled, its mechanical properties are typically inferior to virgin resin—particularly for products requiring high quality standards. Additionally, cold runner waste increases the cost of post-processing or manual trimming. By contrast, a hot runner mold system allows the molten plastic to flow directly into the mold cavity without solidifying in the runner. As a result, virtually no scrap is generated, significantly reducing material waste and raw material cost.

Cycle Time and Production Efficiency

Cold runner molds require cooling time for the gate and runner material before demolding, which lengthens the injection cycle and reduces throughput. For SMEs, slower production cycles mean reduced output per unit of time. In Hot Runner mold vs. Cold Runner mold comparisons, hot runner systems demonstrate a clear advantage by allowing continuous molten flow without waiting for runner cooling. This significantly shortens cycle time, especially in multi-cavity molds and high-volume orders, improving equipment utilization and delivery speed.

Mold Cost and Maintenance Complexity

Cold runner molds have a simpler structure and are easier to manufacture and assemble, resulting in lower mold costs. This makes them ideal for startups or companies with limited budgets. On the other hand, hot runner molds require precise heating elements, manifold designs, and a reliable temperature control system. The initial investment is higher, and the system requires regular inspection to maintain thermal precision and stable injection performance. For SMEs with limited technical resources, it is important to balance long-term ROI with upfront costs when choosing between Hot Runner vs. Cold Runner systems.

Material Compatibility and Product Complexity

Cold runner systems are compatible with most common thermoplastics. However, when using fiber-reinforced or easily degradable materials, repeated reprocessing of runner scrap may compromise final part performance. In contrast, hot runner systems demand better thermal stability from materials, and are unsuitable for plastics prone to carbonization or degradation. Nevertheless, hot runners are better suited for complex geometries and multi-gate injection, especially in injection molds that require balanced flow and uniform wall thickness. In such cases, Hot Runner mold vs. Cold Runner mold selection should favor hot runners to ensure consistent injection molded part quality.

Appearance and Dimensional Stability

Cold runner molds often require manual or mechanical gate trimming, which may leave visible marks on the injection molded product surface—especially problematic for consumer goods or transparent parts with high aesthetic demands. In addition, cold runner temperature fluctuations can lead to some common injection molding defects, like warping, sink marks, or inconsistent dimensions. Hot runner molds provide more stable and balanced plastic flow, eliminating cold lines, weld lines, and blemishes. They ensure smoother surface finishes and dimensional accuracy, making them a preferred choice for high-end injection molded plastic parts.

Comparison Criteria	Hot Runner Molds	Cold Runner Molds
Material Utilization	High, minimal scrap, cost-effective	Lower, runner material must be removed and recycled
Cycle Time	Short, ideal for high-speed production	Longer, cooling required before demolding
Initial Mold Cost	High, requires heating and control systems	Low, simple structure
Maintenance and Technical Demand	High, requires routine maintenance and thermal accuracy	Low, easier to maintain, low technical barrier
Production Volume Suitability	Suitable for medium to high-volume, stable orders	Suitable for low-volume, frequently changing production needs
Product Appearance & Consistency	Excellent, smooth surface, stable flow	Moderate, may show gate marks or cold lines
Material Compatibility	Best with thermally stable materials	Compatible with most thermoplastics
Automation & Multi-Cavity Compatibility	Excellent, supports automation and uniform multi-cavity flow	Moderate, uneven flow may occur in multi-cavity setups

5. Key Factors SMEs Should Consider When Choosing Between Hot Runner vs. Cold Runner Molds

Initial Investment vs. Long-Term Operating Costs

One of the primary advantages of cold runner molds is their low manufacturing cost and simple structure, making them ideal for startups or businesses with tight budgets. They offer a lower entry barrier and quick return on investment, especially in scenarios where small batch production and frequent product changes are common.

In contrast, hot runner molds require a higher initial investment due to the need for precision heating elements, manifolds, and advanced temperature control systems. The mold structure is more complex and harder to machine. However, in the long term, hot runner systems reduce material waste, increase production speed, and provide substantial cost benefits in large-scale production. For SMEs evaluating Hot Runner vs. Cold Runner, the decision should be based on project lifecycle and order stability—whether to prioritize short-term savings or long-term performance.

Production Volume

Production volume is a critical factor in mold system selection. If the injection molding company frequently processes small orders with irregular batch sizes, cold runner molds allow for flexible adjustments and faster turnaround without large upfront costs. However, once annual volumes reach tens or hundreds of thousands of plastic injection parts, the efficiency and material-saving advantages of hot runners become more prominent. They can shorten cycle times, reduce resin consumption, and amortize mold costs more quickly.

For SMEs with a clear growth trajectory or in an expansion phase, hot runner molds offer a more strategic investment when considering Hot Runner vs. Cold Runner options.

Mold Change Frequency

If your company frequently develops new products based on client needs and changes molds often, cold runner molds offer greater flexibility. Their simple structure, shorter lead time, and ease of adaptation make them more economical and responsive.

On the other hand, hot runner molds typically have a longer development cycle and are harder to fine-tune. They are better suited for stable, long-life products with consistent demand. For SMEs working in fast-paced industries with short product life cycles, cold runners help control development costs and reduce time-to-market risks when choosing between Hot Runner vs. Cold Runner.

Maintenance and Technical Support Capabilities

While hot runner systems provide higher production efficiency, their performance depends heavily on stable temperature control and properly functioning heating elements. They also require higher skill levels from technicians. Without experienced mold maintenance personnel or capable in-house setup teams, operational mistakes may lead to temperature deviations, blockages, or performance issues.

In contrast, cold runner molds are easier to maintain, with lower repair costs and less dependence on specialized skills. For SMEs with limited technical resources, cold runners may be more practical and reliable in everyday operations—another important factor in the Hot Runner vs. Cold Runner decision-making process.

6. Hot Runner vs. Cold Runner: Typical Application Scenarios for SMEs

Industry Case Studies

(1) Consumer Electronics-Hot Runner Preferred

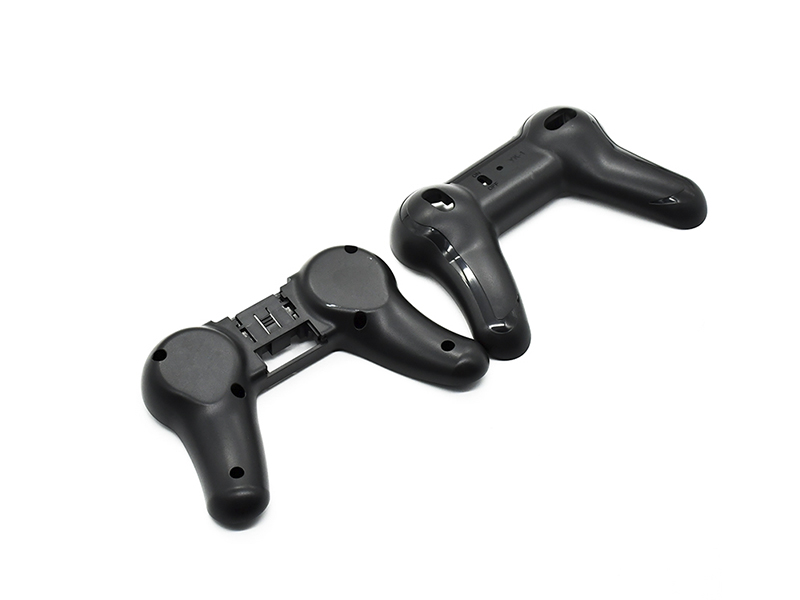

In the consumer electronics industry, plastic products such as remote controls, speaker panels, and game controller housings require high surface quality and precision. These parts are often produced using multi-cavity molds to boost output. Hot runner systems ensure simultaneous filling of each cavity via directly heated channels, eliminating the common injection molding defects, like flow marks, weld lines, and other surface defects. This significantly improves injection molded product consistency and aesthetics—making hot runners the go-to solution in this field.

(2) Industrial Components-Cold Runner Is More Practical

Medium-sized hardware manufacturers typically produce structural plastic components such as cable clamps and connector housings. These parts often have simple geometries, and customer orders vary in both volume and frequency. In such cases, cold runner molds offer greater flexibility and cost-effectiveness. They are easy to maintain and switch out, making them ideal for high-mix, low-volume production operations common in industrial manufacturing.

(3) Medical and Precision Injection Molding-Hot Runner Is Essential

Medical devices such as syringe plungers, disposable tools, and test tube caps require strict hygiene and dimensional accuracy. These parts are often produced in large quantities and must meet rigorous quality standards. Hot runner molds reduce manual handling, shorten cycle times, and improve cleanliness control—making them the preferred system for the medical injection molding sector.

Common Misconceptions to Avoid

Misconception 1: Hot runners are always better than cold runners.

Some companies assume that hot runner systems are inherently more advanced and therefore superior. However, for simple product designs, low volumes molding, or frequently changing production needs, cold runners may be more appropriate. The choice between Hot Runner vs. Cold Runner should always be based on actual production needs—not on a perceived sense of “higher technology.”

Misconception 2: Cold runners don’t have quality risks.

While cold runner molds have simpler structures, they are not immune to quality issues. Improper gate trimming, leftover residues, and inconsistent temperature control can still affect product appearance and stability—especially in factories relying heavily on manual trimming.

Misconception 3: Mold price is the only cost that matters.

A lower initial mold price does not mean lower total cost. Although hot runner molds require a higher upfront investment, their benefits in material savings, productivity, and automation are more pronounced in high-volume production. SMEs should evaluate long-term return on investment instead of focusing solely on initial pricing when deciding between Hot Runner vs. Cold Runner.

7. Conclusion

Both hot runner and cold runner systems have their own unique characteristics. The key is to align your mold system choice with actual production demands, budget planning, and product positioning. For SMEs targeting high-efficiency, high-quality, and large-scale production, hot runner molds offer a compelling long-term solution. Meanwhile, cold runner molds demonstrate better cost-efficiency and flexibility in multi-product, small-batch production environments.

We hope this guide has provided you with clear insight into the technical logic and business value behind the Hot Runner vs. Cold Runner decision. With a better understanding of both systems, your business can make informed mold selections that support efficiency, quality, and growth.
