In today’s injection molding industry, efficiency, material savings, and part quality are more important than ever. Hot runner injection moldinghas become a key solution by enabling precise melt control, eliminating runner waste, and improving overall production performance.
This guide provides a clear overview of hot runner systems, their types, advantages, and key design considerations—helping you make informed decisions for your project.

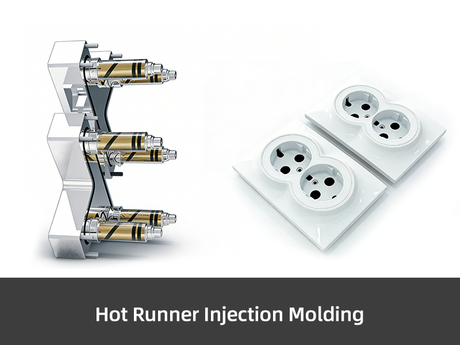

Hot runner injection molding is an advanced molding process that uses a heated system to deliver molten plastic directly into the mold cavity, eliminating the need for a cold runner. In a hot runner system, the plastic remains in a molten state throughout the injection process, which improves efficiency, reduces material waste, and enhances part quality.

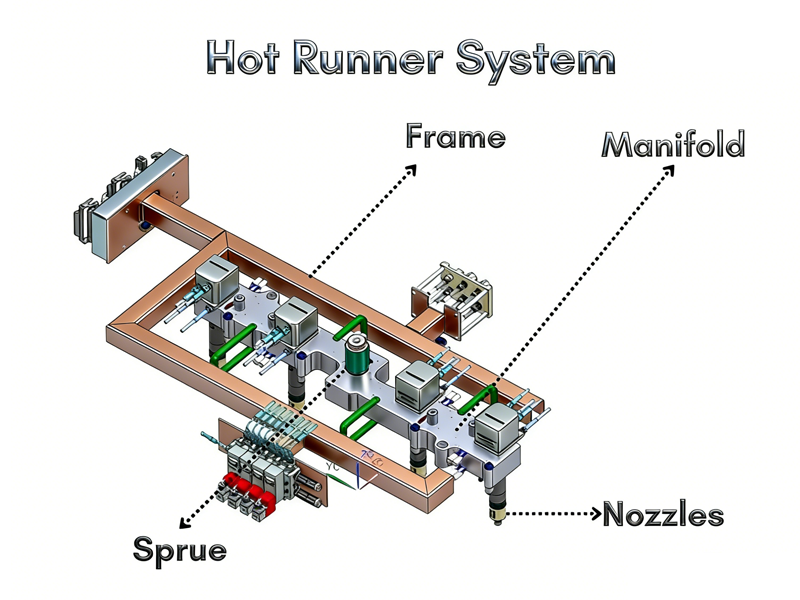

A typical injection molding hot runner system consists of a heated manifold and multiple hot nozzles. The manifold distributes the molten plastic from the injection machine to each nozzle, while the heated nozzles maintain a consistent temperature and inject the material precisely into the mold cavities. This controlled flow helps ensure uniform filling and stable production.
The key components of a hot runner mold include the manifold, hot nozzles, temperature controller, and gate system. The temperature controller plays a critical role in maintaining thermal balance across the system. Gate types are usually divided into open gate and valve gate systems. Open gates are simpler and more cost-effective, while valve gates provide better control over flow and are ideal for high-quality or cosmetic parts.
In injection molding, selecting the right hot runner types is critical for achieving optimal performance, cost efficiency, and part quality. Different hot runner systems are designed to meet various production needs, from simple parts to high-precision, high-volume applications.
The hot tip system is one of the most common hot runner nozzle types, where the heated nozzle directly feeds molten plastic into the cavity through an open gate. Its biggest advantage lies in its simple structure and relatively low cost compared to other systems. This makes it ideal for medium to high-volume production of general plastic parts such as housings, caps, and functional components.
From a processing perspective, the hot tip system provides stable flow and reduces material waste compared to cold runners. However, since it uses an open gate, there is less control over the flow shut-off, which can lead to issues such as stringing, drooling, or visible gate marks—especially when processing low-viscosity or heat-sensitive materials.
In terms of application, it is widely used in industries where slight gate marks are acceptable and cost efficiency is a priority. Proper temperature control and gate design are essential to minimize defects and maintain consistent quality.
The sprue hot runner system uses a heated sprue bushing to keep the plastic molten as it enters the mold, but it may still connect to a cold runner or feed directly into the cavity depending on the mold design. This hybrid approach offers a balance between traditional cold runner systems and full hot runner molds.
One of the key advantages of this system is its lower initial investment compared to a full hot runner system. It reduces material waste in the primary sprue while maintaining a relatively simple mold structure. This makes it a practical solution for projects transitioning from cold runner to hot runner technology.
However, since part of the system may still involve a cold runner, it does not fully eliminate runner waste. It also offers limited control over flow compared to more advanced systems like valve gates. As a result, it is commonly used for less complex parts, smaller production volumes, or cost-sensitive applications where full hot runner investment is not yet justified.
Valve gate systems represent the most advanced type among hot runner systems, offering precise control over the injection process. A mechanical pin (valve) is used to open and close the gate, allowing accurate control of melt flow into the cavity. This eliminates common issues associated with open systems, such as stringing or drooling.
When comparing valve gate vs open gate, valve gate systems provide superior surface quality, as the gate can be completely closed without leaving visible marks. This makes them ideal for high-end applications such as automotive interior parts, medical components, and consumer electronics housings.
In addition to aesthetics, valve gate systems also improve process consistency, enable sequential gating, and support complex multi-cavity molds. However, these benefits come with higher costs and increased system complexity. They require precise synchronization, advanced temperature control, and more maintenance expertise.
Despite the higher initial investment, valve gate systems are often the preferred choice for high-volume production where quality, precision, and automation are critical.
Feature | Hot Tip System | Sprue Hot Runner | Valve Gate System |
Structure | Simple | Medium | Complex |
Cost | Low | Medium | High |
Gate Control | Limited | Moderate | Precise |
Surface Quality | Standard | Standard | Excellent |
Application | General parts | Cost-sensitive projects | High-end / cosmetic parts |
Hot runner systems offer distinct advantages in terms of efficiency and quality; however, they are not suitable for every project. The following is a detailed analysis of their core strengths and weaknesses, designed to assist you in making a more informed decision.
no runner waste：as the material remains molten inside the system. This significantly reduces material consumption, especially when using expensive engineering plastics such as PC, PA, or ABS.
Shorter Molding Cycles: Since there is no need to cool and eject runners, overall production efficiency is enhanced, and the cost per part is reduced.
Product Quality: Hot runner molds deliver superior surface quality and minimize gate marks, making them highly suitable for aesthetic parts—such as electronic housings or automotive interior components.
More Stable Mold Filling and Pressure Control: This enhances product consistency and reduces defect rates, making it particularly suitable for multi-cavity molds and high-precision products.
Overall, hot runner systems are ideal for high-volume production, where material savings and efficiency gains can quickly offset the higher initial investment.
High Initial Cost: This is due to the necessity of configuring additional components, such as manifold plates, hot nozzles, and temperature control systems.
Complex Maintenance: Should a heating element or sensor malfunction, the operation of the entire system may be compromised; furthermore, repairs require the expertise of specialized technicians.
Extremely Stringent Temperature Control Requirements: Imbalanced temperature control can easily lead to issues such as stringing, scorching, or uneven mold filling.
Not All Materials Are Suitable for Hot Runner Systems: Certain temperature-sensitive plastics may undergo degradation when subjected to prolonged heating; therefore, material selection must be approached with caution.
When designing a hot runner mold, thermal balance and flow consistency are critical. Proper gate location must be carefully planned to ensure uniform filling, minimize weld lines, and avoid air traps. For high cosmetic parts, valve gate positioning becomes even more important to achieve clean gate marks.
Another key factor is temperature control. Each nozzle and the manifold must maintain stable and consistent heat. Poor temperature balance can lead to defects such as stringing, burn marks, or uneven filling. This is why a reliable temperature controller and precise heating layout are essential.
Material compatibility also plays a major role. Different plastics—such as ABS, PC, PP, or PA—have unique processing temperatures and flow characteristics. The hot runner system must be designed accordingly to prevent degradation or flow issues.
In addition, integrating Moldflow analysis during the design stage helps predict melt behavior, optimize gate locations, and reduce trial-and-error during mold testing. A well-designed hot runner mold can significantly improve production stability and reduce defects.
The cost of a hot runner system is not limited to the initial mold price—it should be evaluated from a long-term production perspective.
The most obvious factor is the initial investment, which is higher than cold runner molds due to additional components such as manifolds, hot nozzles, and temperature controllers.
There are also maintenance and operational costs to consider. Hot runner systems require skilled technicians for setup and troubleshooting, and any failure in heating elements may lead to downtime.
However, one of the biggest advantages is material savings. By eliminating runner waste, especially when using high-cost materials, significant cost reductions can be achieved over time.
Hot runner systems also contribute to shorter cycle times, increasing production efficiency and reducing cost per part. For high-volume projects, these savings often outweigh the higher upfront investment.
Ultimately, the true value of a hot runner system lies in its return on investment (ROI). For large production volumes, it is often a more economical and efficient solution in the long run.
Hot runner injection molding is a powerful solution for improving efficiency, reducing material waste, and achieving higher product quality—especially in high-volume production. However, it’s not a one-size-fits-all solution. The right choice depends on your product design, material, production volume, and long-term cost considerations. By understanding the different hot runner types, design factors, and cost structure, you can make a more informed decision and avoid unnecessary risks in your project.
At Alpine Mold, we support customers from early design to mass production with practical, engineering-driven solutions. Our team provides DFM feedback, Moldflow analysis, and customized hot runner mold design based on your specific product and material. If you have a project in development, feel free to share your 3D files or ideas with us—we’re happy to review and help you find the most efficient and cost-effective solution.
In many cases, yes—especially for medium to high-volume production.
While the initial mold cost is higher, hot runner systems eliminate runner waste and reduce cycle time, which lowers the cost per part over time.
For projects using expensive materials or producing large quantities, the long-term savings can be significant.
It’s not just about the upfront cost—it’s about the total cost over the life of the project.
Yes, hot runner systems can significantly improve part quality.
Because the melt is delivered more consistently, you get more stable filling and pressure across cavities.
This helps reduce defects such as weld lines, sink marks, and short shots.
In addition, systems like valve gates can minimize or even eliminate visible gate marks, making them ideal for high cosmetic parts.
Hot runner systems perform best with thermoplastics that offer stable melt behavior and good thermal resistance.
1. Commodity Plastics (Best Stability & Cost Efficiency)：such as Polypropylene (PP), Acrylonitrile Butadiene Styrene (ABS), Polyethylene (PE) (HDPE / LDPE), Polystyrene (PS)
2. Engineering Plastics (Require Process Control)：such as Polycarbonate (PC), Polyamide (PA / Nylon), Polybutylene Terephthalate (PBT), Polyoxymethylene (POM)
3. High-Performance Plastics (Advanced Applications)：such as PEEK (Polyether Ether Ketone), PPS (Polyphenylene Sulfide), LCP (Liquid Crystal Polymer)
Some of the most common issues include stringing, drooling, burn marks, and uneven filling. These problems are usually related to poor temperature control, improper gate design, or unbalanced flow.
In many cases, they can be prevented with proper design, stable heating systems, and Moldflow analysis during the early stage of the project.
Compared to cold runner molds, yes—maintenance is generally more complex.
Hot runner systems involve heating elements, thermocouples, and electrical connections, which require careful handling.
However, with proper setup and regular maintenance, these systems can run very reliably.
Working with an experienced supplier can also help minimize maintenance issues and ensure long-term performance.
