From Design To Mass Production: A Comprehensive Guide To Injection Mold Manufacturing

Table of Contents

1. Introduction: Why is the injection mold "not simple"?

2. Project start-up: from demand communication to feasibility assessment

3. Mold design: Every detail can stand up to scrutiny

4. Mold manufacturing: the whole process of precision machining technology

5. Mold trial and optimization: the verification process from mold to product

6. Mold delivery and mass production support

7. Summary: Why Choose Alpine Mold?

I. Introduction: Why Injection Molds Are "Not Simple"?

In our communications with clients, we often encounter these misconceptions:

"Making a mold should be pretty straightforward, right?"

"Why is your quote so high? It's just a few pieces of steel?"

In reality, injection mold development is far from "simply machining a few steel blocks." It's not just about making a mold; it's a systematic engineering project integrating product design understanding, engineering technology, high-precision machining, assembly debugging, and quality control. Any deviation in any step can directly impact the final product's appearance, dimensional stability, assembly performance, and even the feasibility of the entire project's mass production.

For an experienced mold factory like Alpine Mold, every step from the client's drawing to the final mold delivery must be executed rigorously:

• Design: Ensures not only structural soundness but also considers plastic flow, cooling efficiency, smooth ejection, etc.

• Manufacturing: Requires high-precision equipment and skilled engineers to control the tolerance, angles, and surface finish of every steel component.

• Trial Molding: Involves repeated "battlefield verification" with materials, processes, and structures to ensure the mold can truly perform stably in production.

• Mass Production: Requires long-term maintenance planning to guarantee stability over hundreds of thousands or even millions of cycles.

At Alpine Mold, a typical mold goes through 20~30 distinct process steps from finalized design to delivery, involving collaboration across 10+ different roles, supported by quality control measures like CMM measurement, trial molding videos, and dimensional analysis reports.

Therefore, a mold is not merely a tool; it is the culmination of highly integrated technology, experience, and management. Choosing a professional mold factory isn't just about getting a mold "that can inject plastic," but about obtaining a complete solution that is "production-ready, stable, and deliverable."

In the following sections, we will detail the complete process of an injection mold from initial design and precision manufacturing to trial molding and mass production, helping you truly understand why mold manufacturing is "not simple."

II. Project Kick-off: From Requirement Communication to Feasibility Assessment

Every injection mold project starts with the client's product requirements. An excellent mold factory doesn't just "follow the drawing"; it proactively analyzes during the initial phase to ensure the mold design's rationality and manufacturability from the very beginning.

1、Client Data Collection: The More Comprehensive, The More Accurate
At Alpine Mold, we typically confirm the following key information at the kick-off stage:

• Product 3D model (Common formats: STEP, IGS, x_t)

• Type of plastic resin (e.g., ABS, PC, PA+GF, TPE)

• Estimated annual production volume (affects cavity count, mold life)

• Need for two-shot molds or insert molds

• Surface finish requirements (painting, plating, texture, etc.)

• Product assembly relationships or functional mating parts

• Certification standards for the client's region (e.g., UL, ROHS, FDA)

This information directly impacts mold structure design, material selection, and manufacturing costs – the "foundation" of mold development.

2、Product Structure Evaluation: Design Serving Manufacturability
Upon receiving the data, our Solution and Engineering teams conduct a rapid assessment:

• Structural Complexity Analysis: Presence of side holes, undercuts, deep ribs, thin walls? Need for sliders, lifters, or hydraulic cores?

• Wall Thickness & Shrinkage Control: Is wall thickness uniform? Risk of sink marks, gas traps, or warpage due to localized thick sections?

• Draft Angles & Parting Line Planning: Insufficient draft causes ejection difficulties and surface scratches. Parting lines must balance machinability and aesthetics.

• Assembly Relationship & Tolerance Assessment: For parts requiring assembly (e.g., housings, frames, snap-fits), we specifically evaluate fit clearances and machining tolerances.

3、Design for Manufacturability (DFM Analysis)
This is a key process Alpine Mold executes for all projects. We provide a DFM report with optimization suggestions:

• Optimize draft angles to reduce sticking or binding.

• Optimize wall thickness for better molding consistency.

• Adjust fillet design to improve flow and reduce stress concentration.

• Optimize structure and draft direction for ribs, bosses, pillars.

• Suggest parting lines, gate locations, and gate types.

• Assess complexity of side-action mechanisms (can core-pulling be simplified?).

• Evaluate suitability for multi-cavity molds to increase output.

This process typically involves 1-2 rounds of communication with the client to confirm the final product structure.

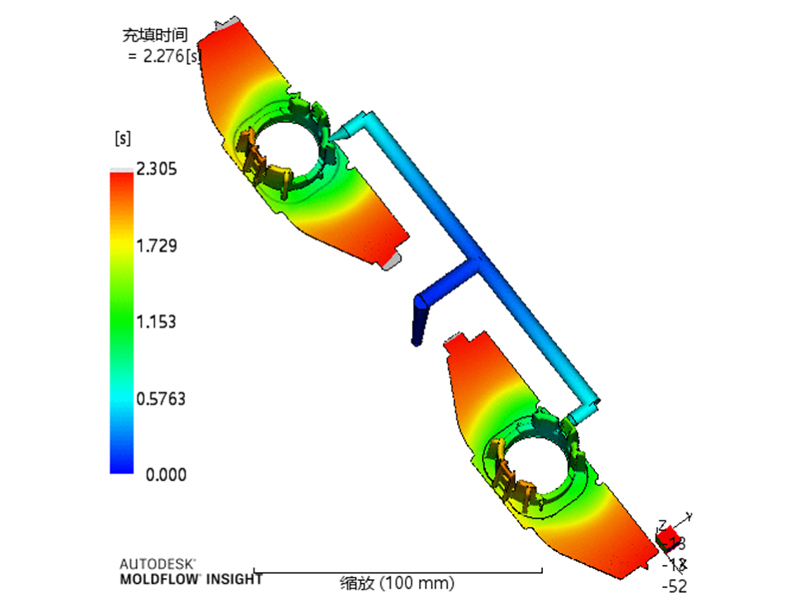

4、Moldflow Analysis (Optional)
For complex structures or high-quality requirements, we may recommend Moldflow analysis. Using professional simulation software, we can predict before manufacturing:

• Melt flow path and speed within the cavity.

• Pressure distribution and required clamp force.

• Weld line, air trap, and short-shot risk areas.

• Cooling uniformity and warpage trends.

This analysis helps us identify potential issues early, significantly improving first-shot success rates and reducing trial cycles. It's also a vital tool for our high-standard export mold projects.

5、Preliminary Mold Scheme Planning & Quotation
After the above assessments, we develop a preliminary mold plan including:

• Mold Type (Cold runner/Hot runner, Two-plate/Three-plate, Lifter structure, etc.)

• Cavity Count (1x1, 1x2, 1x4, or multi-cavity options)

• Recommended Mold Steels (P20, NAK80, H13, S136, etc.)

• Estimated Mold Size, Weight, Compatible Injection Machine Specs

• Mold Life (Typically 300,000~1,000,000 shots, depending on material)

• Preliminary Delivery Schedule & Quotation

At this stage, the client gains clarity on:
✅ Is this mold suitable for mass production?
✅ What structures can be optimized?
✅ Are the quotation and lead time reasonable for project needs?
✅ Is Moldflow analysis needed to further reduce risk?

A precise, comprehensive initial assessment is the foundation for smoothly proceeding to mold design and manufacturing.

III. Mold Design: Every Detail Withstands Scrutiny

Once the product structure and mold scheme are finalized, the project enters the critical mold structure design phase. This is the core bridge connecting product development and mold manufacturing, and the fundamental guarantee of the mold's quality, stability, and production efficiency.

At Alpine Mold, our mold design is a collaborative effort between Solution and Engineering teams, using 3D software like UG (Unigraphics) and SolidWorks. All drawings undergo multiple internal reviews to ensure every detail is scientifically sound and practical.

1、3D Mold Structure Design
Based on the client-approved product drawing, we detail the core structures:
✅ Parting Surface Design: Defines main and secondary parting lines for smooth ejection, aesthetics, and machinability.
✅ Cavity/Core Design: Splits cavity/core inserts based on product contour, features, wall thickness, considering steel type, heat treatment, and machining paths.
✅ Gating System Design:
* Gate Type (Pin gate, Edge gate, Submarine gate, etc.)
* Runner balancing, need for hot runners.
* Gating location for optimal fill, minimizing weld lines/stress.
✅ Cooling System Design: Scientifically layouts water channels (inlets, outlets, connections) to improve cooling efficiency, mold temperature control, and reduce cycle time.
✅ Ejection System Design: Uses ejector pins, sleeves, ejector plates, lifters, air valves, etc., to ensure smooth ejection without deformation or scratches.
✅ Side-Action Core-Pulling Design: For undercuts, side holes, or internal snaps, designs sliders, lifters, hydraulic cylinders, considering synchronization and guidance.
✅ Venting System Design: Places vents via parting lines, insert gaps, ejector pin clearances to prevent air traps and burning.
✅ Auxiliary Structure Design: Includes locating blocks, support pillars, lifting holes, dust caps, thermocouple plugs, standard component interfaces for ease of use and maintenance.

2、Moldflow Support for Design (If Required)
During design, based on complexity and client needs, we may conduct Moldflow analysis for verification. It helps optimize:

• Gate position to avoid short shots, burning, weld lines.

• Cooling system layout balance.

• Pressure distribution to prevent core deflection.

• Warpage trends to preempt accuracy issues.

This simulation significantly boosts first-trial success rates and reduces rework risks.

3、Internal Design Review Process
After 3D design, drawings undergo multi-disciplinary review by Engineering Managers, Process Engineers, Project Managers, etc.
Key review points:

• Component feasibility and machinability.

• Potential interference in mold actions; need for overly complex mechanisms.

• Appropriateness of selected mold base and standard components.

• Conflicts between cooling lines and ejection strokes.

• Ease of disassembly and maintenance.

Client participation in reviews is welcomed to ensure alignment.

4、Engineering Drawing Output
Post-approval, we output complete 2D drawings:

• Dimensions, tolerances, heat treatment, surface finish for all parts.

• Mold assembly and exploded views.

• Standard parts list (ejector pins, guide pillars, springs, etc.).

• Mold BOM (Bill of Materials) for machining and procurement.

Summary: Why Alpine Mold's Molds Are More Stable?

We firmly believe: Half the success of a good mold is determined at the "design drawing" stage.
From rational parting structures to scientific cooling plans, precise core-pulling mechanisms to complete process drawings. Alpine Mold's design process is built on years of export project experience and a rigorous engineering culture. We don't just draw; we engineer systems for mass production.

IV. Mold Manufacturing: The Full Precision Machining Process

With the design finalized, mold development enters the "execution phase" – precision manufacturing.

A mold isn't made by drawings alone. It requires various high-precision equipment, experienced machinists, and meticulous process control to accurately realize complex structures.

At Alpine Mold, we possess full in-house machining capabilities: CNC machining, EDM (Spark Erosion), Wire-Cut EDM, Slow Wire EDM, High-Speed Milling, Polishing, CMM Inspection, etc., ensuring every component meets stringent tolerances and quality requirements.

1、Material Procurement & Preparation
We use only industry-recognized high-quality steels and standard components:

• Mold Base: 45#, S50C, etc.

• Cavity/Core Steel: P20, NAK80, H13, S136, 8407, 420SS (selected based on client needs and mold life).

• Standard Components: Ejector pins, guide pillars, springs from DME, HASCO, LKM systems.

• Hot Runner Systems (If needed): YUDO, Mold-Masters, Husky, etc.

Steel undergoes material certification, flaw detection (UT/MT), and hardness checks upon arrival.

2、Rough Machining & Heat Treatment

• Rough Machining (CNC/Milling/Lathe): We use dedicated roughing machines to shape parts to near-net form, leaving stock for finishing. Focus: Control stress and distortion affecting final accuracy.

• Heat Treatment: Core components requiring high hardness/wear resistance (cores, cavities, sliders, lifters) undergo quenching, tempering, or nitriding. Post-treatment hardness is verified (reports available).

3、Precision Machining & Special Processes
This is the most critical stage. Our factory features 15+ CNC machines:

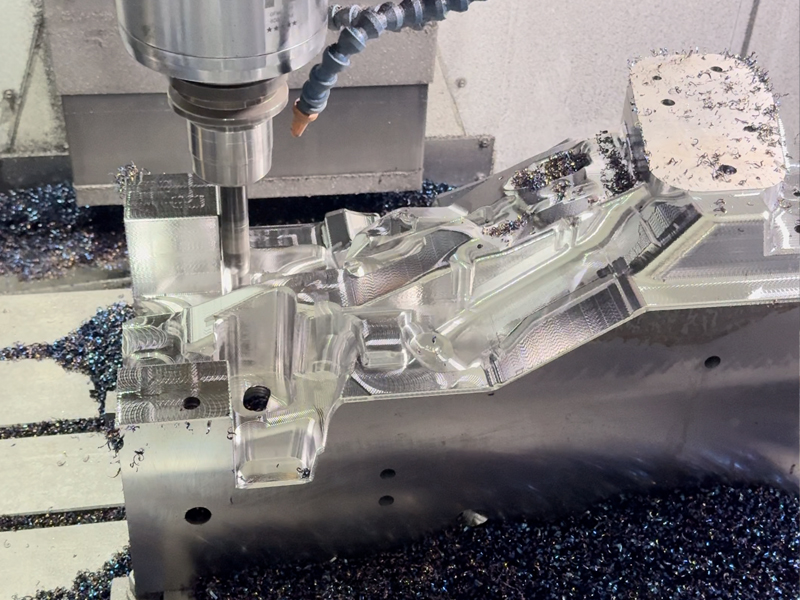

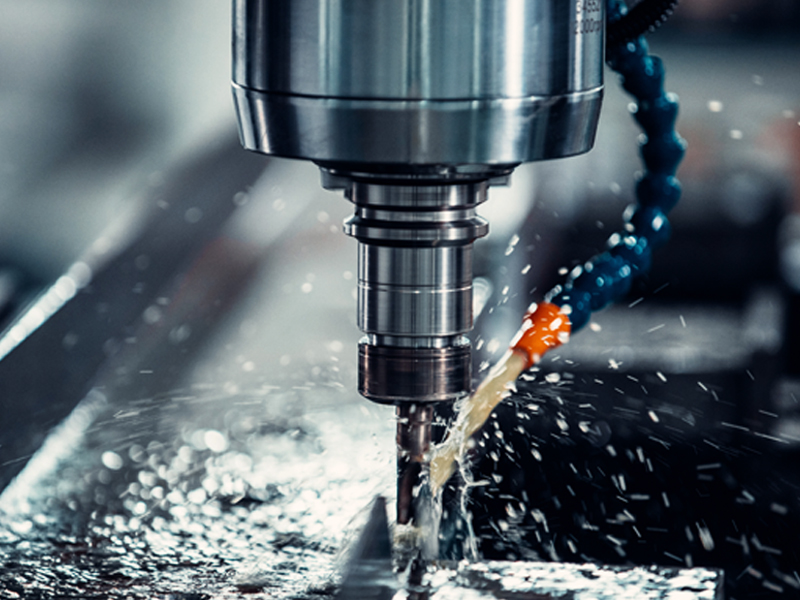

CNC High-Speed Machining (5 Machines):
Spindles up to 15,000 RPM.
Accuracy ±0.008mm, Positioning ±0.003mm.
For cavity surfaces, core structures, high-gloss parts.
✅ EDM (Charmilles Brand):
* For sharp corners, deep cavities, narrow slots unreachable by cutters.
* Uses copper/graphite electrodes for precision and finish.
✅ Wire-Cut EDM:
* Fast Wire & Slow Wire machines.
* Slow Wire for high-precision cores/inserts (high accuracy/finish).
* Fast Wire for mold bases, standard holes, guides.
✅ Deep Hole Drilling & Waterline Machining:
* Precise water channel drilling for uniform cooling.
* Controls hole size, pitch, and cleanliness to prevent blockages.
✅ Grinding:
* Ensures plate flatness, guide perpendicularity.
* For precision mating surfaces for assembly.
✅ Surface Finishing & Texturing:
* Polishing, blasting, texture engraving per client requirements.
* Mirror finishes achievable below Ra0.1μm.

4、Precision Inspection & Dimensional Verification
Our dedicated QC department uses high-end equipment:

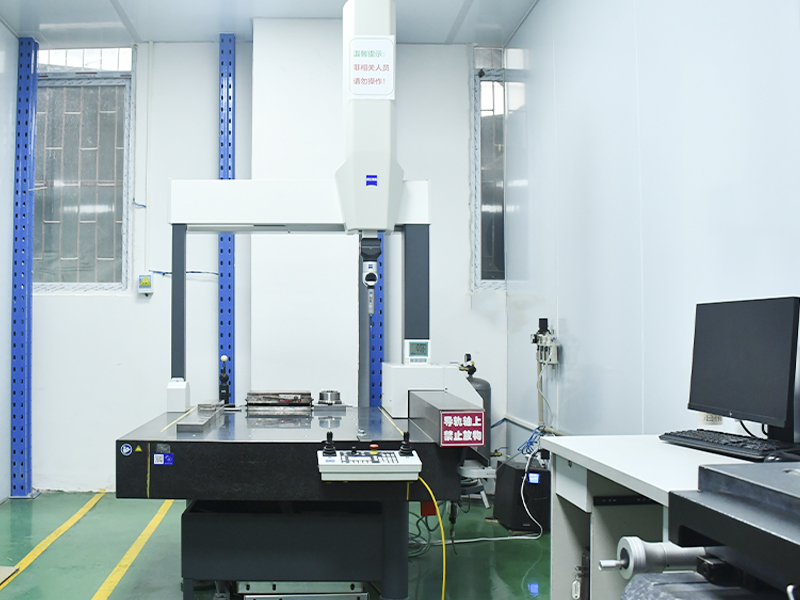

• German ZEISS CMM (±0.001mm accuracy).

• Vision Measuring Machines, Height Gauges, Micrometers, Projectors.


Inspection targets:

• Cores, cavities, sliders, electrodes.

• Critical dimensions: Water holes, locating holes, guide pin holes.

• Post-heat-treatment deformation and tolerances.

Core components undergo CMM inspection and documentation; full reports available.

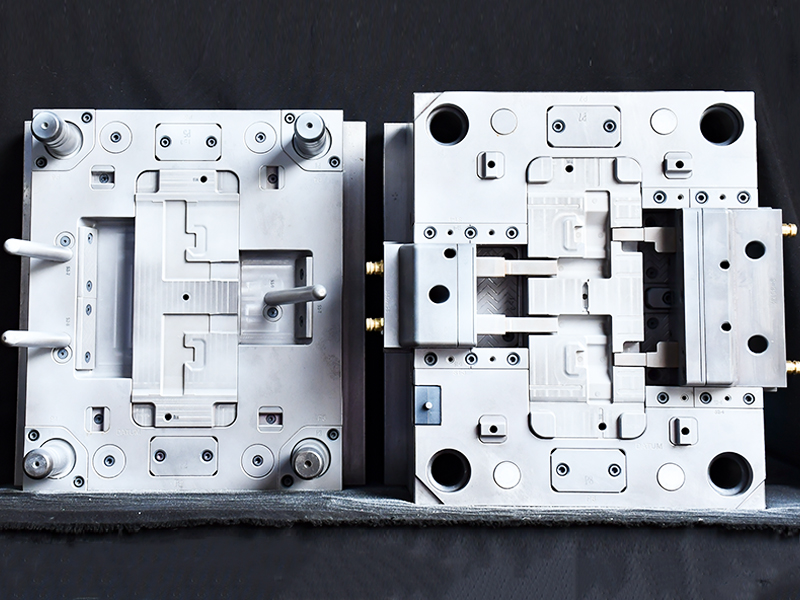

5、Mold Assembly & Function Testing
Post-machining, assembly begins:

• Thorough cleaning of all components (no oil, no burrs).

• Installing core/cavity inserts, adjusting fits and precision.

• Assembling sliders, lifters, ejector plates, sleeves.

• Installing hot runner systems and water connectors (if applicable).

• Installing ejection systems and locating components.

Dry-cycle testing ensures all moving parts operate smoothly, without interference, and return accurately.

Summary: Mold Precision is Decided by Manufacturing
Whether a mold achieves "first-shot success" in trials and "long-term stability" in production hinges entirely on the manufacturing stage.

Alpine Mold's comprehensive in-house capabilities ensure every mold leaves our factory in a production-ready, durable state.

V. Trial Molding & Optimization: Verifying the Mold to Product Journey

Mold manufacturing completion doesn't mean the job is done. The true test is trial molding. This phase not only verifies the mold structure but is crucial for identifying issues, optimizing design, and refining the process.

At Alpine Mold, we have 3 dedicated trial molding machines and experienced engineers to ensure thorough validation for stable molding.

1、Trial Preparation: Detail Determines Success
Trial molding is systematic, not just "mount and shoot." Preparation includes:

• Confirming resin matches production material.

• Preparing colorants, release agents (if required).

• Setting theoretical parameters (temp, pressure, speed, hold time, cooling time).

• Preparing sample inspection standards, drawings, measurement tools.

• Checking mold functions, cooling/hydraulic/hot runner connections.

We confirm all details before mounting for efficient, controlled trials.

2、First Trial (T0): Validating Structure & Fill
Once mounted, engineers:

• Use low-pressure, slow-speed injection to observe fill behavior (short shots? air traps?).

• Check mold actions (core-pulling, ejection, open/close).

• Inspect part surfaces for defects (weld lines, sink, flow marks, flash).

• Measure T0 samples against 3D drawings.


T0 samples provide initial feedback on molding quality and structural issues.

3、Problem Analysis & Mold Adjustment
Post-trial, our team analyzes common issues:

Problem Type	Possible Cause	Resolution Approach
Sink/Warpage	Uneven cooling / Thick walls	Optimize waterlines / Modify part
Flash	Poor shut-off / Insufficient clamp	Polish mold / Increase clamp force
Weld Lines	Unbalanced runners / Poor gate loc.	Adjust gates / Modify runner design
Air Traps/Burns	Insufficient venting	Add vents / Increase pin clearance
Ejection Difficulty	Insufficient draft / Ejection force	Increase draft / Modify ejection system
Ejector Marks	Uneven/delayed ejection	Optimize ejection system

Some issues are resolved via process adjustment; others require mold modification (EDM, polishing, venting).

4、Second Trial (T1) & Continuous Optimization
After initial modifications, we conduct T1 trials, focusing on:

• Resolving remaining structural issues.

• Optimizing gate size and location.

• Confirming smooth ejection.

• Fine-tuning cooling times and mold temperatures.


Typically, 2-3 trials achieve stable production. We document the process (photos/videos) for transparent communication.

5、Sample Inspection & Functional Validation
After each trial, we provide:

• Dimensional Report (CMM/Vision System).

• Sample Photos / Physical Samples for client review.

• Surface Finish Samples (if textured/painted/plated).

• Assembly Test Samples (for functional mating parts).


We can also perform functional tests per client requirements: Tensile, Torque, Drop, Heat Resistance.

6、PPAP Samples & Pilot Production Run
Once stable, we conduct a pilot run:

• Small batch production (dozens to hundreds of parts).

• Simulating the client's actual production rhythm.

• Verifying production robustness (e.g., wear, temp stability, warpage).

Clients use these for final assembly/performance validation before mass production.

Summary: Trial Molding is About "Problem Solving," Not Just "Testing"
Trial molding is a closed-loop process centered on parameter validation, problem analysis, structural correction, and process stabilization.
Alpine Mold's dedicated equipment and experienced engineers ensure every mold meets functional and production expectations.

VI. Mold Delivery & Production Support: Delivering Value, Not Just a Mold

After successful trials and sample approval, the mold moves to delivery and production. A truly professional mold factory doesn't just "hand over" the mold; it supports stable, controlled, and efficient mass production.

At Alpine Mold, we don't just "finish" the mold; we partner with clients through setup, production transfer, documentation, and ongoing support to ensure the mold's value is fully realized in production.

1、Mold Acceptance & Formal Handover

Upon client sample approval, we facilitate acceptance:

• Provide final trial samples & reports.

• Client verifies mold structure, function, surface finish.

• Sign-off of Mold Acceptance Certificate / Provide acceptance video.

• Deliver complete Mold Data Package:

• 2D/3D Mold Drawings (Final Revision)

• Mold BOM

• Trial Molding Parameter Sheet

• Debugging Video Recordings (If requested)

• Moldflow Report (If performed)

• Dimensional Measurement Report

• Mold Maintenance Recommendations

2、Mold Transportation & Packaging
Each mold receives custom protective crating/steel framing:

• Internal cavities oiled for rust prevention; surfaces sealed with oil.

• Moving parts secured (lifting eyes, limiters) for transit.

• Cooling/oil ports plugged against contamination.

• Provide lifting diagrams & assembly instructions (if requested).

Delivery terms: EXW, FOB, CIF supported; we assist with booking, customs, inspection.

3、On-Site Installation Support (If Needed)
For critical projects or new clients, we offer:

• Remote video guidance for mold setup.

• On-site engineer dispatch (project-dependent).


We help match the mold to the client's machine:

• Injection machine compatibility check.

• Hot runner controller / Temperature system interface confirmation.

• Timing synchronization for ejection, core-pull, cooling.

• Mold stroke / Clamping force / Tonnage calculation confirmation.

4、Mass Production Support
Post-delivery, we provide ongoing support:
✅ Process Parameter Recommendations: For initial production ramp-up and yield stabilization.
✅ Issue Response: Rapid analysis and solutions for problems like flash, ejector marks, cooling issues, or wear (remote troubleshooting; repair services if needed).
✅ Mold Maintenance Guidance: Detailed schedule per mold:

• Daily cleaning routines.

• Ejector pin lubrication frequency.

• Slider maintenance reminders.

• Waterline/hydraulic system service intervals.

• Wear part replacement schedules.

5、Mold Refurbishment & Repair (If Needed)
As molds age naturally in production, we offer:

• Mold refurbishment (polishing, repair, adjustment).

• Component replacement (ejector pins, sliders, lifters).

• Hot runner cleaning / component replacement.

• Localized insert repair/replacement.

Refurbishment includes new part inspection reports and service records to maintain efficiency.

Summary: From "Handover" to "Successful Deployment"
At Alpine Mold, we believe a mold isn't a "deliver and forget" project, but a long-term partnership committed to production success.
From delivery and process support to maintenance, we provide a complete system ensuring efficient, controlled, worry-free mold operation every day.

VII. Conclusion: No Shortcuts in Mold Development; Expertise Reduces Cost & Risk

Many clients new to injection molding think: "It's just making a mold, how complex can it be?"

But understanding the full process reveals: From structure confirmation, Moldflow analysis, precision design, rigorous manufacturing, to trial optimization and production validation – every step demands high precision, collaboration, and accumulated experience.

Especially for export molds or products requiring long-term stable production, mold development expertise directly impacts production efficiency, yield rate, and total cost.

At Alpine Mold, we've delivered thousands of mold solutions to clients in over 30 countries. We understand diverse product, industry, and regional requirements. We deliver not just a "mold," but a highly integrated, production-ready, long-lasting manufacturing system.

Why Choose Alpine Mold?
✅ 23 Years Focused on Export Injection Mold Development
✅ Full In-House Process: Design / Machining / Trial Molding / Inspection
✅ High-Precision Equipment: CNC (±0.008mm), CMM (±0.001mm)
✅ Moldflow Analysis for select projects to reduce trial risks.
✅ Rich Experience with complex structures, high precision, large-volume demands.
✅ Rapid Response & Detailed Service for efficient production launch.

Still deciding on a mold supplier?
A truly professional mold factory solves problems before you find them, helping you increase yield, shorten cycles, and reduce total costs.

A mold isn't a simple purchase; it's a critical node in your stable supply chain.

Contact us today to learn how Alpine Mold delivers the optimal solution for your journey from design to mass production.
