Injection molding stands as one of the most prevalent manufacturing processes for mass-producing plastic parts, with mold design serving as the core determinant of production efficiency, part quality, and overall cost. Among the various mold configurations, two-plate molds and three-plate molds are the two most widely adopted structures in industrial injection molding. Each design features distinct mechanical principles, structural characteristics, and application scenarios, directly impacting gate placement, runner handling, maintenance difficulty, and project investment. This article systematically breaks down the definitions, working mechanisms, pros and cons, core differences, and selection criteria of two-plate and three-plate molds, helping engineers and project decision-makers accurately pick the optimal mold solution for their plastic part production.

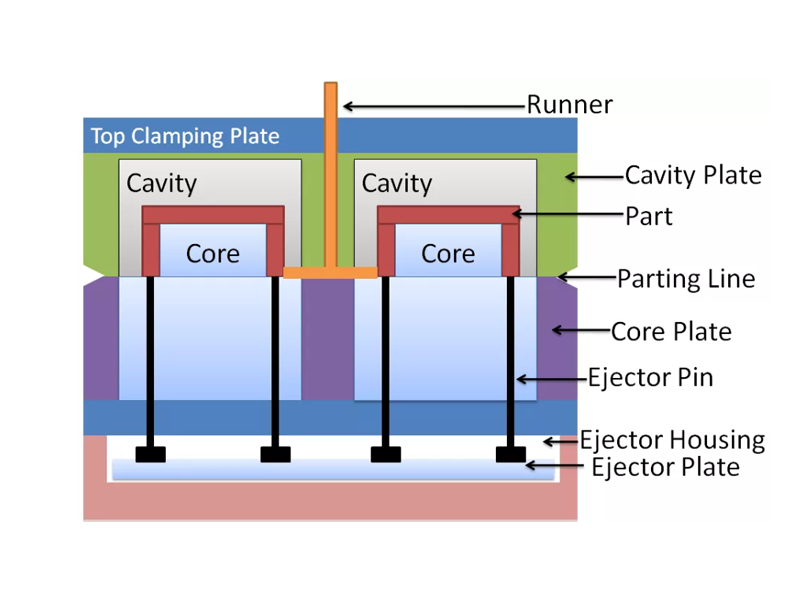

Two plate injection mold working principle is based on a simple and efficient single-parting-line mechanism, making it the most widely used solution in injection molding applications. In a standard two platen injection molding machine, molten plastic is injected into the cavity through a gate system located on the parting line, typically using an edge gate or direct sprue gate.
Two plate mold operation process involves a single opening action. After injection and cooling, the mold separates along one parting surface, allowing the molded part and runner system to remain on the moving half (core side). The ejection system then pushes both the part and runner out simultaneously, completing one molding cycle with minimal mechanical complexity.
Two plate mold design structure consists of only two main plates—the cavity side and the core side—which eliminates the need for additional runner plates or complex mechanisms. This simplified structure improves reliability and reduces potential failure points, making two plate injection molds ideal for stable and repeatable mass production.
Two plate mold advantages make this design the preferred choice for a wide range of industries, especially when evaluating two plate mold vs three plate mold options.
Two plate mold cost advantage is one of its biggest strengths. Compared to more complex three plate injection molds, it requires fewer components, less machining time, and lower assembly complexity, resulting in significantly reduced tooling investment.
Two plate injection mold simplicity ensures easier operation, faster troubleshooting, and lower maintenance requirements. With fewer moving parts and no additional plate separation, the mold is more durable and less prone to mechanical issues over long production cycles.
Two plate mold lead time advantage is another key benefit. Due to its straightforward structure, design, machining, and assembly processes are faster, allowing shorter mold manufacturing lead times and quicker project turnaround.
Two plate mold reliability in mass production is highly valued in industrial manufacturing. The single-opening mechanism provides consistent part ejection and stable cycle times, which is critical for high-volume production and automated injection molding systems.
Two plate mold application flexibility allows it to be widely used for large plastic parts, structural components, and general-purpose injection molded products. It is particularly suitable when gate position is not highly restricted and when cost efficiency is a priority.
Two plate mold limitations mainly relate to gate design and product appearance requirements. Since the gate is typically located on the parting line, visible gate marks may remain on the final product, which can be a concern for high-end cosmetic parts.
Two plate mold design constraints also limit gating flexibility compared to three plate molds, making it less suitable for products requiring multiple gate locations or pinpoint gating in complex geometries.

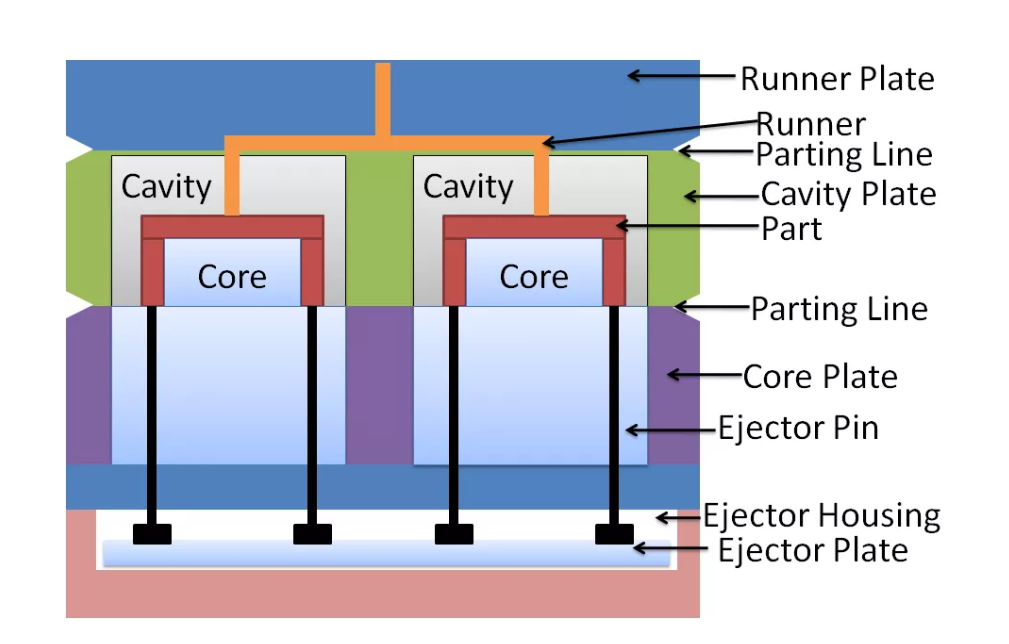

Three plate injection mold working principle is based on a dual-parting-line structure, which makes it more flexible than a two plate injection mold. In a typical three plate mold design, the mold consists of three main sections: the fixed plate (cavity side), the runner plate, and the moving plate (core side).
Three plate mold operation process involves two sequential opening actions. During mold opening, the first separation occurs between the runner plate and cavity plate, automatically pulling the runner system away from the part. The second separation then occurs between the cavity and core, allowing the molded part to remain on the core side for ejection.
Three plate injection molding process enables automatic separation of the runner and product, which eliminates the need for manual trimming. This is especially beneficial in automated production lines using a three platen injection molding machine, improving efficiency and reducing labor costs.
Three plate mold gate system flexibility is one of its defining features. Unlike two plate molds, this design allows for pinpoint gates, multiple gate locations, and centralized gating away from the parting line, making it ideal for complex geometries and high cosmetic requirements.
Three plate mold advantages make this design essential when product quality and gating flexibility are critical, especially in comparisons like two plate mold vs three plate mold.
Three plate injection mold gating flexibility is its biggest advantage. It supports pinpoint gates, multi-point gating, and optimized flow paths, allowing better control of melt flow, reduced weld lines, and improved part quality for complex designs.
Three plate mold automatic runner separation significantly improves production efficiency. Since the runner system is separated during mold opening, there is no need for manual degating, making it highly suitable for fully automated injection molding systems.
Three plate mold surface quality advantage is crucial for high-end products. Because gates can be positioned away from visible surfaces, it minimizes gate marks and improves the overall appearance of cosmetic plastic parts.
Three plate mold design for complex parts enables better filling balance and flow control, especially for thin-wall parts, multi-cavity molds, and precision components. This makes it widely used in industries such as electronics housings, medical devices, and automotive interior parts.
Three plate mold production efficiency can be higher in large-scale manufacturing where automation and reduced post-processing are priorities, helping manufacturers optimize labor costs and cycle consistency.
Three plate mold disadvantages mainly relate to increased complexity and cost. Compared with a two plate injection mold, it requires more components, additional plate movement, and more precise timing control.
Three plate mold cost and maintenance considerations include higher tooling investment, longer lead time, and more demanding maintenance due to the additional moving parts and wear points.
When evaluating two plate mold vs three plate mold, it’s important to understand that each design serves different purposes.
This two plate vs three plate mold comparison highlights the key differences in structure, cost, and performance.
Comparison Factor | Two-Plate Mold | Three-Plate Mold |
Mold Structure Complexity | Simple structure (two plates, single parting line) | More complex three-plate mold design with additional runner plate |
Gate Type | Edge gate, direct gate (limited to parting line) | Pin gate / pinpoint gate (pin gate mold) with flexible positioning |
Mold Cost | Lower tooling cost | Higher cost due to additional components |
Maintenance | Easier maintenance and repair | More complex maintenance due to extra moving parts |
Cycle Time | Shorter cycle time | Slightly longer cycle due to two-stage opening |
Suitable Products | Large parts, structural parts, simple designs | Small precision parts, multi-cavity molds, high cosmetic requirements |
Injection mold gate design is the most decisive factor when selecting between a two plate mold and a three plate mold design.
Key questions to evaluate:
Does the product require a pinpoint gate (pin gate mold) or flexible gate positioning?
Is the gate location restricted by product structure or appearance requirements?
A three plate injection mold, often referred to as a pin gate mold, provides significantly higher flexibility in gate placement. It supports multi-point gating, centralized gating, and optimized flow paths, making it ideal for complex geometries, thin-wall parts, and multi-cavity injection molds.
In contrast, a two plate injection mold restricts gate placement to the parting line, typically using edge gates or direct sprue gates, which limits flexibility but simplifies the structure.
From an engineering perspective, gate design is one of the biggest differences between two plate and three plate molds, as it directly influences flow balance, filling behavior, pressure distribution, and final part quality.
For many electronics products, appearance is just as important as function.
Can the product accept visible gate marks?
Does it require a clean, high-end surface finish?
A three plate mold provides smaller gate marks and cleaner surfaces, making it ideal for cosmetic parts such as plastic enclosures for electronics and smart devices.
A two plate mold, using edge or direct gates, may leave more visible marks but is still suitable for internal or non-cosmetic components.When evaluating the difference between two plate and three plate mold, appearance requirements often become the deciding factor.
Injection mold cost vs production efficiency is a core trade-off when choosing between two plate injection molds and three plate injection molds.
Key trade-offs include:
Lower tooling cost vs higher product quality
Simpler structure vs advanced gating control
Faster cycle time vs automated degating capability
A two plate mold provides clear advantages in tooling cost, lead time, and maintenance simplicity. Its straightforward structure ensures faster mold manufacturing, shorter cycle times, and lower operational risk, making it ideal for cost-sensitive projects and high-volume production with simple designs.
A three plate injection mold, while requiring higher initial investment, delivers superior performance in flow control, automatic runner separation (auto degating), and consistent part quality. It is especially valuable in precision injection molding, multi-cavity molds, and automated production systems.
From a long-term perspective, the goal is not simply choosing the lower-cost option, but selecting the most suitable injection mold design that delivers the best total lifecycle value.
Gate design is one of the most critical aspects in mold engineering. Improper gate location can easily lead to defects such as weld lines, air traps, or short shots, especially in multi-cavity molds where flow imbalance becomes more pronounced. In a two plate mold, gate placement is restricted to the parting line, which limits flexibility in optimizing flow paths. In contrast, a three plate mold, often used as a pin gate mold, allows more flexible gate positioning, helping achieve better flow balance and consistent filling. Selecting the right injection mold gate types is essential to ensure both product quality and stable mass production.
Injection mold cooling system design plays a key role in warpage control, dimensional stability, and cycle time optimization.
Uneven cooling can result in shrinkage variation, deformation, and warpage, particularly in precision plastic parts and thin-wall injection molding applications. Both two plate molds and three plate molds require well-designed cooling channels, but complex geometries often benefit from the flexibility of a three plate mold design.
For products such as electronic plastic enclosures, even minimal warpage can affect assembly accuracy and surface quality, making cooling optimization essential in high precision injection molding.
A reliable ejection system is essential for consistent production and surface quality. Poor ejection design may cause scratches, deformation, or sticking issues, especially for parts with complex structures or high cosmetic requirements. A two plate mold typically uses a simpler ejection mechanism, making it easier to maintain and operate. However, a three plate mold involves additional opening actions for runner separation, requiring more precise synchronization. For high-quality electronic plastic parts, especially visible components, careful ejection design is critical to avoid surface defects and ensure repeatability.
When comparing two plate mold vs three plate mold, there is no universal “better” option — only the most suitable solution for your specific project. Each design among different injection mold types has its own advantages in terms of structure, cost, gating flexibility, and production performance.
At Alpine Mold, we have over 20 years of experience in electronics injection molding and precision tooling. We are capable of manufacturing both two plate molds and three plate molds, providing tailored solutions based on your specific application. From DFM analysis and Moldflow optimization to mold design, tooling, and mass production, we support your project at every stage.
Whether your project requires cost efficiency or high-end performance, our engineering team will help you select the right solution.
Feel free to send us your 3D drawings (STEP/IGS) or project details — we will provide a fast and accurate quotation.
No. In two plate mold vs three plate mold, each has its own advantages.
A two-plate mold is more cost-effective and easier to maintain, while a three-plate mold offers better gating flexibility and surface quality.
The right choice depends on your product requirements.
Common injection mold gate types include edge gates and direct gates for two-plate molds, while three-plate molds typically use pin gates or pinpoint gates for better control and minimal gate marks.
Yes. Both two plate mold and three plate mold can achieve high precision injection molding, provided the mold design, machining accuracy, and process control are properly managed.
To decide how to choose injection mold type, consider product structure, gate location, appearance requirements, production volume, and budget. A professional supplier should provide DFM and Moldflow analysis to recommend the most suitable solution.
Yes, slightly. A three plate mold requires a two-stage opening action, which may increase cycle time compared to a two plate mold. However, this is often offset by better part quality and automatic degating.
