Overmolding is a key injection molding process used to combine two materials into a single, integrated plastic part. It enhances a product's grip, sealing capabilities, impact resistance, comfort, and overall durability. Consequently, it is widely used for electronic housings, medical components, automotive parts, tool handles, buttons, and other overmolded plastic products. In this guide, we will define overmolding and provide a step-by-step explanation of the complete overmolding injection process.
Table of Contents
| 1. What is Overmolding? |
| 2. Detailed Steps of the Overmolding Process |
| 3. Conclusion |
| 4. FAQ |

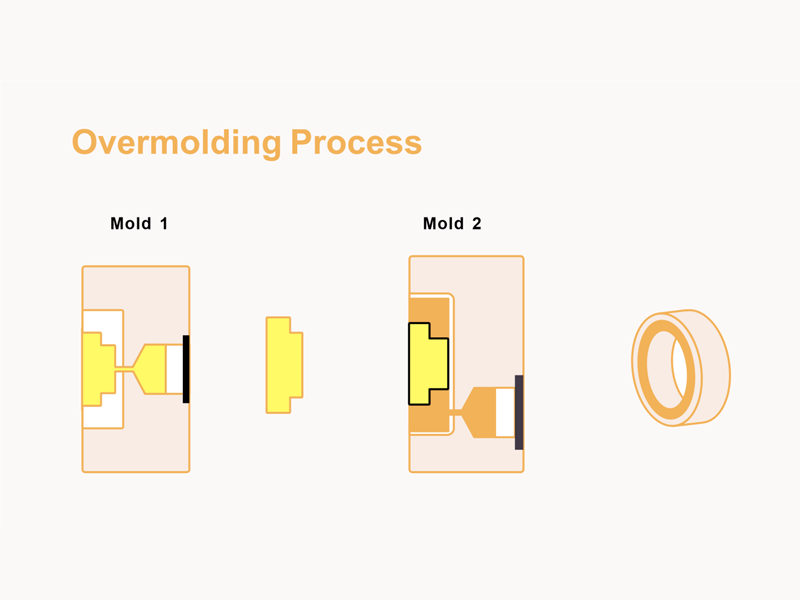

Overmolding is an injection molding process in which one material is molded onto the surface of another material or an existing part to create a unified component. In most plastic overmolding projects, a rigid plastic substrate is injection molded first; subsequently, a softer material—such as TPE, TPU, or a material with a silicone-like feel—is overmolded onto specific areas of the product.
The purpose of overmolding extends beyond merely joining two materials; it is primarily about enhancing product functionality and the user experience. For instance, the overmolded layer can provide a soft-touch feel, improved slip resistance, superior sealing, shock absorption, and insulation, or simply add a premium aesthetic quality to the product.
Common overmolded products include tool handles, electronic housings, automotive interior parts, medical device components, buttons, grips, and protective covers. When designed correctly, the overmolding process can reduce the need for secondary assembly, increase product durability, and ensure greater consistency in mass production.
A successful overmolding process involves more than simply injecting a second material onto a pre-molded part. It requires comprehensive control over every stage—from product design, material selection, and mold structure to injection parameters and final quality inspection. Each step influences the bond strength, appearance, dimensional stability, and production consistency of the final overmolded product.
The first step in the overmolding process is the product design review. Before mold design begins, engineers must evaluate whether the product structure is suitable for overmolding. Key design factors include wall thickness, the overmolded area, draft angles, parting lines, undercuts, ribs, shut-off areas, and potential risks of warpage.
In many plastic overmolding projects, the substrate wall thickness is typically designed to be around 1.0–3.0 mm, while the overmold layer thickness is usually around 0.8–2.5 mm, depending on product functionality and material flow requirements.
Draft angles are also crucial. For standard plastic surfaces, a draft angle of 1–2° is generally recommended. For textured surfaces or soft overmolding materials, larger draft angles may be required to facilitate easier demolding and reduce the risk of surface damage.
If the product design is not thoroughly reviewed, issues such as incomplete filling, flash, poor bonding, warpage, or demolding difficulties may arise during mold trials or mass production.
Material selection is one of the most important steps in the overmolding injection molding process. In most overmolding projects, the product is made from a rigid substrate material and a softer overmold material. The key point is not only choosing two materials, but making sure they can work together in terms of bonding, shrinkage, flexibility, hardness, and final product performance.
For the first-shot substrate, common rigid plastic materials include ABS, PC, PP, PA, PBT, POM, and PC/ABS. These materials usually provide the main structure, strength, and dimensional stability of the part. For the second-shot overmold layer, softer materials such as TPE, TPU, TPR, and TPV are commonly used to provide grip, sealing, cushioning, shock absorption, or a soft-touch surface.
Material Type |
Common Materials |
Main Function |
Typical Applications |
Rigid substrate material |
ABS, PC, PP, PA, PBT, POM, PC/ABS |
Provides structure, strength, and dimensional stability |
Electronic housings, automotive parts, medical components, handles, buttons |
Soft overmold material |
TPE, TPU, TPR, TPV |
Provides soft touch, grip, sealing, cushioning, and protection |
Grips, seals, buttons, protective covers, tool handles, wearable parts |
Common material combinations include ABS + TPE, PC + TPU, PP + TPE, PA + TPU, and PBT + TPE. However, not every hard plastic and soft material can bond well. Some combinations may require special material grades, surface design, or mechanical locking features to improve adhesion.
When choosing materials for plastic overmolding, engineers should consider the product’s function, bonding performance, hardness, temperature resistance, chemical resistance, shrinkage difference, and actual use environment. If the material compatibility is not confirmed before mold making, the final overmolded part may have problems such as peeling, delamination, poor bonding, or unstable performance during long-term use.
A DFM review identifies potential manufacturing risks before mold production begins. DFM is particularly critical for the overmolding process, as it involves two materials and two molding stages.
During the DFM analysis, engineers typically examine gate locations, material flow paths, venting, cooling systems, overmold thickness, differential shrinkage, shut-off structures, parting line locations, and areas prone to flash. The goal is to ensure smooth material flow, complete cavity filling, and strong adhesion to the substrate.
A thorough DFM review helps avoid repeated mold modifications, reduces trial risks, and increases the success rate of the initial mold trial.
Designing a mold for overmolding is more complex than designing a standard injection mold. The mold must accurately position the first-shot part and ensure the second material covers only the designated areas.
Mold design must account for substrate positioning, shut-off zones, shut-off surfaces, gate design, venting, cooling channels, ejection systems, and structural integrity. Shut-off zones are particularly important, as they prevent the second material from flowing into areas not intended for overmolding, which would result in flash.
For precision overmolded products, critical shut-off and positioning areas require high mold-fitting accuracy—typically controlled within a range of ±0.01–0.03 mm, depending on product tolerances, material flow characteristics, and mold structure. Insufficient precision in shut-off zones makes it easy for soft materials to flow into non-overmolded areas, causing flash.

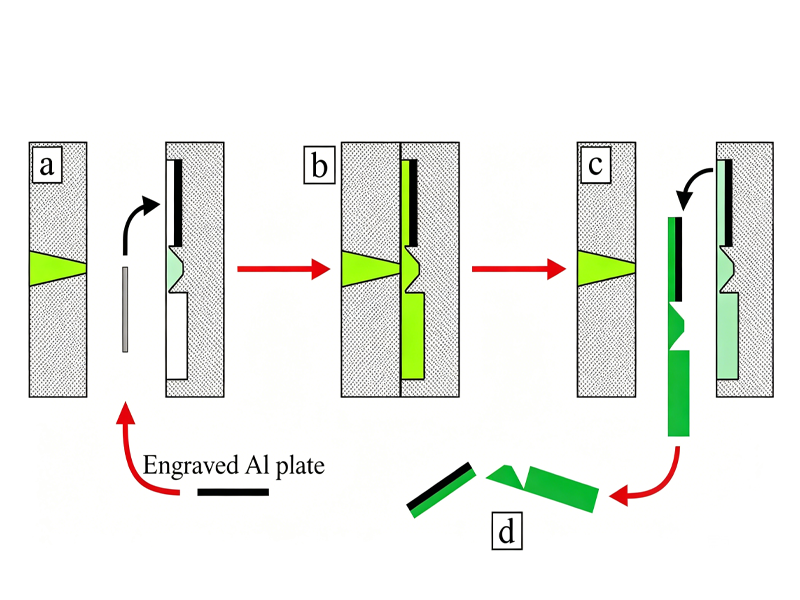

Some overmolded products can be manufactured using a two-color mold paired with a two-color injection molding machine. For other products, the first-shot part is transferred—either manually or automatically—into a second mold for the overmolding process. The optimal mold solution depends on product structure, production volume, tolerance requirements, and project budget.

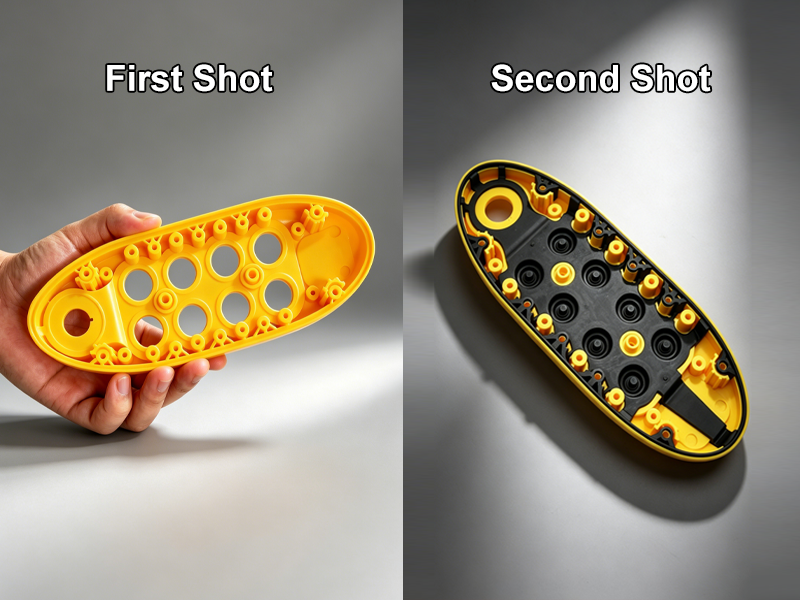

The first-shot part, also known as the substrate, must be injection molded first. This part provides the structural foundation for the overmolded layer; therefore, dimensional stability is crucial. During the first injection molding shot, the substrate must be strictly controlled to prevent shrinkage, deformation, sink marks, short shots, or dimensional instability. If the first-shot product is unstable, it may not fit accurately into the second mold, leading to issues such as flash, poor sealing, uneven overmold thickness, or weak bonding.
For high-precision overmolded products, the first-shot product should be inspected before proceeding to the second-shot overmolding stage.
Once the substrate is ready, the second material is injected into the designated area. This is a critical stage in the overmolding process.
During second-shot overmolding, parameters such as injection temperature, mold temperature, injection pressure, injection speed, holding pressure, and cooling time require strict control. For many TPE overmolding applications, the melt temperature is typically around 180–230°C, while TPU is usually processed at 190–240°C. However, actual parameters should be adjusted based on the material grade, bonding requirements, product structure, and trial molding results.
If the temperature is too low, bond strength may be insufficient; if the pressure is too high, flash may occur or the substrate may deform; if material flow is unbalanced, issues such as short shots, weld lines, or uneven surface quality may arise.
The second-shot material must smoothly fill the overmolding area and bond securely to the substrate. For soft-touch products, surface quality is also crucial, as the overmolded layer is typically the area with which the user directly interacts.
After the second material fills the cavity, the product requires sufficient cooling before demolding. Proper cooling helps control shrinkage, minimize deformation, and protect the bond interface between the two materials.
The cooling system should be designed for stability and balance to maintain a consistent mold temperature. Uneven cooling can lead to product deformation, particularly when the substrate and overmolding material have different shrinkage rates.
During demolding, the mold structure should protect the soft-touch overmolded surface to prevent scratches, sticking, tearing, or deformation. This is particularly important for products featuring textured surfaces, sealing lips, soft-touch zones, or thin overmolded layers.
Once the mold is completed, a trial run is necessary to verify product quality and production stability. The initial trial allows engineers to check mold structure, material flow, bonding performance, and molding parameters against project requirements.
Common quality inspections include visual checks, dimensional measurements, bonding tests, assembly tests, functional tests, and surface inspections. Bonding tests are especially critical for overmolded products. Depending on product specifications, manufacturers may conduct peel tests, tensile tests, seal tests, drop tests, aging tests, or temperature resistance tests.
Regarding dimensional inspection, critical dimensions are typically checked using calipers, profile projectors, or CMM (Coordinate Measuring Machine) equipment. For high-precision products, inspection accuracy may need to reach ±0.01 mm or tighter, depending on drawing specifications.
If issues such as flash, poor bonding, short shots, deformation, sink marks, or delamination occur, engineers must adjust the mold or optimize injection parameters before mass production begins.
Once samples are approved, the project proceeds to the mass production stage. A stable overmolding process ensures consistent product quality, reduces the need for secondary assembly, boosts production efficiency, and lowers the risk of product failure.
For high-volume projects, automated overmolding processes can be employed to enhance repeatability. Automation may include robotic loading, automatic product transfer, precise mold positioning, and automatic part extraction. These measures help minimize manual intervention, improve production consistency, and make overmolded products better suited for long-term mass production.
In summary, the overmolding process encompasses a series of stages—from product design review, material selection, and DFM reporting to mold design and manufacturing, substrate molding, secondary overmolding injection, and finally cooling, demolding, and inspection—to yield a product with structural integrity and a secure bond. Every step influences the bond strength, aesthetic quality, and ultimate performance of the overmolded part.
Alpine Mold offers custom plastic overmolding services, providing a one-stop solution along with professional guidance on material selection. If you are developing overmolded plastic parts, please send us your 3D drawings—we can help turn your design into reality!
Common defects in overmolded products include flash, poor bonding, delamination, short shots, warpage, sink marks, trapped air, and uneven surface texture. These issues are often related to material compatibility, mold design, venting, temperature control, injection pressure, or unstable molding parameters.
For many custom plastic parts, the cost of an overmolding mold typically ranges from $5,000 to $50,000. Projects with simple structures, small part sizes, and basic mold configurations may cost less; conversely, projects involving complex geometries, tight tolerances, multi-cavity or two-color (dual-shot) designs, special mold steels, or automation requirements can cost between $50,000 and $100,000 or even more. The final cost is determined based on factors such as 3D drawings, materials, the number of cavities, mold lifespan, surface finish, and production volume.
When designing overmolded plastic parts, engineers must consider wall thickness, overmold layer thickness, draft angles, bonding areas, parting lines, gate locations, differential shrinkage, shut-off areas, and ejection direction. Good design helps minimize molding defects and improves consistency in mass production.
The lifespan of an injection mold depends on the mold steel, material type, product design, production volume, mold maintenance, and molding conditions. Prototype molds may be designed for only a few thousand cycles, whereas production molds—using appropriate steel and proper maintenance—can typically achieve 300,000, 500,000, or even over 1,000,000 cycles.
Overmolding has several advantages. It can improve product grip, sealing performance, shock absorption, comfort, appearance, and overall user experience. It can also reduce secondary assembly because two materials or functions can be combined into one integrated part.
However, overmolding also has some limitations. The mold structure is usually more complex than a standard injection mold, and the tooling cost may be higher. Material compatibility must also be carefully checked. If the materials, mold design, or molding parameters are not properly controlled, problems such as poor bonding, flash, peeling, or delamination may occur.
Overmolding is widely used in products that need better grip, sealing, protection, comfort, or multi-material performance. Common applications include:
Automotive parts: interior handles, buttons, seals, covers, and vibration-resistant components
Electronic products: control buttons, protective housings, handheld device covers, and soft-touch areas
Medical devices: handles, grips, seals, protective covers, and ergonomic components
Tools and industrial parts: tool handles, power tool grips, anti-slip surfaces, and protective covers
Consumer products: toothbrush handles, kitchen tools, wearable parts, sports goods, and daily-use plastic products
Overmolding is a general process where one material is molded over another material or an existing part. Two-shot molding is one specific production method used to make multi-material plastic parts with a two-shot injection molding machine.
In two-shot molding, the first material and second material are molded in the same machine through a rotating mold or transfer system. In traditional overmolding, the first-shot part may be produced first and then placed into another mold for the second-shot molding. Two-shot molding is usually more efficient for high-volume production, while standard overmolding can be more flexible for low- or medium-volume projects.
Insert molding usually means placing an insert into the mold first and then injecting plastic around it. The insert is often made of metal, such as a threaded insert, pin, terminal, bushing, or fastener.
Overmolding usually means molding a second plastic or rubber-like material over a plastic substrate to create a soft-touch, sealing, protective, or functional layer. In simple terms, insert molding often combines plastic with metal inserts, while overmolding usually combines two plastic or rubber-like materials.
