1. Introduction

PCTG has rapidly gained popularity in the field of injection molding due to its excellent combination of toughness, clarity, and chemical resistance. As a copolyester with superior durability and processability, PCTG is becoming the material of choice for many industries requiring high-performance plastic parts.

This blog aims to provide a comprehensive overview of PCTG, including its properties, injection molding process, common applications, and key production considerations. It is specially designed to help product designers, procurement specialists, and manufacturing professionals better understand and utilize this versatile material for optimized product development and sourcing decisions.

2. What is PCTG?

PCTG (Polycyclohexylene Dimethylene Terephthalate Glycol-modified) is a type of copolyester known for its outstanding clarity, impact strength, and chemical resistance. Chemically, it shares a close relationship with PETG (Polyethylene Terephthalate Glycol-modified) but offers improved toughness and thermal stability due to differences in its molecular structure.Compared to PETG and other copolyesters, PCTG resin used in injection molding provides:

• Higher impact resistance, making it less prone to cracking or breaking under stress.

• Better chemical and moisture resistance, suitable for demanding environments.

• Excellent clarity and gloss, ideal for transparent or aesthetic PCTG injection molded parts.

• Good thermal stability, allowing for more stable processing and use at higher temperatures.

3. Can PCTG Be Injection Molded?

Yes, PCTG is well suited for injection molding applications, making it a preferred choice for manufacturers looking for a balance of clarity and durability.

Process Feasibility

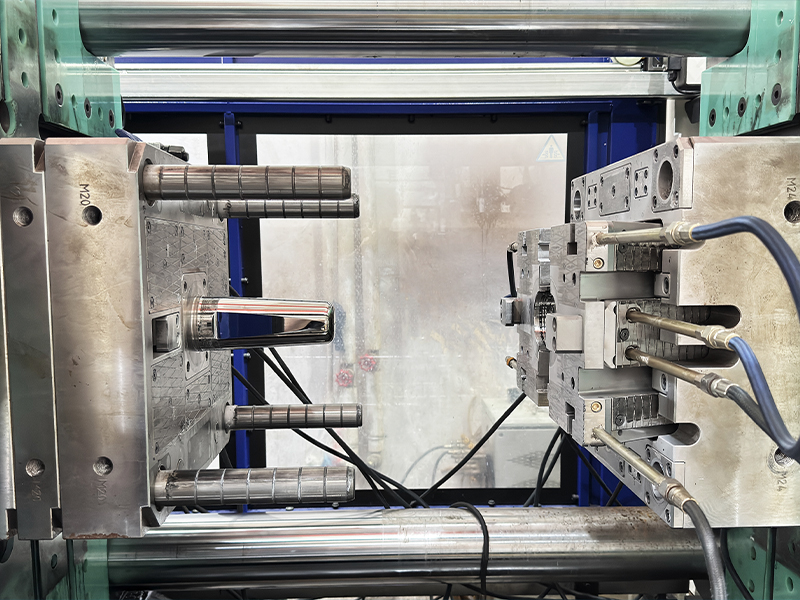

The PCTG molding process can be performed using standard injection molding equipment with minor adjustments. Its flow characteristics and thermal behavior allow for smooth filling of molds, producing parts with excellent surface finish and minimal defects.

Advantages of PCTG Injection Molding

• Produces tough, impact-resistant parts that retain clarity.

• Good dimensional stability and low shrinkage.

• Compatible with a wide range of additives and colorants.

• Excellent chemical resistance makes it suitable for food contact and medical applications.

Limitations and Potential Challenges

• PCTG requires careful moisture control; it must be dried properly before molding to avoid defects such as splay or bubbles.

• Mold temperature control is crucial to avoid warping or dimensional inconsistencies.

• Compared to some engineering plastics, its heat resistance is moderate and may not suit high-temperature applications.

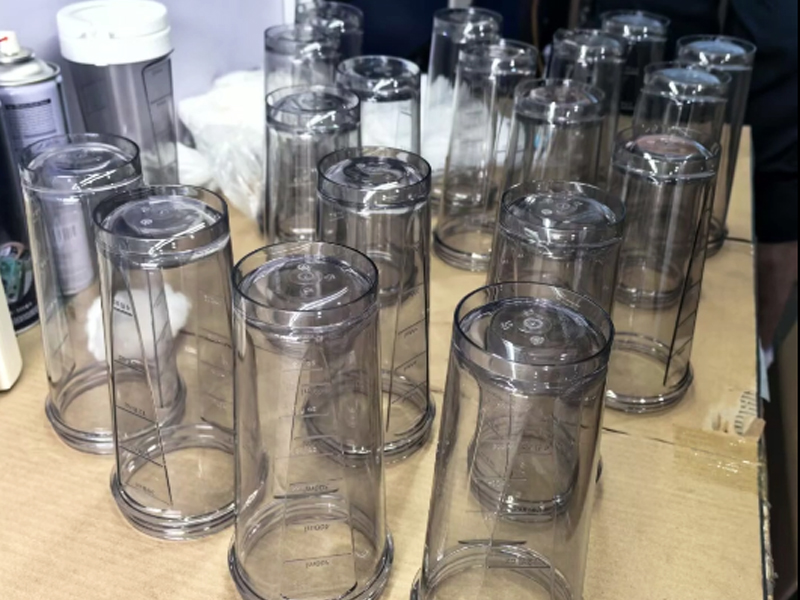

4. Common Applications of PCTG Injection Molding

Thanks to its excellent clarity, toughness, and chemical resistance, PCTG injection molded parts are widely used in:

• Cosmetic Packaging: Bottles, caps, tubes, jars, pump dispensers, lipstick cases, and more.

• Medical Devices: Filters, connectors, pumps, syringe barrels, diagnostic housings, IV components, and more.

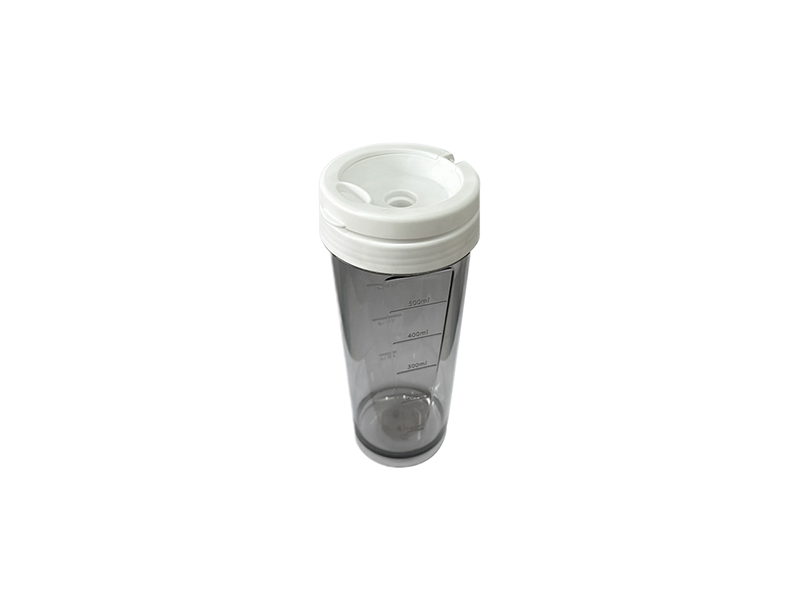

• Household Items: Cups, bowls, storage containers, food trays, water pitchers, and more.

• Transparent Toys: Building blocks, figurines, puzzle pieces, doll accessories, and more.

• Consumer Goods: Electronic housings, protective covers, phone cases, appliance parts, decorative trims, and more.

5. Design Tips for PCTG Injection Molded Parts

Maintain Uniform Wall Thickness (Typically 1.5mm – 4mm)

For high-quality PCTG molded components, design consistent wall thickness within 1.5mm to 4mm to ensure uniform cooling and reduce internal stresses. Avoid abrupt thickness changes (e.g., from 2mm to 5mm). Instead, use gradual transitions with slopes of at least 30% of the thickness difference. Reinforce strength by adding ribs or gussets rather than thickening entire walls. Rib height should generally not exceed three times the nominal wall thickness (T), with rib thickness around 50%–60% of T.

Incorporate Adequate Draft Angles (1° – 2° Minimum)

Apply draft angles of at least 1° to 2° to all vertical walls and features parallel to the mold opening direction on PCTG plastic parts to facilitate smooth ejection and prevent surface defects. For deep cavities (>50mm) or textured surfaces like stipple or leather grain, increase draft angles to 3° or more, adding approximately 1° draft per 0.025mm of texture depth.

Use Rounded Corners and Fillets (Radius ≥ 0.5mm)

Sharp corners create stress points and can cause warpage in PCTG injection molded components. To improve material flow and reduce stress concentration, apply fillets to all internal and external corners. Use a minimum fillet radius of 0.5mm, with internal radii ideally ≥ 0.25T (25% of wall thickness) and external radii ≈ internal radius plus T. For high-stress or impact areas, consider radii of 1.0mm or more.

Optimize Gate Location, Type, and Size

Position gates near thickest sections or central areas of PCTG molded products to promote balanced cavity filling and reduce weld lines or air traps. Select gate types suited to the application: pin gates or submarine (tunnel) gates for cosmetic parts; edge or fan gates for larger, non-cosmetic components. Gate thickness is typically 50%–80% of adjacent wall thickness, commonly ranging from 0.8mm to 1.5mm, but final sizing should be confirmed through mold flow analysis or trial runs. Avoid gates that are too large (which cause flash) or too small (which cause high shear, degradation, or short shots).

Include Proper Venting Channels

Design vents on PCTG injection molded parts to allow trapped air and gases to escape during injection, preventing burn marks and incomplete fills. Place vents along parting lines, end of fill paths, ejector pin clearances, or core pins in deep pockets. Typical vent dimensions for PCTG are 0.015mm–0.030mm depth, 5mm–10mm width, and land lengths ≤8mm–10mm before opening into relief channels. Vent area should be about 30% of the runner circumference for efficient air escape.

Design for Controlled Shrinkage and Warpage

Account for typical linear shrinkage of PCTG (~0.5%–0.7%) when designing mold dimensions for PCTG molded components. Note that shrinkage is anisotropic and affected by crystallinity, which depends largely on mold temperature (higher mold temps increase crystallinity and shrinkage). Minimize warpage by maintaining symmetry in ribbing and wall thickness, avoiding large flat areas without reinforcement, and ensuring uniform cooling throughout the mold. Incorporate ribs, domes, steps, or cosmetic textures to increase rigidity.

6.Factors To Consider During PCTG Injection Molding Process

6.1 Selecting and Preparing Raw Materials

Selecting the right raw material is the foundation for successful PCTG plastic molding. Choose high-quality PCTG resin with moisture content below 0.02%, ideally clear and high-impact copolyester grades. Moisture in the resin can cause surface defects like splay or bubbles, so thorough drying at 80–90°C for 2 to 4 hours is essential. Additionally, inspect pellets for contamination, color uniformity, and size consistency to ensure stable processing.

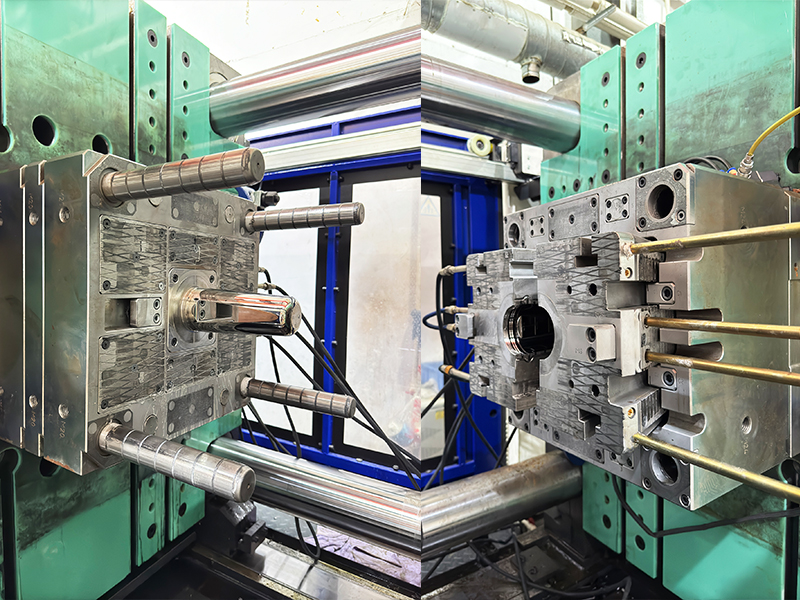

6.2 Mold Design and Manufacturing

Mold design plays a crucial role in managing PCTG’s processing characteristics. Since PCTG typically shrinks 0.5%–0.7% linearly, mold cavities must be dimensioned accordingly. Mold temperature should be controlled within 20°C to 40°C to balance crystallinity and prevent warpage. Corrosion-resistant steels like S136 or stainless steel are preferred for durability, especially in medical or food-contact molds. Optimizing gate placement, cooling channel design, and venting systems ensures uniform filling and efficient cooling, resulting in high-quality molded parts.

6.3 Injection Molding Process Parameter Control

Precise control of processing parameters ensures consistent quality and minimizes defects in PCTG injection molded parts. Below is a summary of key parameters:

Parameter	Recommended Range	Notes
Melt Temperature	230°C – 270°C	Avoid overheating to prevent resin degradation
Mold Temperature	20°C – 40°C	Controls crystallinity and cooling rate
Injection Pressure	70 – 130 MPa	Adjust based on part geometry and size
Injection Speed	Moderate	Balance between flow and shear stress
Cooling Time	15 – 40 seconds	Dependent on part thickness and mold design
Back Pressure	2 – 5 MPa	Improves melt homogenization and reduces voids
Holding Pressure	50 – 100 MPa	Prevents sink marks and ensures dimensional stability
Holding Time	5 – 15 seconds	Depends on part thickness and gate size
Screw Speed	30 – 60 RPM	Controls plasticizing efficiency and shear
Shot Size	80% – 100% of barrel capacity	Avoid short shots or overfilling

6.4 Quality Control and Inspection

Ensuring the highest quality of PCTG injection molded parts requires a comprehensive quality control process, including the following key steps:

Visual Inspection:

Carefully examine molded parts for surface defects such as bubbles, weld lines, cracks, splay, and discoloration to guarantee aesthetic and functional quality.

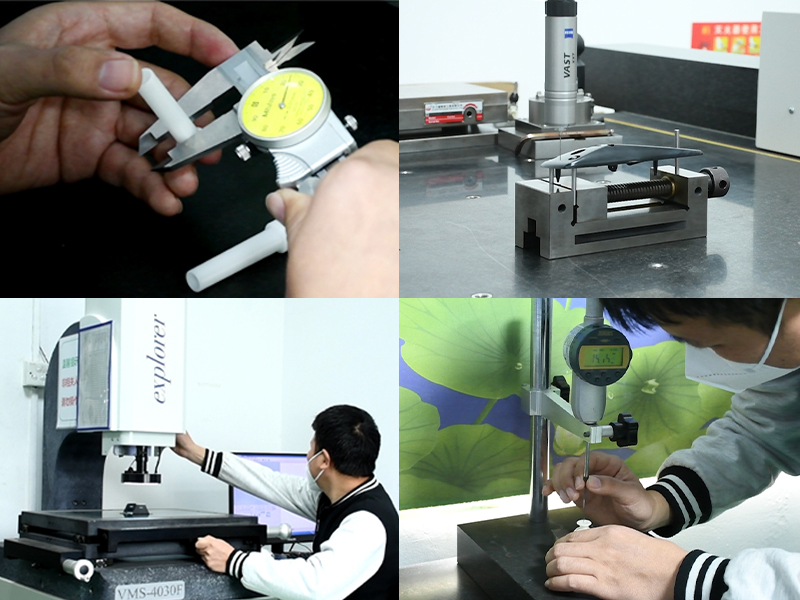

Dimensional Measurement:

Use precision tools such as Coordinate Measuring Machines (CMM), calipers, or micrometers to verify product dimensions, ensuring they strictly conform to design specifications and tolerances (typically within ±0.05mm).

Performance Testing:

Conduct mechanical tests including tensile strength, impact resistance, and optical clarity to validate that the parts meet required performance standards for durability and transparency.

Process Monitoring:

Implement Statistical Process Control (SPC) and in-line defect detection systems to continuously monitor production consistency and quickly address any deviations.

6.5 Environmental and Safety Practices

Responsible PCTG injection molding requires attention to sustainability and operator safety through:

Ventilation: Proper ventilation and fume extraction systems to reduce emissions of volatile organic compounds (VOCs).

Material Recycling: Recycling of sprues and runners to minimize waste, with reground resin carefully controlled to maintain material quality.

Operator Safety: Training personnel on safe handling of hot molds and injection machinery.

Regulatory Compliance: Adherence to environmental and workplace safety regulations to foster a safe and eco-friendly manufacturing environment.

7. Succeeding with PCTG Injection Molding

Achieving success with PCTG injection molding requires careful attention to material selection, precise mold design, rigorous process control, and stringent quality assurance. By understanding and optimizing these critical factors, manufacturers can produce high-performance, durable, and visually appealing PCTG molded parts that meet or exceed customer expectations.
