Top 8 Heat Resistant Plastics for Injection Molding

In many industrial applications, plastic components are often required to operate stably over extended periods in high-temperature environments. For example, structural parts used in automotive engine compartments, electronic devices, and industrial machinery may experience issues such as softening, deformation, or even a loss of strength if the material lacks sufficient heat resistance, thereby compromising product reliability and service life.

Therefore, selecting the appropriate high-temperature-resistant injection molding materials is crucial for engineers, product designers, and procurement professionals. This article will introduce Top 8 heat resistant injection molding plastics to help you make better material selections.

Table of Contents

1. What Determines the Heat Resistance of Plastics?

2. Top 8 Heat Resistant Plastics for Injection Molding

2.1 PEEK (Polyether Ether Ketone)

2.2 PTFE (Polytetrafluoroethylene)

2.3 PAI (Polyamide-imide)

2.4 PPS (Polyphenylene Sulfide)

2.5 PPSU (Polyphenylsulfone)

2.6 PEI (Polyetherimide)

2.7 PES (Polyethersulfone)

2.8 PPA (Polyphthalamide)

3. How to Choose the Right Heat Resistant Plastic

4. Injection Molding Challenges of High-Temperature Plastics

5. Conclusion

6. FAQ

1. What Determines the Heat Resistance of Plastics?

When selecting high-temperature-resistant plastics, engineers typically need to consider a variety of material performance parameters. Whether a plastic can maintain stable performance in high-temperature environments depends not only on its chemical structure but is also closely related to its thermal performance metrics and actual operating conditions. The following are several key factors that determine a plastic’s heat resistance.

1.1 Heat Deflection Temperature (HDT)

Heat deflection temperature refers to the temperature at which a plastic begins to exhibit noticeable deformation under a specific load. When a material is subjected to both external force and high temperature, the plastic may bend or deform if the temperature exceeds its HDT value. Therefore, HDT is a critical indicator of the reliability of engineering plastics in high-temperature structural applications.

1.2 Glass Transition Temperature (Tg)

The glass transition temperature is the temperature at which a material transitions from a rigid glassy state to a soft rubbery state. For amorphous plastics, the higher the Tg, the better the material maintains rigidity and dimensional stability in high-temperature environments. For example, materials such as PEI and PPSU have high Tg values, enabling them to maintain stable performance at higher temperatures.

1.3 Melting Temperature (Tm)

Melting temperature (Tm) is the temperature at which the crystalline regions of a semi-crystalline plastic start to melt. Above Tm, the material may soften or lose its shape, so it defines the maximum thermal limit for both processing and high-temperature applications.

1.4 Continuous Use Temperature

Continuous Use temperature refers to the highest temperature at which a material can maintain stable performance during long-term use. Unlike short-term temperature resistance, continuous service temperature better reflects a material’s reliability under actual operating conditions. This parameter is particularly important for components that must operate continuously in high-temperature environments, such as automotive engine components or structural parts in electronic devices.

1.5 Molecular Structure of the Material

The heat resistance of plastics depends largely on their molecular structure. Materials with the following structural characteristics generally exhibit greater heat resistance:

• Aromatic Rings: Enhance molecular chain stability

• High Crystallinity: Strengthen the material’s structural stability at high temperatures

• Stable Chemical Bonds (e.g., C–F bonds): Improve the material’s thermal stability and chemical resistance

For example, high-performance engineering plastics such as PEEK and PPS are able to maintain good mechanical properties even in high-temperature environments precisely because of their stable molecular structures.

1.6. Loads and Operating Environment

In addition to the material’s inherent properties, a plastic’s heat resistance in practical applications is also influenced by the following factors:

• Magnitude of mechanical loads

• Environmental media (such as oils, fuels, or chemicals)

• Long-term thermal aging

• Humidity and hydrolytic environments

2. Top 8 Heat Resistant Plastics for Injection Molding

High-performance heat resistant plastics are essential for industries that require mechanical strength, thermal stability, and chemical resistance. These materials are widely used in automotive, aerospace, medical, electronics, and industrial applications. Below are the top 8 heat resistant plastics, their properties, and typical applications.

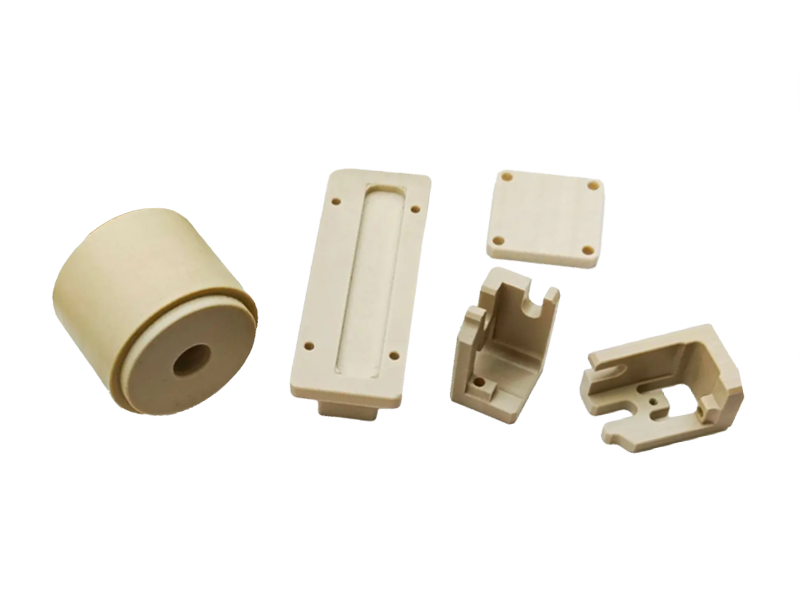

2.1 PEEK (Polyether Ether Ketone)

Industries / Applications: Aerospace (engine covers, avionics housings, connectors, brackets), Automotive (pump housings, transmission components, sensor covers, throttle bodies), Medical (surgical instruments, sterilizable device housings, dental components, implantable devices)

Definition: PEEK is a semi-crystalline thermoplastic with excellent thermal stability, mechanical strength, and chemical resistance. It is ideal for high-temperature, high-performance injection molded parts.

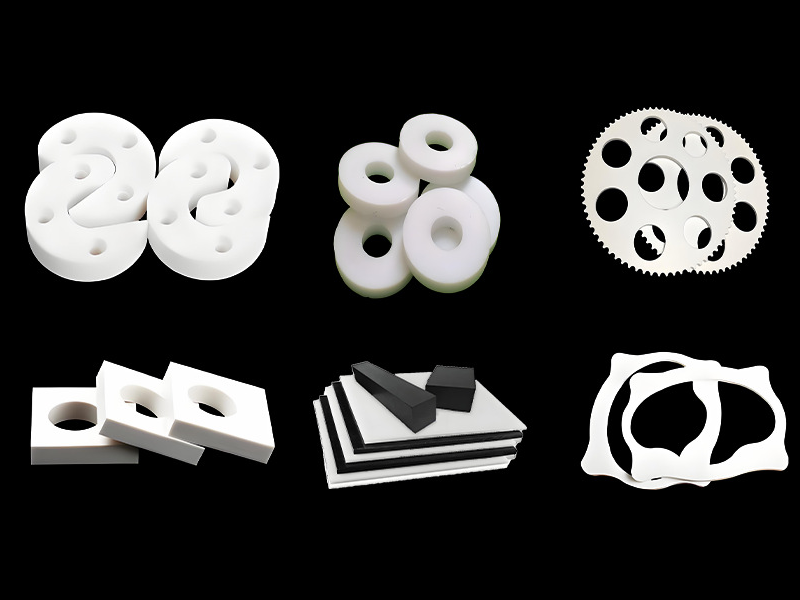

2.2 PTFE (Polytetrafluoroethylene)

Industries / Applications: Chemical & Food Processing (pump housings, valve bodies, tubing connectors, seals), Electronics (insulator housings, circuit connectors, protective covers, switch panels), Industrial Equipment (gaskets, bearings, non-stick liners, high-temp seals)

Definition: PTFE is an amorphous fluoropolymer with outstanding chemical resistance and high-temperature stability, widely used in non-stick, chemical-resistant, and high-temperature injection molded components.

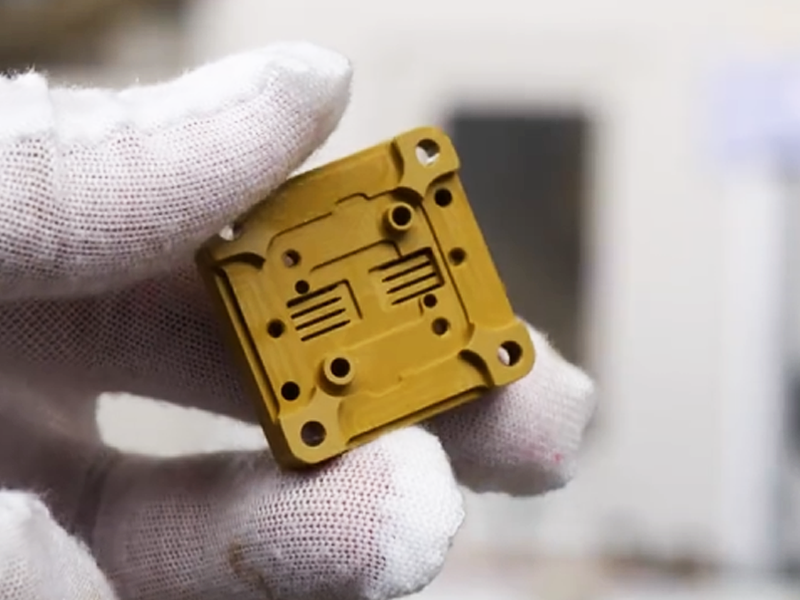

2.3 PAI (Polyamide-imide)

Industries / Applications: Aerospace (bearing housings, gear covers, sensor housings, structural brackets), Automotive (high-temp gears, pump components, throttle bodies, electrical connectors), Industrial Machinery (valve bodies, high-temp bearings, rollers, mechanical components)

Definition: PAI is a semi-crystalline high-performance polymer with extreme heat resistance and mechanical strength, ideal for high-precision plastic molded parts that operate under continuous high temperature.

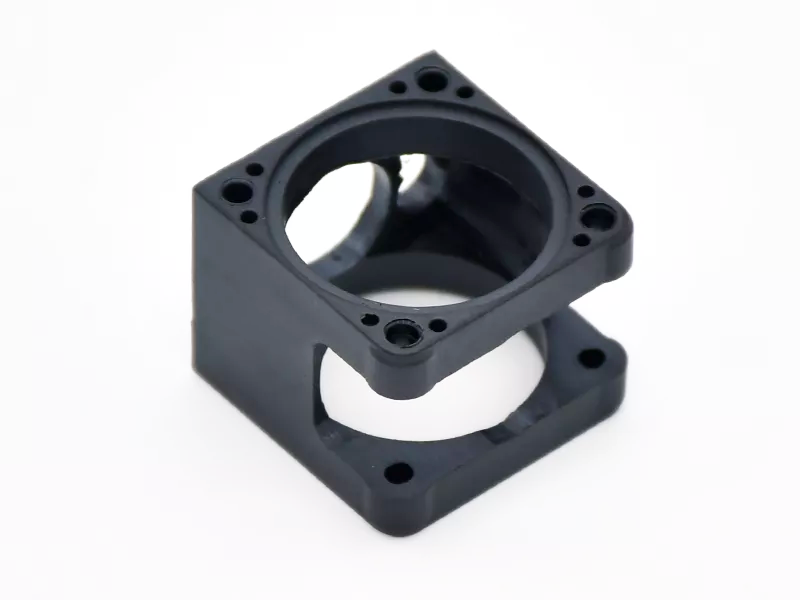

2.4 PPS (Polyphenylene Sulfide)

Industries / Applications: Automotive (engine covers, sensor housings, intake manifolds, connectors), Electrical (circuit housings, switch components, relay covers, terminal blocks), Industrial Equipment (pump housings, valves, filter housings, chemical-resistant parts)

Definition: PPS is a semi-crystalline polymer offering high thermal stability, chemical resistance, and low moisture absorption, suitable for automotive and electrical injection molded plastic parts that require durable high-temperature performance.

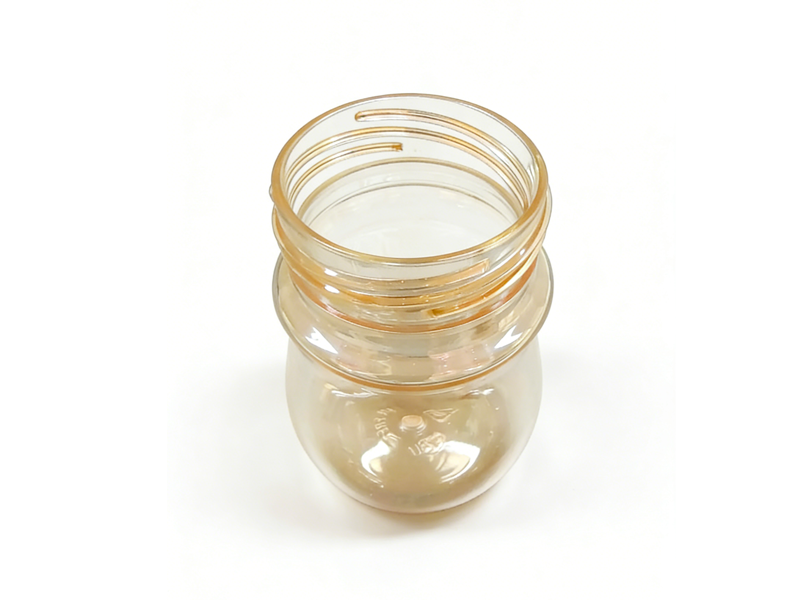

2.5 PPSU (Polyphenylsulfone)

Industries / Applications: Medical (sterilizable device housings, surgical instrument components, fluid connectors, autoclave-resistant parts), Electrical (connector housings, switch panels, relay covers, circuit insulation)

Definition: PPSU is an amorphous thermoplastic with excellent hydrolysis resistance and high-temperature durability, ideal for injection molded plastic components that require sterilization and chemical resistance.

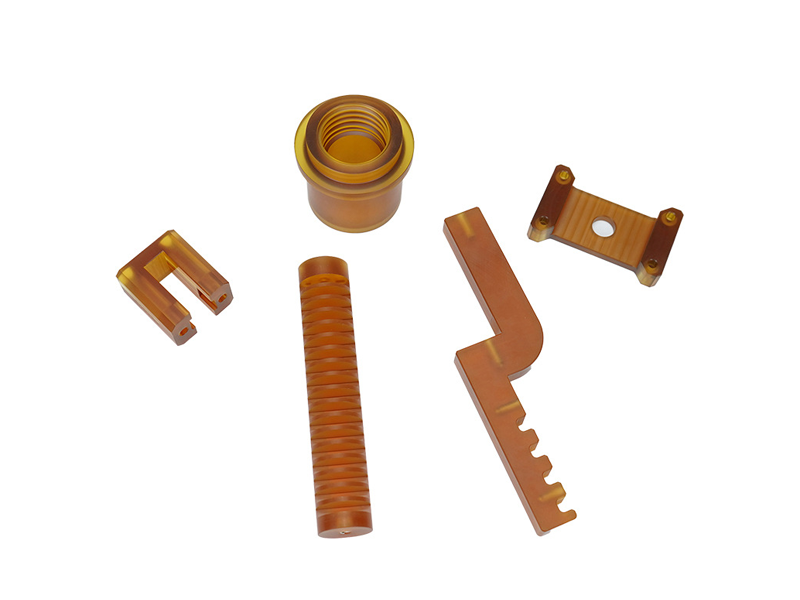

2.6 PEI (Polyetherimide)

Industries / Applications: Medical (sterilizable housings, surgical instrument covers, fluid connectors, diagnostic device shells), Electronics (circuit housings, connector covers, switch panels, insulating components)

Definition: PEI is an amorphous high-Tg plastic with excellent flame retardancy, mechanical strength, and thermal stability, widely used for high-temperature, high-performance injection moulded components.

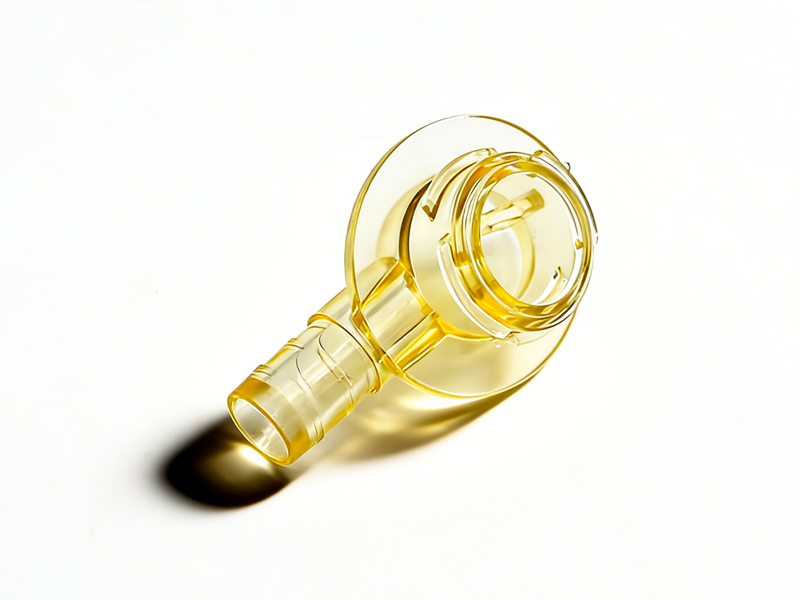

2.7 PES (Polyethersulfone)

Industries / Applications: Medical (sterilizable housings, fluid connectors, autoclave-resistant parts, surgical instrument covers), Electrical (switch panels, connector covers, circuit housings, insulating components), Food Contact (valves, pump housings, filter housings, packaging equipment)

Definition: PES is an amorphous high-performance plastic with excellent heat resistance, dimensional stability, and hydrolysis resistance, suitable for high-temperature plastic injection molded parts.

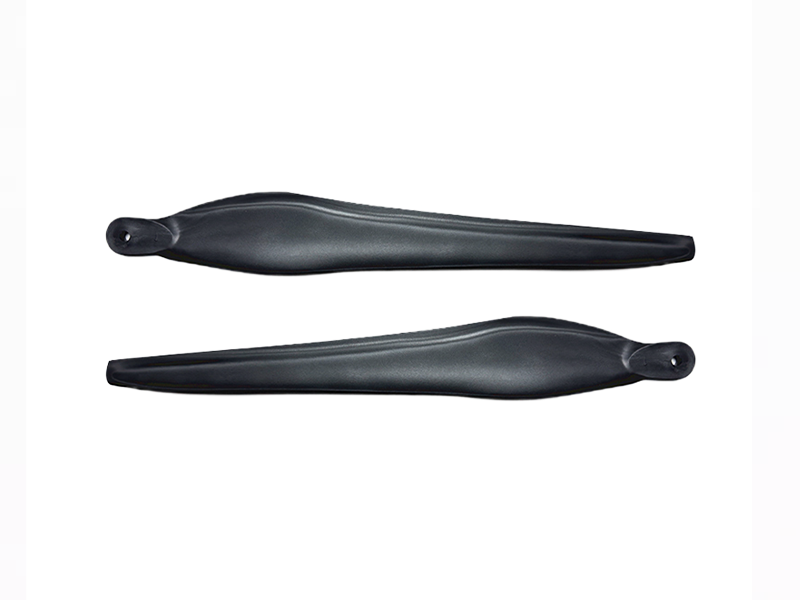

2.8 PPA (Polyphthalamide)

Industries / Applications: Automotive (engine covers, pump housings, sensor covers, throttle bodies), Industrial Equipment (valve bodies, chemical-resistant housings, gears, structural components), Electrical (connector housings, switch panels, relay covers, insulating components)

Definition: PPA is a semi-crystalline high-temperature plastic with high strength, chemical resistance, and thermal stability, ideal for injection molded components that operate under continuous high temperature.

3. How to Choose the Right Heat Resistant Plastic

Selecting the right heat resistant plastic for injection molding is critical to ensure that the final part performs reliably under high temperature, mechanical stress, and chemical exposure. A careful evaluation of thermal, mechanical, chemical, and processing requirements is essential before choosing a material. Below are the key considerations:

3.1 Understand the Operating Temperature

• Determine the maximum continuous use temperature the part will encounter.


• Check short-term peak temperatures as well, which may occur during operation or sterilization.


• Compare these values with the glass transition temperature (Tg) and melting temperature (Tm) of candidate plastics.


• Materials like PEEK, PAI, and LCP are ideal for high-temperature applications above 250 °C, whereas materials like PPS or PPA are suitable for moderate high-temperature ranges.



3.2 Mechanical Requirements

• Evaluate tensile strength, flexural modulus, and impact resistance needed for the part.


• High-stress applications such as automotive engine components require plastics with high rigidity and strength, e.g., PEEK, PAI, or PPS.


• For lighter-duty applications with complex geometries, materials with slightly lower mechanical strength but better chemical resistance, such as PPSU or PEI, may be sufficient.



3.3 Chemical and Environmental Resistance

• Consider chemical exposure, including acids, bases, fuels, solvents, or cleaning agents.


• If the part will encounter moisture, water absorption and hydrolysis resistance are critical.


• Fluoropolymers like PTFE excel in chemical resistance, while PPSU and PES are resistant to hydrolysis, making them suitable for medical and sterilizable components.



3.4 Dimensional Stability and Shrinkage

• Parts with tight tolerance requirements demand plastics with low shrinkage and high dimensional stability.


• Semi-crystalline plastics like PEEK, PPS, and PPA may shrink differently in different directions, so careful mold design and processing conditions are essential.


• Amorphous plastics like PEI, PES, and PPSU generally offer better dimensional stability and lower warpage.



3.5 Surface Finish and Appearance

• Consider whether the part requires a high-quality surface finish (glossy, matte, or textured).


• Some high-temperature plastics, such as PEEK and PEI, can achieve excellent cosmetic finishes, while materials like PTFE are inherently difficult to mold with high surface smoothness.



3.6 Processing and Injection Molding Feasibility

• Assess melt viscosity, flow behavior, and processing temperature ranges.


• Materials with high melt viscosity (e.g., PEEK, PAI) may require specialized injection molding machines capable of high temperatures and pressures.


• Check if your available injection molding equipment can handle the required temperature, pressure, and cycle time for the chosen material.



3.7 Cost Considerations

• High-performance heat resistant plastics can be significantly more expensive than standard engineering plastics.


• Balance material cost with performance requirements, considering whether lower-cost alternatives can meet mechanical and thermal needs.


• For example, PPS or PPA may offer sufficient performance for many automotive applications at a lower cost than PEEK.



3.8 Summary Checklist

Before selecting a heat resistant plastic, ask yourself:

• What is the maximum operating temperature?


• What mechanical loads will the part experience?


• Will the part be exposed to chemicals, moisture, or sterilization?


• Are there tight dimensional tolerances?


• What is the required surface finish?


• Can your injection molding equipment handle this material?


• Does the material cost fit the project budget?

By evaluating these factors, you can identify the most suitable heat resistant plastic for your injection molding project, ensuring durability, performance, and long-term stability.

4. Injection Molding Challenges of High-Temperature Plastics

High-performance heat resistant plastics offer excellent thermal and chemical properties, but their injection molding can present specific challenges. Understanding these issues is crucial to ensure precision, part quality, and process efficiency.

4.1 High Processing Temperatures

Many heat resistant plastics, such as PEEK, PAI, and PPS, require injection temperatures above 300 °C. Maintaining precise melt temperature and mold temperature is essential to avoid material degradation or uneven flow.

4.2 High Melt Viscosity

These plastics often have higher viscosity than standard engineering polymers. This can lead to incomplete filling, short shots, or weld lines, especially in thin-walled or complex parts. Advanced mold design and optimized gating systems are critical.

4.3 Shrinkage and Warpage

Semi-crystalline plastics (PEEK, PPS, PPA) shrink differently along various axes, potentially causing warpage or dimensional variation. Careful tooling design, controlled cooling, and simulation using Moldflow can mitigate these effects.

4.4 Surface Finish Control

Achieving a high-quality surface finish on heat resistant plastics can be challenging. High mold temperatures may be required for smooth gloss surfaces, and post-processing techniques such as polishing or coating may be necessary for critical optical or aesthetic parts.

4.5 Tooling and Equipment Requirements

Processing these materials often requires hardened steel molds, high-temperature hot runners, and specialized injection machines capable of sustaining high pressure and temperature. This increases tooling cost and setup complexity.

4.6 Cycle Time and Cooling

Heat resistant plastics generally cool more slowly, increasing cycle time. Optimized cooling channels, mold temperature control, and thermal analysis are necessary to maintain productivity while preventing internal stresses.

5. Conclusion

Selecting the right heat resistant plastic is essential for producing high-performance, durable, and reliable injection molded parts. Understanding factors such as glass transition temperature, melting temperature, chemical resistance, and mechanical properties allows engineers to make informed decisions for demanding applications in automotive, aerospace, medical, and industrial sectors. The Top 8 heat resistant plastics—PEEK, PTFE, PAI, PPS, PPSU, PEI, PES, and PPA—offer unique combinations of thermal stability, strength, and chemical resistance to meet a wide range of part requirements.
