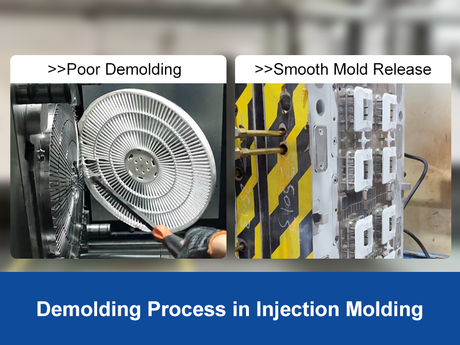

Demolding Process in Injection Molding：Key Steps And Best Practices

1. What is Demolding?

2. Key Steps in the Demolding Process

2.1 Cooling and Solidification

2.2 Mold Opening

2.3 Part Ejection

2.4 Part Removal

3. Common Demolding Problems and Their Causes

4. Best Practices for Successful Demolding

4.1 Demolding Process Optimization Through Early Mold Design

4.2 Mold Release Process Improvement by Reducing Friction

4.3 Demolding Injection Molding Stability Through Cooling and Shrinkage Control

5. Conclusion

FAQ

In injection molding, the demolding process is often overlooked, yet it directly affects part quality and production stability.Issues such as sticking, deformation, or surface defects are usually not random — they are the result of mold design, cooling, and ejection conditions working together.

In this article, we’ll walk through the key steps of the demolding process, common problems, and practical ways to achieve stable and reliable production.

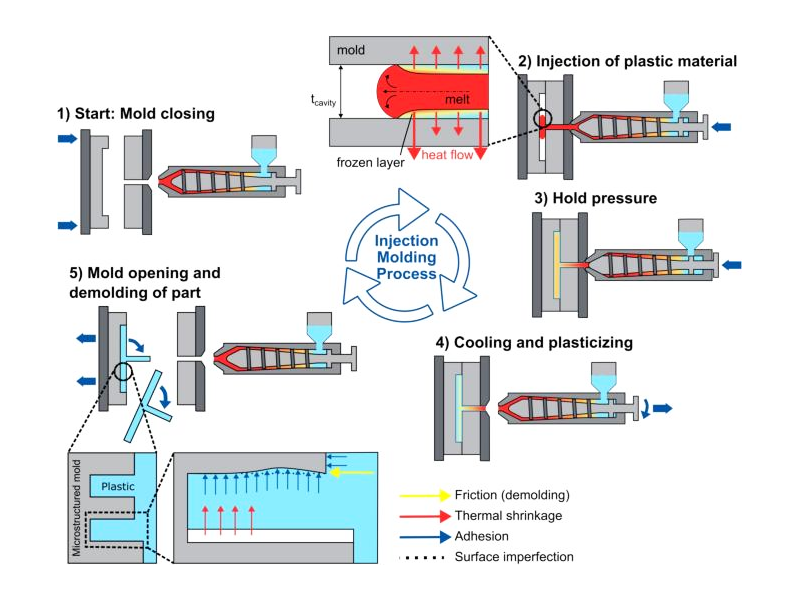

1. What is Demolding?

Demolding refers to the process of removing a molded part from the mold cavity at the end of the injection molding cycle. It is the final step following cooling and solidification, where the part must be released without damage, deformation, or surface defects.

In injection molding, demolding is not simply a mechanical ejection action—it is a critical stage that directly affects product quality, dimensional accuracy, and surface appearance. If the demolding process is not properly controlled, issues such as part sticking, warpage, scratches, or ejector marks can occur, leading to increased scrap rates and production instability.

A successful demolding process depends on the coordination of multiple factors, including mold design (such as draft angles and ejection systems), material properties, cooling conditions, and surface finish. When these elements are properly optimized, parts can be released smoothly and consistently, ensuring reliable mass production and high-quality plastic components.

2. Key Steps in the Demolding Process

The demolding process in injection molding is not a single action, but a sequence of coordinated steps that ensure the molded part is released smoothly and without damage. A well-controlled mold release process improves product quality, reduces defects, and supports stable mass production.

2.1 Cooling and Solidification

Cooling is critical in demolding injection molding because:

• Insufficient cooling can cause deformation during ejection

• Uneven cooling leads to internal stress and warpage

• Excessive temperature increases adhesion between the part and the mold surface

Proper cooling design ensures that the part has enough rigidity to withstand the forces involved in the mold release process. This is especially important for thin-wall components or high-precision parts.

2.2 Mold Opening

Once the part is properly solidified, the mold begins to open. This stage is the transition from molding to demolding.

During mold opening:

• The mold halves separate in a controlled sequence

• Sliders, lifters, or core-pulling mechanisms retract for parts with undercuts

• The part typically remains on the core side, preparing for part ejection

In complex structures, proper synchronization of these movements is essential for smooth demold operation. Any misalignment can lead to surface damage or part distortion.

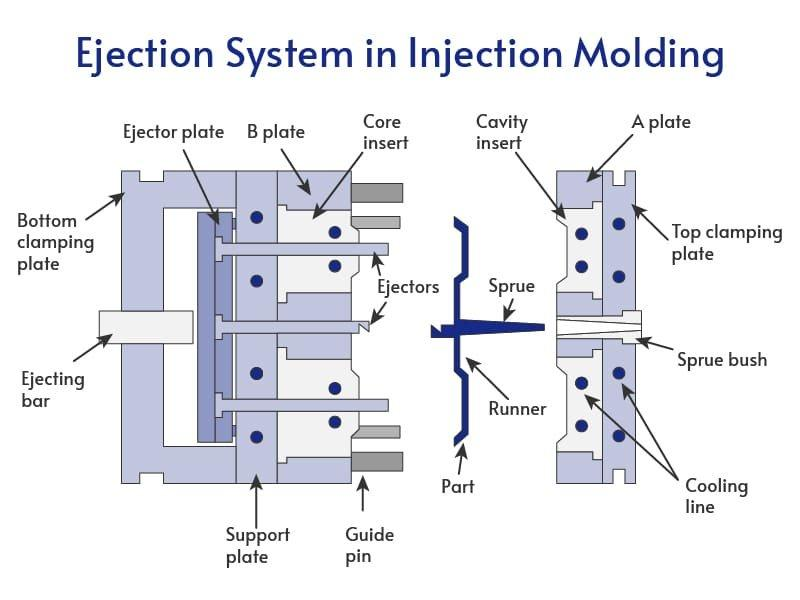

2.3 Part Ejection

Part ejection is the core step of the demolding process, where mechanical force is applied to release the part from the mold.

Common ejection methods include:

• Ejector pins

• Stripper plates

• Sleeve ejectors

• Air ejection systems

The goal is to ensure uniform force distribution during demolding injection molding, avoiding issues such as:

• Ejector marks

• Stress whitening

• Surface scratches

For specialized applications such as demolding one part mold or high-cavity molds, precise control of the ejection system is critical to maintain consistency across all parts.

2.4 Part Removal

After ejection, the part must be safely removed from the mold area. This step is often referred to as mould handling, especially in automated production environments.

Part removal methods include:

• Manual removal (for low-volume production)

• Robotic pick-and-place systems (for high-volume and precision parts)

• Automated conveyor systems

Efficient mould handling ensures:

• Reduced cycle time

• Prevention of part deformation or damage

• Improved production consistency

In modern demolding process setups, automation plays a key role in ensuring repeatability and minimizing human error.

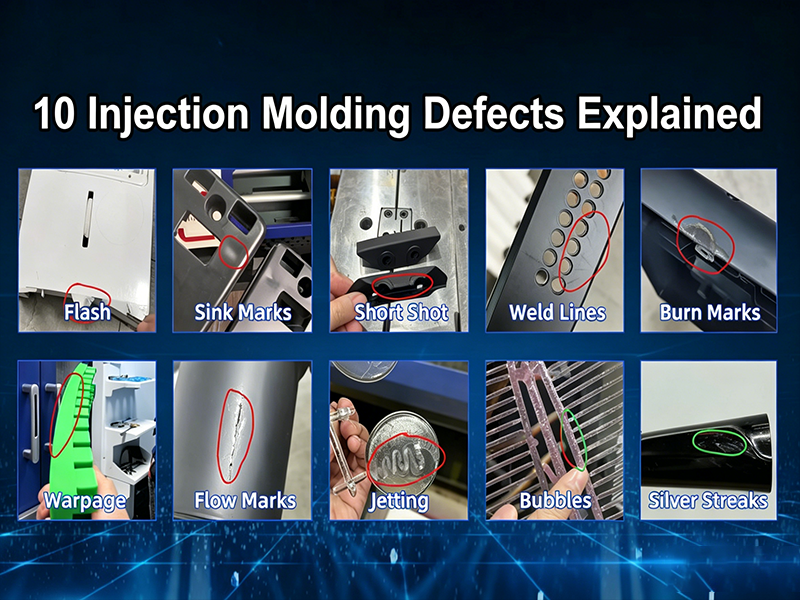

3. Common Demolding Problems and Their Causes

3.1 Part Sticking in the Mold

Part sticking is one of the most common issues in the demolding process. It occurs when the molded part adheres too strongly to the mold surface, making it difficult to release during demold. This can result in deformation, surface damage, or even part breakage.

The main causes are usually insufficient draft angle, high surface friction, or material adhesion—especially with materials like PC or ABS. In some cases, poor cooling can leave the part too soft during the mold release process, increasing the risk of sticking.

3.2 Warpage and Deformation

Warpage often becomes visible during or after demolding injection molding, when the part loses its shape due to internal stress. Even if the part looks acceptable in the mold, deformation can occur once it is released.

This issue is typically caused by uneven cooling, unbalanced shrinkage, or excessive force during the demolding process. Improper mould handling after ejection can further worsen the deformation, especially for thin-wall or large components.

3.3 Surface Defects After Demolding

Surface defects such as scratches, drag marks, or stress whitening often occur during the demolding process, especially when the part experiences high friction during demold. These defects are critical for cosmetic parts and can lead to rejection even if the dimensions are correct.

They are usually related to poor mold surface finish, improper ejection design, or excessive ejection force. Inconsistent surface quality during the mold release process can also affect the final appearance of the product.

4. Best Practices for Successful Demolding

A stable demolding process doesn’t happen by chance—it is the result of optimized design, controlled processing, and proper mold engineering. By improving each stage of the mold release process, manufacturers can reduce defects and ensure consistent results in demolding injection molding.

4.1 Demolding Process Optimization Through Early Mold Design

Demolding process performance starts at the design stage. Proper draft angles, parting line layout, and ejection system design are essential to ensure smooth demold without damaging the part.

In demolding injection molding, early DFM optimization helps eliminate risks such as part sticking, uneven force distribution, and deformation. For applications like demolding one part mold or complex geometries, designing for manufacturability ensures a stable and repeatable mold release process.

4.2 Mold Release Process Improvement by Reducing Friction

Mold release process efficiency is highly dependent on surface condition and friction control. A smoother mold surface reduces adhesion between the part and cavity, allowing easier demolding and minimizing surface defects.

In demolding injection molding, polishing, surface texturing (SPI/VDI), or coatings can significantly improve release performance. Reducing friction during demold is especially important for high-appearance parts, where scratches or drag marks can affect final product quality.

4.3 Demolding Injection Molding Stability Through Cooling and Shrinkage Control

Demolding injection molding stability relies heavily on proper cooling and shrinkage management. Uniform cooling ensures that the part has sufficient rigidity before the demolding process, reducing the risk of deformation.

Poor cooling control can lead to uneven shrinkage and increased adhesion during the mold release process. By optimizing cooling design and cycle parameters, manufacturers can achieve smoother demold, better dimensional stability, and more consistent production results.

5. Conclusion

The demolding process is far more than a simple final step in injection molding—it is a critical stage that directly impacts product quality, dimensional accuracy, and production efficiency. From mold design and surface finish to cooling control and ejection systems, every factor plays a role in achieving a smooth and reliable mold release process. By understanding common issues and applying best practices, manufacturers can significantly reduce defects and ensure consistent results in demolding injection molding.

At Alpine Mold, we offer high-precision injection mold manufacturing and plastic injection molding services for the global market.With an experienced engineering design team, advanced precision equipment, and a skilled mold-making team, we are well-equipped to handle complex projects and challenging demolding issues.From design optimization to stable mass production, we help our customers achieve smooth demolding, consistent quality, and reliable performance.

FAQ

1. Why Does My Mold Work Fine at T1 But Fail During Mass Production?

This usually happens when the demolding process is not stable under continuous cycles. Factors like heat buildup, material variation, and wear can change the mold release process over time. A mold that works for samples may not perform consistently in high-volume demolding injection molding.

2. How Can I Reduce Production Scrap Caused by Demolding Issues?

Reducing scrap requires improving the entire demolding process, not just adjusting machine parameters. Optimizing mold design, cooling balance, and ejection force can significantly improve consistency and reduce defects during demold.

3. Why do My Parts Look Fine Dimensionally But Fail in Appearance?

In many cases, surface defects occur during the mold release process, not during filling. High friction, poor surface finish, or improper ejection can cause scratches or stress marks during demolding injection molding, even if dimensions are correct.

4. How do I Handle Demolding for Parts With Undercuts or Complex Geometry?

Standard ejection will not work for these designs. You will need specialized solutions such as sliders, lifters, or unscrewing mechanisms. Proper planning of the demolding process is essential to ensure smooth and reliable demold for complex parts.

5. Why does My Cycle Time Increase When I Try to Fix Demolding Problems?

Many manufacturers extend cooling time to solve demolding issues, but this increases cycle time and cost. The real solution is improving the mold release process through better cooling design and mold optimization, rather than slowing down production.
