Table of Contents
1. Introduction |
2. Key Factors That Affect an Injection Mold Quote |
3. Essential Information You Should Provide to Get a Mold Quote |
4. How Mold Makers Calculate Plastic Injection Molding Cost |
5. Common Mistakes to Avoid When Requesting an Injection Mold Quote |
6. Tips for Getting a Fast and Accurate Injection Mold Quote |
7. Conclusion |
When planning a plastic injection molding project, one of the most important steps is obtaining an accurate injection mold quote. A detailed quote gives you clarity on both the upfront mold investment and the overall plastic injection molding cost. Without enough project details, quotes can vary widely or take longer to finalize, which may delay your timeline. By preparing the right information in advance, you can save time, reduce unnecessary communication, and receive a faster, more precise quotation from your mold manufacturer.
An injection mold quote is never a “one price fits all” answer. The final cost depends on a combination of design, material, and production requirements. Here are the most important factors mold makers evaluate:
Part Complexity
The more complex the part geometry, the more challenging the mold design and machining become. Features like thin walls, deep ribs, undercuts, or sharp corners require extra engineering time and precision equipment. For example, a simple flat cover might only need a basic two-plate mold, while an automotive connector with undercuts may require side actions or lifters, significantly increasing the plastic injection molding cost.
Material Selection
Different resins have different shrinkage rates, wear levels, and processing requirements. For instance, using standard ABS is relatively straightforward, but if your project requires glass-filled Nylon for added strength, the mold must be built with hardened steel to withstand abrasion. This directly increases both the tooling and production cost.
Production Volume

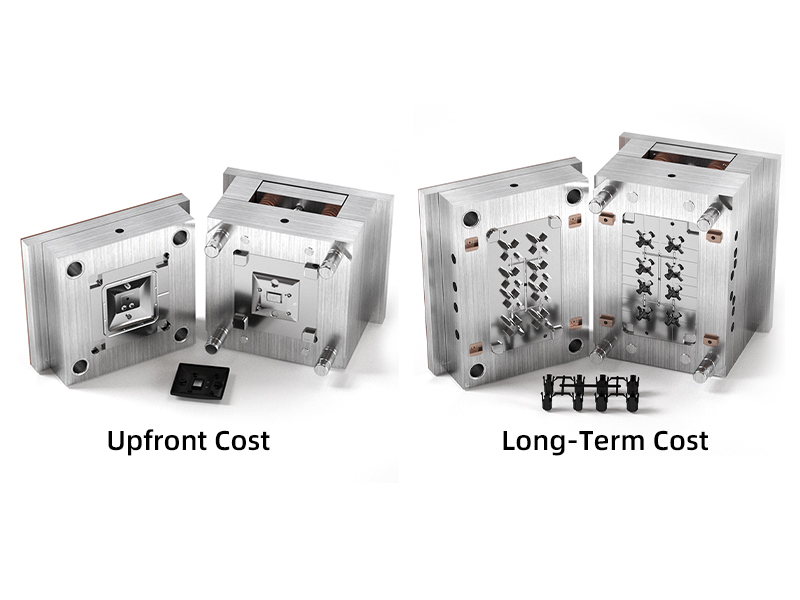

The number of parts you plan to produce each year has a big impact on the type of mold you need.
For low-volume runs (a few thousand parts), an aluminum or single-cavity steel mold may be sufficient.
For high-volume production (hundreds of thousands or millions of parts), a multi-cavity hardened steel mold is necessary, which requires a higher upfront investment but lowers the cost per part in the long run.
Mold Life Expectation
If you need a mold that lasts only for a short production cycle, less expensive steel can be used. However, if you expect the mold to run for many years, toolmakers must choose premium steels, apply surface treatments, and design for durability. This affects both the mold price and maintenance planning.
Case Example: Imagine you need a plastic gear. If you only need 2,000 pieces for testing, the mold could be made in aluminum with a single cavity, costing much less. But if you plan to mass-produce 500,000 pieces annually, you’ll need a hardened steel mold with multiple cavities to meet demand. While the mold quote will be higher upfront, the plastic injection molding cost per unit will drop significantly.
To receive a fast and accurate injection mold quote, you need to provide your supplier with as much detail as possible. The more complete the information, the more precise the estimate of your plastic injection molding cost will be. Here are the essentials:
2D/3D Drawings or Samples
CAD files such as STEP, IGES, or native SolidWorks models help mold makers evaluate dimensions, draft angles, and undercuts. If no drawings are available, a physical part sample can also work.
Part Material
Specify the plastic resin (e.g., ABS, Nylon, PC, HDPE) and whether additives like glass fiber, flame retardants, or UV stabilizers are required. Material choice affects both the mold design and production cost.
Estimated Production Volume
Clearly state whether this is for prototyping (hundreds of parts), small-batch production (thousands), or high-volume runs (hundreds of thousands to millions). Volume determines mold type and cavity number.
Part Size and Weight
Larger or heavier parts often require bigger machines and molds with stronger steel. This impacts both tooling and cycle time.
Surface Finish & Special Requirements
Indicate if the part needs texturing, high polish, or specific color standards (Pantone/RAL). These finishing requirements can increase machining and polishing time.
Tolerance and Precision
Tight tolerances mean higher machining accuracy, which requires advanced equipment and may increase mold cost.
Mold Requirements
Share details like cavity number, mold base preference, hot runner vs. cold runner, or expected mold life.
Delivery Timeline
Let the manufacturer know your desired lead time. Urgent projects may require overtime or expedited machining.
Secondary Operations
If you also need assembly, painting, printing, or special packaging, mention it upfront so it can be included in the quotation.
By preparing this information in advance, you’ll avoid unnecessary back-and-forth emails and help your supplier give you a quotation that truly reflects your project needs.
When reviewing an injection mold quote, it helps to understand how suppliers calculate the overall plastic injection molding cost. Generally, the cost is divided into three main parts:
Mold Cost (Tooling Cost)
This is the upfront investment required to design and build the mold. It includes engineering design, CNC machining, EDM, polishing, assembly, and mold trials. The complexity of the part and the expected mold life largely determine this cost.
Part Cost (Production Cost per Unit)
This is the cost of producing each molded part. It covers:
Raw material (resin and additives)
Machine time (cycle time, machine tonnage)
Labor and overhead (setup, operators, quality checks)
Scrap rate (waste material, rejected parts)
For example, a part that runs in 20 seconds per cycle will cost more per unit than the same part optimized to run in 10 seconds, even if the mold price is identical.
Additional Costs
Other expenses may include shipping, mold maintenance, secondary operations, or engineering changes requested after testing. These costs are often overlooked but can significantly impact the total project budget.
Because each mold maker has different equipment, processes, and material sourcing channels, two quotes for the same project can look very different. That’s why it’s important to compare not just the price, but also the value, lead time, and support the supplier offers.
Even with the right intentions, many buyers make mistakes when asking for an injection mold quote. These errors can cause delays, unexpected expenses, or even poor-quality tooling. Here are the most common pitfalls to avoid:
Providing Incomplete Information
Submitting only a picture or rough sketch without dimensions, materials, or volume makes it impossible for suppliers to give an accurate quote. This usually leads to multiple rounds of emails and wasted time.
Focusing Only on Mold Price
Some buyers choose the cheapest mold quote without considering the total
plastic injection molding cost.
A low-cost mold may have a shorter lifespan or lower precision, resulting in higher production costs over time.
Ignoring Future Production Needs
If you plan to scale up production later, it’s better to invest in a mold that can handle higher volumes from the start. Otherwise, you may face higher expenses later to build a second mold.
Unclear Quality Expectations
Not specifying surface finish, tolerance, or color standards can lead to results that don’t meet your requirements. Clear communication avoids costly revisions.
By avoiding these mistakes, you not only save money but also speed up the quoting and production process.
If you want to speed up the quoting process and receive a reliable estimate of your plastic injection molding cost, here are some proven tips:
Prepare Complete Documentation
Provide clear 2D/3D drawings, specify materials, and include production volume. A detailed RFQ package allows suppliers to respond more quickly and precisely.
Communicate Your Goals Clearly
Let the mold maker know whether your project is for prototyping, small-batch runs, or mass production. Being upfront about your timeline and budget helps avoid surprises later.
Consider Total Cost, Not Just Mold Price
The lowest upfront price isn’t always the best option. Evaluate mold life, part quality, cycle time, and after-sales support to understand the real long-term injection molding cost.
Work With an Experienced Manufacturer
Partnering with a professional supplier like Alpine Mold ensures you get not only a competitive quote but also expert guidance on mold design, material selection, and production optimization. Our team has the tools and experience to help you minimize risks and achieve cost-effective results.
Following these steps will save you time, reduce unnecessary revisions, and help you launch your project faster.
Requesting an injection mold quote is more than just asking, “How much does a mold cost?” To receive a fast and accurate response, you need to provide detailed information about your part design, material choice, production volume, and quality expectations. These details not only help suppliers prepare a precise quote but also give you a clearer picture of your overall plastic injection molding cost.
By avoiding common mistakes and working with an experienced partner like Alpine Mold, you can save time, reduce costs, and ensure the long-term success of your project.
Start your injection molding project with confidence — contact Alpine Mold today to get your professional and accurate injection mold quote.
