In the precision process of injection molding, the delicate balance between materials, molds, and processes is often difficult to control. Flow marks, the most common surface defect, are essentially traces left by the melt as it flows through the cavity due to changes in leading-edge velocity or temperature. To completely eliminate them, simply adjusting parameters often only addresses the symptoms rather than the root cause. To help you optimize your design and processes from the ground up, we’ve compiled this in-depth analysis to guide you through a thorough understanding of the causes of flow marks and their solutions.

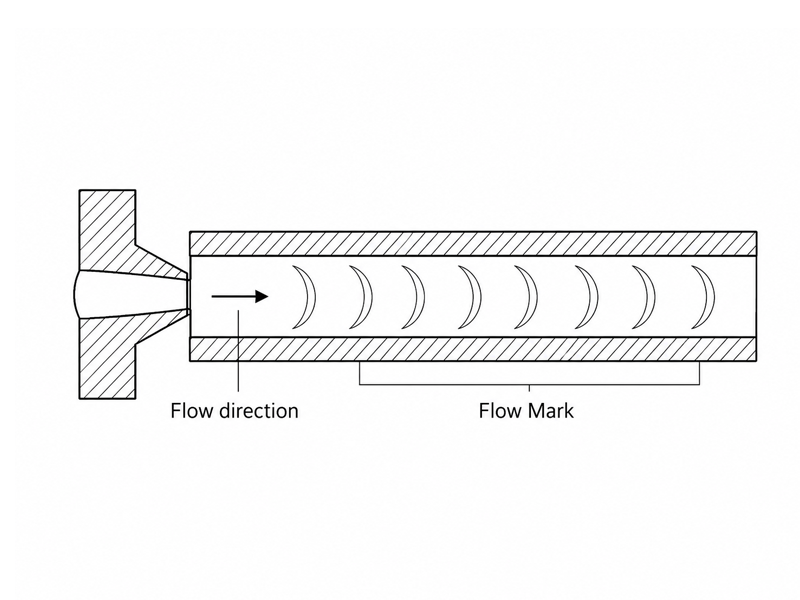

Flow marks, commonly referred to as flow lines or ripples, are common surface defects in the injection molding process. They primarily manifest as concentric circular ripples centered on the gate or as a snakeskin-like texture on the surface of the molded part. This defect essentially reflects instability in the flow behavior of the melt within the mold cavity.
From a molding mechanism perspective, flow marks are caused by stagnation or spurting of the melt front during the filling stage. When high-temperature melt enters a low-temperature mold cavity, the surface layer in contact with the mold wall rapidly cools and solidifies, forming a high-viscosity solidified layer. If, at this point, the driving force of the subsequent melt is insufficient or the flow rate fluctuates—preventing the ripples at the melt front from being completely smoothed out—these flow patterns become “frozen” on the product’s surface.
In injection molding production that prioritizes high quality, flow marks not only severely affect the gloss and visual consistency of the product but may also pose potential risks to the product’s structural strength. Accurately identifying and defining this phenomenon is a prerequisite for conducting a root cause analysis (RCA) and developing targeted solutions.
In actual production, “flow marks” are not a single phenomenon but rather a general term. Depending on the flow behavior of the melt within the mold cavity, the cooling rate, and the mechanisms of interaction, flow marks can manifest in a wide variety of forms on the surface of the part. If these specific “manifestations” cannot be accurately identified, it is difficult to address the problem effectively. To help you diagnose defects more precisely, we have categorized the common types of flow marks in injection molding into the following five categories.

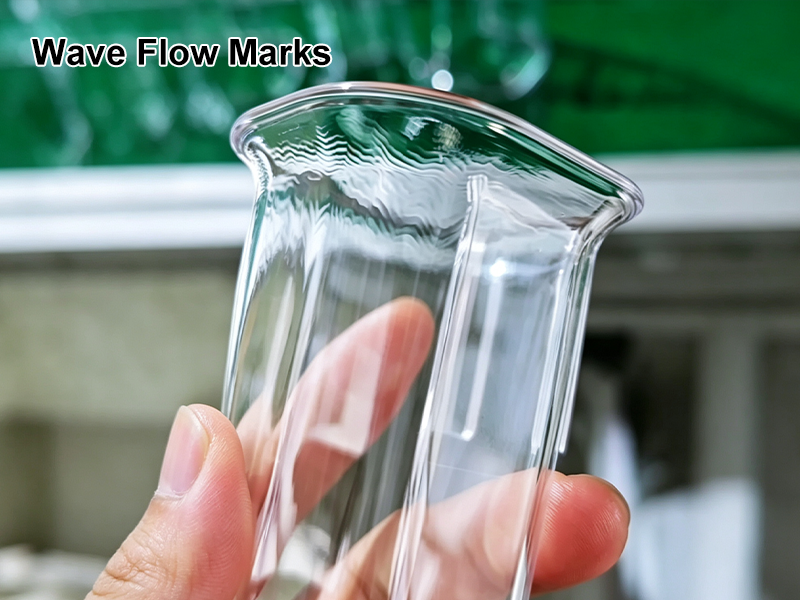

This is the most typical and easily recognizable type of flow mark. It usually appears as concentric circular ripples radiating outward from the gate, visually resembling the ripples created when a pebble is dropped into calm water.
This phenomenon is usually caused by flow instability at the melt front. When the melt enters the mold cavity and begins to fill it, if the leading edge encounters resistance—such as low mold temperature—causing the flow velocity to suddenly slow down or even stall briefly, the layer of plastic in contact with the mold wall will rapidly cool and solidify. Subsequently, the continuous flow of molten material pushing forward breaks through this “solidified layer,” folding or displacing the originally solidified surface, thereby forming these wave-like marks on the surface. Simply put, these are the “footprints” left by the molten material’s stop-and-go motion.

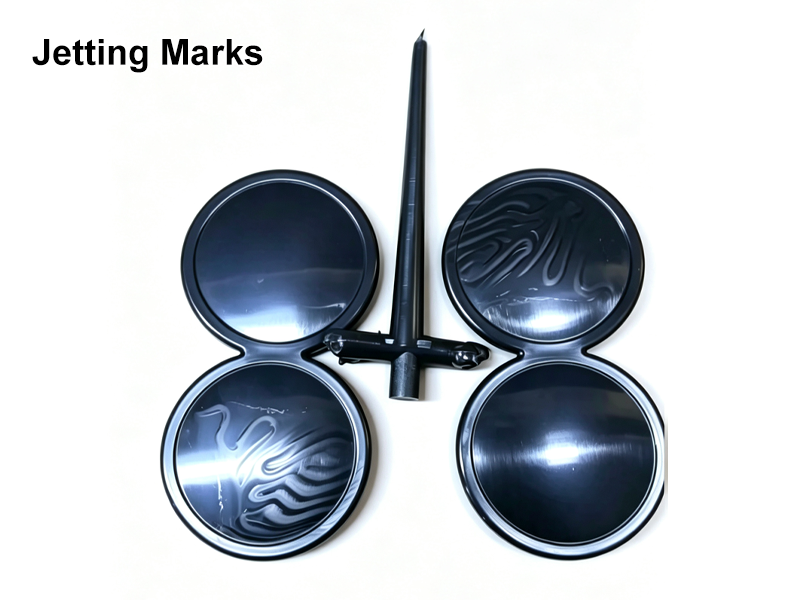

The appearance of jet marks is very deceptive; unlike wave marks, which are regular, jet marks exhibit a chaotic, “snakeskin”-like texture, or resemble a roll of twisted tape laid flat on the product’s surface. This is a typical injection molding defect.
The primary cause of injection marks lies in improper gate sizing. When the gate cross-sectional area is too small and the injection speed is extremely high, the melt does not flow into the cavity like a calm river but rather “sprays” into it like a jet of water from a high-pressure water gun. This fine jet cools rapidly upon contact with the mold wall, and the subsequent melt then envelops and fills the area. This chaotic folding process—where the jet is ejected first and then piled up—is ultimately frozen on the product’s surface, forming these hard-to-remove injection marks.

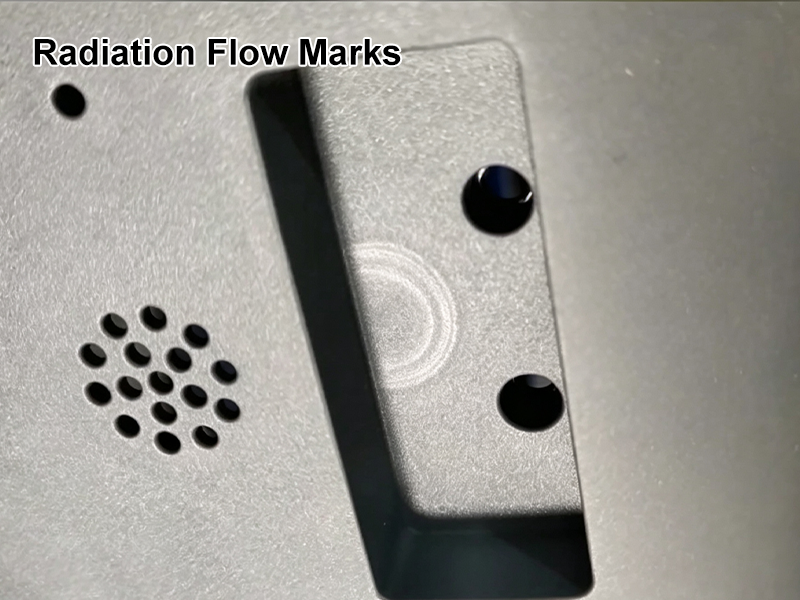

Radiation marks appear as straight-line patterns radiating outward from a single point (usually the gate or weld line), resembling the spokes of a wheel. Unlike the circular patterns of wave marks, radiation marks emphasize the directionality of flow.
This pattern typically appears at the moment when the melt suddenly transitions from a narrow area to a wider one. As the melt front spreads out, drastic directional changes in flow velocity and pressure occur, or localized temperature variations within the mold cause inconsistent cooling and shrinkage rates among melt streams flowing in different directions. These differences leave subtle variations in surface gloss or marks, ultimately resulting in this radiating pattern. It often indicates that attention should be paid to the balance of the filling process.

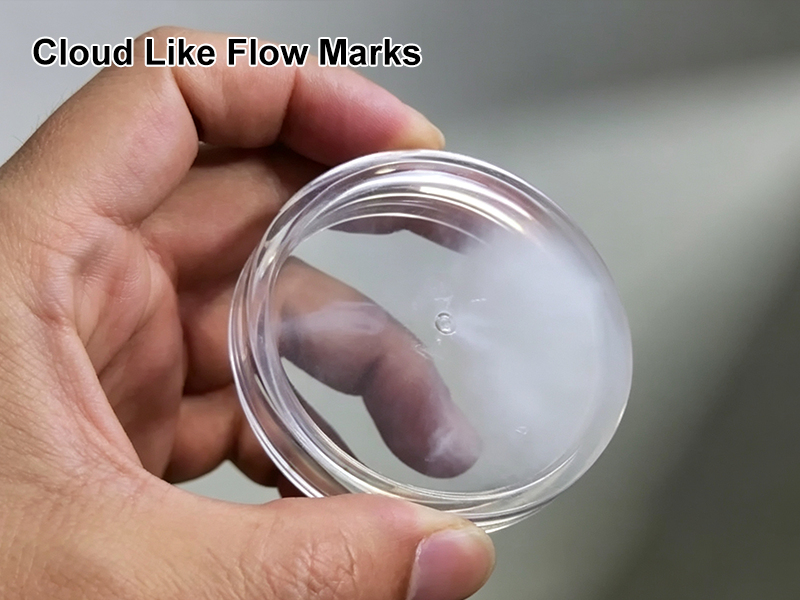

Cloud patterns, sometimes referred to as “fog marks,” appear as hazy, patchy spots with blurred edges on the product’s surface. Unlike the previous types, they lack distinct lines and instead resemble a layer of fog covering the surface, resulting in uneven gloss.
This defect is often closely related to the microscopic state of the material. If the raw material is not thoroughly dried (and contains moisture), or if slight thermal degradation occurs during the melting process, tiny air bubbles or volatiles can become trapped in the surface layer of the melt. When these gases interfere with the microscopic crystallization or cooling of the melt’s surface, they form these cloud- or fog-like, cloudy marks on the surface. Addressing cloud patterns typically requires focusing on material drying and temperature control.

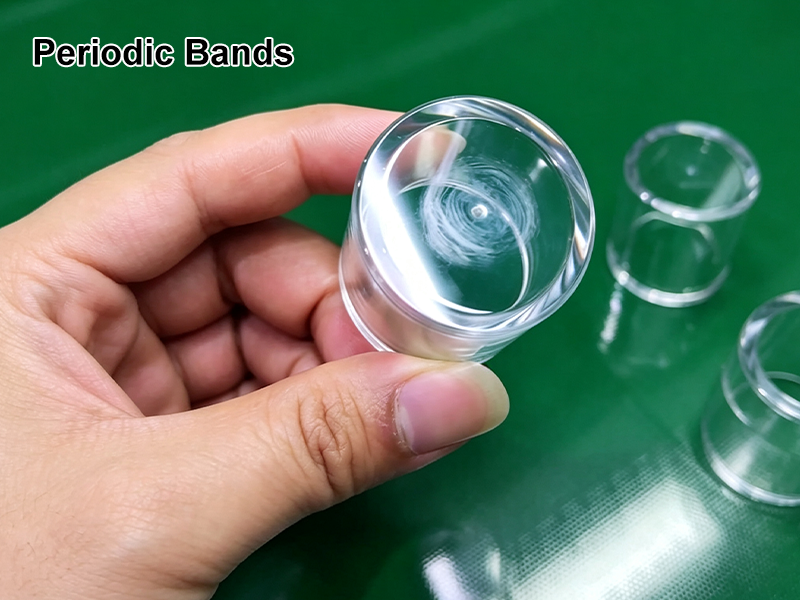

Periodic streaks refer to band-like defects that appear at equal intervals on the surface of a part. Their most distinctive feature is their “regularity,” as if a machine had rhythmically stamped the surface during operation.
These flow marks are usually not simply the result of incorrect process parameter settings but more often indicate mechanical issues with the equipment itself. For example, wear on the injection molding machine’s screw check ring (pass-through ring) can cause unstable back pressure, or pressure fluctuations may occur in the hydraulic system. These mechanical factors lead to periodic, pulsating changes in melt flow during the injection process. This rhythm of “tightening and loosening” or “fast and slow” is reflected on the product, resulting in these periodic stripes.
The formation of flow marks is not a coincidence, but rather a combination of three factors: material properties, machine parameters, and mold design—all of which are out of sync within the injection molding system. To thoroughly resolve this issue, a systematic analysis of each stage is essential. Below, we will explore these three core aspects in depth.
In injection molding, the selection and processing of materials are the cornerstones of final product quality, and their rheological properties directly determine how the melt behaves within the mold cavity. The melt flow index (MFI) is a key indicator for measuring the flow properties of thermoplastic melts; it provides a clear indication of a material’s flowability at specific temperatures and pressures. A higher MFI value indicates a lower molecular weight, lower melt viscosity, and better flowability. However, this “good flowability” is a double-edged sword. When using high-MFI materials (such as certain general-purpose grades of PP or PE), if the injection speed is not precisely matched to the material, the melt will flow “too quickly” within the mold cavity.
When this high-speed melt front comes into contact with the relatively cooler mold wall, it cools and solidifies rapidly, forming a high-viscosity “condensation layer.” At this point, if the subsequent melt cannot provide sufficient thrust to completely smooth out this already solidified front, a distinct boundary line will form between the two. This boundary line eventually solidifies on the product’s surface, resulting in the flow marks we observe. Conversely, while materials with low MFI (such as certain engineering plastics) have high viscosity and poor flowability, forcing them to fill the mold at excessively high injection speeds can similarly lead to irregular flow marks. This occurs either because uneven shear heating causes localized overheating and decomposition of the melt, or because excessive flow resistance causes the melt to stagnate. Therefore, the compatibility between a material’s MFI and the injection speed is the key variable determining whether flow marks will form; both must be optimized in tandem.
Injection pressure is the direct driving force that propels the melt to fill the mold cavity. If the switchover to the holding phase occurs too early or the injection pressure is set too low, the melt lacks sufficient forward force during the final stages of filling to smooth out the ripples formed by earlier cooling, causing flow marks to solidify on the product surface. More specifically, once the melt front has cooled and formed a solidified skin layer, subsequent melt requires adequate pressure to "flatten" this layer and achieve molecular-level fusion; without sufficient pressure, the skin layer remains as a visible "wrinkle." Therefore, maintaining stable and adequate injection pressure throughout the filling phase is crucial for eliminating flow marks.
Temperature control—encompassing both barrel temperature and mold temperature—is another critical factor. Excessively low barrel temperature leads to uneven plasticization and high melt viscosity, increasing flow resistance and making the formation of stagnation marks highly likely. Conversely, a mold temperature that is too low accelerates melt cooling, causing the melt front to solidify before it can fuse smoothly. This imbalance between temperature and pressure is often the direct cause of flow marks. Consequently, it is essential to ensure uniform temperature across all barrel zones and to set a sufficiently high mold temperature—matched to the material's properties—to slow the cooling rate and allow adequate time for the melt fronts to fuse properly.
Beyond materials and equipment, the design of the mold system is equally critical; specific design details directly dictate the path and behavior of the melt flow.
The placement and dimensions of the gate directly determine how the melt enters the mold. An undersized gate can trigger high-pressure jetting, causing the melt to shoot into the cavity in a snakelike fashion; as it subsequently folds and accumulates, distinct jetting marks—a specific type of flow mark—are formed. Furthermore, if the mold's venting system is poorly designed, gases within the cavity cannot escape promptly. They become trapped and compressed by the advancing melt front, leading to flow stagnation or scorching at points of air resistance, which manifests on the surface as irregular flow marks.
If the layout of the mold's cooling channels results in uneven mold temperature distribution, the melt experiences inconsistent cooling rates when passing through areas with significant temperature differentials. This uneven shrinkage and solidification process can also leave visible flow traces on the product's surface. Consequently, a well-designed cooling system is essential for maintaining uniform mold temperatures and minimizing flow marks.
Once the causes of flow marks are thoroughly understood, preventive measures follow naturally. The key to prevention lies in ensuring—through precise process adjustments and optimized mold design—that the melt maintains a stable and uniform flow during the filling process. Specific preventive strategies are outlined below:
The formation of flow marks is closely linked to the stability of the melt flow. By optimizing the injection pressure profile, the melt can be ensured to fill the cavity at a stable and controlled rate, thereby avoiding flow stagnation caused by sudden pressure drops. Towards the end of the filling stage, a timely transition to the holding pressure phase is essential to maintain continuous pressure on the melt within the cavity; this ensures the melt front is fully compacted and smooths out any minor ripples caused by cooling. A well-designed holding pressure profile can effectively reduce surface defects resulting from insufficient pressure.
Temperature is a critical factor influencing melt viscosity. Appropriately increasing the barrel temperature reduces melt viscosity and enhances fluidity, making the melt less prone to premature solidification due to cooling during the filling process. Simultaneously, raising the mold temperature slows the cooling rate of the melt within the cavity, allowing more time for the melt fronts to fuse effectively. This synergistic increase in temperatures significantly improves flow uniformity, thereby suppressing the formation of flow marks.
The dimensions and layout of gates and runners directly influence the flow pattern of the melt. During design, runners and gates should be sized with sufficient cross-sectional areas to minimize flow resistance and prevent flow instability caused by excessive shear or pressure loss. Furthermore, gates should ideally be positioned in areas of uniform wall thickness to ensure balanced filling and avoid premature melt cooling or jetting.
For complex or large-scale products, advanced technologies such as hot runner systems, sequential valve gating, or needle valve gating can be employed. These technologies enable precise control over melt flow; for instance, needle valve gates allow the gate to be closed after filling is complete, preventing melt backflow or excessive holding pressure and thereby achieving superior surface quality.
Ensure effective gas evacuation from the mold cavity.
Proper venting design is crucial for eliminating flow marks. If gas within the cavity is not evacuated in time, it can become trapped by the advancing melt front, creating air resistance that impedes melt flow or causes burning. Strategically placing vents at the parting line, or on slides and inserts, allows for effective gas release, ensuring the melt fills the entire cavity smoothly and without obstruction.
An operator's expertise serves as the final line of defense against flow marks. They must possess a deep understanding of material properties, machine performance, and mold structure, enabling them to rapidly diagnose the causes of flow marks based on visual defects and implement targeted adjustments. For instance, they need to distinguish between jetting marks caused by excessive injection speed and stagnation marks resulting from low mold temperatures, and then take appropriate corrective measures. Continuous professional training and the accumulation of experience are key to enhancing production stability.
Flow marks are a common surface defect in injection molding, stemming fundamentally from instabilities during the melt flow process. Our in-depth analysis reveals that these defects arise from the interplay of material properties, machine parameters, and mold design. Every aspect is critical—from matching the material's Melt Flow Index (MFI) with the injection speed and precisely controlling injection pressure and temperature, to optimizing the design of gates, runners, and venting systems. Consequently, resolving flow mark issues requires a systematic approach that optimizes the entire workflow—encompassing material selection, process parameter settings, and mold structural design—rather than simply adjusting isolated variables.
In the realm of injection molding, Alpine Mold specializes in the design and manufacture of precision molds, placing a strong emphasis on component optimization and system integration. With 24 years of engineering expertise and advanced manufacturing capabilities, we help clients transform complex product designs into reliable, production-ready mold solutions. Please feel free to contact us regarding any injection molding needs!
This defect is commonly known as a Flow Mark (or flow line). It occurs when the molten plastic flows unstably through the mold cavity. Essentially, as the hot plastic enters the cooler mold, the outer layer cools and solidifies too quickly. If the following melt isn’t strong enough to smooth out these initial waves, the “frozen” ripples remain on the surface of the product.
That “snakeskin” look is often a specific type of flow mark caused by Jetting. This happens when the mold gate is too small, causing the molten plastic to shoot into the cavity like a jet of water or a “snake” rather than filling it smoothly. This squiggly jet of plastic then folds over on itself and cools, creating the visible, chaotic texture on your part.
It is very possible. The design of your mold—specifically the gate location and size—directly controls how the plastic enters the cavity. A gate that is too small causes jetting, while a poor location can cause the plastic to slow down or cool unevenly. If your cooling channels are also poorly designed, creating uneven mold temperatures, flow marks are almost inevitable.
Operators should focus heavily on the Pressure Profile. Specifically, optimizing the injection pressure curve ensures a stable fill, and correctly timing the switch to Holding Pressure is crucial. This ensures the melt has enough push to pack the part and smooth out any waves before it fully freezes. A well-designed holding pressure curve can effectively wipe out surface defects caused by pressure drops.
It is definitely Systems Engineering. You cannot just tweak one knob and hope for the best. Solving flow marks requires a holistic view that balances Material Characteristics (MFI), Machine Parameters (Pressure/Temp/Speed), and Mold Design (Gates/Vents/Cooling). Only by optimizing this whole workflow—rather than isolated variables—can you achieve a production-ready solution.
