Ejector marks are visible surface marks left on plastic parts when ejector pins push them out of the mold after cooling. These marks typically appear as indentations, raised marks, or stress whitening around the ejector pin locations.
While slight ejector pin marks are common in injection molding, excessive marks caused by high ejection force, improper ejector pin placement, or insufficient cooling can affect your part's appearance, dimensional accuracy, and overall quality.
Ejector marks can appear in different forms depending on the ejection force, mold design, and cooling conditions. Identifying the type of ejector mark on your plastic part helps you determine the possible cause and choose the right solution.

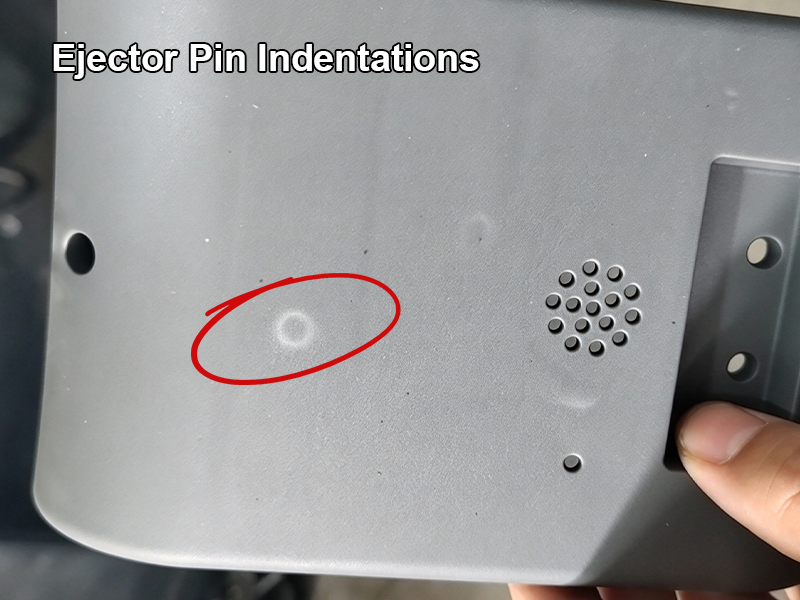

Ejector pin indentations appear as small circular depressions on the plastic part's surface, usually where the ejector pins contact the part. They often occur when the plastic is not sufficiently cooled or when excessive ejection force causes local deformation.

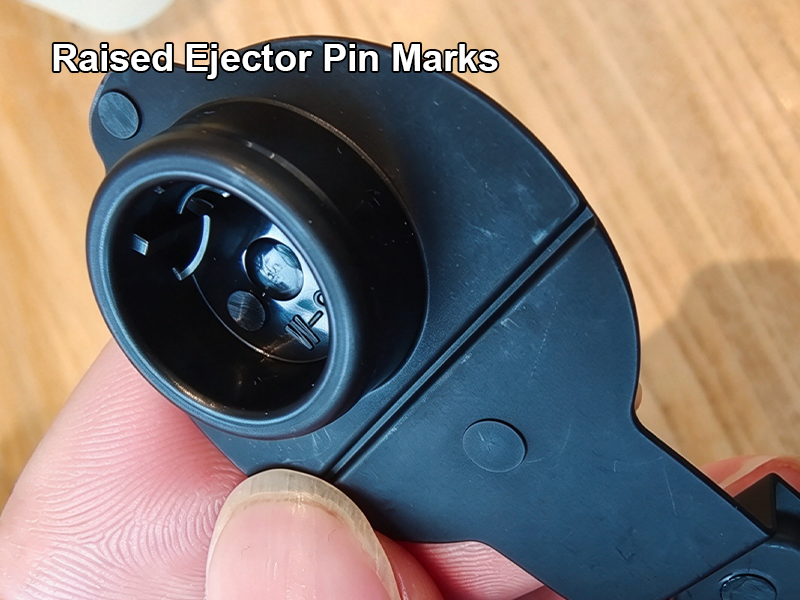

Raised ejector pin marks appear as small circular bumps or protrusions around ejector pin locations. They may result from ejector pins protruding beyond the mold surface, improper pin positioning, or localized deformation during ejection.

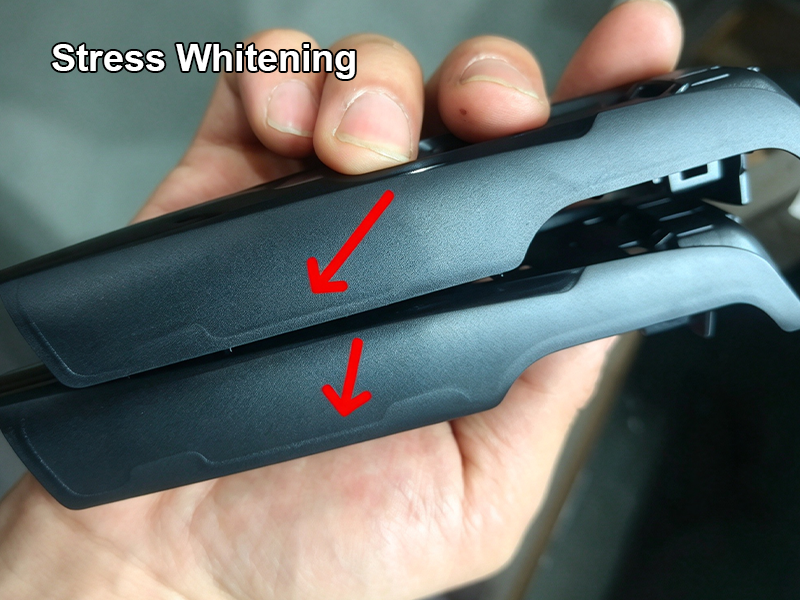

Stress whitening appears as white or lighter-colored areas around ejector pin locations, especially on dark-colored plastic parts. It occurs when excessive local stress during ejection causes microscopic deformation in the plastic material. This defect is particularly noticeable in materials such as ABS and PP.

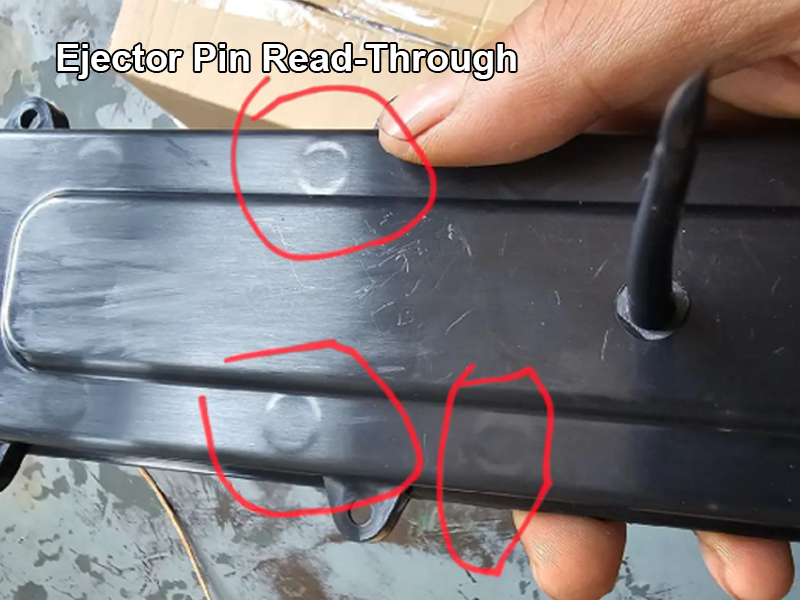

Ejector pin read-through occurs when the force applied by ejector pins creates visible marks on the opposite surface of a plastic part. It is more likely to occur in parts with thin walls, insufficient cooling, or poorly supported ejector pin locations.
These marks can be especially problematic for cosmetic plastic housings, where the visible surface must meet strict appearance requirements.

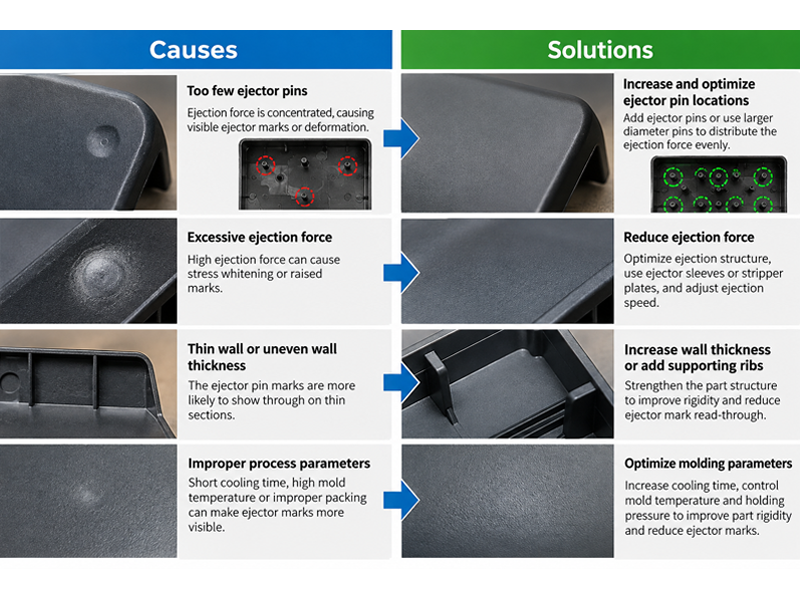

Ejector marks in injection molding can result from excessive ejection force, insufficient cooling, or improper mold design. Identifying the root cause helps you select the right solution, reduce surface defects, and maintain consistent part quality during production.
When excessive force is required to remove a plastic part from the mold, ejector pins concentrate pressure on small contact areas. This can cause indentations, stress whitening, or local deformation, especially in thin-walled plastic parts.
Solutions:
Increase the ejector contact area: Use larger ejector pins or add more pins to distribute the ejection force. For example, increasing the pin diameter from 3 mm to 4 mm increases its contact area by approximately 78%, reducing local pressure under the same load.
Optimize ejection speed: Start with a slower ejection speed to release the part from the core, then increase the speed once the part moves freely. This helps prevent sudden loading and deformation.
Reduce demolding resistance: Check for rough core surfaces, insufficient draft angles, or undercuts that increase friction. Correct these issues to reduce the required ejection force.
If your plastic part is ejected before it has cooled sufficiently, the material may still be too soft to withstand the pressure from the ejector pins. This often leads to circular indentations or deformation, particularly around thick sections and reinforced areas.
Solutions:
Increase cooling time: As an initial troubleshooting trial, extend cooling time by 2–5 seconds and check whether the ejector marks improve. Adjust the final cooling time based on part rigidity and production efficiency.
Optimize cooling channel design: Improve cooling uniformity around thick sections, ribs, and core areas to prevent localized overheating and uneven solidification.
Check part temperature at ejection: Ensure the plastic part has sufficient rigidity before ejection. For high-volume production, verify the cooling conditions through mold trials and process monitoring.
Poor ejector pin placement can cause uneven force distribution during demolding. When pins are positioned in thin or unsupported areas, concentrated pressure can leave visible ejector marks or cause local deformation.
Solutions:
Position pins in structurally supported areas: Place ejector pins near ribs, bosses, or other reinforced regions where the part can withstand the ejection force.
Optimize ejector pin distribution: Arrange pins according to part geometry, core retention, and expected ejection resistance. Avoid concentrating too much force in a small area.
Avoid cosmetic surfaces: Position ejector pins on the non-cosmetic side whenever possible. For appearance-critical parts, consider sleeve ejectors, stripper plates, or alternative ejection mechanisms.
Insufficient draft angles increase friction between the plastic part and the mold core, requiring greater ejection force. This can result in ejector pin marks, stress whitening, or surface scratches during demolding.
Solutions:
Increase draft angles: For many smooth plastic surfaces, a draft angle of 1°–2° is a practical starting point. Deep cavities or textured surfaces generally require larger angles.
Account for surface texture: Light textures may require approximately 3° of draft, while deeper textures may need 5° or more, depending on the texture specification.
Improve the mold surface finish: Polish core surfaces where machining marks or excessive roughness increase friction. Maintain the required surface finish and dimensional tolerances.
These values are general design guidelines. The final draft angle should be determined by material shrinkage, part depth, surface texture, and mold construction.
Uneven wall thickness causes different sections of a plastic part to cool and shrink at different rates. Thicker sections may remain soft during ejection, while thinner sections may deform under concentrated ejector pin pressure.
Solutions:
Maintain uniform wall thickness: For many conventional plastic housings, 1.5–3.0 mm can be used as an initial design reference, depending on the material and part requirements.
Use gradual thickness transitions: Avoid abrupt changes between thick and thin sections. Consider hollowing out thick areas to promote uniform cooling.
Optimize rib thickness: As a general guideline, design ribs at approximately 50%–60% of the nominal wall thickness to reduce sink marks and improve molding consistency.
Excessive packing pressure can increase residual stress and cause certain plastic parts to grip the mold core more tightly. This increases ejection resistance and may contribute to ejector pin marks.
Solutions:
Optimize holding pressure: Gradually reduce holding pressure while monitoring part weight, dimensions, shrinkage, and surface quality. Avoid unnecessary overpacking.
Determine the correct holding time: Perform a gate-seal study by measuring part weight at different holding times. Once the part weight stabilizes, additional holding time typically offers limited benefit.
Balance packing and shrinkage: Make sure pressure adjustments do not introduce sink marks, voids, or dimensional instability.
The appropriate holding pressure and time should be determined through molding trials based on the plastic material, gate dimensions, and product geometry.
Worn, bent, or improperly fitted ejector pins may sit above or below the intended mold surface. This can create raised marks, circular depressions, or scratches on injection molded parts.
Solutions:
Check ejector pin height: Inspect whether the ejector pin faces are correctly positioned relative to the surrounding mold surface when fully returned.
Inspect alignment and clearance: Check for bent pins, excessive clearance, worn guide components, or restricted movement. Repair or replace damaged components.
Perform preventive maintenance: Regularly inspect ejector plates, return pins, and guide mechanisms to ensure smooth and consistent ejection.
When ejector marks appear on your plastic parts, start by checking the molding parameters before considering mold modifications. Adjusting cooling time, ejection speed, holding pressure, and mold temperature can help reduce ejector pin indentations, stress whitening, and local deformation.
The table below summarizes common injection molding parameter adjustments and their expected effects.
Parameter | Recommended Adjustment | Expected Improvement |
Cooling Time | Increase cooling time by 2–5 seconds as an initial trial and check part rigidity and ejector marks. | Reduces indentations and deformation caused by insufficient cooling. |
Ejection Speed | Reduce the initial ejection speed and use a slow-to-fast, two-stage ejection process. | Minimizes sudden impact, localized stress, and stress whitening. |
Holding Pressure | Gradually reduce holding pressure if overpacking is confirmed, while monitoring part dimensions and shrinkage. | May reduce excessive core gripping force and ejection resistance. |
Holding Time | Perform a gate-seal study to determine the appropriate holding time and avoid unnecessary packing. | Prevents excessive holding time while maintaining consistent part weight and dimensions. |
Mold Temperature | Adjust mold temperature within the recommended material range and check cooling uniformity. | Improves cooling conditions and reduces localized deformation during ejection. |
Melt Temperature | Check whether the melt temperature is too high and adjust it within the material's recommended processing range. | Reduces excessive cooling demand and helps improve part rigidity before ejection. |
Engineering Tip:
Adjust one molding parameter at a time and record changes in ejector marks, part dimensions, and cycle time to identify the most effective solution.
These adjustments are general troubleshooting guidelines rather than fixed processing standards. The optimal settings depend on your plastic material, wall thickness, mold design, and actual molding conditions.
If ejector pin marks remain visible after process optimization, inspect the ejector pin placement, demolding resistance, and ejection system to determine whether mold modifications are necessary.
Preventing ejector marks in injection molding requires more than adjusting molding parameters. By identifying potential ejection problems during DFM analysis, mold design, and trial molding, you can reduce costly mold modifications and maintain consistent part quality before mass production.
Before mold manufacturing, a thorough DFM analysis helps identify areas where ejector marks may affect your product's appearance or function.
Identify cosmetic surfaces: Clearly define visible and non-visible areas on your plastic part. Specify where ejector pin marks are acceptable and where they must be avoided.
Review critical features: Check thin walls, deep cavities, ribs, and bosses that may create ejection difficulties or localized stress.
Confirm acceptance criteria: Establish requirements for ejector mark depth, height, appearance, and location based on your product specifications.
A reliable ejector system design should be reviewed before machining begins to prevent mechanical interference and uneven ejection during production.
Check ejection stroke: Ensure sufficient ejector travel to release the part completely without interfering with sliders, lifters, or other mold components.
Verify ejector movement: Review the movement sequence, alignment, and return mechanisms to ensure smooth and synchronized operation.
Perform design verification: Use 3D mold assembly reviews or motion simulation to identify potential collisions and mechanical problems before manufacturing.
The T1 mold trial provides an opportunity to identify ejector pin marks under actual molding conditions before approving the mold for production.
Inspect molded samples: Check ejector pin locations for indentations, raised marks, stress whitening, and visible deformation.
Record molding parameters: Document cooling time, mold temperature, holding pressure, and ejection settings to help identify the causes of any defects.
Verify corrective actions: If ejector marks are found, determine whether process adjustments or mold modifications are required. Repeat the trial to confirm improvements.
Even if the T1 samples meet your appearance requirements, ejector marks may reappear when molding conditions change during continuous production.
Conduct continuous molding trials: Evaluate part quality over repeated molding cycles under representative production conditions.
Monitor cosmetic consistency: Inspect samples from different production cycles to ensure ejector marks remain within approved appearance requirements.
Confirm production readiness: Finalize molding parameters, inspection standards, and approved samples before starting mass production.
Ejector marks in injection molding can affect your part's appearance and quality. By identifying the root causes, optimizing molding parameters, and improving ejector system design, you can minimize these defects and achieve more consistent production results.
At Alpine Mold, we specialize in custom injection mold manufacturing and injection molding production. From DFM analysis and mold design to mold trials and mass production, we help you prevent molding defects and maintain stable part quality.
Visible ejector pin marks can often be minimized or eliminated through proper mold design and process optimization. However, conventional ejector pins may leave slight contact traces. For appearance-critical parts, placing ejectors on hidden surfaces or using alternative ejection mechanisms can help avoid visible marks.
Yes, slight ejector pin marks are generally acceptable on non-cosmetic surfaces, provided they do not affect part dimensions, assembly, or function. For cosmetic parts, acceptance depends on your specified appearance standards. You should confirm the allowable mark locations and severity before mold manufacturing.
Ejector pin marks result from localized pressure or deformation during ejection, usually around ejector pin locations. Sink marks are depressions caused by material shrinkage during cooling, often near thick sections, ribs, or bosses. The two defects require different corrective actions.
An ejector pin is a mechanical component in an injection mold used to push the cooled plastic part out of the mold core. Ejector pins are typically made from hardened tool steel and operate through the mold's ejection system. Proper ejector pin design and placement help ensure smooth part removal while minimizing ejector marks and deformation.
Yes. Excessive ejection force can create localized stress that may lead to stress whitening or cracking, especially in brittle materials or thin-walled parts. However, minor ejector pin marks do not necessarily indicate structural damage. Parts showing cracks should be inspected before production approval.
