A Complete Guide To Overmolding Mold Design

Views: 0     Author: Site Editor     Publish Time: 2025-06-23      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Table of Contents

1. Introduction

2. What is Overmolding?

3. Key Design Considerations in the Overmolding Process

4. Common Challenges in the Overmolding Process & Solutions

5. Step-by-Step Overmolding Process Design Workflow

6. Successful Overmolding Process Case Studies
7. Conclusion




1. Introduction


In modern manufacturing, the overmolding process has emerged as a vital technology for producing products that require the combination of soft and hard plastics. From electronic housings to automotive parts and hand tools, overmolding not only enhances functionality but also significantly improves product aesthetics and user experience. However, designing high-quality overmolded parts and molds is a complex task that requires thorough consideration of material compatibility, mold structure, and processing parameters.


This comprehensive guide delves into the critical factors of the overmolding process, provides practical solutions to common challenges, and shares successful case studies to help engineers and designers achieve optimal results. Whether you're an industry expert or new to mold design, this guide offers valuable insights for mastering the overmolding process.





2. What is Overmolding?


2.1 Definition of the Overmolding Process


The overmolding process refers to a specialized injection molding technique that combines two or more materials—typically a rigid plastic (hard substrate) and a soft elastomer—into a single, cohesive component. The process involves molding the first part (usually the hard plastic) and then molding the second material (soft plastic) over or around it.


The overmolding process is widely used across various industries including electronics, automotive, consumer goods, and medical devices. Its versatility allows manufacturers to create functional and aesthetically pleasing products with enhanced grip, shock absorption, and ergonomic features.


2.2 Advantages of the Overmolding Process


Enhanced Product Functionality: Overmolding improves grip, impact resistance, and vibration damping. For example, hand tools become more comfortable and safer to use after overmolding with soft materials.


Improved Aesthetics: The overmolding process allows for diverse color and texture combinations, adding visual appeal and tactile comfort to products.


Cost Efficiency & Lightweight Design: By integrating multiple materials into a single part, the overmolding process reduces the need for assembly, lowers production costs, and supports lightweight design strategies.






3. Key Design Considerations in the Overmolding Process


3.1 Material Selection


Choosing compatible materials is essential for the overmolding process. The adhesion between the soft and hard plastics determines the durability and quality of the final product.


Hard Substrate Materials:


  • ABS: High strength and impact resistance.


  • PC: Excellent rigidity and transparency.


  • PP: Strong chemical resistance.


Overmold (Soft) Materials:


  • TPU: Great flexibility, abrasion and weather resistance.


  • TPE: Easy to mold, ideal for consumer goods and accessories.


  • Silicone: Heat-resistant, soft, suitable for medical and kitchen items.


Compatibility Tip:


Ensure chemical compatibility and bonding strength between materials. The overmolding process may involve mechanical interlocks or chemical adhesion to improve bonding.



3.2 Mold Structure Design


The mold structure directly affects plastic product quality and cycle time in the overmolding process.


Single-cavity Mold vs. Multi-cavity Mold:


Single cavity: Suitable for small batches molding.


Multi-cavity: Increases efficiency but requires more precise gating and runner design.


Overmold Type:


Encapsulation: Full coverage overmolding for sealing applications.


Insert-style: Partial coverage to reduce material usage and cost.


Injection Gate and Runner Layout:


Position gates to ensure even flow.


Smooth runners minimize dead zones and ensure uniform cavity fill.

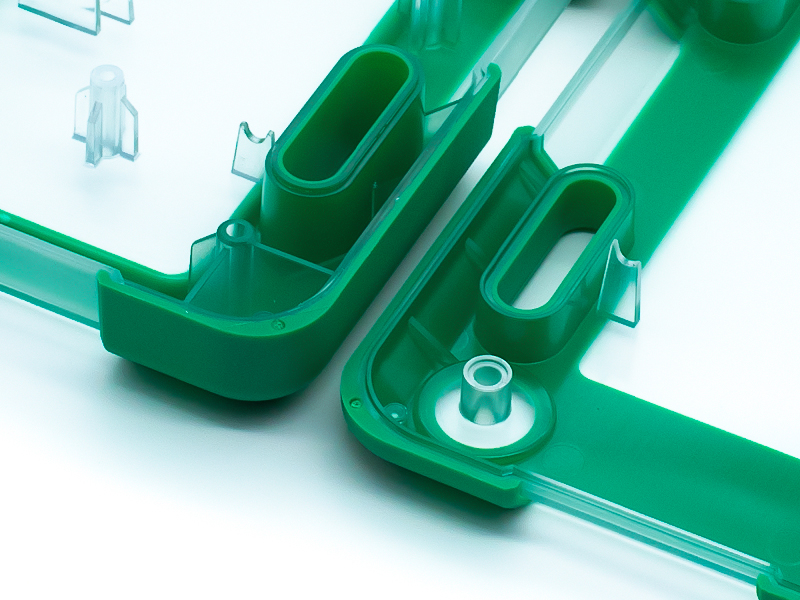

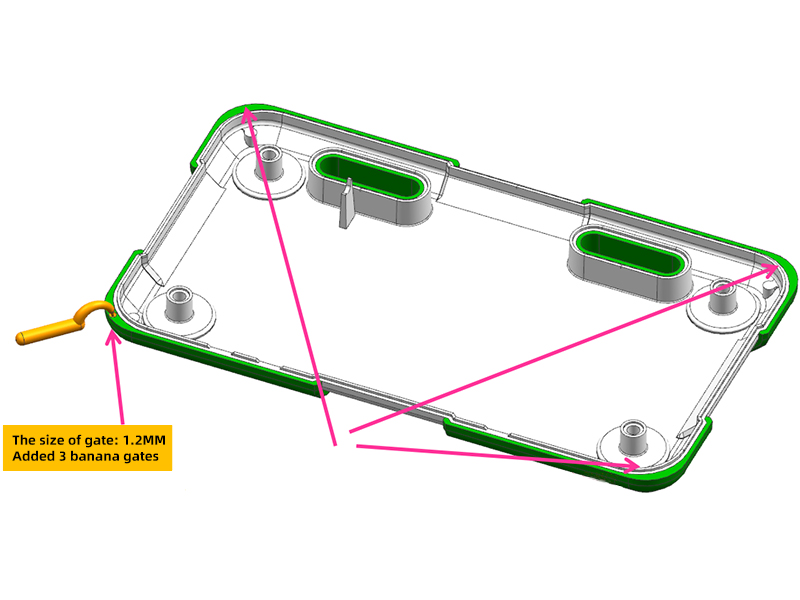

injection-gate-design injection-gate-of-banana-gate


3.3 Ejection and Demolding


Demolding is a critical phase in the overmolding process, especially when dealing with soft materials that are prone to deformation or damage. Ensuring smooth and effective ejection is essential for maintaining product integrity and extending plastic injection mold life.


Designing Proper Draft Angles


To minimize pulling force during demolding, it’s crucial to incorporate appropriate draft angles in the soft material areas—typically between 2° and 5°. This helps reduce friction and prevents tearing or stretching during ejection.


Utilizing Ejection Aids


Ejector Mechanisms: Components such as ejector pins or lifters can assist in removing soft parts gently and efficiently.


Gas-Assisted Ejection: Air pressure systems can be used to support the ejection of soft, easily deformable materials, reducing mechanical stress on the part.


Preventing Deformation or Damage


Surface Texturing: Applying fine textures or increasing surface friction on soft overmolded areas can prevent slippage during the overmolding process ejection stage.


Segmented Ejection Design: Using a step-by-step or staged ejection mechanism can reduce stress concentration and ensure more stable demolding, especially for complex geometries or delicate features.



3.4 Cooling System Design


The design of the cooling system plays a crucial role in the quality and production efficiency of overmolded products. A well-optimized cooling strategy is essential for maintaining proper bonding between soft and hard materials and preventing product deformation.


Importance of Cooling Efficiency:


Cooling time typically accounts for over 60% of the entire injection molding cycle. Therefore, optimizing the cooling system can significantly improve overall productivity in the overmolding process.


Uneven cooling may result in poor adhesion between materials or warping of the final product.


Optimized Cooling Channel Design:


Cooling channels should be positioned as close as possible to the mold cavity surface to ensure uniform cooling.


For complex parts produced by the overmolding process, a zoned cooling system can be implemented to independently control the cooling rate of soft and hard material sections based on their thermal properties.


High thermal conductivity materials, such as beryllium copper, are recommended for key cooling areas to enhance heat dissipation and reduce cycle times.


By employing a scientifically optimized cooling system design, manufacturers can effectively prevent common injection molding defects such as warpage and shrinkage, while also extending the service life of injection mold and increasing efficiency in the overmolding process.



4. Common Challenges in the Overmolding Process & Solutions


During the design and manufacturing of overmolding molds, several issues may arise that can affect plastic product quality and production efficiency. The following section outlines the most common problems encountered in the overmolding process along with effective solutions:



4.1 Poor Material Bonding


Causes:


Incompatible materials: The chemical properties of hard and soft plastics (e.g., melting point, surface tension, polarity) do not match, resulting in weak adhesion.


Uneven mold temperature: If the mold is too hot or too cold during soft material injection, it can negatively affect flow behavior and bonding performance.


Solutions:


  • Improved Material Selection:


Ensure chemical compatibility between hard and soft materials, such as ABS with TPE or PC with TPU.


Conduct material adhesion tests prior to finalizing the mold design.


  • Optimized Mold Temperature Control:


Adjust mold temperature ranges to match the optimal bonding conditions for both materials.


Use independent temperature control systems for the soft and hard sections of the mold to maintain bonding quality.



4.2 Surface Defects


Causes:


Improper gate design: Poor gate location or size can lead to uneven material filling.


Irregular flow: Inadequate flow path design can result in trapped air, shrinkage, burn marks, or flash defects.


Solutions:


  • Optimized Gate Placement and Design:


Position gates at the beginning or shortest point of the flow path to ensure uniform cavity filling.


Use multiple gates to prevent pressure loss and defects from long flow paths.


  • Improved Runner Design:


Implement balanced runner systems for synchronized cavity filling.


Add venting channels to eliminate air entrapment and prevent burn marks.


  • Injection Parameter Adjustment:


Increase injection pressure and speed to improve material flow.


Control soft material injection temperature to avoid overheating or underheating that leads to defects.



4.3 Dimensional Instability of Soft Overmolded Parts


Causes:


Poor mold structure: Inadequate support or improperly designed cavities may cause size deviations in soft areas after molding.


Insufficient demolding force: Excessive deformation or pull force during ejection can result in inaccurate dimensions or part damage.


Solutions:


  • Adjust Mold Structure


Add reinforcement features in soft material areas to prevent uneven flow or cavity distortion.


Check mold fitting tolerances to maintain dimensional accuracy at the soft-hard interface.


  • Optimize Demolding Design


Increase draft angles (typically 2°–5°) to reduce pulling force during ejection.


Use auxiliary ejection mechanisms such as segmented ejector pins or gas-assisted ejection to ensure smooth removal of soft parts.


  • Control Injection Parameters


Adjust injection pressure and holding time for the soft material to ensure full cavity fill and proper cooling.


Use precision mold temperature control systems to avoid deformation caused by uneven cooling.




5. Step-by-Step Overmolding Process Design Workflow


Designing molds for the overmolding process is a systematic engineering task that requires strict control at every stage—from initial requirement analysis to full-scale mass production. Below are the key steps in a standard overmolding process design workflow:



5.1 Pre-Design Requirement Analysis


Thorough requirement analysis forms the foundation of the overmolding process and ensures that injection mold design aligns with the final product requirements.


Product Function Requirements:Clarify the purpose of combining soft and hard materials, such as anti-slip, wear resistance, shock absorption, or improved aesthetics.


Appearance Specifications:Define surface color, texture, gloss level, and other visual attributes to meet customer or market expectations.


Usage Environment:Analyze the product's working conditions—such as high temperature, corrosion resistance, or waterproof performance—to guide material selection and structural design.



5.2 Design Software and Tool Utilization


Professional software and tools play an essential role in improving design precision and efficiency during the overmolding process.


CAD (Computer-Aided Design):Used for detailed injection mold design, including mold cavity, runner system, injection gate, and ejection system layout. Popular CAD tools include:


AutoCAD

SolidWorks

CATIA


Moldflow (Injection Simulation): Simulates material flow to optimize gate position, runner design, and injection molding parameters, helping predict and avoid issues like shrinkage or air traps.


Advantages: Fewer mold trials, lower development costs, and improved production efficiency.


Other Tools:


CAM (Computer-Aided Manufacturing): Guides mold machining processes.


3D Printing: Rapid prototyping to validate design concepts early in development.



5.3 Sample Validation and Refinement


Once the initial mold design is complete, prototypes must be produced and tested to verify that the overmolding process meets functional and quality expectations.


Prototype Testing: Mold trials are conducted to evaluate bonding strength, dimensional accuracy, surface quality, and other performance criteria.


Common Issues to Check:


Poor adhesion between soft and hard components.


Surface defects caused by unbalanced material flow.


Dimensional instability due to demolding problems.


Design Adjustments Based on Test Results:


Modify gate location and dimensions to optimize material flow.


Refine mold structure to improve draft angles or enhance cooling circuits.


Recalibrate cavity dimensions to align final part size with design specifications.



5.4 Production Mold Customization and Optimization


After successful prototype validation, the focus shifts to finalizing the mold for volume production.


Pilot Run Considerations:


Mold Durability Testing: Simulate high-frequency production to assess wear and deformation resistance.


Process Parameter Optimization: Fine-tune injection pressure, holding time, and cooling duration for efficient mass production.


Mass Production Optimization Measures:


Enhanced Cooling Efficiency: Refine cooling channel layout to reduce cycle time and boost throughput.


Regular Mold Maintenance: Periodic cleaning of runners, gates, and cavities to prevent blockage and ensure consistent product quality.


Ongoing Quality Control:Conduct batch sampling and inspections during full-scale manufacturing to detect and resolve issues promptly, ensuring stable and consistent product performance throughout the overmolding process.




6. Successful Overmolding Process Case Studies


Case Study 1: Overmolding Design for Remote Control Housing


Requirement: Enhance grip comfort and anti-slip functionality.


Solution: PC was selected as the hard plastic substrate, with TPU as the soft overmolded material. An encapsulated overmolding process was used, where the soft layer fully covers the inner surface of the housing. The result was a product with soft-touch keys and excellent drop resistance, significantly improving user experience.

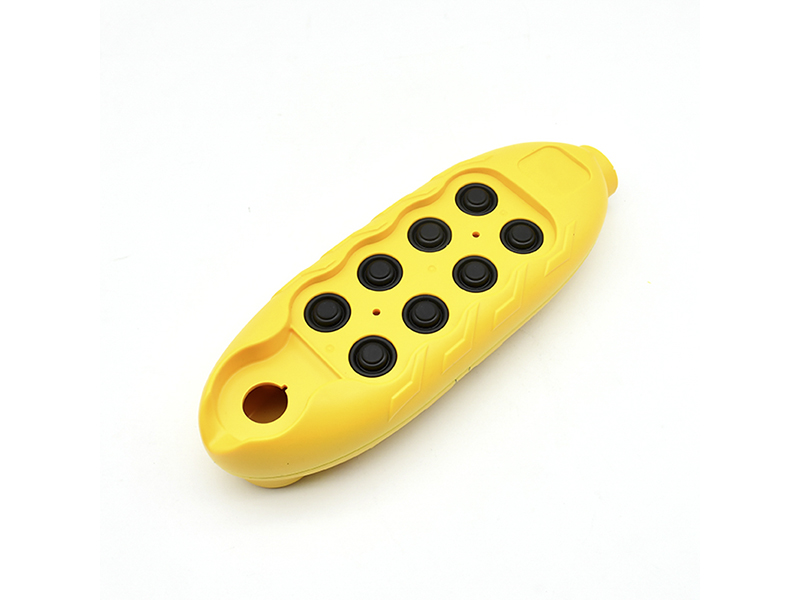

TPE-overmolding

Case Study 2: Overmolding Design for Control Panel


Requirement: Withstand high temperatures and meet premium appearance standards.


Solution: A combination of PC and TPE was used, applying an insert-style overmolding process. The soft material was only applied around the panel's outer contact edges. This approach reduced material costs while still achieving the required functionality and enhanced appearance.

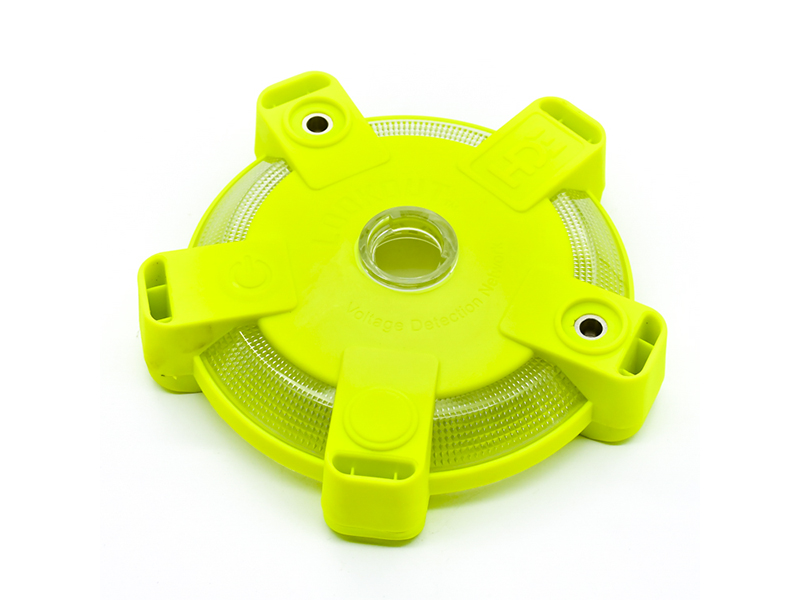

tpe-overmolding-product


7. Conclusion


In the field of overmolding process design, selecting an experienced and reliable partner is essential to achieving high-performance, precision-molded products. Alpine Mold specializes in the design and manufacturing of high-precision injection molds and overmolding process solutions. For many years, we have delivered quality and dependable mold solutions to clients worldwide.


Whether your project involves complex design requirements or challenging production demands, Alpine Mold is equipped with a skilled engineering team and advanced manufacturing capabilities to meet your needs.


If you are looking for customized, high-quality overmolding solutions, we invite you to contact Alpine Mold. Let us help you bring product innovation and manufacturing excellence to life through a superior overmolding process.
