When it comes to manufacturing flexible plastic parts through injection molding, two materials often stand out: TPE (Thermoplastic Elastomer) and TPU (Thermoplastic Polyurethane). Both materials are known for their flexibility, elasticity, and wide range of industrial applications, but choosing the right one depends on your product requirements.
At Alpine Mold, we frequently help customers evaluate the difference between TPE injection molding and TPU injection molding to select the best solution for their projects. In this blog, we’ll compare TPE and TPU in terms of properties, performance, cost, and applications, so you can make an informed decision for your next injection molding project.

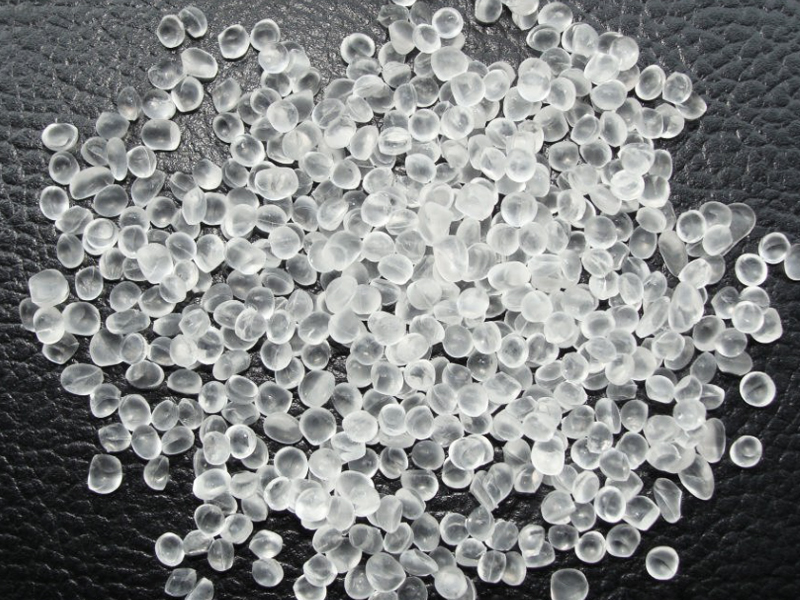

TPE (Thermoplastic Elastomer) is a class of polymers that combines the elastic properties of rubber with the processability of thermoplastics. Unlike traditional rubber, TPE can be melted and re-molded multiple times, making it highly versatile in injection molding.
1. Flexibility & Elasticity: TPE can bend, stretch, and recover its shape without breaking.
2. Soft Touch Feel: Ideal for consumer products requiring comfort and grip.
3. Lightweight: Generally lighter than TPU.
4. Chemical Resistance: Good against weak acids and bases, but not as strong as TPU.
5. Temperature Range: Performs well in moderate temperature environments.
1. Excellent for overmolding with rigid plastics like ABS,PP or PC.
2. Easy to process with shorter cycle times.
3. Cost-effective compared to TPU.
4. Offers a wide hardness range (measured in Shore A and Shore D).
TPU (Thermoplastic Polyurethane) is a specific type of TPE with enhanced mechanical strength, durability, and resistance to abrasion. It is often chosen for demanding applications where toughness and long service life are critical.
Name1
Name2
1. Superior Durability: High resistance to abrasion, tearing, and wear.
2. High Elasticity: Maintains flexibility even in cold conditions.
3. Excellent Chemical Resistance: Resistant to oils, fuels, and many solvents.

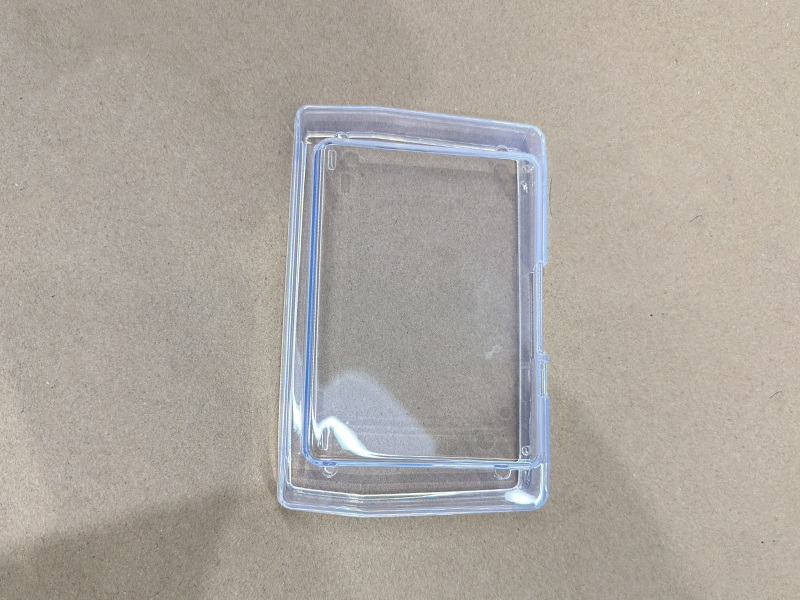

4. Transparency: Available in clear grades, ideal for aesthetic parts.
5. Temperature Performance: Better heat resistance compared to standard TPE.
1. Stronger mechanical properties for long-lasting parts.
2. Excellent load-bearing capacity.
3. Superior performance in harsh industrial environments.
4. Maintains flexibility across a wider temperature range.
TPE：In TPE injection molding, It is more economical due to its lower material price, faster cycle times, and easier processing—ideal for large-volume, cost-sensitive projects.
TPU: In TPU injection molding, the cost is higher due to longer cycles and precise processing requirements, but durability and resistance make it a smarter choice for high-performance parts where long service life offsets the initial expense.
TPE: Best for strong adhesion with ABS, PC, and PP, widely used in consumer product designs.
TPU: More suitable for overmolding with Nylon (PA6, PA66), but may need primers or surface treatment for reliable bonding.
TPE: TPE injection moulding is ideal when soft-touch comfort and ergonomics are key, such as in handles, grips, and other consumer goods.
TPU: TPU injection moulding is preferred for parts exposed to harsh environments, chemicals, or heavy wear, ensuring superior durability and long service life.
Automotive:
TPE is widely used for seals, gaskets, interior trim, and dust covers, offering comfort and flexibility. TPU is preferred for bushings, dampers, protective films, cable sheaths, and under-the-hood components that demand durability and chemical resistance.
Medical:
TPE is suitable for disposable tubing, grips, syringe seals, and flexible connectors, where cost efficiency and comfort matter. TPU is chosen for long-term implants, catheters, medical device housings, and durable tubing requiring biocompatibility and long service life.
Consumer Goods:

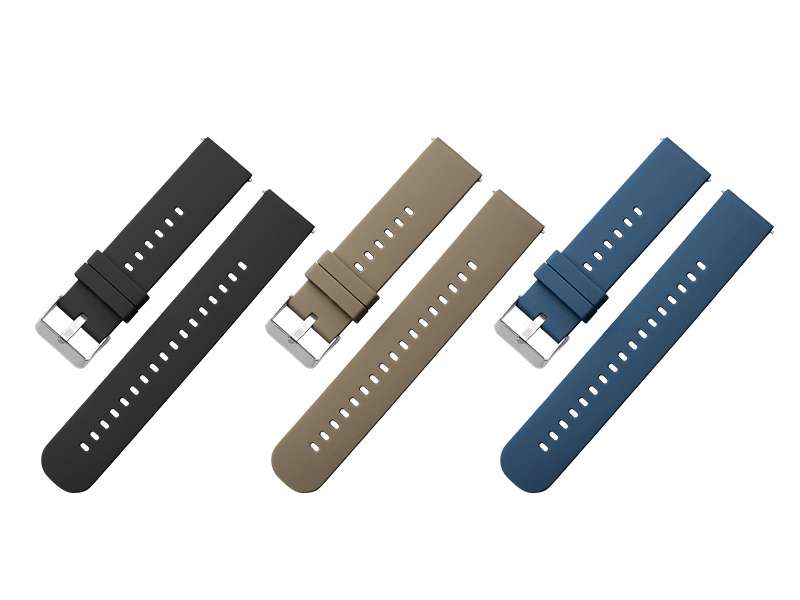

TPE works well in soft-touch grips, kitchen utensils, toothbrush handles, toys, and cosmetic packaging. TPU is applied in phone cases, sports gear, footwear soles, watch straps, and protective covers for its abrasion resistance.
Industrial:
TPE is effective in light-duty seals, grommets, vibration pads, and cable gaskets. TPU is best for heavy-duty hoses, rollers, conveyor belts, wheels, and cable jackets used in demanding environments.
When choosing TPE or TPU for injection molding, part design and processing parameters play a crucial role in achieving high-quality results. Both materials are flexible thermoplastics, but they behave differently under molding conditions. Understanding these nuances helps prevent common defects and ensures stable mass production.
Uniformity is critical: Flexible materials like TPE and TPU are prone to shrinkage variations. Uneven wall thickness can cause warping, sink marks, and poor dimensional stability.
Recommended range: For TPE injection molding, wall thickness typically ranges from 1.0 mm to 4.0 mm, while TPU parts often require slightly thicker walls (1.5 mm to 6.0 mm) due to their higher density and stiffness.
Thin walls: TPU is more difficult to fill in very thin-wall applications; optimized gating and higher injection pressures are often necessary.
Ejection considerations: Both TPE and TPU are softer than rigid plastics, but their flexibility can make demolding tricky. Insufficient draft may lead to drag marks, tearing, or deformation during ejection.
Guidelines: A minimum draft angle of 1–2° is recommended for TPE, while 2–3° or more is advisable for TPU due to its higher friction against mold surfaces.
Surface finish factor: For textured surfaces, additional draft (up to 5°) may be necessary to ensure smooth part release.
TPE cooling: Due to lower density and melt viscosity, TPE cools faster, resulting in shorter cycle times and higher productivity.
TPU cooling: Requires longer cooling due to its higher hardness and crystallinity. This can increase cycle times but ensures better dimensional stability and durability.
Optimization: Using conformal cooling channels in the mold design can significantly reduce cycle time for TPU injection molding.
TPE: Works well with cold runner systems, especially for smaller consumer products.
TPU: Performs better with hot runner systems to maintain consistent melt flow and reduce material waste.
Gate type: Submarine gates or edge gates are often used for TPE, while TPU may require larger gates to minimize shear stress.
TPE overmolding: TPE is highly compatible with rigid plastics like ABS, PC, and PP, offering excellent chemical bonding and adhesion. This makes it the preferred choice for soft-touch grips, gaskets, and handles.
TPU overmolding: TPU can also be overmolded, but it requires surface preparation or primers for strong adhesion, especially when used with engineering plastics like Nylon (PA6, PA66).
Design tip: Incorporating mechanical interlocks in the mold design enhances bond strength and prevents delamination.
TPE shrinkage: Typically ranges from 0.5% to 1.5%, depending on grade and part geometry.
TPU shrinkage: Slightly lower, around 0.4% to 1.2%, but it has better dimensional stability over time.
Tolerance considerations: For high-precision parts (e.g., medical devices, automotive seals), TPU provides more consistent tolerances compared to TPE.
TPE processing: Typically requires lower melt temperatures (180–240°C) and mold temperatures around 20–40°C, allowing for shorter cycles and easier processing.
TPU processing: Needs higher melt temperatures (200–260°C) and mold temperatures up to 60°C to achieve optimal flow and mechanical performance. Incorrect temperature control can cause burn marks, poor surface finish, or incomplete filling.
Moisture sensitivity: TPU is hygroscopic and must be dried before molding (80–100°C for 3–4 hours), while TPE generally has lower moisture absorption
At Alpine Mold, we understand that selecting the right material is only the first step. Our engineering team provides:
Material testing and validation to recommend whether TPE or TPU is more suitable for your specific project.
DFM (Design for Manufacturability) reports to optimize part geometry, draft, wall thickness, and gating.
Mold Flow analysis to simulate injection, cooling, and packing phases, ensuring defect-free production.
Precision tooling with advanced CNC and EDM equipment, combined with Zeiss CMM inspection, to guarantee tight tolerances for both soft and rigid plastic parts.
Injection molding services that transform your design into high-quality parts, from rapid prototyping to full-scale production.
By carefully balancing design factors, processing parameters, and customer requirements, Alpine Mold ensures that every TPE or TPU injection molded part meets the highest standards of performance, cost-efficiency, and durability.
Both TPE and TPU are excellent choices for flexible injection molded parts, but they serve different purposes:
l Choose TPE if you need a cost-effective, flexible, and soft-touch solution for consumer products or moderate-duty parts.
l Choose TPU if your project requires extreme durability, chemical resistance, and long-term performance under harsh conditions.
