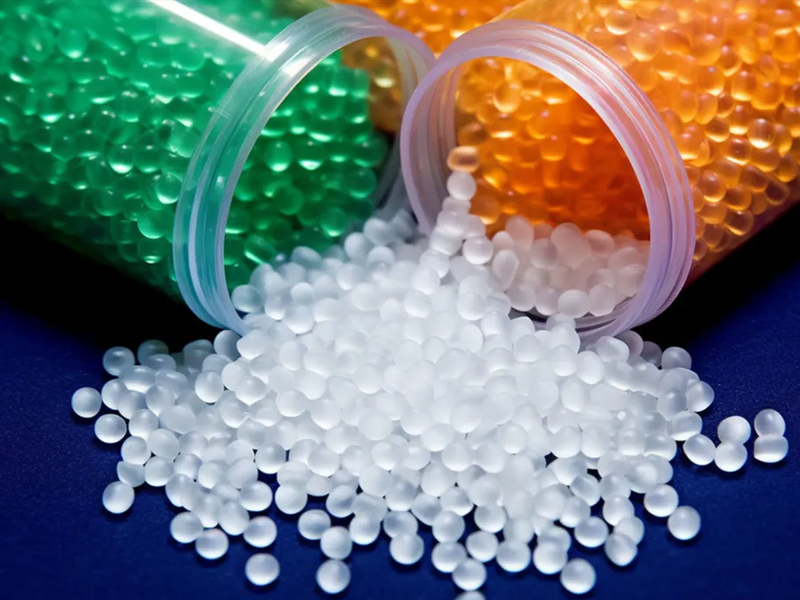

TPE (Thermoplastic Elastomer) is a class of polymer materials that combines the elasticity of rubber with the processability of thermoplastics. Structurally, TPE features both “hard segments” for rigidity and “soft segments” for flexibility and elasticity. Due to its unique molecular architecture, TPE supports high-efficiency thermoplastic elastomer injection molding, including injection molding, extrusion, and blow molding.
 |  |  |
Core Advantages:
Reprocessability: 100% recyclable scrap materials.
Design Flexibility:Tunable hardness (Shore A0 to Shore D 60), weather resistance, and transparency.
Eco-Friendly: Free of plasticizers and vulcanization processes (unlike PVC or rubber).
Efficiency: Molding cycle time reduced by 30%–50% compared to rubber.

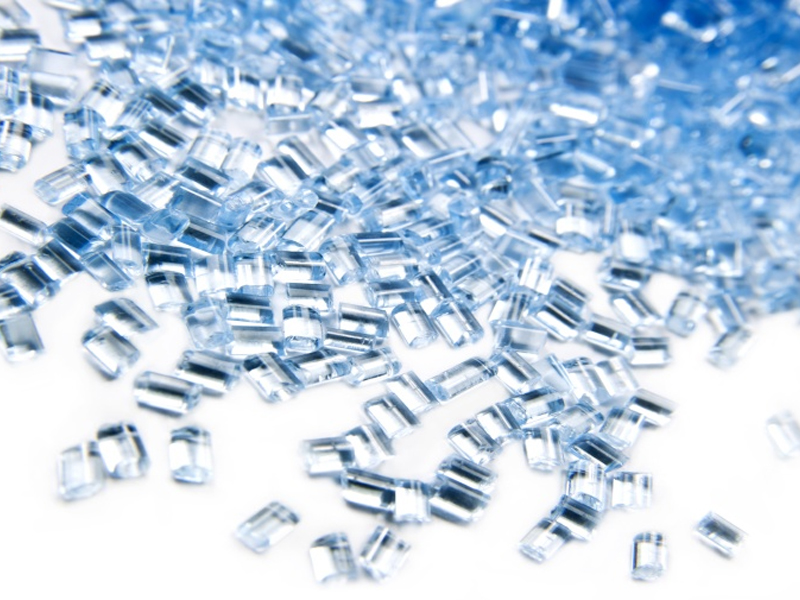

Main Types and Applications of Thermoplastic Elastomer TPE:
Type | Chemical Base | Typical Applications | Key Advantages |
TPS (SBCs) | Styrene-Butadiene Copolymer | Soles,grips,toys | High transparency, low cost |
TPU | Polyurethane | Automotive seals, phone cases | Abrasion resistance, mechanical strength |
TPO | Polyolefin blend | Bumpers, waterproofing membranes | Low density, weather resistance |
TPV | EPDM/PP | Pipe seals, industrial parts | Heat resistance (130°C), compression set |
TPC | Polyester elastomer | Hydraulic tubes, sports gea | Oil resistance, high resilience |
TPE materials offer excellent elasticity, cold resistance, weatherability, and can bond with substrates such as PP, ABS, and PC. These features make them ideal for automotive parts, cables, consumer goods, medical devices, sports equipment, and tools.

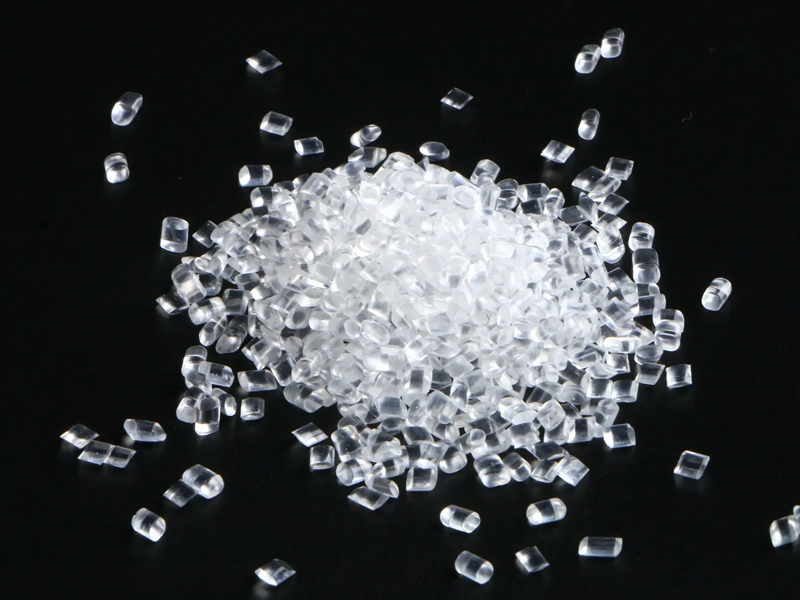

2.1 Raw Material Preparation
Material Selection: Choose appropriate TPE grade to meet performance needs.
Drying: Ensure moisture-free material to avoid bubbles.
Compounding/Coloring: Add additives or color masterbatches if needed.

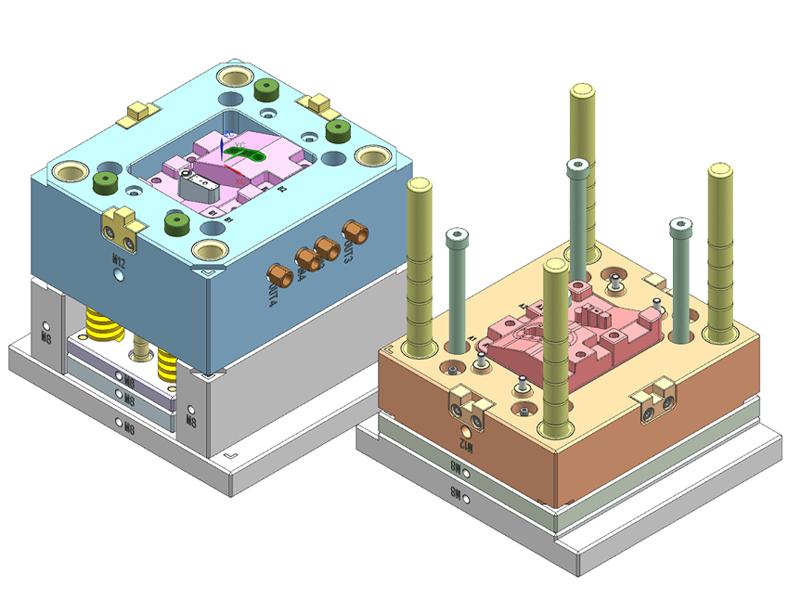

2.2 TPE Injection Mold Design and Installation
A critical step in tpe injection molding, mold design must consider shrinkage rate, flowability, and demolding properties. Smooth cavity surfaces help prevent surface defects. Preheating and cleaning ensure optimal mold temperature and performance.
2.3 Injection Machine Setup
Typical processing temperature ranges from 170°C to 230°C. Set temperature, pressure, and speed according to material and part geometry. Mold clamping force and injection speed should also be customized per design.
2.4 Injection Molding Operation
TPE pellets are fed into the hopper, plasticized by the screw, then injected into the mold under high pressure. The material quickly cools and solidifies into the final shape. Critical factors include injection time, holding pressure, and cooling duration.

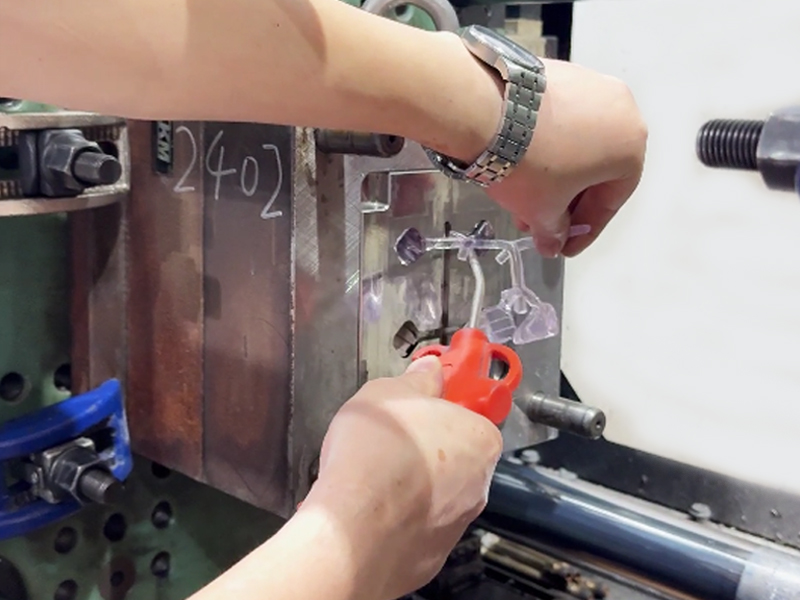

2.5 Demolding and Post-Processing
After cooling, the mold opens and parts are ejected. Care must be taken to avoid deformation or damage. Precision parts may need secondary processes such as trimming or cleaning.
2.6 Quality Inspection
Parts are inspected for dimensions, appearance, and performance. Qualified parts proceed to packaging; defective ones are reprocessed or scrapped — showcasing the recyclability aspect of thermoplastic elastomer injection molding.
The setting of TPE injection molding process parameters directly impacts both injection product quality and production efficiency. Based on the characteristics of TPE materials and the specific requirements of injection molded parts, the following outlines key processing parameters along with critical control points to ensure optimal performance in thermoplastic elastomer injection molding.
Injection Temperature
Injection temperature is a critical parameter in the TPE injection molding process, as it directly influences the flow behavior and bonding quality of the material. Typically, the optimal injection temperature for TPE ranges between 170°C and 230°C. The exact setting should be adjusted based on the specific TPE type (such as SBS, SEBS, or TPU), as well as the structural complexity and wall thickness of the part.
If the temperature is too low: The material may not bond properly, resulting in surface roughness, incomplete filling, or internal defects.
If the temperature is too high: It can cause issues such as material delamination, discoloration, or air bubbles.
To ensure stability, heating zones (front, middle, and rear of the barrel) should be carefully adjusted according to the catalyst behavior and material formulation. This is especially important for thermoplastic elastomer injection molding where precise thermal control leads to better part consistency and reduced cycle time.
Injection Pressure
Injection pressure plays a vital role in determining the material flow and mold cavity filling effectiveness during tpe injection molding. Standard pressure settings typically range from 20 to 120 MPa, but the optimal value should be defined by the part geometry, material viscosity, and tpe injection mold design.
If the pressure is too low: The mold may not fill completely, leading to short shots, voids, or incomplete features.
If the pressure is too high: It may cause flash, damage the mold, or introduce excessive internal stress to the finished part.
Injection Speed
Injection speed significantly affects the flow behavior of TPE materials within the mold cavity during the TPE injection molding process. For thin-walled parts or components with complex geometries, a higher injection speed (typically between 60–120 mm/s) is recommended to ensure rapid and complete mold filling. In contrast, for thick-walled products or high-precision parts, a slower injection speed can help prevent air entrapment, flow marks, or weld lines.
The injection speed must be flexibly adjusted based on the tpe injection mold design, gate layout, and product-specific requirements. For tpe injection molding manufacturers, fine-tuning the injection velocity is a critical step in improving product quality and repeatability, as outlined in every reliable tpe injection molding guide.
Mold Temperature
Mold temperature plays a key role in determining surface finish quality and dimensional stability in TPE injection molding. The recommended mold temperature typically ranges from 20°C to 80°C, depending on the TPE material grade and final product requirements.
If the mold temperature is too low: It can lead to visible flow marks, insufficient gloss, or incomplete filling.
If the mold temperature is too high: It may extend the cooling time, reduce production efficiency, and even cause part deformation.
Holding Time
Holding time refers to the period during which pressure is maintained after injection to compensate for material shrinkage as it cools. In the TPE injection molding process, typical holding times range from 5 to 20 seconds, depending on part thickness and the cooling capacity of the mold.
If the holding time is too short: The product may exhibit shrinkage defects or insufficient packing.
If the holding time is too long: It may increase internal stress and dimensional deviation.
Cooling Time
Cooling time has a direct impact on demolding performance and dimensional stability in tpe injection molding. A standard cooling time falls between 10 and 30 seconds, depending on part geometry, wall thickness, and mold cooling efficiency.
Extending cooling time appropriately: Can enhance part strength and surface quality.
Excessively long cooling times: Will reduce production efficiency and increase cycle time.
Screw Speed and Back Pressure
Screw speed and back pressure play a vital role in the material’s melting consistency and mixing quality during the TPE injection molding process. Recommended screw rotation speed is between 20–80 rpm, and back pressure typically ranges from 5 to 15 MPa.
If the screw speed is too high or the back pressure too low: It may result in poor melt uniformity, trapped air bubbles, or degraded mechanical performance.
If the screw speed is too low or the back pressure too high: It may prolong plasticizing time and reduce overall production efficiency.
Shrinkage Rate Control
TPE parts typically exhibit a molding shrinkage rate between 1.0% and 3.0%, depending on the material formulation and tpe injection mold design. Accurate control of processing parameters—such as mold temperature and holding time—can effectively reduce shrinkage and improve dimensional precision.
In tpe injection molding, minimizing shrinkage is critical for ensuring part consistency, especially in applications requiring tight tolerances. This is why tpe injection molding manufacturers pay close attention to shrinkage control strategies as part of their broader thermoplastic elastomer injection molding optimization efforts.
Issue | Cause | Solution |
Short shot | Low speed/pressure, poor venting | Increase pressure/speed, optimize gate/vent design |
Surface defects | Wet raw material, poor temperature control | Dry resin, adjust settings, improve venting |
Sink marks/voids | Low holding pressure/time | Increase holding, improve cooling |
Flash | Excessive pressure, poor mold fit | Lower pressure, adjust mold alignment |
Ejection difficulty | Poor draft angle, rough cavity | Polish mold, increase draft, use release agents |
Overmolding issues | Poor substrate compatibility or prep | Clean base part, raise overmolding temp, choose compatible materials |
5.1 Application Fields of TPE Injection Molding
Thanks to its outstanding elasticity, flexibility, and processability, TPE has become a preferred material across multiple industries. When combined with the TPE injection molding process, these materials enable high-performance parts that meet the requirements of modern product design and manufacturing.
Automotive Industry
TPE injection molding is widely used in the automotive sector due to the material's lightweight properties, weather resistance, and chemical durability. Typical applications include interior seals, cushions, dashboard coatings, wheel arch liners, and floor mats — all of which demand a balance of comfort, strength, and reliability.
Consumer Electronics
In electronics and household appliances, thermoplastic elastomer injection molding is used to produce cable jackets, headphone wires, mobile phone cases, and anti-slip pads. The excellent wear resistance and softness of TPE enhance both product functionality and user experience.
Medical Devices
The non-toxic, heat-resistant, and sterilizable nature of TPE makes it an ideal material for medical applications. Through tpe injection molding, manufacturers can create syringe seals, IV tubes, surgical instrument grips, and other critical medical components with high precision and hygiene standards.
Household Products & Packaging
TPE’s soft-touch feel and moldability make it a go-to choice for handles, grips, sports gear, and food packaging. Its compatibility with various pigments and transparency levels enables tpe injection molding manufacturers to develop highly customized, market-specific products.
Industrial & Construction Applications
In construction and industrial sectors, TPE is used for shock-absorbing pads, seals, protective pipe covers, and other technical components. Its excellent fatigue resistance and durability make it suitable for demanding environments — all enabled through optimized tpe injection molding guide techniques.
5.2 Development Trends in TPE Injection Molding
With ongoing advances in materials science and smart manufacturing, TPE injection molding is evolving to meet increasingly complex market demands. The following trends highlight the future direction of this versatile process:
Sustainability and Recycling
Environmental regulations are driving the need for recyclable and eco-friendly materials. TPE stands out due to its 100% recyclability. Waste from the tpe injection molding process can be reprocessed and reused, reducing material loss and environmental impact. This makes TPE an essential material for sustainable production, especially for forward-thinking tpe injection molding manufacturers.
Lightweight Design
As industries such as automotive and aerospace push for lightweight solutions, TPE materials are gaining popularity due to their low density and ability to replace metal or thermoset components. With proper tpe injection mold design, manufacturers can produce lightweight yet high-performance parts, supporting energy efficiency and innovation.
Multi-Material Overmolding
The ability to overmold TPE onto substrates like PP or ABS allows for multifunctional product designs. Through advanced tpe injection molding process setups, manufacturers can achieve structural strength from rigid plastics while adding softness, grip, or waterproof properties through TPE — a key benefit promoted in modern tpe injection molding guide literature.
Automation and Smart Injection Molding
With the rise of Industry 4.0, automation in thermoplastic elastomer injection molding is becoming standard. Digital control of temperature, pressure, and cycle time enables precise, repeatable results. This transformation allows tpe injection molding manufacturers to scale production while maintaining exceptional product consistency.
Development of New TPE Materials
As material innovation continues, new TPE grades are being engineered to offer enhanced heat resistance, elasticity, and chemical durability. Specialty formulations are also emerging for niche markets like biomedical devices or biodegradable applications — broadening the scope of tpe injection molding across industries.
Customization and Personalization
Modern consumers demand more customized products. TPE injection molding technology is increasingly capable of supporting tailored solutions in color, hardness, surface texture, and functional performance. This flexibility makes TPE an ideal choice for meeting the unique needs of different markets and customer segments.
As material science and injection molding technologies continue to evolve, TPE injection molding is poised to unlock greater potential across high-end and technically demanding applications. At Alpine Mold, we specialize in delivering comprehensive mold manufacturing and molding solutions tailored to thermoplastic elastomer injection molding projects.
