When a plastic injection mold has deep ribs, narrow slots, sharp corners, or complex cavity details, CNC machining alone may not be enough. This is why electrical discharge machining, also known as EDM machining, is widely used. In this complete guide, we will explain what Electrical Discharge Machining (EDM) is, its main types, advantages, disadvantages, and common applications.
Table of Contents
1. What Is Electrical Discharge Machining? |
2. How Does Electrical Discharge Machining Work? |
3. What Are the Main Components of an EDM Machine? |
4. Main Types of Electrical Discharge Machining |
5. Advantages and Disadvantages of Electrical Discharge Machining |
6. Common Applications of Electrical Discharge Machining |
7. Conclusion |
8. FAQ |
Electrical discharge machining, or EDM, is a precision machining process that removes material from electrically conductive metals through controlled electrical sparks. Unlike traditional cutting methods, EDM machining does not use direct mechanical force or sharp cutting tools. Instead, a small gap is maintained between the electrode and the workpiece, and repeated electrical discharges gradually erode the metal into the required shape. Because the electrical discharge machining process can machine hardened steel, sharp corners, deep cavities, and complex details with high accuracy, it is widely used in mold making, precision tooling, automotive parts, medical components, and custom injection mold manufacturing. In simple terms, electric discharge machining is used when conventional CNC machining cannot easily reach, cut, or form certain detailed areas of a metal part or mold.
The electrical discharge machining process works by using controlled electrical sparks to remove material from a conductive workpiece. Unlike CNC machining, EDM does not cut the material with a physical tool. Instead, it creates repeated spark discharges between an electrode and the workpiece, gradually eroding the metal into the required shape.
During EDM machining, the electrode and the workpiece are placed in a dielectric fluid. A very small gap is kept between them, called the spark gap. When voltage is applied, electrical sparks jump across this gap. Each spark generates extremely high heat in a very small area, melting and vaporizing tiny amounts of metal from the workpiece surface.
The dielectric fluid plays an important role in the process. It helps control the discharge, cool the machining area, and flush away the removed metal particles. By controlling the discharge energy, spark gap, pulse duration, and flushing conditions, EDM can machine hard materials, sharp corners, deep slots, small holes, and complex shapes with high accuracy.
In simple terms, electric discharge machining works through these steps:
1. The electrode and conductive workpiece are set up in the EDM machine.
2. A small spark gap is maintained between them.
3. Controlled electrical pulses generate sparks.
4. The sparks erode tiny amounts of metal from the workpiece.
5. The dielectric fluid cools the area and removes debris.
6. The process repeats until the required shape or feature is completed.
Because there is no direct cutting force, EDM is especially useful for hard metals, delicate features, and areas that are difficult to machine with conventional cutting tools. In mold manufacturing, this makes EDM suitable for deep ribs, narrow grooves, sharp internal corners, and complex cavity details.
An electrical discharge machine, or EDM machine, is designed to control spark discharge, electrode movement, dielectric fluid, and machining accuracy. Although different types of EDM equipment may have different structures, most EDM machines include several key components that work together during the electrical discharge machining process.
The power supply is one of the most important parts of an EDM machine. It generates controlled electrical pulses between the electrode and the workpiece. These pulses create the sparks that remove material from the metal surface. By adjusting the discharge current, voltage, pulse duration, and pulse frequency, the machine can control machining speed, accuracy, and surface finish.
The electrode is the tool used to create the spark discharge. In sinker EDM, the electrode is usually made from copper or graphite and shaped according to the required cavity or feature. In wire electrical discharge machining, the electrode is a thin moving wire. The electrode does not touch the workpiece directly, but it plays a key role in forming the final shape.
The workpiece is the conductive material being machined. EDM can only process electrically conductive materials, such as hardened steel, tool steel, stainless steel, copper, aluminum, titanium, and carbide. During EDM machining, the workpiece is fixed on the machine table to ensure stability and accuracy.
The dielectric fluid is used to control the spark discharge, cool the machining area, and flush away small metal particles. In sinker EDM, the workpiece is usually submerged in dielectric oil. In wire EDM, deionized water is commonly used. A good dielectric fluid system helps improve machining stability, surface quality, and cutting accuracy.
The servo control system maintains the correct spark gap between the electrode and the workpiece. If the gap is too large, sparks may not occur properly. If the gap is too small, short circuits may happen. The servo system automatically adjusts the electrode position to keep the discharge stable during the EDM machining process.
Modern EDM machines usually use a CNC control system to manage machining paths, electrode movement, cutting parameters, and process stability. This allows the machine to produce complex shapes, precise profiles, deep features, and tight-tolerance components with better repeatability.
During EDM, tiny metal particles are removed from the workpiece surface. The flushing and filtration system removes these particles from the machining area and keeps the dielectric fluid clean. Proper flushing helps prevent unstable discharge, short circuits, poor surface finish, and reduced machining accuracy.
Overall, the main components of an EDM machine include the power supply, electrode, workpiece, dielectric fluid system, servo control system, CNC control system, and flushing system. Each component affects the final machining result, including accuracy, surface finish, processing speed, and overall EDM stability.
There are several types of electric discharge machining, but the most common ones are sinker EDM, wire electrical discharge machining, and EDM drilling. Each EDM method uses electrical sparks to remove material, but the machining principle, tool form, and application are different. Choosing the right EDM process depends on the workpiece shape, material hardness, tolerance requirement, and final surface quality.

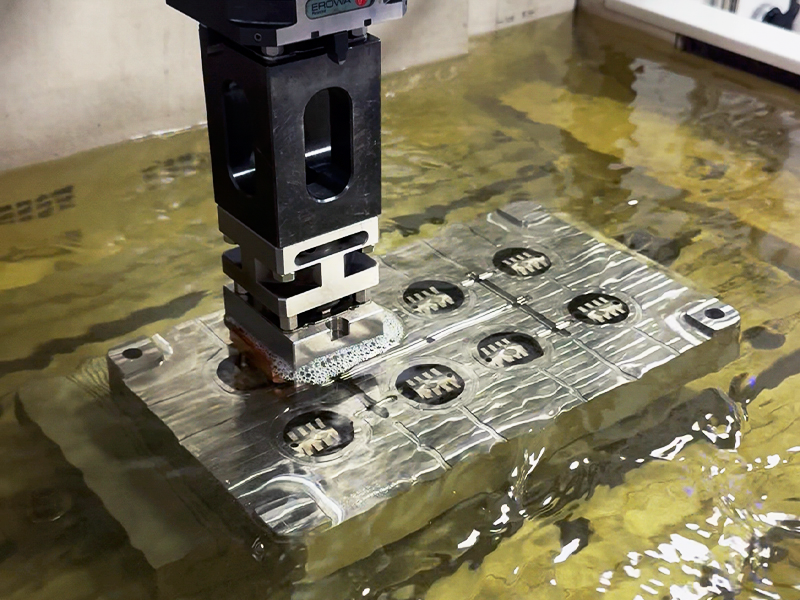

Sinker EDM, also called die sinking EDM or ram EDM, uses a shaped electrode to create a matching shape in the workpiece. The electrode is usually made from copper or graphite. During the electrical discharge machining process, sparks occur between the electrode and the metal workpiece, gradually removing material and forming the required cavity or feature.
This type of EDM machining is commonly used for complex cavities, blind holes, deep slots, sharp internal corners, and hard-to-reach areas. In mold manufacturing, sinker EDM is often used for mold cavities, deep ribs, and detailed features that are difficult to machine with CNC tools.

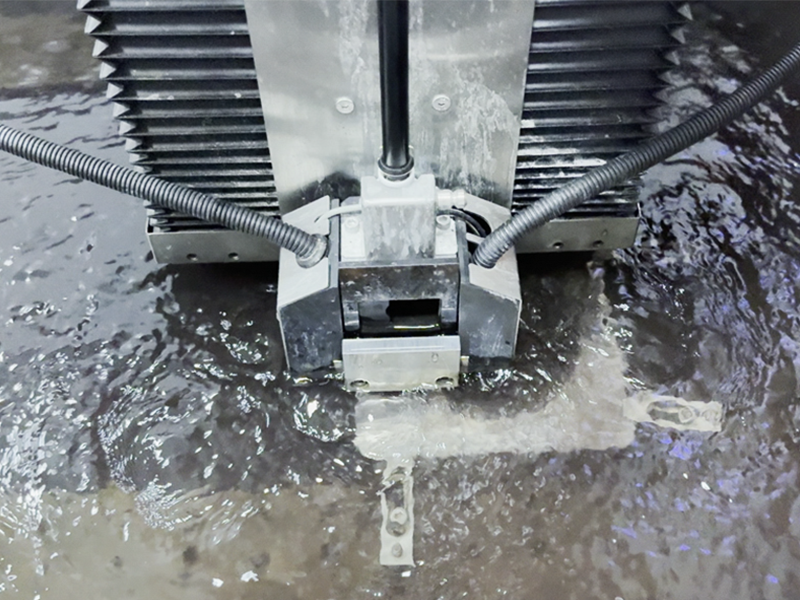

Wire electrical discharge machining, also known as wire EDM or wire cut EDM, uses a thin moving wire as the electrode to cut conductive materials along a programmed path. The wire does not touch the workpiece directly. Instead, controlled sparks cut the material with high precision.
Wire EDM is suitable for cutting precise profiles, contours, punches, dies, plates, gears, inserts, and other complex shapes. It is widely used in precision tooling, aerospace, automotive, medical components, and mold parts. Compared with sinker EDM, wire EDM is better for cutting through-shapes and high-accuracy profiles.
EDM drilling, also known as small hole EDM or fast hole EDM, is mainly used to produce small holes, deep holes, and high-aspect-ratio holes in conductive materials. It is especially useful when traditional drilling is difficult because of material hardness, hole depth, or small hole diameter.
This process is commonly used for cooling holes, start holes for wire EDM, turbine components, precision tooling, and small holes in hard metals. In injection mold manufacturing, EDM drilling may also be used for small cooling channels, venting holes, or start holes before wire cutting.
Overall, each electric discharge machining method has its own advantages. Sinker EDM is suitable for cavities and complex 3D features, wire EDM is ideal for precise profile cutting, and EDM drilling is mainly used for small and deep holes. In many precision manufacturing projects, different EDM processes are used together to achieve the required accuracy, shape, and surface quality.
Like any manufacturing process, electrical discharge machining has both advantages and limitations. If you are working with hard materials, complex shapes, tight tolerances, or delicate features, EDM machining can be a very effective solution. However, it is not always the fastest or most cost-effective choice for every part. Understanding the advantages and disadvantages of the electrical discharge machining process can help you decide whether EDM is suitable for your project.
One of the main advantages of electric discharge machining is that it can machine very hard conductive materials. Materials such as hardened steel, tool steel, titanium, carbide, and stainless steel can be difficult to cut with traditional tools, especially after heat treatment. EDM can process these materials accurately because it removes material through spark erosion instead of mechanical cutting.
Another important benefit is that EDM produces almost no direct cutting force. Since the electrode and workpiece do not physically contact each other, the process is suitable for thin walls, delicate features, small components, and precision parts that may deform under normal cutting pressure. If your part or tooling component has fragile details, EDM can help reduce the risk of deformation during machining.
EDM machining is also useful when your design includes complex shapes that are difficult to produce with conventional machining. Sharp internal corners, deep slots, narrow grooves, small holes, and complex cavities can often be machined more effectively by EDM. In injection mold manufacturing, for example, EDM is commonly used for deep ribs, detailed cavities, sliders, lifters, and hard-to-reach mold areas.
The main advantages include:
Suitable for hard conductive materials
No direct cutting force on the workpiece
Good for complex shapes and fine details
Can machine sharp internal corners and deep features
Suitable for high-precision parts and tooling
Can process hardened materials after heat treatment
Helps reduce deformation risk on delicate components
Although EDM has many benefits, it also has some limitations. The first limitation is that electrical discharge machining can only be used on electrically conductive materials. If your part is made from non-conductive materials such as most plastics, rubber, glass, or ceramics, standard EDM processes will not be suitable.
Another disadvantage is machining speed. EDM is usually slower than CNC milling or turning when removing large amounts of material. If your part has a simple structure and can be machined efficiently by CNC, EDM may not be necessary. In many projects, CNC machining is used first to remove most of the material, and EDM is then used for fine details, sharp corners, or hard-to-machine areas.
For sinker EDM, electrode design and electrode manufacturing are also required. The electrode is usually made from copper or graphite, and its quality directly affects the final machining accuracy and surface finish. This means EDM may add extra preparation time and cost to your project.
Surface finish is another factor you need to consider. EDM can produce accurate shapes, but rough EDM parameters may leave spark marks on the surface. If your part or mold has high appearance requirements, additional finishing, polishing, or texture treatment may be needed after EDM machining.
The main disadvantages include:
Only suitable for conductive materials
Slower than CNC for large material removal
Electrode design and manufacturing may increase cost
Electrode wear must be controlled carefully
EDM surfaces may require polishing or secondary finishing
Not ideal for simple parts that can be machined faster by CNC
Overall, electrical discharge machining is not designed to replace CNC machining completely. Instead, EDM is usually used together with CNC, grinding, wire cutting, polishing, and other manufacturing processes. If your project involves hard materials, complex geometry, sharp details, or high precision requirements, EDM can provide a reliable and accurate machining solution.
Electrical discharge machining is widely used for conductive materials that are difficult to machine with conventional cutting methods, especially when the part has complex geometry, hardened steel, deep cavities, narrow slots, sharp corners, small holes, or high-precision details. Common electric discharge machining applications include injection mold manufacturing, tool and die making, aerospace, automotive, medical devices, electronics, and precision component manufacturing.
In plastic injection mold manufacturing, EDM machining is commonly used to produce mold details that are difficult to machine accurately by CNC alone. These areas often include deep ribs, narrow slots, sharp internal corners, small inserts, complex cavities, gate areas, sliders, lifters, and undercut structures.
For plastic parts with complex internal features, CNC tools may not be able to reach certain areas, or the tool diameter may be too large to create sharp details. In this case, the electrical discharge machining process helps achieve better precision, sharper details, and more accurate mold fitting.
EDM also helps reduce common molding risks such as poor demolding, flash, surface defects, unstable dimensions, and repeated mold modifications after trial production. For high-precision injection molds, EDM is not only a machining method, but also an important process that affects final part quality and long-term production stability.
Besides injection mold manufacturing, EDM is also widely used in many precision industries:
Industry |
Common EDM Applications |
Why EDM Is Used |
Tool and Die Manufacturing |
Stamping dies, punching dies, extrusion dies, die cavities |
To machine hardened steel, sharp edges, and complex profiles |
Aerospace |
Turbine parts, cooling holes, titanium parts, nickel alloy components |
To process hard and heat-resistant materials with high precision |
Automotive |
Fuel injector components, gears, valve parts, precision tooling |
To create accurate details and complex metal features |
Medical Devices |
Surgical tools, implants, micro components, precision instruments |
To machine small and precise features with tight tolerances |
Electronics |
Connectors, sensor components, precision metal parts |
To produce fine slots, small details, and repeatable dimensions |
Precision Components |
Small holes, deep holes, thin slots, complex contours |
To achieve high accuracy in hard conductive materials |
Overall, EDM is most valuable when your project requires high precision, hard material machining, complex geometry, or features that are difficult to produce with standard CNC machining. This is why electrical discharge machining is widely used in modern manufacturing, especially for molds, dies, aerospace parts, automotive tooling, medical components, and precision metal parts.
Electrical discharge machining is a valuable precision machining process that uses controlled electrical sparks to machine hard conductive materials, complex shapes, sharp internal corners, deep slots, small holes, and tight-tolerance features. By understanding what EDM is, how the electrical discharge machining process works, the main components of an EDM machine, and its common applications, you can better evaluate when EDM machining is suitable for your project.
At Alpine Mold, EDM is an important part of our custom mold manufacturing process. We use EDM machining together with CNC machining, wire cutting, polishing, mold fitting, and mold trial to produce accurate mold cavities, inserts, sliders, lifters, and complex mold details. If your plastic part requires a high-precision injection mold with complex structures or tight requirements, our team can review your 3D drawings and provide a suitable mold solution.
EDM can machine electrically conductive materials, such as hardened steel, tool steel, stainless steel, copper, aluminum, titanium, nickel alloys, and carbide. Standard EDM cannot machine non-conductive materials such as most plastics, rubber, glass, or ceramics.
CNC machining removes material with cutting tools, while EDM machining removes material through spark erosion. CNC is usually faster for rough machining and simple shapes, while EDM is better for hard materials, sharp corners, deep slots, complex cavities, and areas that cutting tools cannot easily reach.
EDM machining can be more expensive than conventional machining in some cases because it may require electrode design, electrode manufacturing, slower processing time, and additional finishing. However, if your part has hard materials, complex geometry, or high-precision requirements, EDM can be a necessary and cost-effective solution for achieving the required result.
Yes. EDM machining is a highly accurate process because it removes material through controlled electrical sparks instead of direct cutting force. It is suitable for sharp internal corners, fine details, complex profiles, and tight-tolerance features, especially when conventional CNC tools cannot easily reach the machining area.
The accuracy of electrical discharge machining depends on the EDM machine, electrode quality, material, discharge parameters, flushing condition, and inspection control. In well-controlled precision machining, EDM can often achieve tight tolerances around ±0.005 mm to ±0.01 mm for mold inserts, cavities, and precision tooling components. For higher accuracy requirements, fine EDM settings, stable temperature, and careful quality inspection are necessary.
You should use electrical discharge machining when your part requires hard conductive material machining, deep slots, narrow grooves, sharp corners, small holes, complex cavities, or high-precision details. EDM is especially useful when CNC machining alone cannot produce the required shape, accuracy, or surface quality. In mold manufacturing, EDM is commonly used for deep ribs, cavity details, sliders, lifters, inserts, and other hard-to-machine areas.
